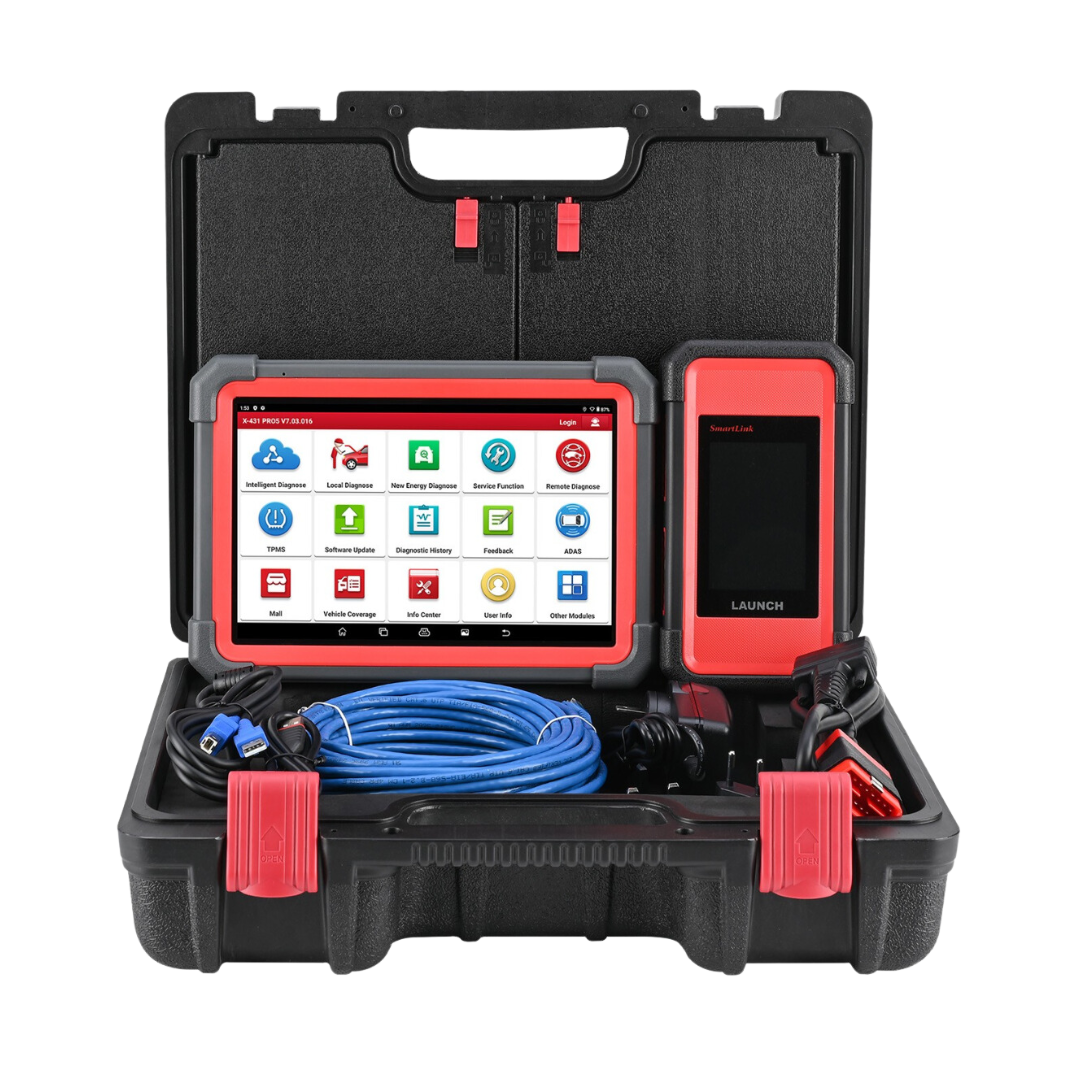

Launch X431 Pro 5 Diagnostic Scan Tool 12/24V with Truck Software
Description
Description
The Launch X431 Pro 5 with Truck Software is a professional 12/24V diagnostic tablet covering light vehicles and 100+ commercial truck brands from a single platform. Built on Android 10 with an 8-core processor, 4GB RAM, and 64GB storage, it supports bi-directional control, ECU coding, 50+ service functions, and J2534 ECU programming via the Smartlink C VCI. Australian software is included as standard.
The truck software and full heavy duty adapter kit are included — covering commercial trucks, buses, and off-highway equipment on 24V systems.
Key Features
- Full system diagnostics across 110+ light vehicle brands
- 24V heavy duty truck software included — covers 100+ commercial vehicle brands
- Bi-directional / active test control
- J2534 Smartlink C VCI for ECU programming
- ECU coding for BMW and Mercedes-Benz
- VAG guided functions
- 50+ service and maintenance functions
- FCA AutoAuth access — AutoAuth subscription or FCA cables required
- Topology mapping — full module overview in one screen
- AutoVIN and AutoScan for fast vehicle identification
- Two years free software updates for 12V software, one year free for 24V software
- Wi-Fi and Bluetooth 5.0
- Remote diagnostics between workshops
- Multi-language support
50+ Service and Maintenance Functions
- Oil and service light reset
- Brake reset (EPB)
- Brake bleeding (ABS)
- Steering angle sensor (SAS) calibration
- Battery matching (BMS)
- Electric throttle relearn
- TPMS reset
- DPF regeneration
- Injector coding
- Auto gearbox adaptation
- Crankshaft position relearn
- Adaptive front lighting reset (AFS)
- Suspension height setting
- Sunroof reset
- Immobiliser
- And additional functions depending on vehicle make and model
Live Data
- Display up to 12 data streams simultaneously
- Overlay up to 4 data streams for side-by-side comparison
- View actual values against standard values
- Record data during testing for later review
- Generate diagnostic reports — save as screenshot or PDF, print or share
Specifications
| Screen | 10.1" 1,920 x 1,200 Full HD IPS |
| CPU | 1.8GHz octa-core |
| OS | Android 10.0 |
| RAM | 4 GB |
| Storage | 64 GB + 32 GB micro SD (expandable to 128 GB) |
| Battery | 7,000 mAh |
| Wi-Fi | 2.4 GHz and 5 GHz |
| Front Camera | 5 MP |
| Rear Camera | 8 MP |
Smartlink C VCI
| CPU | 120 MHz |
| Power Consumption | 3W |
| Working Voltage | DC 9–36V |
| Working Temp | -10°C to 50°C |
| Communication | USB, Wi-Fi, Bluetooth 5.0 |
| Dimensions | 204 x 110 x 45 mm |

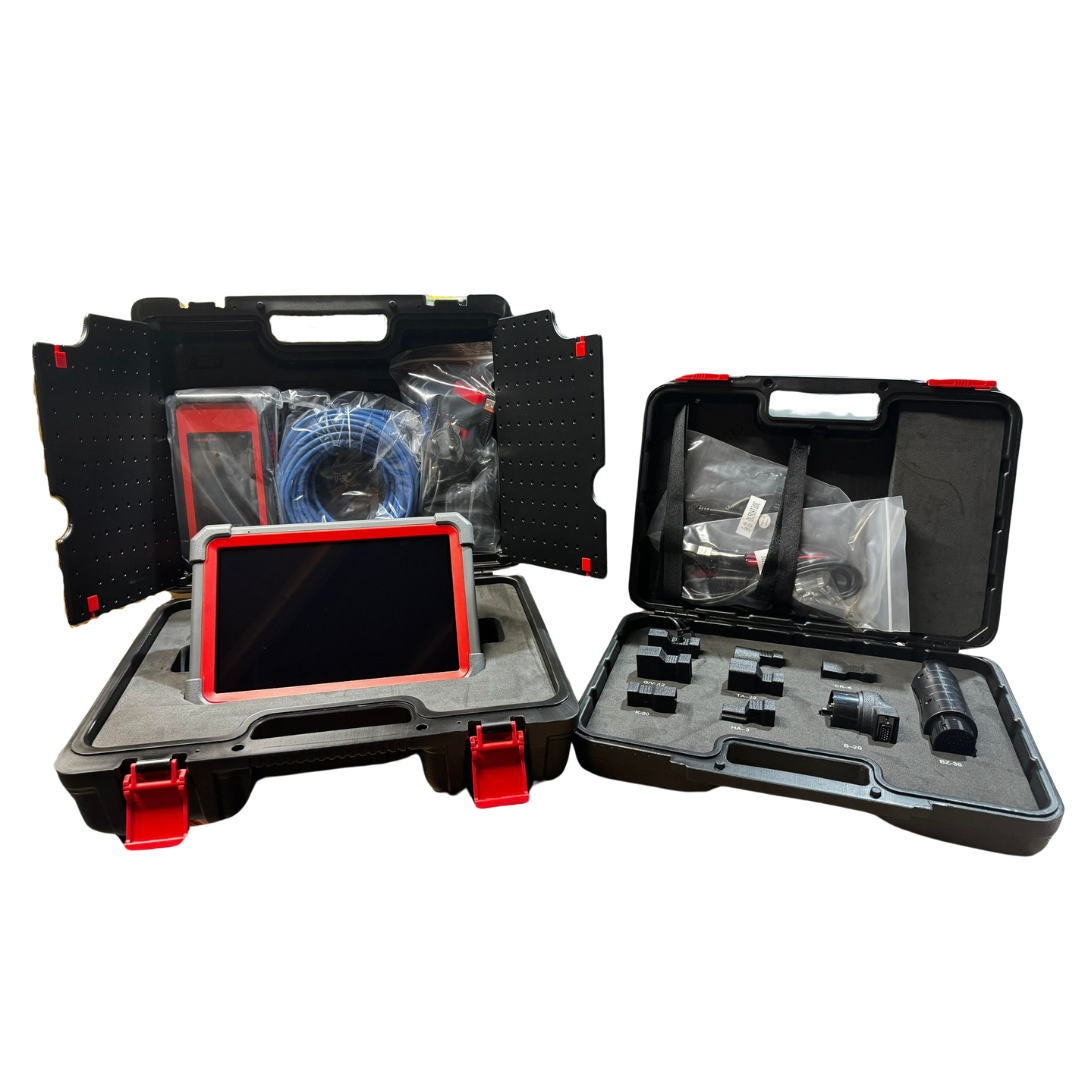

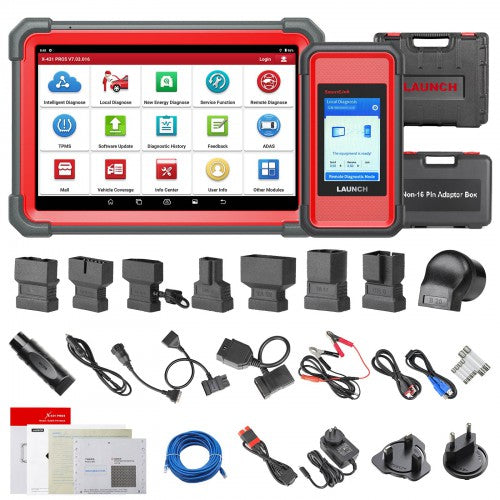

Kit Includes
Main Light Vehicle Kit
- Launch X431 Pro 5 tablet
- Smartlink C VCI interface
- OBD-II main diagnostic cable
- USB charging cable
- AC power adapter
- OBD1 adapter set
- Carry case
- Password and activation envelope
- User documentation
Heavy Duty Truck Adapter Kit
- HD15F to OBD-II 16-pin diagnostic connector
- CAT-9 adapter
- Volvo-8 adapter
- OBD-16 adapter
- Type II OBD-9 adapter
- OBD-6 adapter
- Heavy truck jumper 10-pin connector
- IVECO-30 adapter
- IVECO-38 adapter
- MAN-12 adapter
- Benz-14 adapter
- MAN-37 adapter
- Renault-12 adapter
- Mitsubishi/Fuso 12+16-pin adapter
- Hyundai truck 16-pin adapter
- Heavy duty adapter cables
- Network cable 15m
- Password and activation envelope
Light Vehicle Coverage
European
Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, DR Automobiles, Ferrari, Fiat, Ford (Europe), GAZ, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, MG (SAIC), Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, SEAT, Skoda, Smart, Sprinter, Vauxhall, VAZ, Volkswagen, Volvo
Asian and Australian
Acura, Daewoo, Daihatsu, Ford (AU), Holden, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, SsangYong, Subaru, Suzuki, Tata, Toyota
American
Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford (USA), General Motors, Jeep, Lincoln
Chinese
Brilliance, BYD, Changan, Changhe, Chery, Changhe Suzuki, DF Citroen, FAW, Gonow, GWM, Hafei, JAC, JMC, Maxus, MG (SAIC), SGMW, ZX Auto/Zotye
Heavy Duty Truck Software
Covers 100+ worldwide truck brands on 24V systems including Nissan Diesel, Mitsubishi Diesel, Kenworth, Mercedes-Benz Heavy Duty, DAF, Cummins, Scania, Volvo Heavy Duty, MAN, Iveco, Isuzu Heavy Duty, Hino, FUSO, Freightliner, Mack, Renault Trucks, Hyundai Heavy Duty, FAW Liberation, Foton Auman, Caterpillar, Allison Transmission, Bendix ABS, WABCO ABS, Detroit Engine, Doosan Engine, and many more.
Optional Add-Ons
- Launch VSP-600 Videoscope Inspection Camera
- Launch X-PROG 3 — Immobiliser and Module Functions
- Launch BST-360 Bluetooth Battery Tester
- Launch X431 O2-2 Four-Channel Oscilloscope
- Launch Wi-Fi printer
