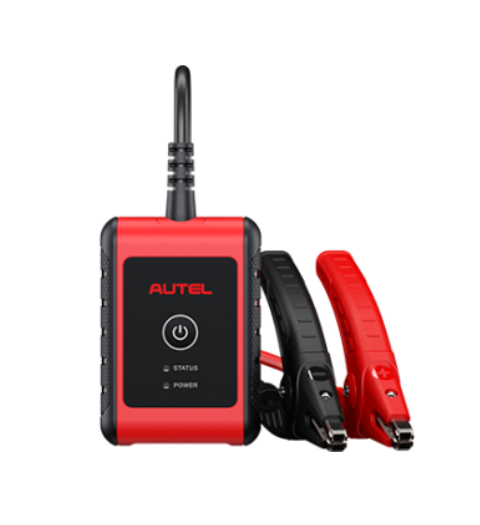

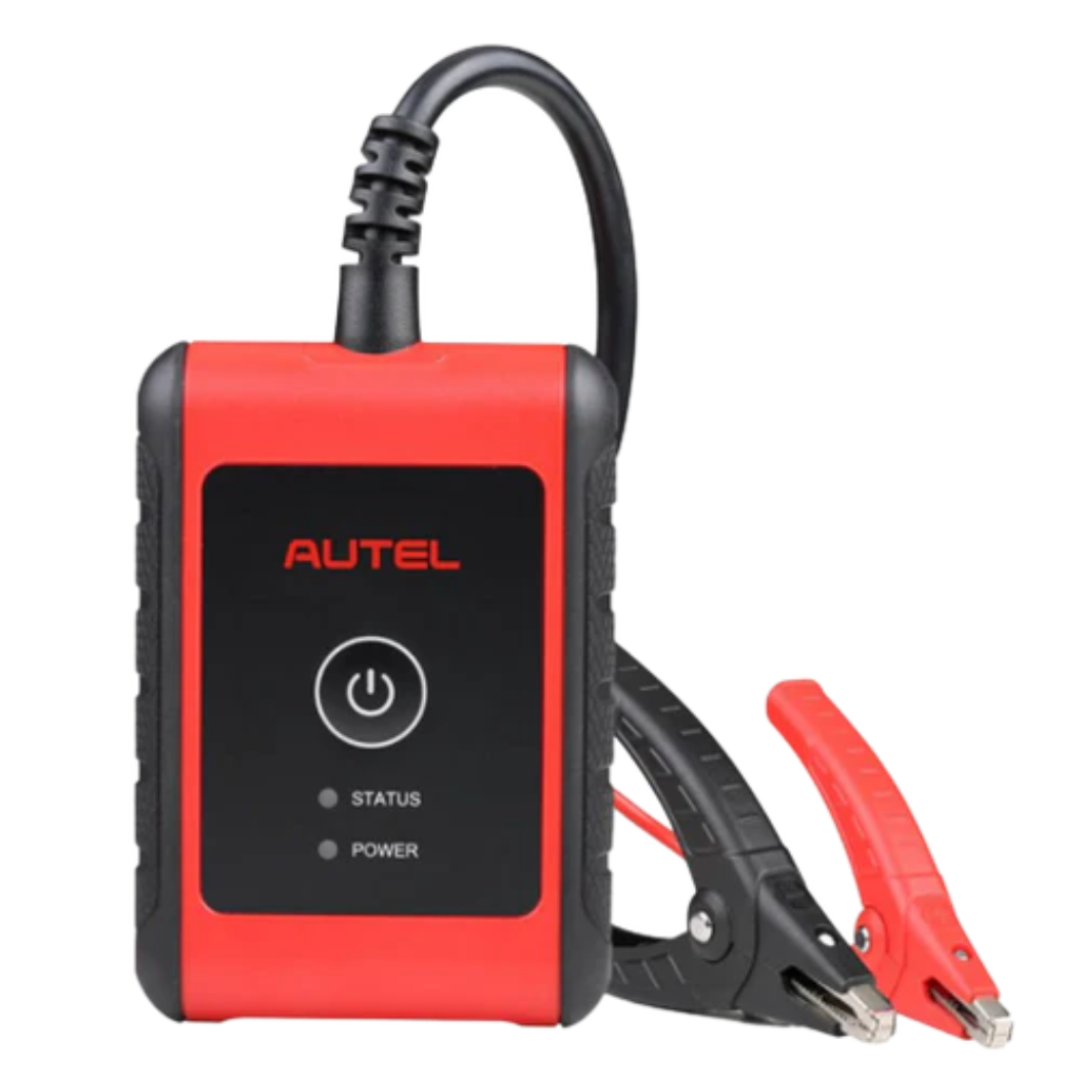

Autel MaxiBAS BT506 Battery & Electrical System Analysis Tool

$349.00 $330.00

The Autel MaxiBAS BT506 is a professional-grade battery and electrical system analysis tool designed to deliver precise results through Adaptive Conductance technology — an advanced method that accurately evaluates a battery’s cold-cranking ability and reserve capacity. This ensures a true assessment of the battery’s health and the vehicle’s electrical system performance.

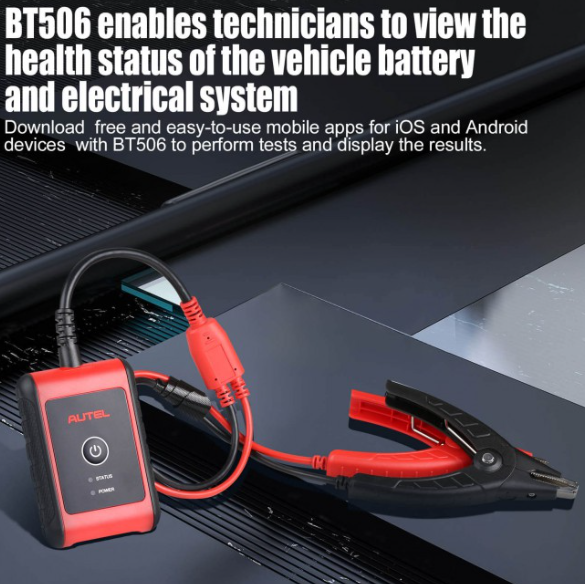

Technicians can easily view and interpret detailed test results via the free Autel Battery Test App, available for both iOS and Android devices. The BT506 connects wirelessly via Bluetooth, making it perfect for workshop or mobile use.



Key Features

  • Performs in-vehicle and out-of-vehicle testing of passenger vehicle batteries

  • Tests 6V and 12V batteries (100–2000 CCA) and 12V/24V cranking and charging systems

  • Supports Flooded, AGM, AGM Spiral, EFB, and GEL battery types

  • Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA standards

  • Works with smartphones, tablets, or compatible Autel diagnostic tools

  • Delivers fast, reliable results using Adaptive Conductance battery analysis technology

  • Compact, durable, and user-friendly design ideal for professional and personal use



Specifications

Specification Description
Connectivity USB 2.0, Type-C
Bluetooth V3.0 BR/EDR + V4.2 LE Dual-Mode
Input Voltage 5 V DC
Working Current <150 mA at 12 V DC
Internal Battery None
CCA Range 100–2000 A
Voltage Range 6–36 V
Working Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Dimensions (L × W × H) 107 × 75 × 26 mm (4.21” × 2.95” × 1.02”)
Weight 320 g (0.7 lb.) (clamp cable not included)




Why Buy From Premium Diagnostic Equipment?

✔️ Free Shipping Australia-Wide

✔️ 12-Month Warranty Included

✔️ 30-Day Money Back Guarantee

✔️ Australian Support Team – We're Here to Help

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Luke Meesen

Autel MaxiBAS BT506 Battery & Electrical System Analysis Tool

C
Craig Bailey
Pinpoint battery problems in a flash

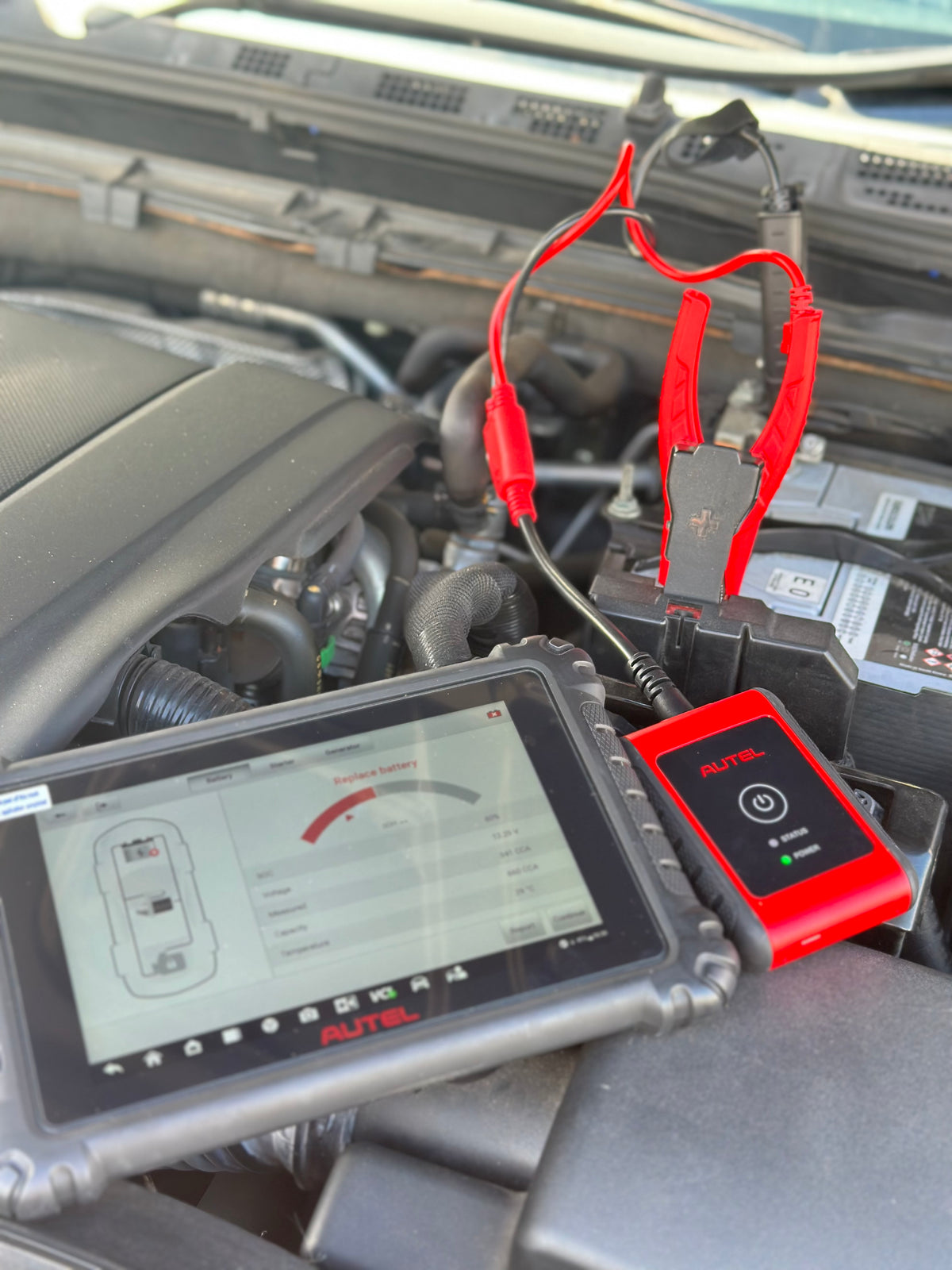

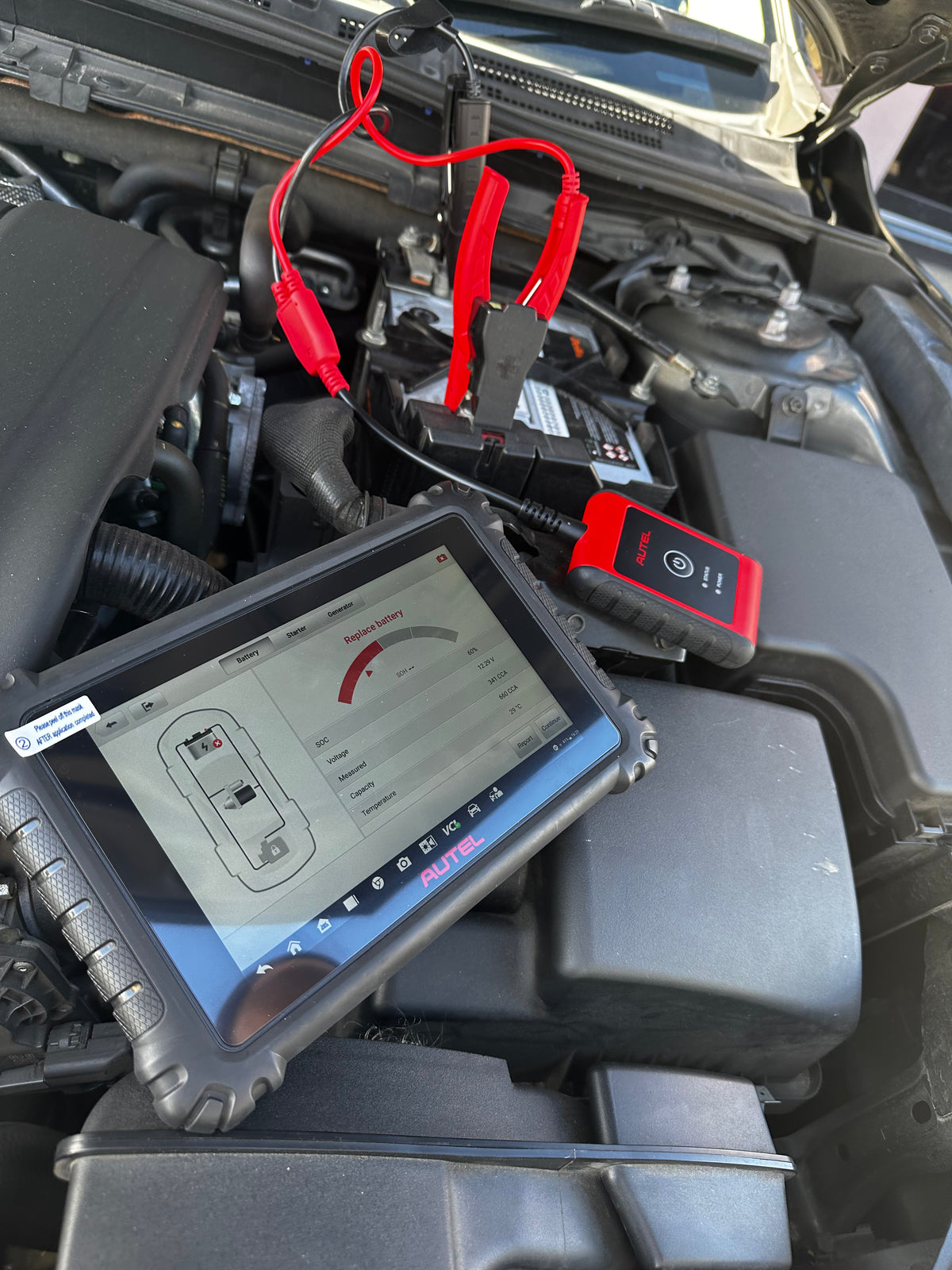

Every vehicle into our workshop gets a battery check, not only is it a great service to customers, but it helps with pinpointing strange communication and ECU faults due to electrical system problems.
A simple battery test takes a couple of minutes.
If a more comprehensive test of the whole start/charge system is required, then it only takes two minutes more and gives a comprehensive report for giving to customers or attaching to their records for any future queries.

Bluetooth is simple and quick - no cables to tangle or damage - no plugging and unplugging and damaging ports… great for the longevity of the tool.

The Autel system is used as an authorised new vehicle warranty system by at least one of the manufacturers that I work with, so you know it’s testing modern electrical systems properly and isn’t just a bunch of flashing lights on a box.
