AUTOOL LM110 Digital Manifold Meter Air Conditioner Refrigerant Leak Tester HVAC Vacuum

Name: AUTOOL LM110 Digital Manifold Meter Air Conditioner Refrigerant Leak Tester HVAC Vacuum
Brand: Premium Diagnostic Equipment
SKU: ATO-MT-LM110
Price: 189.00 AUD
Availability: InStock

$189.00 $399.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

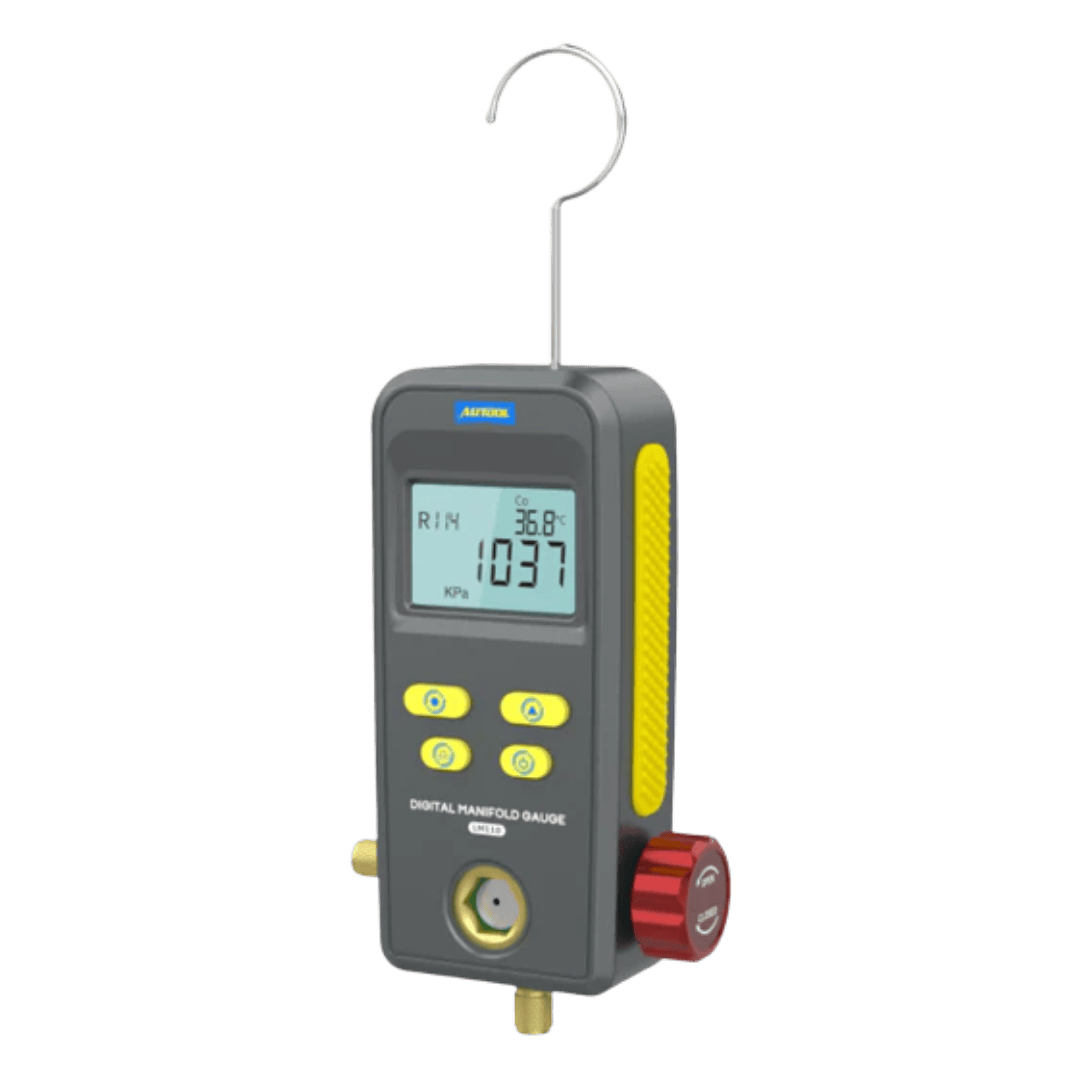

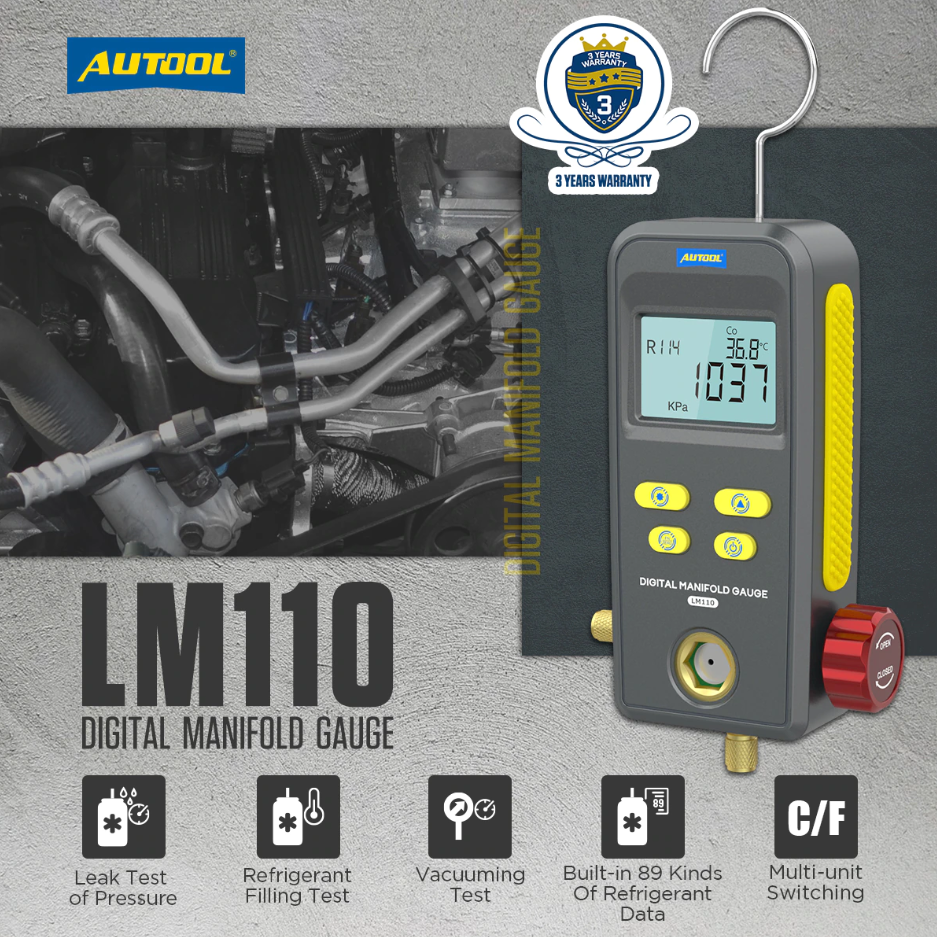

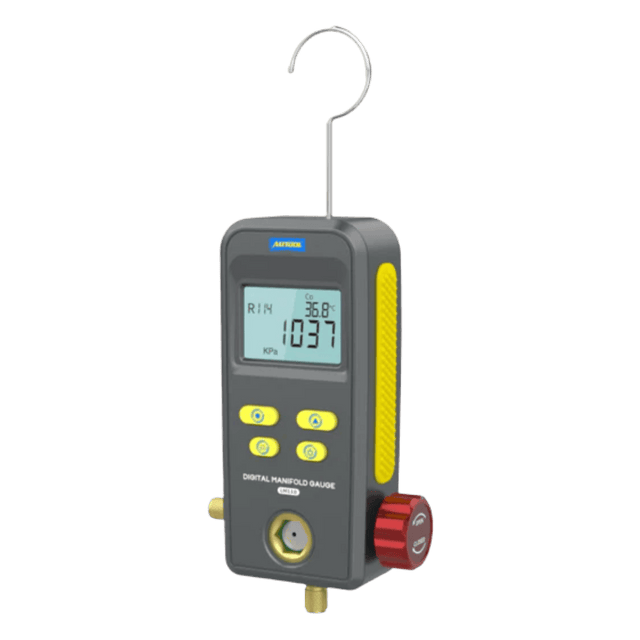

The AUTOOL LM110 Digital Refrigeration Manifold Gauge is a professional diagnostic and servicing tool designed for the installation, testing, and maintenance of air conditioning and refrigeration systems. Suitable for automotive, household, and commercial HVAC applications, it combines refrigerant filling, vacuuming, and leak testing into one versatile digital manifold meter.

Built to EC/EN61010-1 safety standards, the LM110 provides precise digital readings, intuitive operation, and durable construction for long-term reliability.

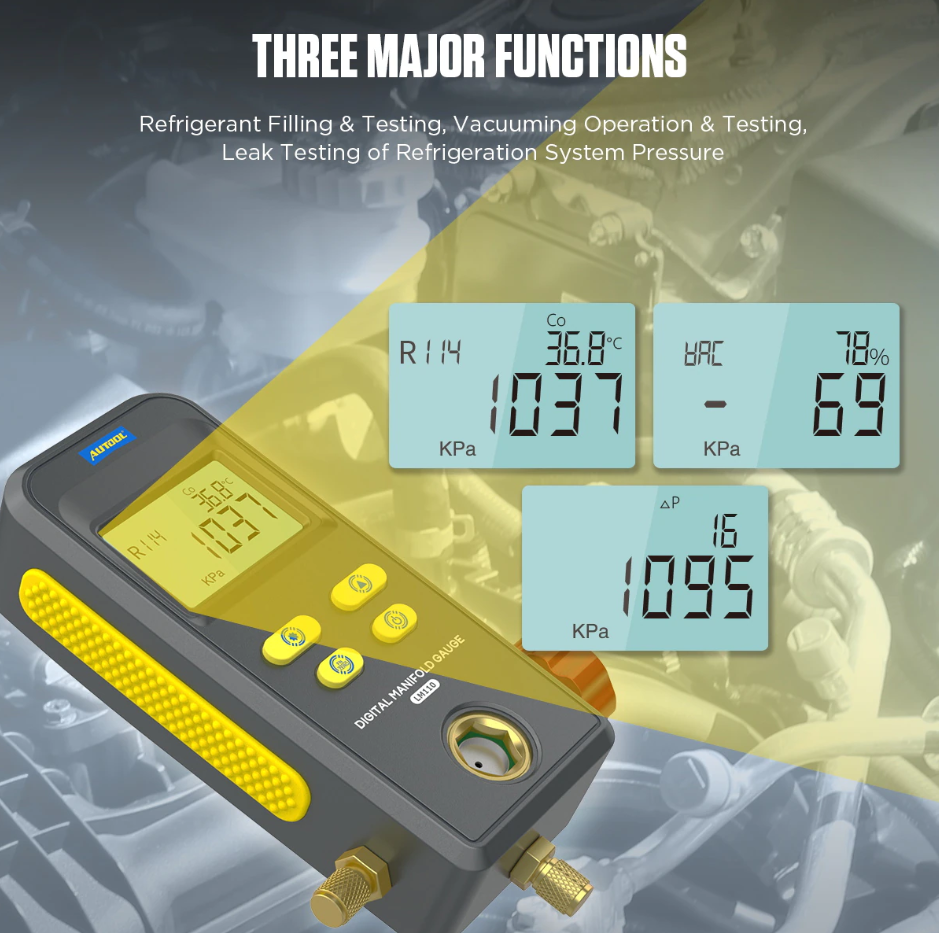

Functions

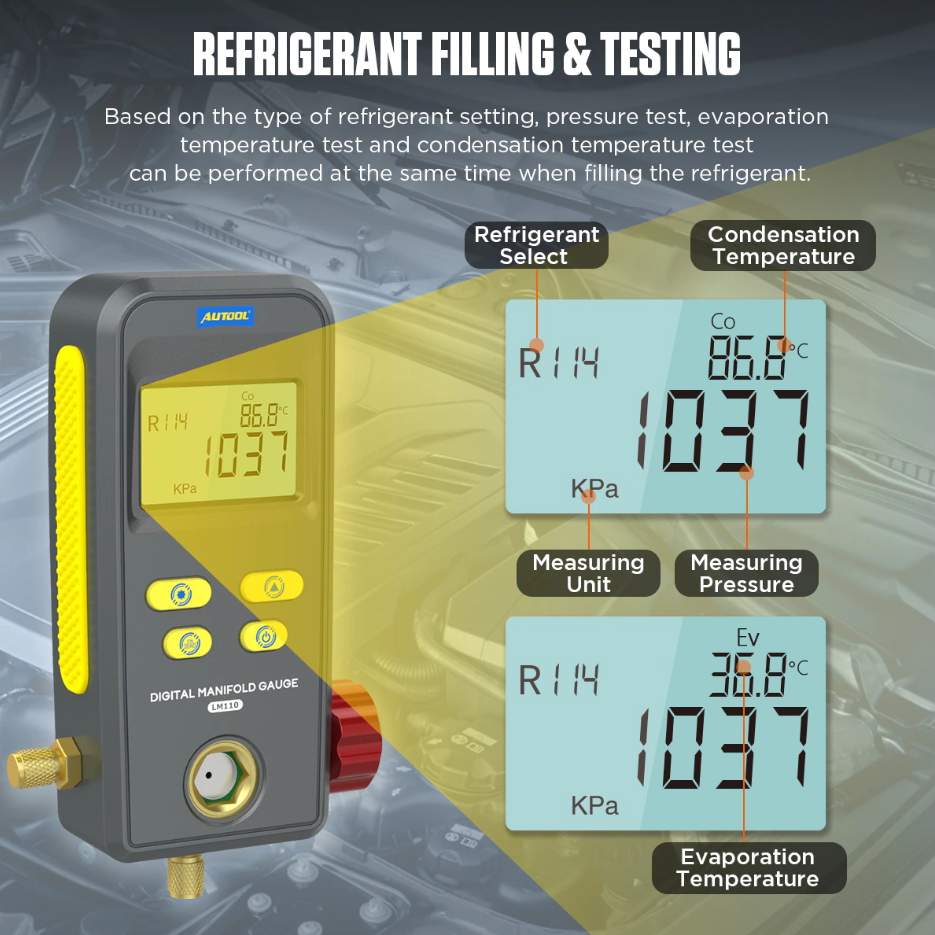

Refrigerant Filling and Testing

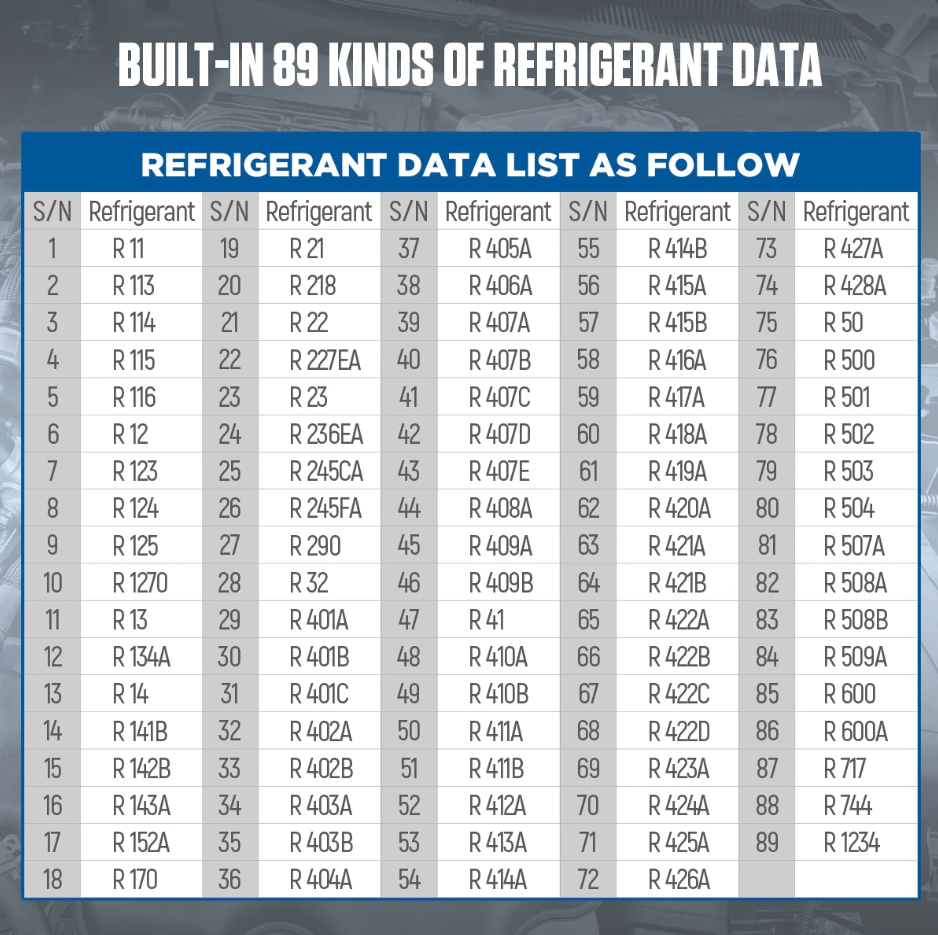

The LM110 allows users to perform refrigerant filling and pressure testing simultaneously. By selecting the correct refrigerant type, the tool can measure system pressure, evaporation temperature, and condensation temperature in real time—ensuring accurate and efficient system servicing.

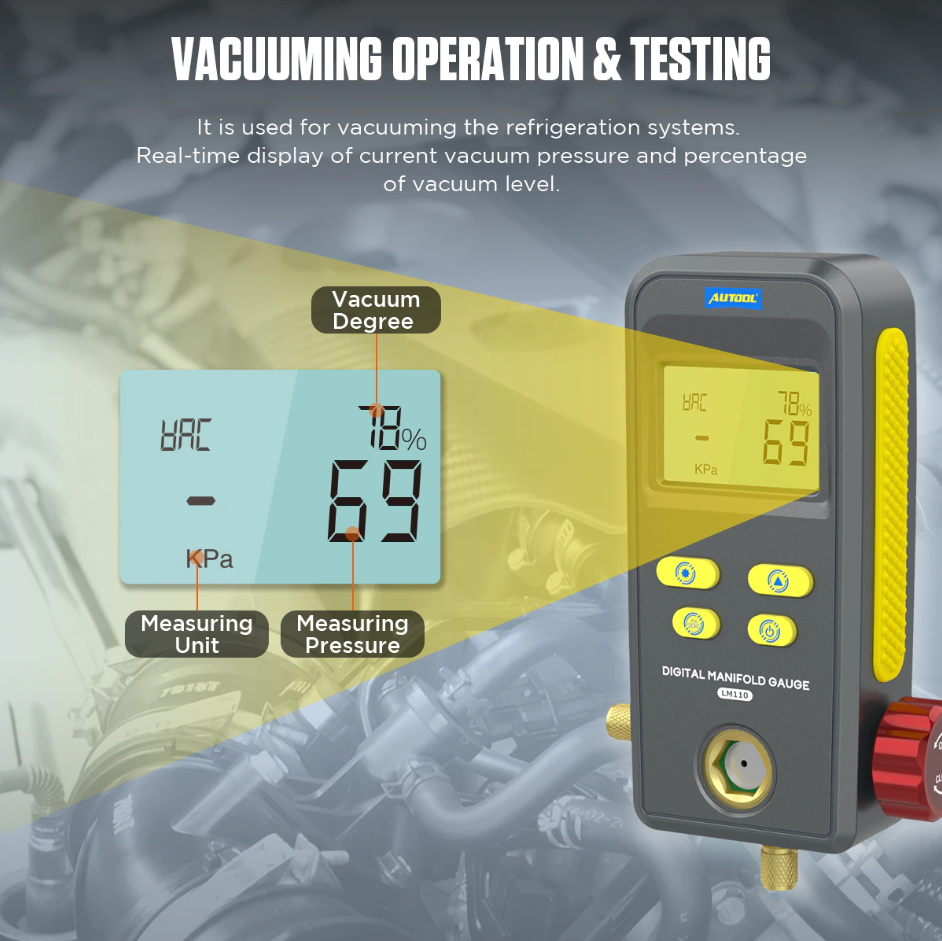

Vacuuming Operation and Testing
This unit also supports vacuuming operations. It provides real-time display of vacuum pressure and percentage of the vacuum level, helping confirm system integrity before refrigerant charging.

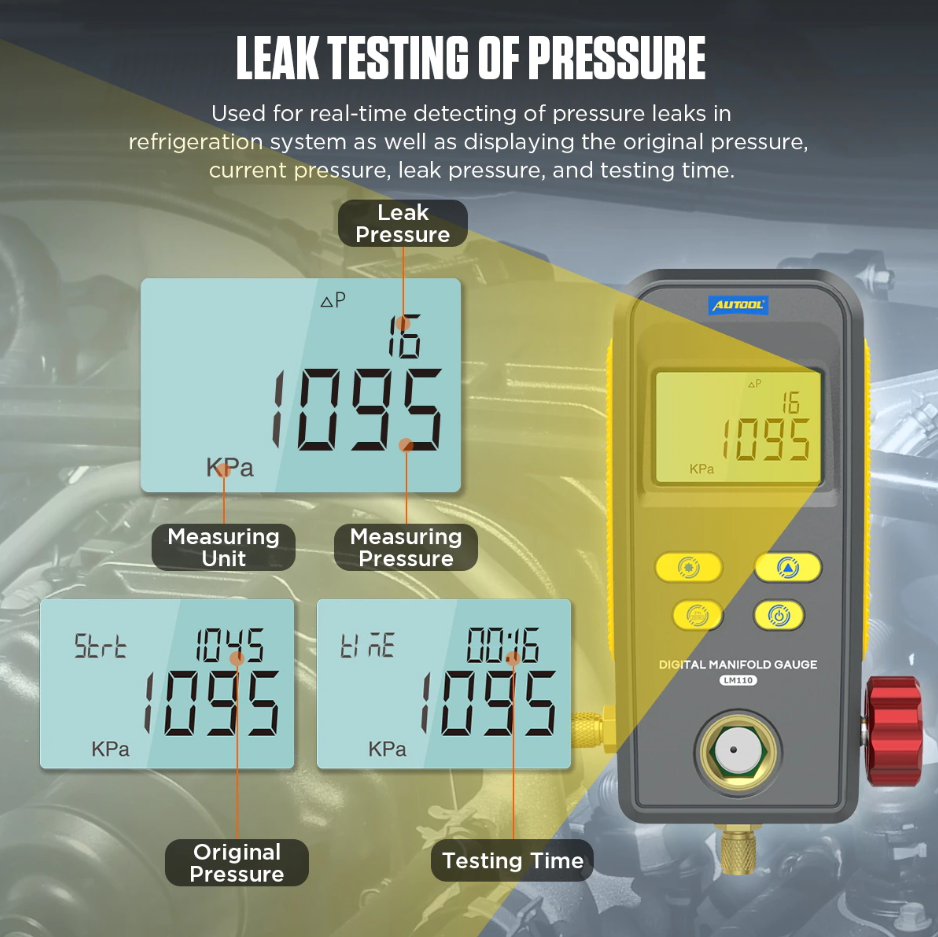

Leak Testing of Pressure
The LM110 can detect system leaks by monitoring original, current, and leak pressures while tracking the testing time. The clear digital display and visual indicator window make it easy to identify even minor leaks quickly.

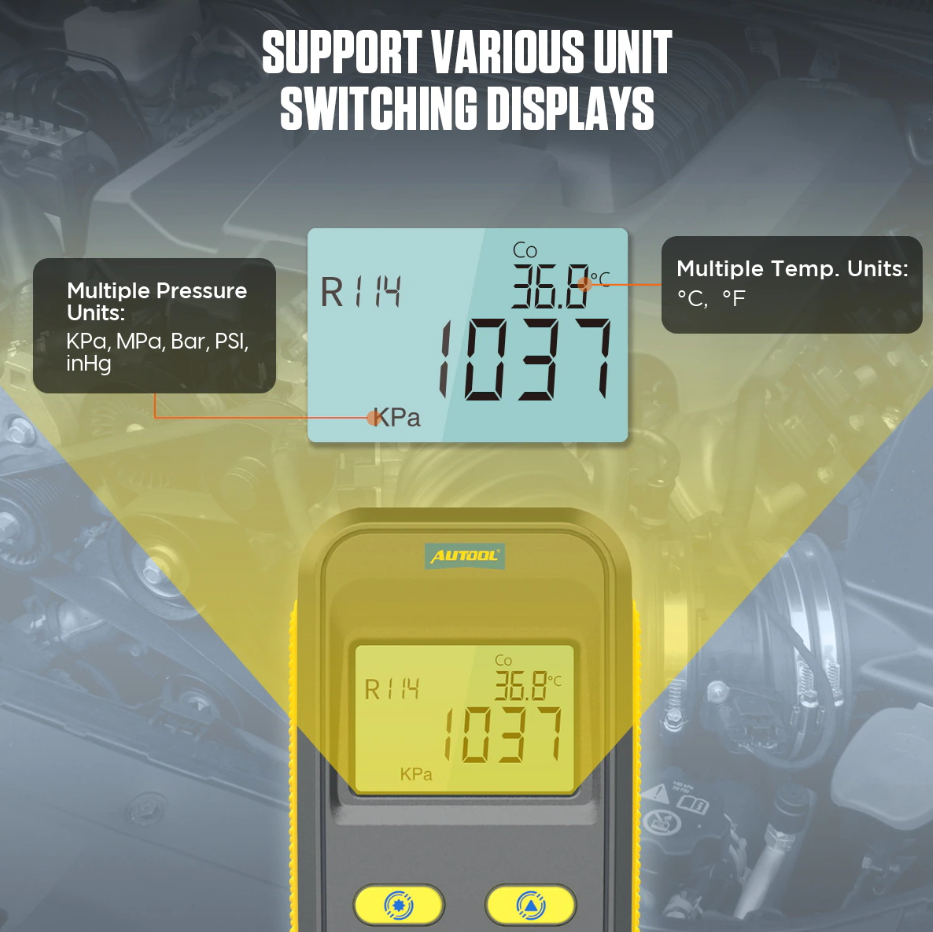

Multiple Units and Wide Compatibility

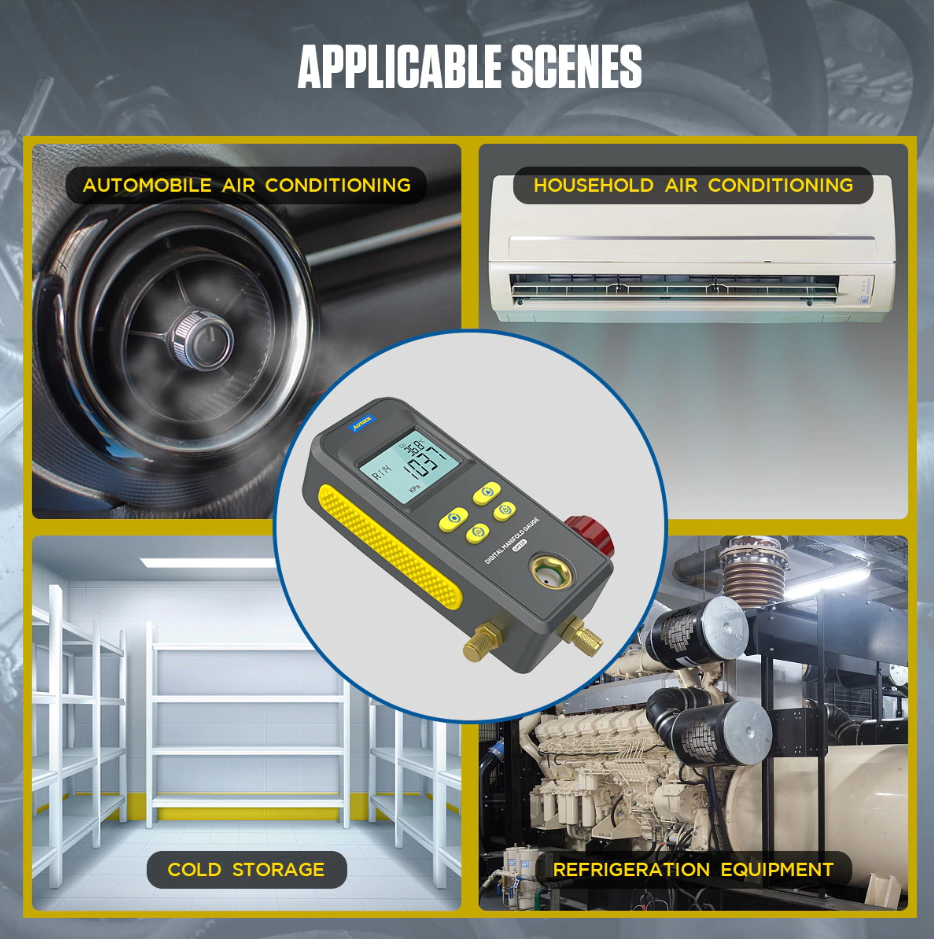

With switchable units for both temperature and pressure, this manifold gauge can adapt to regional preferences and different service requirements. It’s compatible with a wide range of systems, including automotive air conditioning, domestic split systems, commercial refrigeration, and cold storage units.

Maintenance Guidelines

Operate according to the instruction manual or under professional guidance.
Keep the display and interface clean; wipe with mild soap or weak alkaline cleaner.
Inspect fittings regularly to ensure secure connections.
Avoid dropping or striking the tool.
Turn off all controls after use to extend service life.
Use connector protection caps when not in use and clean hoses periodically.
Always confirm rated pressure before testing and never exceed instrument limits.
Avoid exposure to extreme heat, humidity, or strong electromagnetic environments.
Wear safety gear and work in well-ventilated areas to avoid inhalation of refrigerant gases.

Specifications

Specification	Details
Pressure Type	Gauge Pressure
Pressure Range	-101 kPa to 6 MPa (-0.1 bar to 60 bar)
Limit Pressure	10 MPa (100 bar)
Hose Max Operating Pressure	600 PSI (≈ 4.13 MPa / 41.3 bar)
Hose Limit Pressure	3000 PSI (≈ 20.68 MPa / 206.8 bar)
Functions	Refrigerant Filling, Leak Testing, Vacuuming, Pressure Testing
Display	Digital with real-time pressure and temperature readings
Applicable Systems	Automotive A/C, Home Air Conditioning, Refrigeration Equipment
Units	Switchable Pressure and Temperature Units
Standards	EC/EN61010-1 Certified
Warranty	3 Years
