Hantek CC65 Digital AC/DC Multimeter Current Clamp Oscilloscope 20k...
Description
Description
Overview

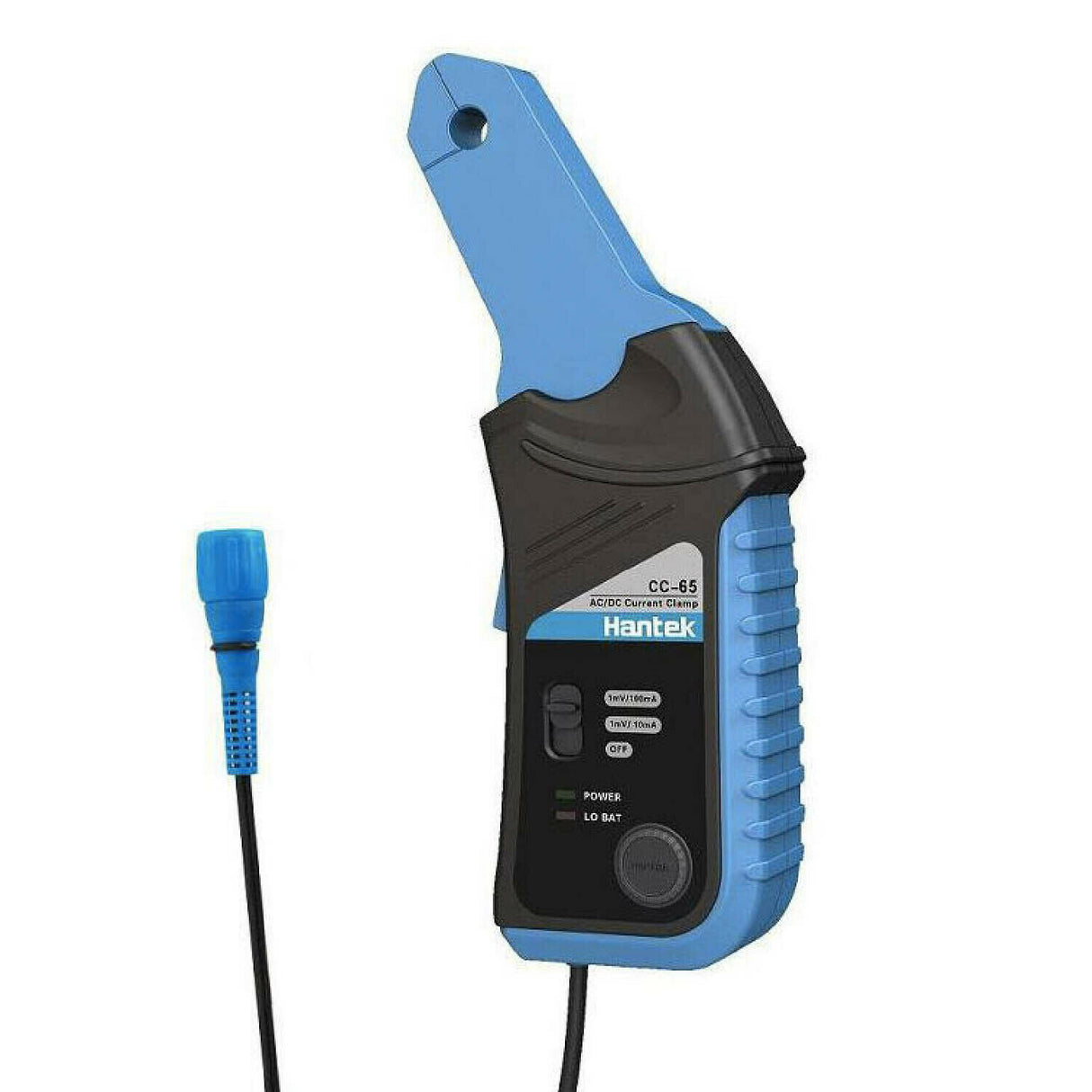

The Hantek CC65 is a professional AC/DC current clamp designed for use with oscilloscopes and multimeters. With a 20kHz bandwidth and effective measurement range of 20mA to 65A DC, it allows you to accurately capture current waveforms and measure current data. Equipped with permalloy and hall elements, the CC65 offers linear and stable transformation of AC/DC current into voltage signals.
Main Features
-
AC/DC frequency range: up to 20 kHz
-
Effective measurement range: 20mA to 65A DC
-
Transducer design allows use with oscilloscopes or multimeters
-

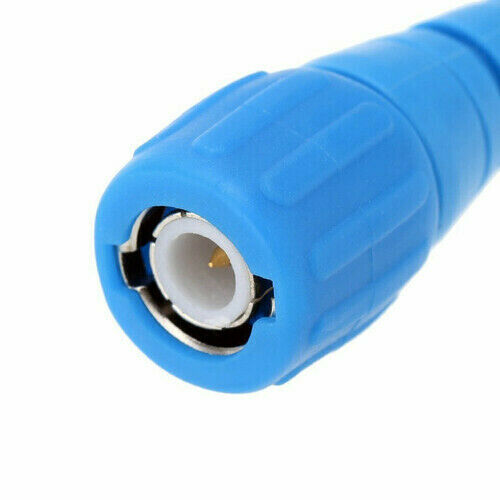

BNC plug for oscilloscopes and banana plug for multimeters
-
Captures current waveforms for detailed analysis
-
Compact and lightweight design for easy handling
Applications
-
Power circuit measurement and fault analysis
-
Motor drive and frequency converter testing
-
Power electronics equipment measurement
Specifications
| Feature | Details |
|---|---|
| DCA Range | 1mV/10mA ±(1.5%±5mA) 10mA–20A; 1mV/100mA ±(2%±20mA) 100mA–40A; ±(4%±0.3A) 40A–65A |
| ACA Range | 1mV/10mA ±(2–8%) accuracy across 100mA–15A (40Hz–20kHz); 1mV/100mA ±(2–8%) accuracy across 200mA–65A (40Hz–20kHz) |
| Bandwidth | 20kHz |
| Captured Conductor Size | 9mm max |
| Output | Coil cable with banana plug or BNC plug |

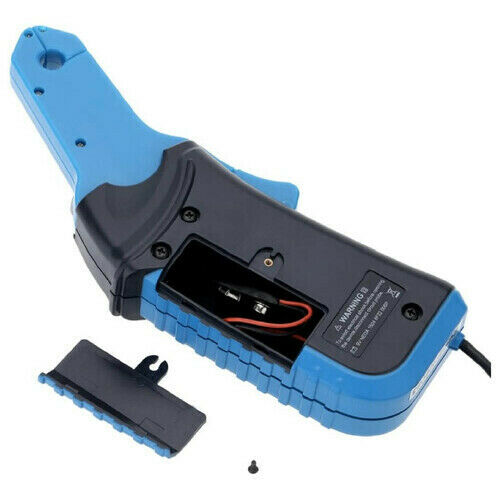

| Battery Type | 9V DC (NEDA 1604, 6F22, 006P) |
| Battery Life | ~100 hours with alkaline battery |
| Low Battery Indicator | Red LED |
| Operating Temperature | 0°C to 50°C (70% RH) |
| Storage Temperature | -20°C to +70°C (80% RH) |
| Dimensions | 195mm (H) x 70mm (W) x 33mm (D) |
| Weight | ~250g |
