$5,100.00

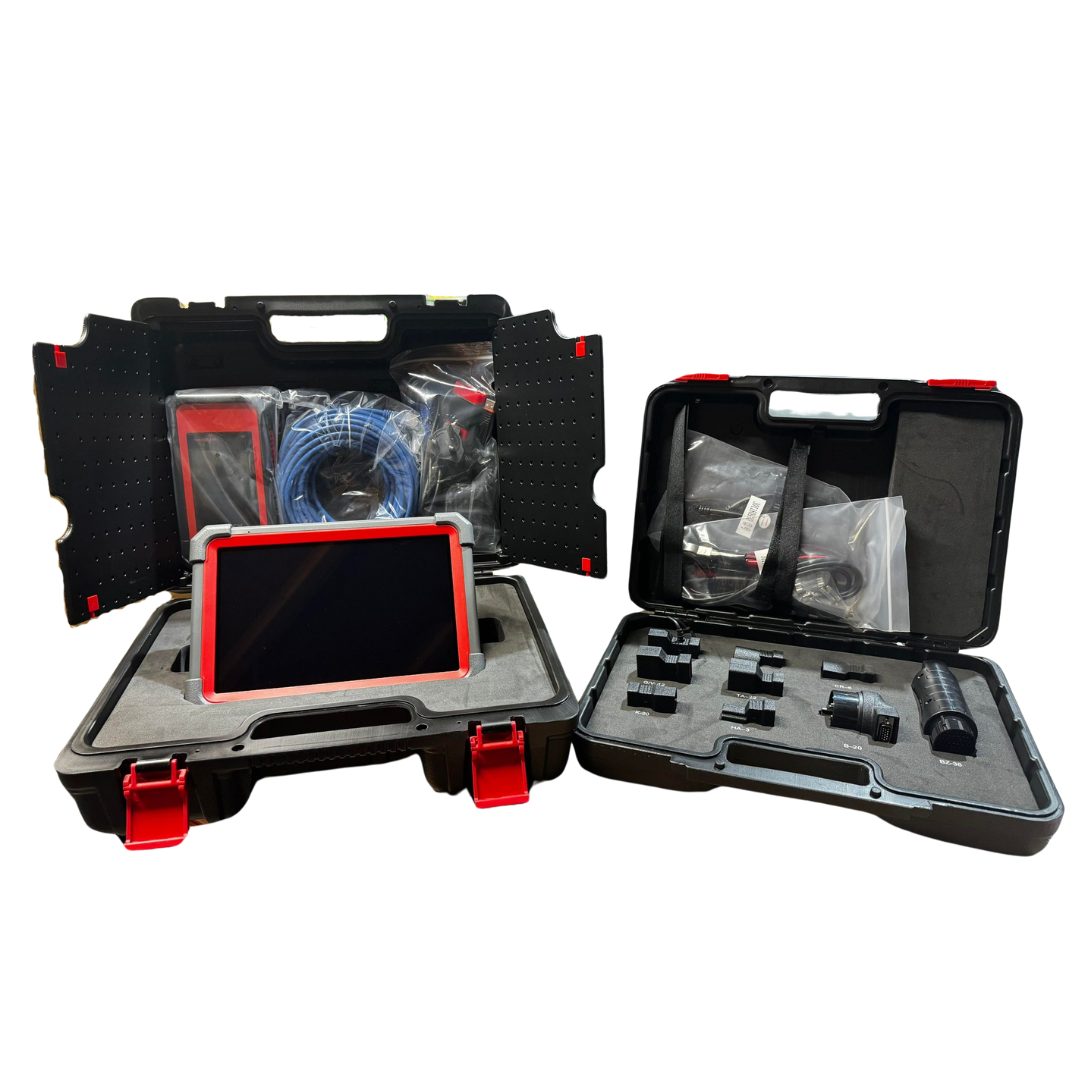

The Launch Pro 5 Plus inherits the hallmark Launch benefits of wide vehicle coverage, powerful test functions, accurate test data and numerous special functions. It comes in a robust carry case with all necessary leads and a wide selection adapter cables.
50+ Maintenance functions:
Launch 'Intelligent diagnostic' features automatic VIN recognition for over 70 manufacturers, automatically identifying the vehicle model and year of manufacture through the VIN number. Faster and more convenient than manual selection.
Diagnostic trouble codes (DTCs) are clearly displayed with a full description, it is possible with one click, to display the fault code information in many alternative languages.
Comprehensive data stream information can be displayed in different formats:
Create a clear diagnostic report showing the status of each ECU, which can be saved as a screenshot or PDF, easily print or share.
Summary of the key features of the PRO 5 Plus
Launch PRO 5 Plus tablet specifications
Launch PRO 5 diagnostic connector
European Manufacturers:
Asian Manufacturers:
American Manufacturers:
Chinese manufacturers:
The Launch Heavy Duty Truck Software:
Provides comprehensive diagnostic coverage for 100 worldwide truck brands.
1. Wireless BT Diagnosis
Your host machine and diagnostic connector adopt BT connection, making diagnosis more convenient and easy
2. Supports a large range of heavy duty truck models
From commercial trucks to off-highway equipment and tractors
3. Industrial Shockproof Design
Industrial shockproof design is perfect for the working environment in repair shops. A durable heavy duty case can handle being dropped
Comes with a complete Launch truck adapter kit in case
24V Heavy Duty Vehicles Covered (Included):
1. Nissan (Diesel)
2. Mitsubishi (Diesel)
3. USA Ford Diesel, Kenworth
4. Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
5. Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
6. Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
7. WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
8. Weichai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vehicle, Detroit Engine
9. Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
10. Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
11. HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
12. IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
13. Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
Diagnostic box parameters
CPU: 120MHz
Power consumption: ≤3W
Working voltage: DC 9-36V
Working temperature: -10 ° C ~ 50 ° C
Communication method: USB+Wi-Fi+Bluetooth
Size: 204x110x45 (mm)
Launch X431Packing List:
Launch Truck Software Kit Packing List
Extend the functionality of the Launch PRO 5 with these options.
The Launch portable wi-fi printer:
Ideal for printing diagnostic data where a standard printer is unavailable.
The Launch VSP-600 Videoscope:
Using the PRO 5 tablet and software already integrated with the PRO 5 APK. The VDS-600 offers a 1280X720 resolution, six levels of LED lighting, a 5.5mm lens and an 800mm cable.
Launch X-Prog 3 Key programmer and immobiliser:
Add on for key programming and immo functions
Launch BST360 Bluetooth Battery Tester
Test all 12V car batteries
Launch X431 O2-2 Oscilloscope 4 Channel Scopebox
4 Channel Oscilloscope add on
2 years free software updates for light vehicles and 1 year free for heavy vehicles
