Ultimate Roadworthy Kit - Mini Brake Meter With GPS + Magnetic Tint Tester + Headlight Aligner Combination

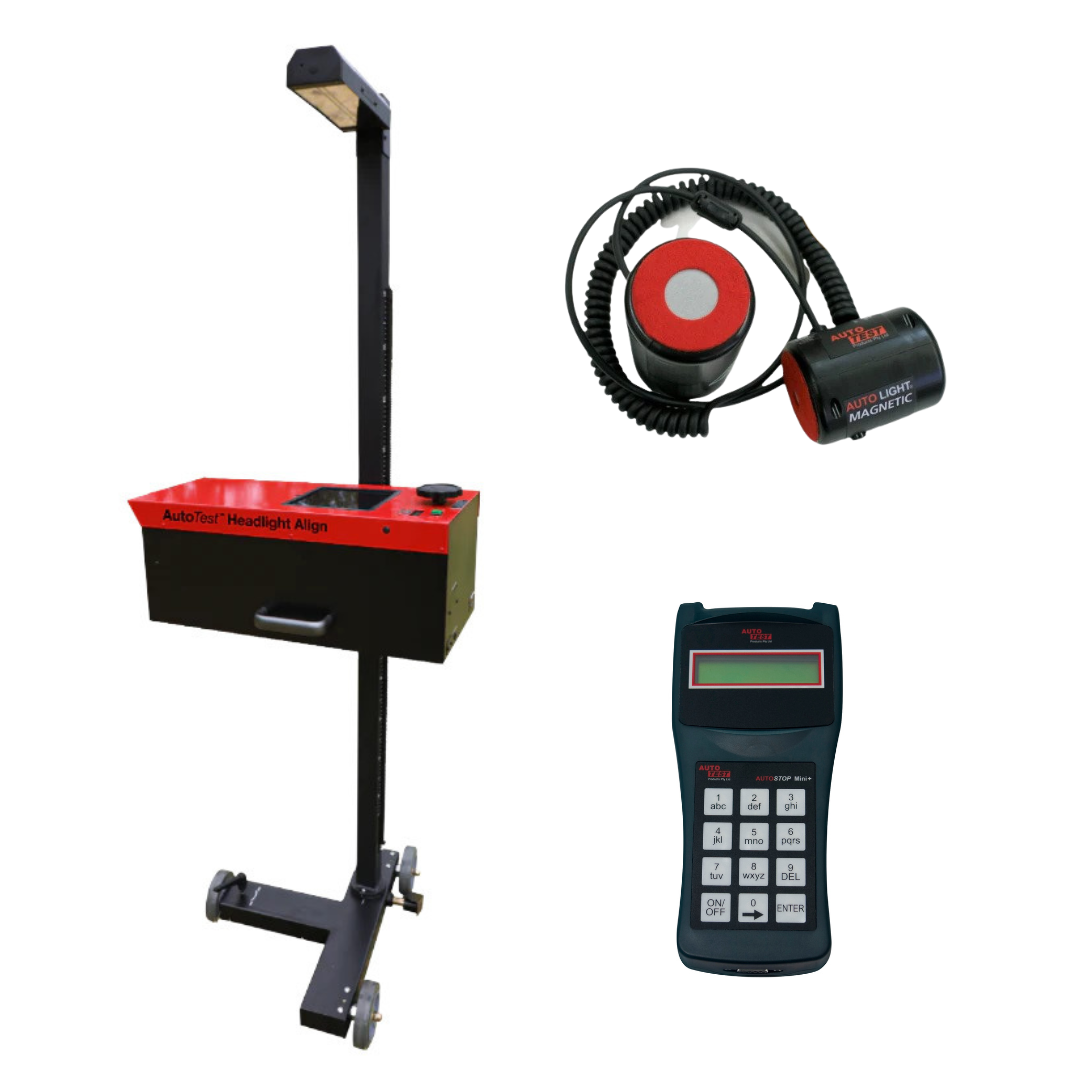

Ultimate Roadworthy Kit


Combines the AutoStop Mini Plus Brake Meter with GPS and AutoLight MAGNETIC  window tint meter with a AutoTest Headlight Align headlight aimer to create the ultimate roadworthy kit.

This kit meets roadworthy requirements in WA, QLD, VIC, TAS, SA, & NT.

 *IMPORTANT: For NSW and ACT the AutoStop Mini Plus Brake Meter with GPS is only suitable for testing Motorbikes. Purchase the Autostop Workshop Pro 10 for use in NSW and ACT.

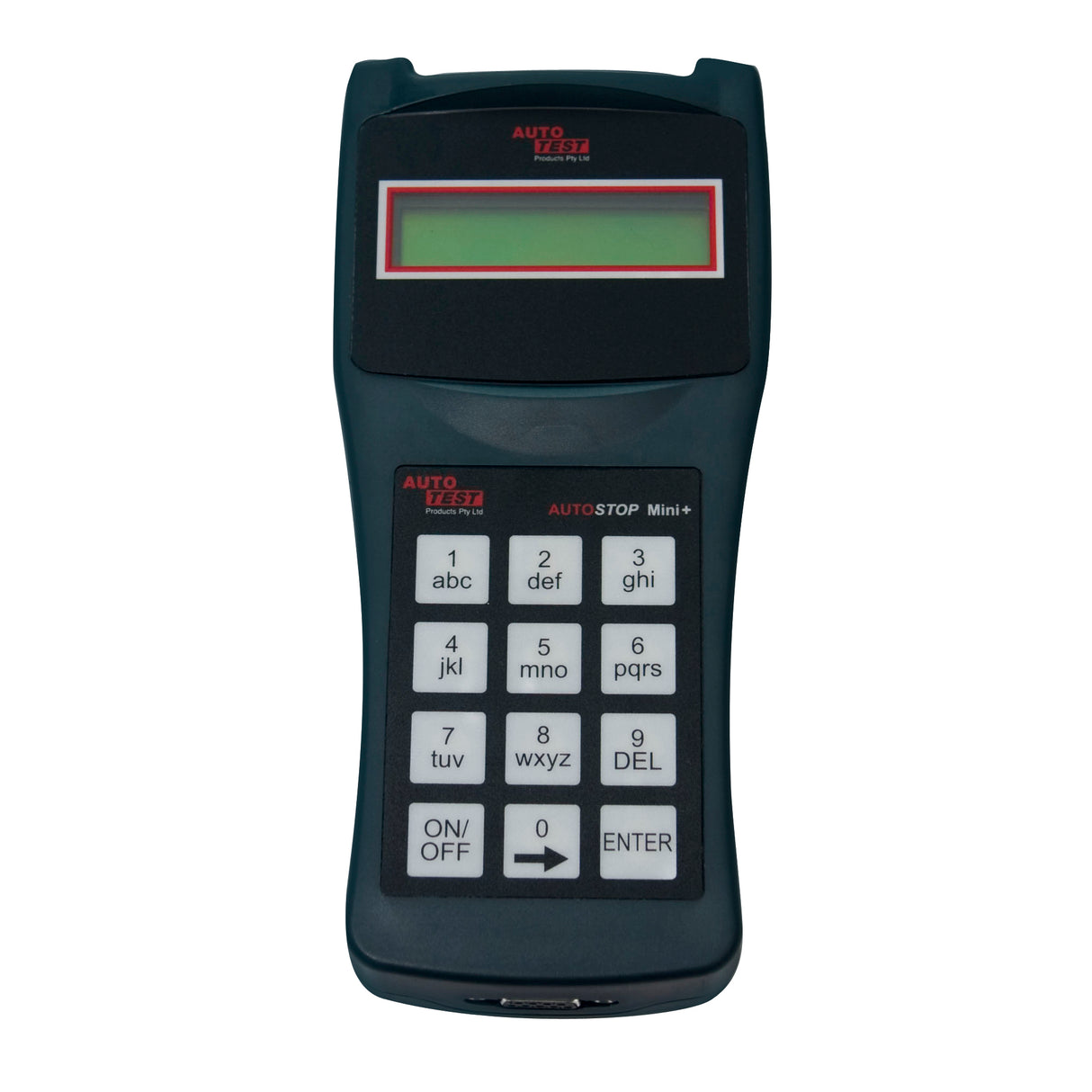

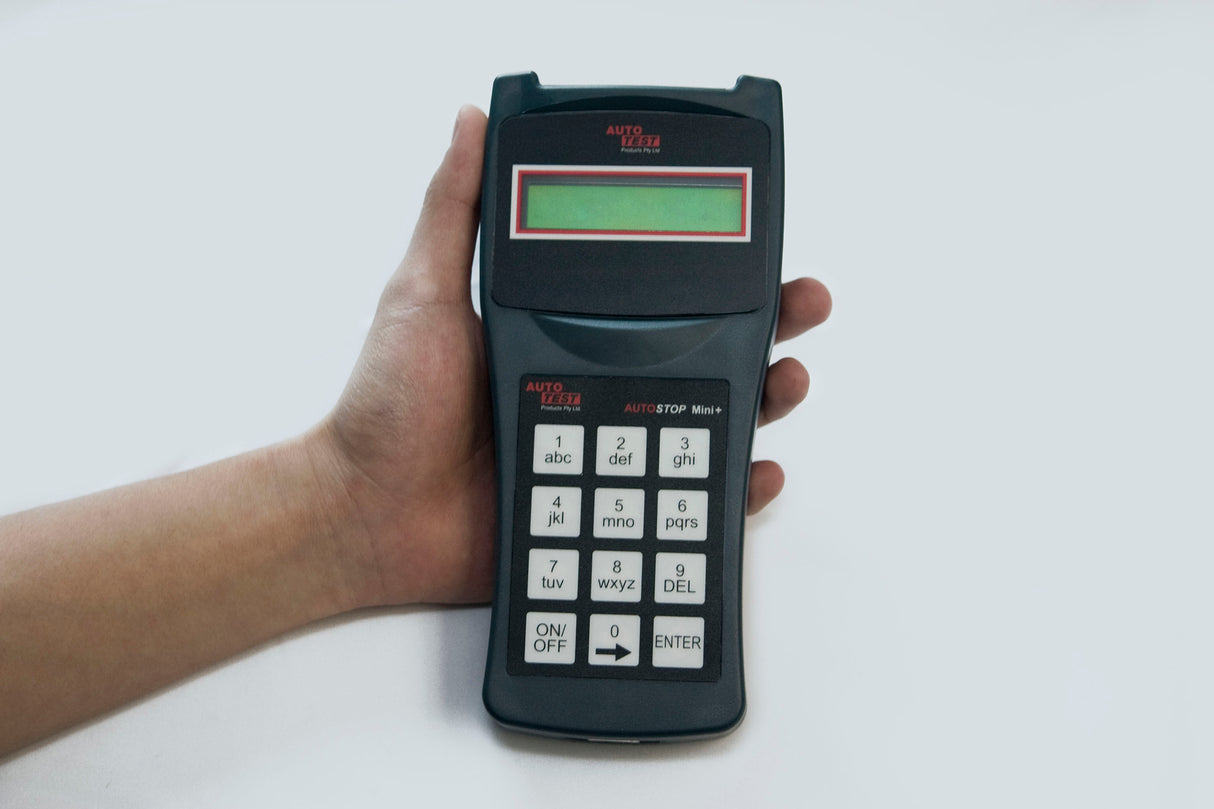

AutoStop Mini Plus Brake Meter with GPS:

A compact, brake performance tester that uses a multi-channel sensor to measure tri-axial deceleration of any type of vehicle, making it one of the most versatile brake testers on the market. Tests motorbikes, light vehicles & trucks (depends on state jurisdiction).

*IMPORTANT: For NSW, ACT this product is only suitable for testing Motorbikes. Purchase the Autostop Workshop Pro 10 for use in NSW and ACT.


  • Evaluates the performance of the brakes by measuring forward, sideways and vertical deceleration, distance to stop and lateral deviation within the lane
  • Accurate and easy to use via a simple 12-button phone keypad
  • Customer and vehicle detail entry via keypad

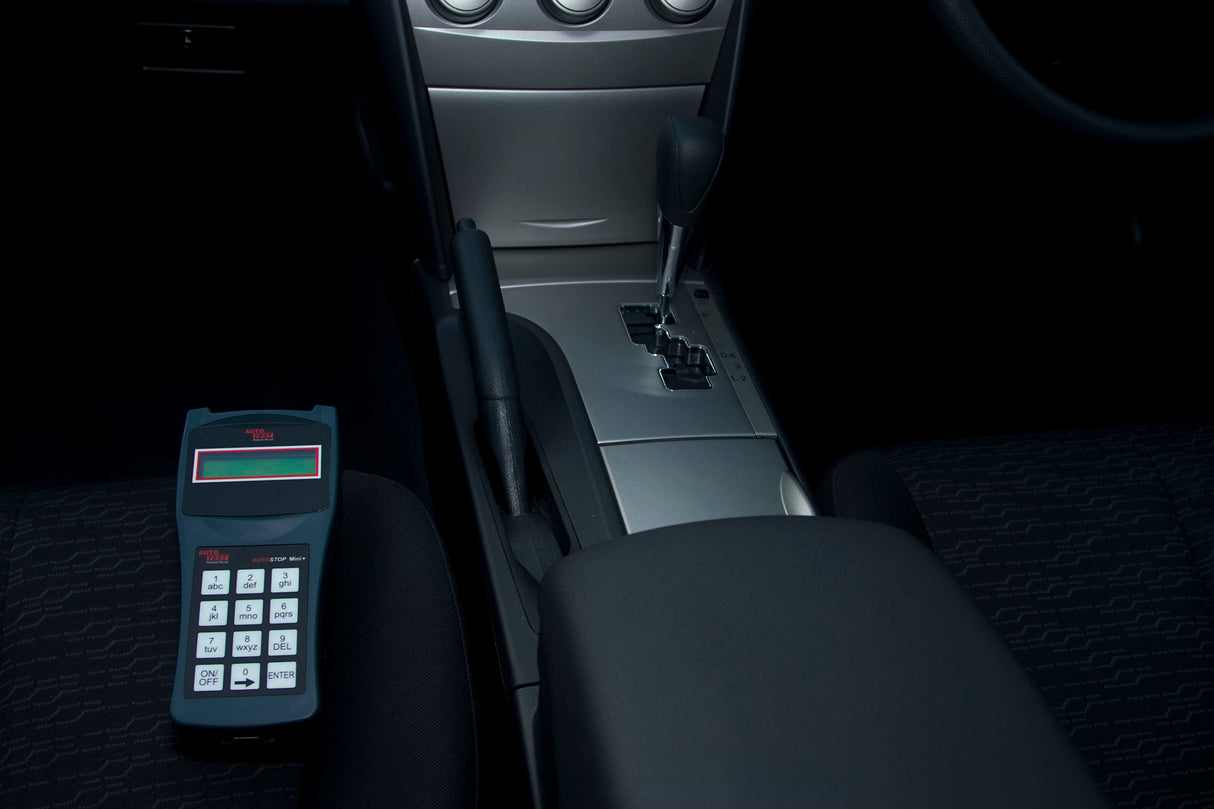

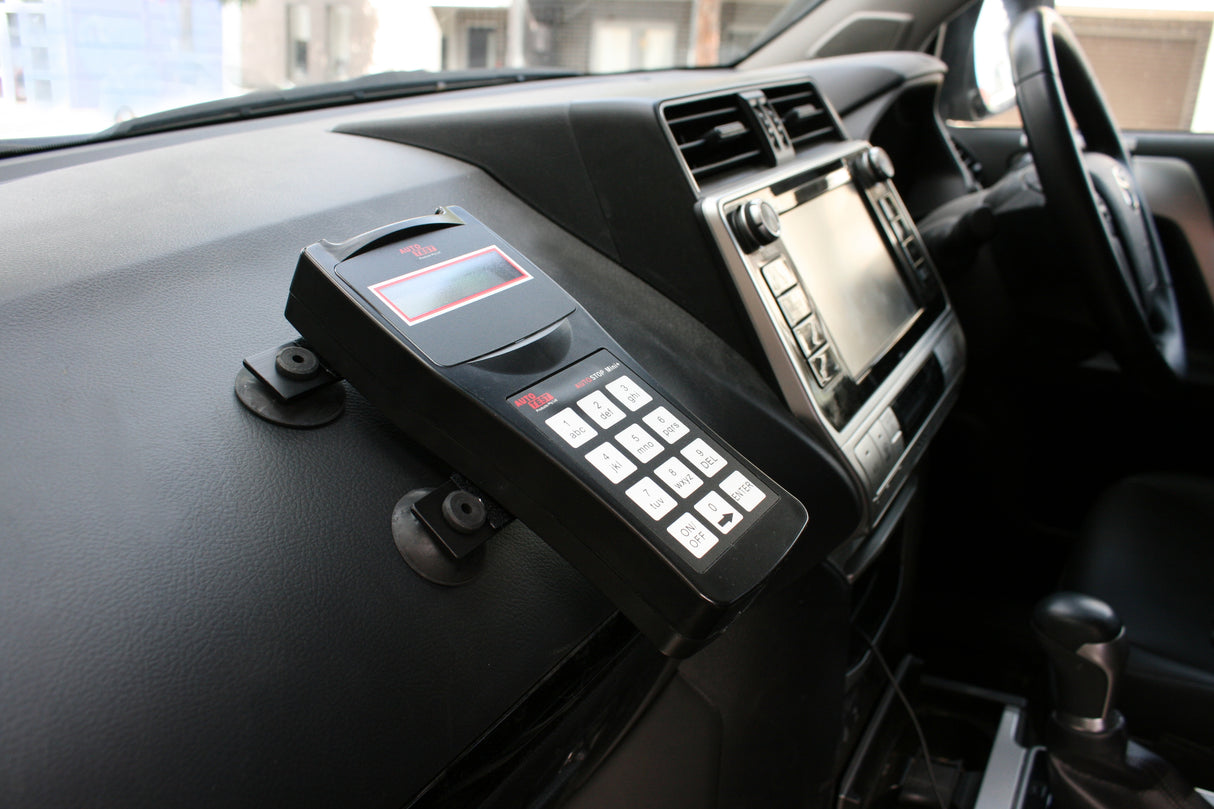

  • Installed in seconds anywhere in the car
  • With optional data logging and download to PC through USB interface/bluetooth
  • Bluetooth interface direct to remote printer
  • NATA traceable calibration
  • Australian Made
  • Equipped with a built in GPS/Glonass receiver that will provide the latitude and longitude of the position where the test was carried out
  • Position acquisition time - 1 Min max
  • Software configurable

Technical Features:

  • Determines tri-axial deceleration, forward as well as sideways deceleration (lane change)
  • Calculates and displays MFDD (Mean Fully Developed Deceleration) in accordance with the ECE R 13
  • Simple 12 button operation via a tactile membrane pad

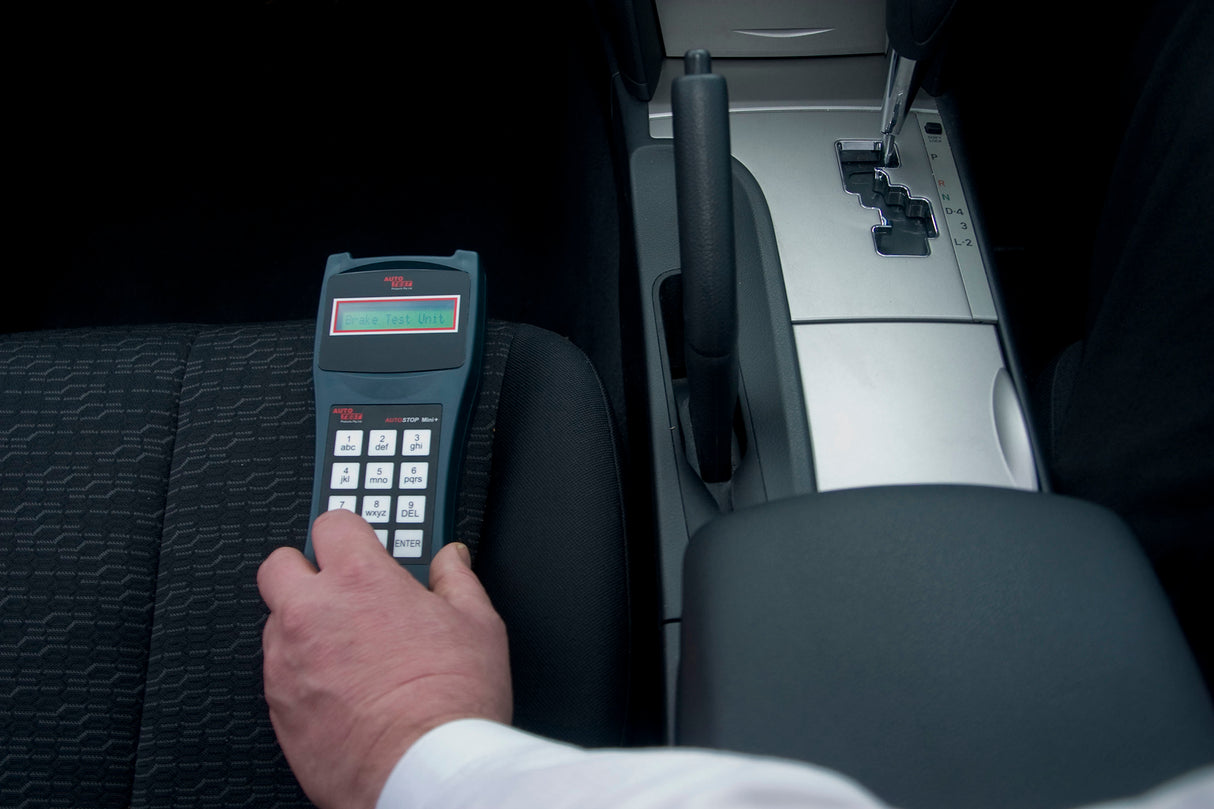

  • Can be installed anywhere in the vehicle
  • Self-aligning by identifying its orientation at the beginning of each test
  • Lightweight (< 500grms) and compact (90 x 200 x 35mm)
  • LCD display
  • Adjustable display control
  • Automatic start function
  • Automatic shut-off after 15 minutes to preserve battery life (over 24 hours running time)
  • Built-in integrity check
  • Built-in real time clock
  • Calibration is internationally traceable through NATA
  • Calibration interval twelve months
  • 12 months warranty
  • Internet support hotline for diagnostics
  • Comprehensive after-sales service and assistance
  • EIA USB and Bluetooth interface
  • Memory storage: Ninety tests
  • GPS or Glonass or Galileo positioning receiver, providing longitude and latitude
AutoStop Mini Plus Brake Meter with GPS product information

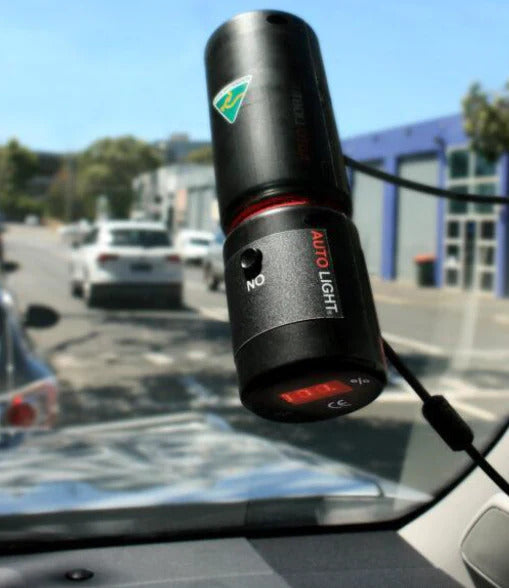

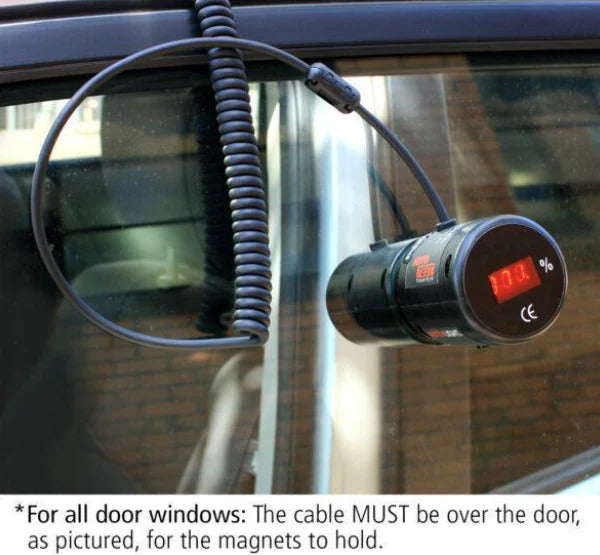

AutoLight® MAGNETIC

Is a hands-free window tint tester that measures the level of light transmitted through a tinted window to determine its safety level.

  • Easy to operate by aligning two reader tubes
  • Hands-free testing
  • Single button operation
  • Compliant with roadworthy regulations in every Australian state and territory
  • Compliant with ISO 3538:1997
  • Lightweight (450g)
  • +/- 3% Accuracy

AutoLight MAGNETIC product information

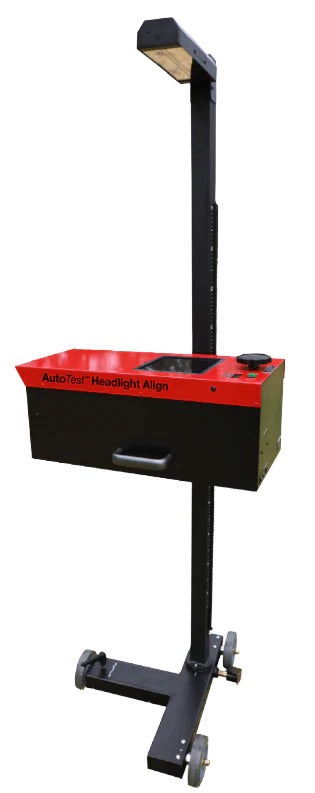

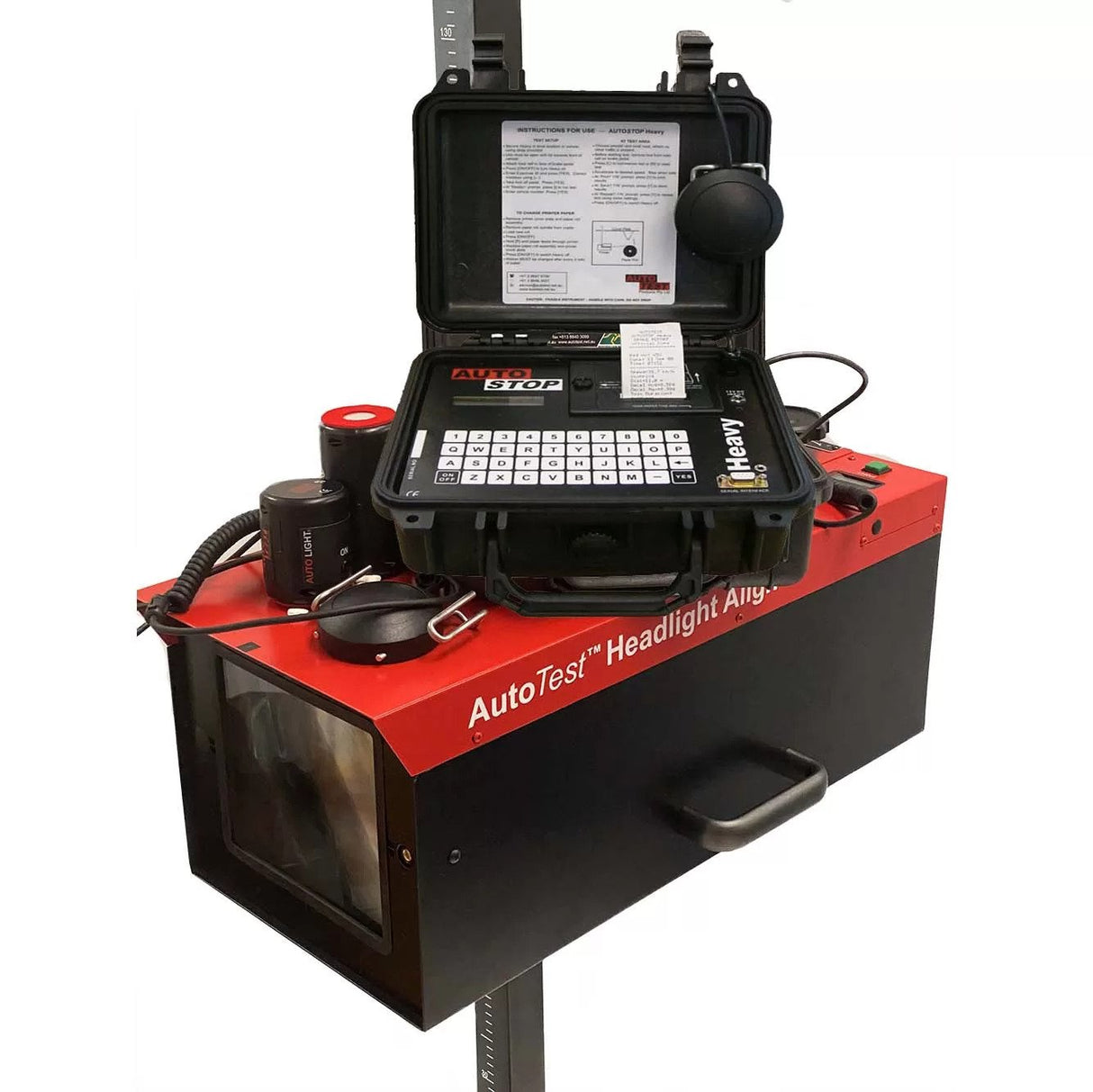

AutoTest® Headlight Align

Is a professional quality beam aligner suitable for all kinds of headlamps (high, low, fog including XENON and LED lamps). It is supplied with assembly, operation and calibration manuals and declaration of conformity.

  • Robust anti-tip base fitted with large castors for easy maneuvering
  • Laser pointers for easy positioning of the unit
  • Digital lux meter and wide measuring window
  • Manual optic alignment visor for easy parallel alignment
  • Easy-to-use height adjustment lock mechanism
  • Compliant with roadworthy regulations in every Australian state and territory
  • Tests according to the Australian Design Rule 48

Headlight Aligner product information



After-sales support and calibration

The product will come with a one-year warranty

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
