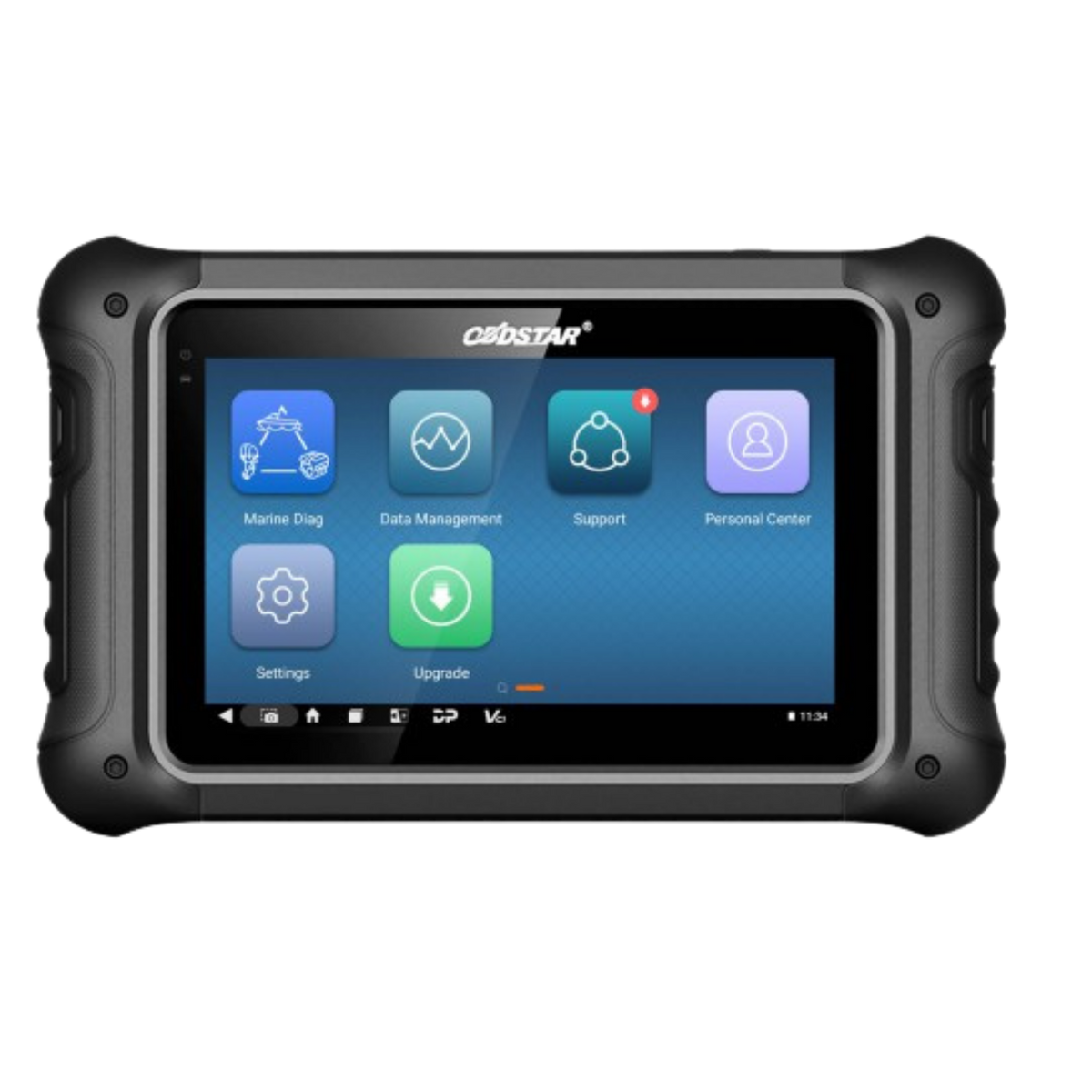

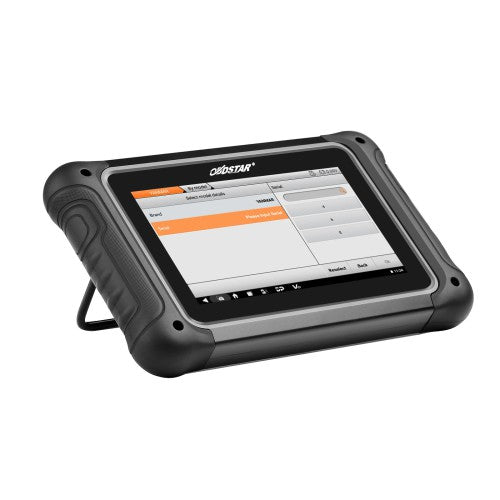

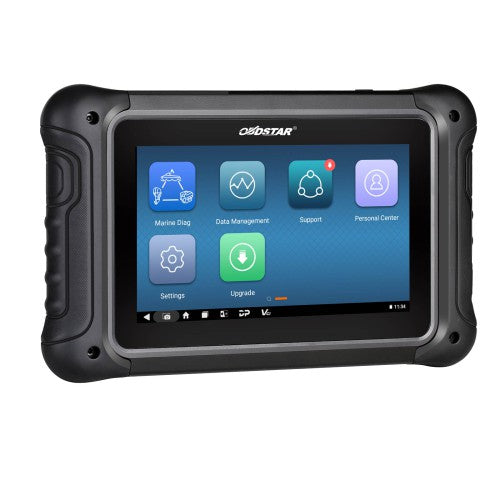

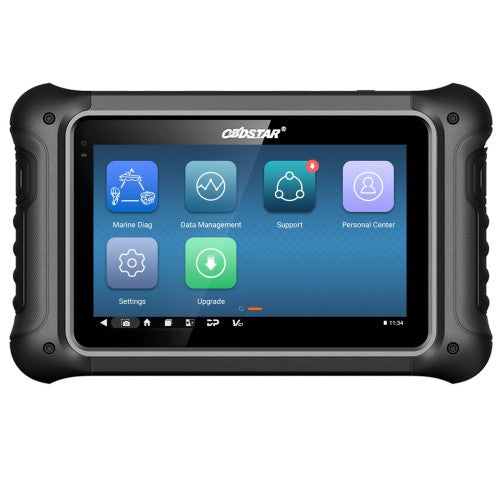

OBDSTAR ISCAN PRO YANMAR Marine Diagnostic Scan Tool – 24V

The OBDSTAR ISCAN PRO YANMAR is a professional diagnostic scan tool specifically designed for Yanmar marine engines.

Built for marine technicians, workshops and boat owners who need dedicated Yanmar diagnostic capability, the ISCAN PRO provides access to fault codes, live engine data, active tests, service functions, settings and other supported ECU functions through a rugged 7-inch Android diagnostic tablet.

Unlike a generic automotive scan tool, the ISCAN PRO YANMAR includes dedicated Yanmar marine diagnostic software and supports 12V and 24V applications, making it ideal for professional marine servicing and fault finding.

Key Features

• Dedicated Yanmar Marine diagnostic software

• Read and clear diagnostic trouble codes

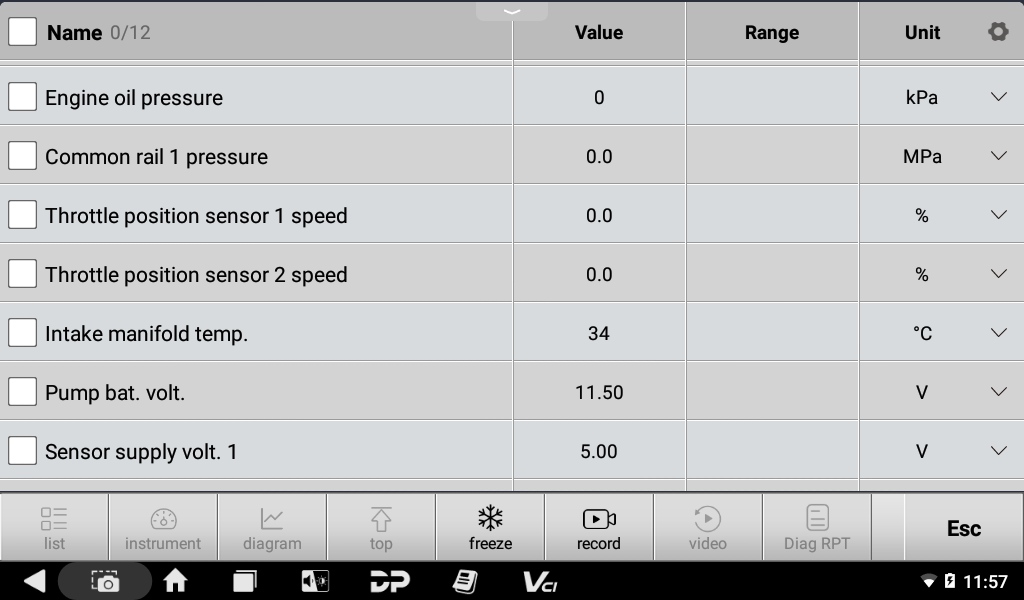

• View live engine and ECU data

• Active / actuator testing

• ECU settings and supported coding functions

• Service reset functions

• Idle control and other supported special functions

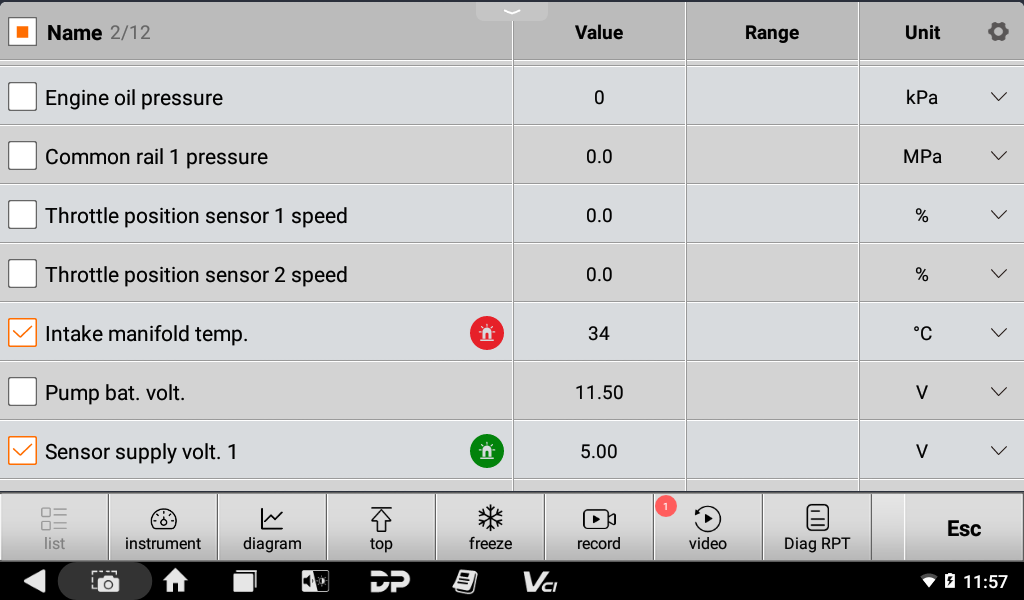

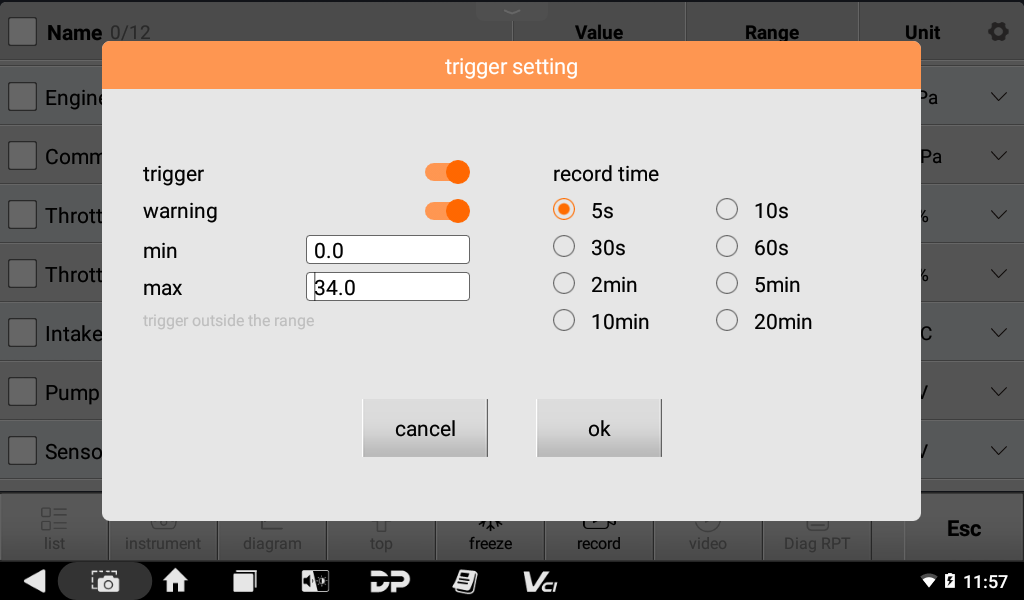

• Record and playback live data

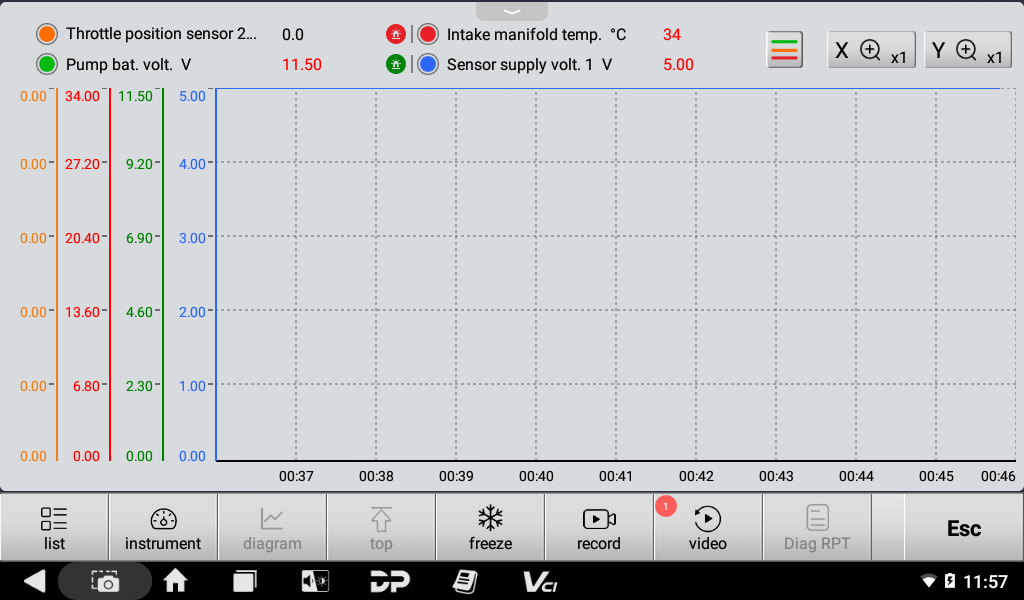

• Multiple live-data display formats including text, waveform and instrument/gauge views

• Diagnostic connector/location information via OBDSTAR mobile app

• Technical bulletin information

• Wi-Fi software updates

• Remote support functionality

• Supports DC 24V input

• Portable 7-inch touchscreen diagnostic tablet

Supported Yanmar Engines

Current OBDSTAR coverage includes Yanmar marine engine families such as:

4BY Series

• 4BY2-150 / 150Z

• 4BY2-180 / 180Z

• 4BY3-150 / 150Z

• 4BY3-180 / 180Z

4JH Series

• 4JH45

• 4JH57

• 4JH80

• 4JH110

4LV Series

• 4LV150

• 4LV170

• 4LV195

• 4LV230

• 4LV250

6BY Series

• 6BY2-220 / 220Z

• 6BY2-260 / 260Z

• 6BY3-220 / 220Z

• 6BY3-260 / 260Z

6LY3 Series

• 6LY3 ETA

• 6LY3 ETP

• 6LY3 STA

• 6LY3 STB

• 6LY3 STP

• 6LY3 UTP

8LV Series

• 8LV-320 / 320Z

• 8LV-350 / 350Z

• 8LV-370 / 370Z

Plus additional supported Yanmar models.

Important: Diagnostic functions vary depending on engine model, ECU and year. Please contact us with your exact Yanmar engine model before purchasing if you require confirmation of a particular function.

Diagnostic Functions

Depending on the engine and ECU fitted, supported functions can include:

• ECU identification

• Read fault codes

• Clear fault codes

• Live data / data stream

• Active tests

• Component activation

• Service reset

• Idle control

• Settings

• Coding

• Data recording and playback

• Technical information

• Diagnostic connector location

This makes the ISCAN PRO YANMAR suitable for both routine servicing and more advanced Yanmar marine fault diagnosis.

Tablet Specifications

• Operating System: Android 5.1.1

• Processor: RK3128 Quad-Core Cortex A7

• Display: 7-inch capacitive touchscreen

• Resolution: 1024 × 600

• Internal Storage: 16GB

• Expandable Storage: Supports up to 32GB Micro SD / TF card

• Battery: 3700mAh rechargeable lithium polymer

• Wi-Fi: Yes

• 24V Input: Supported

• Weight: Approx. 0.766kg

• Dimensions: 243 × 148 × 36mm

• Operating Temperature: -10°C to 55°C

• Storage Temperature: -20°C to 70°C

Why Choose the OBDSTAR ISCAN PRO YANMAR?

For workshops regularly servicing Yanmar-powered boats, having a dedicated diagnostic platform can save considerable time compared with attempting diagnosis through generic marine or automotive equipment.

The ISCAN PRO YANMAR combines Yanmar-specific software, live data, active testing and service functionality in one portable standalone tablet.

Ideal for:

• Marine mechanics

• Boat workshops

• Mobile marine technicians

• Yanmar service and repair specialists

• Boat owners carrying out their own advanced diagnostics

• Workshops wanting an alternative to OEM-level Yanmar diagnostic equipment

Australian Support from Premium Diagnostic Equipment

Purchase through Premium Diagnostic Equipment Australia for local Australian support from a team specialising in professional diagnostic equipment.

Need to confirm compatibility?

Send us your Yanmar engine model, year and the function you need to perform, and our team can check coverage before purchase.
