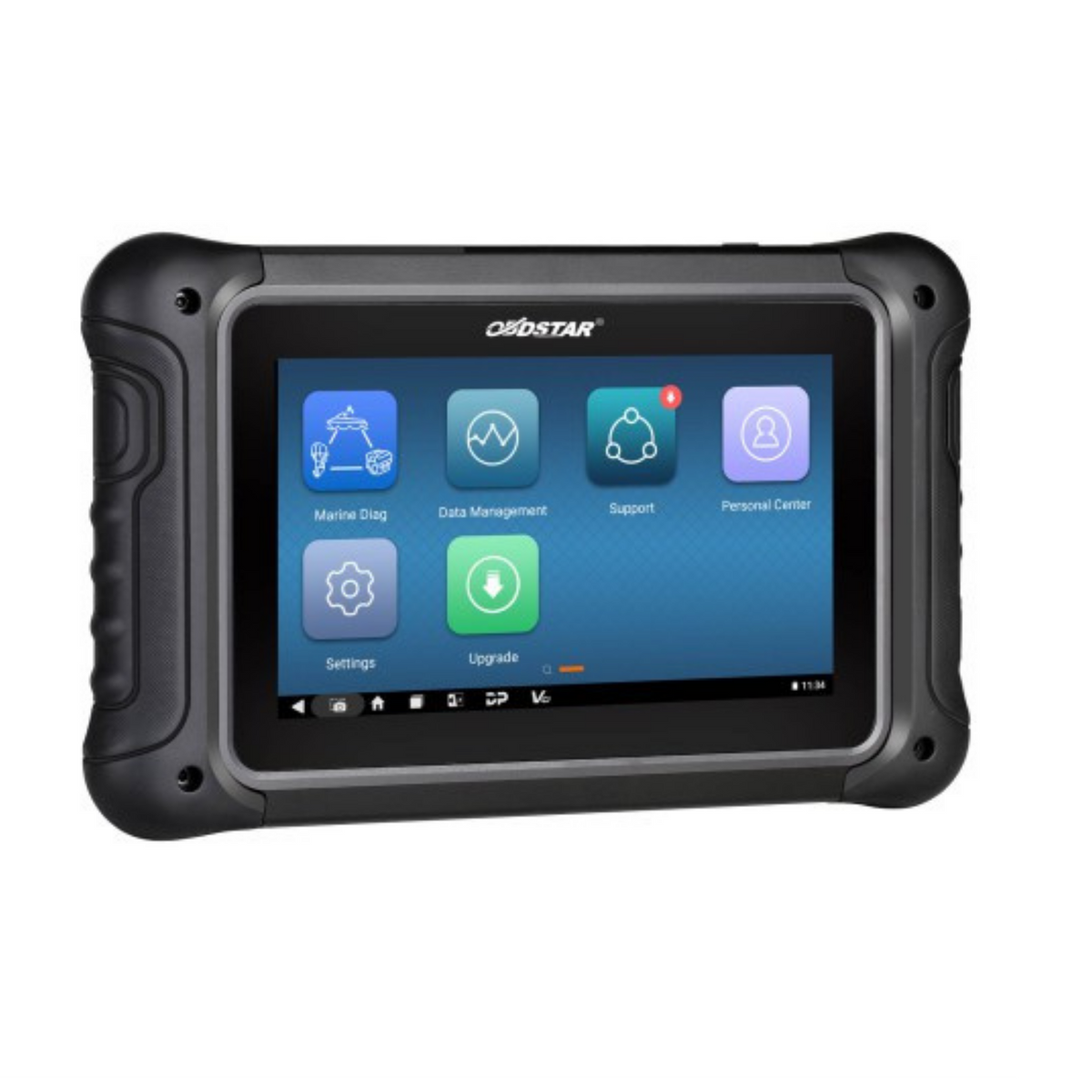

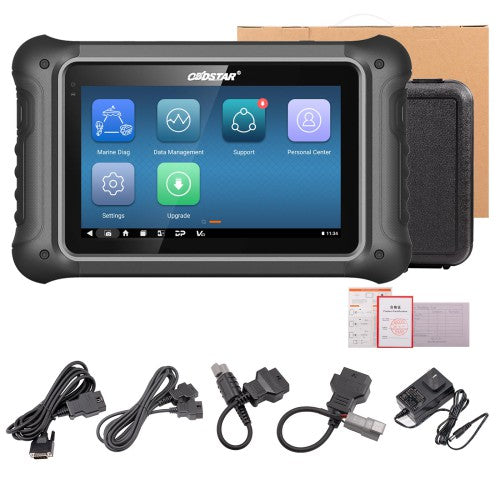

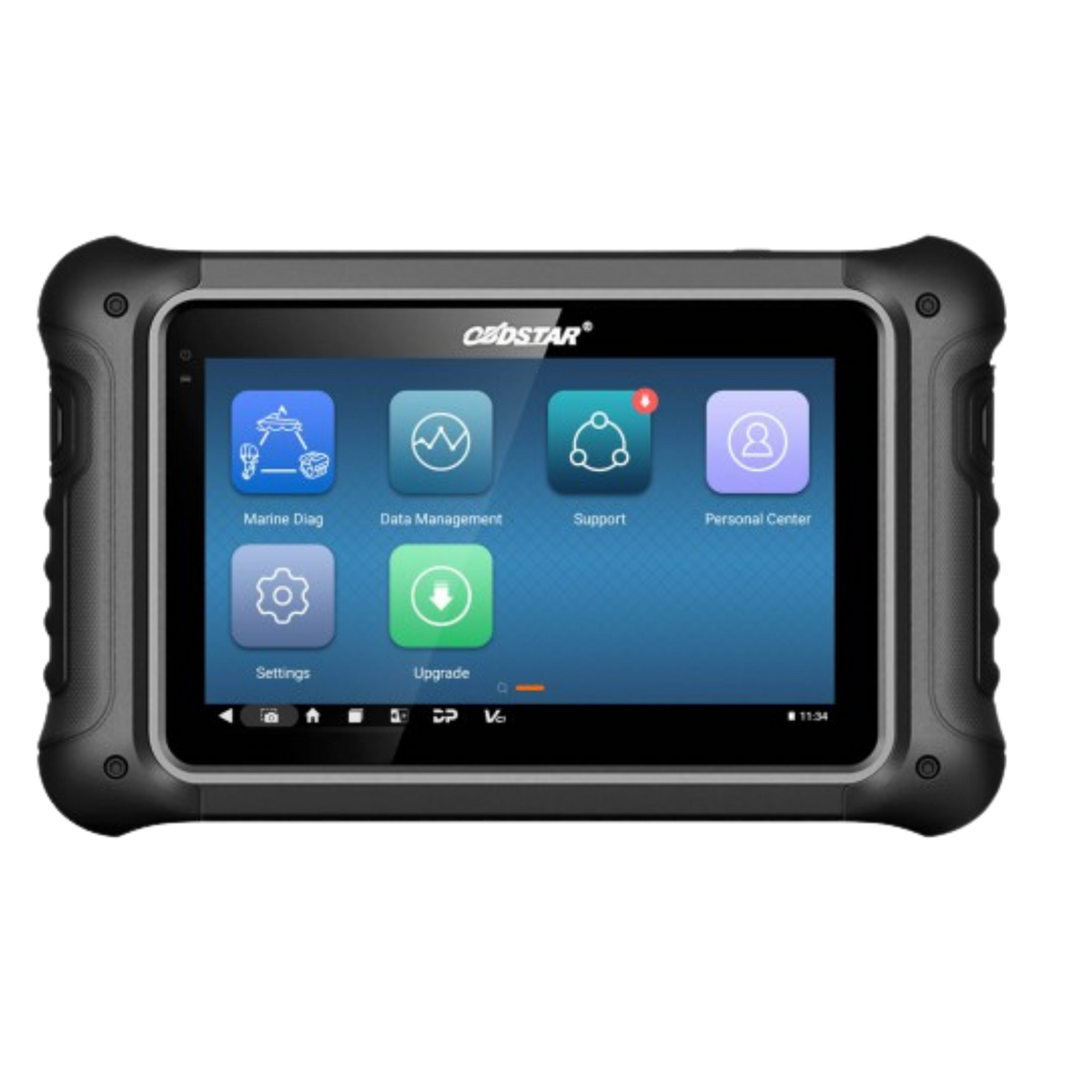

OBDSTAR ISCAN PRO VOLVO Marine Diagnostic Scan Tool – 24V

The OBDSTAR ISCAN PRO VOLVO is a professional dedicated diagnostic scan tool designed specifically for Volvo Penta marine engines.

Ideal for marine workshops, mobile technicians and boat owners requiring advanced Volvo Penta diagnostics, the ISCAN PRO provides access to fault codes, live engine data, active tests, settings, coding, programming and an extensive range of special functions.

With support for both diesel and petrol Volvo Penta applications, plus 12V and 24V systems, this is a powerful standalone solution for professional Volvo Penta marine diagnosis.

Key Features

• Dedicated Volvo Penta Marine diagnostic software

• Read and clear diagnostic trouble codes

• View comprehensive live engine data

• Active / actuator testing

• ECU settings

• Coding functions

• Parameter programming

• Engine hours programming

• Injector testing

• AdBlue system testing on supported engines

• Engine run-up testing

• Compression testing modes

• Fuel system testing

• Ignition and misfire testing on supported petrol engines

• Record and playback live diagnostic data

• Multiple live-data display modes including text, waveform and gauge views

• Wi-Fi software updates

• Remote technical assistance capability

• Supports DC 24V input

• Portable 7-inch touchscreen diagnostic tablet

Supported Volvo Penta Engine Series

Current OBDSTAR Volvo Marine coverage includes:

• D3 Series

• D4 / D6 Series

• D5–D16 GE

• D5–D16 VE

• D8 / D13-1000

• D9–D16

• D12

• KAD-300

• KAD-44

• TAMD-74

• TAMD-75

• QL EST

• Volvo Penta Petrol / Gasoline Engines

• V6

• V8

Plus additional supported Volvo Penta models.

Advanced Volvo Penta Functions

Depending on the engine and ECU fitted, advanced functions can include:

• Parameter Programming

• Station Configuration

• Gain & Stability Calibration

• ACP History Test

• Engine Hours Programming

• AdBlue Dosing System Tests

• Engine Run-Up Test

• Injector Shut-Off Tests

• Spark Shut-Off Test

• Fuel Pump Relay Test

• Idle Air Control Reset

• Throttle Activation Test

• Cylinder Compression Mode

• Injector Control Test

• Idle Speed Control Test

• Spark Fire Test

• O2 Sensor Test

• Misfire Reset

• Additional Volvo Penta special functions

This gives technicians significantly more capability than simply reading and clearing engine fault codes.

Full Diagnostic Functions

Depending on the Volvo Penta engine and control system, diagnostic functions include:

• ECU identification

• Read fault codes

• Clear fault codes

• Live data / data stream

• Active tests

• Component activation

• Settings

• Coding

• Parameter programming

• Calibration functions

• Engine hours functions

• Injector testing

• Fuel system testing

• Engine testing

• Data recording and playback

Live Data Analysis

The ISCAN PRO VOLVO allows technicians to view engine data in multiple formats, including:

• Text / numerical data

• Waveform graphs

• Instrument / gauge display

Live data can also be recorded and played back, making it easier to identify intermittent faults and analyse sensor behaviour.

OBDSTAR Mobile App Support

The OBDSTAR mobile app provides additional technical information to assist with diagnosis, including:

• Diagnostic socket locations

• Diagnostic connector information

• Technical bulletins

• Supporting technical information

This is particularly useful when working across different generations of Volvo Penta engines and installations.

Tablet Specifications

• Operating System: Android 5.1.1

• Processor: RK3128 Quad-Core Cortex A7

• Display: 7-inch capacitive touchscreen

• Resolution: 1024 × 600

• Internal Storage: 16GB

• Expandable Storage: Supports up to 32GB Micro SD / TF card

• Battery: 3700mAh rechargeable lithium polymer

• Wi-Fi: Supported

• 24V Input: Supported

• Weight: Approx. 0.766kg

• Dimensions: 243 × 148 × 36mm

• Operating Temperature: -10°C to 55°C

• Storage Temperature: -20°C to 70°C

Why Choose the OBDSTAR ISCAN PRO VOLVO?

Modern Volvo Penta engines can require considerably more than a generic fault-code reader.

The ISCAN PRO VOLVO provides a dedicated Volvo Penta diagnostic platform with advanced functions including parameter programming, station configuration, calibration, engine-hours programming and component testing on supported applications.

It's an excellent tool for:

• Marine mechanics

• Boat workshops

• Mobile marine technicians

• Volvo Penta specialists

• Diesel mechanics working on marine applications

• Boat owners requiring advanced diagnostic capability

• Workshops wanting a dedicated alternative to OEM Volvo Penta diagnostic equipment

Australian Support from Premium Diagnostic Equipment

Purchase through Premium Diagnostic Equipment Australia for local Australian support from a team specialising in professional diagnostic equipment. We can remotely log onto your tool to assist with set up, diagnostics and troubleshooting.

Not Sure if Your Volvo Penta is Supported?

Send us your:

• Volvo Penta engine model

• Engine year

• Serial number where available

• Specific function you need to perform

Our team can check the current OBDSTAR coverage before purchase.

Important: Available functions vary depending on the exact engine, ECU, model and year. The presence of a function within the OBDSTAR Volvo software does not guarantee that function is supported on every Volvo Penta engine.
