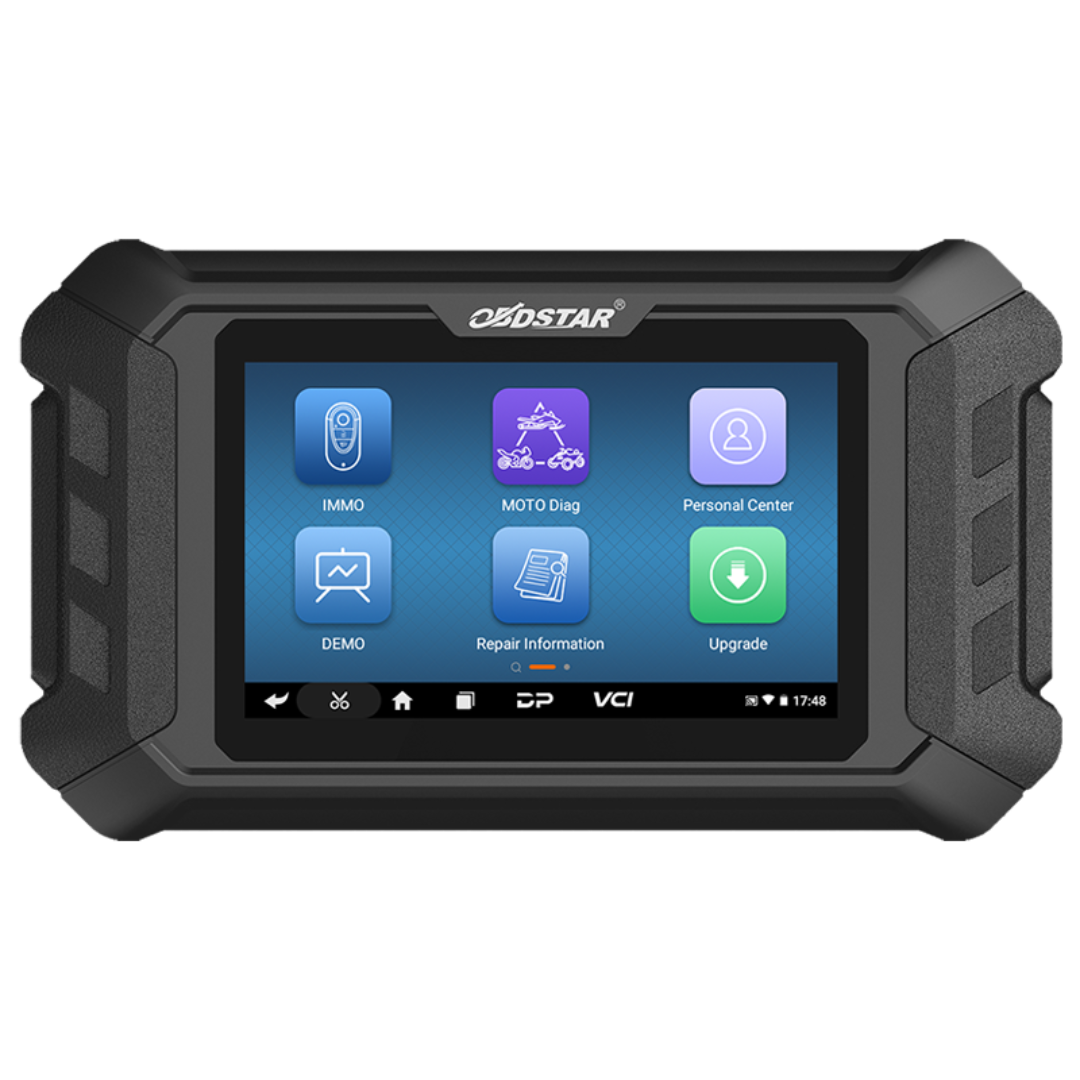

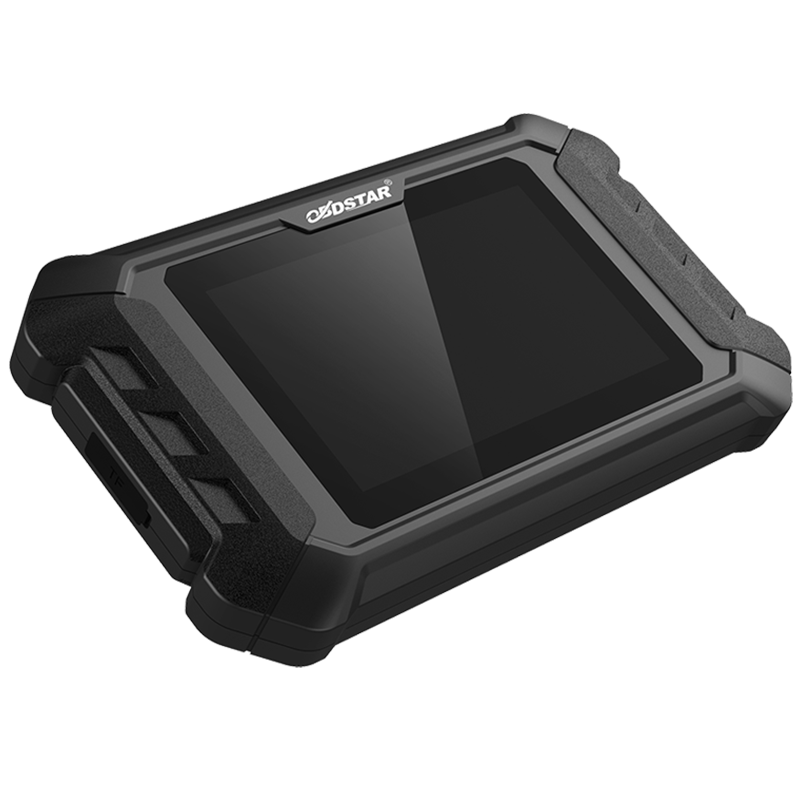

OBDSTAR iScan Japan Motorcycle Diagnostic Scan Tool & Key Programmer
All-in-One Diagnostics & Key Programming for Japanese Motorcycles (HONDA, KAWASAKI, SUZUKI, YAMAHA)
Built for precision and performance, the OBDSTAR iScan Japan is the ultimate diagnostic and key programming solution for Japanese motorcycle brands including Honda, Kawasaki, Suzuki, and Yamaha. Whether you're managing a high-volume workshop or an advanced tuning garage, this portable Android-based tool combines powerful OEM-level functions with an intuitive, easy-to-navigate interface.
Core Diagnostic Functions
Android 5.1.1 Operating System
Smooth and stable performance designed for professional environments, backed by an easy-to-use touchscreen interface.

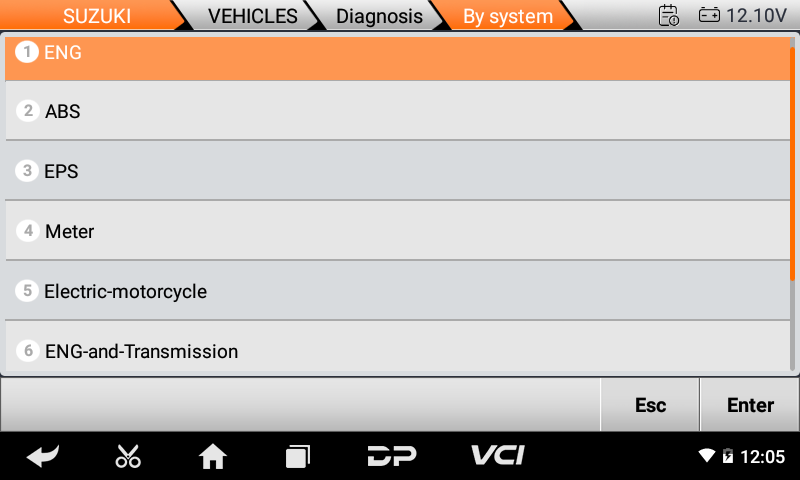

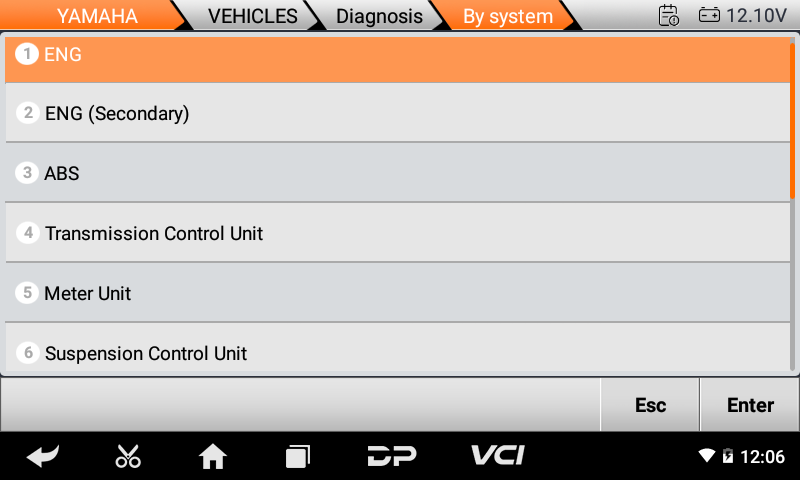

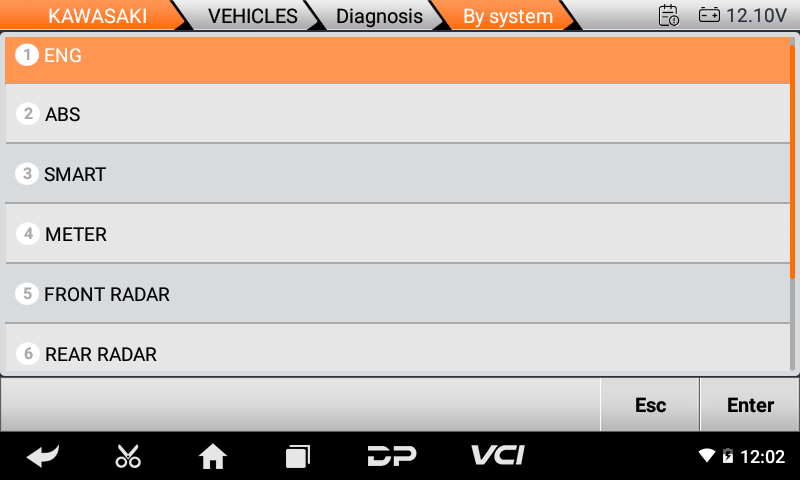

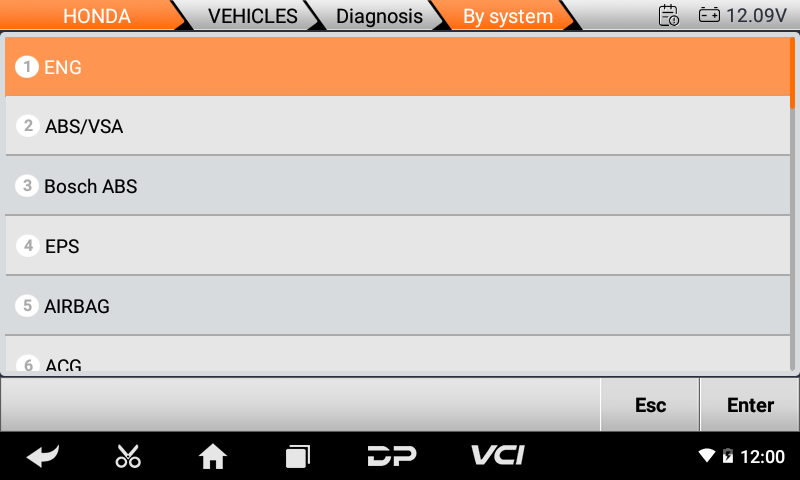

Comprehensive System Diagnostics
Supports a wide range of essential functions: fault code reading/clearing, live data streaming, ECU and instrument coding, active tests, and more.
Quick Navigation & Operation
Fast access to system menus and diagnostic features helps streamline your workflow—perfect for busy technicians.
Live Data Logging & Playback
Capture and review real-time sensor data to identify faults, fluctuations, or intermittent performance issues.
Wi-Fi Enabled
Enjoy one-click internet updates for the latest software versions and expanded vehicle support.
Built-In Remote Assistance
Get instant remote help from OBDSTAR’s technical team without needing to ship the tool.
Advanced Diagnostic Capabilities

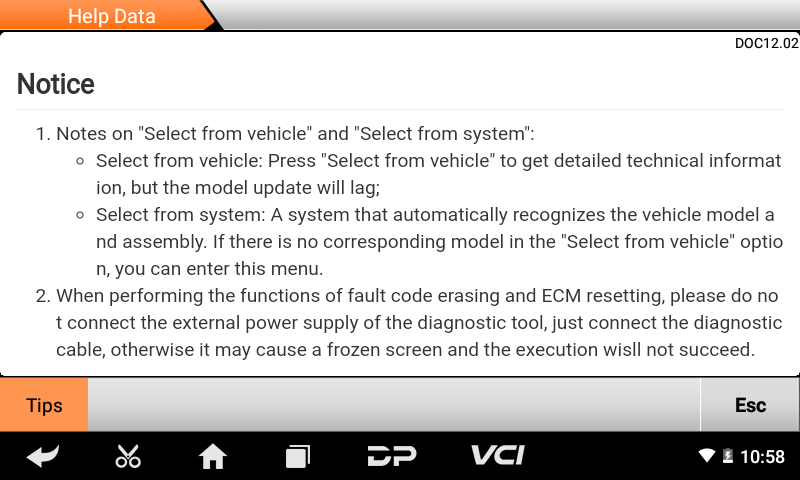

Guided Troubleshooting Support

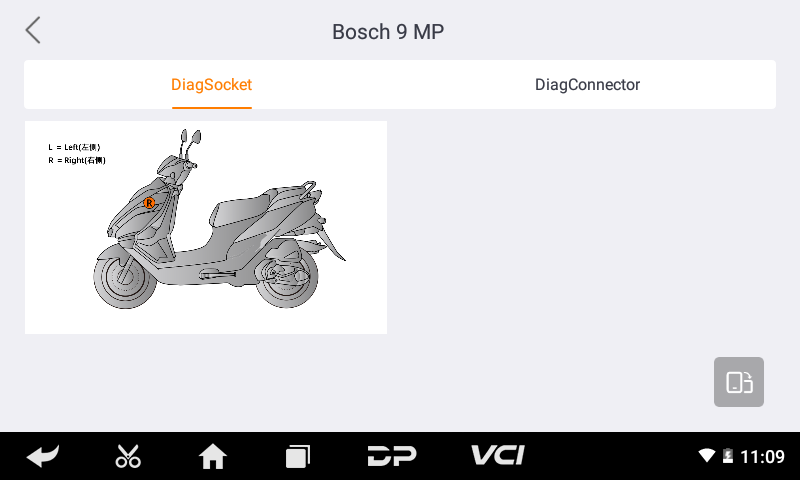

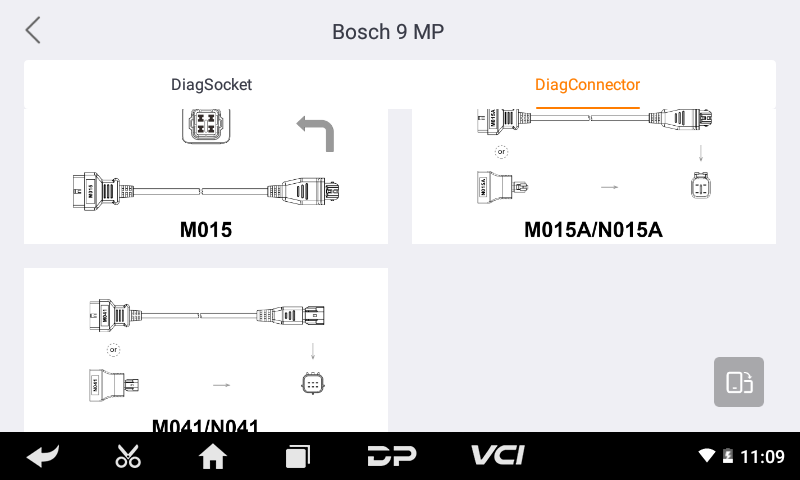

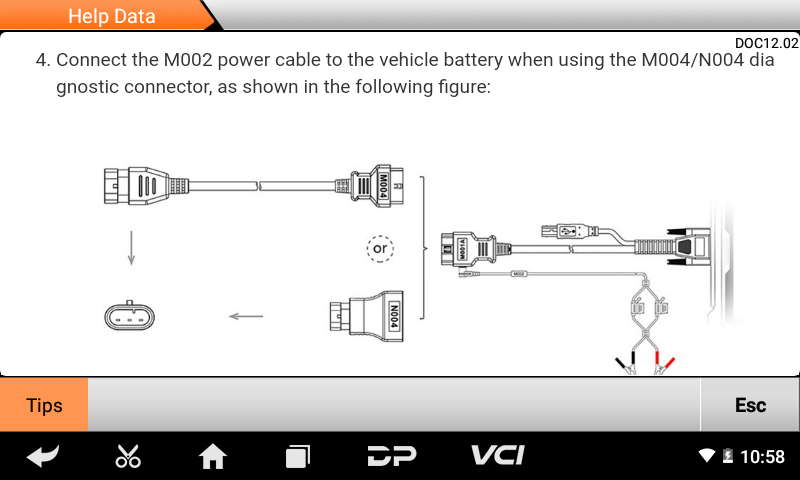

First-fault guidance, technical bulletins, and diagnostic port diagrams are built in to help you work faster and smarter.
Flexible Data Display Modes
Choose from text, waveform graphs, or instrument-style views depending on how you prefer to visualize diagnostics.

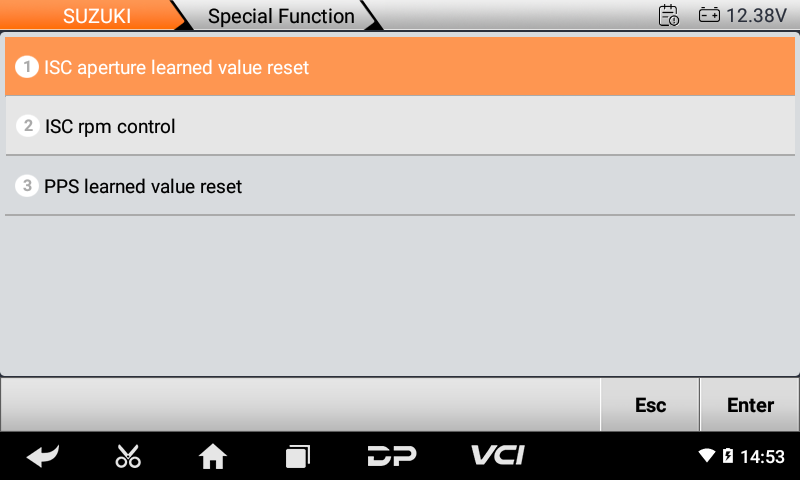

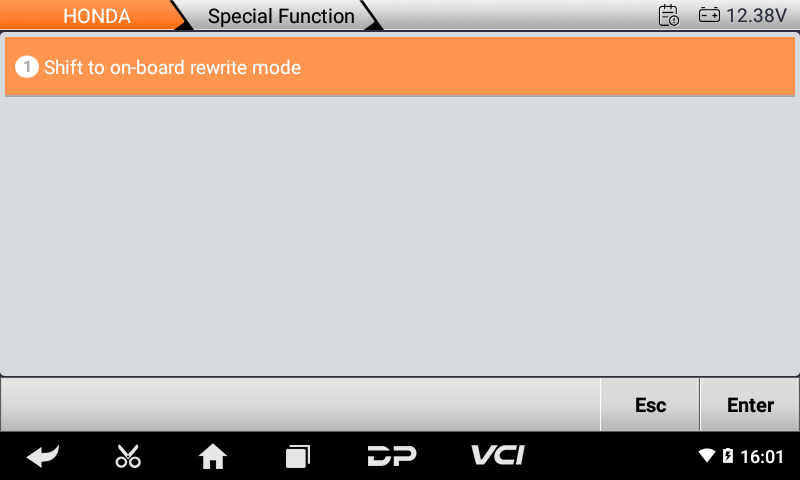

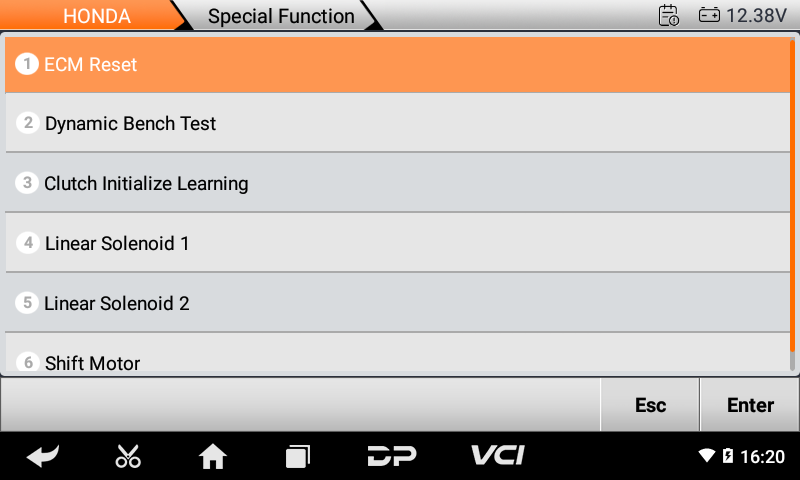

OEM-Level ECU Control & System Access
-
Automatic system scanning & VIN recognition
-
ECU and module programming & configuration
-
Instrument cluster and TPMS coding
-

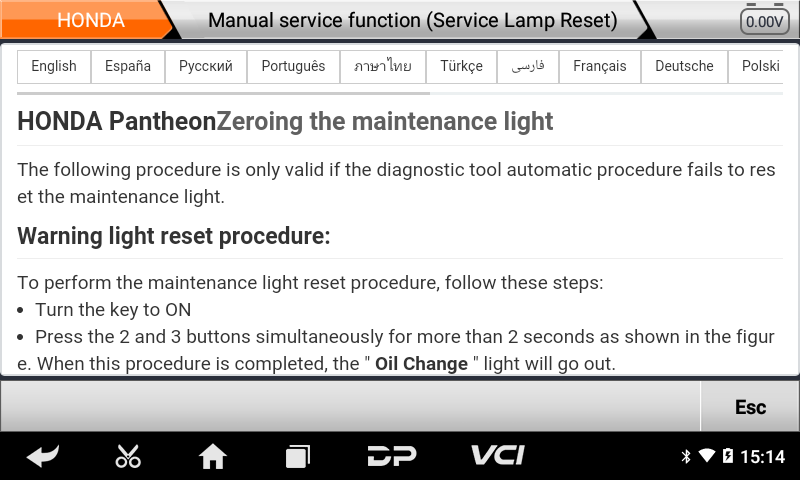

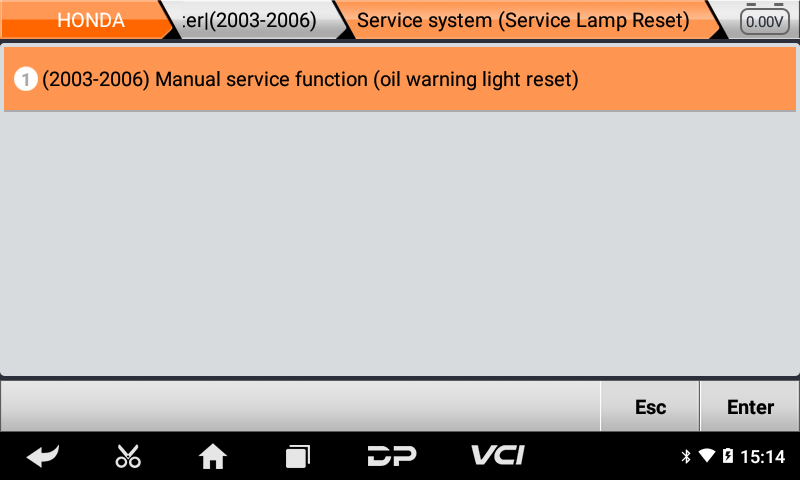

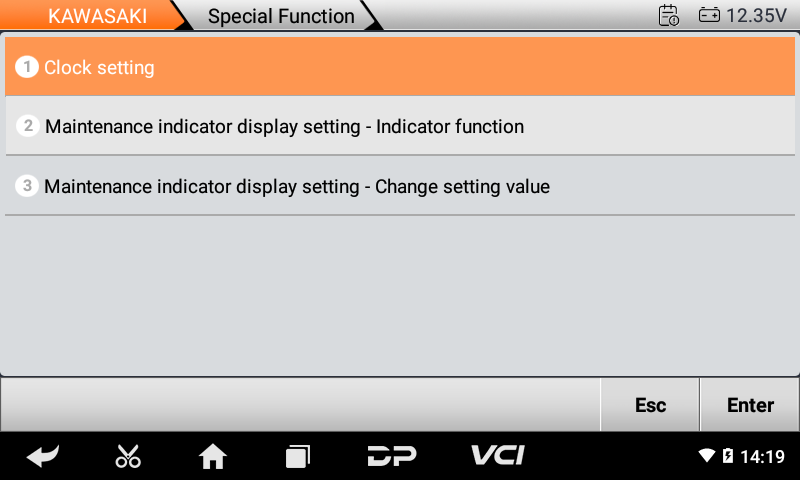

Maintenance light resets
-

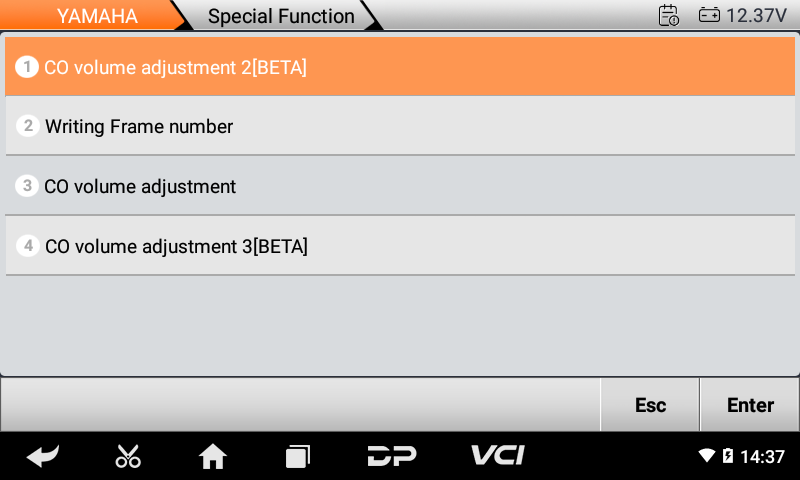

CO and idle speed adjustments
-
A/F ratio tuning
-

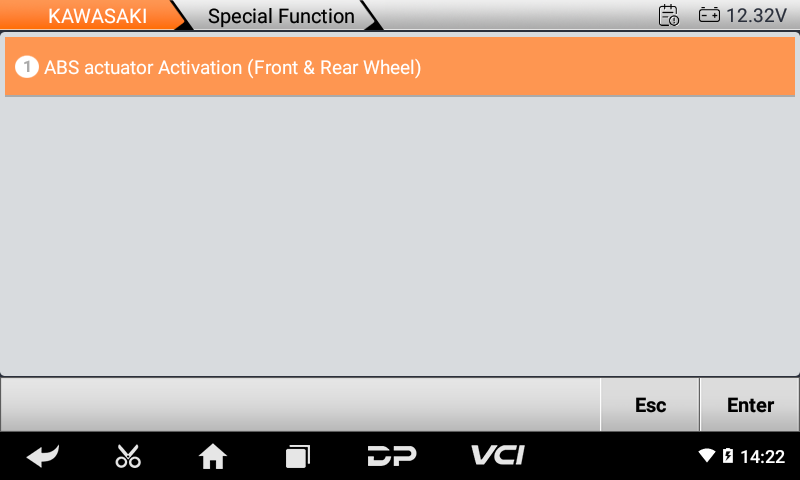

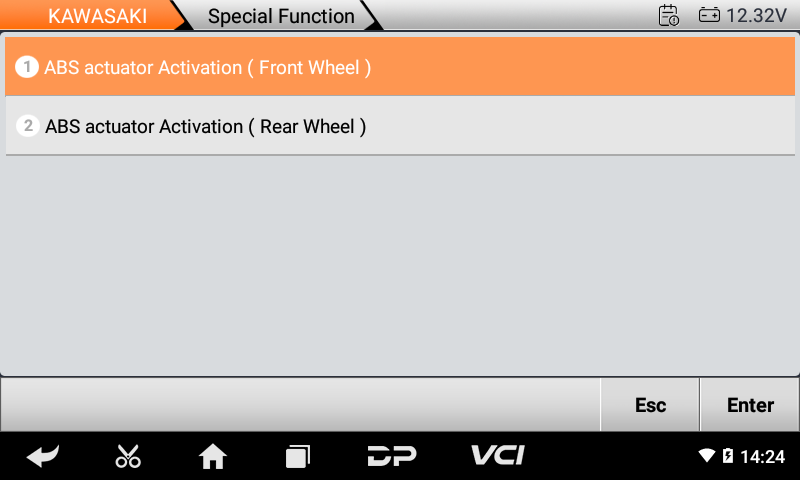

ABS control setup
-

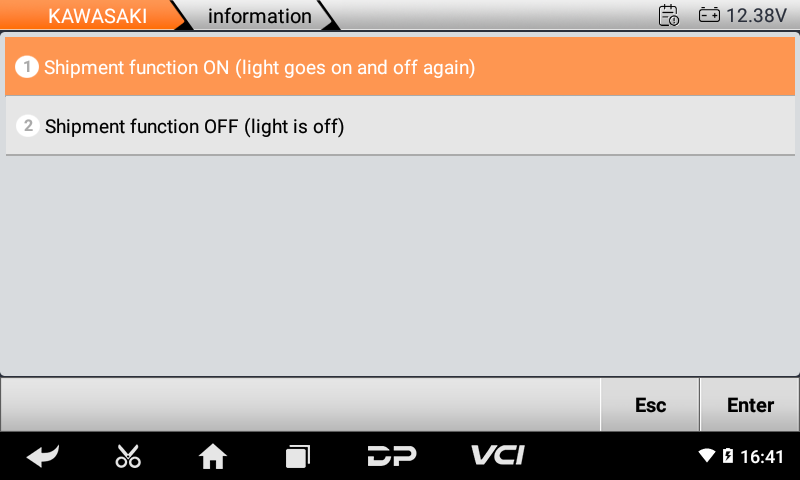

End-of-Line (EOL) mode
-

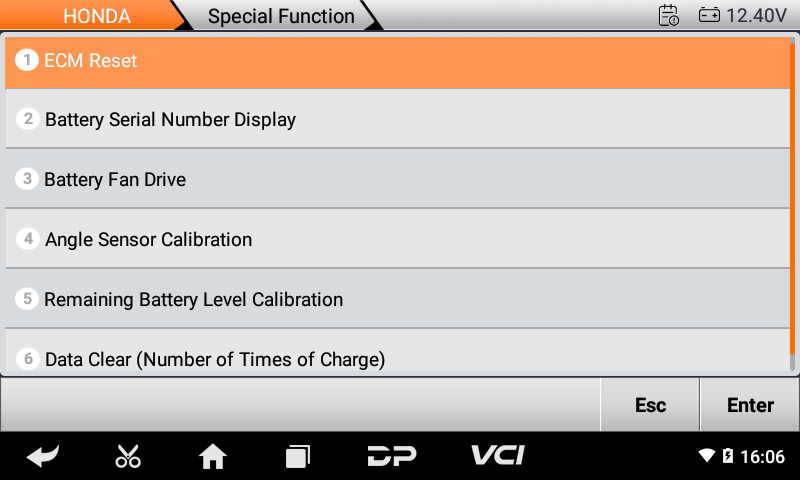

ECU memory and transmission resets

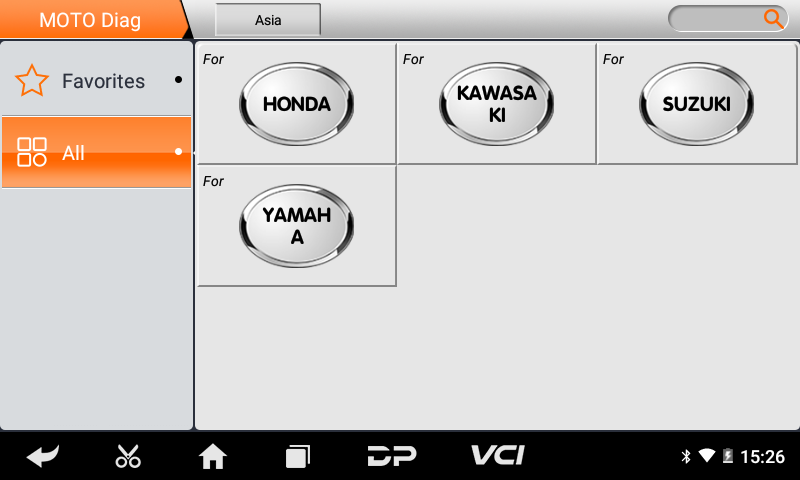

Supported Vehicle Types
Motorcycles, ATVs, UTVs, Snowmobiles by:
✔️ HONDA
✔️ KAWASAKI
✔️ SUZUKI
✔️ YAMAHA

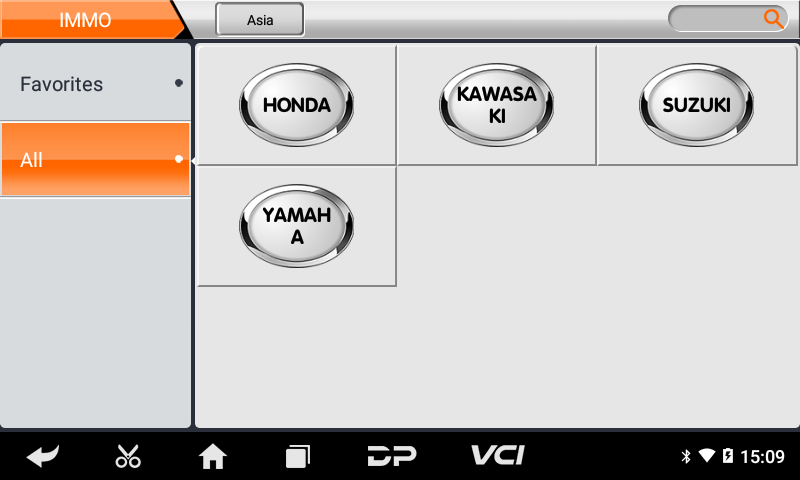

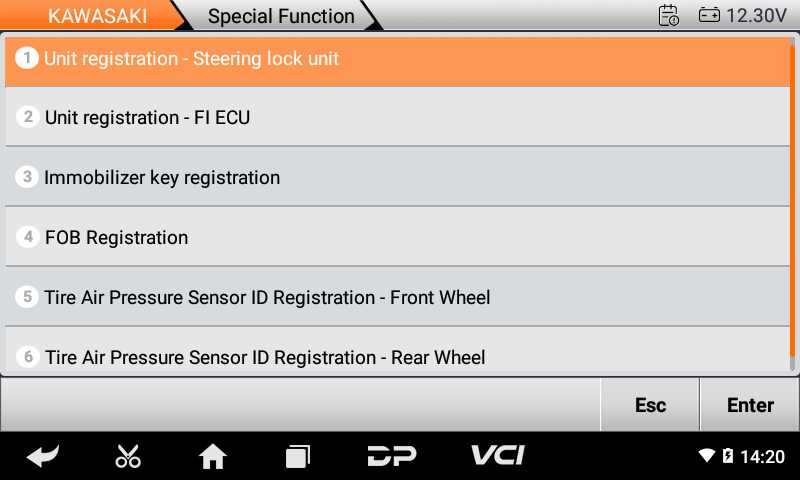

Key Programming Capabilities
Supports key programming, proximity key setup, and PIN code functions for the following brands:
-
HONDA
-
KAWASAKI
-
SUZUKI
-
YAMAHA
Ideal for replacing lost keys, adding new remotes, or immobilizer pairing.

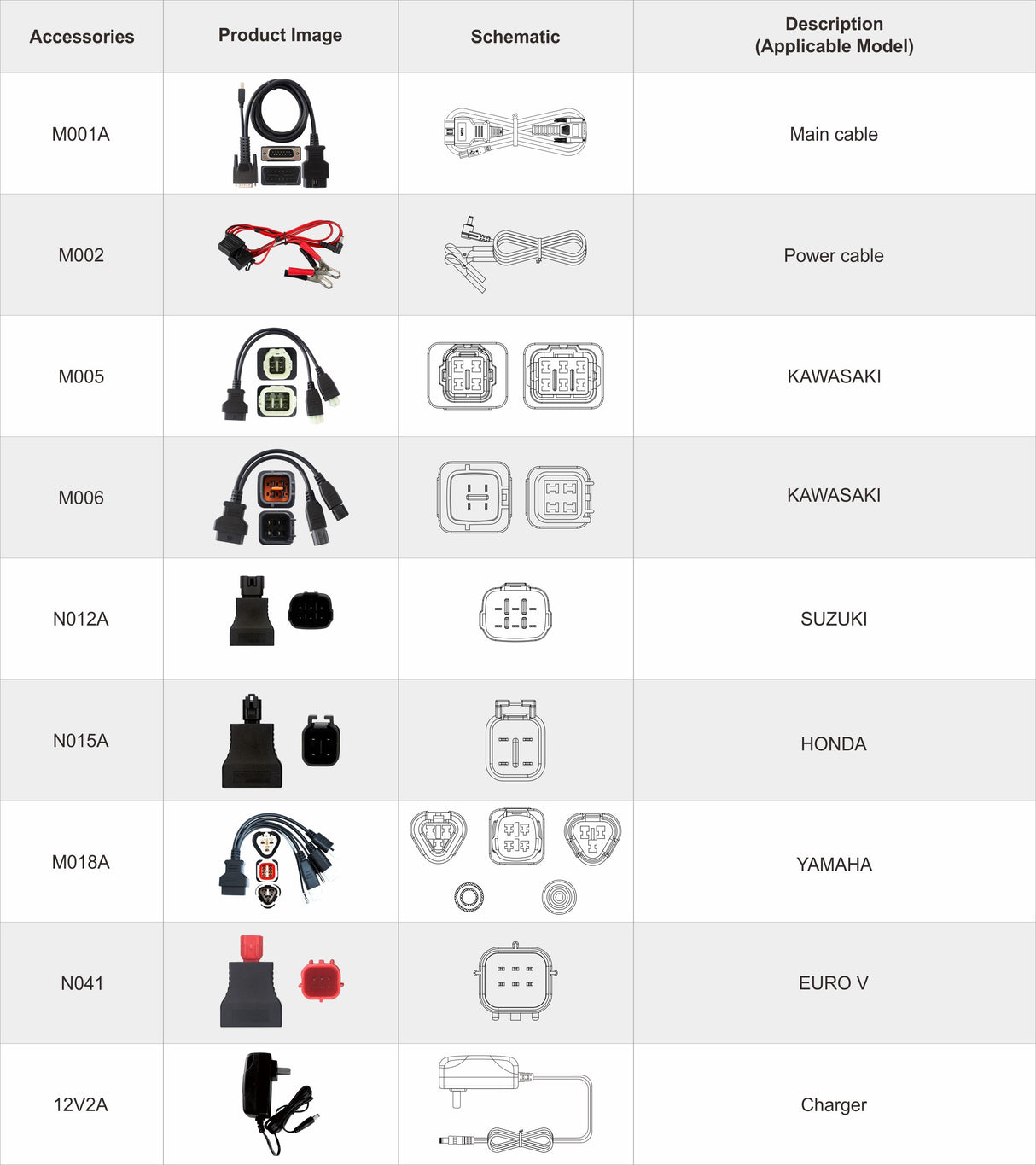

Package Includes
-
1× M001A Main Cable
-
1× M002 Power Cable
-
1× M005 Kawasaki Adapter
-
1× M006 Kawasaki Adapter
-
1× N012A Suzuki Adapter
-
1× N015A Honda Adapter
-
1× M018A Yamaha Adapter
-
1× N041 EURO V Adapter
-
1× 12V 2A Charger
Technical Specifications
| Feature | Description |
|---|---|
| Operating System | Android 5.1.1 |
| CPU | RK3128 Quad-Core ARM Cortex-A7 |
| Display | 5.0” Capacitive Touchscreen (800×480) |
| Battery | 2600mAh Rechargeable Lithium |
| Storage | Supports 32GB MicroSD (TF Card) |
| Wi-Fi | Supported |
| Weight | Approx. 700g |
| Dimensions | 198mm × 115mm × 31mm |
| Working Temp | -20°C to 55°C (14°F to 131°F) |
| Storage Temp | -20°C to 70°C (-4°F to 158°F) |
Why Choose iScan Japan?
-
Multi-Brand Coverage: Consolidate your workshop tools with support for Honda, Kawasaki, Suzuki, and Yamaha in one device.
-
Key Programming + Diagnostics: Handle everything from fault scanning to key adaptation with ease.
-
Workshop-Grade Durability: Compact yet rugged, made to withstand daily use in busy environments.
Iscan Series Scan Tool User Manual Download
12 Months free updates. $80 USD per year to update
