SKU: OBS-DS-D800FULL

OBDSTAR Marine Master Full Package Diagnostic Scan Tool for Marine (Jet Ski + Outboard + Inboard Stern Drives)

Name: OBDSTAR Marine Master Full Package Diagnostic Scan Tool for Marine (Jet Ski + Outboard + Inboard Stern Drives)
Brand: Premium Diagnostic Equipment
SKU: OBS-DS-D800FULL
Price: 4400.00 AUD
Availability: InStock

$4,400.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

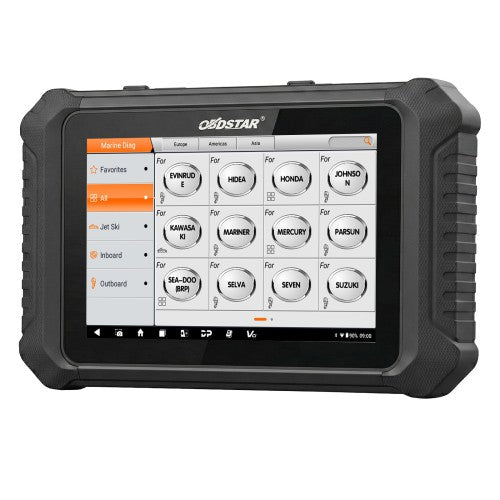

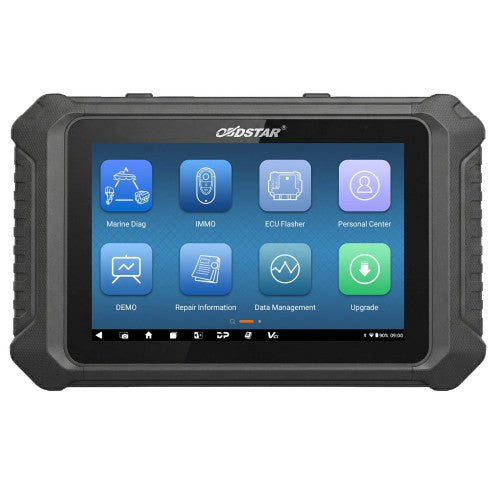

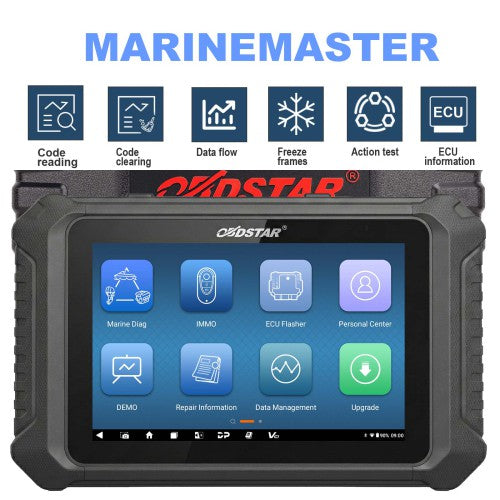

OBDSTAR MarineMaster Marine Diagnostic Scan Tool

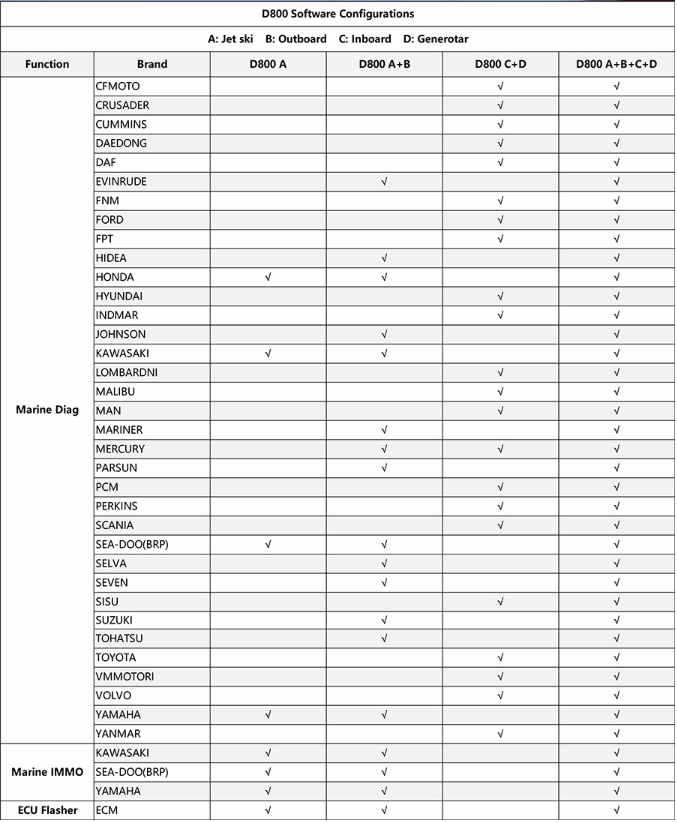

(Upgraded Replacement for D800 Full Package A/B/C/D)

The OBDSTAR MarineMaster is the latest generation marine diagnostic tool, designed specifically for jet skis, outboards, inboards, and stern drives.

Replacing the older D800 system, MarineMaster delivers faster performance, broader coverage, and a much more advanced user experience all in one integrated device

Powered by a Samsung Exynos processor and running Android 11, it features an 8-inch touchscreen for smooth, responsive operation in workshop environments.

Whats new?

✅ Direct replacement for OBDSTAR D800 (Full Package A/B/C/D)
✅ No more separate packages, everything integrated
✅ Faster hardware + modern Android 11 system
✅ Smarter diagnostics with auto-identification
✅ Improved interface + easier navigation
✅ Ongoing updates and expanding coverage

Key Features

Android 11 operating system with OTA updates
Fast Samsung Exynos processor
8-inch high-resolution touchscreen
Wi-Fi connectivity for updates and remote support
Built-in help guides for easier diagnostics
Screen recording + wireless screen mirroring

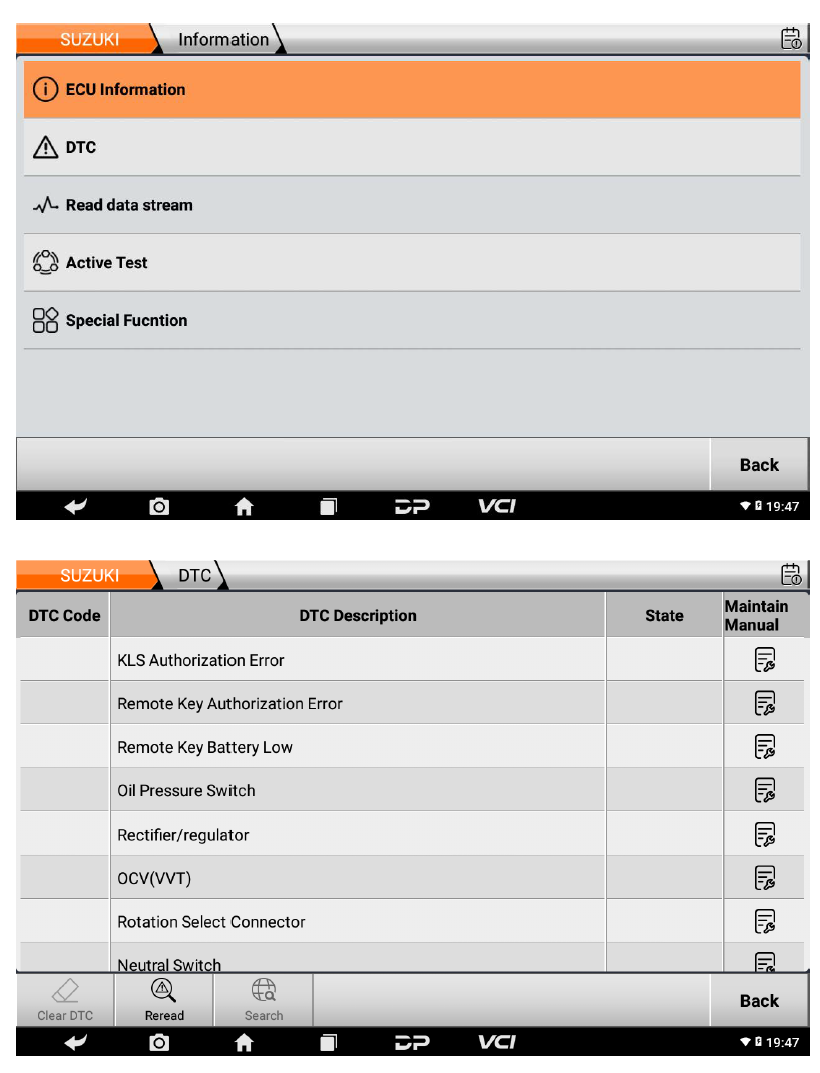

Diagnostic Functions

ECU Information
Read & Clear Fault Codes

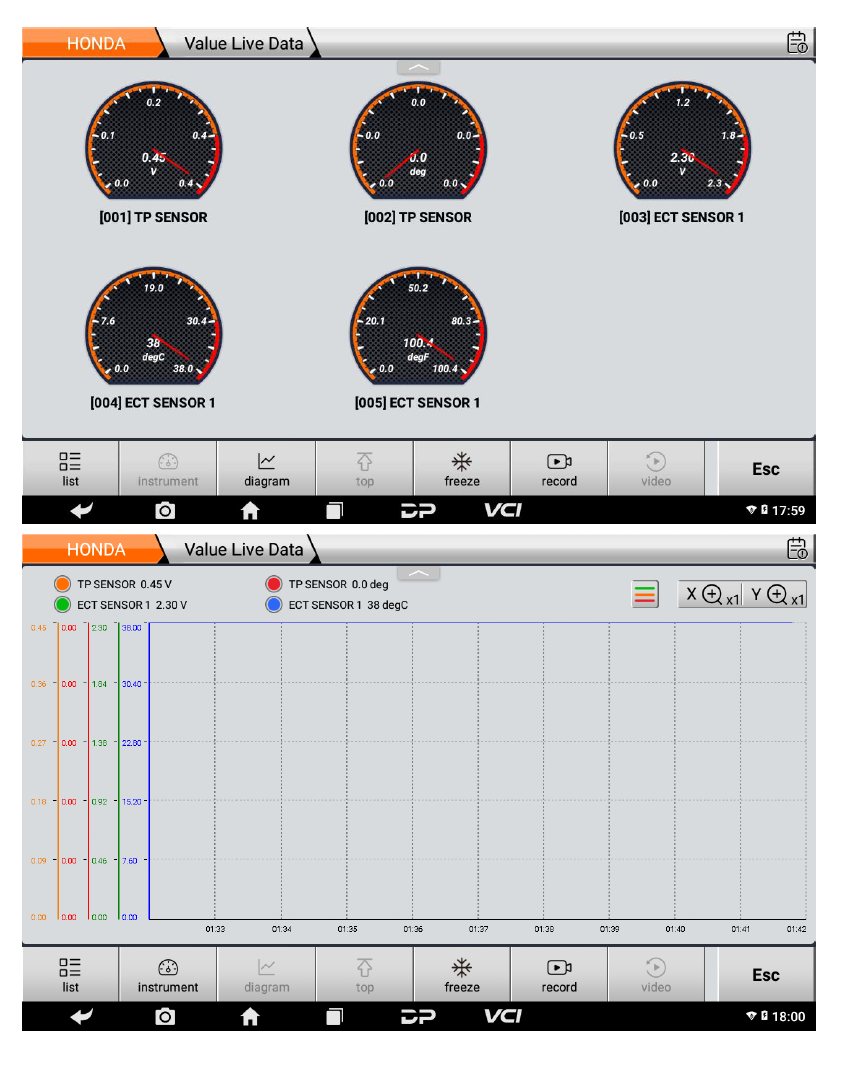

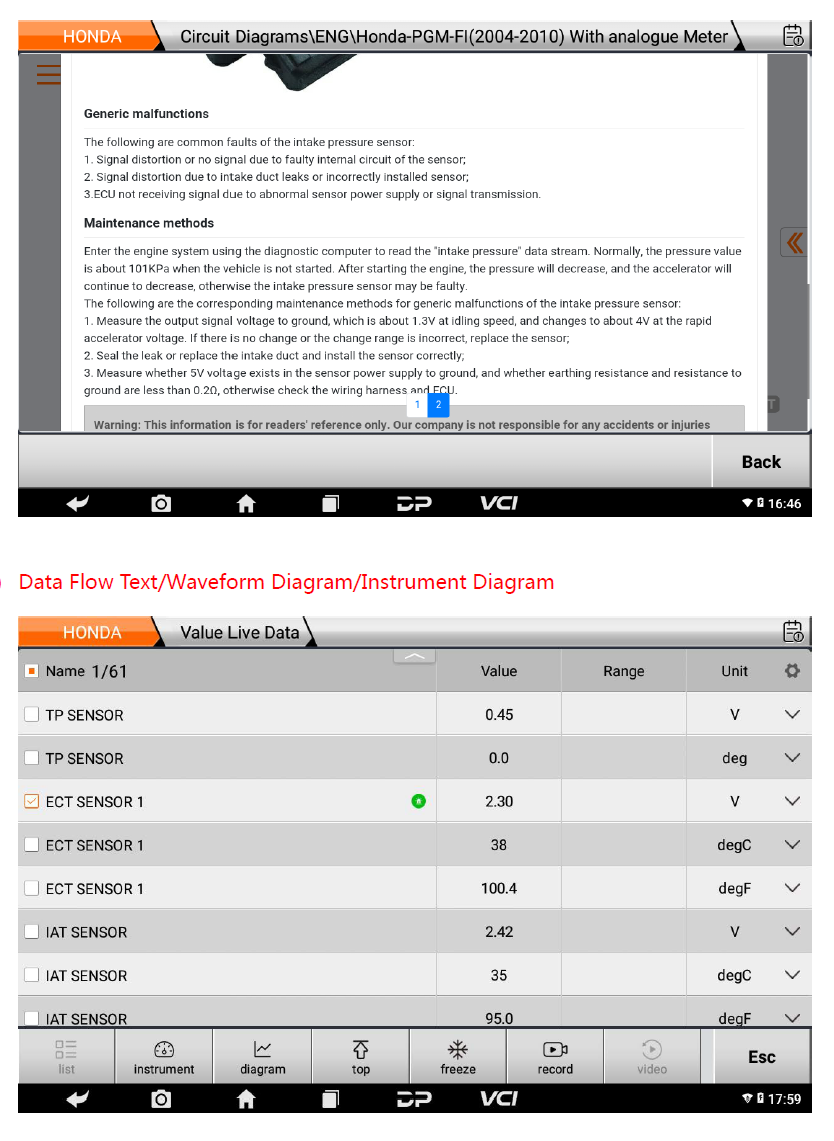

Live Data Stream + Playback
Freeze Frame Data
Actuation / Active Tests
Coding & Settings
Working Hours Reading
Helm Setup Functions

Advanced Functions

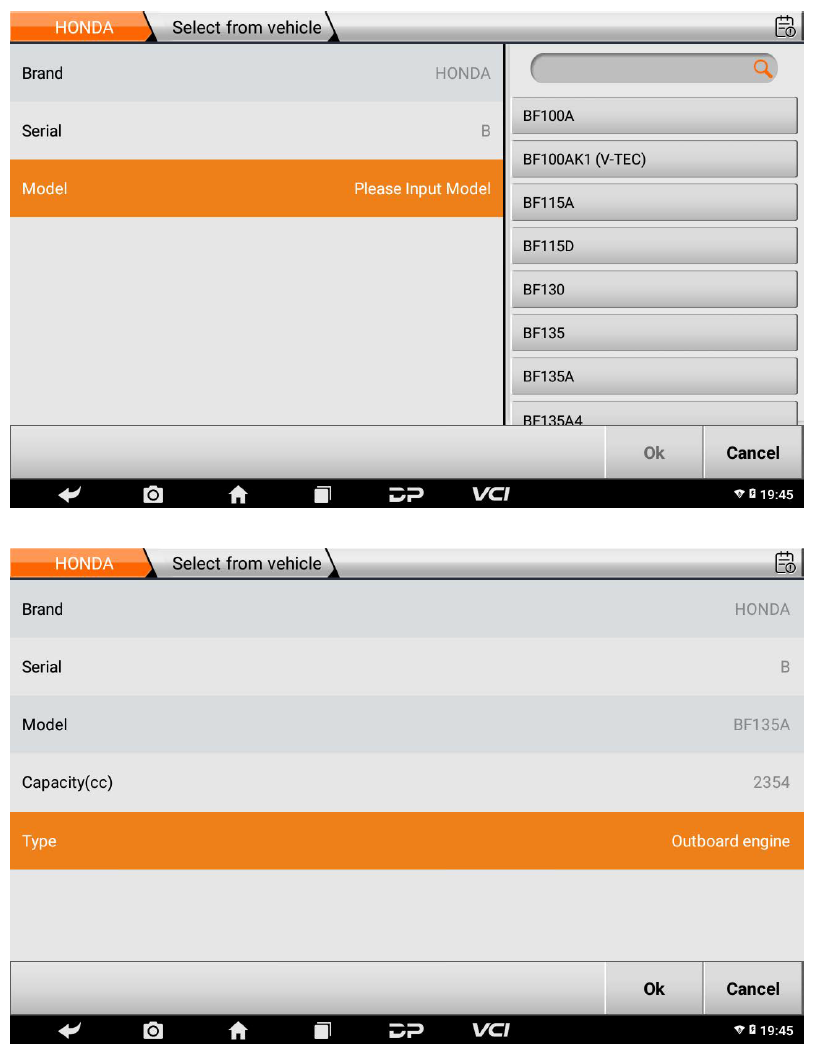

Auto Scan & intelligent system identification
BCM Simulator & system calibration
Maintenance resets & service functions
Torque adjustment + configuration functions
Multiple data display modes (text, graph, dashboard)

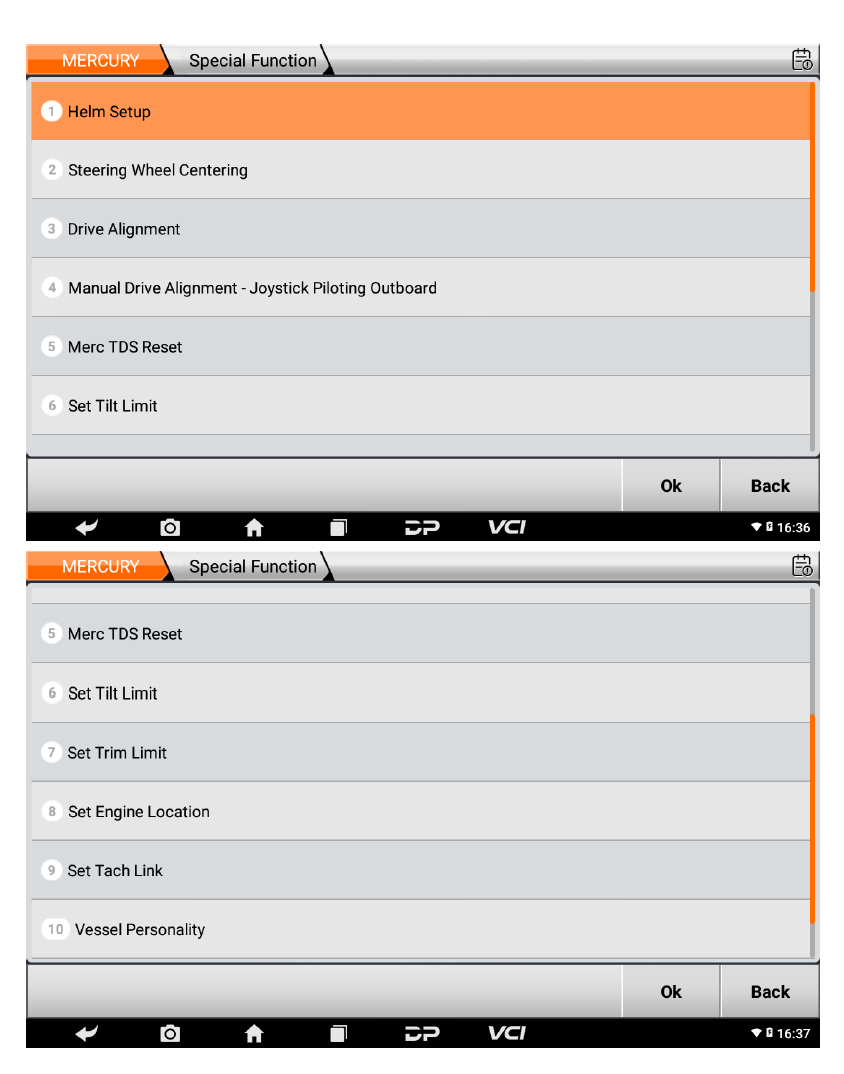

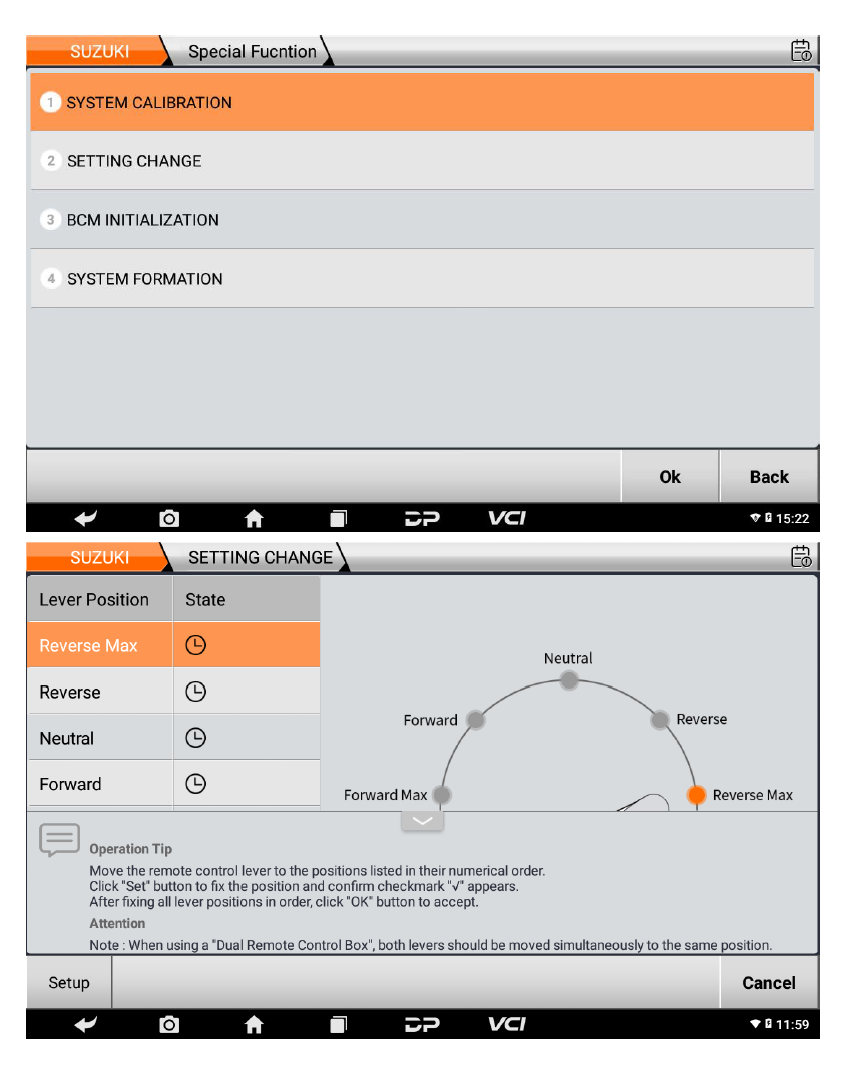

Advanced system setup including:
- Helm setup
- Drive alignment
- Trim configuration
- Steering calibration
- Vessel personality settings

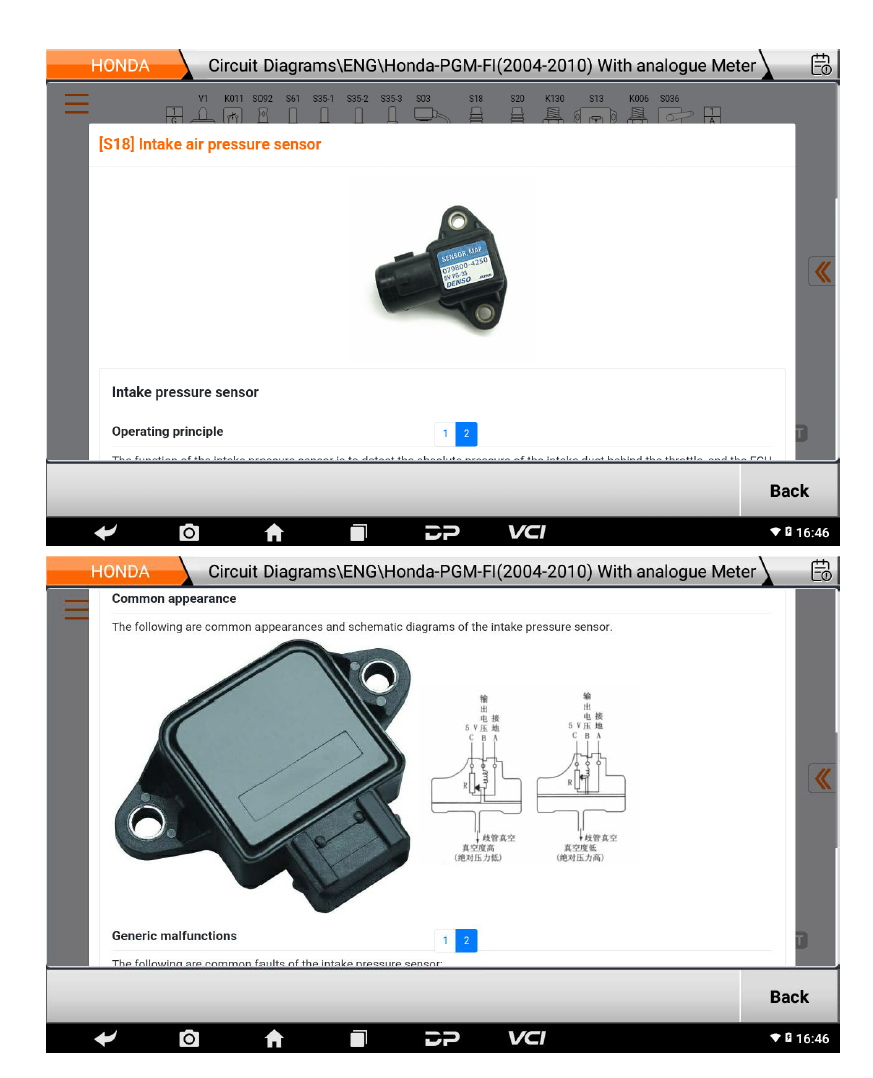

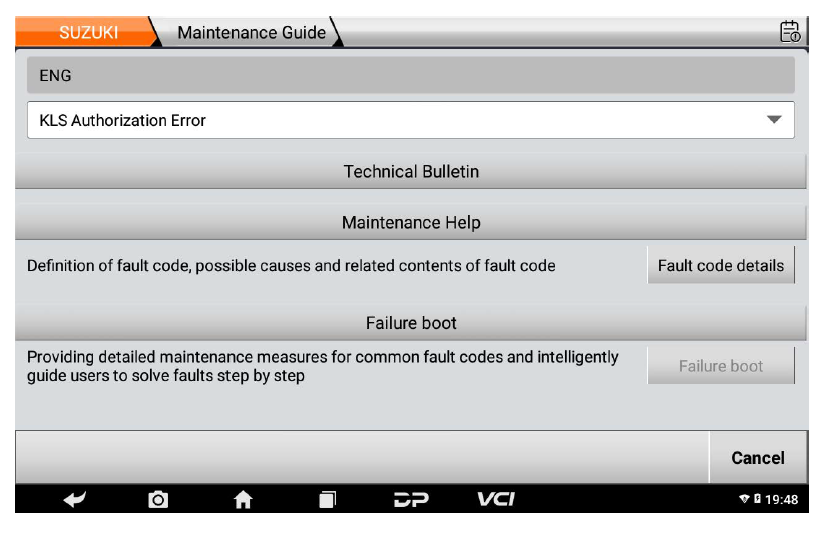

Smart App Integration

The OBDSTAR mobile app provides additional support tools:

Diagnostic socket locations
Flash code lookup
Technical service bulletins

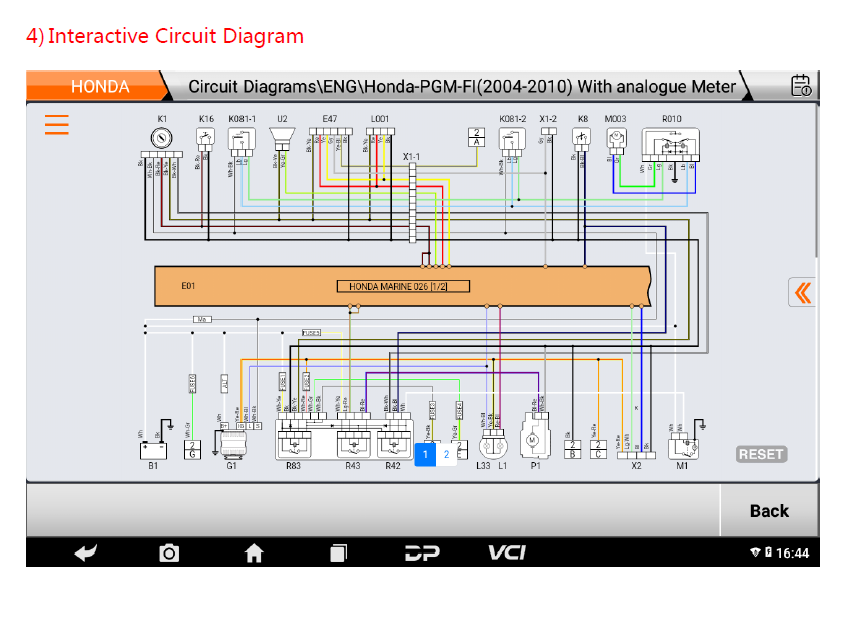

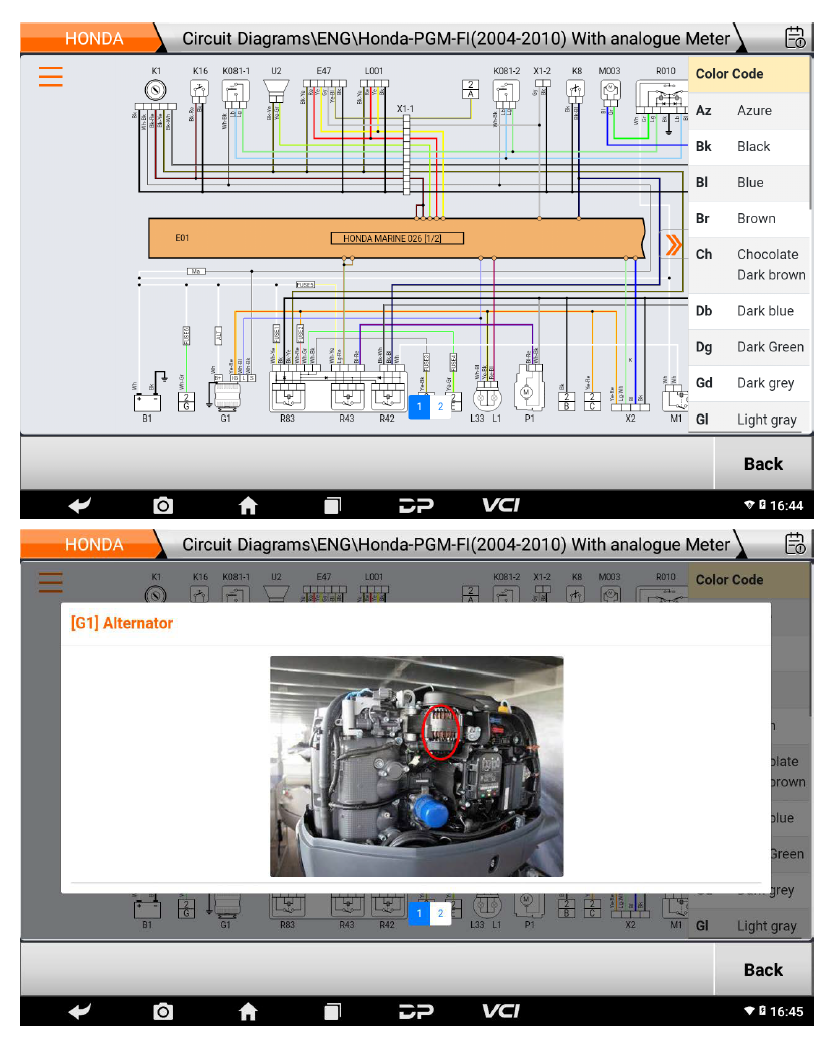

Wiring diagrams
Service data & parameters

Supported Marine Brands

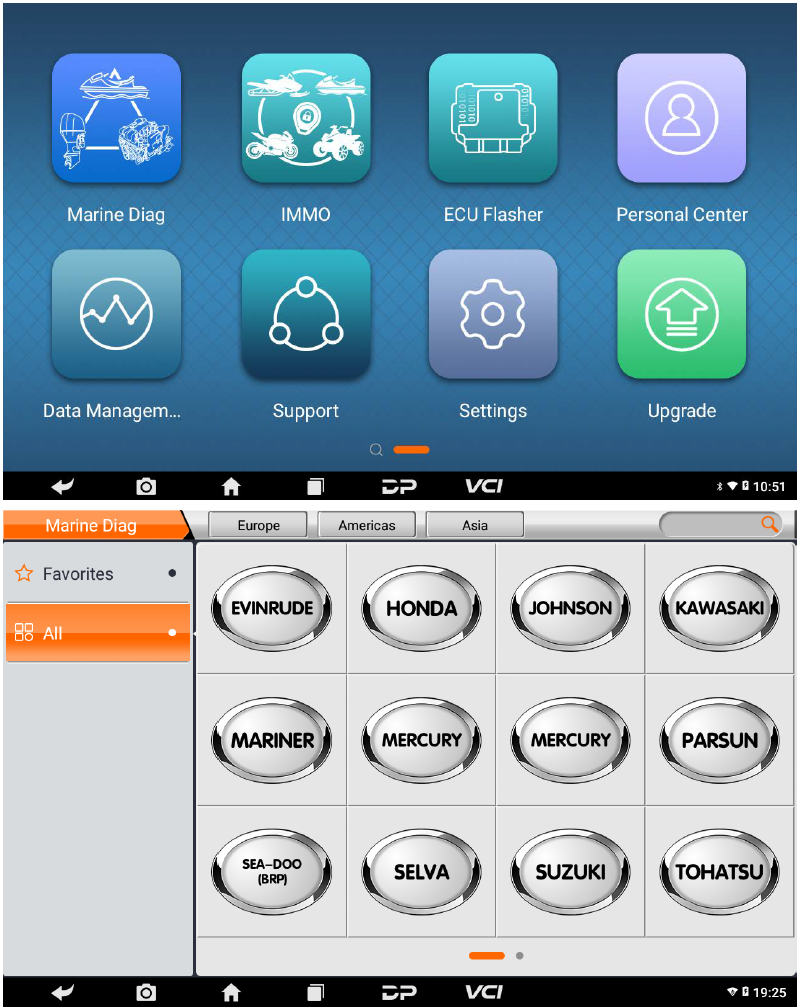

EVINRUDE, HONDA, JOHNSON, KAWASAKI, MARINER, MERCURY / MERCURY RACING, PARSUN, SEA-DOO (BRP), SELVA MARINE, SEVEN MARINE, SUZUKI, TOHATSU, YAMAHA

CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, FNM MARINE, FORD MARINE, FPT, HYUNDAI SEASALL, ILMOR, INDMAR, JOHN DEERE MARINE, KODIAK MARINE, KOHLER POWER SYSTEMS, LOMBARDINI MARINE, MAN MARINE, MARINE POWER, MTU, PANTHER AIRBOATS, PCM MARINE ENGINES, PERKINS, SCANIA MARINE, SISU, STEYR MOTORS, TOYOTA MARINE, VM MOTORI, VOLKSWAGEN MARINE, VOLVO PENTA, YANMAR

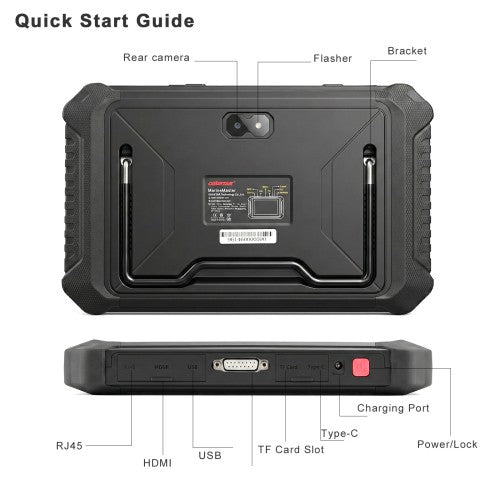

Technical Specifications

Operating System: Android 11
CPU: Samsung Exynos Processor
Display: 8.0-inch touchscreen
Storage: 32GB
Battery: Rechargeable lithium battery
Wi-Fi: Supported
Working Temperature: -10°C to 55°C
Storage Temperature: -20°C to 70°C

- Simple and intuitive menu guidance allows you to quickly master the equipment operation;
- Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc;
- Record and play back real-time flow, quickly and accurately locate sensor and component faults;
- Wi-Fi connection to the internet, one-click software upgrade;
- One-click remote function, OBDSTAR technical staff remote assistance.
- Free software upgrades for one year.

Marine Master User Manual Download

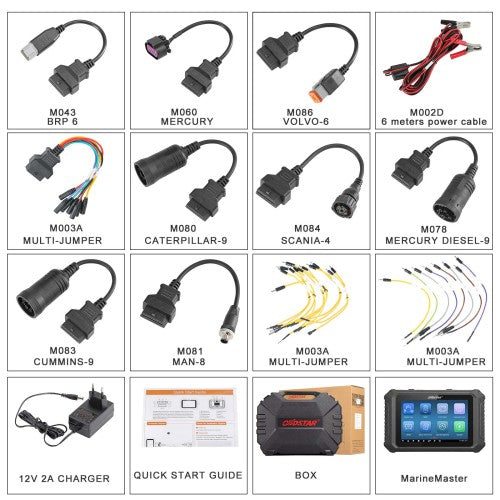

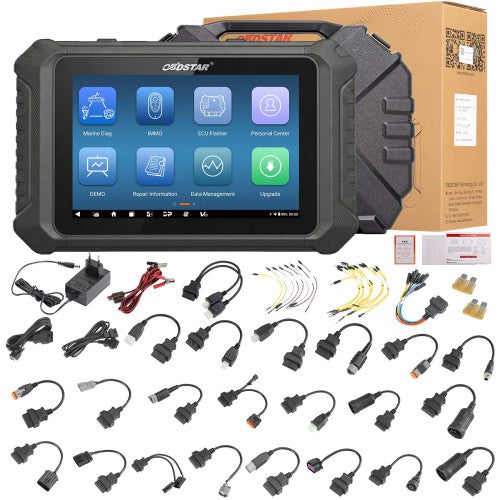

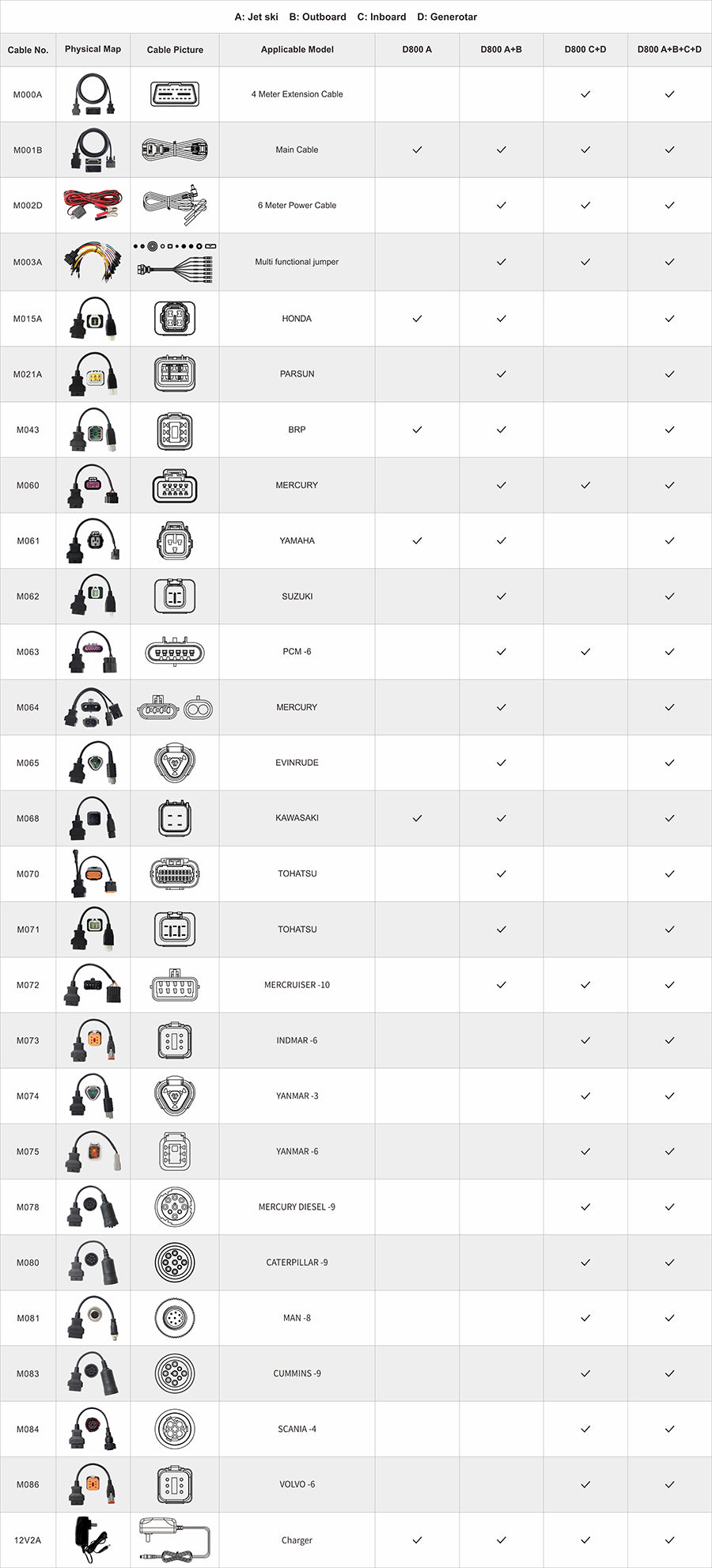

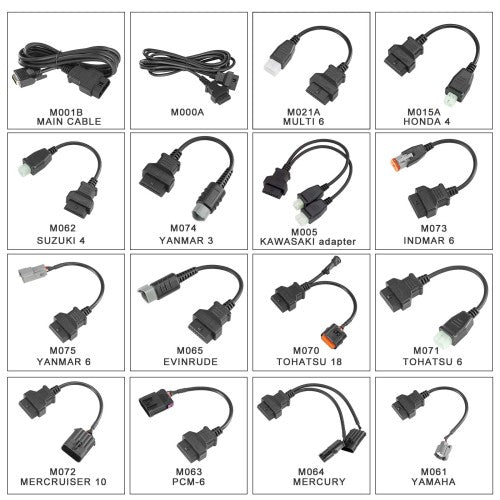

Package Includes:

1pc x OBDSTAR Marine Master Tablet
1pc x M000A 4 meters extension cable
1pc x M001B main cable
1pc x M002D 6 meters power cable
1pc x M003A multi functional jumper
1pc x M015A adapter for Honda
1pc x M021A adapter for PARSUN
1pc x M043 adapter for BRP
1pc x M060 adapter for MERCURY
1pc x M061 adapter for YAMAHA
1pc x M062 adapter for SUZUKI
1pc x M063 adapter for PCM-6
1pc x M064 adapter for MERCURY
1pc x M065 adapter for EVINRUDE
1pc x M068 adapter for KAWASAKI
1pc x M070 adapter for TOHATSU
1pc x M071 adapter for TOHATSU
1pc x M072 adapter for MERCRUISER
1pc x M073 adapter for INDMAR-6
1pc x M074 adapter for YANMAR-3
1pc x M075 adapter for YANMAR-6
1pc x M078 adapter for MERCURY DIESEL-9
1pc x M080 adapter for CATERPILLAR-9
1pc x M081 adapter for MAN-8
1pc x M083 adapter for CUMMINS-9
1pc x M084 adapter for SCANIA-4
1pc x M086 adapter for VOLVO-6
1pc x 12V 2A Charger
