Description
Description

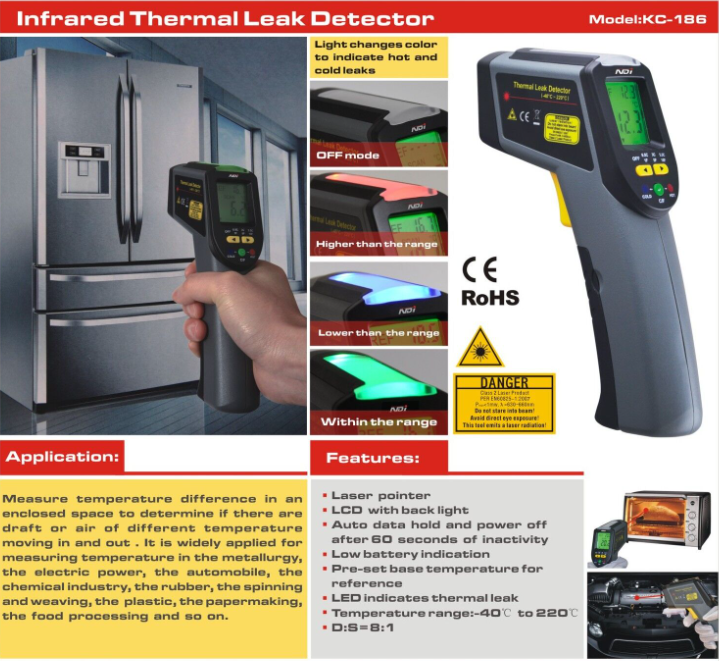

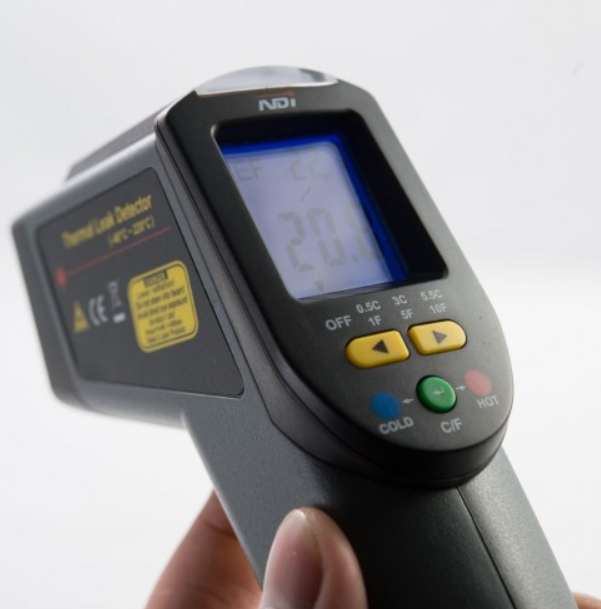

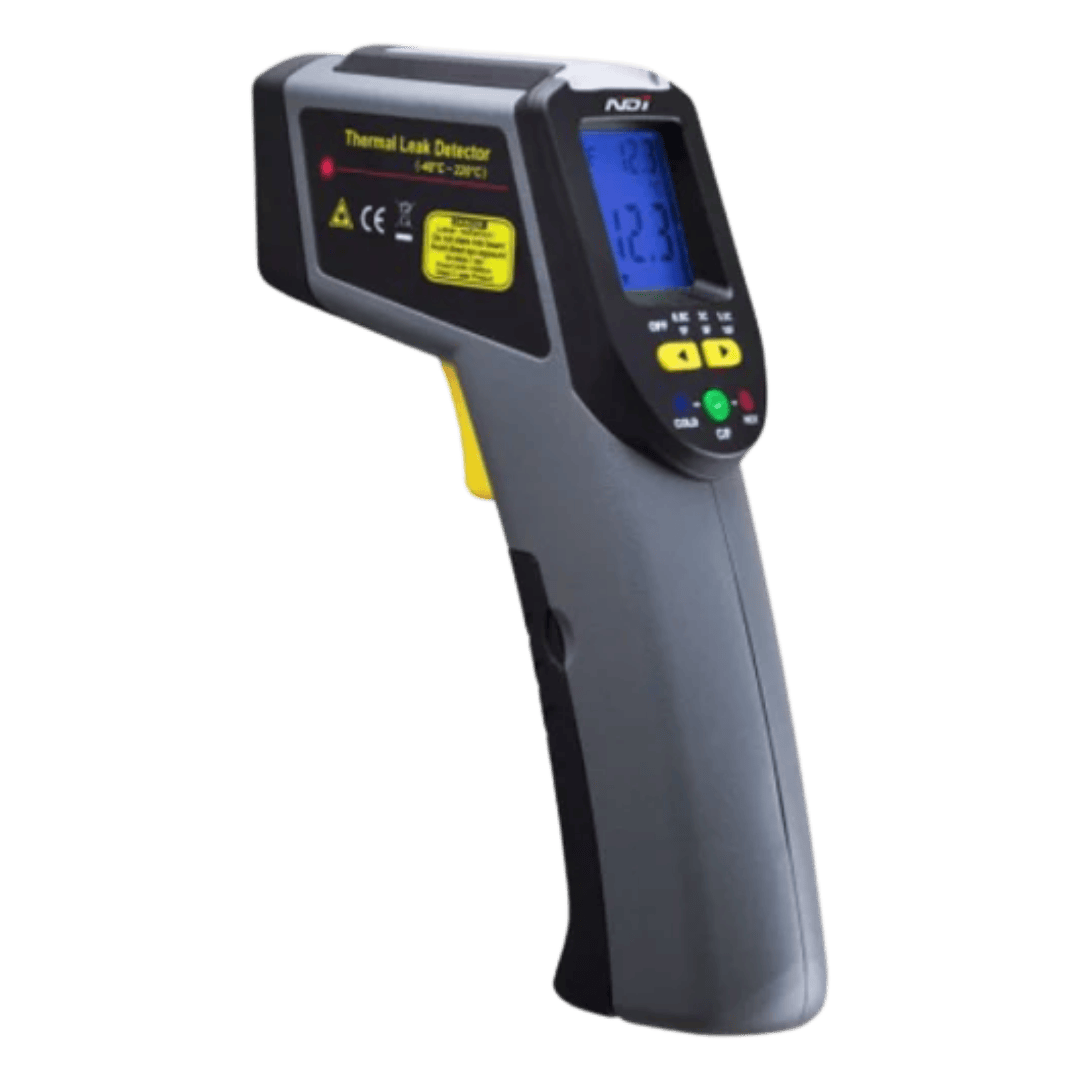

NDI INFRARED THERMOMETER + LEAK DETECTOR
Operating Range -40 degrees Celsius to 220 degrees Celsius
Easy to use:
- 1. Set the reference temperature
- 2. Choose the temperature difference range

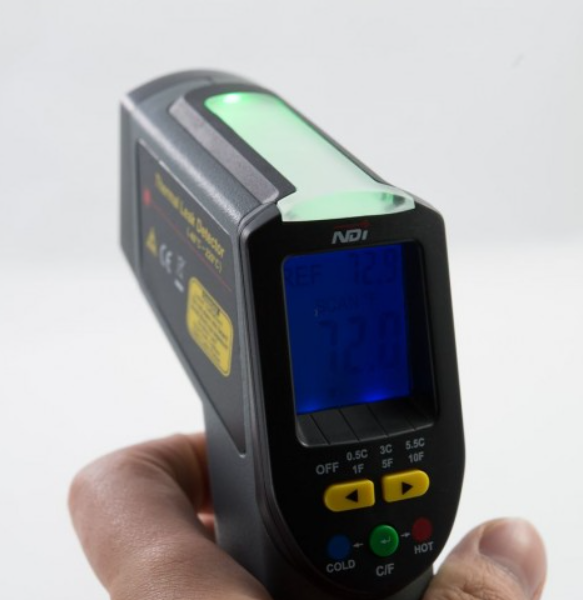

- 3. If the indicator light shows GREEN, that means it's WITHIN the temperature difference range. No leakage.

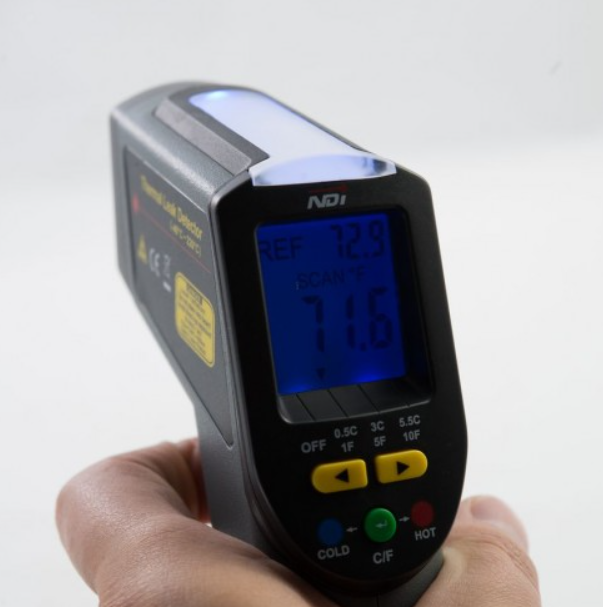

- If the indicator light shows BLUE, that means it's BELOW the temperature difference range. Possible leakage.
- If the indicator light shows RED, that means it's ABOVE the temperature difference range. Possible Leakage
It has the advantages of low consumption, LCD and backlight, auto-save your measuring data, and laser pointer. Its easy operation and portable design makes it widely used for applications of finding the hot spot of electric connections and bearings, measuring hot and high-frequency objects, monitoring food processing and storage, inspecting temperature leak for heating & refrigeration systems, inspecting temperature for technics control of metallurgy industry, inspecting temperature during laying asphalt and fire-control work, and automotive testing.
The NDI-KC-186 is a Class II laser product and accords with EN60825-1 safety standards.
Technical Specifications
|
Name |
Thermal Leak Detector |
|
Model |
KC-186 |
|
Measuring range |
-40℃～220℃ |
|
Response wavelength |
8～14μm |
|
Measuring precision |
±2℃ or ±2% of reading（when T>0℃） |
|
±3℃ or ±3% of reading, whichever is greater（when T ≤0℃） |
|
|
Repetition |
1℃ |
|
Response time |
500mSec，95% response |
|

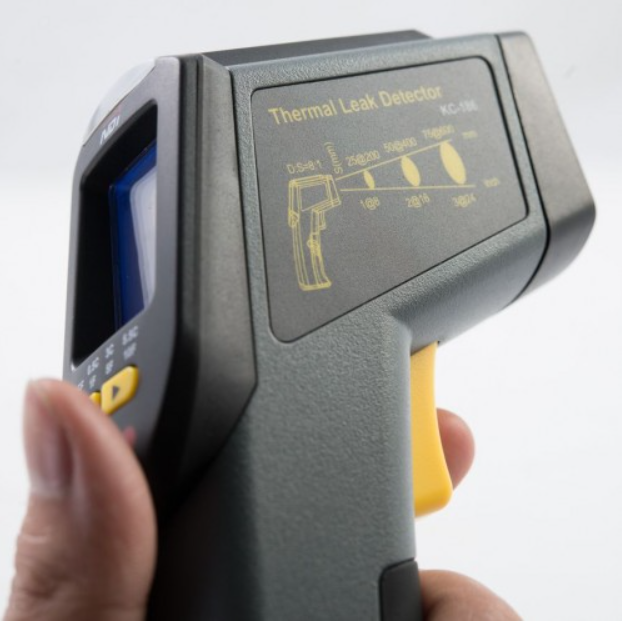

Optical ratio（D：S） |
8：1 |
|
Emissivity |
0.95 |
|
Display resolution |
±0.1℃ |
|
Laser wavelength |
630～660nm |
|
Power of laser |
<1mW |
|
Laser class |
Class II |
|
Max. power |
<30mA |
|
Backlight shut off |
No action in 15s |
|
Auto turn off for tool |
No action in 60s |
|
Power supply |
One 9V battery (6F22/6LR61) |
|
Operating temperature |
0℃～40℃ |
|
Operating humidity |
0～75%RH non-condensing |
|
Storage temperature |
-20℃～60℃，≤85%（w/o battery） |
|
Product dimension |
135*42*173mm |
|
Product weight |
About 170g (w/o battery) |
