Launch X431 SmartLink C HD Lite Heavy Duty Truck Module

Name: Launch X431 SmartLink C HD Lite Heavy Duty Truck Module
Brand: Premium Diagnostic Equipment
SKU: LAU-HD-SMARTLINKHDLITE
Price: 1480.00 AUD
Availability: InStock

$1,480.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

Launch X431 SmartLink C HD Lite Heavy Duty Truck Module

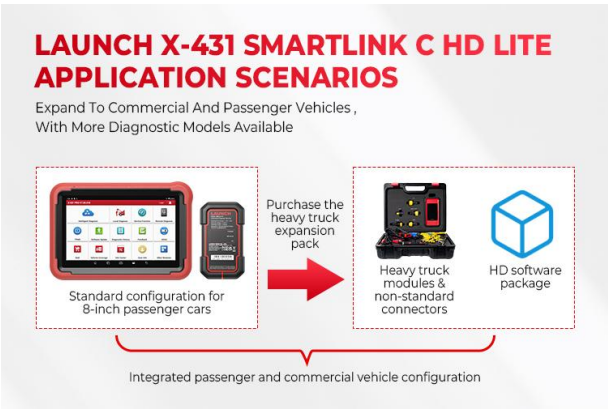

The Launch X431 SmartLink C HD Lite is a heavy-duty truck diagnostic expansion package designed for professional workshops. It consists of the X-431 SmartLink V2 Heavy-Duty diagnostic module, commonly used non-standard adapters, and a heavy-duty vehicle software package. Compatible with X-431 PRO series 8-inch tablets.

Key Features

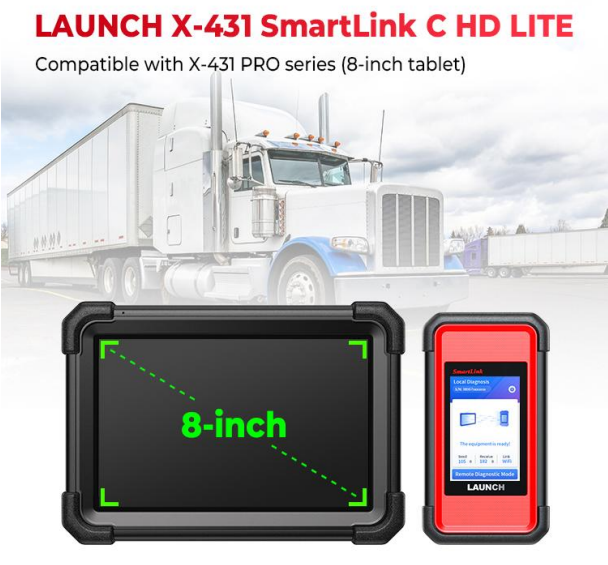

Compatible with X-431 PRO series (8-inch tablets) like the Pros V 5.0
Full system fault diagnosis: Read/Clear DTCs, Read Data Streams, Special Functions, Actuation Tests
Bi-directional control for fast troubleshooting (active tests)
Complies with CAN/DOIP/CAN FD/J2534 protocols
75+ supported software packages
1 year free software updates included
VIN Auto Recognition
Wide vehicle coverage: Trucks, Buses, Construction Machinery, Agricultural Machinery, Natural Gas Vehicles

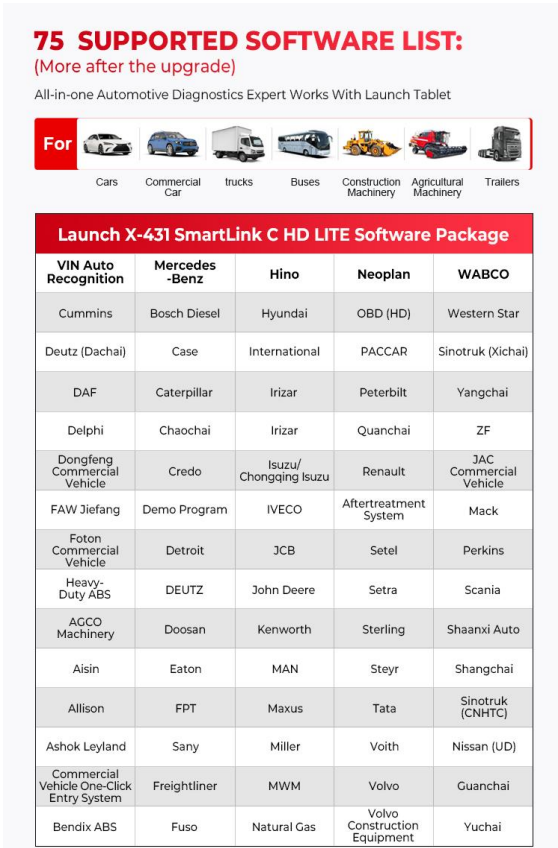

Vehicle Coverage includes:

Mercedes-Benz, Hino, Neoplan, WABCO, Bosch Diesel, Hyundai, OBD (HD), Western Star, Deutz (Dachai), Case, International, PACCAR, Sinotruk (Xichai), DAF, Caterpillar, Irizar, Peterbilt, Yangchai, Delphi, Chaochai, Quanchai, ZF, Dongfeng Commercial Vehicle, Credo, Isuzu/Chongqing Isuzu, Renault, JAC Commercial Vehicle, FAW Jiefang, IVECO, Aftertreatment System, Mack, Foton Commercial Vehicle, Detroit, JCB, Setel, Perkins, Heavy-Duty ABS, DEUTZ, John Deere, Setra, Scania, AGCO Machinery, Doosan, Kenworth, Sterling, Shaanxi Auto, Aisin, Eaton, MAN, Steyr, Shangchai, Allison, FPT, Maxus, Tata, Sinotruk (CNHTC), Ashok Leyland, Sany, Miller, Voith, Nissan (UD), Commercial Vehicle One-Click Entry System, Freightliner, MWM, Volvo, Guanchai, Bendix ABS, Fuso, Natural Gas, Volvo Construction Equipment, Yuchai, and more.

Engine Systems Supported

Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai, and more.

Specifications (X-431 SmartLink V2)

CPU: Dual-processor Cortex-A7 + Cortex-M7
Operating System: Linux
Resolution: 320x480
Power: Less than 6W
Storage: 8GB
Memory: 256MB
Working Temperature: 0°C to 50°C
Working Voltage: 9V DC to 36V DC
Dimensions: 200mm x 110mm x 47mm
Communications: Wi-Fi, Bluetooth, Ethernet

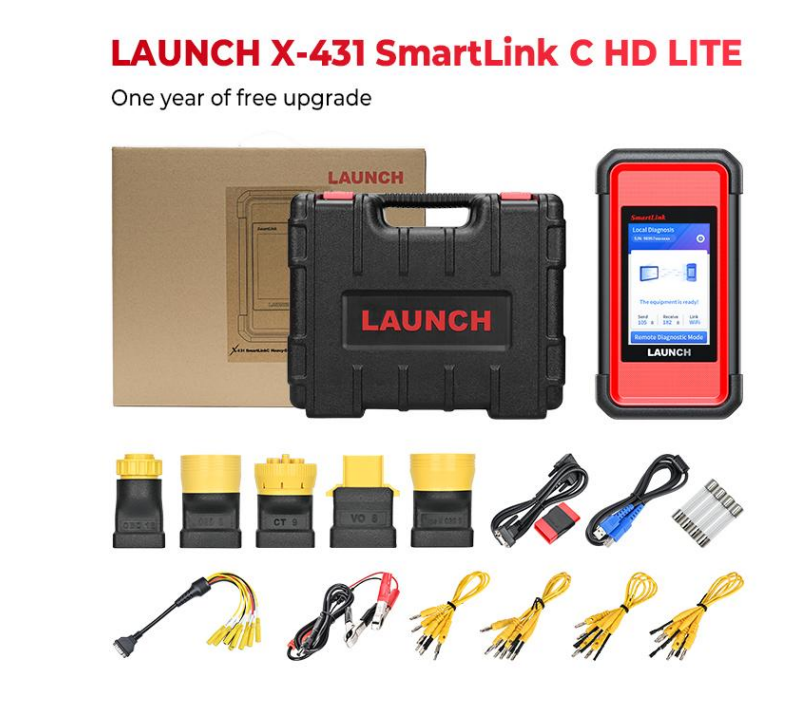

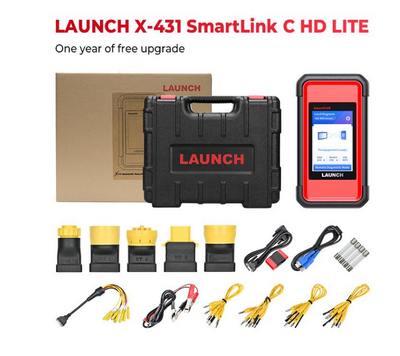

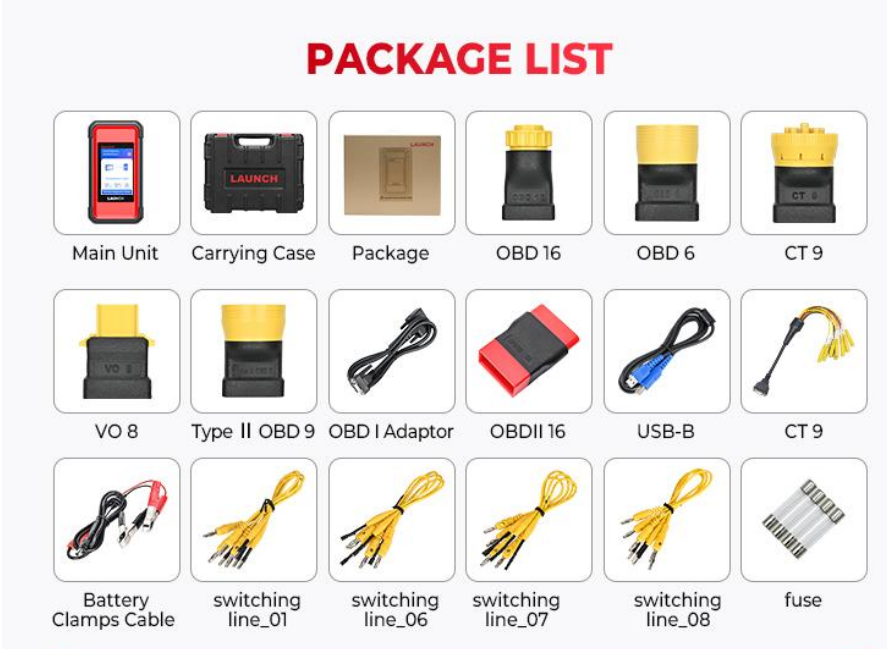

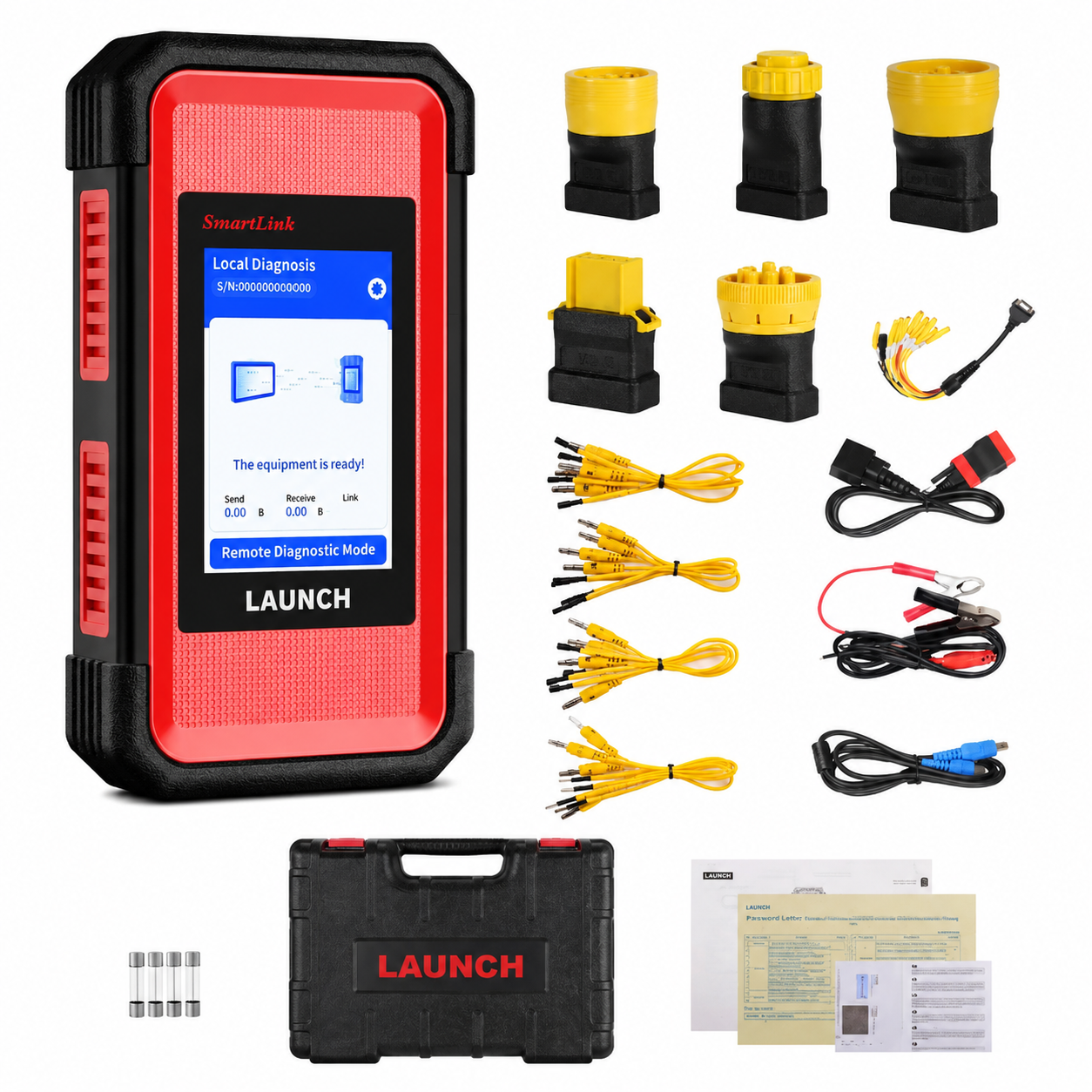

Package Contents

1x X-431 SmartLink V2 main unit
1x HD15F to OBDII 16-pin Male Integrated Test Adapter
1x DB15F to HD15F Test Main Cable (with HD15M to OBDII 16-pin Male Integrated Adapter)
1x USB Type-A to Type-B Cable
1x Quick Start Guide
1x Universal Password Envelope
1x Type II OBD-9 Integrated Diagnostic Adapter
1x OBD 6 Integrated Diagnostic Adapter
1x Caterpillar 9-pin Integrated Diagnostic Adapter (CT9)
1x Volvo 8-pin Integrated Diagnostic Adapter (VO8)
1x OBD 16 Integrated Diagnostic Adapter
1x Heavy-Duty Jumper 10-pin Diagnostic Adapter (JUMPER 10)
1x Dual-Clamp Power Cable
4x Fuse AC250V/5A
4x Electronic Control Adapter Cable 1
4x Electronic Control Adapter Cable 6
4x Electronic Control Adapter Cable 7
4x Electronic Control Adapter Cable 8
1x Carrying Case
