Launch PFP-100 Programming Flash Power

Launch PFP-100 Programming Flash Power

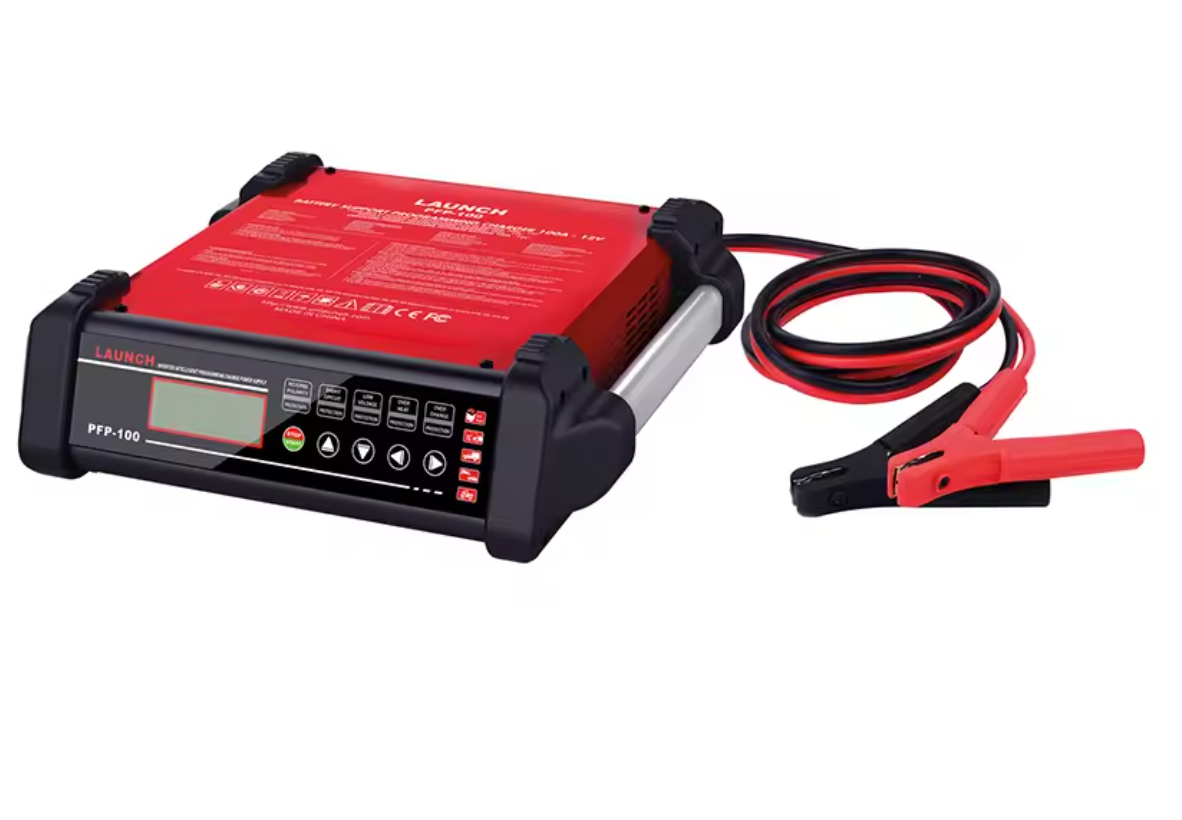

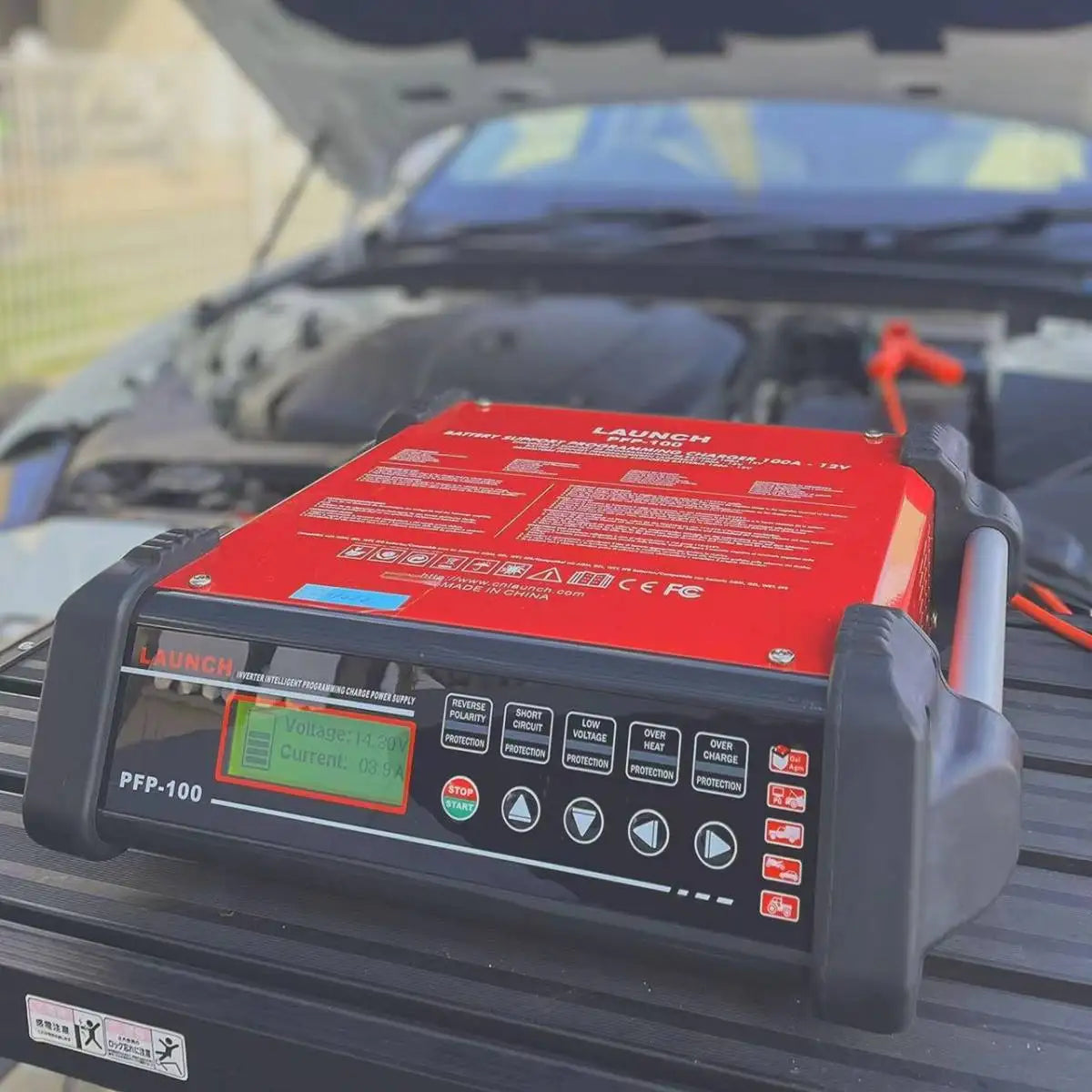

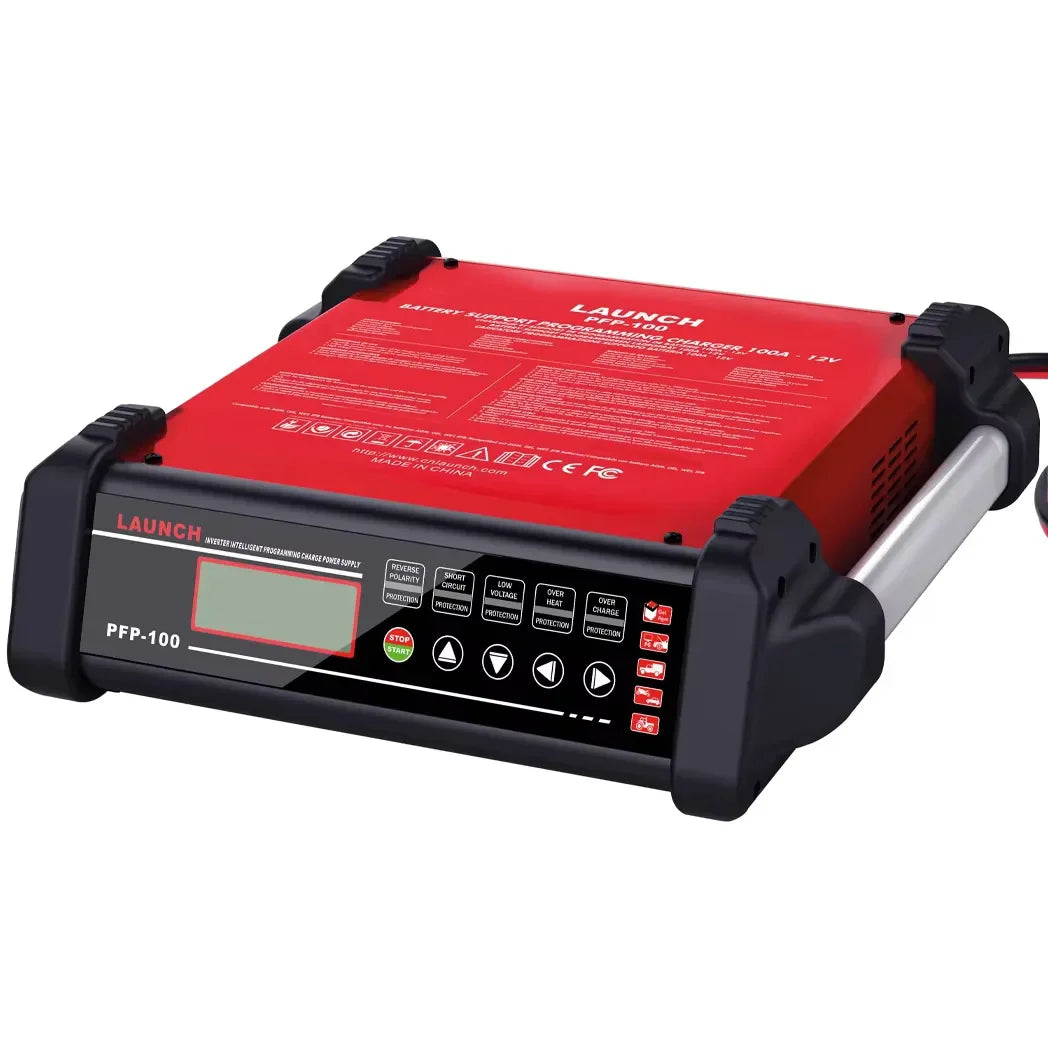

The Launch PFP-100 is a professional 100A vehicle battery power support unit trusted by garages, car electricians, and dealerships worldwide. Designed to prevent ECU programming failures caused by low or unstable voltage, the PFP-100 supplies continuous, stable power to the vehicle battery throughout all stages of ECU reprogramming and flashing, in line with OEM requirements. With 4 dedicated charging modes and 6 protection features built in, it's an essential piece of kit for any workshop performing modern diagnostics and programming.

4 Charging Modes

Normal Mode

• Select the charging mode according to the position of the vehicle battery (inside or outside the vehicle) for regular battery charging under normal conditions.

Exhibit Mode

• Continuously charges the battery at a low current — ideal for showrooms and display vehicles that need to be kept battery-ready without risk of overcharge.

Programming Mode

• Provides a stable voltage source ranging from 12V to 16V specifically for vehicles undergoing ECU programming, coding, or decoding procedures. Adjustable from 2~16V / 2~100A to meet OEM specifications.

Hidden Repair Mode

• Automatically detects and repairs minor battery issues. Compatible with AGM, GEL, and standard lead-acid batteries — the PFP-100 will indicate whether a battery can be recovered or not.

6 Protection Modes

• Reverse Polarity Protection: LCD alerts if battery clamps are connected incorrectly — no damage to the unit or vehicle.
• Short Circuit Protection: Machine will not operate and will alarm if an internal short circuit is detected.
• Low Voltage Protection: Unit will not operate if input voltage falls below the required threshold.
• Overheat Protection: Automatically stops charging if the unit overheats, preventing damage.
• Overcharge Protection: Constantly monitors battery state to prevent damage from overcharging.
• Synchronous Rectification: Improves rectification efficiency for cleaner power delivery (220V mode only).

Applicable Vehicles

Suitable for all 12V vehicle types including passenger cars, SUVs, 4WDs, trucks, agricultural vehicles, and marine/boat applications.

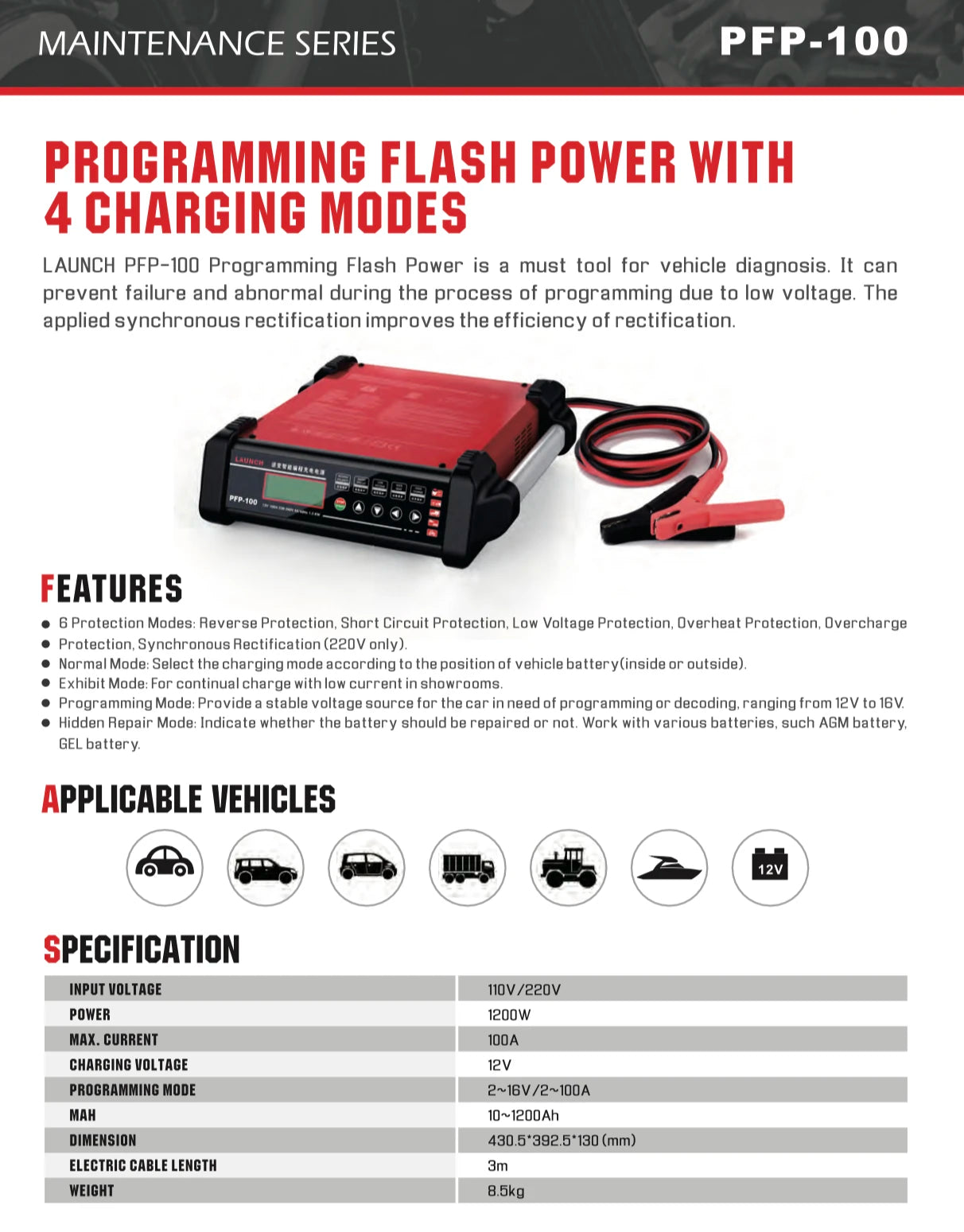

Specifications
