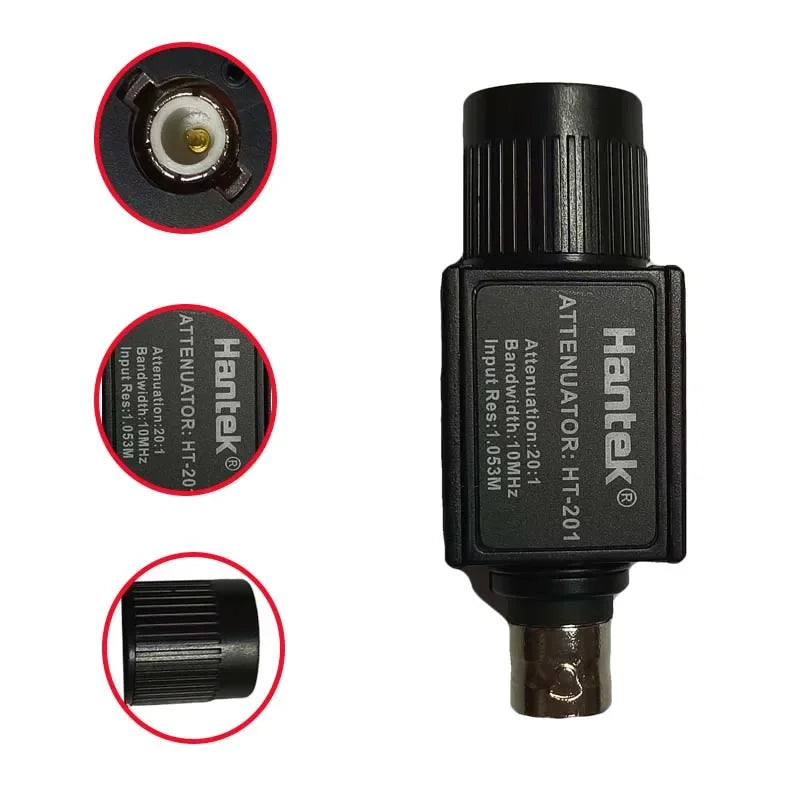

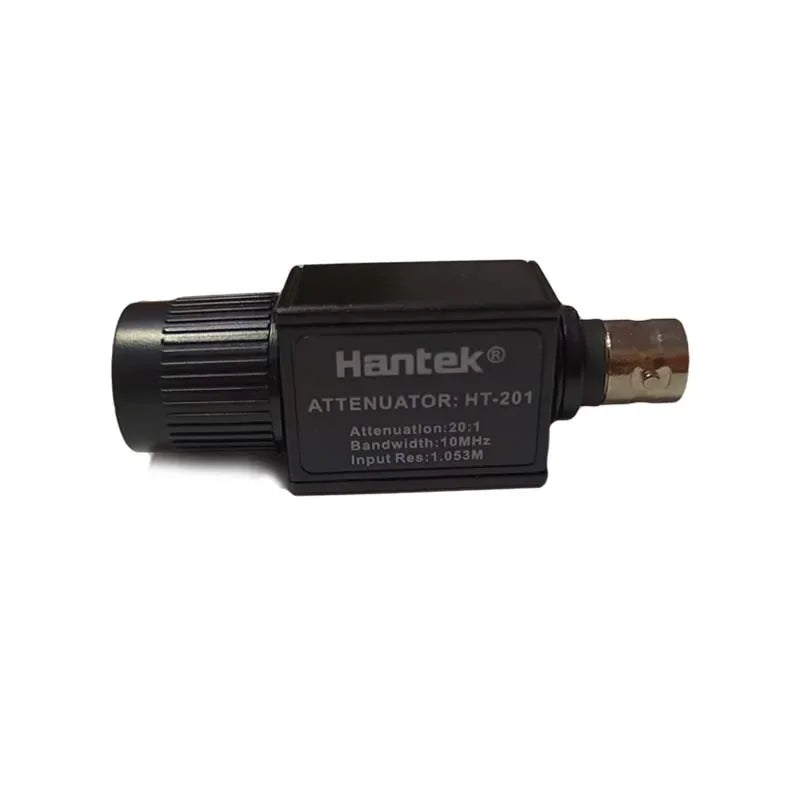

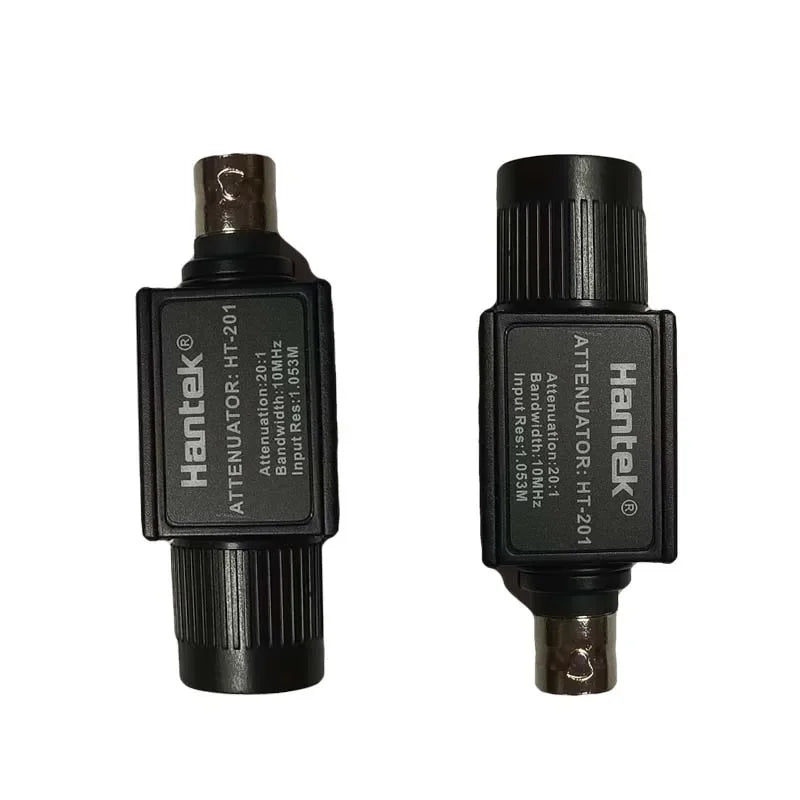

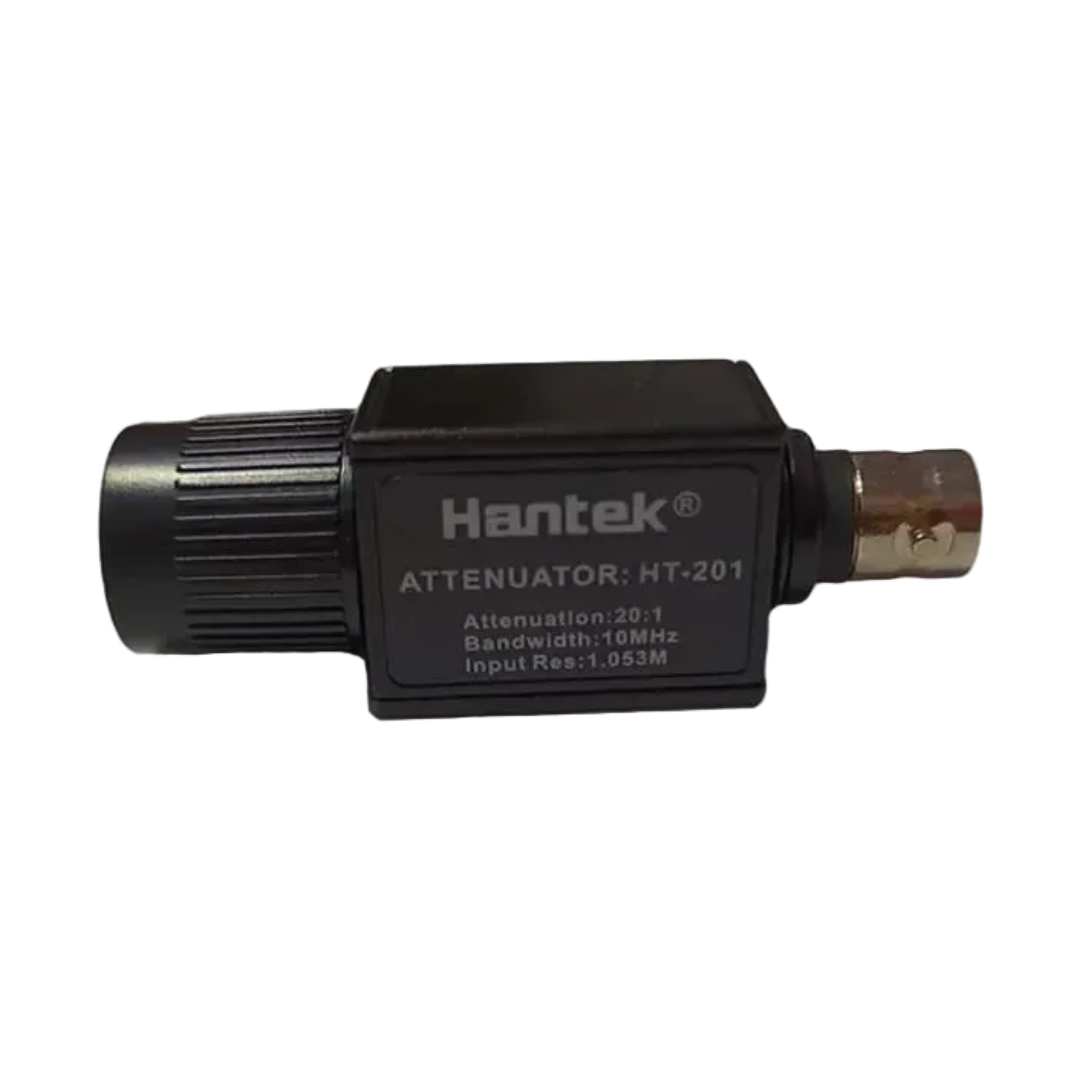

Hantek HT201 Passive Signal Attenuator

Hantek HT201 Passive Attenuator — Safely Measure Fuel Injector & Primary Ignition Signals with Your Oscilloscope

This attenuator is designed to allow accurate measurement of fuel injector and primary ignition waveforms using Hantek or Pico oscilloscope products. By reducing signal amplitude, the HT201 protects your oscilloscope from voltage spikes while delivering clear, reliable readings.

Key Features

20:1 Signal Attenuation — Reduces input signal by 95%, allowing safe testing of higher voltage signals
Designed for Fuel Injector & Ignition Waveforms — Specifically built for automotive diagnostic applications
Protects Oscilloscope — Enables measurement of voltages exceeding oscilloscope input limits (*20V max)
10MHz Bandwidth — Suitable for precise waveform capture in automotive environments
Compact & Lightweight — Durable, easy-to-use accessory for workshop or field use

Important Notice

⚠️ This attenuator is only intended for fuel injector and primary ignition testing.
⚠️ Not suitable for other high-voltage applications.

Specifications

• Model: Hantek HT201

• Attenuation Ratio: 20:1

• Bandwidth: 10MHz

• Input Resistance: 1.053MΩ

• Size: 60 x 18 x 16mm

• Weight: 24g

Package Includes

✔ 1 x Hantek HT201 Passive Attenuator
