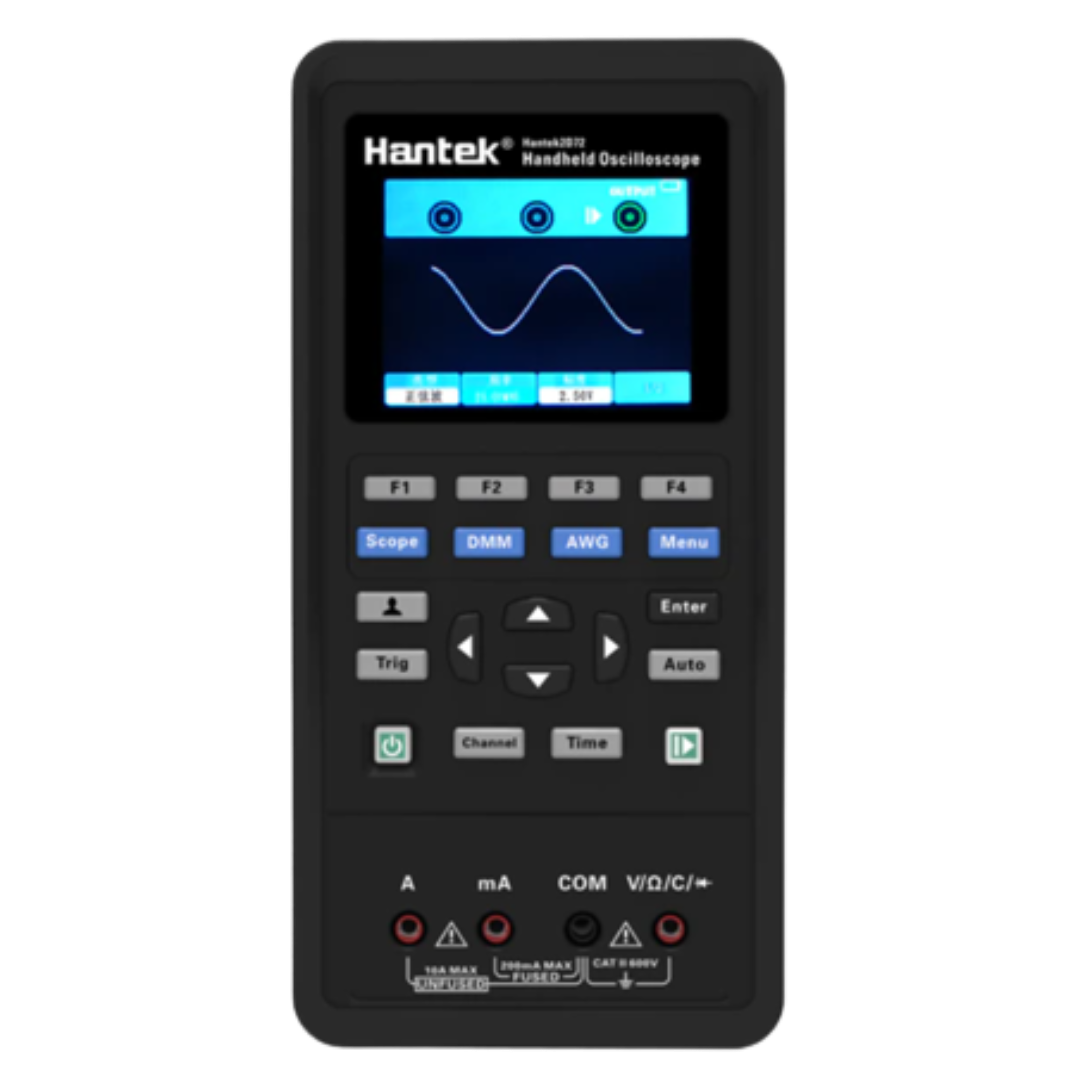

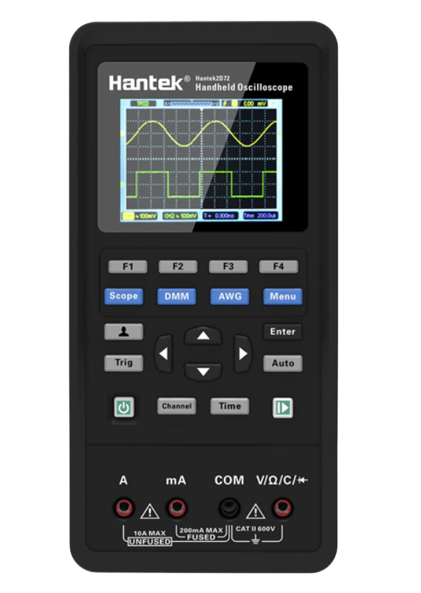

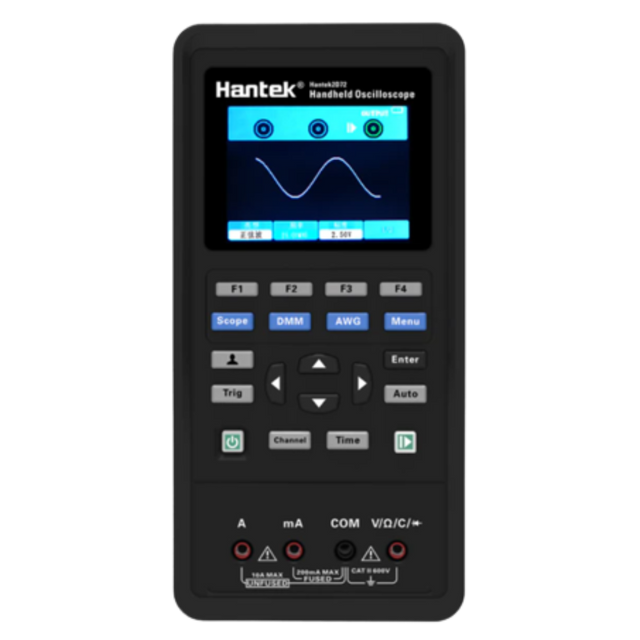

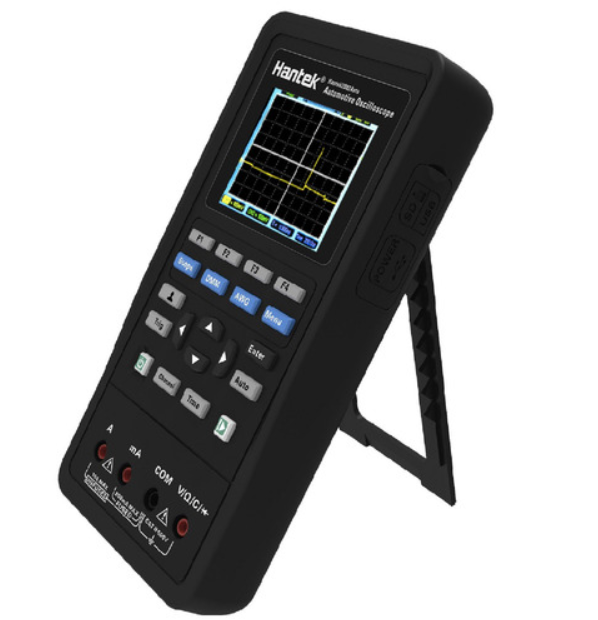

Hantek Digital Oscilloscope + Waveform Generator + Multimeter 2 Channels 70mhz LCD Display

Hantek 2D72 Portable Digital Oscilloscope + Waveform Generator + Multimeter 2 Channels 70mhz LCD Display Test


Diagnostics Functions:

  • Sensors: intake manifold vacuum degree & ignition, lampblack adjustment valve vacuum degree & ignition, exhaust ignition (idle), exhaust ignition (start)
  • Start & Charge: Charging circuit, current and voltage
  • Actuator: Petrol / Diesel
  • CAN-Bus: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus
  • Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position
  • Ignition: Primary/Secondary

Oscilloscope Functions:

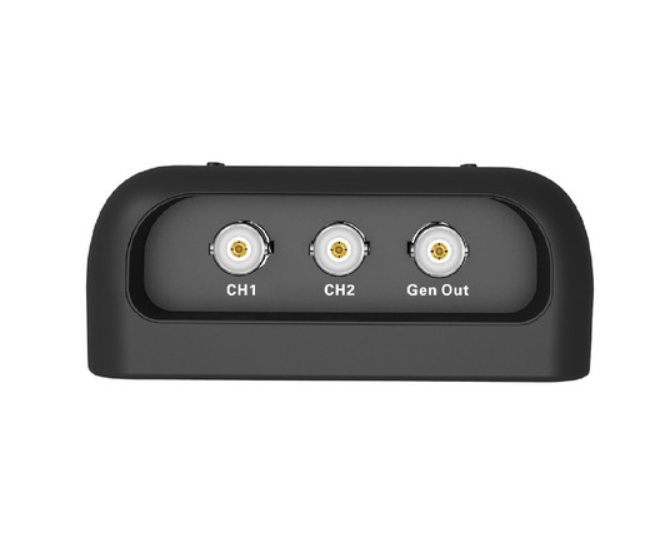

  • 2 Channels oscilloscope, 80MHz bandwidth, 250M sampling rate
  • 10mV-10V/DIV high input sensitivity and large input range
  • Auto automatic measuring function
  • Adjustable backlight brightness, backlight duration, and auto power off time
  • Cursor measurement reference waveform, waveform storage function
  • Colour highlight LCD screen
  • Powered by two universal ICR18650 lithium battery only, able to work continuously for a full day and standby for weeks
  • Digital voltmeter function
  • Key tone settings
  • Full function PC software


  • Innovative automotive handheld diagnostic tool
  • Offers over 80 possible tests on vehicles
  • Powerful 2-channel oscilloscope
  • Universal digital multimeter
  • Signal source 1CH wave form generator
  • Allows testing of sensors, start & charge, actuators, ignition and more
  • HD colour LCD screen display with minimalist keyboard design
  • Simple operations for easy use
  • USB Charging
  • Great value for any workshop for more efficient diagnosis

Digital MultiMeter Functions:

  • Multi-functional digital multimeter to measure AC/DC voltage, current, resistance, diode, capacitance, continuity and On/Off test.

Signal Simulator Functions:

  • 1 channel arbitrary/function waveform generator
  • 250MSa/s sampling rate
  • 12 bits vertical resolution
  • Output sine wave, square wave, triangle wave, trapezoidal wave and arbitrary wave
  • Sine: 1Hz-25MHz / Square: 1Hz-10MHz / Triangle: 1Hz-1MHz / Trapezoid: 1Hz-5MHz
  • Frequency resolution: 1Hz
  • Output impedance: 50Ω

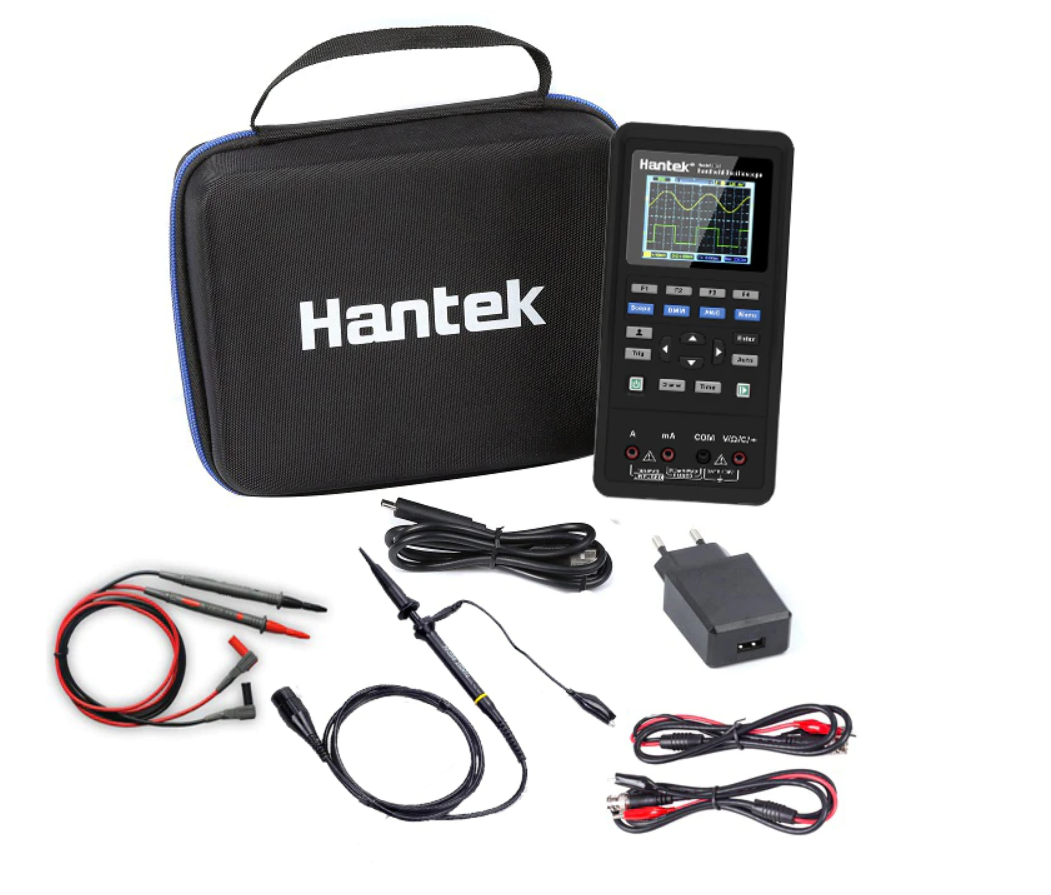

Package Includes:

  • Main Unit
  • 1 x Tool Case

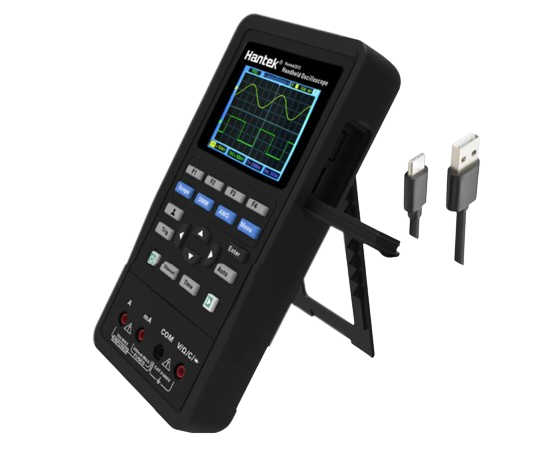

  • 1 x Type C Cable
  • 1 x Power Adaptor
  • 1 x Multimeter Probe
  • 2 x Test Leads with BNC Plug and Alligator Clip HT324
  • 1 x Automotive Test Leads HT30B
  • 1 x Automotive Ignition Probe HT25
  • 1 x Acupuncture Probe Set HT307
  • 1 x Coil-on-Plug Extension Cord HT308
  • 1 x 20:1 Attenuator HT201

Please note the product does not come with batteries

Requires 2x  CR18650 batteries

Free Shipping

After-sales support

Product will come with a one year warranty

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back

Customer Reviews

Based on 1 review
john crow
Hantek hand held oscilloscope

seem ok but bit concerned 10 amp is not fused and second channel is only 10 volts but it will do all that i need
