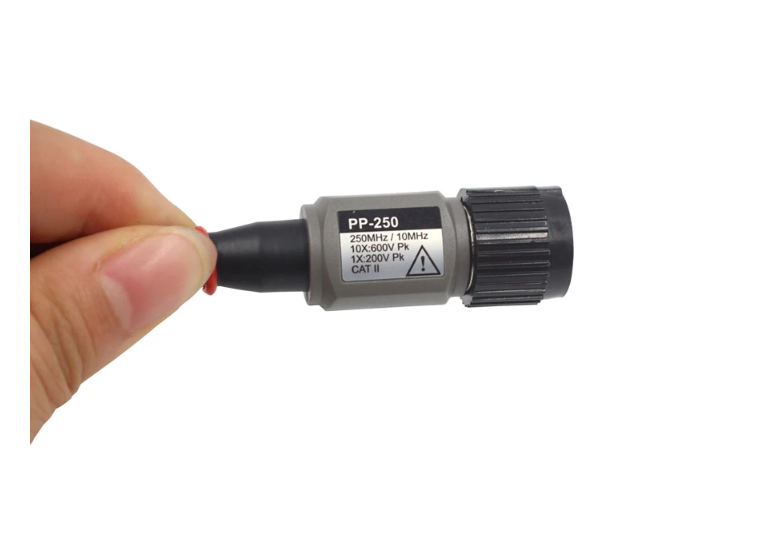

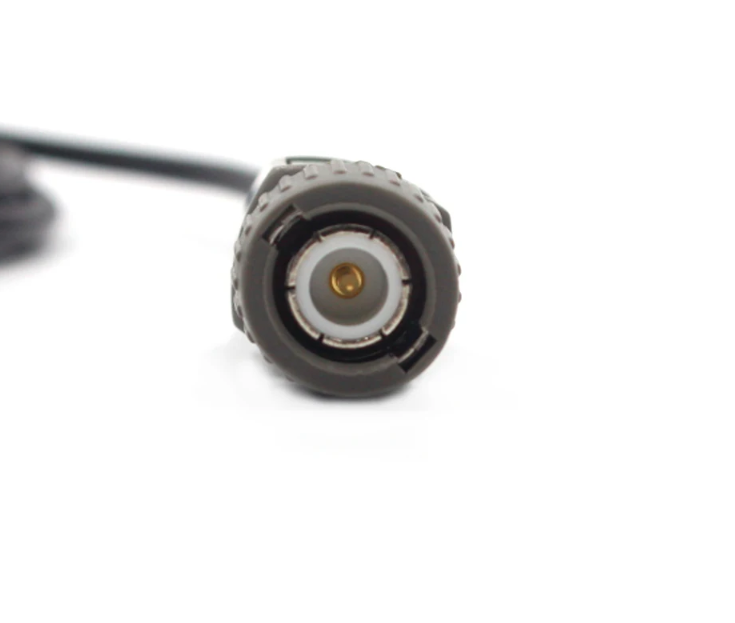

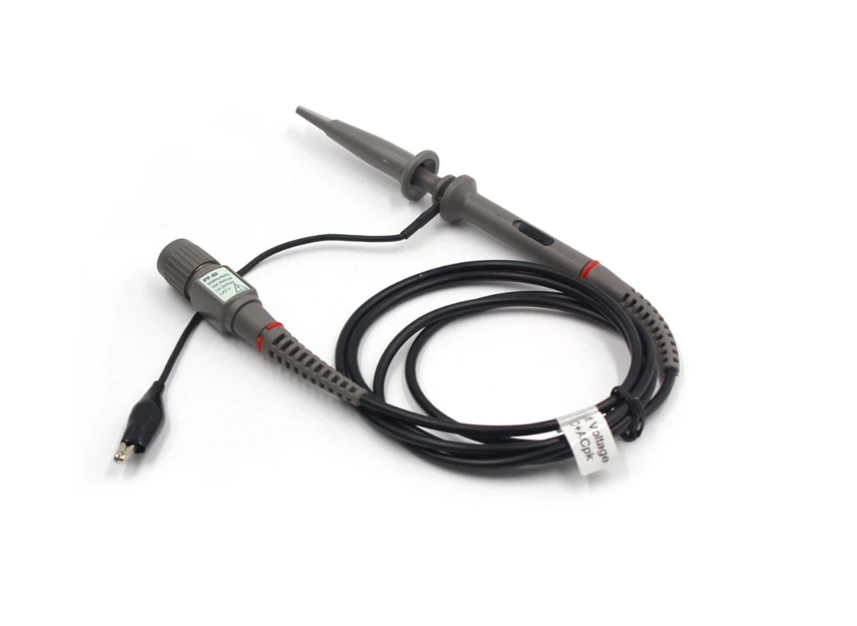

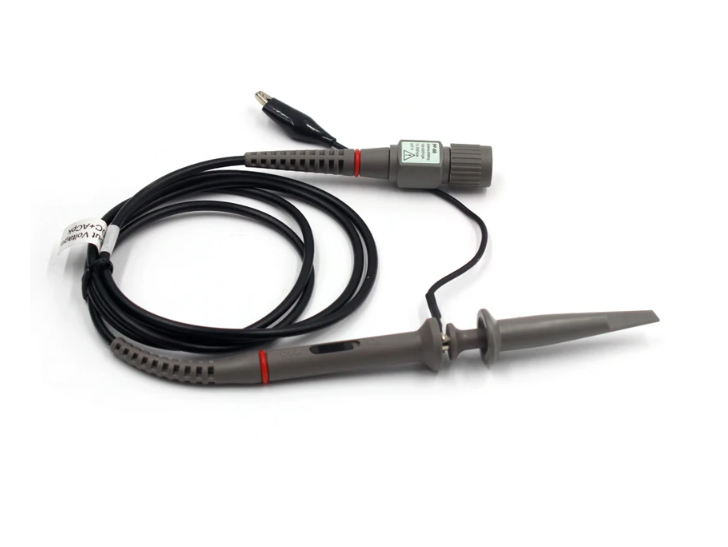

Hantek Digital Oscilloscope Probe 250MHZ

High quality and reliable Hantek probe
Attenuation ratio: 1× and 10× adjustable.
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt to more testing situations.
Compatible with digital and analog oscilloscopes in relevant frequency.
Measurement in intermediate and low frequency signals

Color: Black + Grey
Type: PP-250

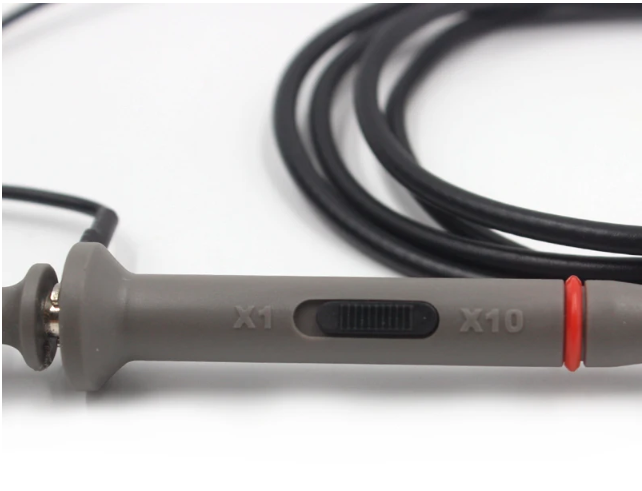

Attenuation: x1  x10
Input Resistance: 1MΩ: 10MΩ
Input Capacitance: x1: 85pF-115pF
            x10: 18.5pF-22.5pF
Compensation Range: 15pF ~ 35pF
System Bandwidth: x1: DC-5MHz
            x10: DC-100MHz
Input Voltage: x1: <200V DC +Peak AC
          x10: <600V DC +Peak AC
Operating Temperature: -10 degrees~ +50degrees
Cable Length: 120cm / 47.2in
Item Size: Approx. 17 * 2 * 2cm / 6.7 * 0.8 * 0.8in (Probe only)
Item Weight: Approx. 49.1g / 1.7oz
Package Size: Approx. 20 * 13 * 2cm / 7.9 * 5.1 * 0.8in
Package Weight: Approx. 74g

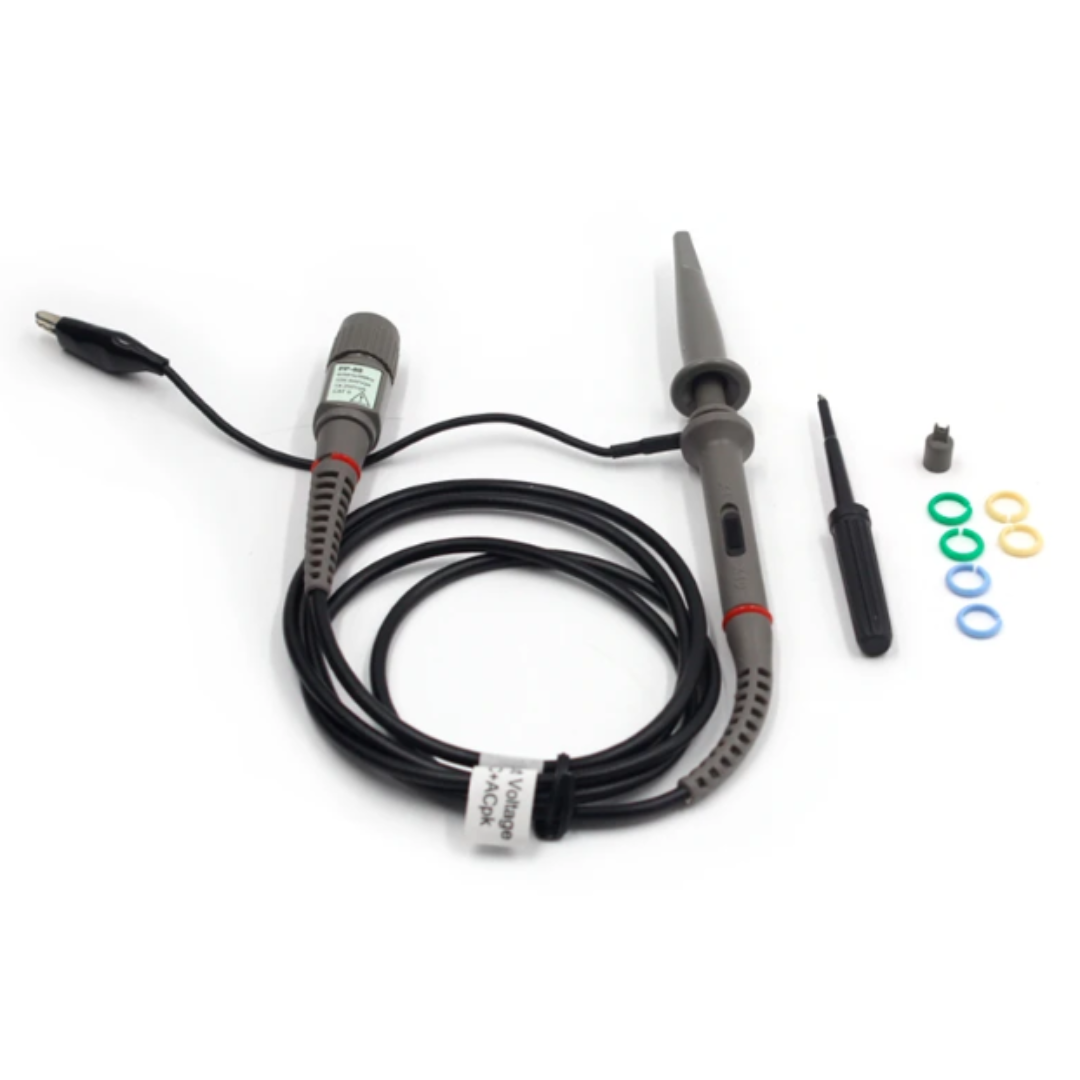

Packing list

1 * Oscilloscope Probe
1 * Adjustment Tool
1 * Tip Locating Sleeve
6 * Colour bands
1 * Instruction manual



After-sales support

12 Month warranty

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
