AutoTest BAMbino Bearing Acoustics Monitor

Name: AutoTest BAMbino Bearing Acoustics Monitor
Brand: Premium Diagnostic Equipment
SKU: ATP-MT-BAMBINO
Price: 6499.00 AUD
Availability: InStock

$6,499.00 $6,936.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

WORLD’S FIRST PORTABLE BEARING ACOUSTICS MONITOR

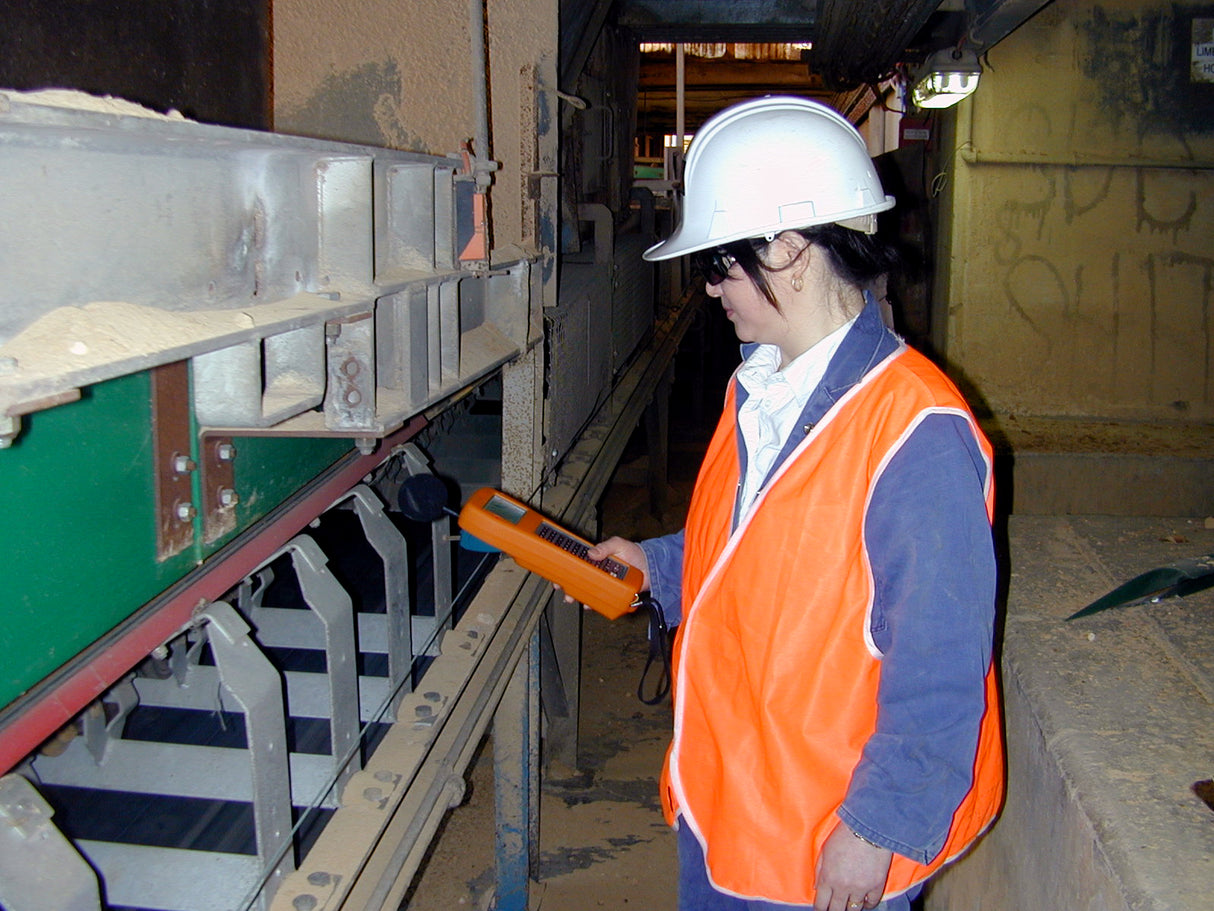

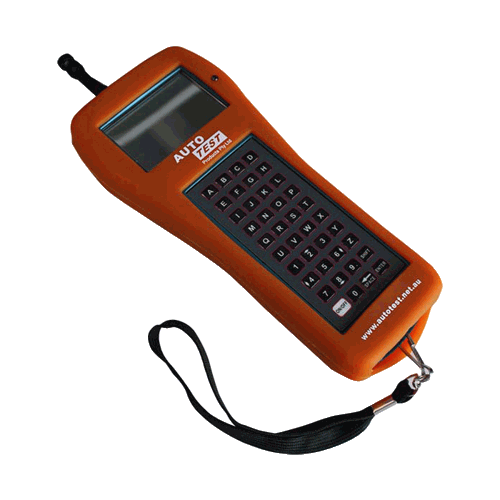

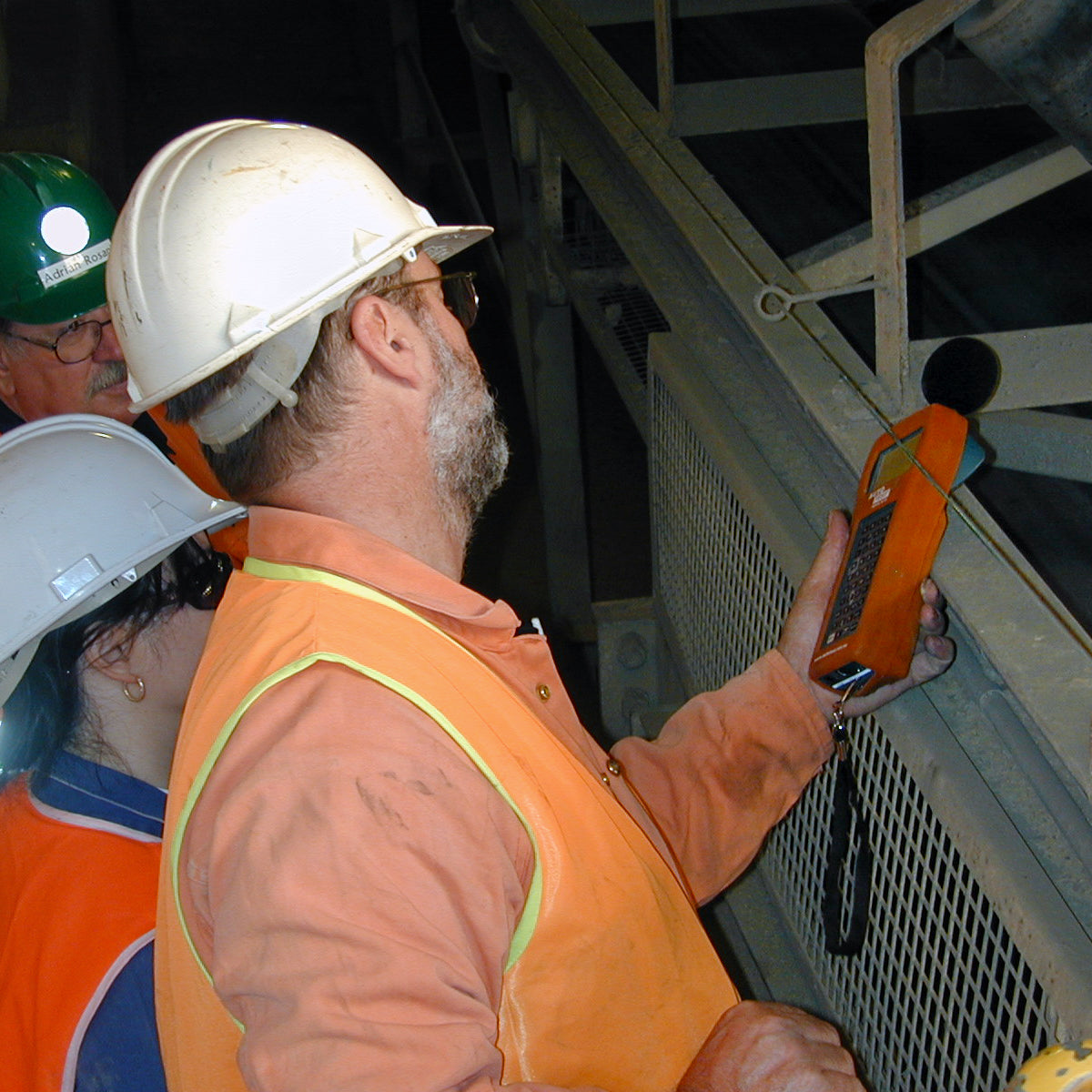

BAMbino is the world’s first portable Bearing Acoustic Monitor that provides accurate, easy, and early detection of faulty idler bearings. BAMbino is a handheld portable instrument that extracts bearing fault signatures measured from a distance of 0.1m to 3m away from the belt. A visual and audible alarm gives early notice of bearing damage, allowing forward planning of cost-effective maintenance.

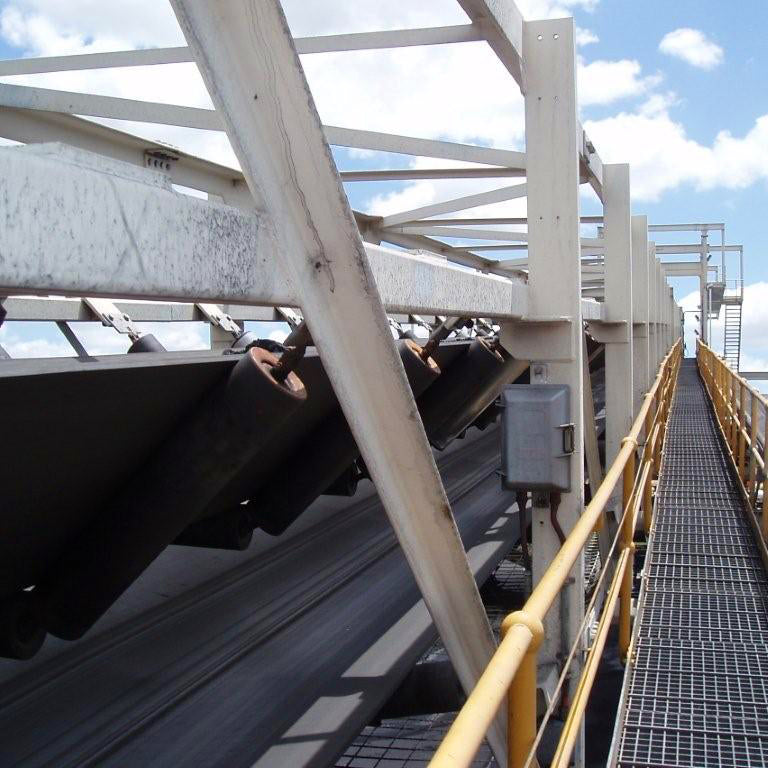

Failure of conveyor systems is a significant problem in the mining industry, causing extended downtime, lost productivity, and increased risk of fire.

The most common cause of conveyor failure (and belt damage) is bearing seizure in the idlers supporting the belt.

Inspectors currently use subjective assessment, without scientific evidence, to detect faulty bearings. This highly unreliable and subjective method only detects bearings in the late stage of fragmentation, resulting in costly unscheduled maintenance.

Fast and effective tool for predictive maintenance
Easy to use

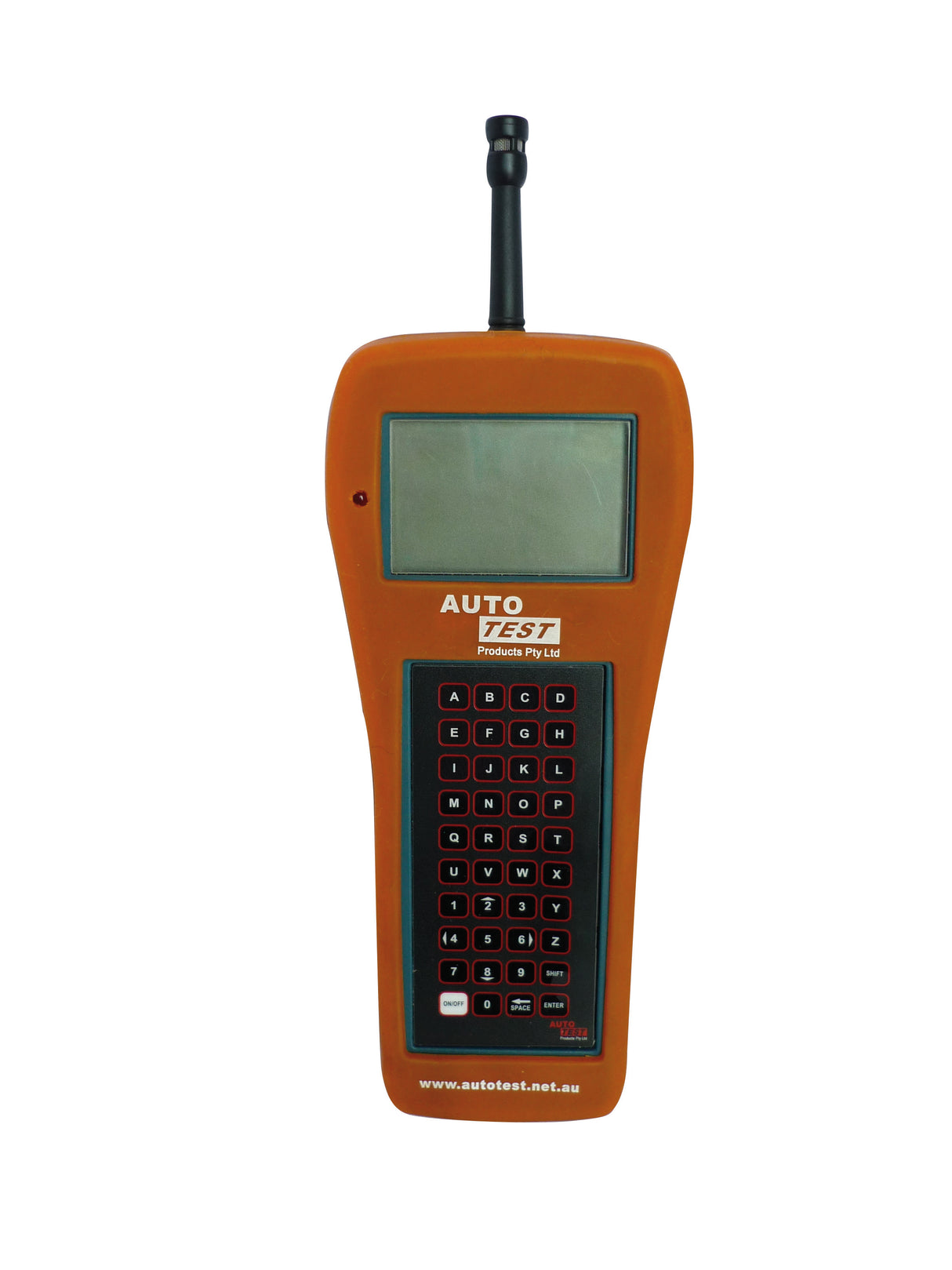

Simple button operation via tactile membrane keypad with LCD display
Hand-held (230x95x50mm)
Lightweight (less than 1kg)
Screens out extraneous sources of noise, therefore usable in highly reverberant underground tunnels.
Pre-programmable for up to 16 belt sections
Robust construction
Visual and audible alarm
User programmable
Threshold settings
Rechargeable battery
12-month warranty

Additional Information

BAMbino won an Award of Excellence in Research from the Australian Coal Association in 1996, and two Engineers Australia, Engineering Excellence Awards in 1999; the national engineering excellence award for research and development, and the award for innovation.

Specifications

Measurement method	Sound pressure
Frequency range (3dB point)	80Hz to 5kHz
Dynamic range	72dB
Max sound pressure level	110dB
Maximum measurement distance	3.0m
Directionality	Uni directional
Operating modes	Monitoring and diagnosis
Response time	1.0s in Monitoring Mode, Approx. 3km/h
Gain	Auto-ranging
Alarm	Flashing LED, Audible Tone
Displayed parameters	Bearing O.K./Faulty (All limits are variable by software command)
Applicability*	Pre – programmed for common bearing types of Power
Supply	In – built rechargeable batteries (“Battery Too Low” indicated in display, automatic power – off below 2.2V)
Operating time	16 hours continuous
IP Rating	IP55
Microphone	7.5mm electret, frequency range 50Hz − 15kHz
Display	Backlit 240 x 160 graphics
Keypad	40 keys tactile membrane keypad
Weight	480g
Physical dimensions	260 x 120 x 50mm
Temperature range	0º − 45ºC
Humidity range	20% − 90%
