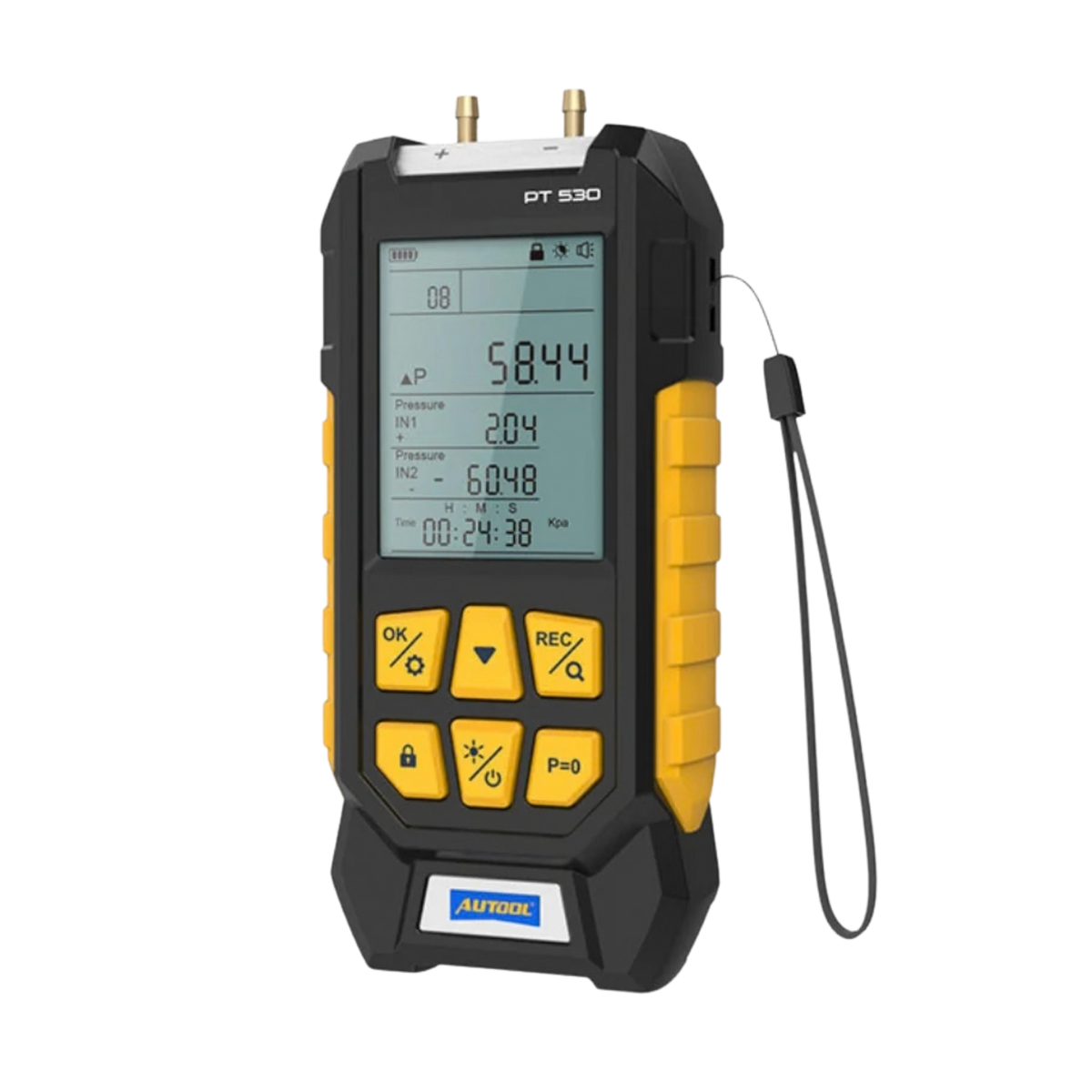

AUTOOL PT530 Digital Manometer 100-300 kPa Air Pressure & Vacuum Gauge

Name: AUTOOL PT530 Digital Manometer 100-300 kPa Air Pressure & Vacuum Gauge
Brand: Premium Diagnostic Equipment
SKU: ATO-MT-PT530
Price: 269.00 AUD
Availability: InStock

$269.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

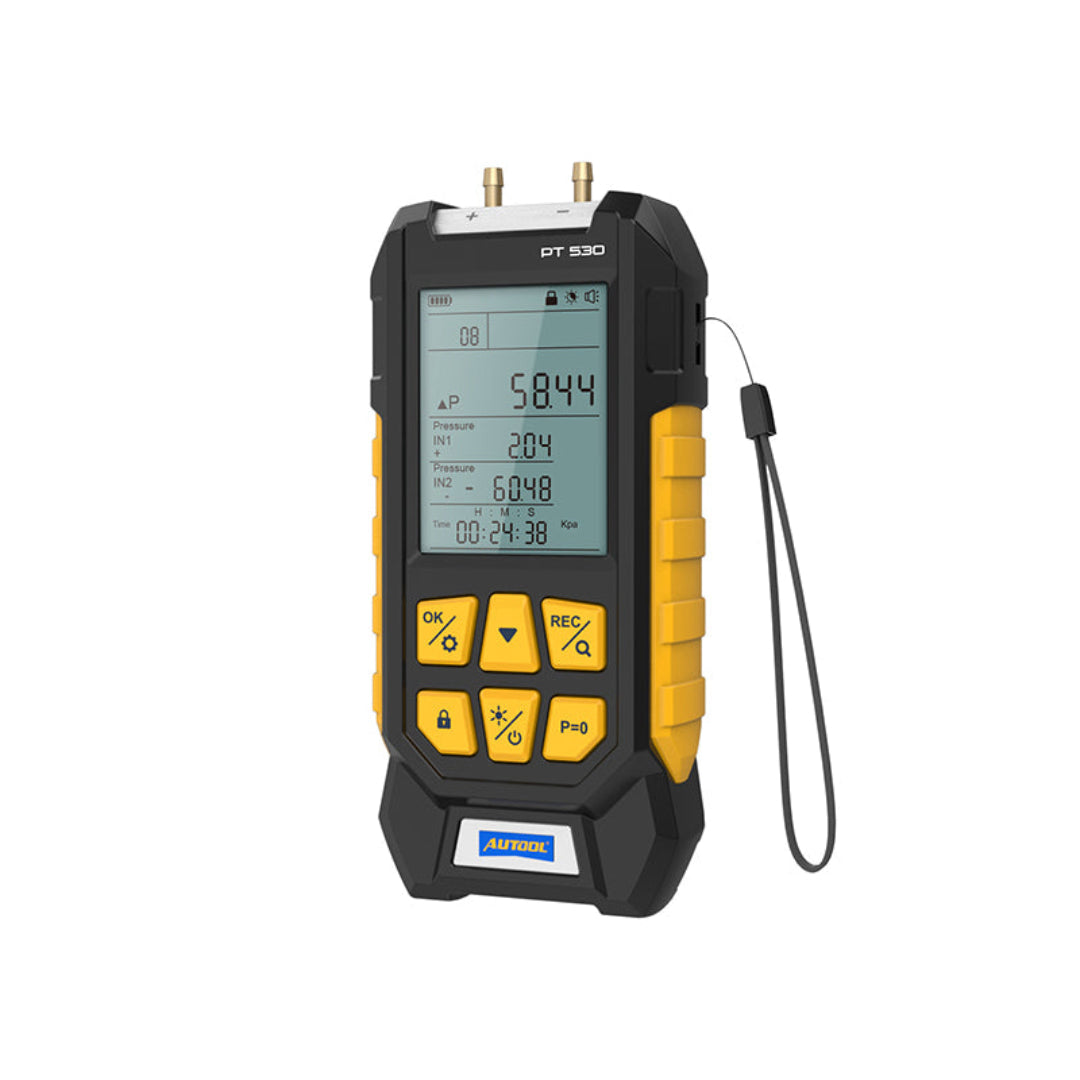

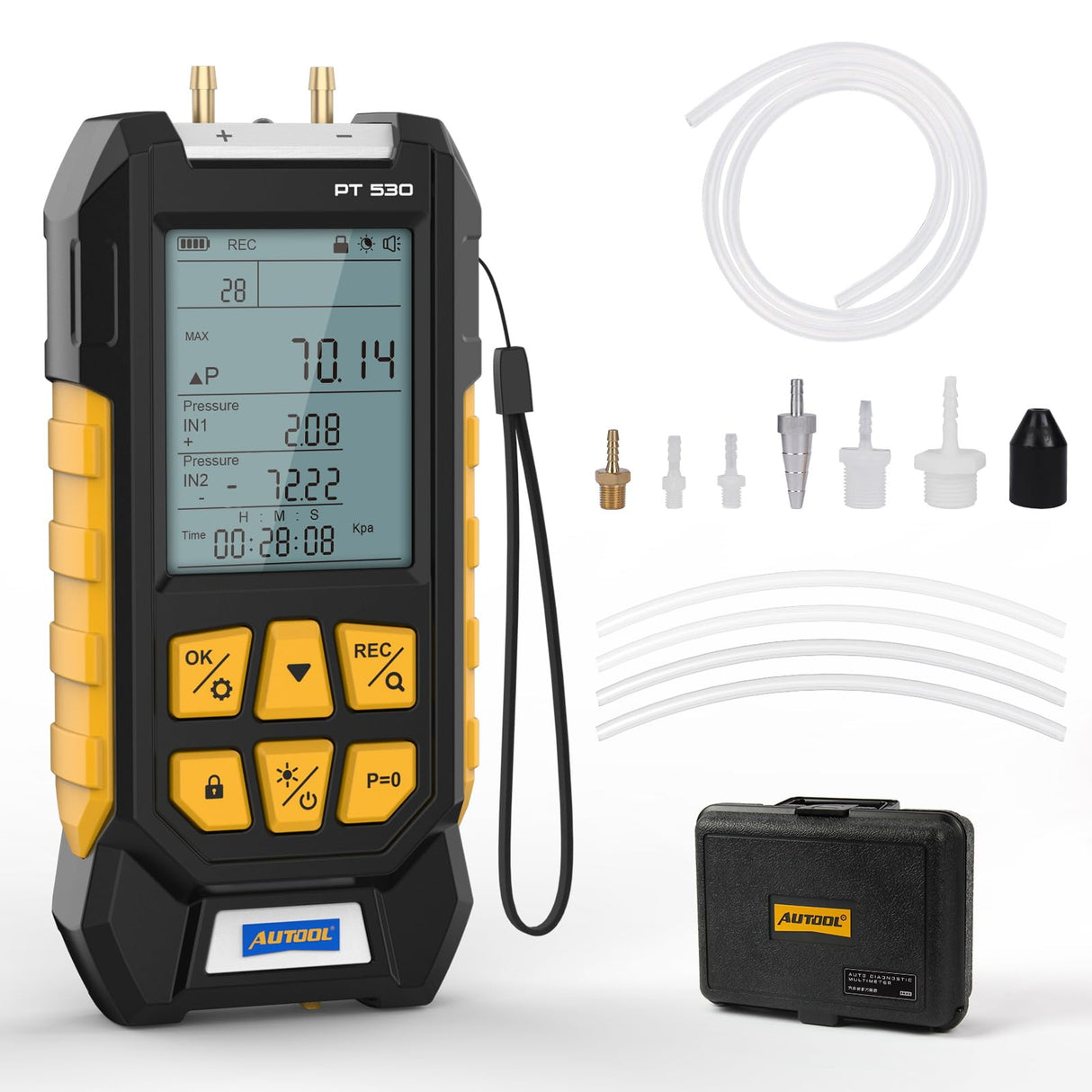

AUTOOL PT530 Digital Differential Manometer –100 to 300 kPa Air Pressure & Vacuum Gauge, Multi-Unit Measurement for Automotive Diagnostics

Professional Air Pressure & Vacuum Measurement

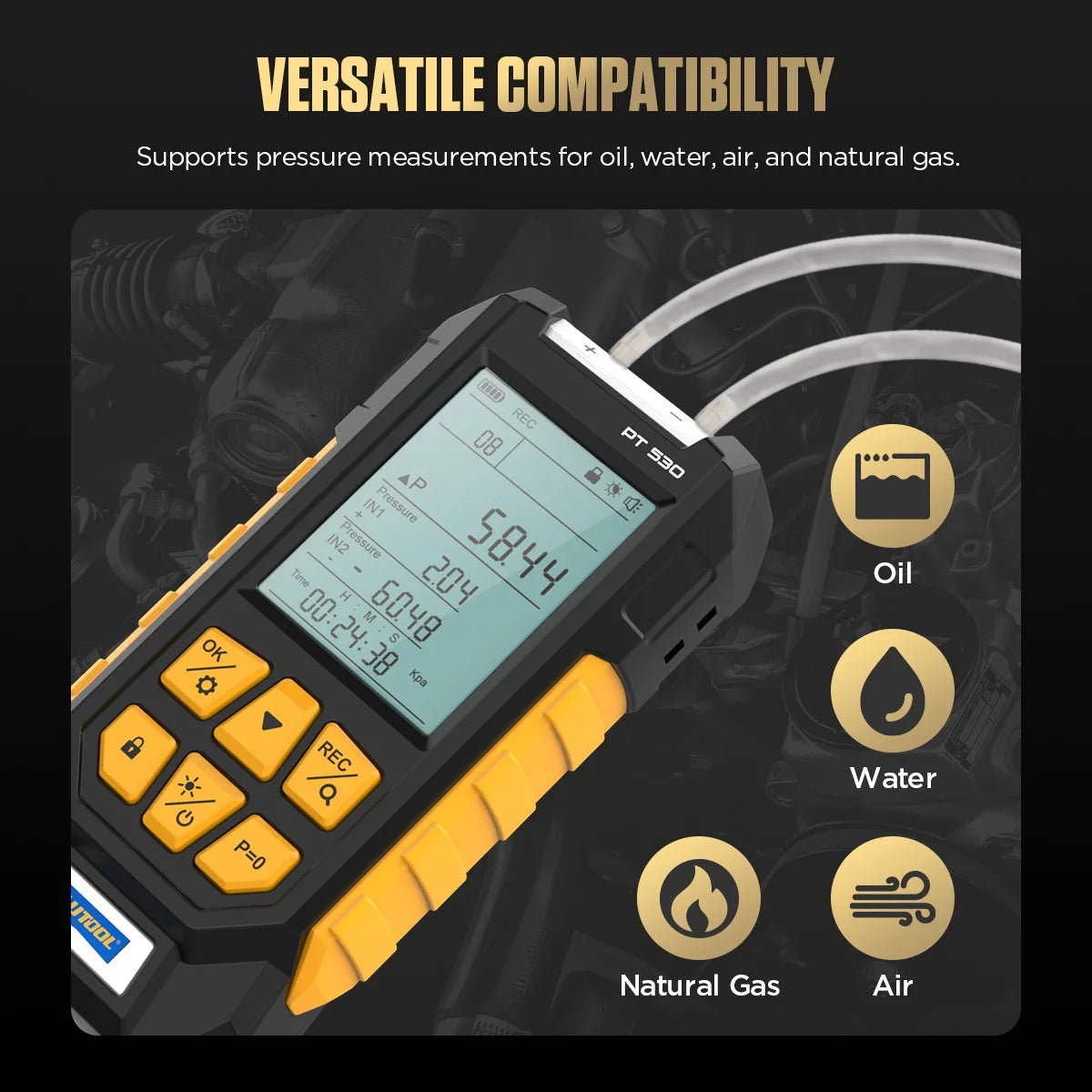

The AUTOOL PT530 is a high-accuracy digital differential manometer designed for measuring both positive pressure and vacuum levels in a wide range of automotive and industrial applications. Suitable for testing oil, water, air, and natural gas pipelines, it’s an essential tool for mechanics, engineers, and HVAC technicians.

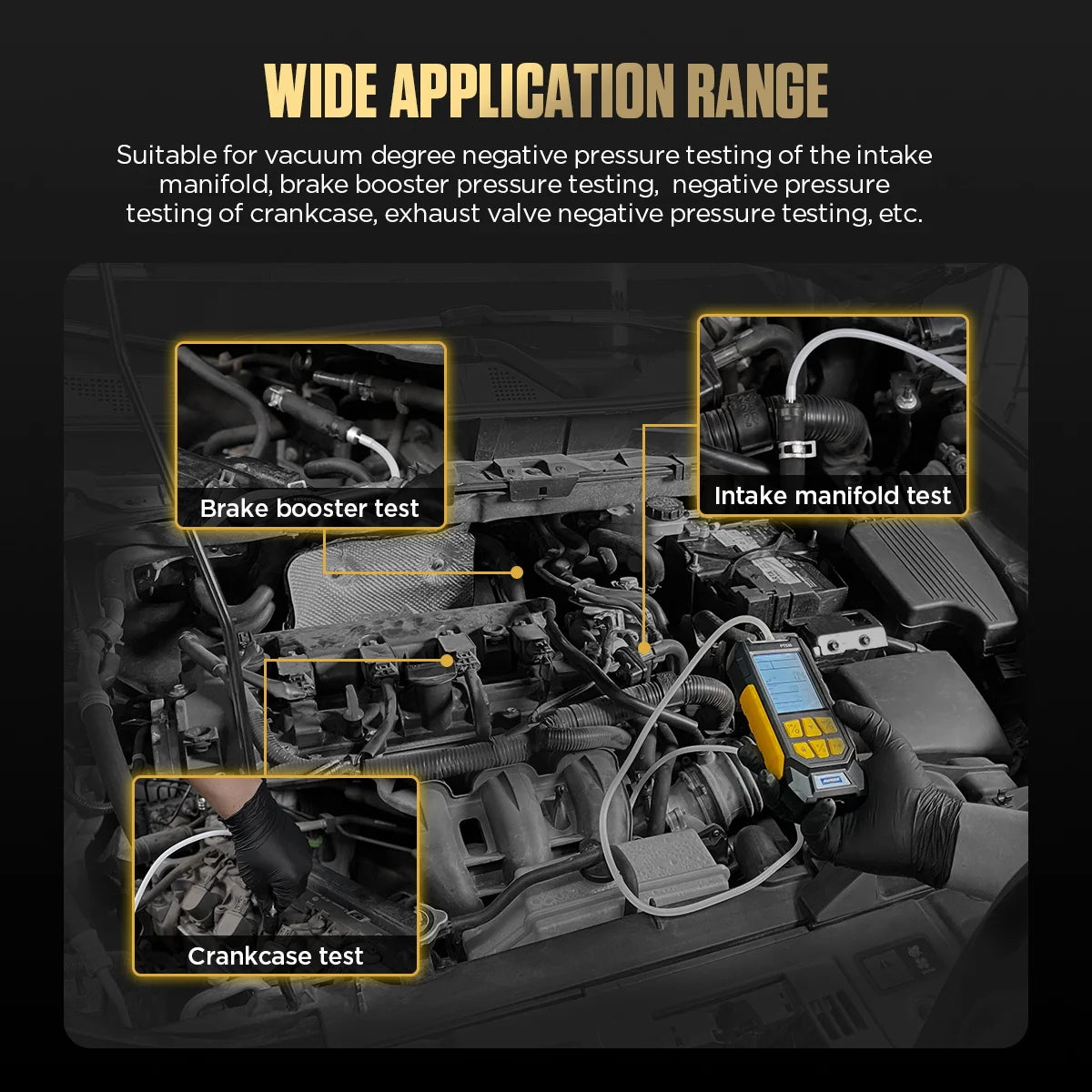

Perfect for

Vacuum testing of intake manifolds
Brake booster pressure diagnostics
Crankcase negative pressure testing
Exhaust valve vacuum measurements

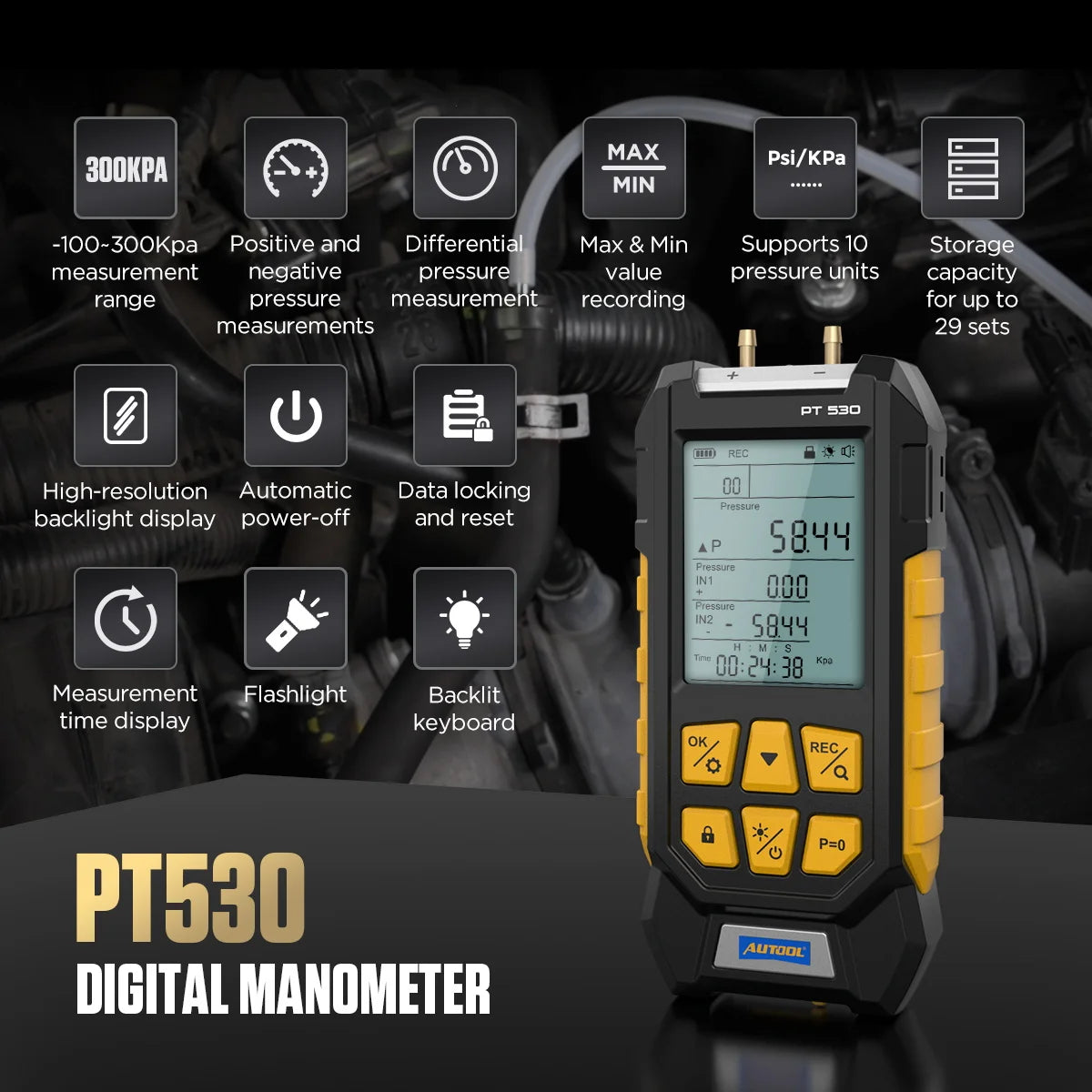

Key Features & Benefits

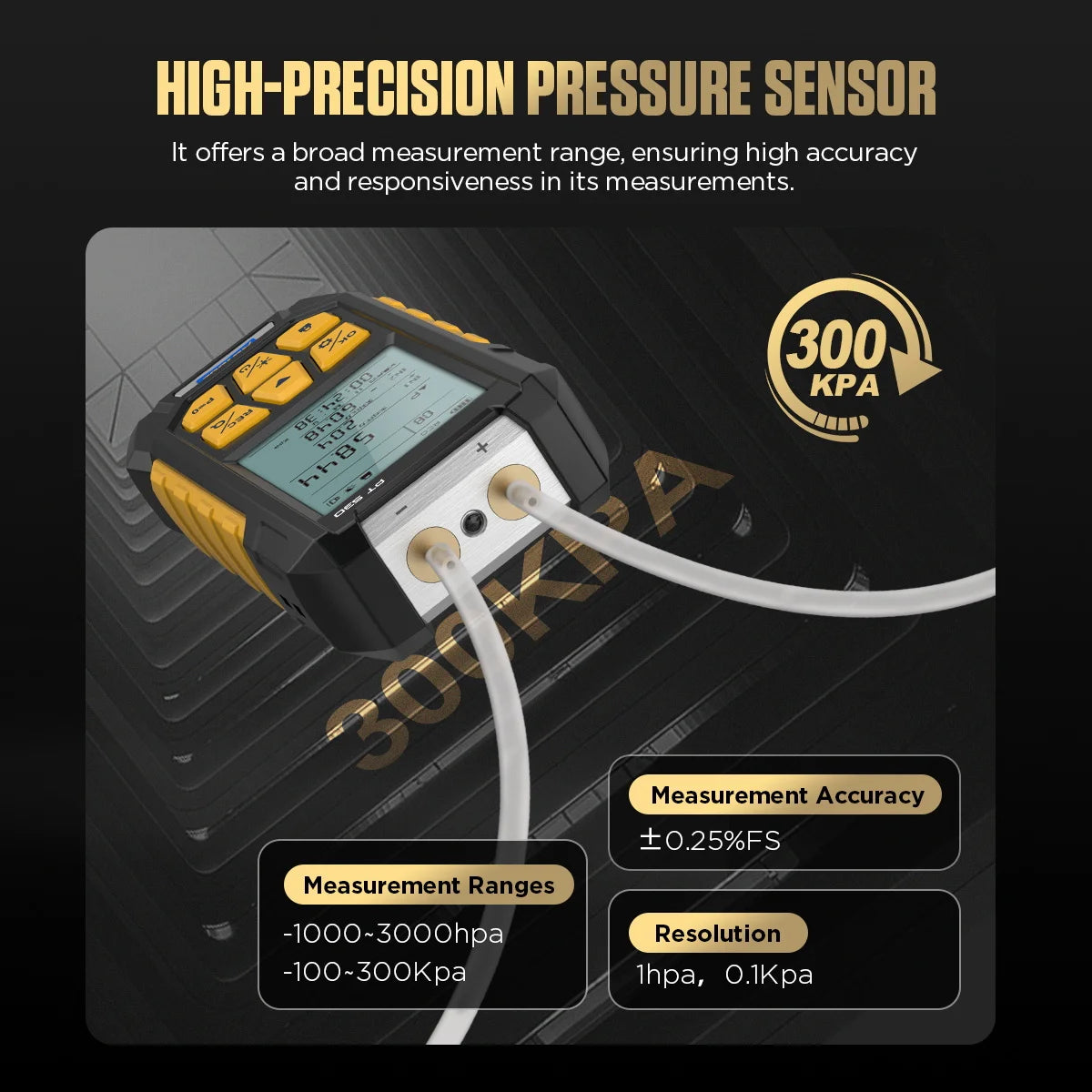

Wide Measurement Range – Measures from –100 to 300 kPa (–1000 to 3000 hPa)
High Accuracy – ±0.25% FS with resolutions of 0.1 kPa or 1 hPa for precise diagnostics.

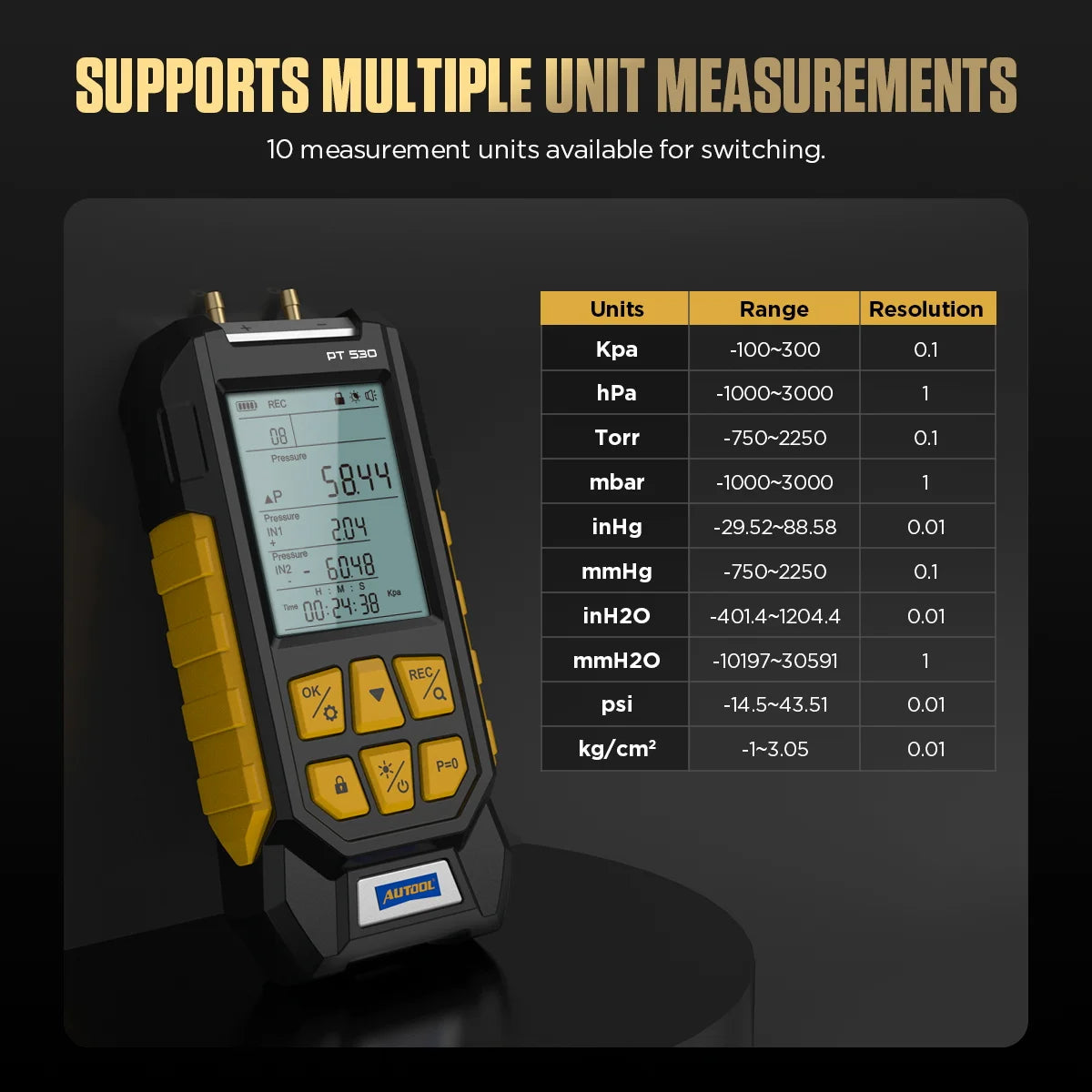

Multi-Unit Capability – Supports 10 pressure units: hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, PSI, kPa, and kg/cm².

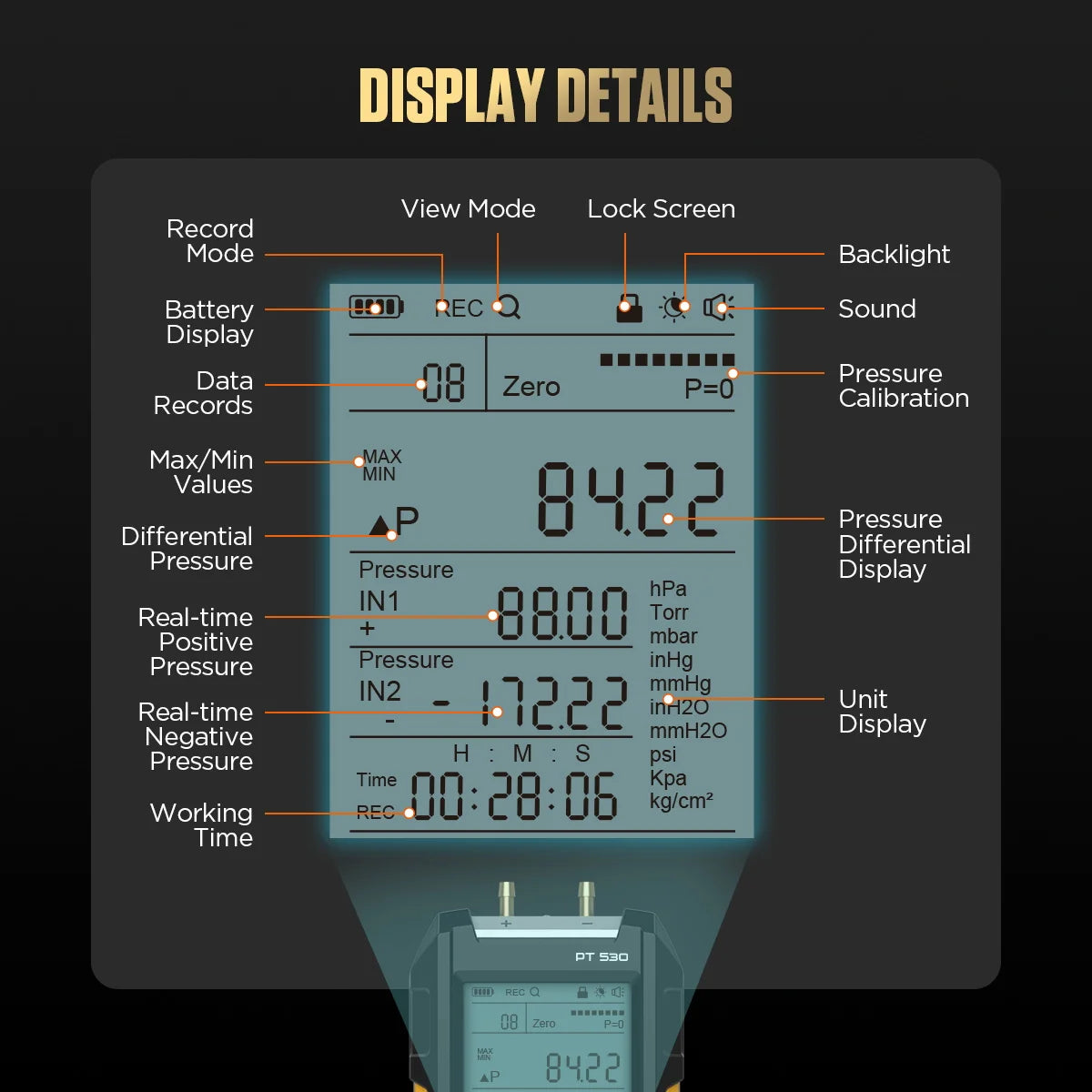

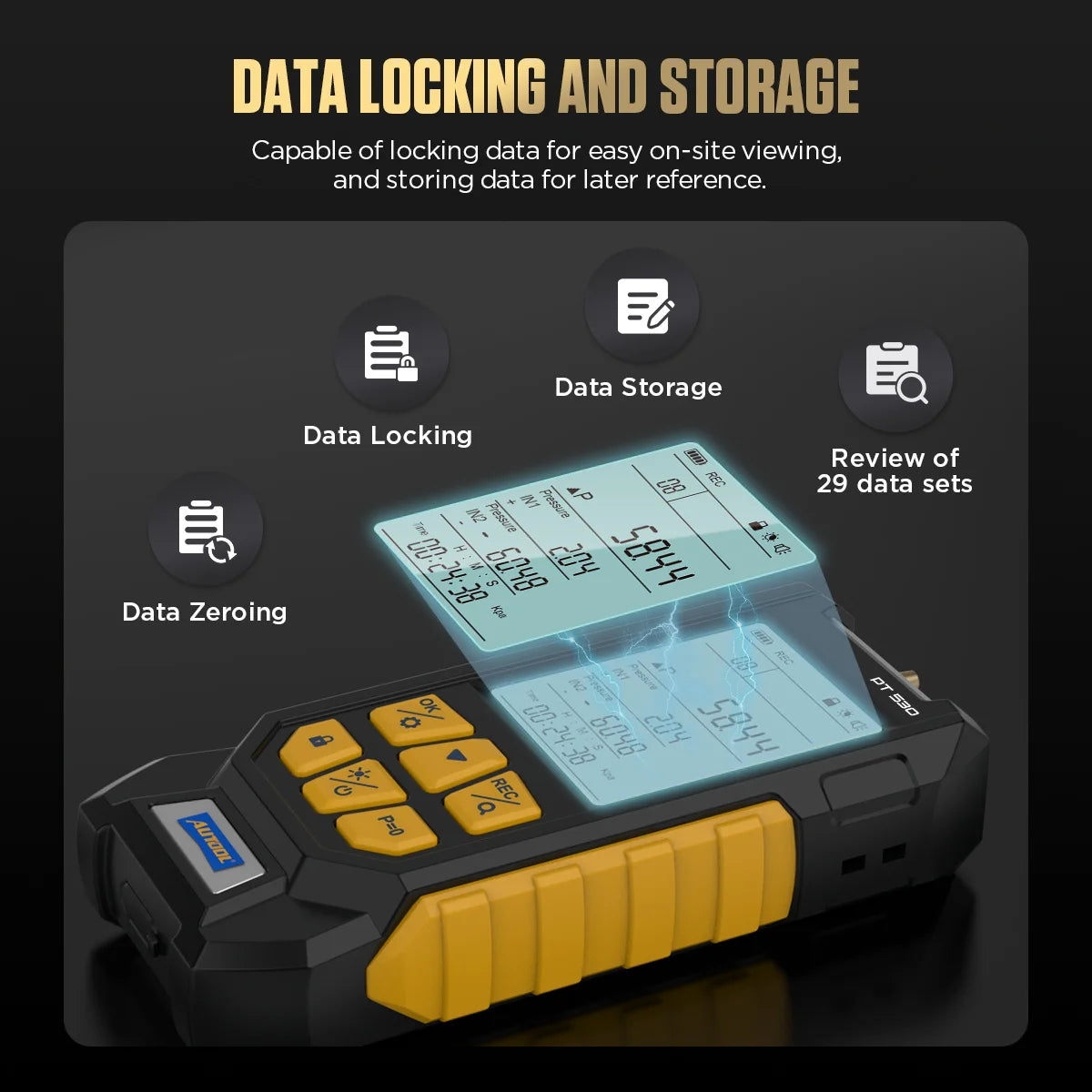

Data Locking, Storage & Reset – Store up to 29 data sets, record Max/Min values, and quickly reset for new tests.
Automatic Power-Off – Saves battery life by shutting down after 10 minutes of inactivity.

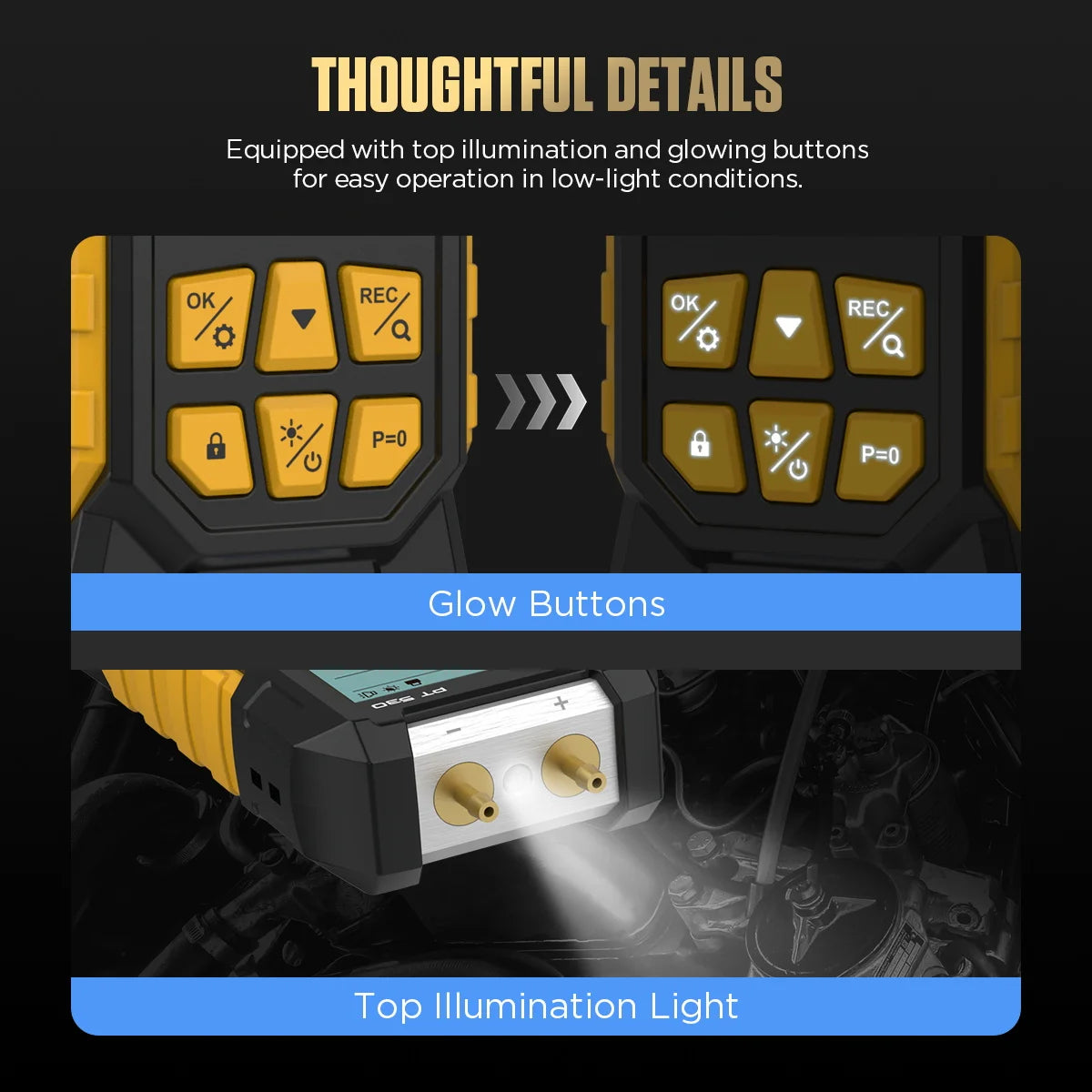

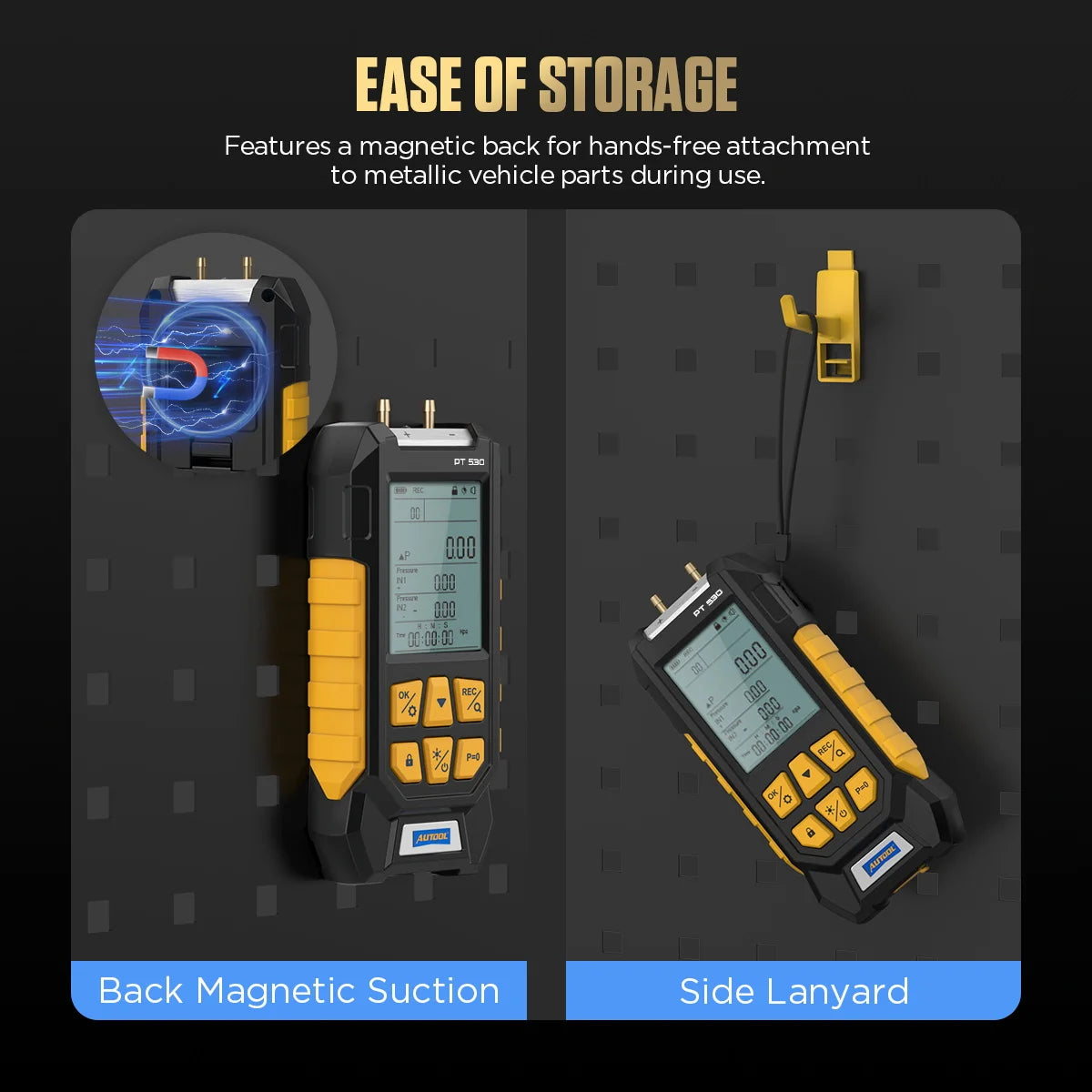

User-Friendly Design – Features top illumination, glow-in-the-dark buttons, and a magnetic back for hands-free attachment to metal surfaces.

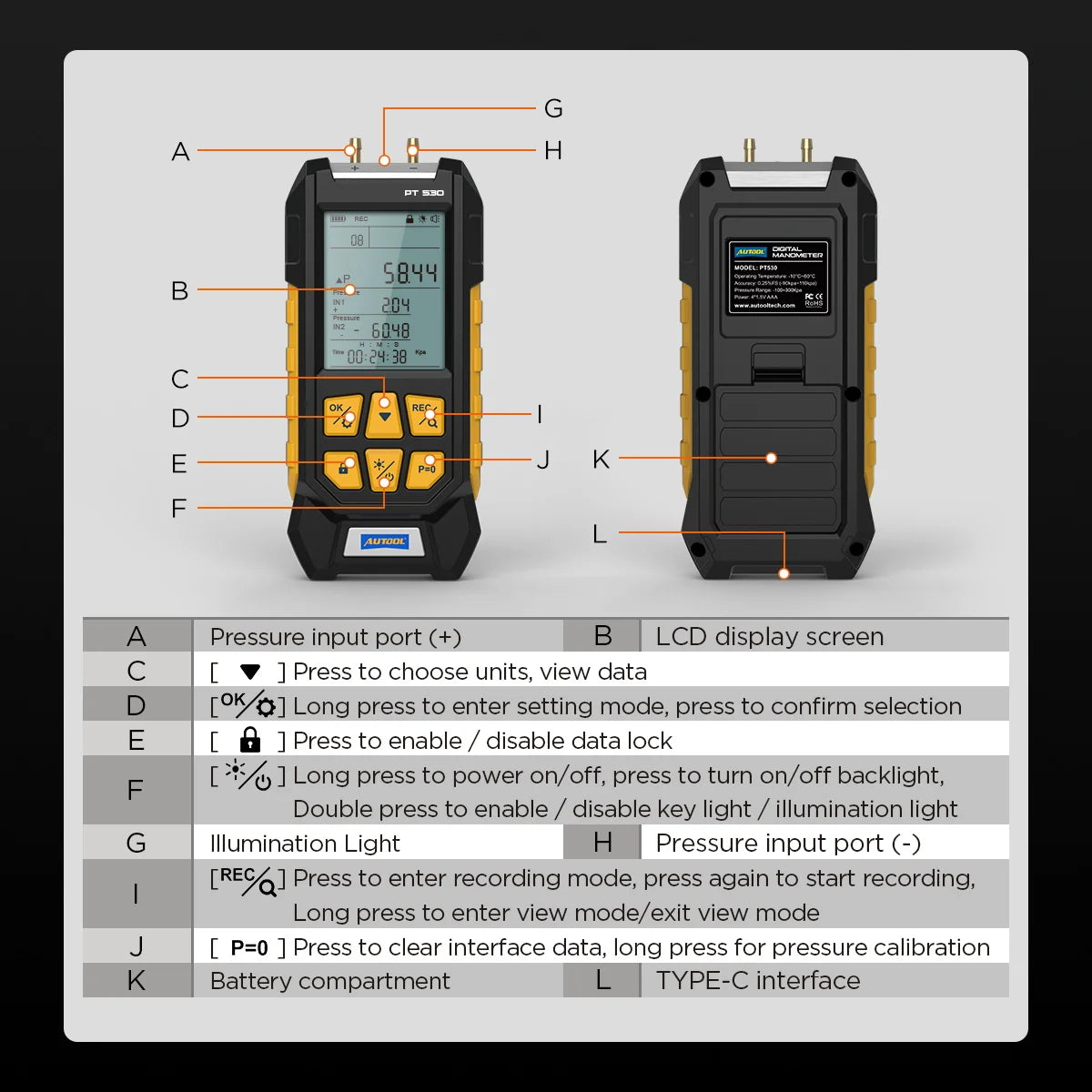

Dual Port Design – Supports accurate differential pressure measurements.

Product Specifications

Specification	Details
Power Supply	4 × 1.5 V AAA batteries
Measurement Range	−100 to 300 kPa / −1000 to 3000 hPa
Accuracy	±0.25% FS
Resolution	0.1 kPa / 1 hPa
Operating Temperature	−10 to 60 °C
Storage Temperature	−20 to 65 °C
Units	hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, PSI, kPa, kg/cm²

Whether you’re diagnosing automotive vacuum systems, testing brake boosters, or checking industrial pipelines, the AUTOOL PT530 delivers the accuracy, versatility, and ease-of-use you need for professional results.
