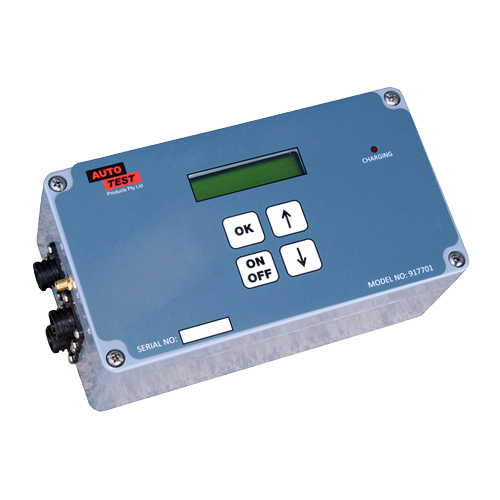

AutoBlast Geophone Ground Vibration Logger

Name: AutoBlast Geophone Ground Vibration Logger
Brand: Premium Diagnostic Equipment
SKU: ATPL-MT-GEOLGGR
Price: 4929.00 AUD
Availability: InStock

$4,929.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

AutoBlast Geophone GROUND VIBRATION LOGGER

The AutoBlast™ is a ground vibration monitoring and logging device. It can be used in various applications of Civil Engineering such as industrial vibration monitoring, ground transportation traffic vibration monitoring, construction site monitoring, noise, and vibration monitoring in a blasting zone. It is also useful in the fields of Earthquake Engineering for monitoring the structures of buildings, bridges, and dams.

Measurement is taken using a packet of velocity sensors (geophones) and Air
Overpressure level using a microphone, storing the data into a built-in memory
storage, which can be downloaded to a PC via Bluetooth. AutoBlast™ can be
configured to perform a sensor check operation before monitoring starts to make
sure the sensors are functioning properly.

Events are automatically recorded when the measurement level of the vibration
noise exceeds a threshold value, and alarms can be raised. These can be auxiliary
alarms (i.e., light signal or siren) as well as notifications sent by Email or SMS using
the built-in modem.

History recording and Bluetooth capability to PC
Events exceeding a threshold value are logged automatically
Alarm notification: light signal or siren, as well as notifications sent by Email or SMS
Built-in modem
Dimensions: 180 x 110 x 45 mm

Vibration	Range Up to 250 mm/s Resolution 0.0077 mm/s Accuracy ± 5% or ±0.5 mm/s Frequency range 1 to 180 Hz Acceleration Calculated from captured waveform Trigger levels 0.13 to 250 mm/s
Air Overpressure Monitoring	Weighting scales ISEE Linear Range 88 to 145 dB (500 Pa peak) Resolution 0.0152 Pa Frequency Response 2 to 250 Hz Accuracy ± 10% or ± 1dB
Trigger level	100 to 145 dB in steps of 0.1dB
Sampling rate	50, 100, 200, 400, 500, 800, 1000, 1600,2000 samples/sec for each channel
Real-time Clock (RTC)	Built-in clock with backup battery
Storage space	Full waveform recording 400 events (At 1000 Hz, 1.25 sec length, 4 channels)
Histogram recording	21 days (at 5 sec interval) for 4 channels; 30 days (at 7 sec interval) 270 days (at 1 min interval)
Full waveform and histogram	30 days (at 1 min interval); 400 events (at 1000 Hz, 1 sec length) (Mix Mode)
Modem	LTE (Bands: 1, 3, 5, 7, 8, 28); UMTS/DC-HSPA+ (850/900/1900/2100) GSM/Edge (850/900/1800/1900)
Bluetooth	Bluetooth Class 2 with embedded antenna
PC Connectivity via	Bluetooth Bluetooth class 2 (range: 3 m) Serial (RS232) Serial port connection GPRS (Internet) TCP/IP (Internet)
FFT Analysis	via PC software, Australian 2187.2-1993 Standard
User interface	1×16 character LCD with backlight
Alarm notification	Alarm messages via email, SMS and external relay outputs
Auxiliary Relay Output	2 Auxiliary relay outputs 12V 1A (12W)
Battery Capacity	Internal 6V 7000 mAh
Dimensions (w x h x d)	180 x 110 x 45 mm
Operating temperature	-10℃ to +70℃
Humidity	Up to 90% non-condensing
Supply Voltage	10 – 14 V
Power consumption	50 mA (Standby); 100 mA (Typical)
Warranty	12 months
