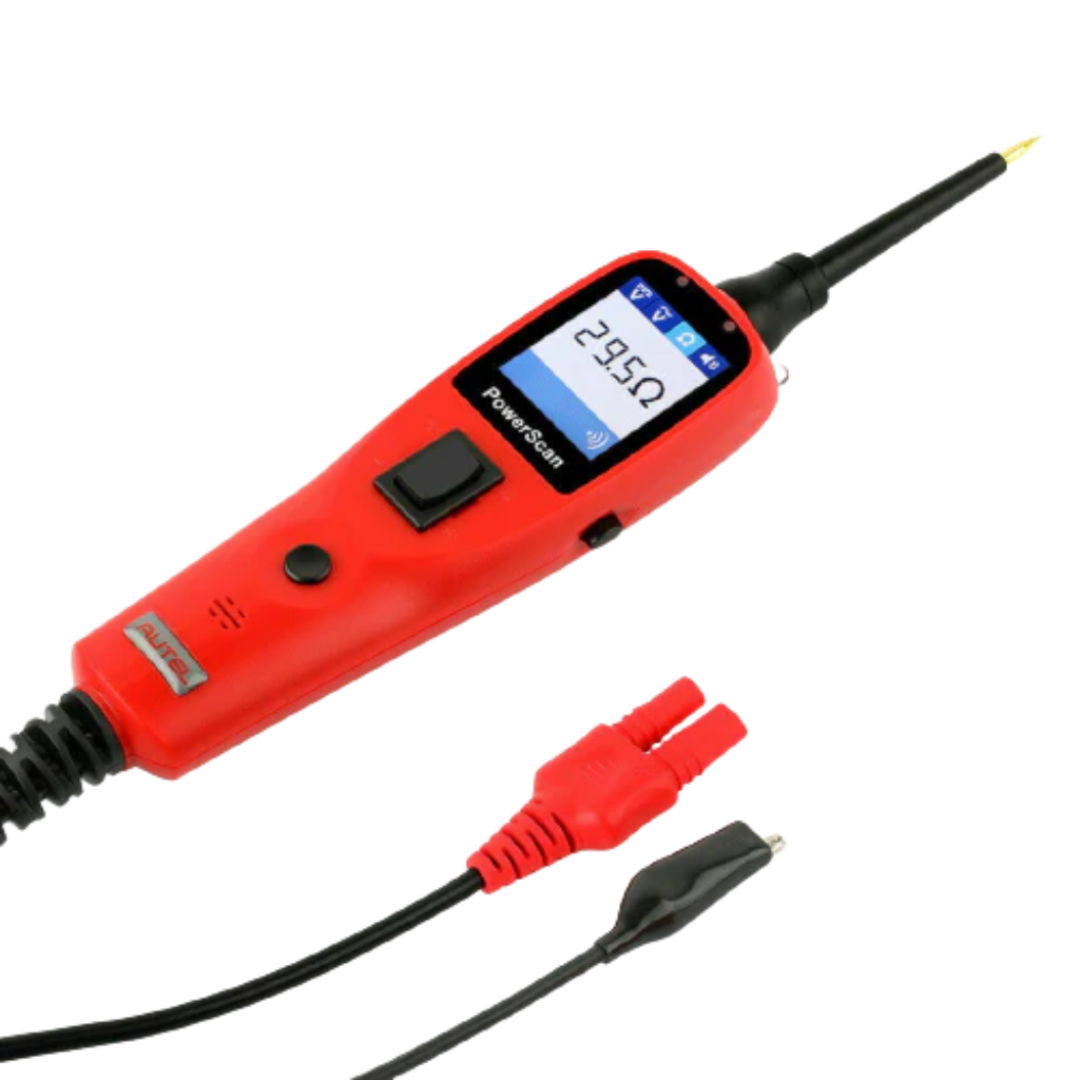

Autel PS100 PowerScan Electrical Diagnostic Tool Electrical Circuit Probe

  • Autel PowerScan PS100 is the best electrical tester for Reducing Diagnostic Time in All 6-30Volt vehicle electrical systems. It's the most revolutionary circuit tester to date. Allowing users to check circuitry in One Single Step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.



  • Autel PowerScan PS100 Can Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper cables.



  • Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded. Test for continuity with its built-in auxiliary ground lead.

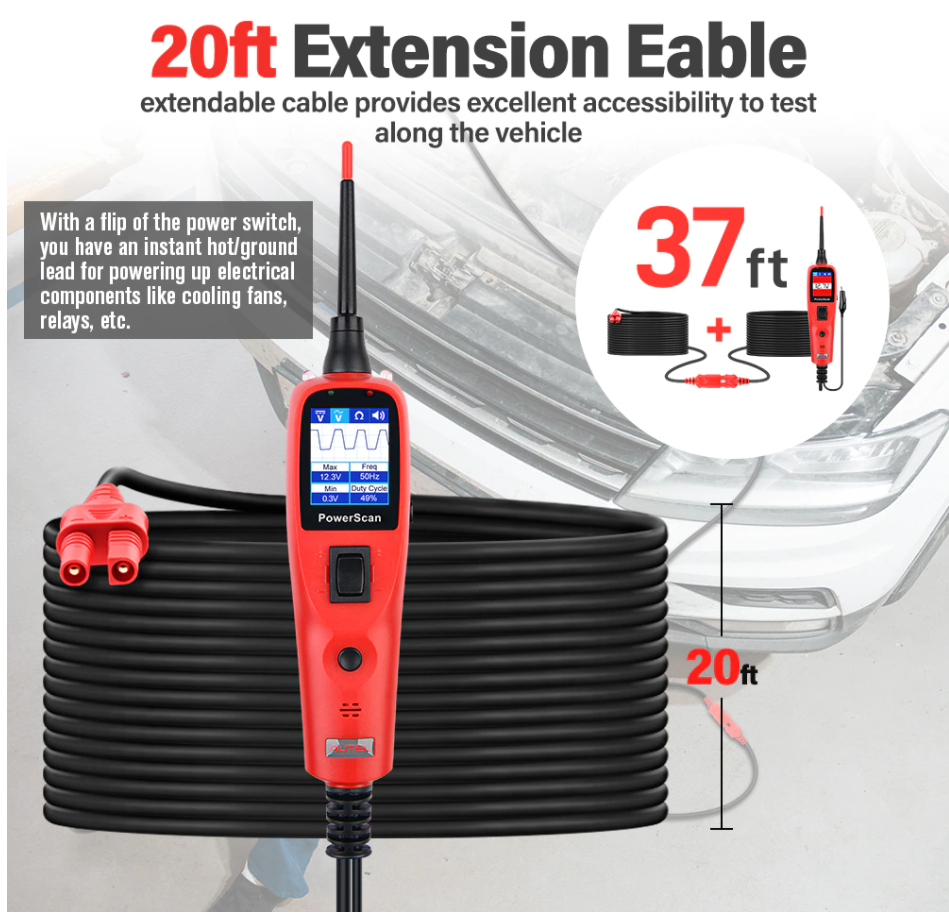

  • Autel PowerScan PS100 Can Follow and Locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds. 20ft (extendable) cable provides excellent accessibility to test along the vehicle.

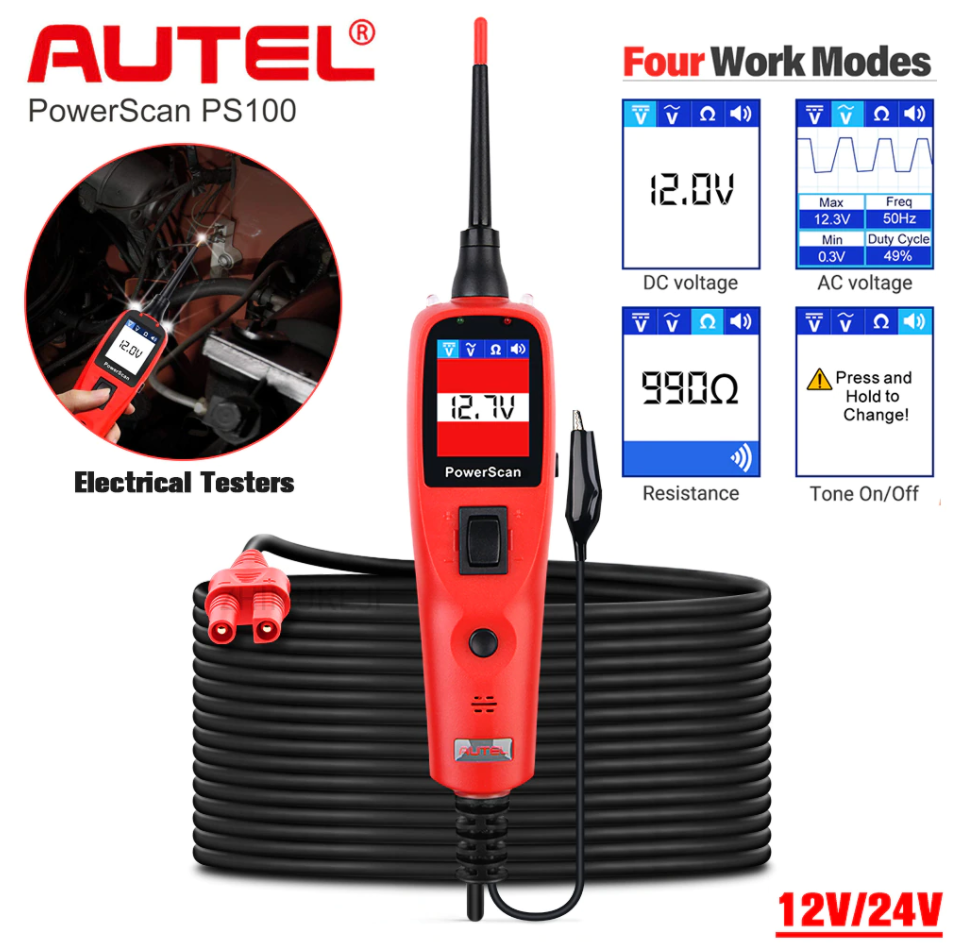

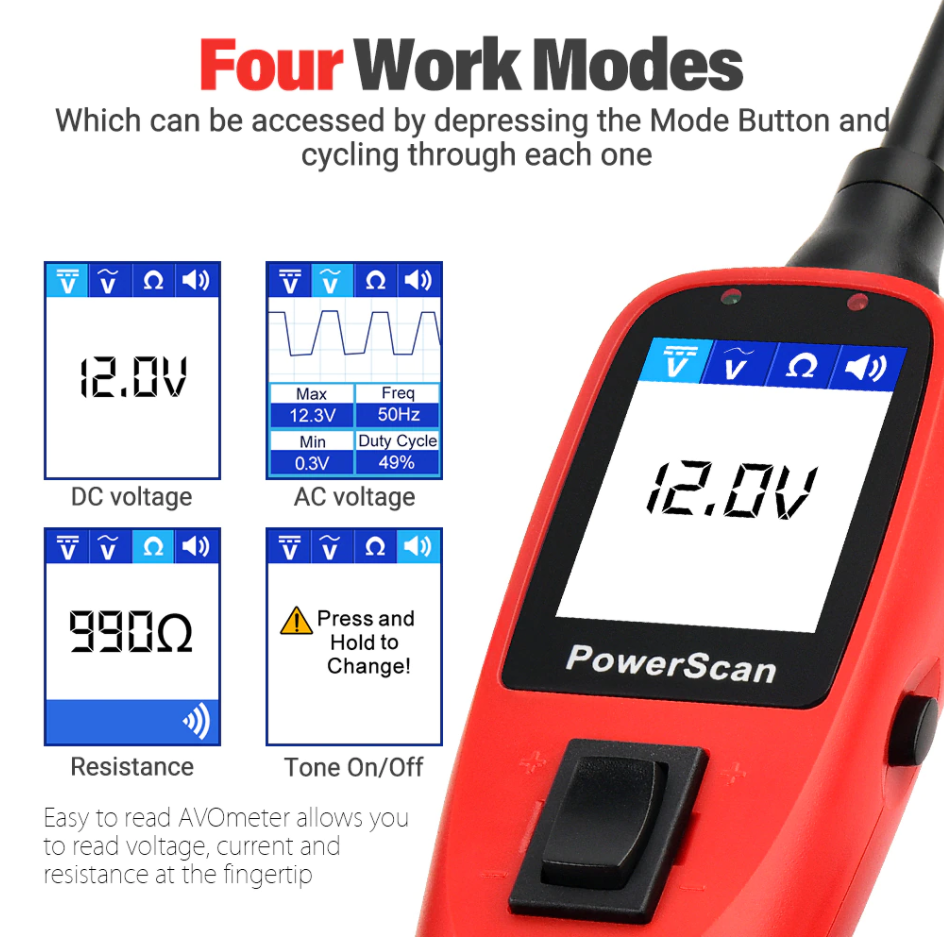

  • Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip. Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.

Specifications:

Display: TFT color display (160 x 128 dpi) Operating Temperature: 0 to 60°C (32 to 140°F) External Power: 12.0 or 24.0 V power provided via vehicle battery Length\Width\Height: 126mm(4.96")\46.5mm(1.83")\35mm(1.38") NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

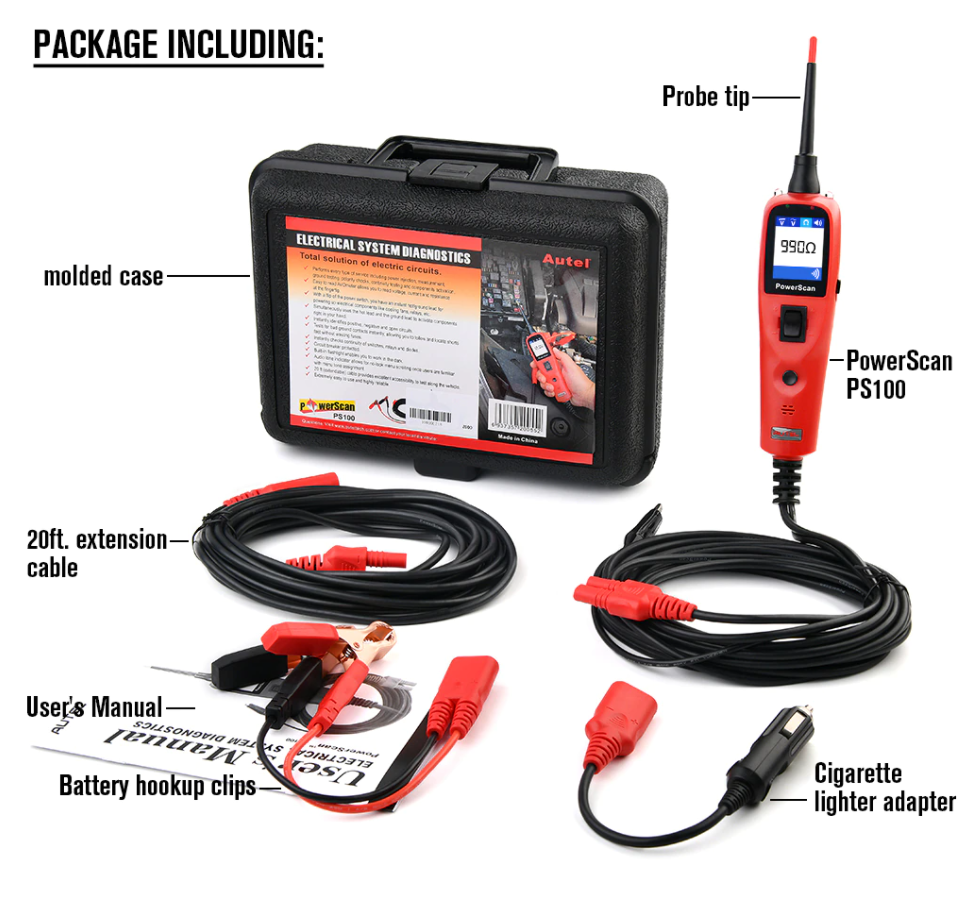

Package list:

1×PowerScan PS100

1 × Rugged blow molded case

1 × 20ft. extension cable

1 ×Probe tip

1 × Battery hookup clips

1 x Cigarette lighter adapter

1× User's Manual



Free Shipping

After-sales support

Product will come with a one year warranty

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
