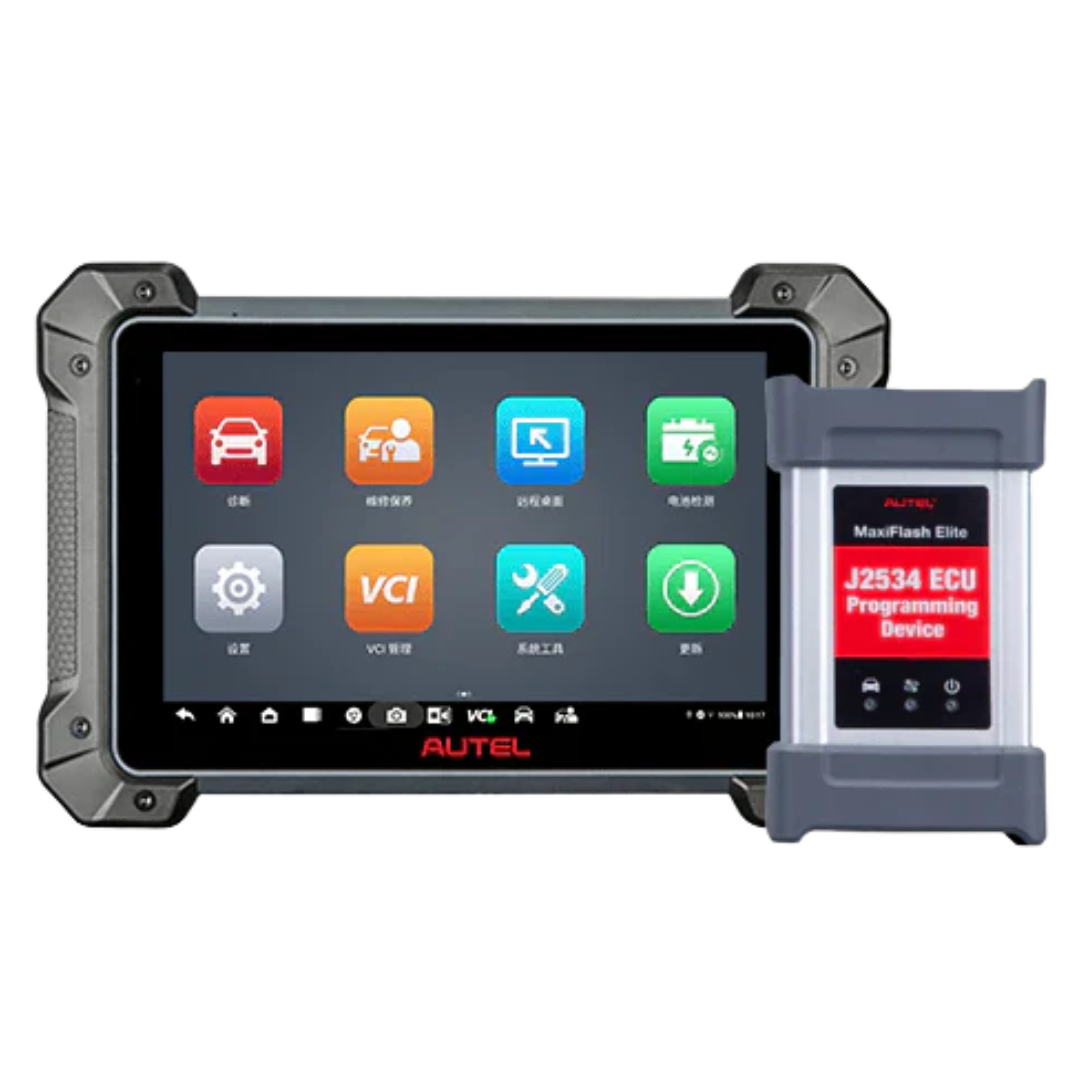

Autel MaxiCOM MK908 Pro II with J2534 Diagnostic Scan Tool

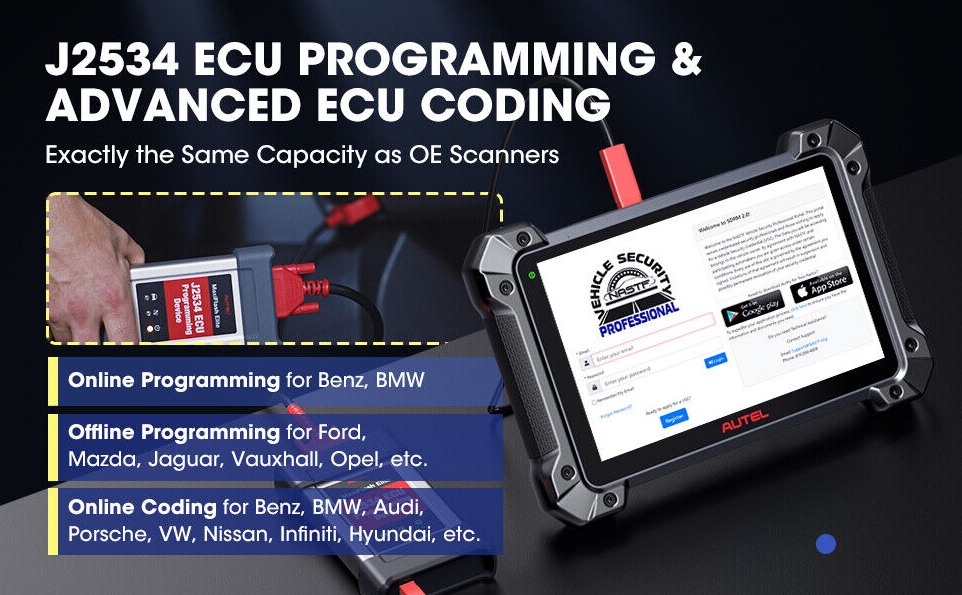

Online J2534 Programming for BMW/ Mercedez-Benz, without needing to connect to the manufacturer's software.

Autel MaxiCOM MK908P II is 10.1-inch touchscreen advanced diagnostics tablet powered by a Octa-core processor with 128GB of storage memory and runs on Android 10. The MK908P II can read/erase codes on all available systems, perform bi-directional active tests, view freeze frame, view and graph live data, and perform adaptations and coding on U.S, Asian, Australian and European vehicles

• Qualcomm 660 Octa-core processor (2.2GHz Quad-core processor A73 + 1.8GHz Quad-core A53)

• 10.1-inch touchscreen Wi-Fi tablet

• Bluetooth-enabled MaxiFlash VCI/J2534 pass thru programming device

• Android 10.0 operating system

• Read/erase codes on all available systems

• View freeze frame, view and graph Live Data

• Perform bi-directional active tests

• Perform adaptations and coding

• AutoVIN and Auto Scan

• Share reports easily via email and text and Wi-Fi printing



Access to ALL OE-level systems and subsystems (ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.)

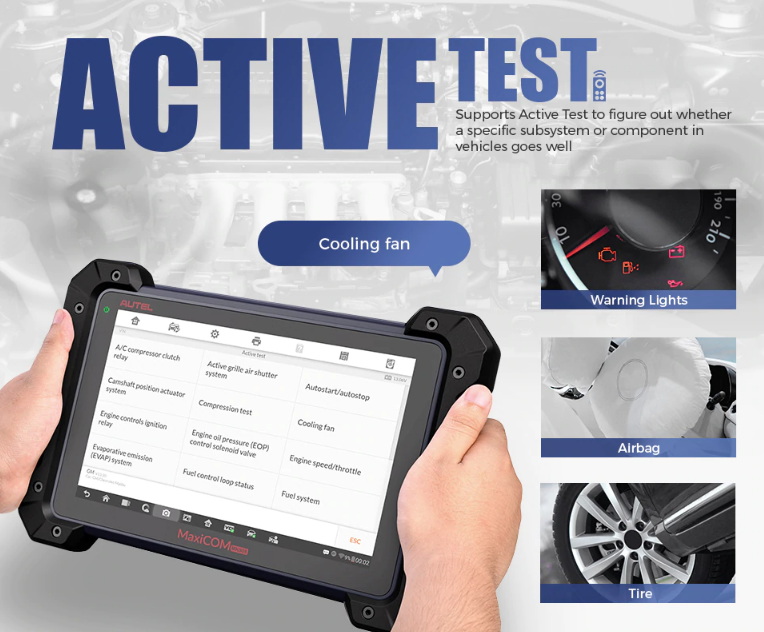

Supports Bi-Direcectional Active Tests to figure out whether a specific subsystem or component in vehicles goes well (varies by the vehicle manufacturer, year, and model).

Supports 10 Modes of OBDII operations: Read/Clear DTCs, Read Data Stream/Freeze Frame/ECU Information, etc., in 4 display modes (Analog Gauge, Text, Waveform Graph, Digital Gauge).

Extensive vehicle coverage of more than 80 American, European, Australian and Asian makes and models.

Multiple Language Support (13): English, Chinese Traditional, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Italian, Russian.

Abundant User-Friendly Add-On Features:

Extendable Design: With MP408, and MV108 to detect unseen details; With TS601 for comprehensive TPMS problems.

MaxiFix: Vast database of repair and diagnostic tips along with proven filed fixes.

Data Manager: Store, print, and review the saved files for future review.

Fast Data Transfer (VCI): Dual-band 802.11n Wi-Fi technology and long-range Bluetooth for ultra-fast Wireless Communication.

AutoVin Technology: Latest AutoVIN technology with advanced Auto-Scan functions to identify CAN-Enabled vehicles, in one touch.

Prints out recorded data anytime and anywhere with Wi-Fi technology.

Automatic Wi-Fi updates are available in new software releases.

And so much more …

40+ Maintenance Functions

Diagnostic 1
Diagnostic 2



    Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding

    Open source Android Operating System for fast boot-up and multitasking

    Easy and intuitive navigation makes finding what you need simple and fast

    Displays live data in text, graph, analog and digital gauge for easy data review and analysis

    Configures display options, sets triggers, records and playbacks results with one-touch

    Records and playbacks live data to pinpoint troubles of sensors and components

    Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

    Remote technical support for convenient demonstration, training and increased customer satisfaction

    Prints out recorded data anytime and anywhere with Wi-Fi technology

    Automatic Wi-Fi updates available in new software releases


Our Autel Scan Tools all include Australian Software for Holden and Ford

To check what functions are available for each vehicle click here

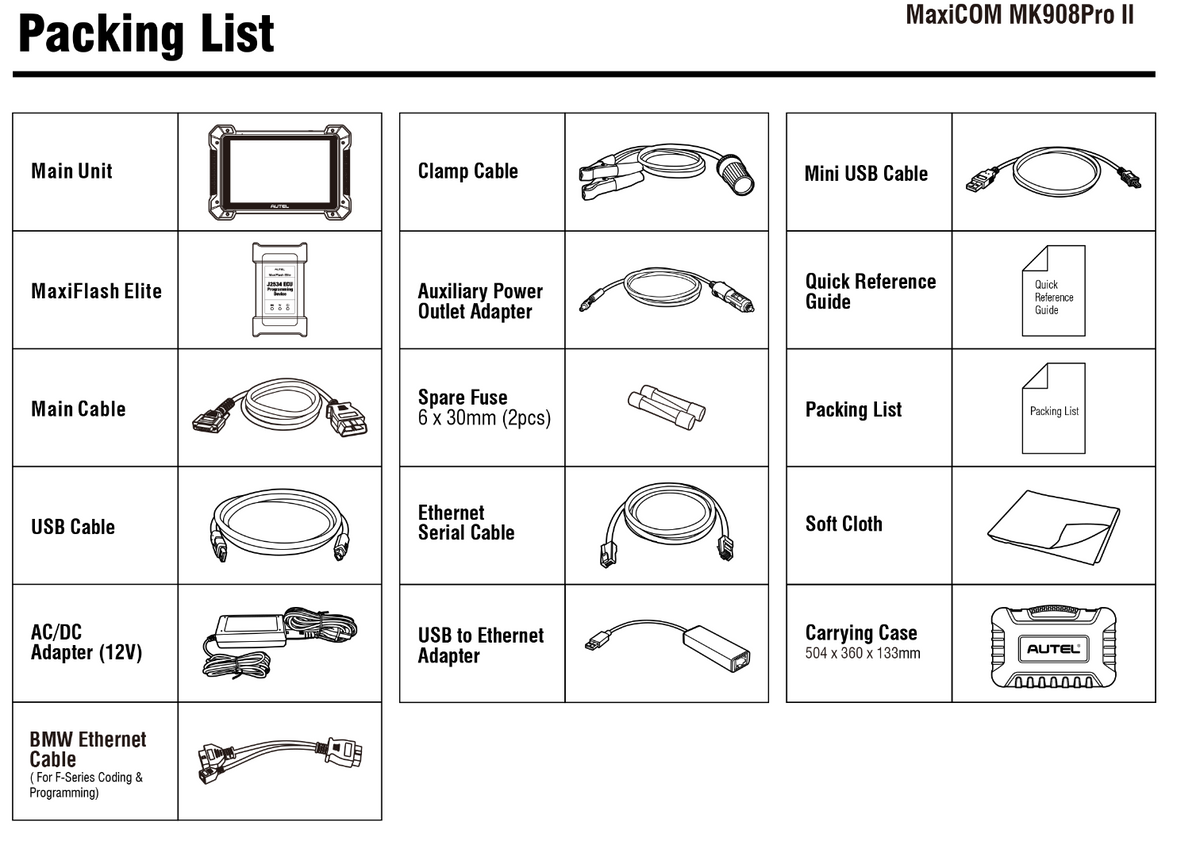

Packing List

1 * Main Unit – MK908P II
1 * J2534 Box
1 * Main Cable
1 * Standard 2.0 USB Cable
1 * Mini USB Cable
1 * AC/DC External Power Adapter
1 * Ethernet Serial Cable
1 * Cigarette Lighter
1 * Clipper Cable
2 * Light Fuse
1 * BMW Ethernet Cable (Optional)
1 * USB Ethernet Adapter


Operating System

Android™   10.0


Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 +   1.8GHz Quad-core A53)


4GB RAM & 128GB On-board Memory


10.1-inch LED   screen with 1920x1200 resolution


Wi-Fi (802.11 a/b/g/n/ac)

USB   2.0 (2 USB TYPE-A ports and a Mini USB port)
BT V5.0 + BR/EDR

SD Card (Support up to 64GB)


Camera (rear)

16 Megapixel, AF with Flashlight


Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output


Dual Speakers

3-Band 3.5 mm stereo/standard headset jack



Input Voltage

12V (9-24V)

Power Consumption

6.5 W

Operating Temp

0 to 50°C (32 to 122°F)

Storage Temp

-20 to 60°C (-4 to 140°F)


Strong plastic housing with protective rubber boot

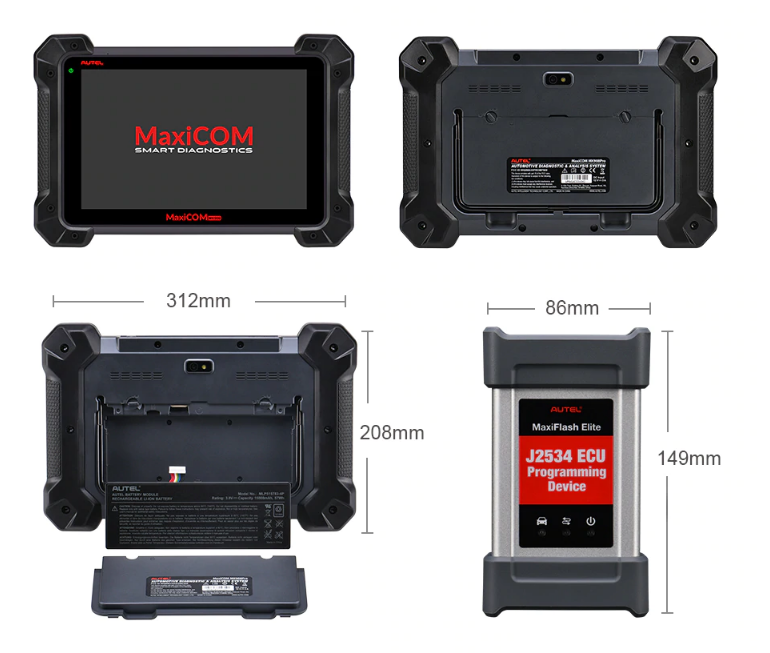

Dimensions (W x H x D)



NW: 1.48kg (3.26 lb)


ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,   SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed,   Middlespeed, Lowspeed   and Singlewire CAN, GM UART, UART Echo Byte Protocol,   Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,   SAE J1708, Fault-Tolerant CAN

Free Shipping

After-sales Support

One Year Warranty

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
