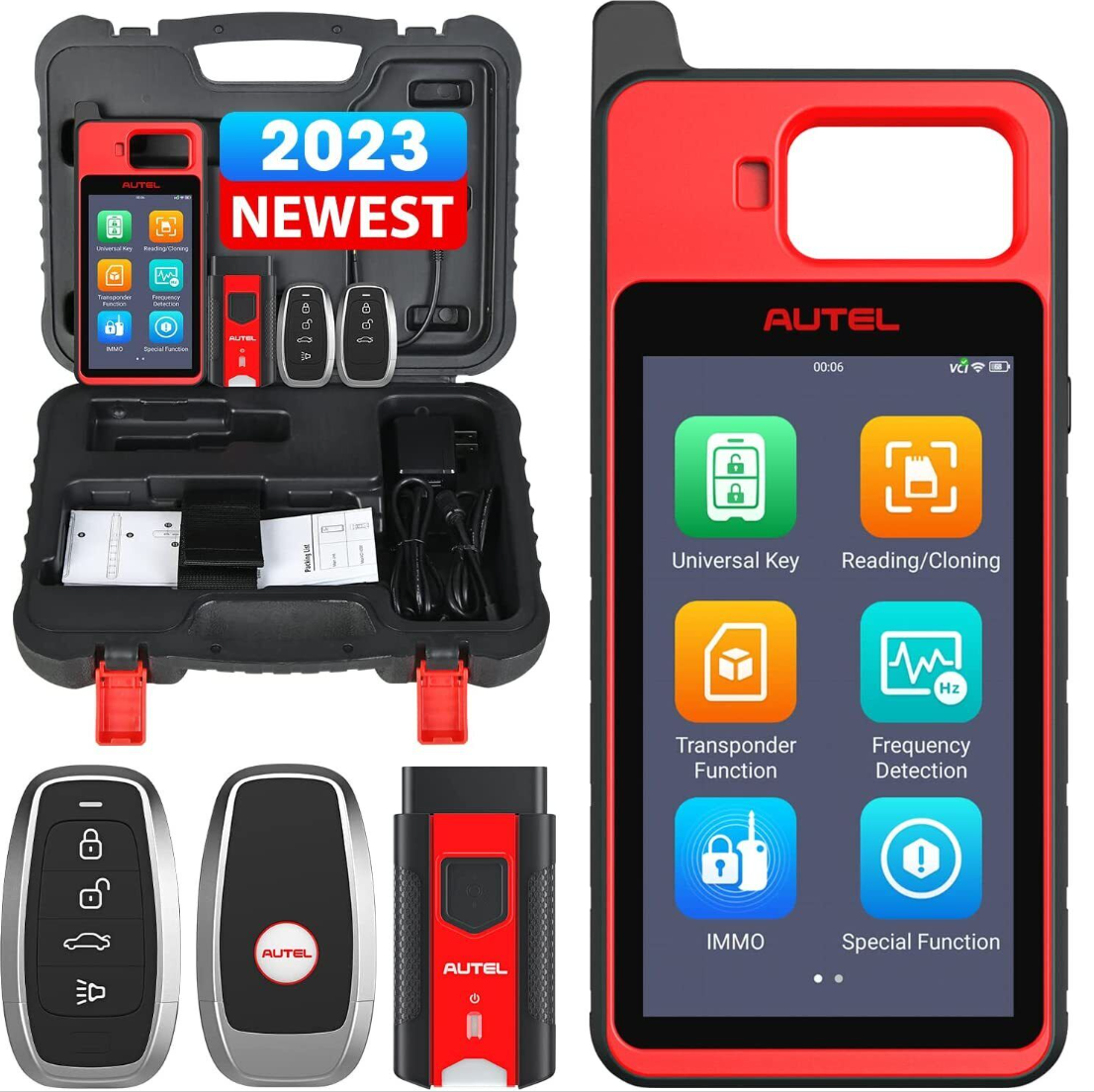

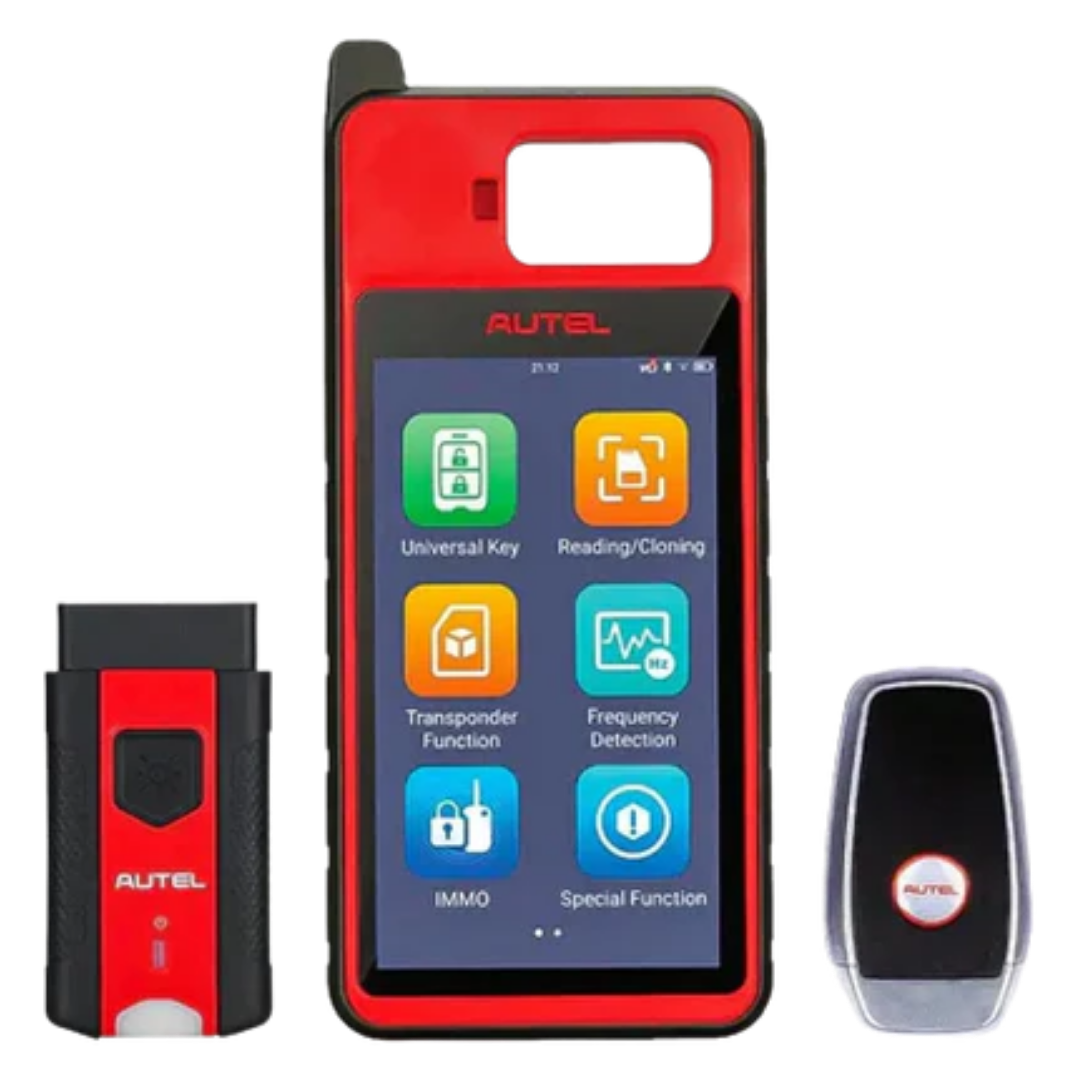

Autel KM100 Key Programming Tool

MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.


• Programs Autel’s IKEY universal key as a smart key replacement for more than 700 vehicles

• Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors

• One-Minute Key Generation

• Chip Read & Write, Cloning and Frequency Detection

• AutoVin vehicle identification to ensure accuracy

• Simple User Interface with Concise Instructions

• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery

- Global version has no IP blocking issues
Lifetime Free Updates online
Supports PLC V200 dongle
- 60-Second Key Generation (Autel Universal Only)
- Transponder Reading/ Writing/ Cloning
- Frequency Detection and ignition Coil Detection
- Compatible With Autel Blank Universal Smart Keys
Key Renewal: Supporting 36 Vehicle Makes
Transponder Editing: Supporting 20 Categories
Supports Wi-Fi and Bluetooth
- Supporting Certification Requirements of Various Regions
- Dual-Band, High-Frequency Transmitter 315 mhz/ 434 mhz or 868 mhz/ 915 mhz
Multi-language: English, Chinese, German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, Swedish, Turkish, Hebrew, Arabic, Thai, Vietnamese

Other Features:
-Android-based touch screen device

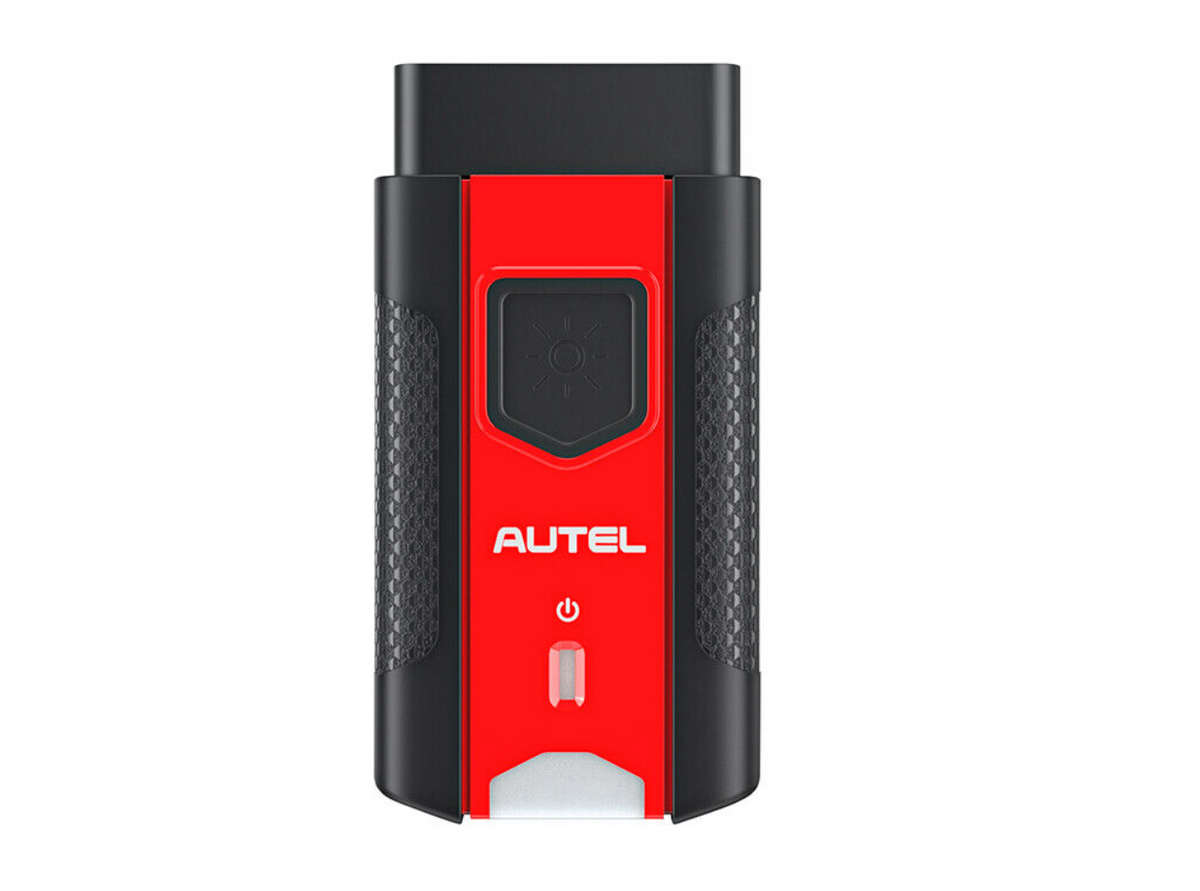

-Contains MaxiVCI VCI200 so you can perform key simulation and key learning after generating a key. You can generate the key and go directly into programming with two button presses.
-The immo programming is very powerful. You can use it instead of im508 im608 on many vehicles to program keys as it’s simple and easy to pack/unpack and compact for its convenience.
-Use the USB cable to transfer data from another device, such as IM608, to a laptop and from the laptop to the key tool.

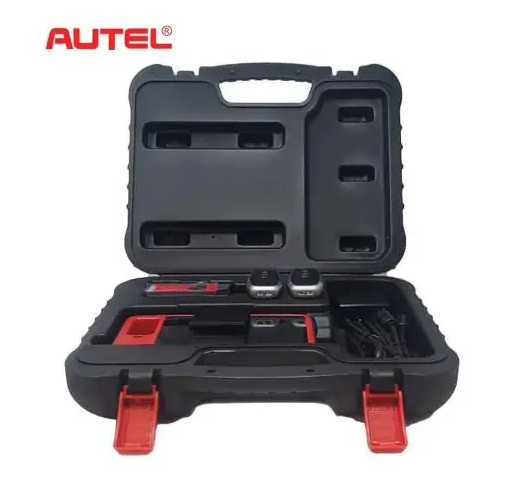

-The key tool comes with 2 blank keys for you to use at your convenience. One has the Autel logo on the back and the other does not.
- Supports generation of aftermarket chips, i.e xhorse super chip. But can generate xt27 only once, need to reset the chip with xhorse tool if you want a second generation

Support Toyota 8A all keys lost and all smart keys lost without APB112 emulator



Dimensions   (WxHxD)

200mm(7.9”) x 89 mm (3.5”)   x 22 mm (0.87”)


352.7g (0.8 lb)


5.5-inch screen with 1280 x 720 resolution


Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)

Operating System

Android™   9.0


2GB RAM/64GB on-board memory


8 megapixels



Bluetooth 5.0

USB 2.0 type C


4950mAh lithium-polymer battery






Ambient light sensor

Audio Input/Output

MIC: supported

Speaker: supported

Operating Temp

-10 to 45°C (14 to 113°F)

Storage Temp

-20 to 60°C (-4 to 140°F)

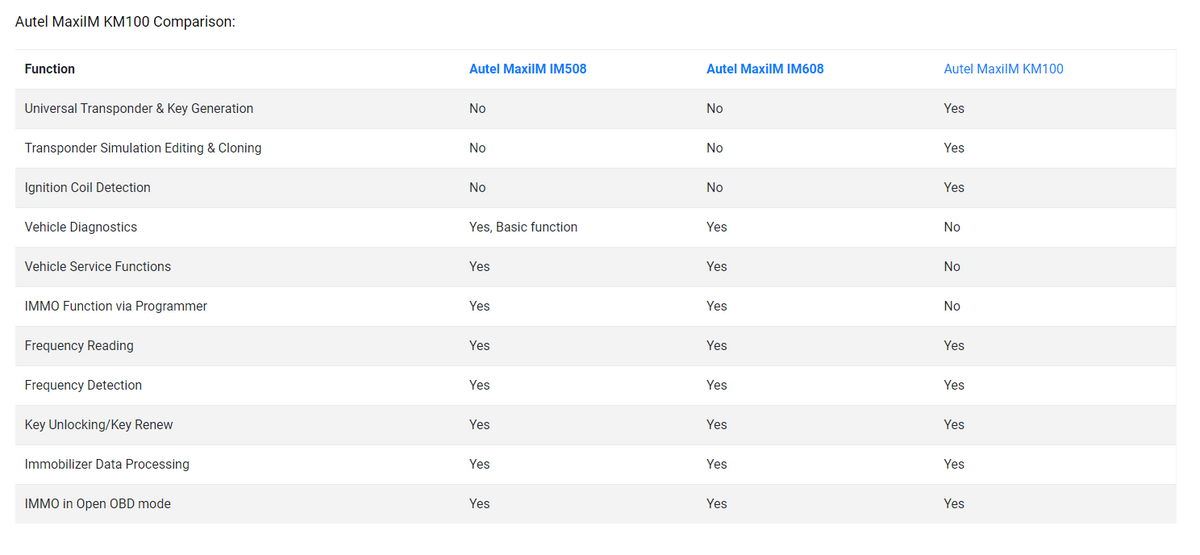

Autel MaxiIM KM100 Comparison:

Function Autel MaxiIM IM508 Autel MaxiIM IM608 Autel MaxiIM KM100
Universal Transponder & Key Generation No No Yes
Transponder Simulation Editing & Cloning No No Yes
Ignition Coil Detection No No Yes
Vehicle Diagnostics Yes, Basic function Yes No
Vehicle Service Functions Yes Yes No
IMMO Function via Programmer Yes Yes No
Frequency Reading Yes Yes Yes
Frequency Detection Yes Yes Yes
Key Unlocking/Key Renew Yes Yes Yes
Immobilizer Data Processing Yes Yes Yes
IMMO in Open OBD mode Yes Yes Yes

Free lifetime updates

One year warranty

Technical support

Free shipping

30 day money back guarantee
