SKU: TOP-DS-PMAX

Topdon Phoenix Max Professional Diagnostic Scan Tool 12/24 V

$6,900.00

Style

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

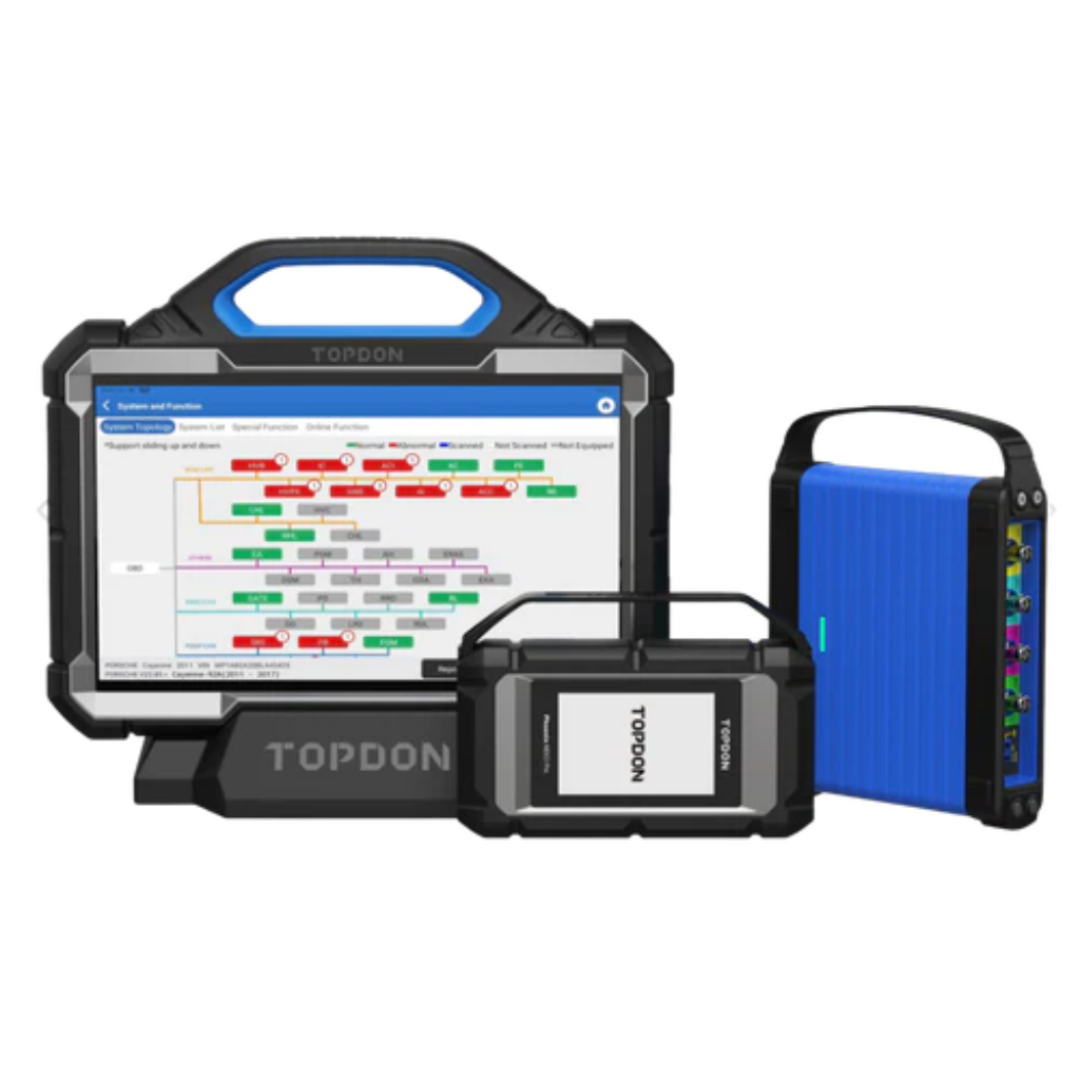

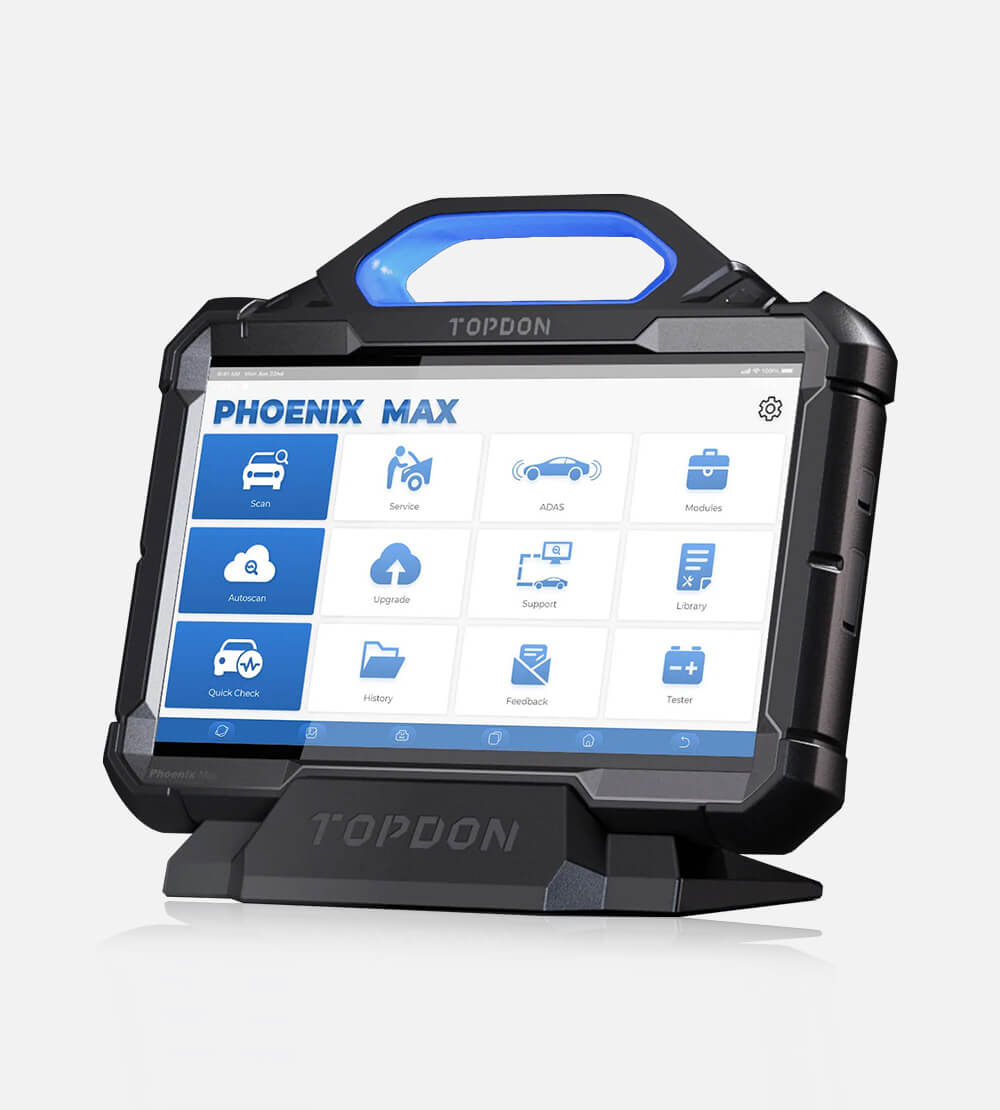

The Topdon Phoenix Max is a professional-grade diagnostic tablet covering passenger cars, light commercial vehicles, heavy trucks, and earthmoving machinery from a single platform. With OE-level coverage across 200+ brands, online programming, bi-directional control, and an optional 4-channel oscilloscope, it's one of the most capable tools available in Australia at this price point.

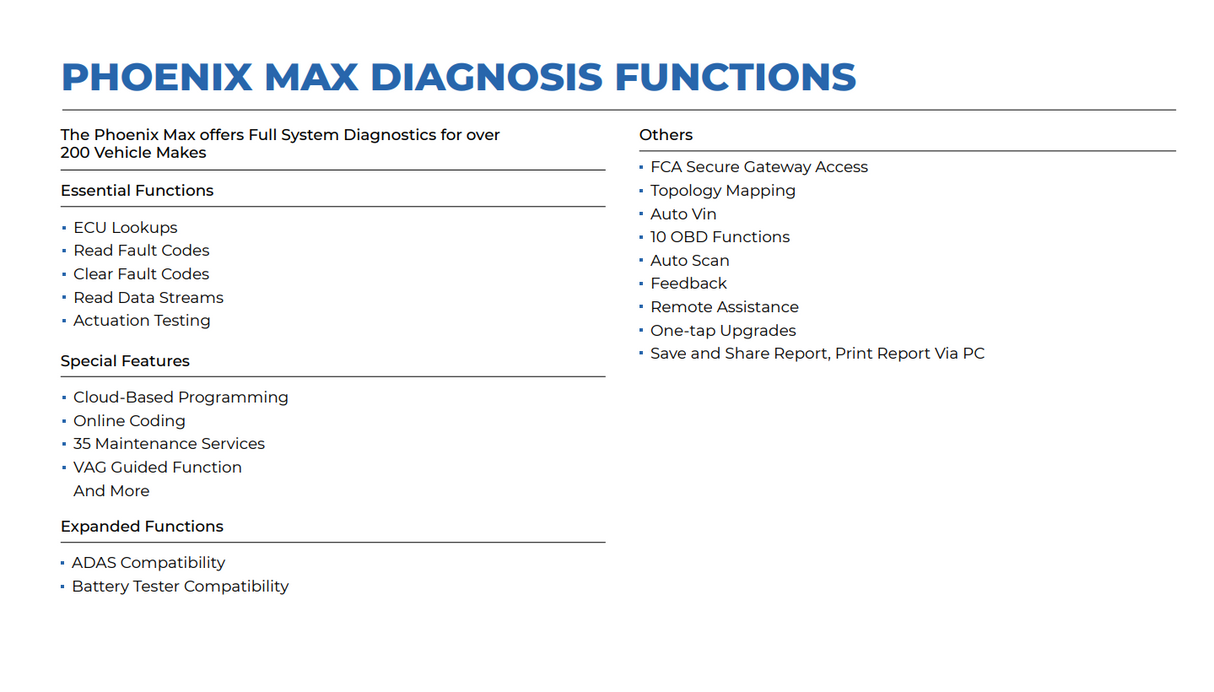

Key Features

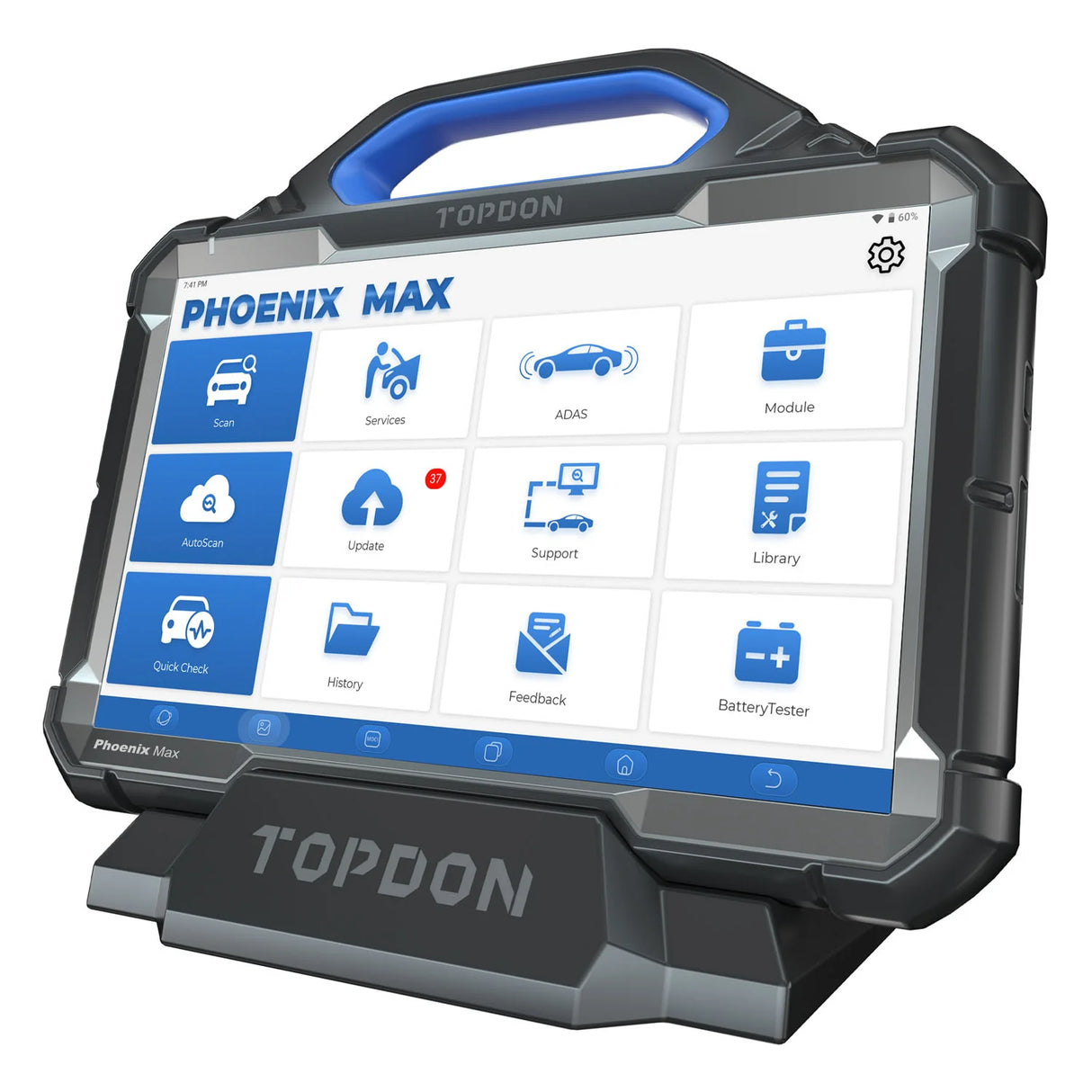

13.3" sunlight-readable touchscreen (1,920 x 1,200) — usable in direct sunlight and workshop lighting
Full-system diagnostics across 200+ vehicle brands
Active testing / bi-directional control across all supported systems

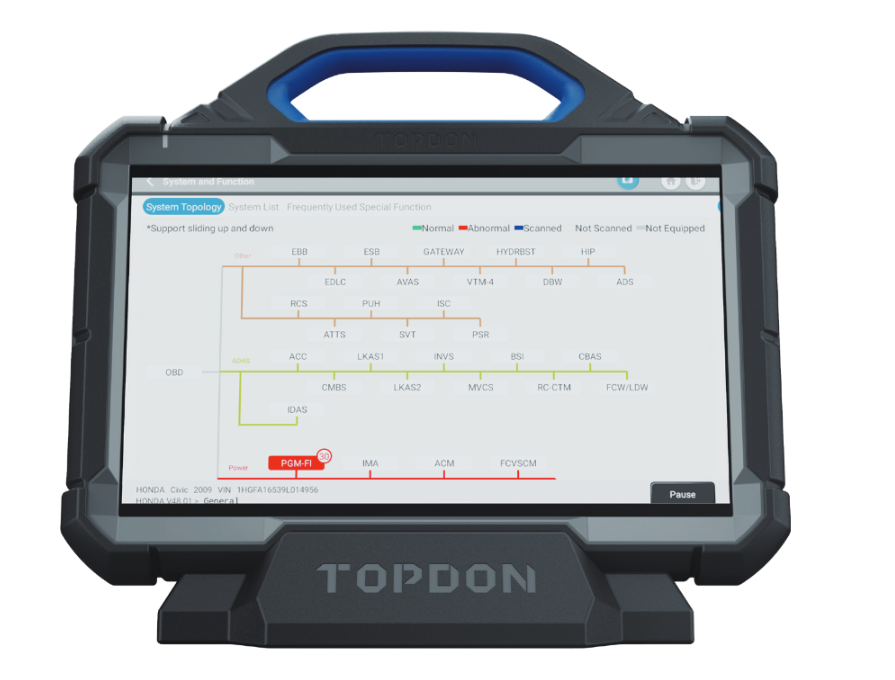

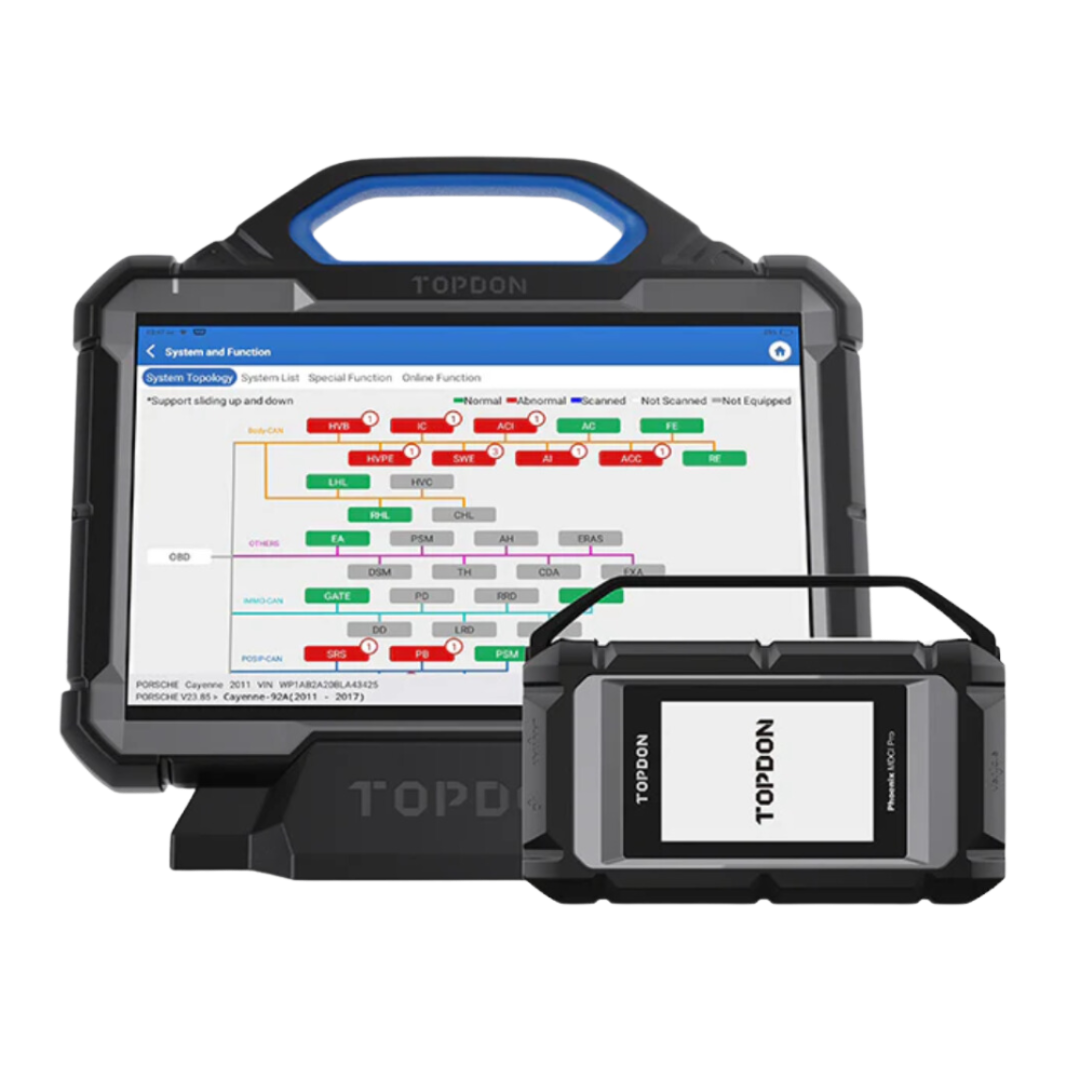

Topology mapping — view all vehicle modules and their relationships in one diagram

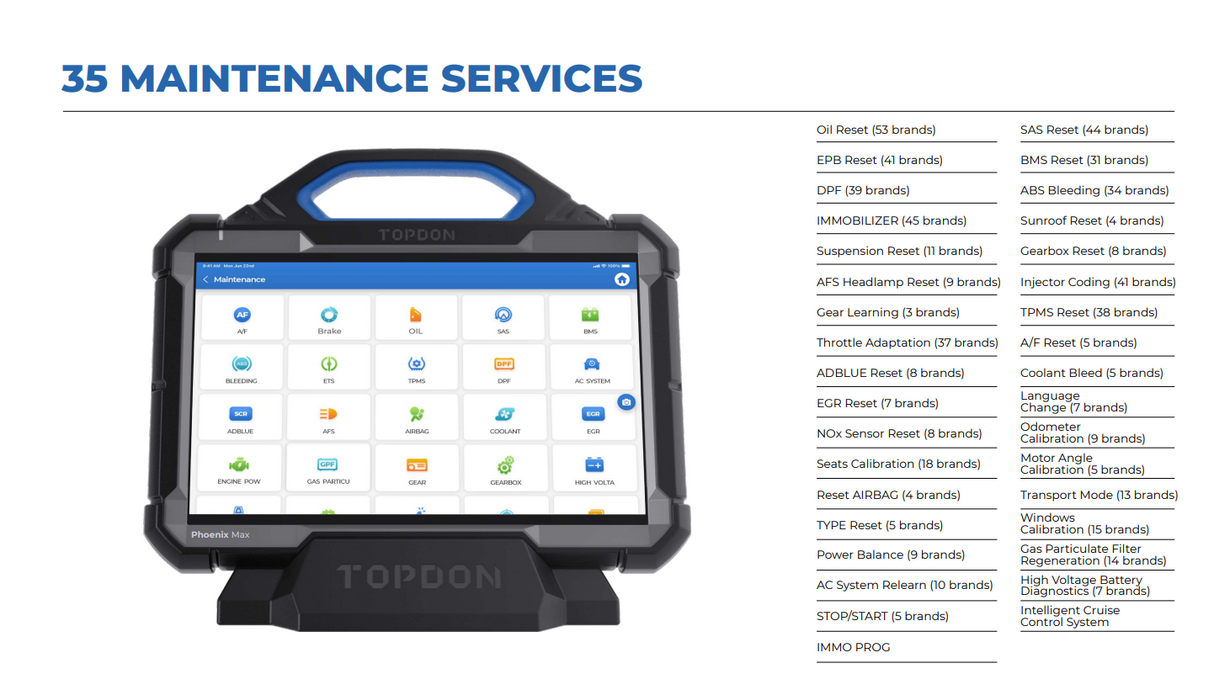

41 service and maintenance functions including DPF regen, ABS bleed, battery registration, SAS reset, injector coding, and more
AutoVIN for automatic vehicle identification
Data stream recording and playback for reviewing diagnostic sessions
FCA gateway access for late-model Stellantis vehicles — accessible directly through the tool. Bypass cable also available separately on our website
Guided functions and basic settings for VAG group vehicles
Docking station included — tablet stays charged when not in use

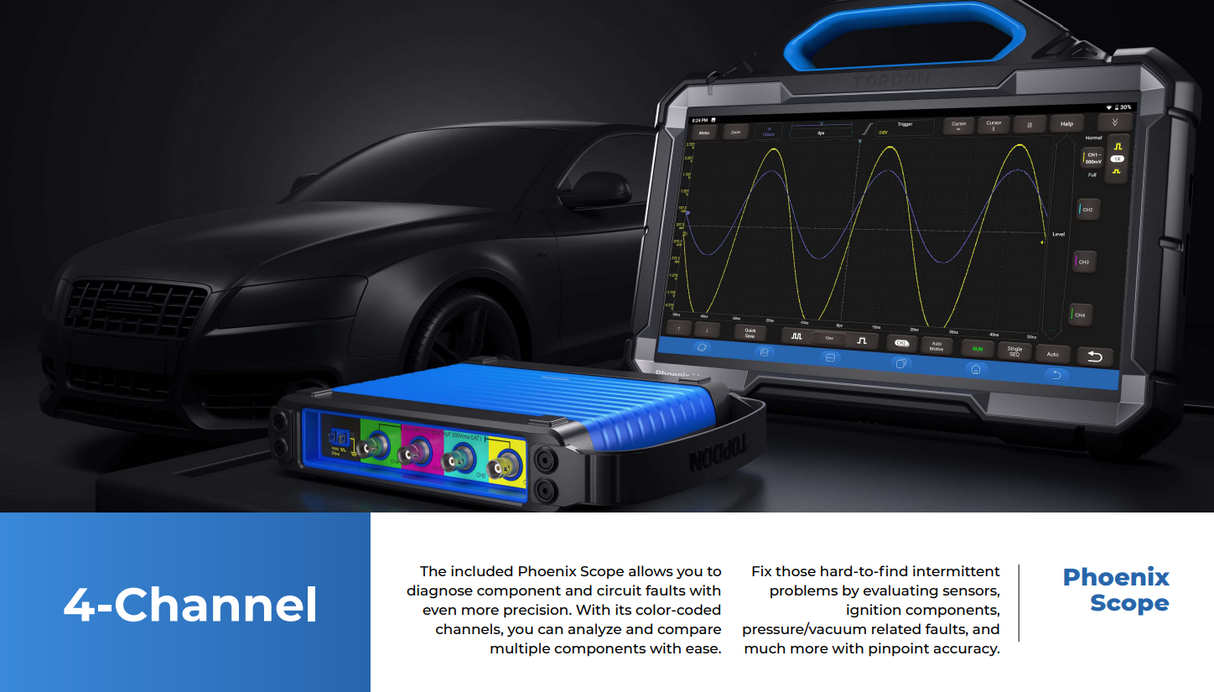

Optional 4-channel oscilloscope for advanced electrical, sensor, and injector diagnostics
ADAS compatible (optional ADAS software and calibration frame sold separately)

Online Programming and Coding

Cloud-based online programming and coding supported for:

Volkswagen Group (VW, Audi, SEAT, Skoda)
Audi
BMW (E and F series)
Mercedes-Benz (including SCN coding)
Land Rover / Jaguar
Porsche
Nissan
Subaru
Renault
Hyundai / Kia
Infiniti

Functions include module programming, personalisation, guided functions, and DTC repair guidance. Brand and function availability varies — check the Topdon compatibility page for your specific vehicle.

Heavy-Duty and Earthmoving Coverage

Works on 12V and 24V systems. Covers passenger cars, light commercial, heavy trucks, agricultural machinery, and earthmoving equipment.

Truck and commercial brands include: Volvo, Scania, Isuzu, Hino, Fuso, Iveco, Kenworth, Freightliner, MAN, DAF, Renault Trucks, Mercedes-Benz Trucks, and many more.

Earthmoving, plant, and agricultural brands include: Caterpillar, Komatsu, Hitachi, Doosan, John Deere, Volvo CE, Liebherr, Case, New Holland, JCB, and many more.

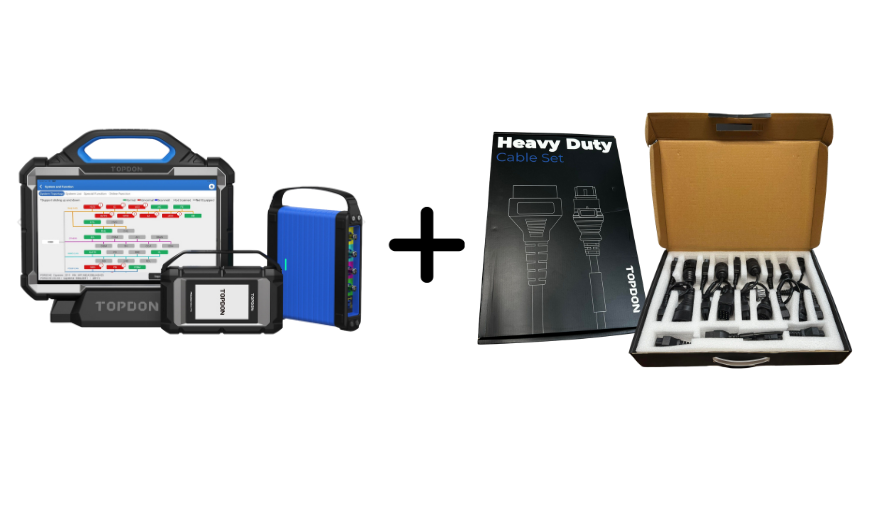

Heavy-duty adapter kit available as a bundle option.

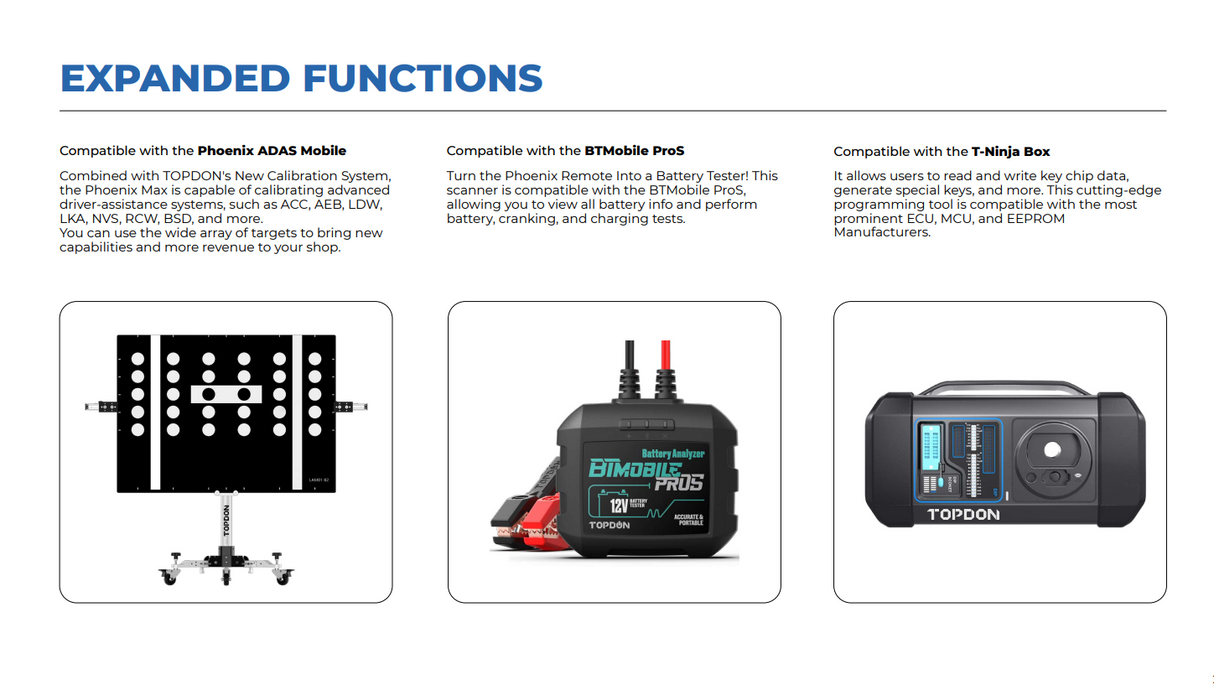

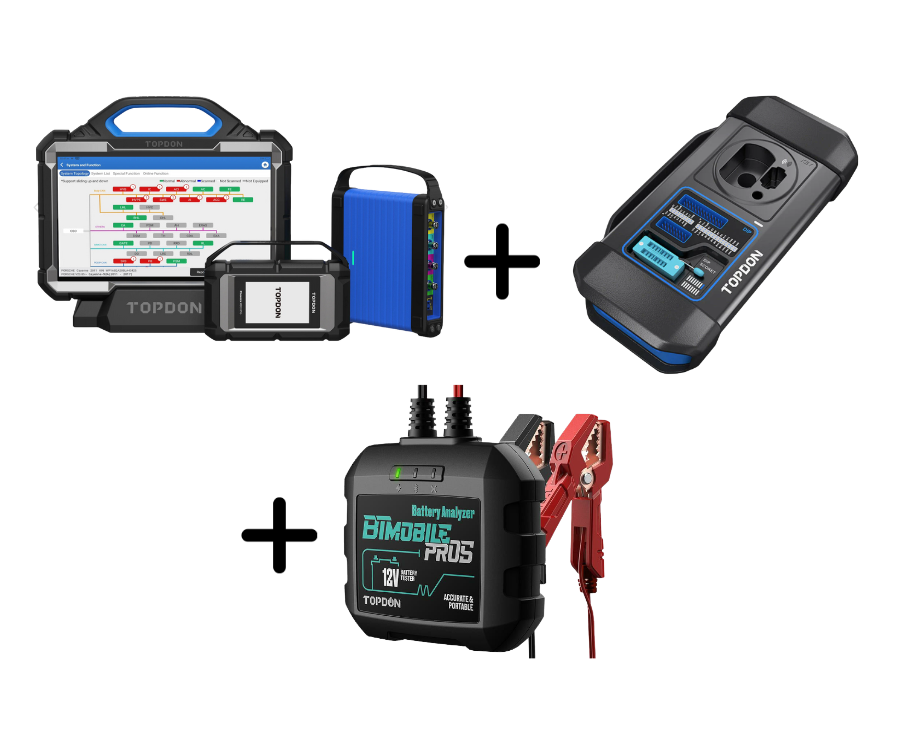

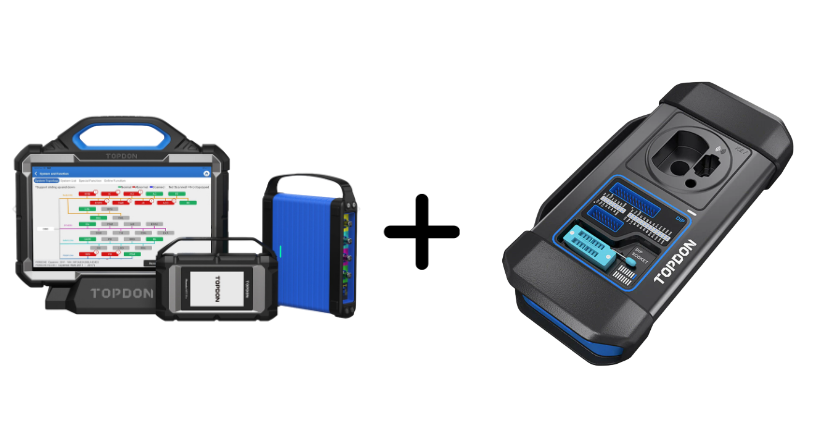

T-Ninja Box Option — Immobiliser, Key programming and Module Cloning Work

Adding the T-Ninja Box unlocks advanced immobiliser and ECU functions:

Module cloning — clone and replace ECU/TCU modules without dealer tools
Immobiliser functions — read, write, and adapt immobiliser data on supported vehicles
EEPROM and MCU reading/writing — for immobiliser and ECU repair work
Bench programming — program modules off the vehicle for faster turnaround
Key and remote functions are available on certain vehicles as part of the immobiliser suite

Best suited to workshops performing module replacement, ECU repair, or immobiliser work.

Link to Topdon T-Ninja Box

Special Vehicle Settings

Unlock OEM-level personalisation on supported brands including Audi, VW, BMW, Porsche, and Toyota — including Video-in-Motion, seatbelt warning disable, and other hidden settings.

Specifications

OS	Android 9.0
RAM / Storage	8 GB / 256 GB
Screen	13.3" touchscreen, 1,920 x 1,200
Cameras	Rear 13 MP / Front 8 MP
Wi-Fi	2.4 GHz and 5 GHz dual band
Battery	9,360 mAh, ~8 hour runtime
Dimensions	364 x 285 x 82 mm / 3.18 kg

Phoenix MDCI Pro VCI Specs

CPU	Cortex-A7 + Cortex-M7 dual processor
OS	Linux
RAM / ROM	256 MB / 8 GB
Screen	3.97" TFT, 320 x 480
Wi-Fi	2.4 GHz / 5 GHz dual band
Protocols	J2534, CAN-FD, DoIP, D-PDU, RP1210
Operating Voltage	DC 9-36V
Working Temp	0°C to 50°C
Dimensions	196 x 135 x 42.8 mm

Software Updates

Light vehicle software: 2 years free updates included
Commercial / heavy-duty software: 1 year free updates included
Renewal after free period: $1,829 for 2 years

Note: Our Topdon Phoenix Max includes the 24V HD heavy-duty software as standard.

Check vehicle and function compatibility on the Topdon website

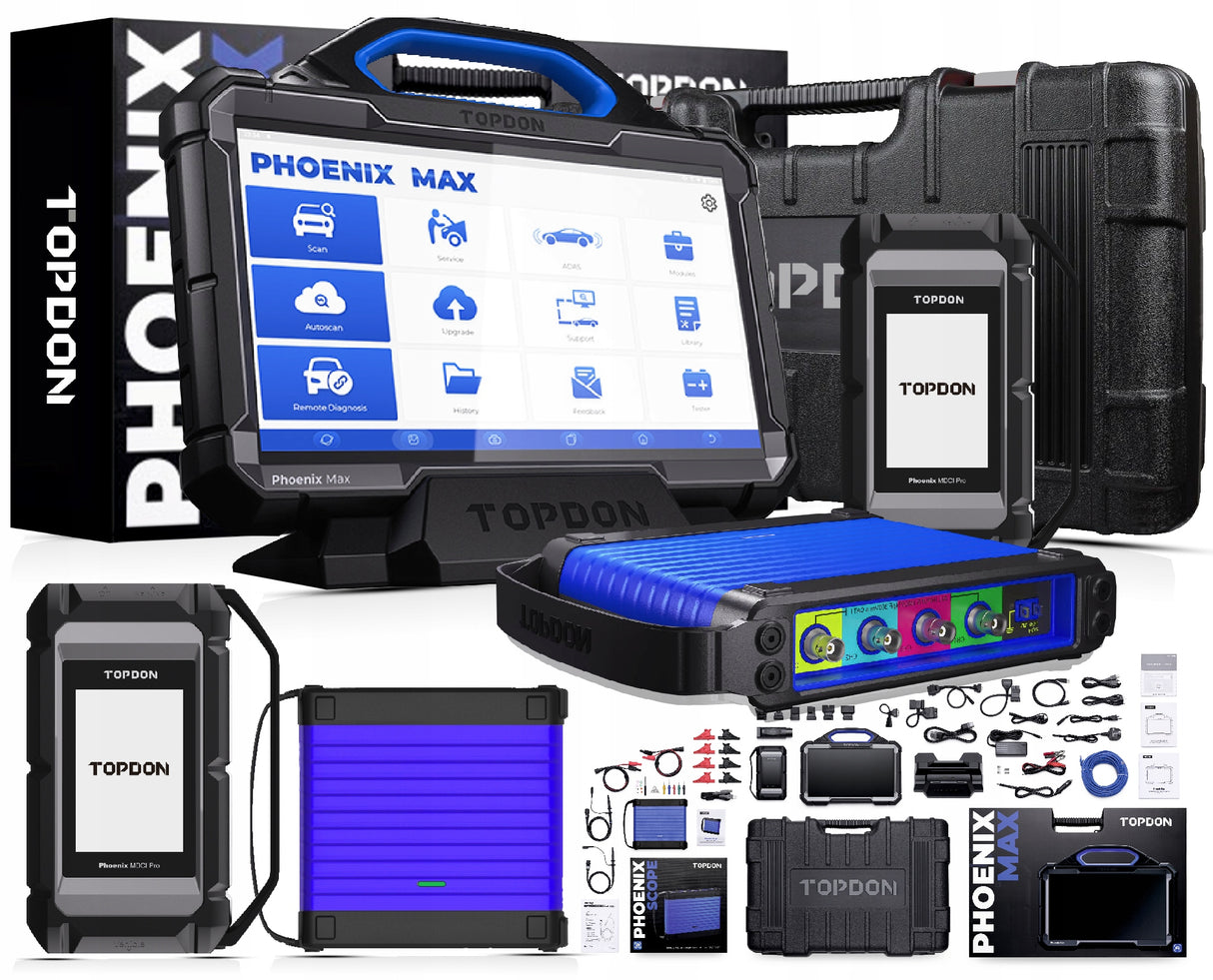

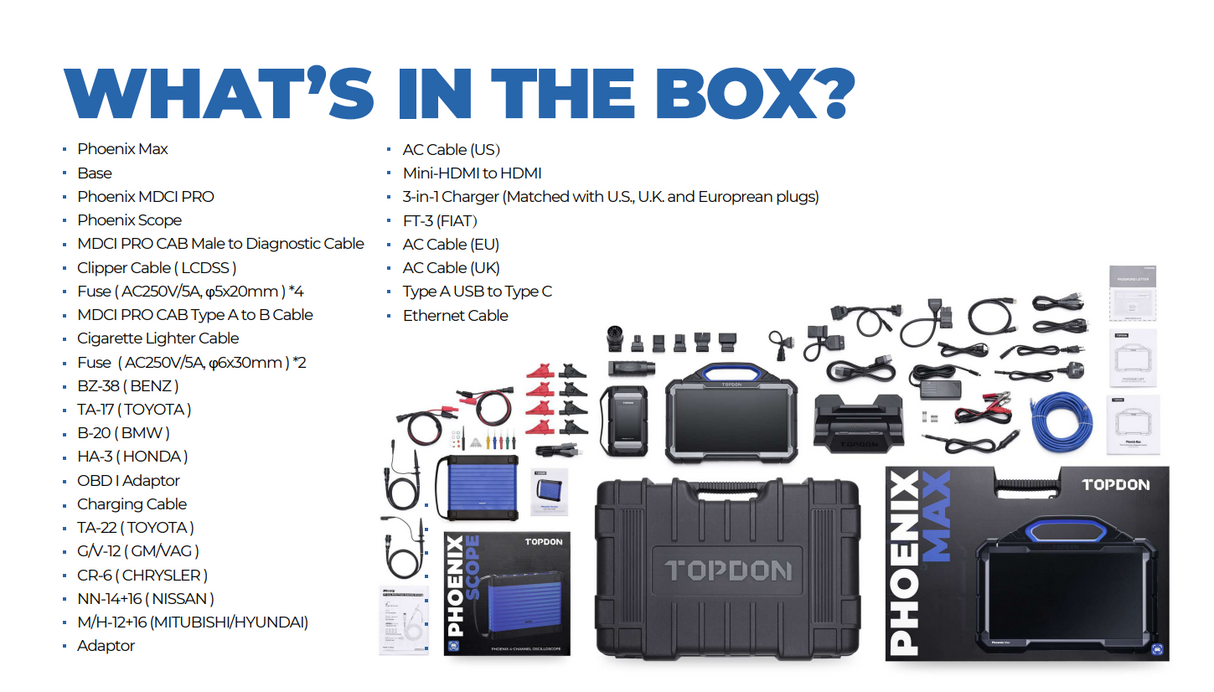

Kit Includes

Diagnostic Hardware

Phoenix Max tablet
Docking station / base
Phoenix MDCI Pro VCI dongle (MegaCAN, CAN-FD, J2534)
MDCI Pro diagnostic cable (male to OBD)
MDCI Pro USB Type-A to Type-B cable
Ethernet cable
BMW programming cable

OBD Adapters

BZ-38 (Benz)
TA-17 (Toyota)
TA-22 (Toyota)
B-20 (BMW)
HA-3 (Honda)
G/V-12 (GM/VAG)
CR-6 (Chrysler)
NN-14+16 (Nissan)
M/H-12+16 (Mitsubishi/Hyundai)
FT-3 (Fiat)
OBD I adapter
Universal adapter

Power and Cables

Clipper cable (LCDSS)
Cigarette lighter cable
3-in-1 charger cable
Type-A USB to Type-C
Mini-HDMI to HDMI
AC cable (AU)
AC cable (US)
AC cable (EU)
AC cable (UK)

Consumables

Fuse AC 250V/5A (5x20mm) x4
Fuse AC 250V/5A (6x30mm) x2
