Launch X431 ProS V5.0 Diagnostic Scan Tool
Description
Description

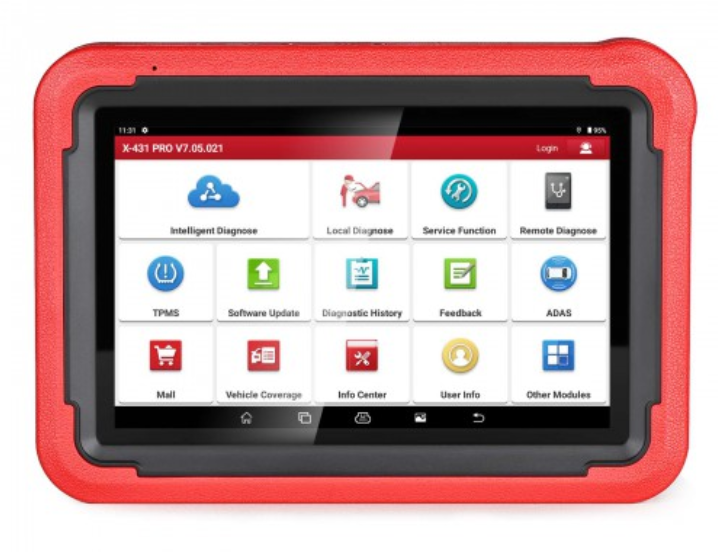

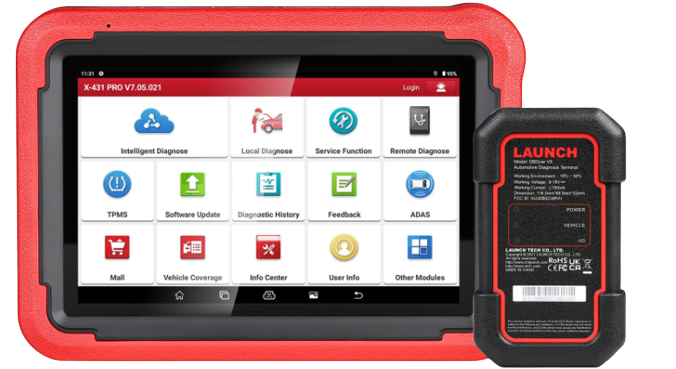

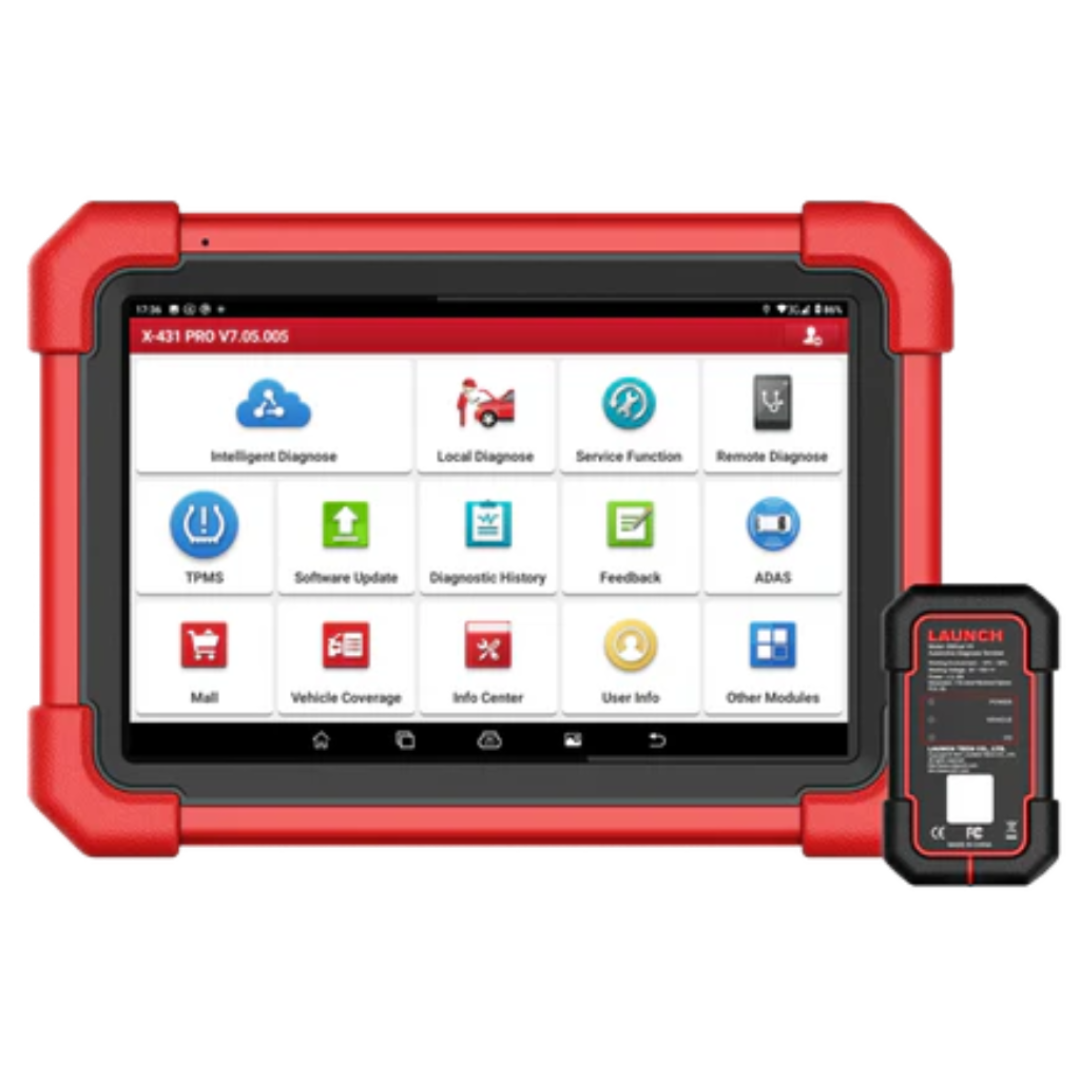

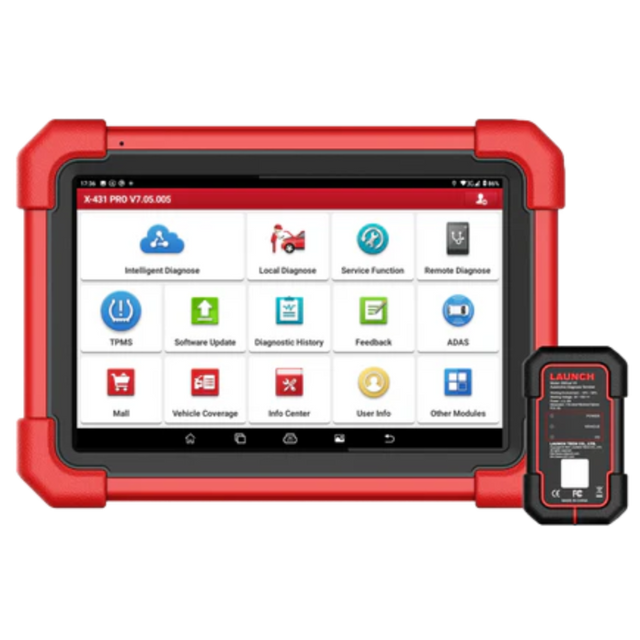

The Launch X431 ProS V5.0 is an 8-inch professional diagnostic tablet covering 98% of light vehicles across 110+ brands. Built on Android 10 with a 2.0GHz quad-core processor, 4GB RAM, and 64GB storage, it supports bi-directional control, 37+ service functions, and CAN-FD without an adapter. It replaces the ProS V1.0 with meaningful hardware and software improvements across the board.
Key Features
- Full system vehicle coverage across 110+ brands — US, Asian, Australian, and European markets
- 2 years free software updates included
- New DBSCar VII VCI supports CAN, CAN-FD, and DoIP without needing an additional adapter
- Wireless Bluetooth VCI for flexible connections, wired USB for stable advanced work like coding
- Full bi-directional / active test control
- 37+ service functions including oil reset, throttle matching, injector programming, DPF regeneration, steering angle reset, brake pad reset, and more
- VIN code intelligent identification for fast vehicle entry
- Remote diagnosis capability
- Built-in repair information and training videos
- Diagnostic history for reviewing previous sessions
- Optional ADAS calibration available
Main Functions
- Full OBD2 diagnostics — read/clear DTCs, live data, bi-directional control, coding, matching, and active testing
- ECU coding and module matching
- VAG guided functions (optional extra)
- IMMO programming support with the optional Launch X-PROG 3
- TPMS activation, programming, learning, and detection with optional Launch TSGUN
- Remote diagnosis
Expansion Modules (all optional extras):
- VSP600 endoscope inspection camera
- BST-360 Bluetooth battery tester
- Oscilloscope module O2-2
- Launch Wi-Fi printer
- X-431 ADAS Mobile / PRO for ADAS calibration

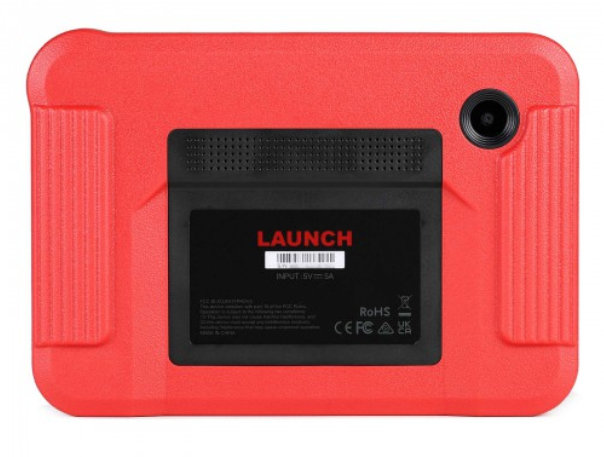

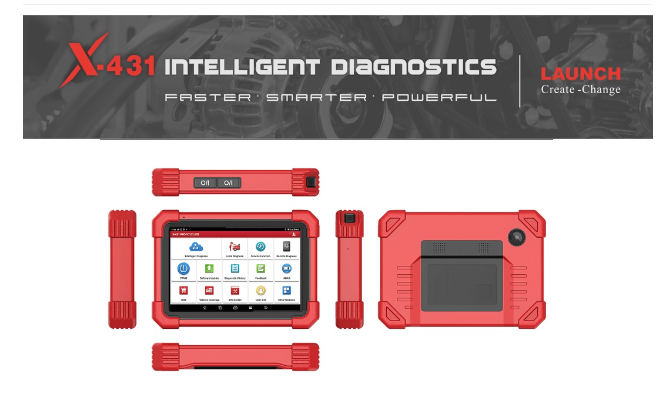

Tablet Specifications
| Processor | 2.0GHz quad-core |
| OS | Android 10.0 |
| RAM / Storage | 4 GB / 64 GB |
| Screen | 8", 1,280 x 800 |
| Battery | 47,880 mWh (7.6V, 6,300 mAh) |
| Rear Camera | 8 MP |
| Wi-Fi | 2.4 GHz / 5 GHz dual band |
| USB | 1x Type-A, 1x Type-C |
| Working Temp | 0°C to 50°C |
| Dimensions | 228 x 160 x 37.4 mm |

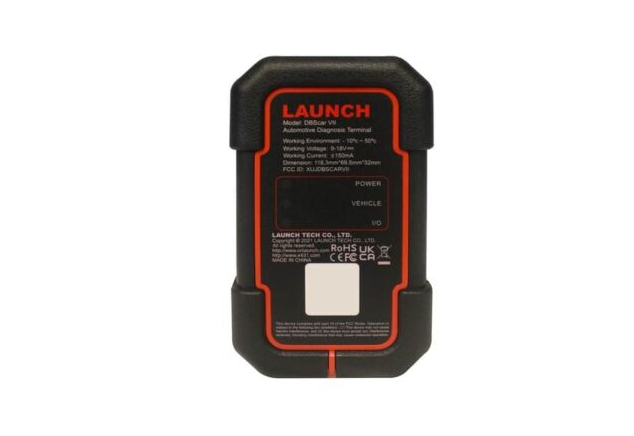

DBSCar VII VCI Specifications
| Working Voltage | DC 9 to 18V |
| Communication | Bluetooth / USB |
| Dimensions | 118.3 x 69.5 x 32 mm |

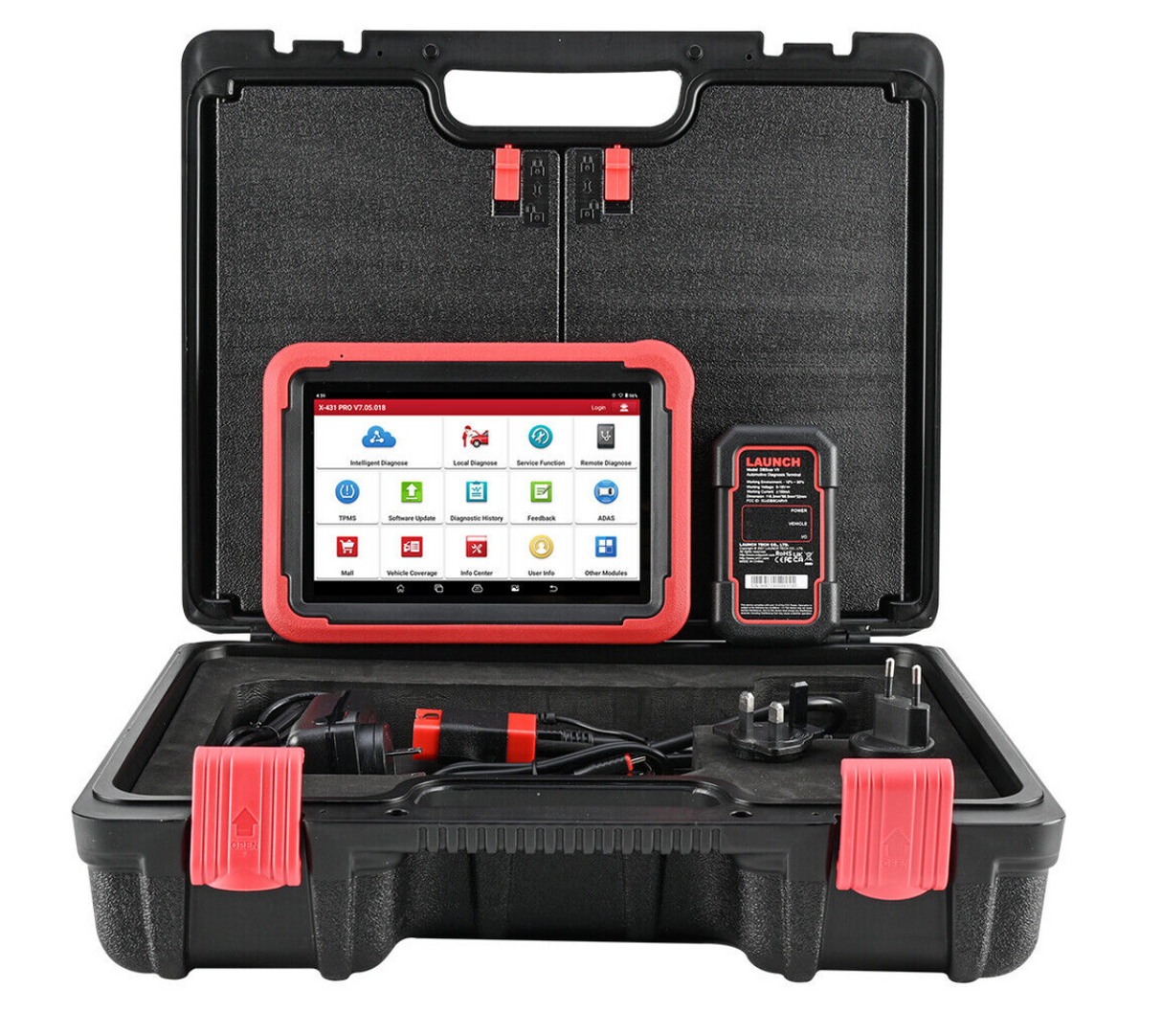

Kit Includes
- Launch X431 ProS V5.0 tablet
- DBSCar VII VCI connector
- USB power cable and wall adapter
- Protective carry case
- User manual and quick start guide
Note: The Launch X431 ProS V5.0 does not include OBD1 adapter cables. These can be purchased separately or as a kit here.
