Description

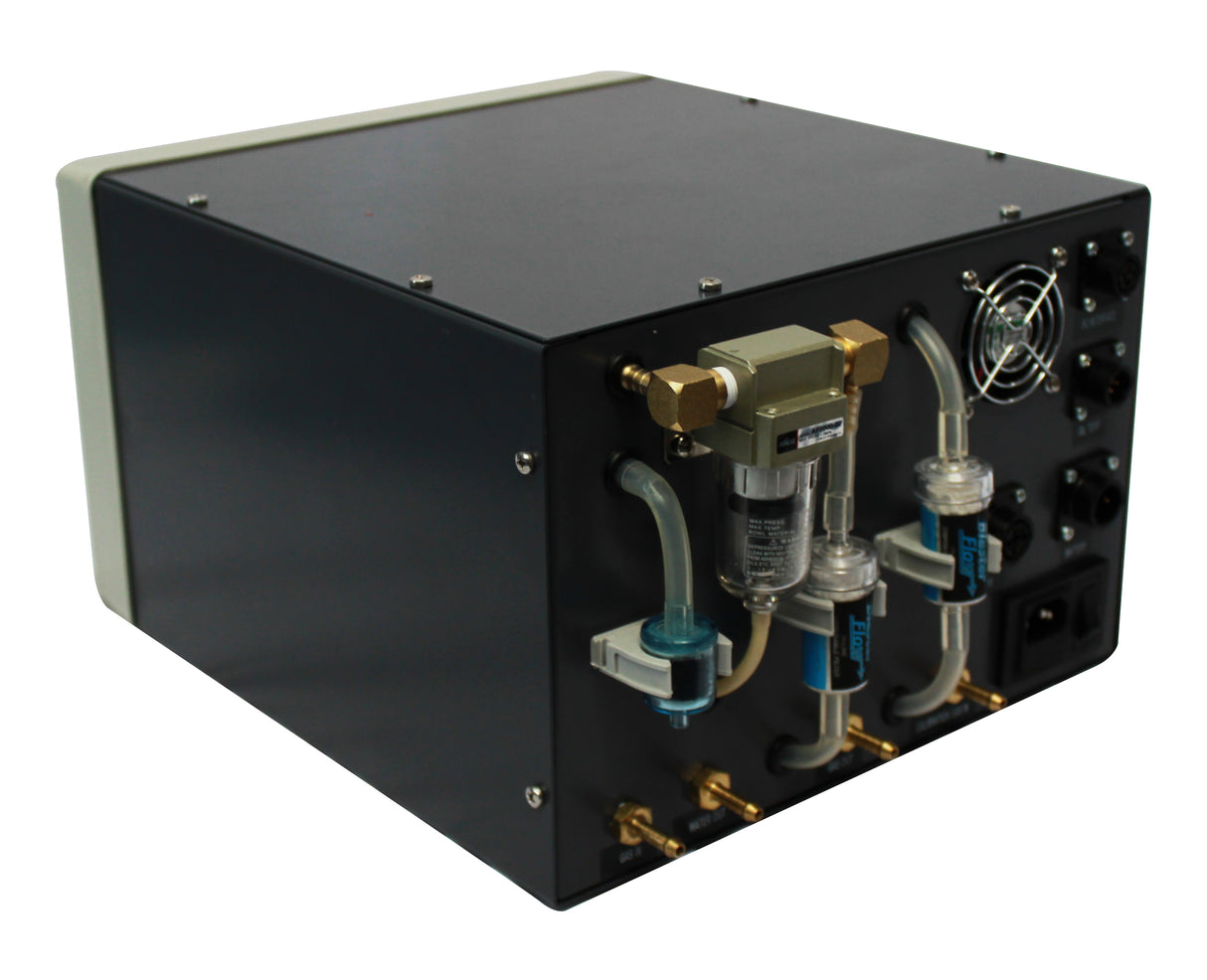

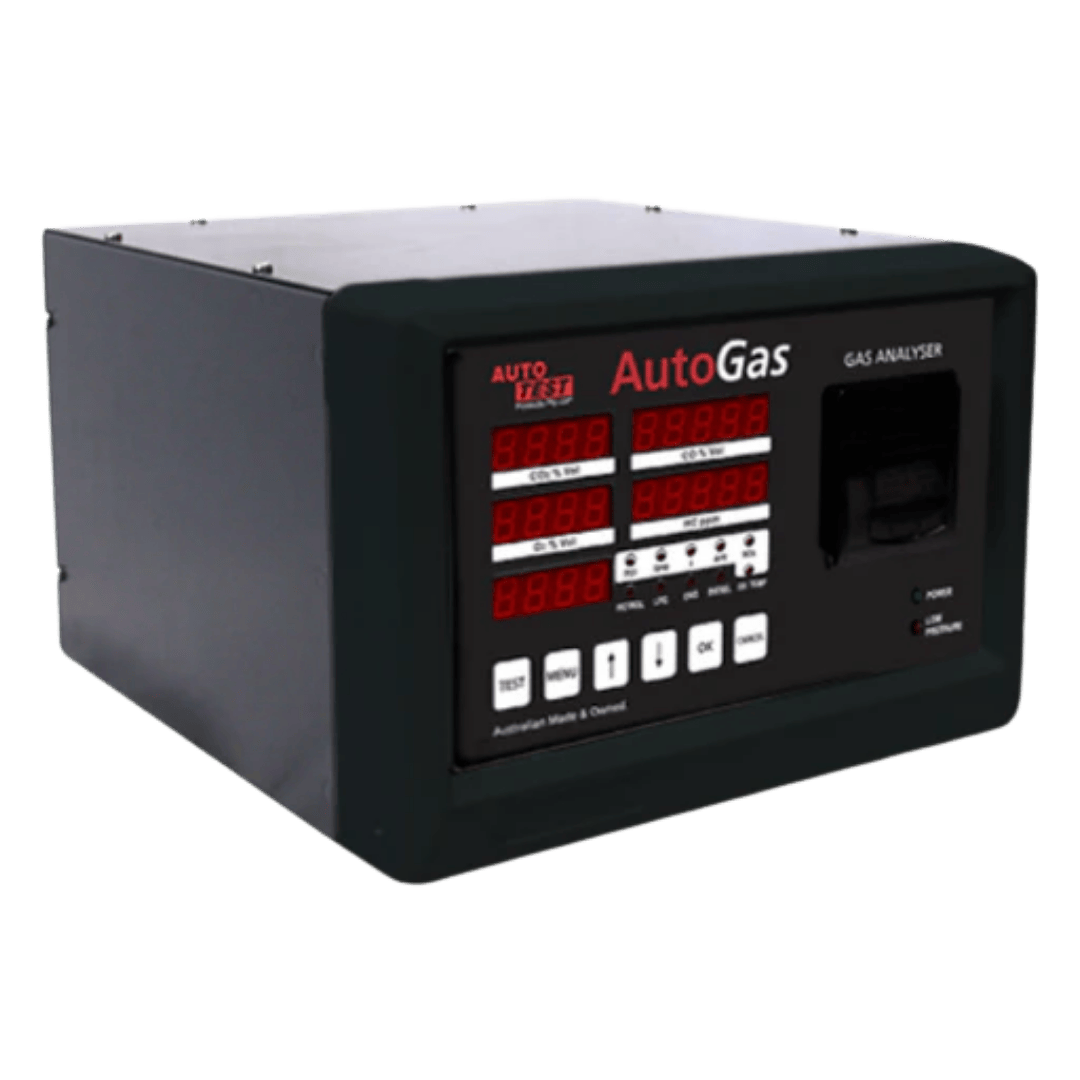

The Five Portable Gas Analyser measure the contents of the exhaust gas for compliance or tunning purposes. AutoGas Five Gas Analyser can be used as a stand-alone unit or integrated into a Vehicle Test Lane.

Capability to measure CO, HC, CO2, O2and NOXcontents of petrol, CNG, and LPG vehicle exhausts.
RPM measurement facility using vehicle battery,inductive pick-up, or optional accelerometer
Compatible with Windows-based operation
Complies with the OIML R99 (ISO 3930) Class 0
Portable, light-weight design.

Standard Accessories:

Sampling probe assembly for gas intake
Battery cable assembly
Oil temperature probe.
Inductive Pick-up

Optional Accessories:

Accelerometer sensor pick-up
NOX sensor (Optional for Four Gas Only)
Gas test software for Windows.

Calibration:

12-month intervals.

Technology:

Measurement of CO, CO2, O2, and HC and NOX (Option available in Five Gas)
Operates on 220V AC inputs or 12V- 30V DC.
Complies with OIML R99 (ISO 3930) Class 0.

The Autogas 5 is manufactured to order.

Please allow 7 days for manufacture.

Standard Features:

Suitable for use on Petrol, LPG, CNG and diesel engines
Independent 7 Segment LED display windows for CO, CO2, HC, O2 and NOX (Option available in Five Gas) .
Easy to follow test procedure.
Measures RPM through vehicle battery, spark lead or (optional accelerometer)
Petrol/CNG/LPG selection for HC gas measurement
Automatic condensation discharge • RS232, Bluetooth, Wi-Fi interface
Integrated thermal printer for printing.
Engine oil temperature measurement
Automatic zero calibration
Display of PEF/RPM/Lambda/AFR values
Air leak check facility
Stores up to 100 tests. Features for Windows based operation:
Photograph of vehicle number plate with unique job ID in colour printout.

Technical Specifications:

Measurement Parameters	Range	Resolution	Accuracy
CO (Carbon Monoxide)	0 – 15.5%	0.01%	3%
CO2 (Carbon Dioxide)	0 – 21.0%	0.10%	4%
HC (Hydrocarbon)	0 – 20000 PPM	1 PPM	5%
O2 (Oxygen)	0 – 25%	0.01%	3%
NOx	0 – 5000 PPM	1 PPM
Lambda ( )	0.200 – 2.000	0.001
AFR	0 – 30%	0.01%
Oil Temperature	0 – 120˚C	1˚C
Engine RPM	600 – 3500 RPM	10 RPM	5%
Measuring Gas Intake	3 litres/minute
Leak Test	Electronic
Condensate discharge	Automatic
Response time (for sample probe of three metre length)	<15 sec
Warm-up time at 25˚C and above	<3 minutes
Warm up time at 0˚C	<10 minutes
Zeroing and RPM calibration	Automatic
Electrical Specification
AC Power supply	220V to 265V AC, single phase, 50/60 Hz
DC Power supply	11V to 30V DC battery
Power consumption	25 Watt
General Specification
Operating temperature	+5˚C to +45˚C
Storage temperature	-20˚C to +70˚C
Overall machine dimensions, unpacked (WxDxH)	310x400x210mm
Machine weight, unpacked	9kg
