OBDSTAR Marine Master Full Package Diagnostic Scan Tool for Marine (Jet Ski + Outboard + Inboard Stern Drives)

OBDSTAR MarineMaster Marine Diagnostic Scan Tool

(Upgraded Replacement for D800 Full Package A/B/C/D)

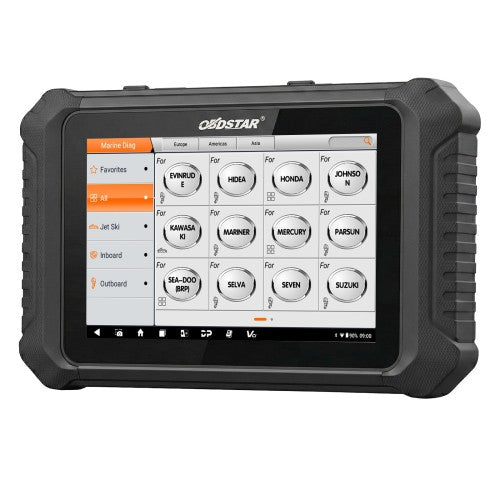

The OBDSTAR MarineMaster is the latest generation marine diagnostic tool, designed specifically for jet skis, outboards, inboards, and stern drives.

Replacing the older D800 system, MarineMaster delivers faster performance, broader coverage, and a much more advanced user experience all in one integrated device

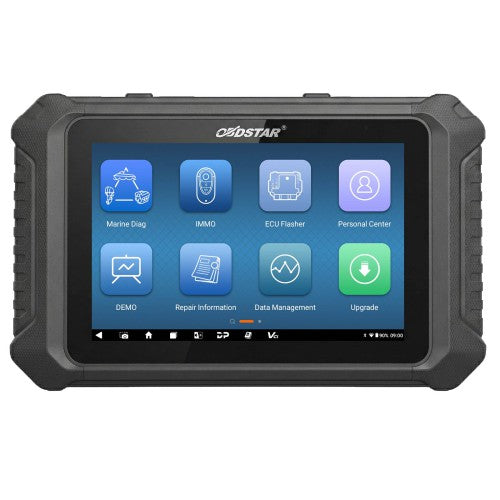

Powered by a Samsung Exynos processor and running Android 11, it features an 8-inch touchscreen for smooth, responsive operation in workshop environments.

Whats new?

• ✅ Direct replacement for OBDSTAR D800 (Full Package A/B/C/D)
• ✅ No more separate packages, everything integrated
• ✅ Faster hardware + modern Android 11 system
• ✅ Smarter diagnostics with auto-identification
• ✅ Improved interface + easier navigation
• ✅ Ongoing updates and expanding coverage

 Key Features

• Android 11 operating system with OTA updates
• Fast Samsung Exynos processor
• 8-inch high-resolution touchscreen
• Wi-Fi connectivity for updates and remote support
• Built-in help guides for easier diagnostics
• Screen recording + wireless screen mirroring

 Diagnostic Functions

• ECU Information
• Read & Clear Fault Codes
• Live Data Stream + Playback
• Freeze Frame Data
• Actuation / Active Tests
• Coding & Settings
• Working Hours Reading
• Helm Setup Functions

 Advanced Functions

• Auto Scan & intelligent system identification
• BCM Simulator & system calibration
• Maintenance resets & service functions
• Torque adjustment + configuration functions
• Multiple data display modes (text, graph, dashboard)
• Advanced system setup including:
  • Helm setup
  • Drive alignment
  • Trim configuration
  • Steering calibration
  • Vessel personality settings

 Smart App Integration

The OBDSTAR mobile app provides additional support tools:

• Diagnostic socket locations
• Flash code lookup
• Technical service bulletins
• Wiring diagrams
• Service data & parameters

 Supported Marine Brands

EVINRUDE, HONDA, JOHNSON, KAWASAKI, MARINER, MERCURY / MERCURY RACING, PARSUN, SEA-DOO (BRP), SELVA MARINE, SEVEN MARINE, SUZUKI, TOHATSU, YAMAHA

CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, FNM MARINE, FORD MARINE, FPT, HYUNDAI SEASALL, ILMOR, INDMAR, JOHN DEERE MARINE, KODIAK MARINE, KOHLER POWER SYSTEMS, LOMBARDINI MARINE, MAN MARINE, MARINE POWER, MTU, PANTHER AIRBOATS, PCM MARINE ENGINES, PERKINS, SCANIA MARINE, SISU, STEYR MOTORS, TOYOTA MARINE, VM MOTORI, VOLKSWAGEN MARINE, VOLVO PENTA, YANMAR

 Technical Specifications

• Operating System: Android 11
• CPU: Samsung Exynos Processor
• Display: 8.0-inch touchscreen
• Storage: 32GB
• Battery: Rechargeable lithium battery
• Wi-Fi: Supported
• Working Temperature: -10°C to 55°C
• Storage Temperature: -20°C to 70°C

- Simple and intuitive menu guidance allows you to quickly master the equipment operation;

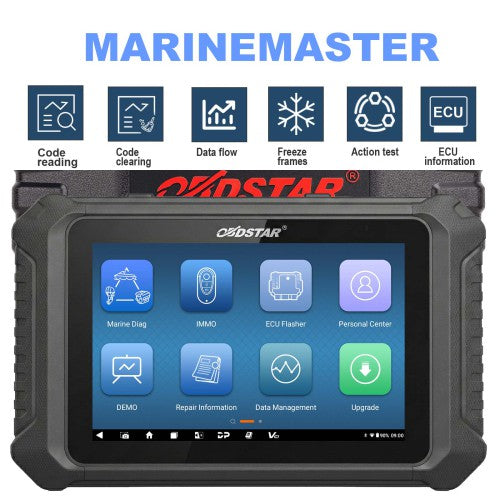

- Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc;
- Record and play back real-time flow, quickly and accurately locate sensor and component faults;
- Wi-Fi connection to the internet, one-click software upgrade;
- One-click remote function, OBDSTAR technical staff remote assistance.
- Free software upgrades for one year.

Marine Master User Manual Download

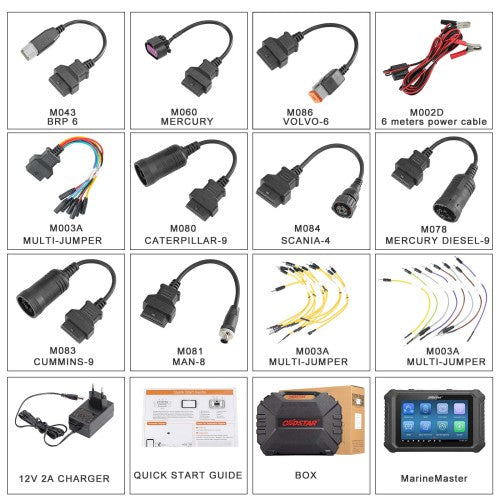

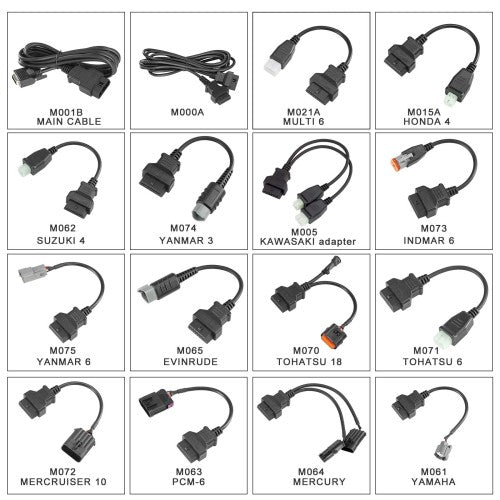

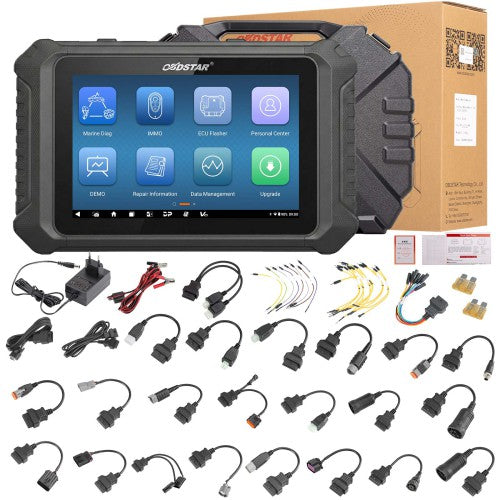

Package Includes:

• 1pc x OBDSTAR Marine Master Tablet
  1pc x M000A 4 meters extension cable
  1pc x M001B main cable
  1pc x M002D 6 meters power cable
  1pc x M003A multi functional jumper
  1pc x M015A adapter for Honda
  1pc x M021A adapter for PARSUN
  1pc x M043 adapter for BRP
  1pc x M060 adapter for MERCURY
  1pc x M061 adapter for YAMAHA
  1pc x M062 adapter for SUZUKI
  1pc x M063 adapter for PCM-6
  1pc x M064 adapter for MERCURY
  1pc x M065 adapter for EVINRUDE
  1pc x M068 adapter for KAWASAKI
  1pc x M070 adapter for TOHATSU
  1pc x M071 adapter for TOHATSU
  1pc x M072 adapter for MERCRUISER
  1pc x M073 adapter for INDMAR-6
  1pc x M074 adapter for YANMAR-3
  1pc x M075 adapter for YANMAR-6
  1pc x M078 adapter for MERCURY DIESEL-9
  1pc x M080 adapter for CATERPILLAR-9
  1pc x M081 adapter for MAN-8
  1pc x M083 adapter for CUMMINS-9
  1pc x M084 adapter for SCANIA-4
  1pc x M086 adapter for VOLVO-6
  1pc x 12V 2A Charger
