XTOOL D9HD Pro Professional Diagnostic Scan Tool 12/24V

Introducing the Xtool D9 HD Pro Scan Tool - Your Ultimate Diagnostic Solution for Cars and Trucks

The Xtool D9HD is a powerful diagnostic machine designed for mechanical workshops, electricians, and after-sales repair shops, this powerful diagnostic tool offers unparalleled capabilities for both 12V cars and 24V trucks. With extensive vehicle coverage for over 100 makes, you can tackle any diagnostic challenge with confidence.


1. Wide Vehicle Coverage: From 12V cars to 24V trucks, the Xtool D9 HD Pro supports a wide range of vehicle models, ensuring you have the necessary tools for any job.

2. Free Updates for 3 Years and Tech Support: Enjoy peace of mind with 3 years of free software updates that continuously enhance the user experience and expand vehicle coverage. Our dedicated support team is always ready to assist you.

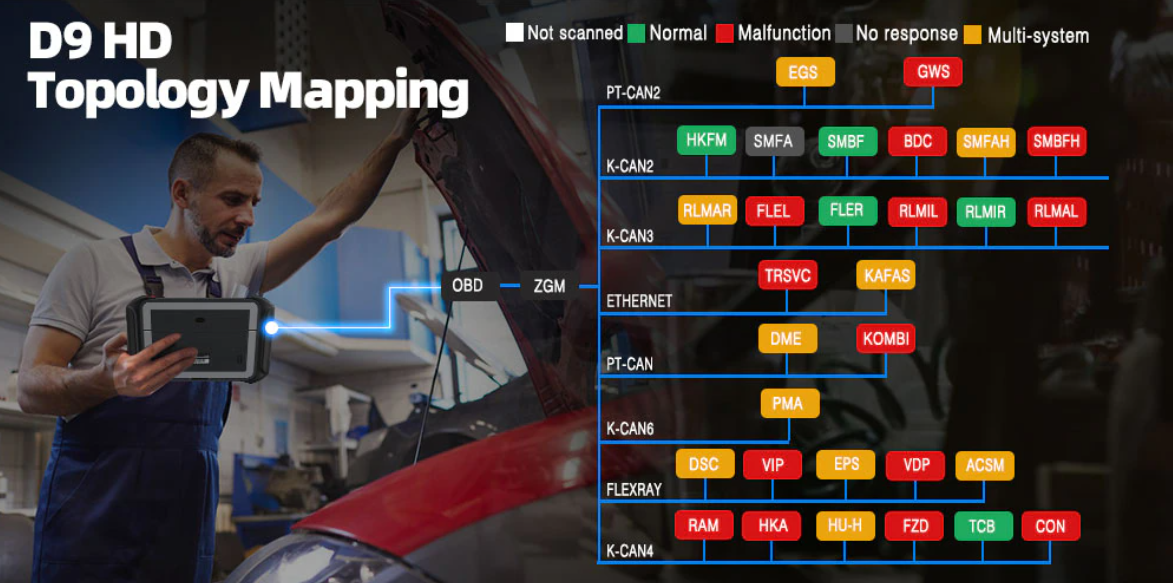

3. Module Topology Mapping: Boost your diagnostic efficiency with the innovative Module Topology Mapping feature. It provides a clear visual representation of the interrelationships among various vehicle modules, allowing you to identify faulty modules at a glance. Currently available for GM, Ford, Toyota, Honda, Nissan, Mazda, and BMW, with more to come.

4. ECU Coding and Programming: Unlock the hidden potential of your vehicle with advanced ECU coding and programming functions. For VW, Audi, Skoda, BMW, Ford, Lincoln, Mazda, or Toyota/Lexus, the Xtool D9 HD Pro can activate higher-level car functions and customize configurations to your preference.

5. VAG Guided Functions: Perform comprehensive services with ease using the VAG Guided Functions. With step-by-step on-screen instructions, you can quickly and efficiently complete tasks such as oil reset, EPB, SAS, Throttle, BMS, ABS Bleed, injector coding, key fob programming, and more.

6. Bi-Directional Control and OE-Level Diagnostics: Take full control of various car sub-systems and components with bi-directional control capabilities. The Xtool D9 HD Pro allows you to perform active tests and special functions, check live data, view stored codes, and diagnose all available modules, providing you with OE-level diagnostic capabilities.

7. Key Programming and IMMO Functions: With the Xtool D9 HD Pro, you can read and clear codes, view live data, perform active tests, and access special functions. Additionally, it supports key programming and IMMO functions, allowing you to disable lost vehicle keys and program new replacement key fobs.

8. 42+ Services and Calibration/Initialization/Matching/Relearn Functions: The Xtool D9 HD Pro offers a wide range of service options for daily auto maintenance, including oil reset, EPB reset, SAS adjustment, DPF regeneration, BMS reset, throttle relearn, ABS bleeding, injector coding, key programming, airbag reset, and more.

9. Premium Hardware and Complete Connector Kit: Powered by an intuitive Android 10 operating system, the Xtool D9 HD Pro features a 9.7-inch touch screen, 1.8GHz quad-core processor, 10,000mAh built-in rechargeable battery, 128GB memory, 8MP rear camera, microphone, and speaker. It comes with a complete connector kit that allows you to access and scan various car modules and vehicle models effortlessly.

Stay connected with BT connection or wired connection, and enjoy the convenience of one-click WiFi updates to keep your device up to date with the latest software improvements. The Xtool D9 HD Pro supports multiple languages, offers report sharing and printing capabilities, and covers over 10,000

vehicles up to the 2022-2023 models, including cars, SUVs, minivans, and light-duty trucks.

Experience the future of automotive diagnostics with the Xtool D9 HD Pro Scan Tool. Upgrade your workshop today and unlock the full potential of your diagnostic capabilities.

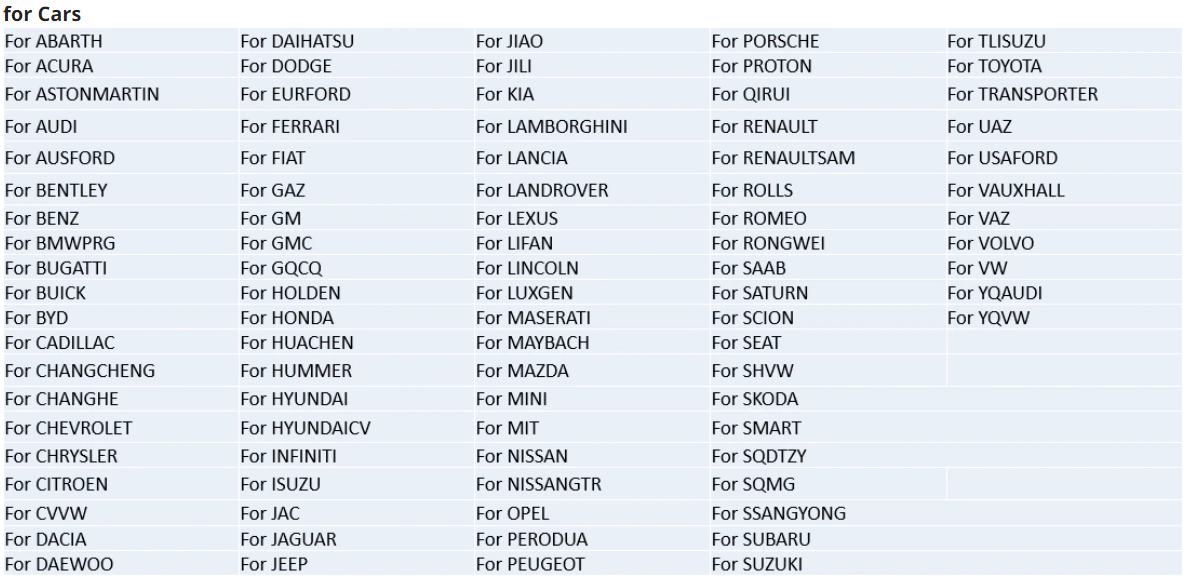

Vehicle Coverage

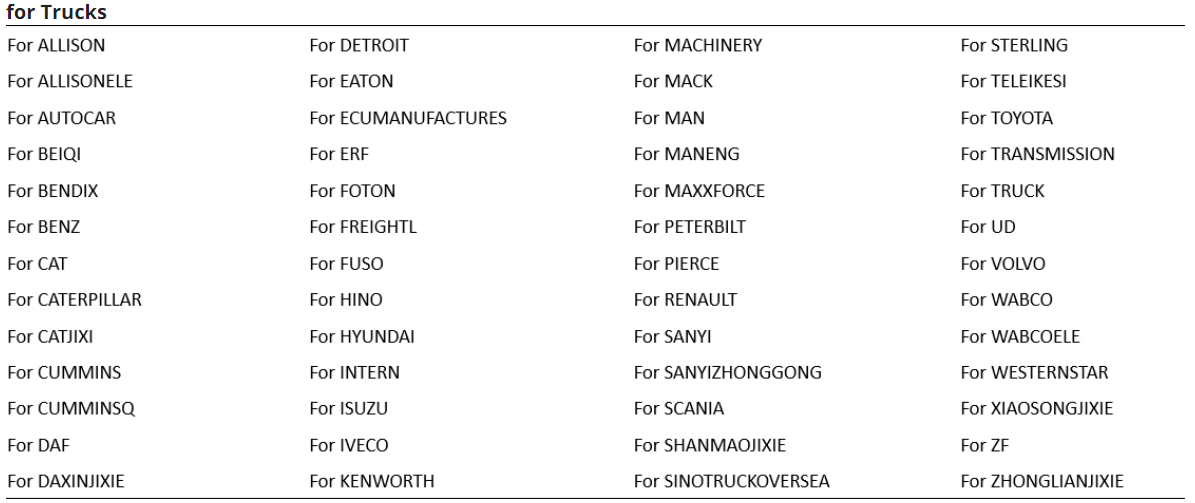

24V Truck Coverage


  • Operating System:Android 10
  • Processor:Rock chip 4 Core 1.80GHz
  • Memory:2G RAM, 128 ROM (202207 version)
  • Display:9.7 inch capacitive touch screen with 1024×768P resolution
  • Communication Method:BT 4.2 | WIFI 2.4/5G
  • Connectivity:DB15 TO VAG | USB 3.0
  • Camera:Rear camera, 8.0 Megapixel, AF with Flashlight.
  • Sensors:Gravity Accelerometer, Ambient Light Sensor
  • Auto Input/Output:Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
  • Battery:10000mAh, 3.7V lithium-polymer battery
  • Working Voltage:3.6 to 4.2V
  • Power Voltage:DC 12V
  • Working hours:12 hours
  • Operating Temperature:-10 to 40℃
  • Storage Temperature:-40 to 60℃
  • Humidity:<90%

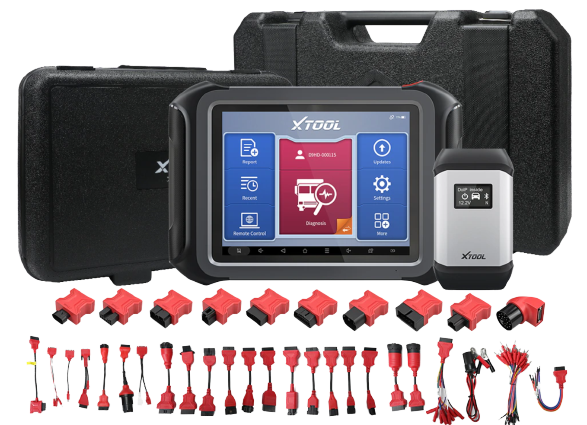

Packing List:

Blow molded carry case
Quick Start Guide
Packing List
Certificate of Quality
Main Units
USB3.0 Data Cable (Connect to PC)
Charger for Tablet
DB15 Main Cable
DB15 to USB3.0 Main Cable
Battery Clamp Cable
Cigar Lighter Cable
Jumper Adapter


Fast and Free Shipping

After Sales technical support

The product will come with a one-year warranty

Three years free updates

30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
