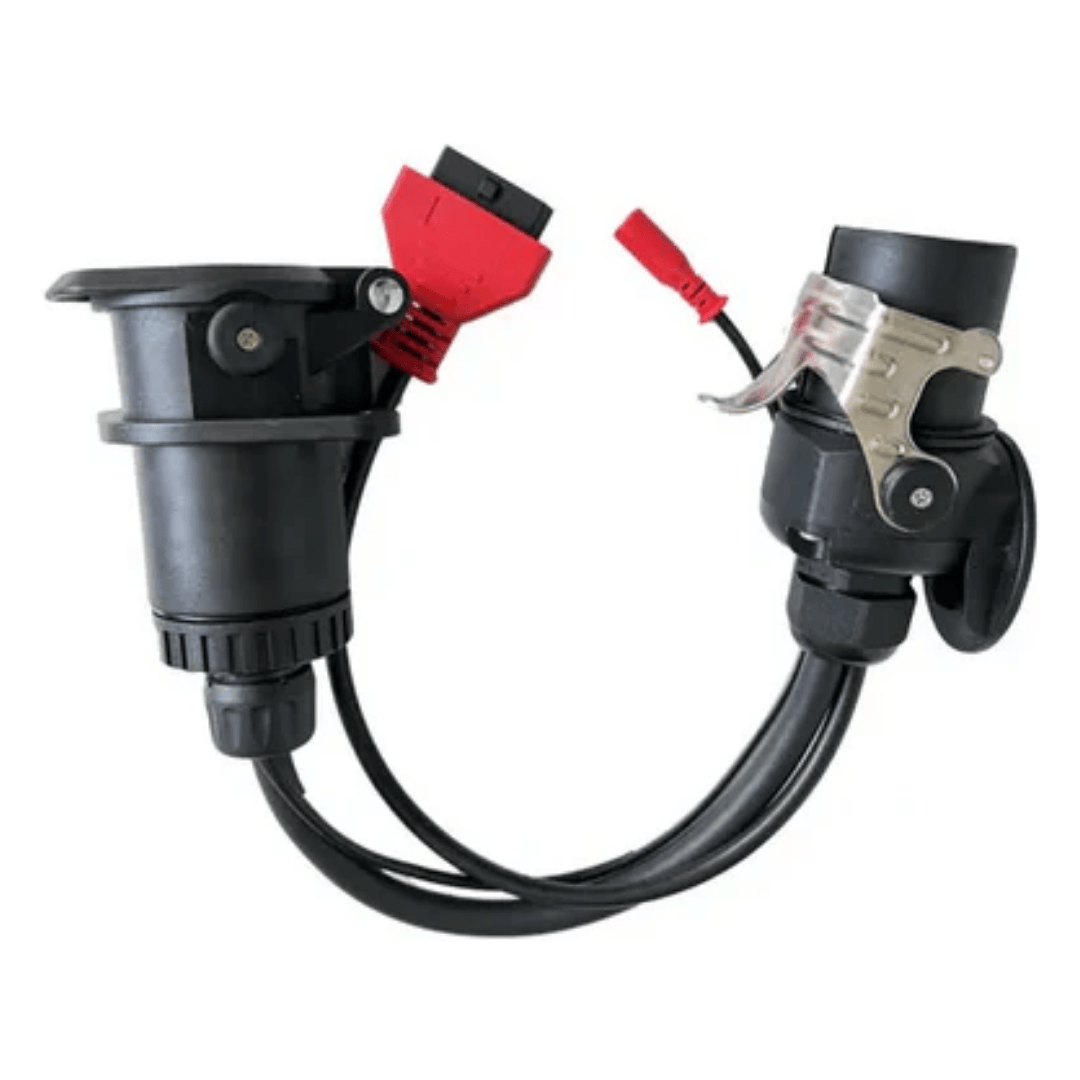

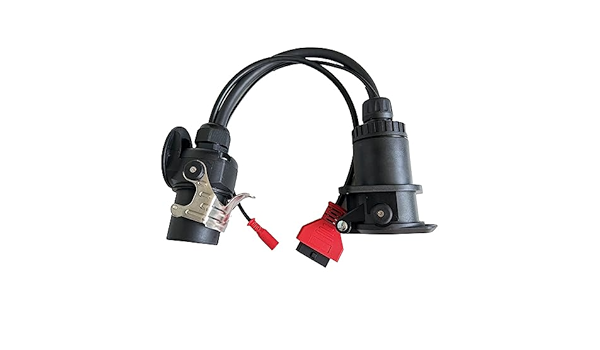

Truck Trailer Diagnostic Connector to 7 Way Plug ISO 7638
Description
Description
-ISO 7638 7-pin (EBS ABS) adapter is used for diagnosing semi trailers with a scan tool. Using 24v/5v external power supply, there is no need to connect to the truck. Most brands of scan tools will be compatible with this connector (NOTE: Not supported by Delphi systems.)
-The ISO 7638 diagnostic adapter allows you to diagnose a trailer without connecting it to a truck.
-The adapter can be connected to an additional 5v-24v power supply.
-ISO 7638 cables are fully compatible with trailers equipped with Knorr Bremse TEBS and TEBS g2.0/2.1 braking systems.

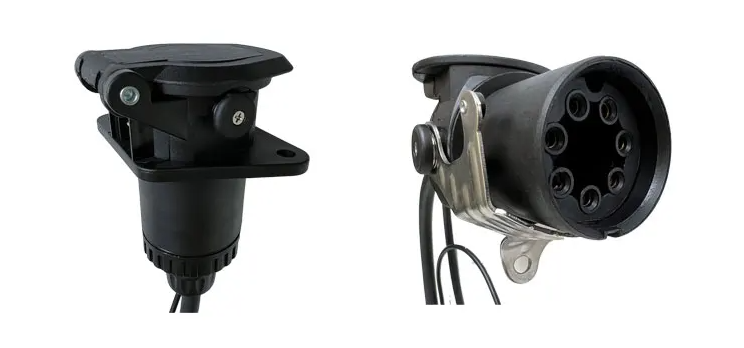

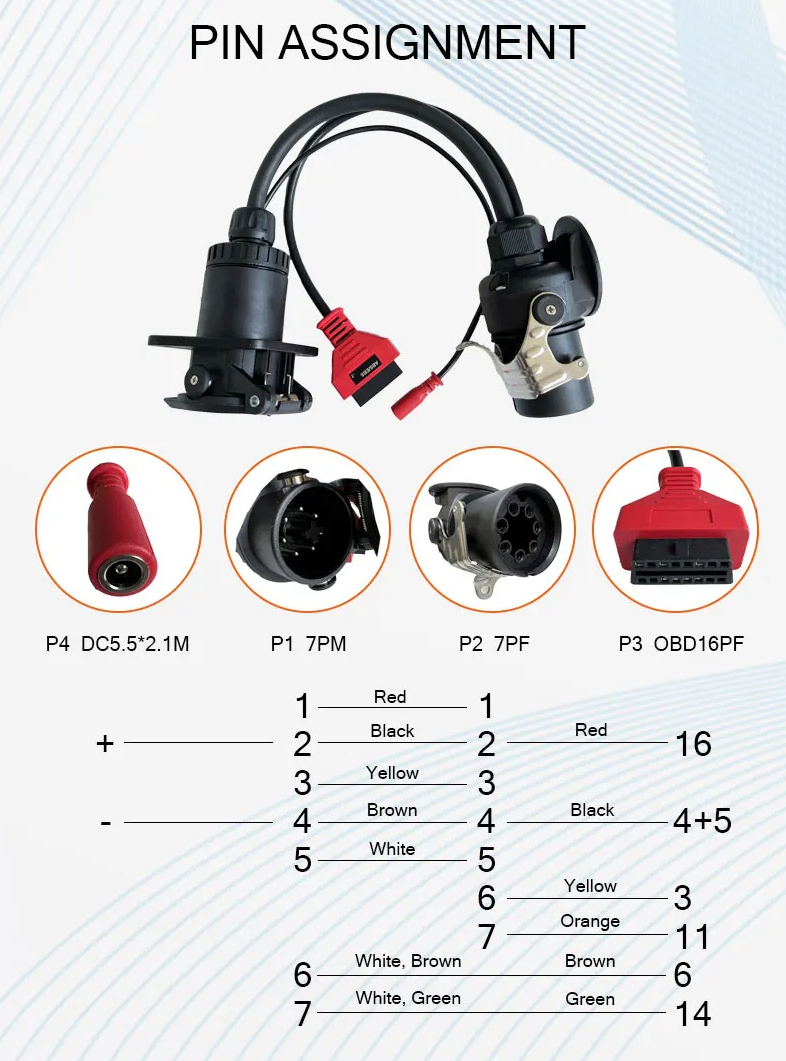

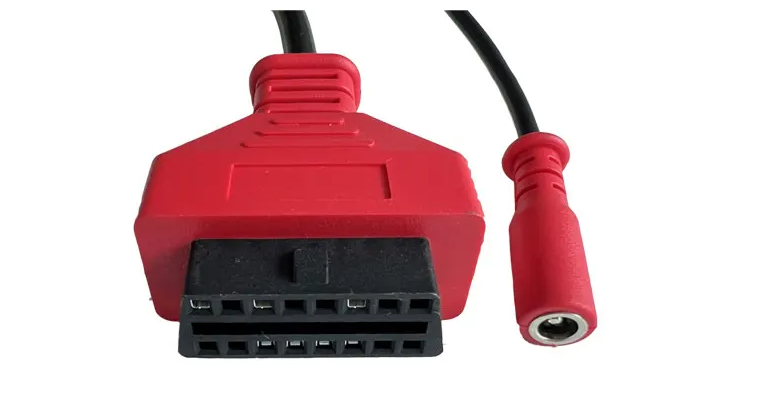

-The adapter has ISO 7638 "male" connector, ISO 7638 "Female" connector, 16 pin OBD2 connector and a connector for connecting external power supply.
-It is connected in series with the EBS Trailer cable or only with an external power trailer.
-The adapter cables have been tested and are 100% compatible with Knorr TEBS and TEBS G2.
-EBS ISO 7638 cable is applicable to all cargo scanners supporting K-line, can, can 5V, etc.
-EBS ISO 7638 provides the ability to diagnose, reset faults, perform valve checks, program valves and save valve programs,, delete daily operations of trailers, and view current parameters.
This 7 pin adapter cable is suitable for a wide range of commercial vehicles, including trucks, semi-trailers, and other heavy-duty vehicles that require ABS signal transmission
