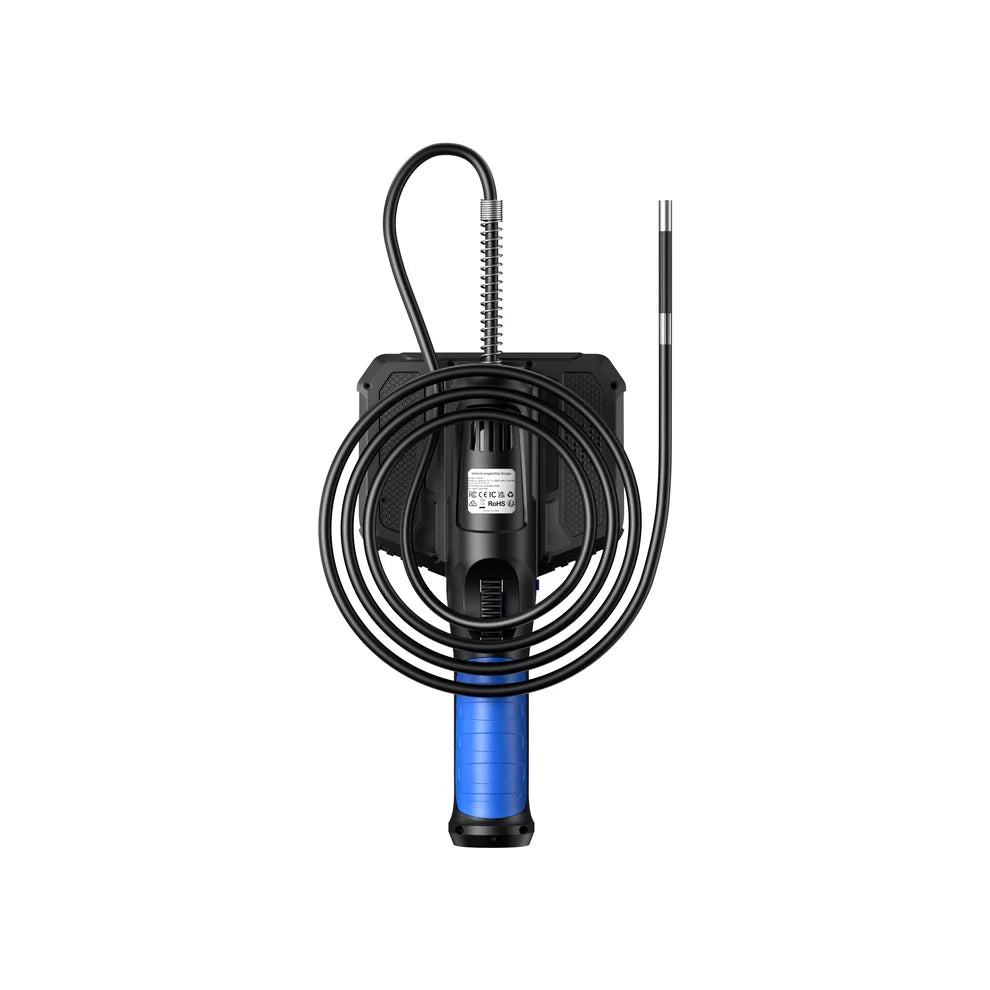

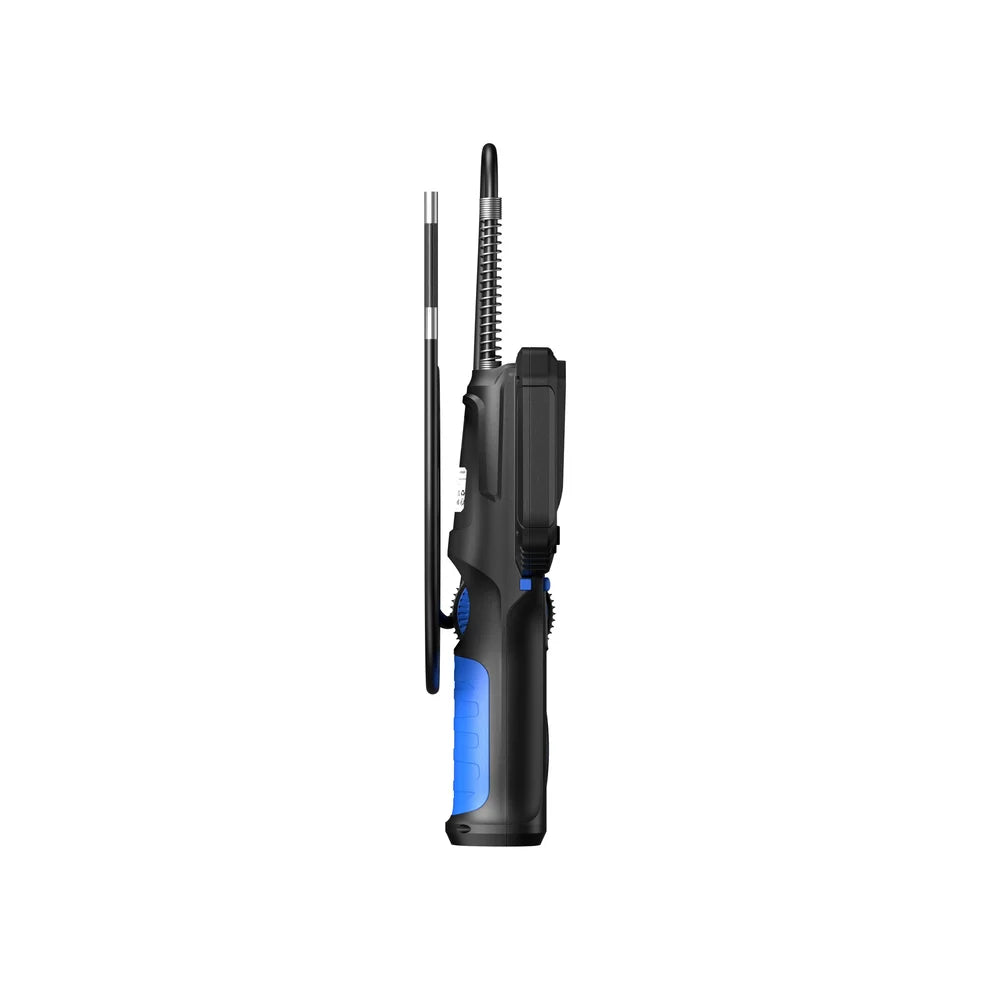

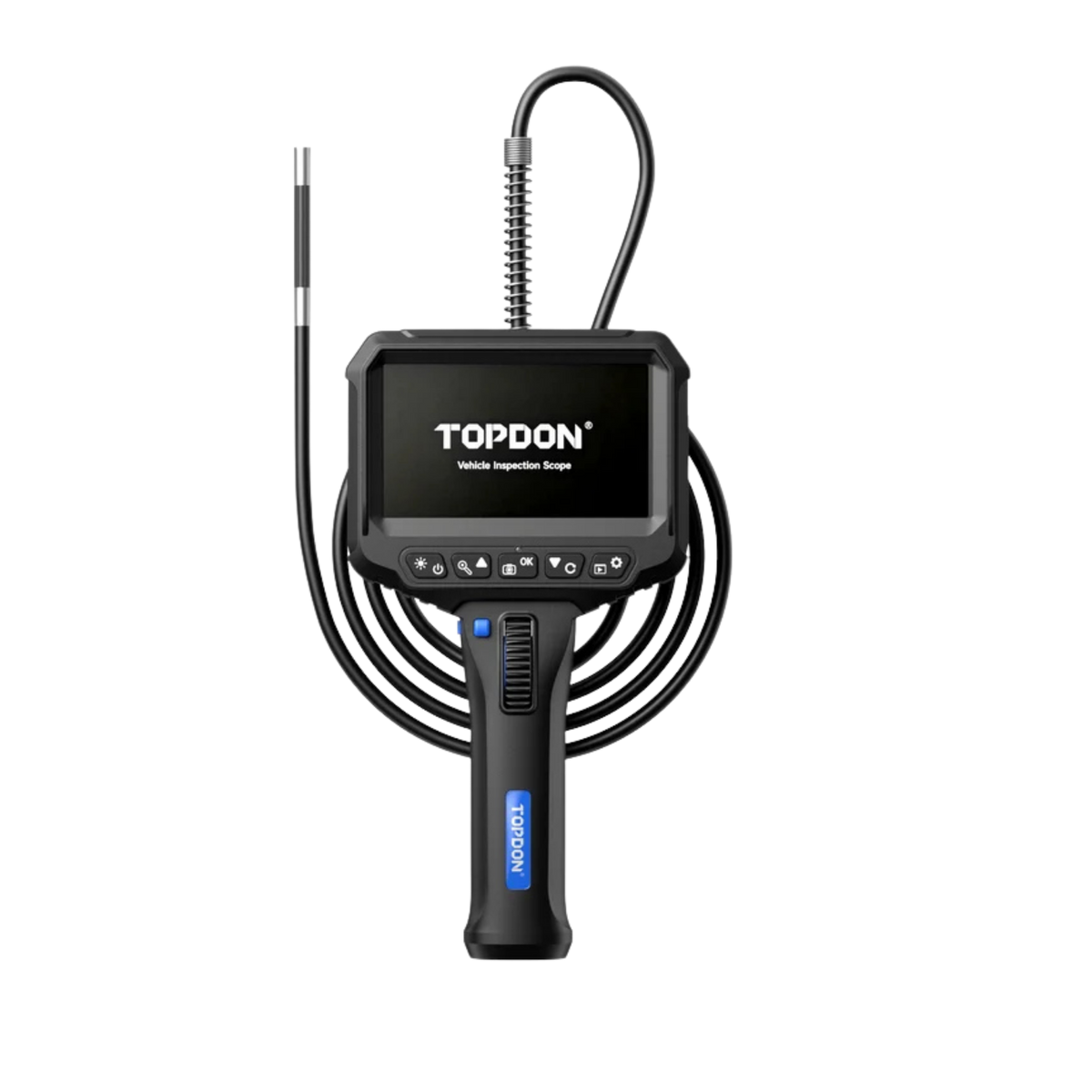

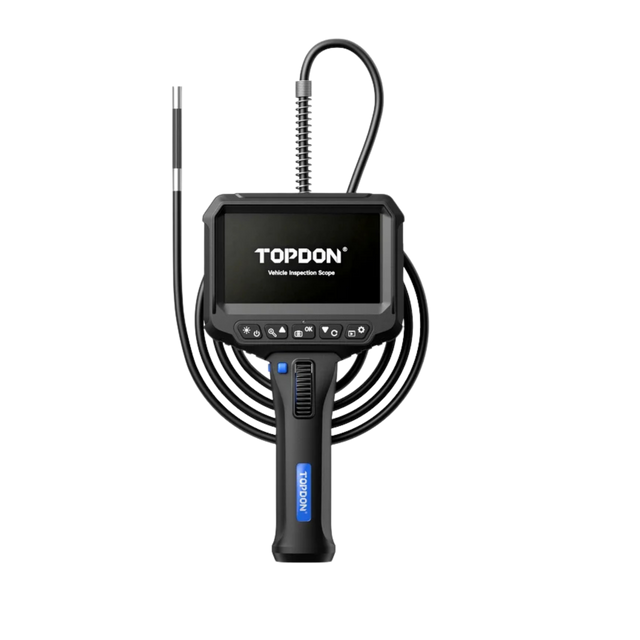

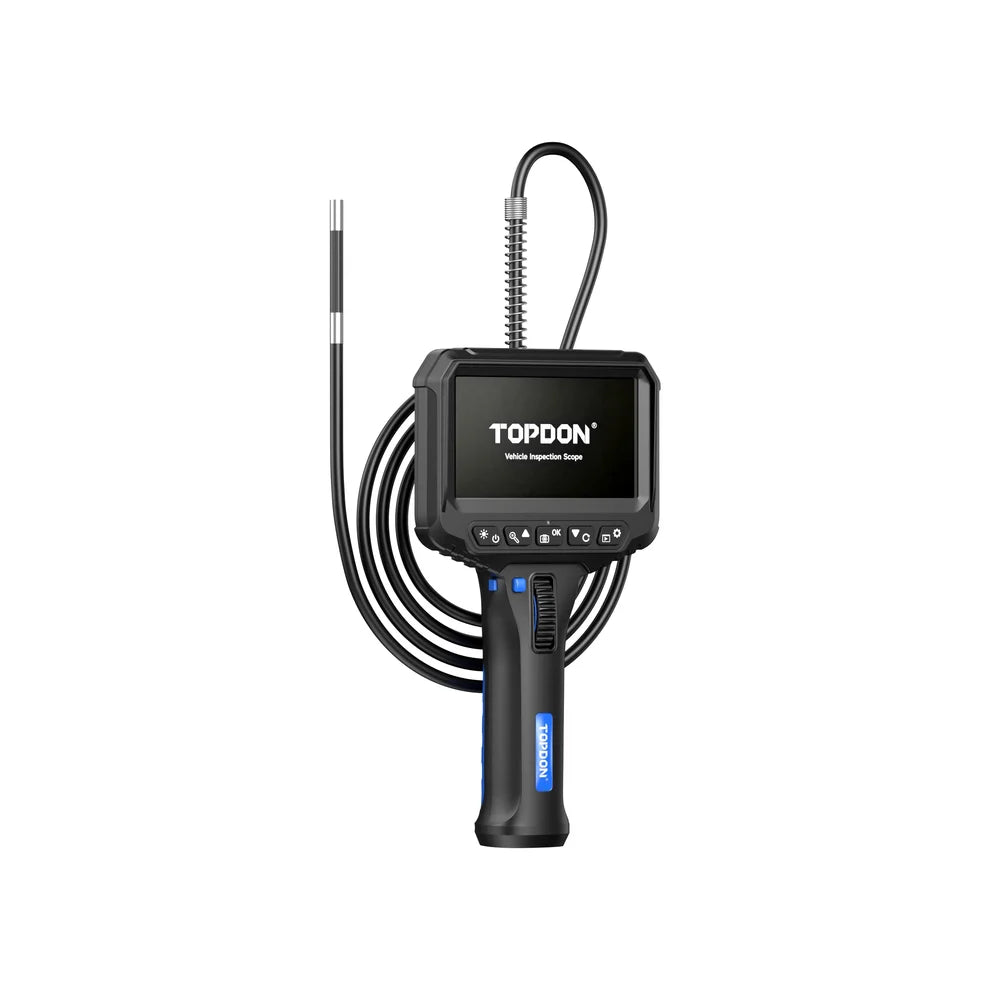

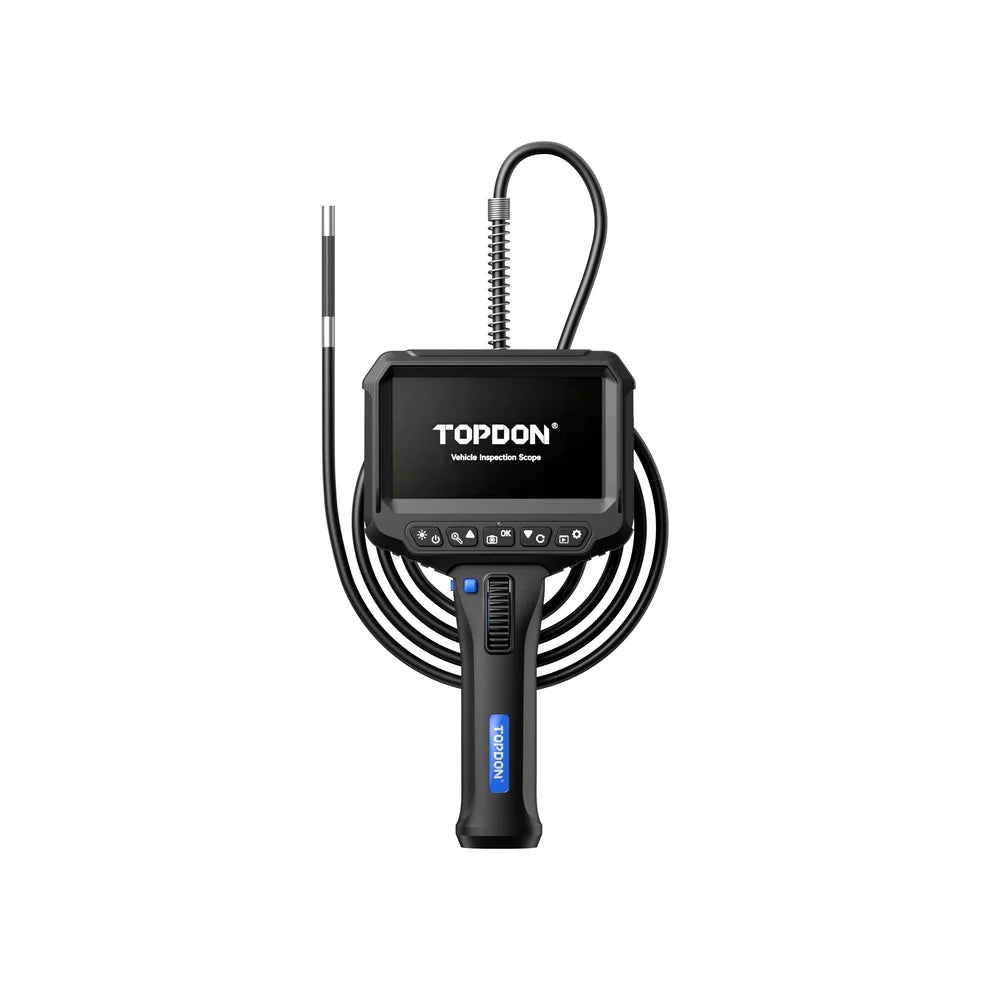

Topdon VIS002 Articulating Inspection Camera / Borescope

The TOPDON VIS002 is a professional inspection camera designed to give you a clear view inside engines, cylinders and other hard-to-reach areas helping identify faults without unnecessary disassembly.

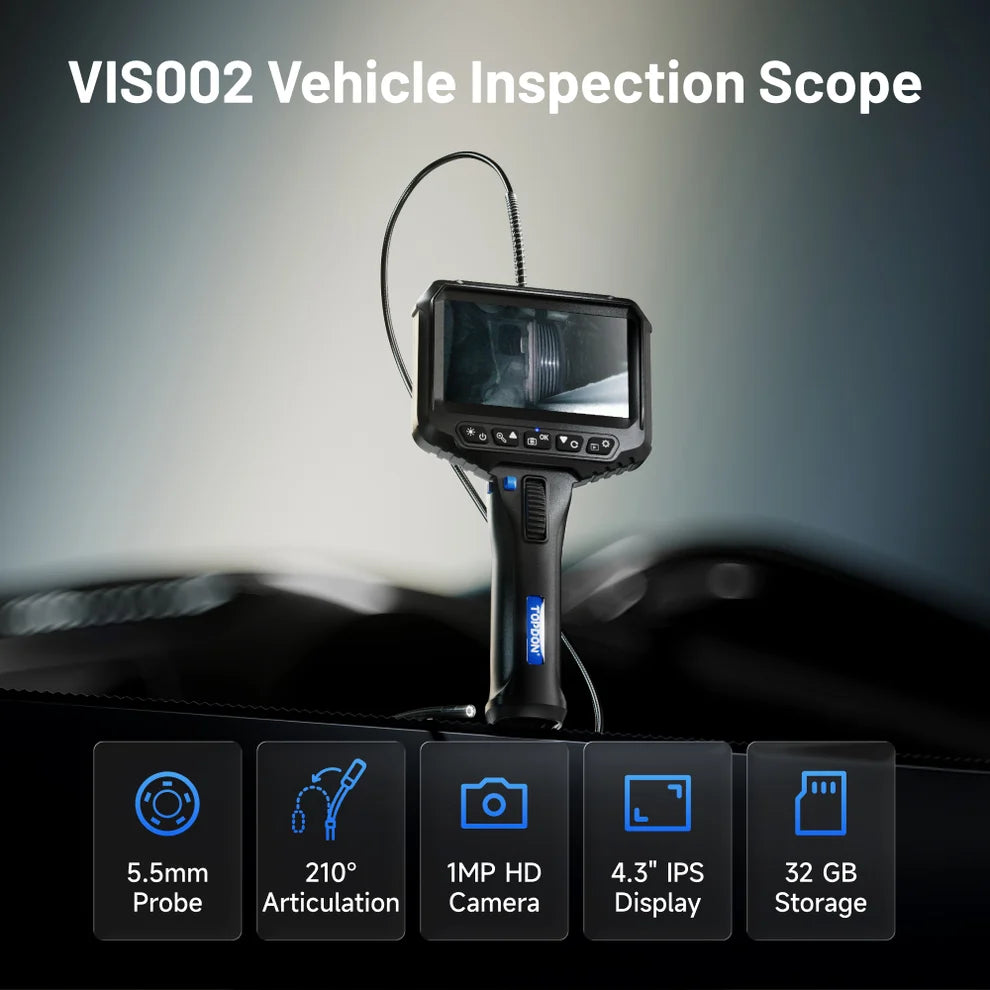

Featuring an ultra-slim 5.5mm camera probe, 210° two-way articulation and a bright 4.3-inch IPS display, the VIS002 makes it easy to manoeuvre the camera around components and inspect areas that conventional borescopes struggle to reach.

The high-definition camera and 8 adjustable LED lights provide a clear view inside dark cavities, making the VIS002 ideal for inspecting cylinder walls, pistons, valves, intake ports, wiring channels, HVAC systems and other confined areas.

Photos and videos can also be recorded directly to the included 32GB microSD card, making it easy to document faults or show customers exactly what you've found.

Key Features

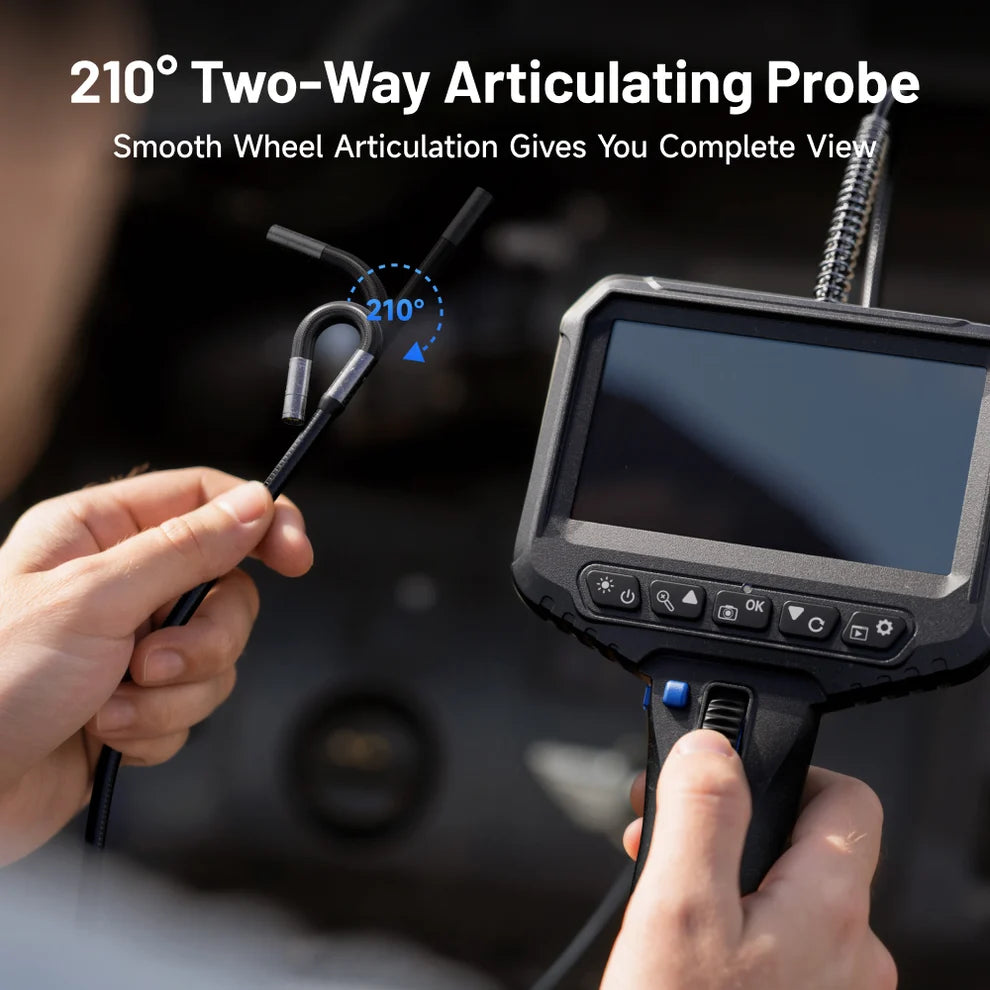

210° Two-Way Articulating Camera
The VIS002 camera head can articulate up to 210°, allowing the user to look around corners and accurately position the camera inside confined areas.

Ultra-Slim 5.5mm Probe
The compact camera head can access tight areas including through many spark plug and glow plug openings, making it particularly useful for internal engine inspections.

4.3-Inch IPS Display
View inspections directly on the built-in colour screen. There is no need to connect a phone, tablet, Wi-Fi network or separate app.

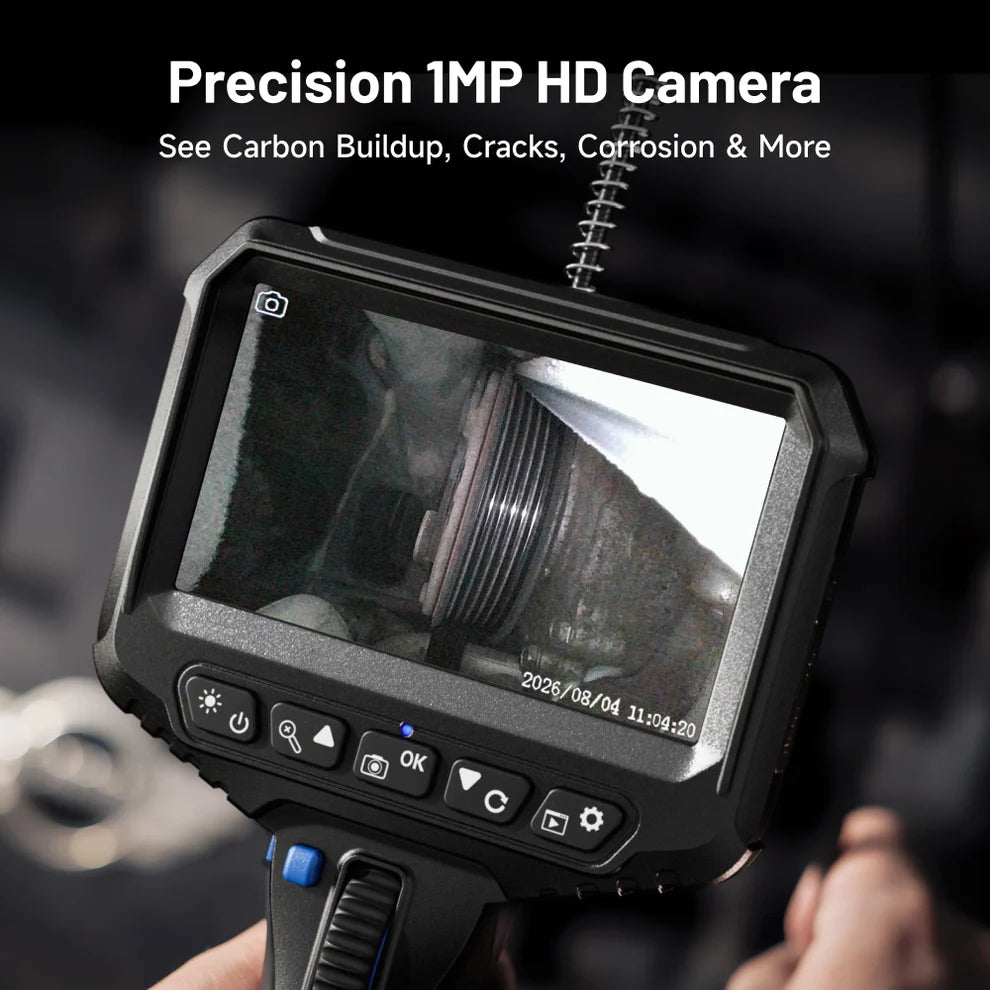

1MP HD Inspection Camera
Provides detailed images to assist with identifying issues including:

• Cylinder wall scoring

• Carbon build-up

• Piston damage

• Valve condition

• Cracks and corrosion

• Fluid leaks

• Damaged wiring and connectors

• Foreign objects and debris

8 Adjustable White LEDs
Integrated lighting provides visibility inside dark engine components and cavities, with adjustable brightness to help reduce glare on reflective surfaces.

Photo & Video Recording
Capture JPG photos and AVI video directly from the inspection camera. A 32GB microSD card is included, with support for cards up to 128GB.

1 Metre Semi-Rigid Probe
Provides excellent reach while maintaining enough rigidity to accurately guide the camera through difficult areas.

IP67-Rated Probe
The camera head and probe cable are IP67 rated, making them suitable for demanding workshop inspection environments.

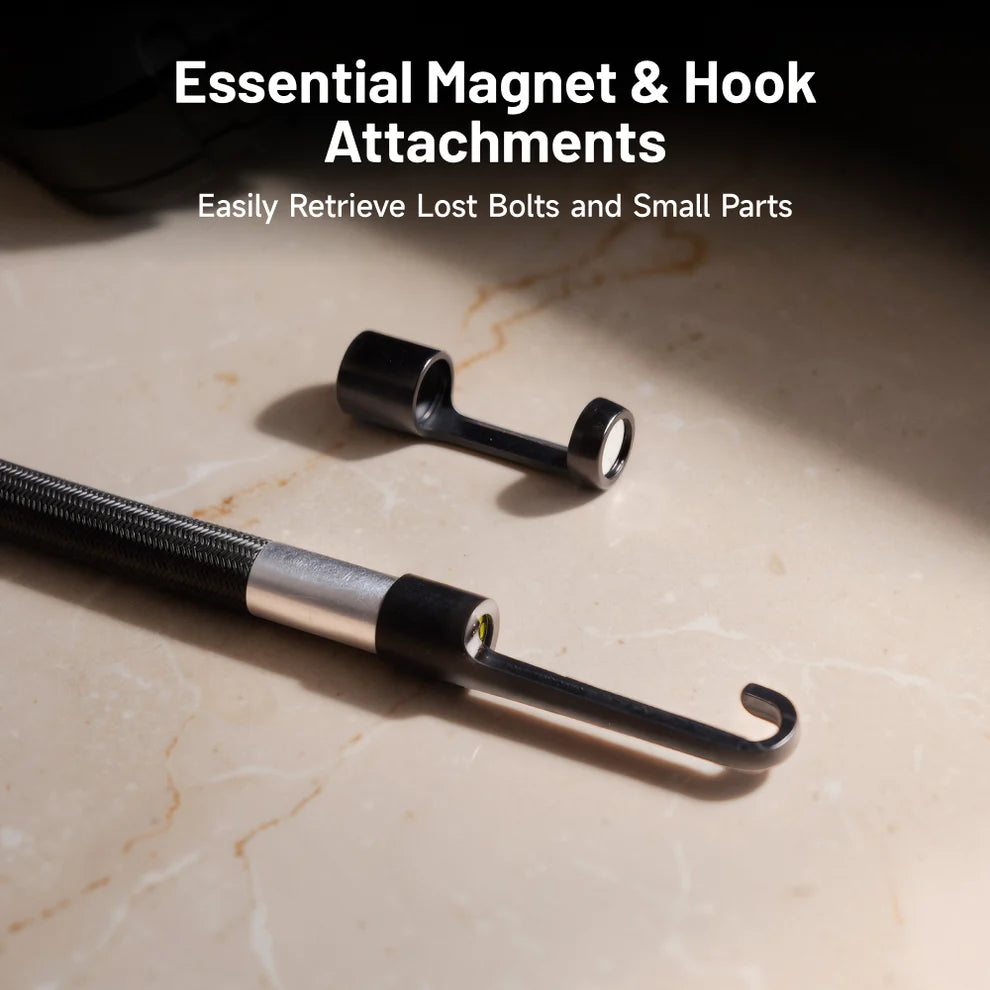

Magnet & Hook Attachments Included
The supplied attachments allow the VIS002 to do more than inspect. Use the magnet or hook to retrieve dropped nuts, screws, clips and other small components from difficult-to-access areas.

Specifications

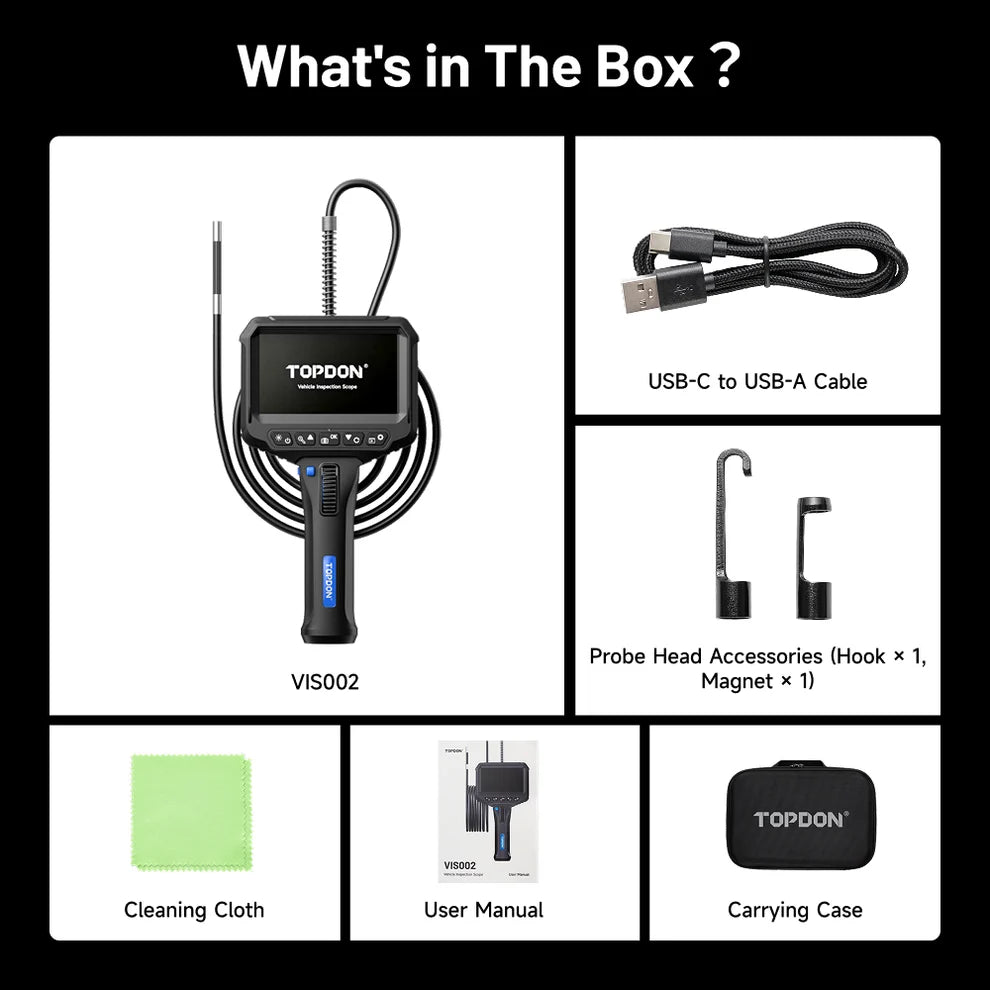

What's Included?

• TOPDON VIS002 Inspection Camera

• 1M Articulating Camera Probe

• 32GB microSD Card

• Magnetic Retrieval Attachment

• Hook Retrieval Attachment

• USB-C to USB-A Charging Cable

• Cleaning Cloth

• Protective Carrying Case

• User Manual

Ideal For

The VIS002 is a great addition to any automotive workshop and is particularly useful for:

• Petrol and diesel engine inspections

• Cylinder and piston inspection

• Checking valves and combustion chambers

• Diagnosing excessive carbon build-up

• Inspecting intake and exhaust passages

• Locating oil, coolant and other fluid leaks

• Wiring and electrical inspections

• HVAC inspection

• Retrieving dropped components

• General mechanical and industrial inspection
