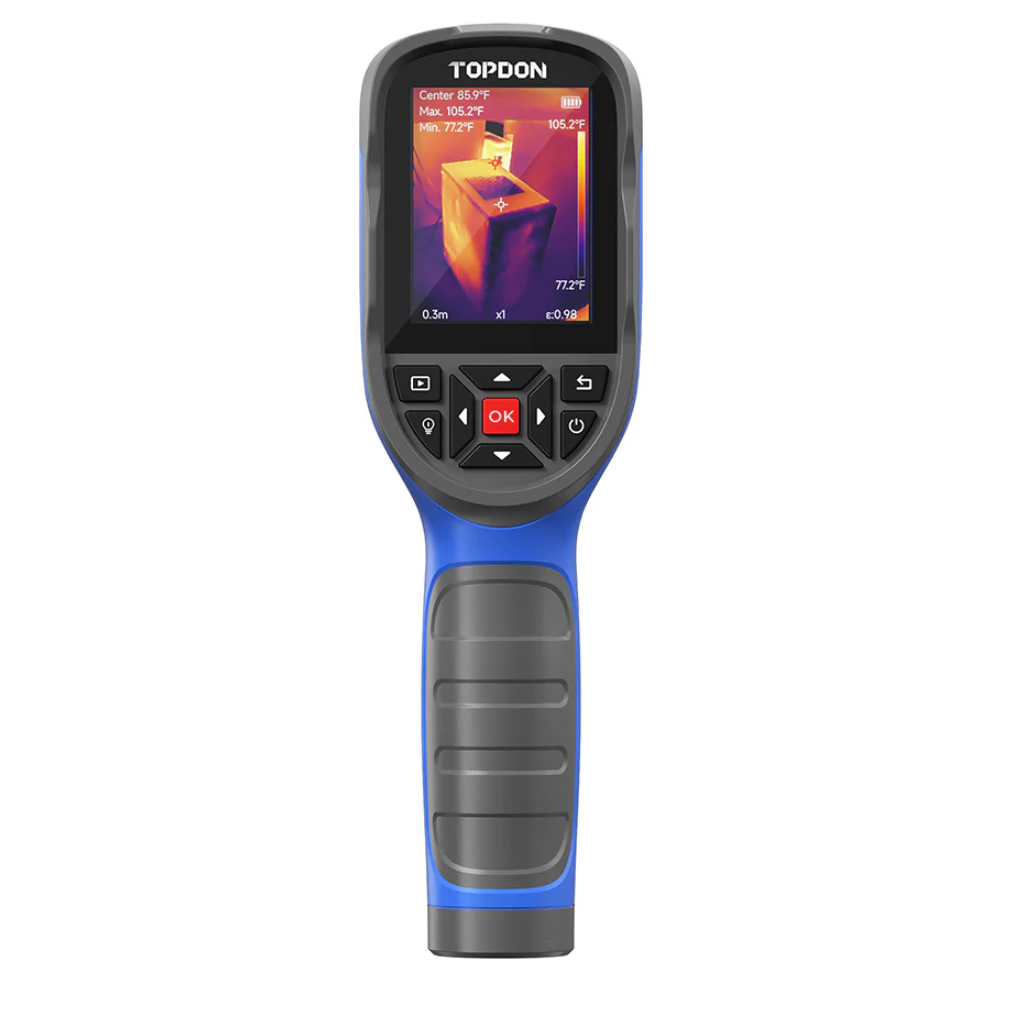

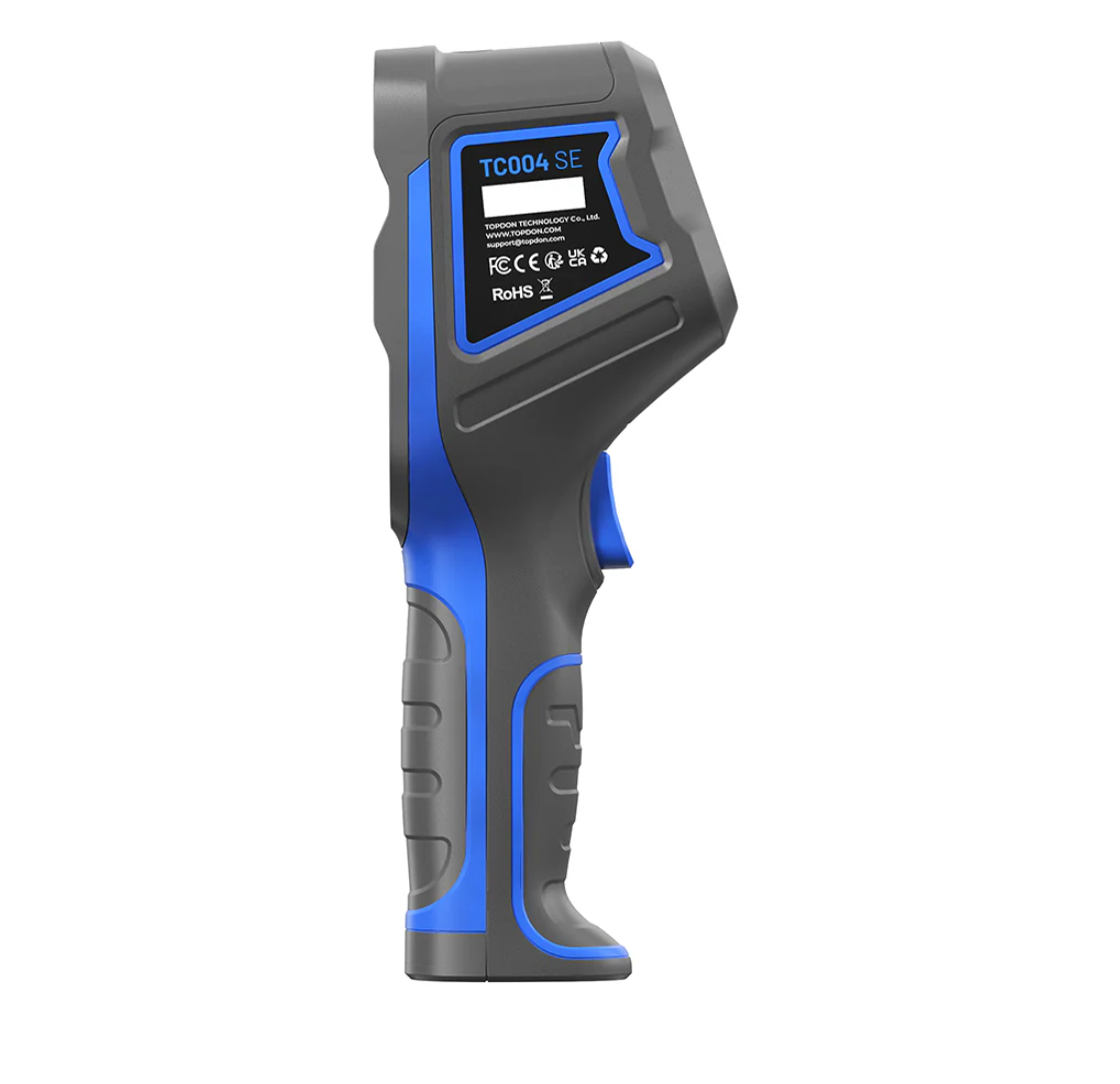

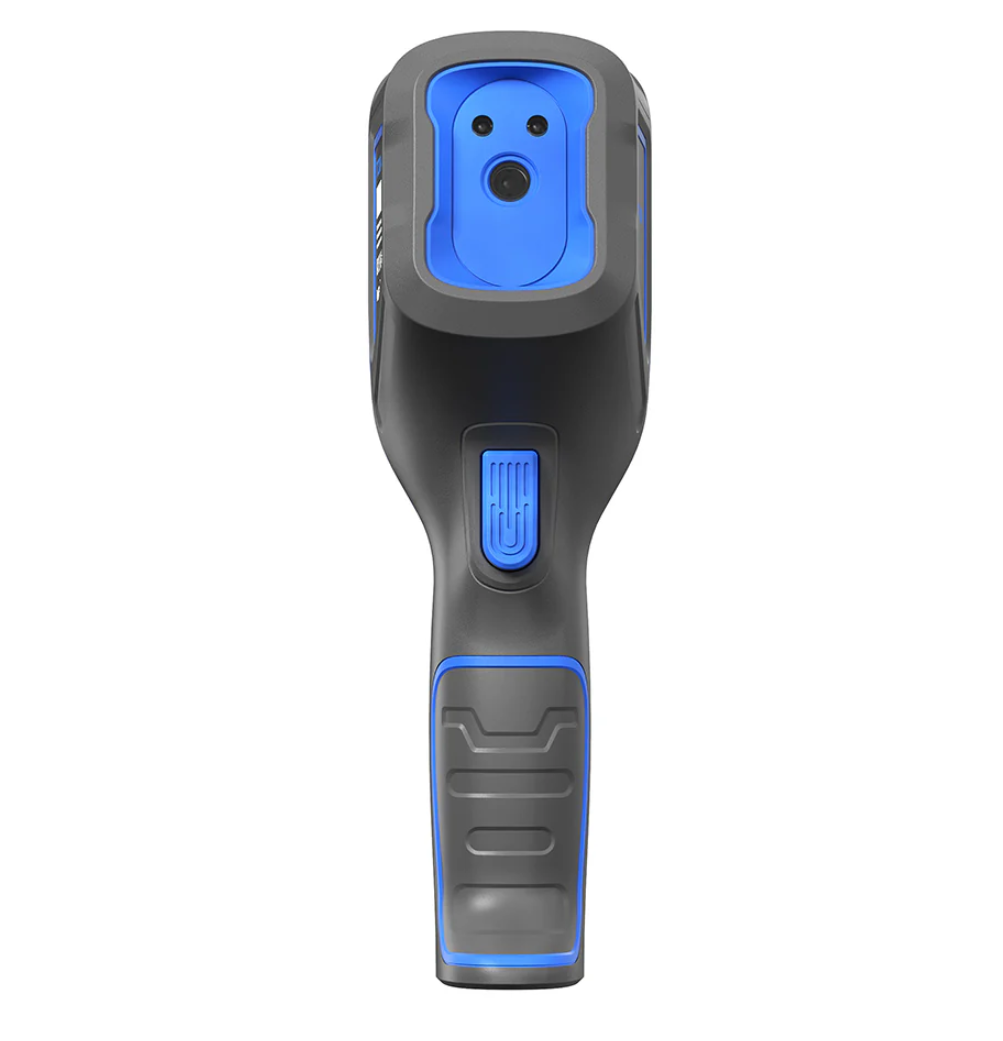

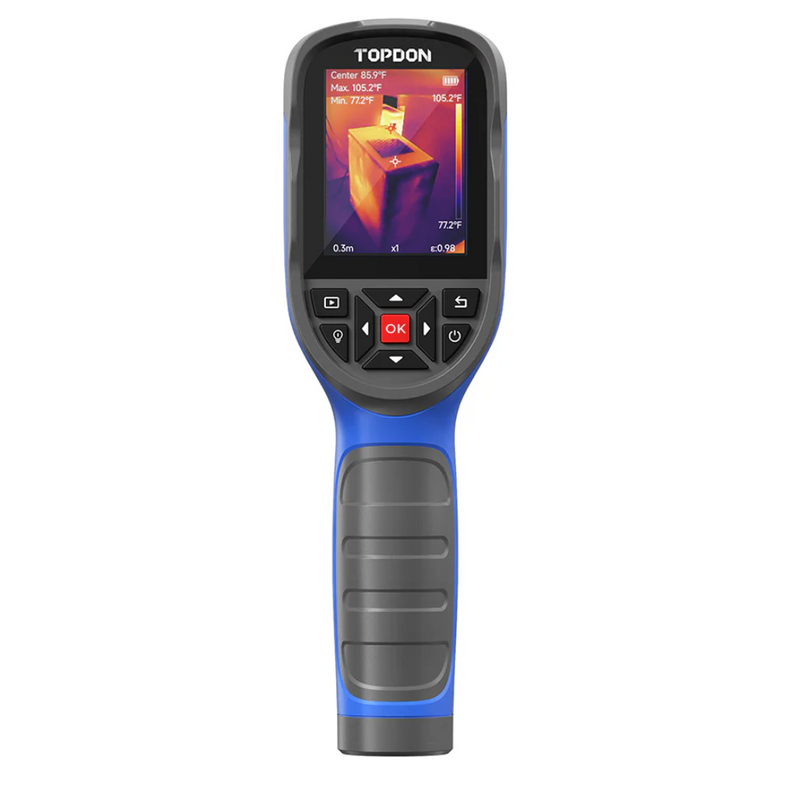

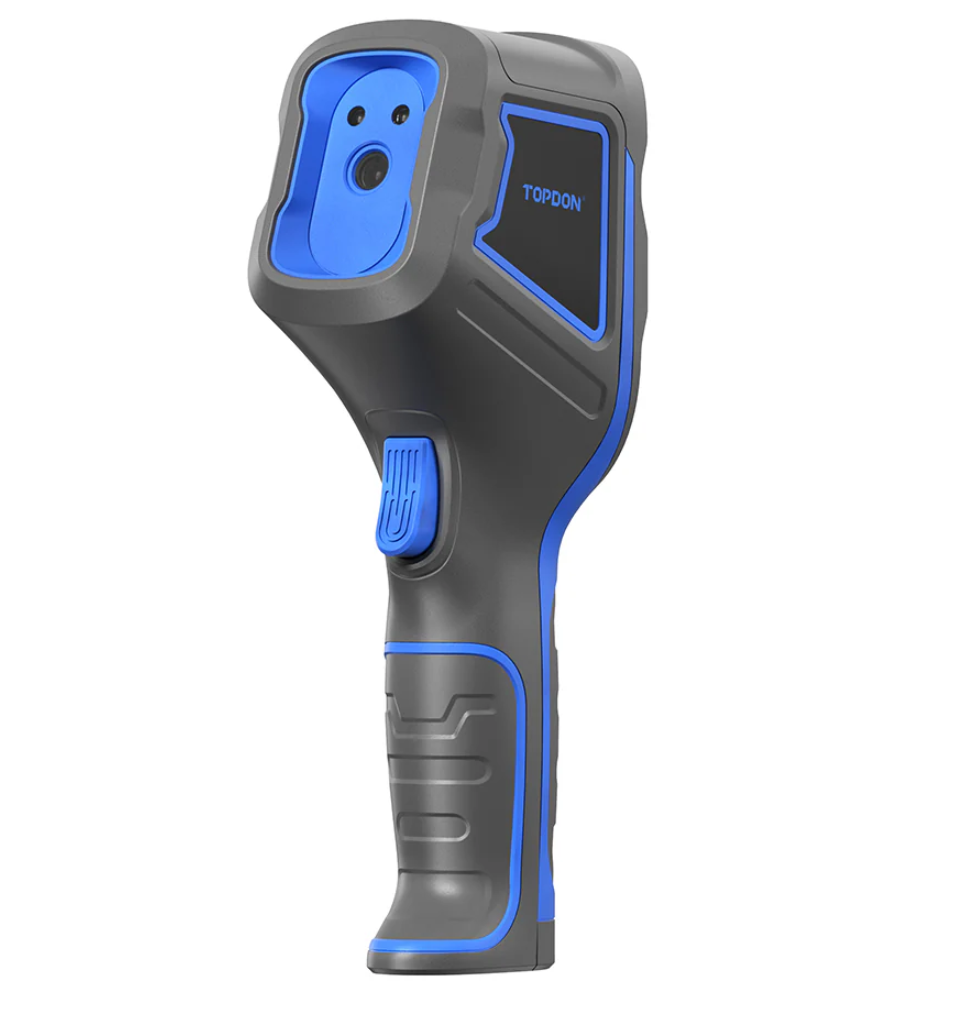

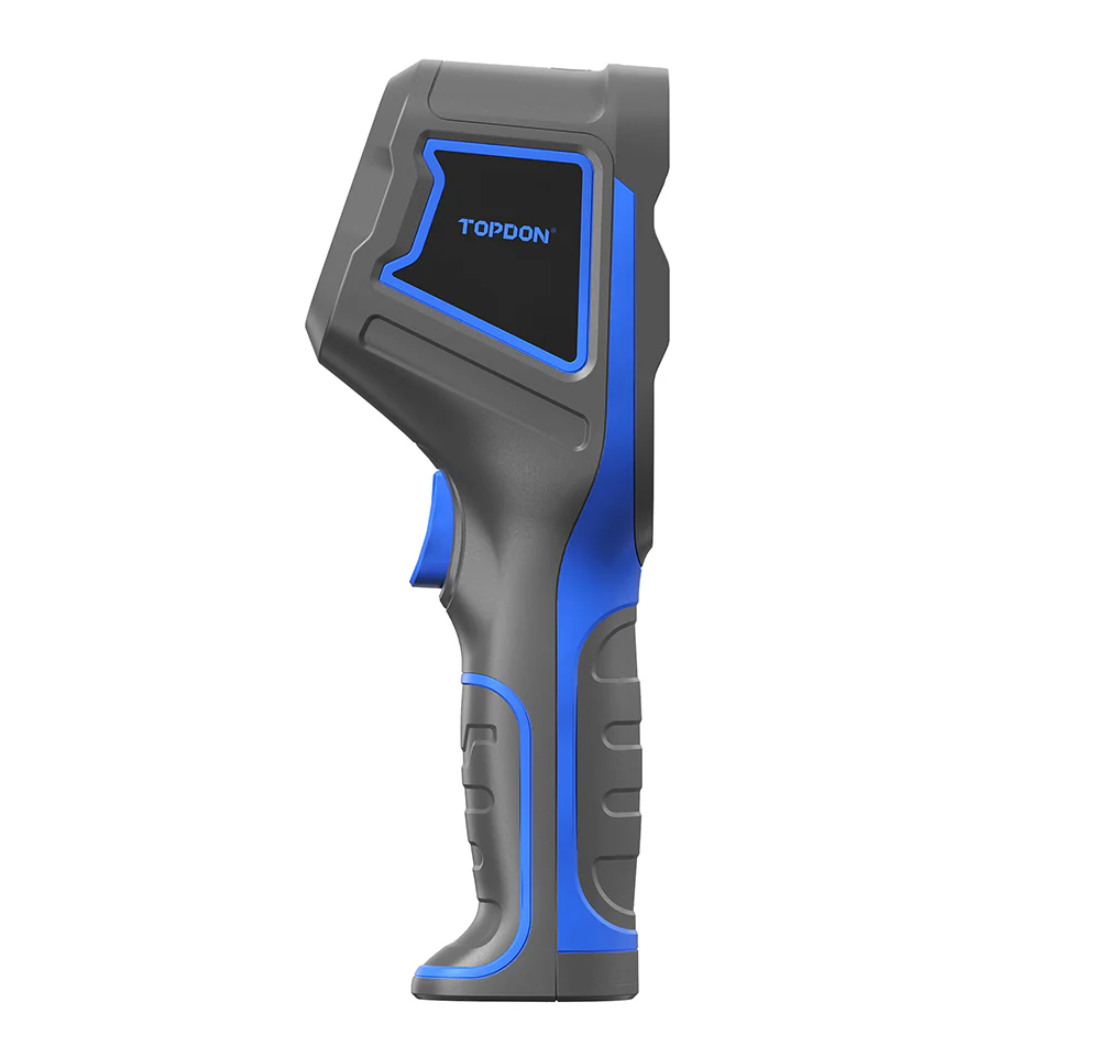

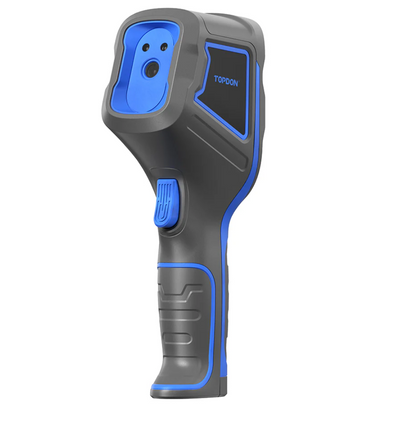

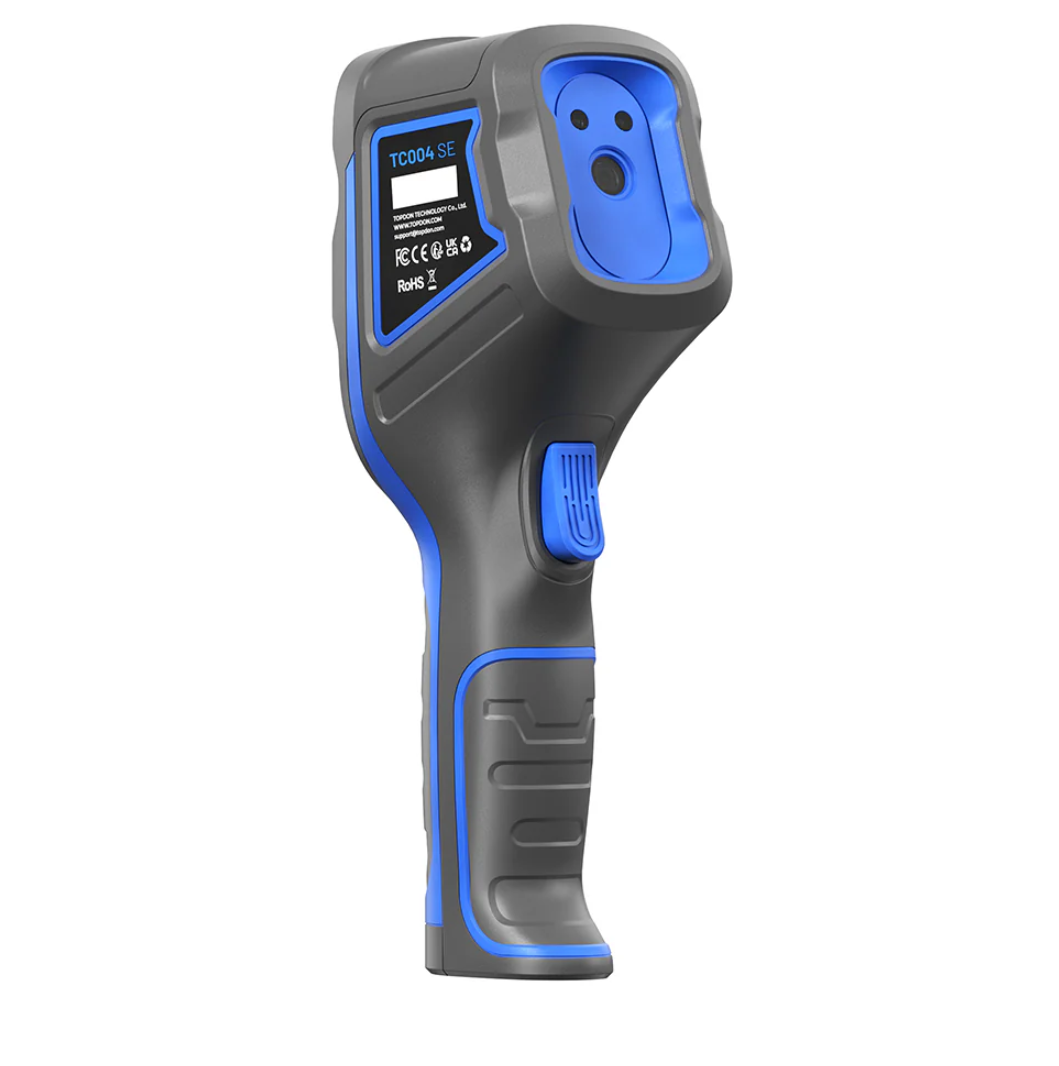

Topdon TC004 SE Thermal Imaging Camera

Step up your diagnostic game with the TC004 SE - a reliable thermal camera designed for locating and tackling industrial, electrical, building, HVAC, and automotive problems with confidence. With an impressive battery life of up to 21 hours (at low brightness), the camera ensures all-day use, so you’re always ready when you need it. Its ability to record videos allows you to monitor maintenance history and reassure your customers that systems are functioning safely.

Features

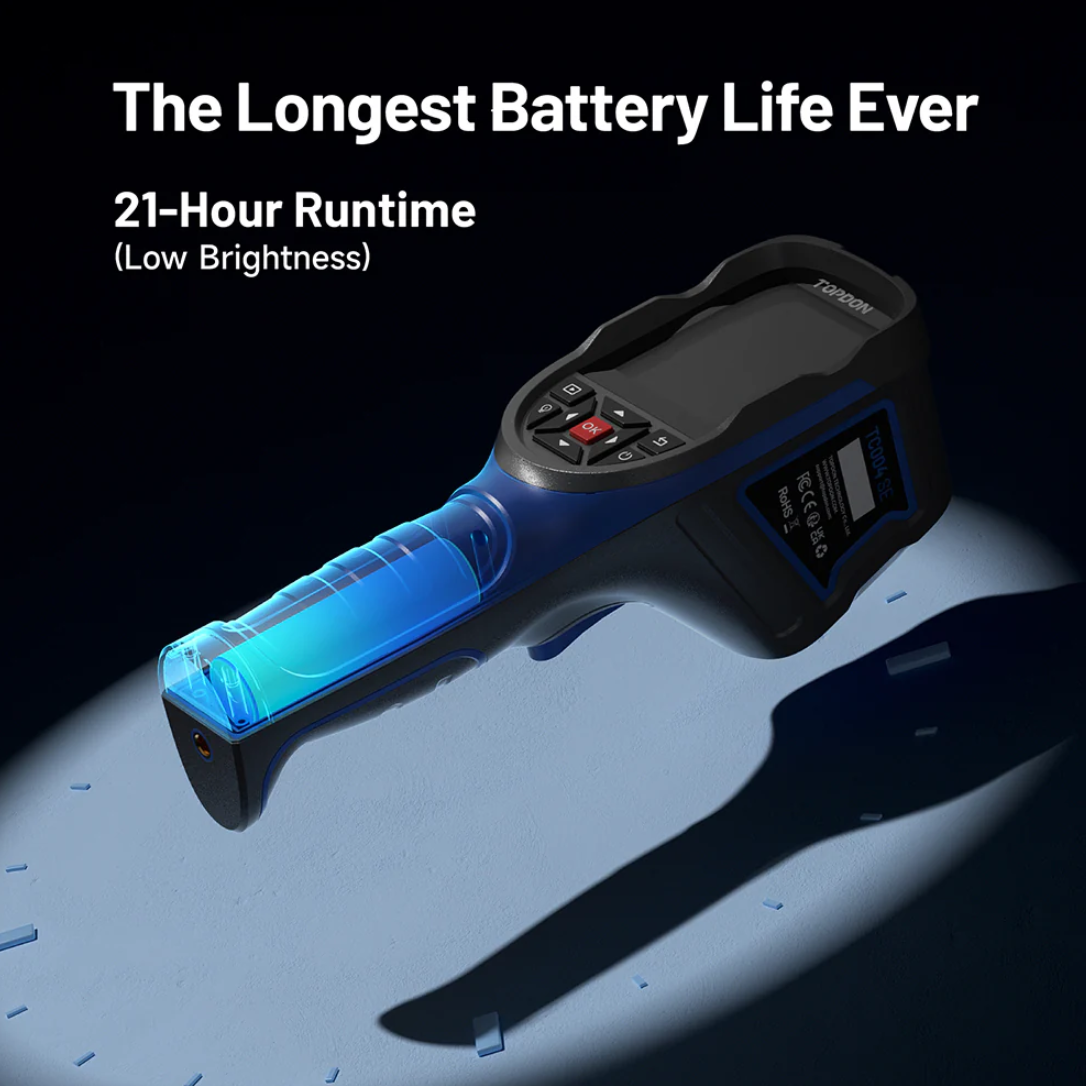

The Longest Battery Life Ever

• It offers up to 21 hours of continuous use at the lowest screen brightness and 16 hours at the highest screen brightness, giving you peace of mind during extended tasks. Imagine working just 3 hours a day, this means you can go a whole week without recharging.

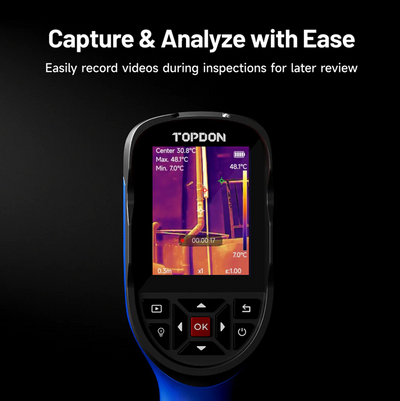

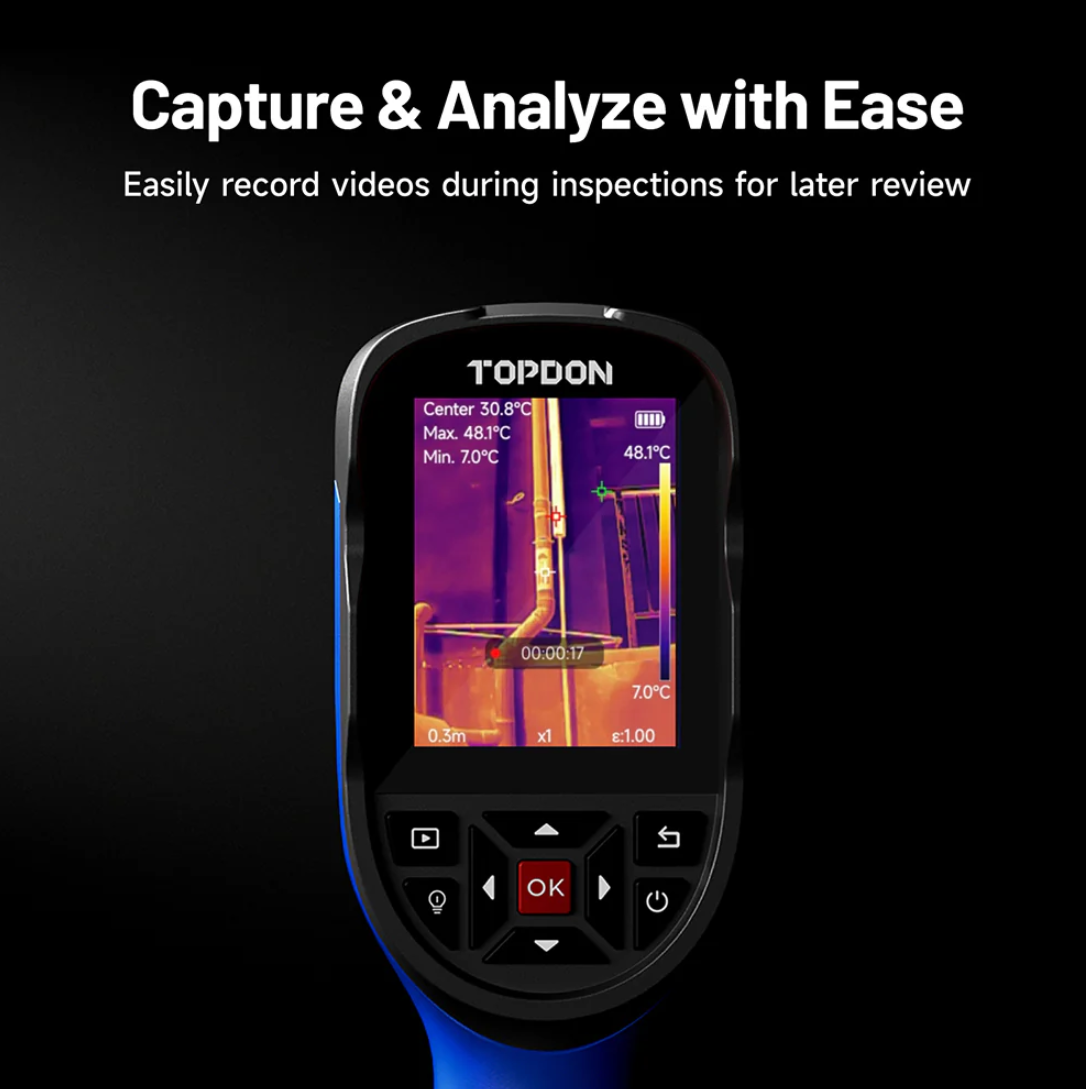

Effortless Video for Accurate Analysis

• Easily record videos during inspections, enabling quick and accurate documentation of your findings for later review.

Save More, Worry Less

• With 32GB built-in eMMC storage, you can save up to 160,000 high-quality thermal images, ensuring ample space to document and review inspection findings during long-term projects.

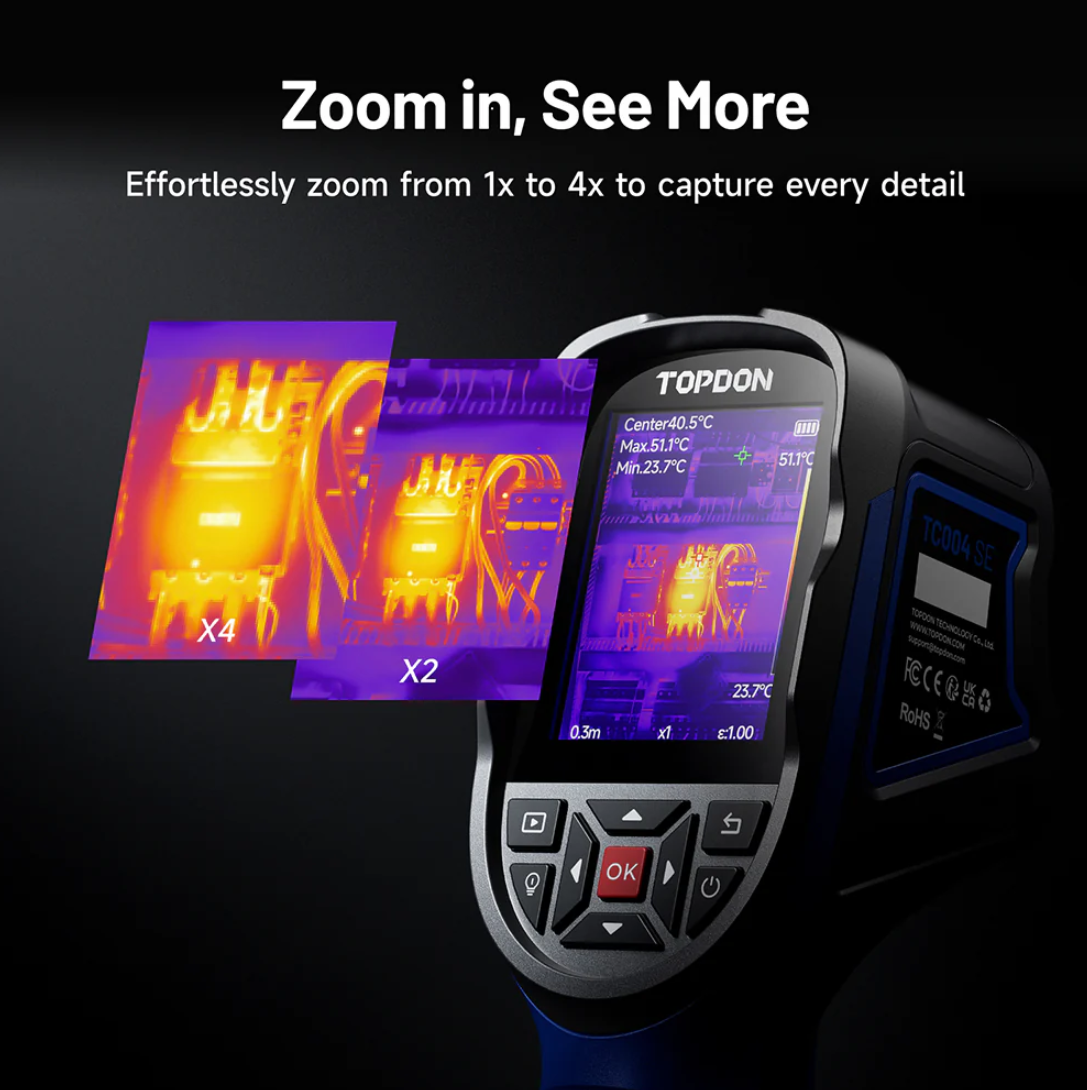

Zoom in, See More

• Effortlessly switch between 1x, 2x, and 4x digital zoom to capture every detail, whether inspecting intricate components up close or surveying larger areas from a distance.

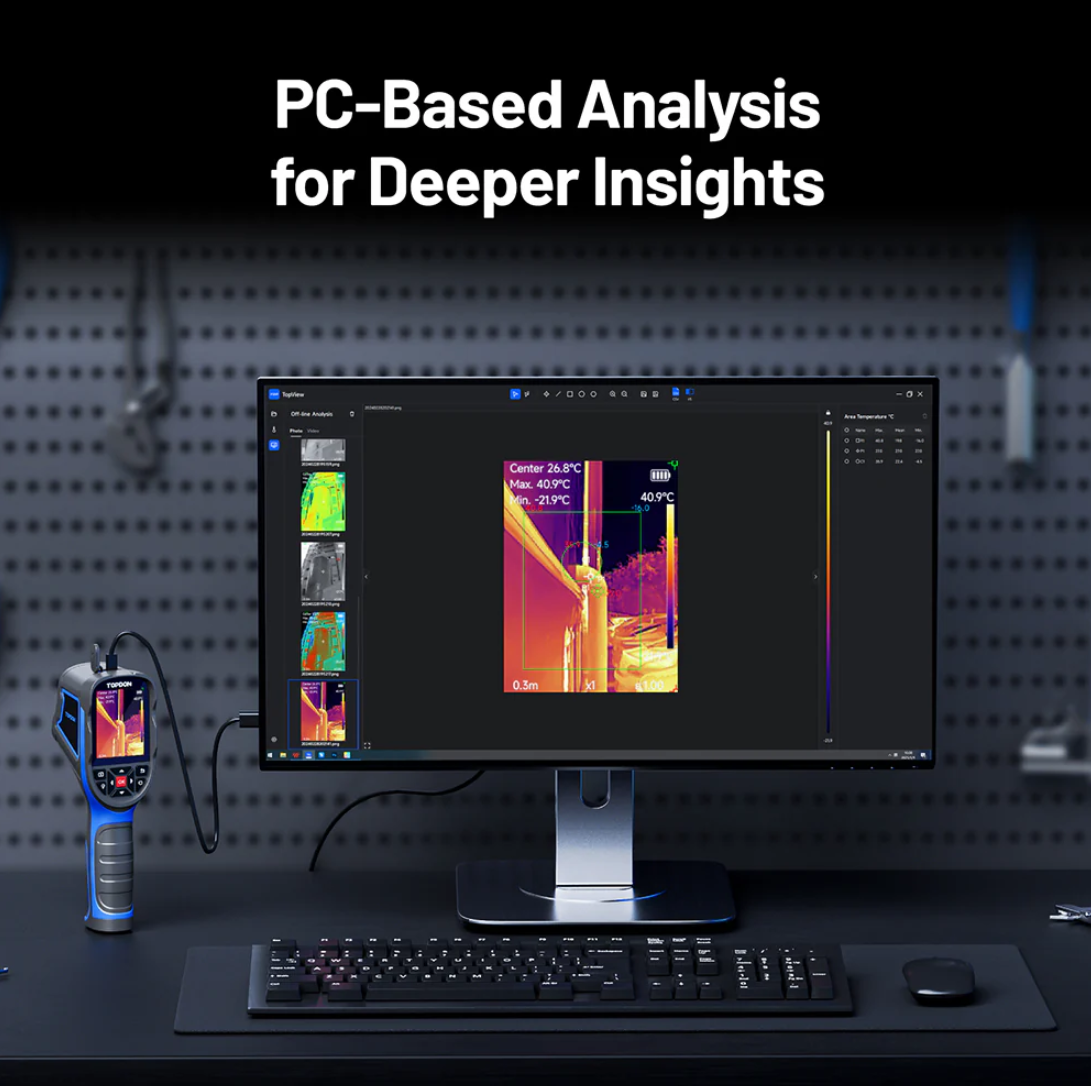

PC Image Analysis

• Easily project thermal images to your PC for detailed temperature analysis. Compare temp differences, highlight hot and cold spots, and analyze thermal images in flexible ways (dot, line, plane).

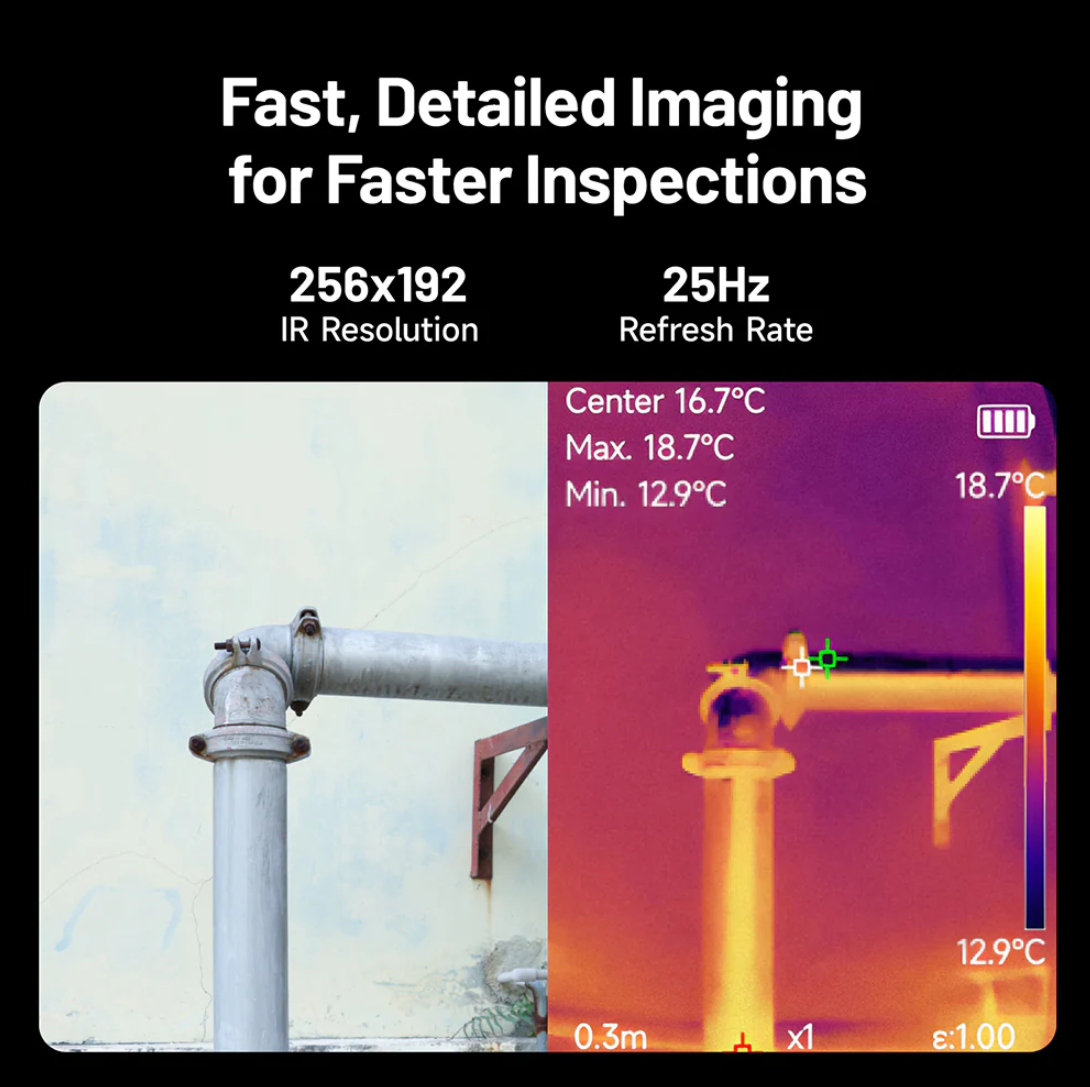

Fast Imaging, No Lag

• A 256*192 IR resolution and 25Hz refresh rate provide fluid & clear thermal visuals to help you quickly spot and analyze issues in power, electrical, or building inspections.

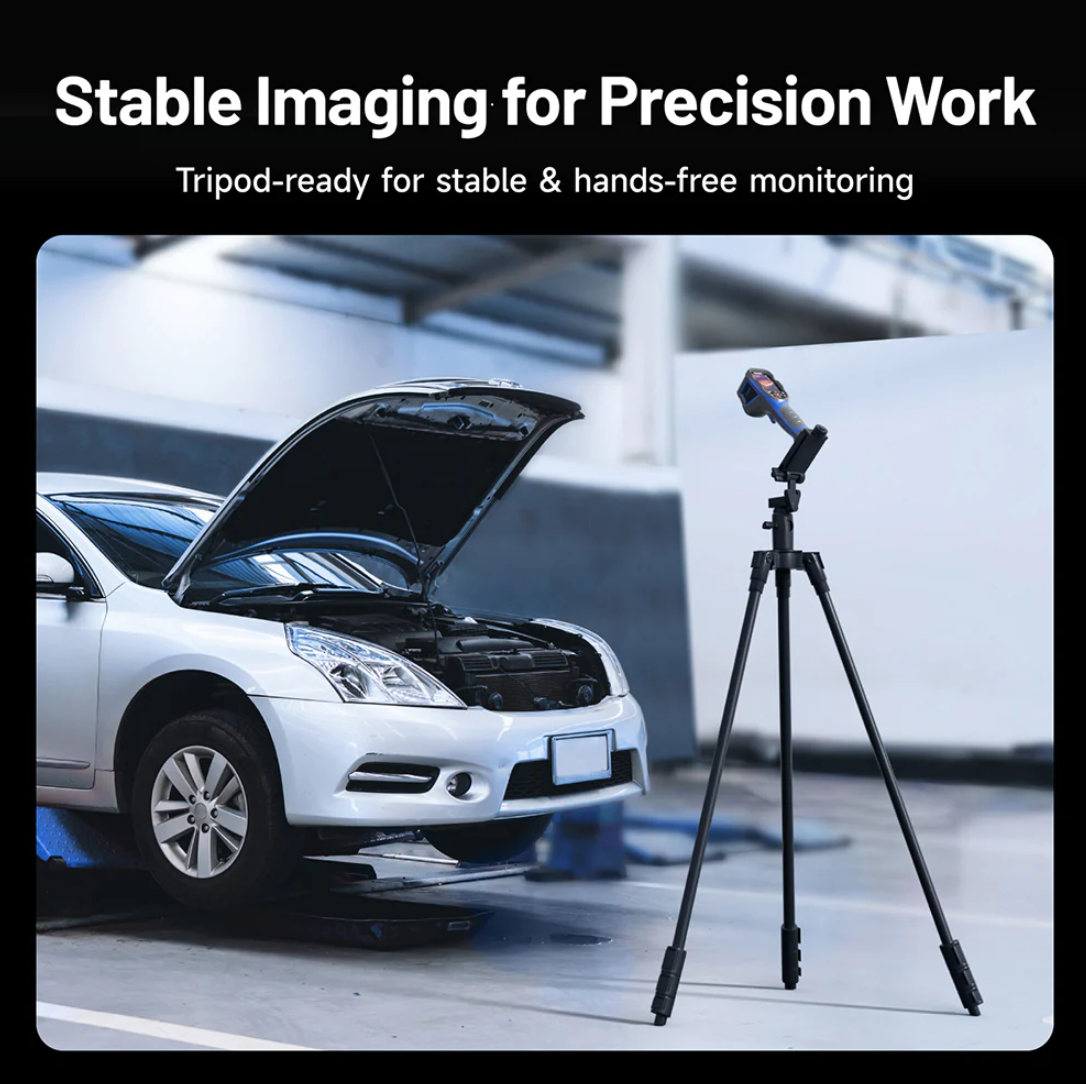

Tripod-Ready for Precision Work

• With a built-in 1/4-20 screw hole, easily mount the device on a tripod for stable, hands-free monitoring during extended use - ideal for equipment checks and lab tests.

Built-in LED Light for Better Visibility

• The dual LED flashlight lets you work in low-light conditions and inspect hard-to-reach areas without carrying additional equipment.

Specifications

• IR Resolution: 256*192

• Refresh Rate: 25Hz

• NETD: <40 mK

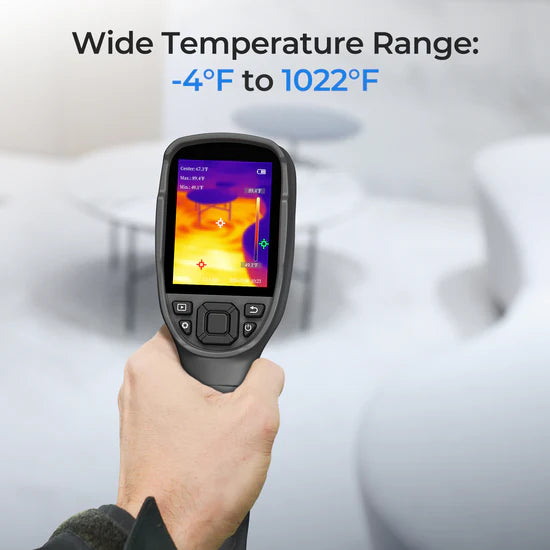

• Measurement Range: -4 ~ 1022℉ ( -20 ~ 550°C)

• Measurement Accuracy: ±3.6°F (±2°C) or 2% of reading

• Spectral Range: 8 to 14μm

• FOV: 56° x 42°

• Display: 2.8-inch, 320*240

• Storage: 32GB eMMC

• Battery Life: 16h (High brightness); 21h (Low brightness)

• Battery Capacity: 5300mAh

• Protection Level: IP54

Packing List

• TC004 SE Thermal Camera

• Power Adapter

• Plugs

• USB-A to USB-C Cable

• User Manual

• Storage Bag
