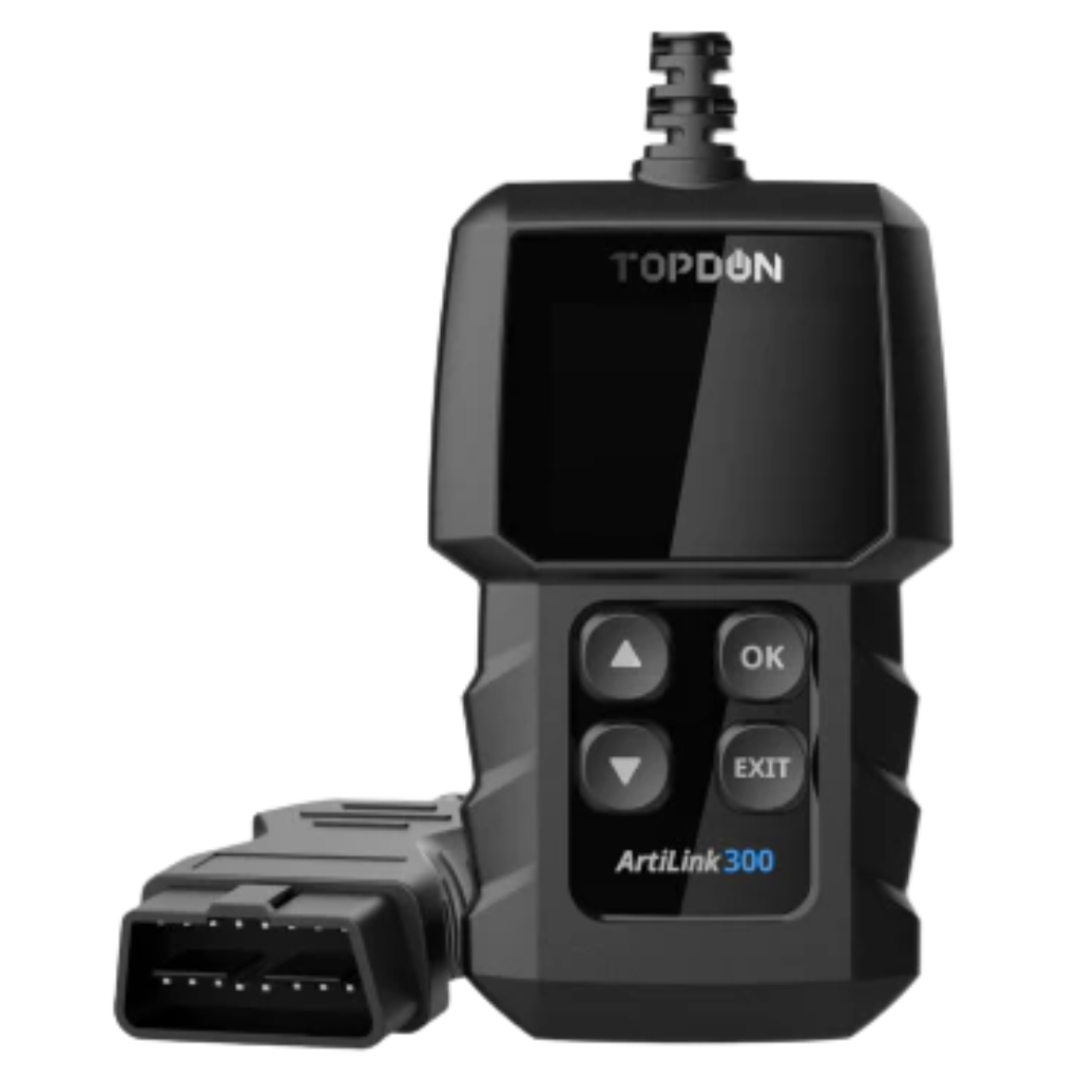

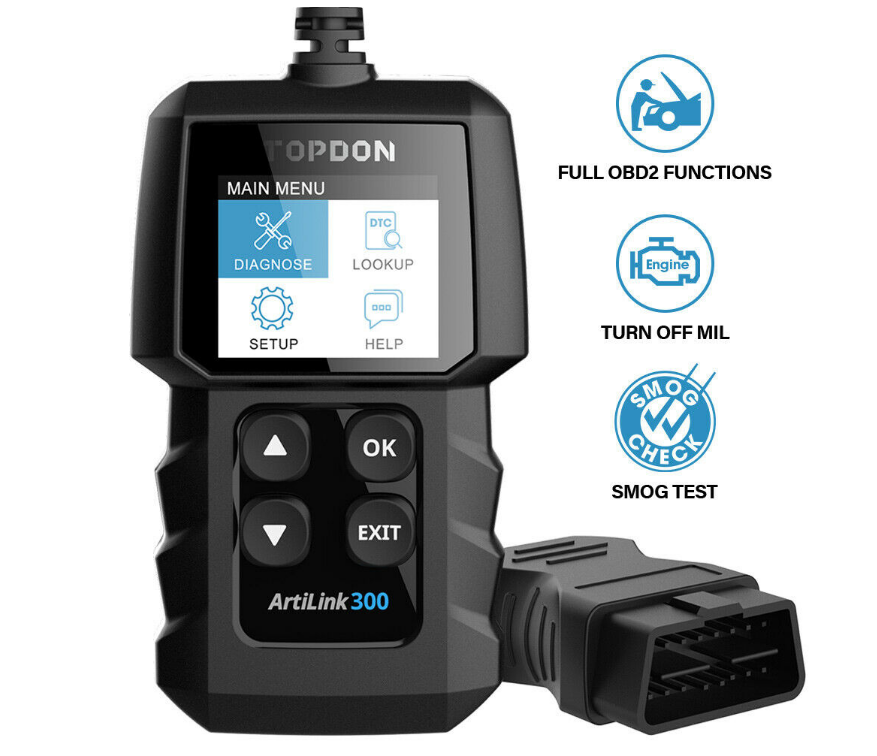

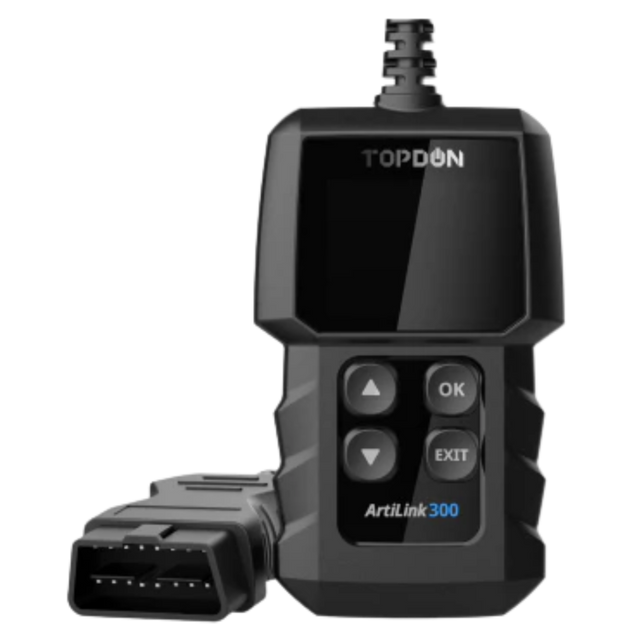

TOPDON ArtiLink300 OBD2 Diagnostic Scan Tool

TopDon AL300 Features:

1. Works on most 1996 and newer vehicles (CAN, ISO9141, KWP2000, J1850 PWM, J1850 VPW) worldwide
2. Features the full OBD2 functionalities at a fraction of the price of competitors
3. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes
4. Easily determines the cause of the Malfunction Indicator Light (MIL)
5. Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors
6. Views freeze frame data

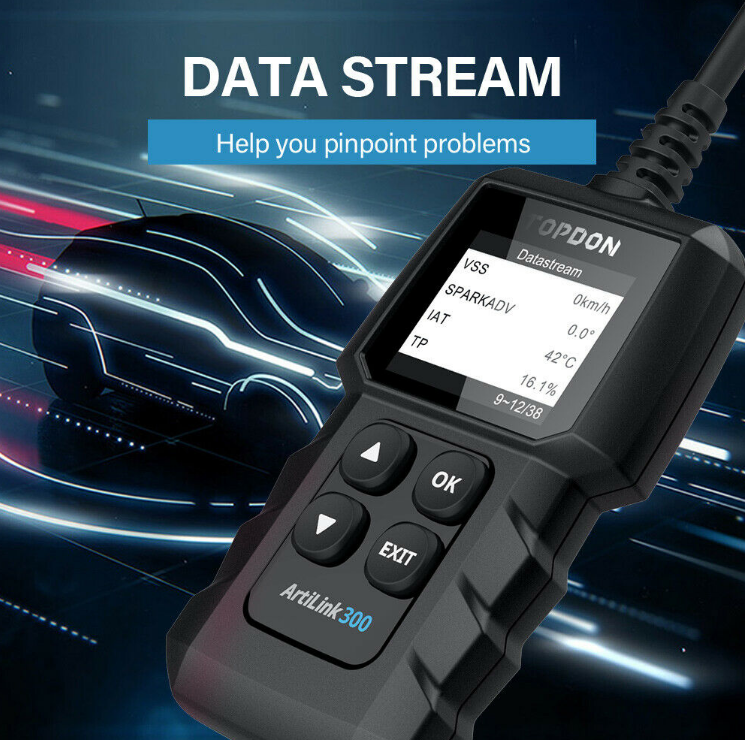

7. Reads live PCM datastream
8. Displays monitor and I/M readiness status (emissions)

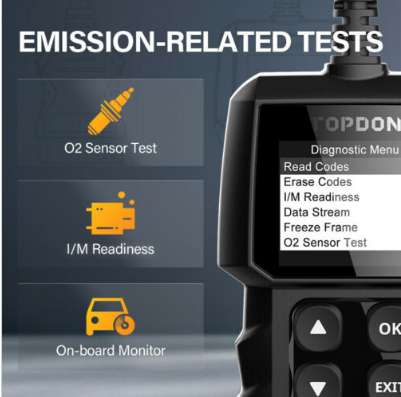

9. Supports valuable O2 sensor test, on-board monitor test, EVAP system test (mode 6, 8)
10. Retrieves vehicle information (VIN, CIN and CVN)
11. DTC LookUp library
12. 1.77-inch TFT color screen
13. Multilingual menu (7): English, French, German, Spanish, Portuguese, Italian, Russian
14. Extremely easy to use and, rugged design and highly reliable

TopDon Scan tools support AU Holden and Ford vehicles

Car Coverage & Languages

-  Unlike other cheaper scanners in the same price range, this TOPDON OBD2 scanner supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN (Controller Area Network).

-  Works on most vehicles sold worldwide with the model year of 1996 or newer.

-  Multilingual menu: English, French, German, Spanish, Portuguese, Italian, Russian.

DTC LookUp

-  Simply select the error code, to get an in-depth explanation of its meaning.

-  Make in-time decisions about possible repairs.

-  Save the trouble of looking for the meaning of a diagnostic trouble code online.

Peace of Mind in a Box

- The OBD2 scanner’s mini size fits comfortably in the palm of a hand. So that you can carry it around no matter in the garage or on a trip.

- The rugged plastic adds to the overall structural durability.

- The relatively large color 1.77” TFT display makes viewing the data information very easy.

Specifications:

Display: 1.77 Color Display

Operating voltage: 9~18V

Storage Temperature: -20℃~70℃（-4℉~158℉）

Working Temperature: -10℃~50℃（14~122℉）

Dimension: 19.9*71.7*23.3mm (4.72*2.82*0.92 inch)

Length: 1050mm (41.33 inch)

Net Weight: 210 g (7.40 oz)

Package Lists:

1*TOPDON ArtiLink 300 Code Reader

1*Quick start Guide

1*User's Manual
