Otofix D1 Professional Diagnostic Scan Tool

Discover the OTOFIX D1, your ultimate diagnostic companion offering comprehensive solutions for automotive maintenance. This advanced tool delivers unparalleled capabilities including full system diagnosis, ECU coding, and OE-level diagnostics with DTC analysis.

The OTOFIX D1 excels with its robust hardware and integrates seamlessly with OTOFIX cloud services, ensuring you stay updated with the latest diagnostic solutions for a wide range of popular vehicle makes and models. From reading and clearing codes across all systems to performing bi-directional control and comprehensive service functions like oil service reset and TPMS programming, the OTOFIX D1 puts professional-grade diagnostics in the palm of your hand.

Key Features:

  • Full system diagnosis and comprehensive service functions.
  • ECU coding and OE-level diagnostics with DTC analysis.
  • Bi-directional control for actuators, valves, and pumps.
  • Supports advanced features for Volkswagen and Audi including online coding and IMMO.
  • OTOFIX cloud service integration for remote support and diagnostic report sharing.
  • Extensive vehicle coverage across 53 US, Asian, and European models.
  • Intuitive interface with live data display in text, graph, and analog formats.
  • Auto VIN technology for quick vehicle identification.
  • Package includes main unit, power adapter, cables, and carrying case.

Main Features:

  • Read/clear codes for all available systems. Display live data in text, graph & analog for easy data review
  • Auto VIN technology can automatically identify the vehicle’s make, model, and year information in no time
  • Connect seamlessly with OTOFIX cloud service to obtain remote expert support and share diagnostic reports
  • Supports battery diagnostics with BT1 Lite Smart Battery Tester (purchased separately) and you can add on the Autel MV105S inspection camera
  • Display live data in text, graph & analog for easy data review
  • Oil Service Reset
  • TPMS Service – Quickly looks up the tire sensor IDs from the vehicle's ECU, as well as perform TPMS programming and reset procedures after tire sensors are replaced;
  • EPB Service
  • ABS/SRS Services
  • SAS Service
  • DPF Regeneration
  • BMS Service
  • Brake Bleed
  • IMMO Service
  • Injector Coding
  • Throttle Adaptation
  • Headlamp, Suspension, Lang change, Odometer, Seats, CHG tire size, TEC learn and WIN DR ROOF, etc
  • Intelligent Applications to Facilitate Data Management
  • Shop Manager: manage the workshop information, customer information records, and keep test vehicle history records.
  • Data Manager: OTOFIX D1 can store, print, and review the saved files.
  • Notification Center: Receives the regular online messages from the server for system update notifications or other service information.


Operating System: Android™ 9
Processor: 4x ARM Cortex-A35 (1.5Ghz)
Memory: DDR 2GB, EMMC 64GB
Display: 7-inch LCD capacitive touchscreen
Connectivity: USB OTG Type-C/ USB Host Type-C
Battery: 5800 mAh
Operating Temp: 0 to 45°C
Storage Temp: -10 to 60°C
Dimensions: 21 cm x 14.5 cm x 1.5 cm
Recommended Use Indoor
Weight: 885g
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (Highspeed, Middlespeed, Low-speed, and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol Honda Diag-H Protocol, TP2.0, TP1.6

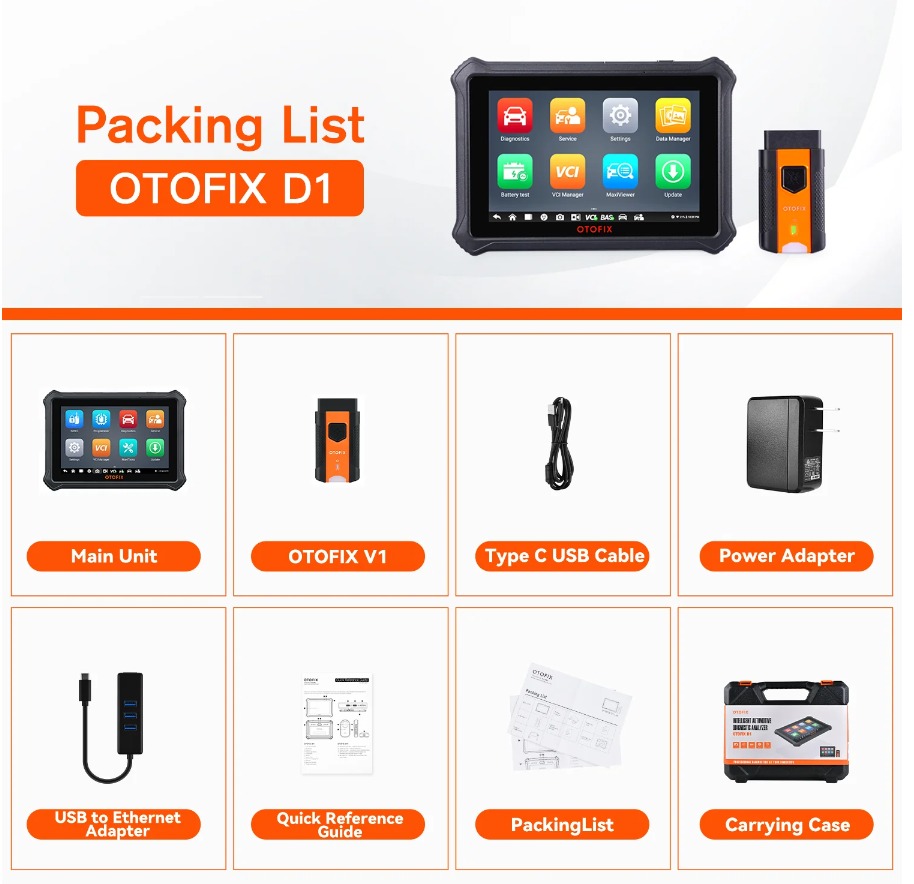

Package Includes:
Otofix D1 Main Unit
Power Adapter
Main Cable
Type C USB Cable
USB to Ethernet Adapter

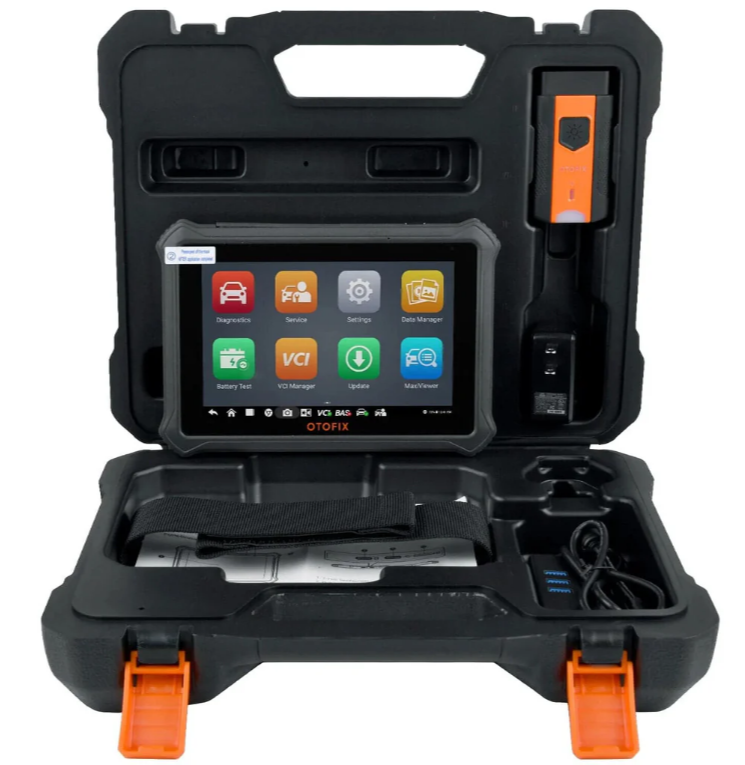

Carrying Case
Quick Reference Guide

Free shipping

After sales support

One year warranty

Two years free updates

30 day money back guarantee - we guarantee you'll love it or you'll get your money back
