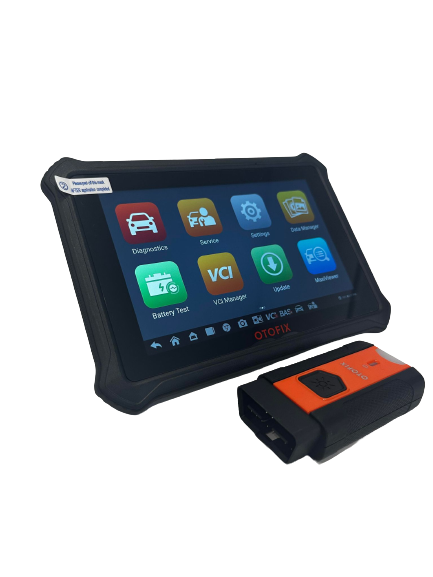

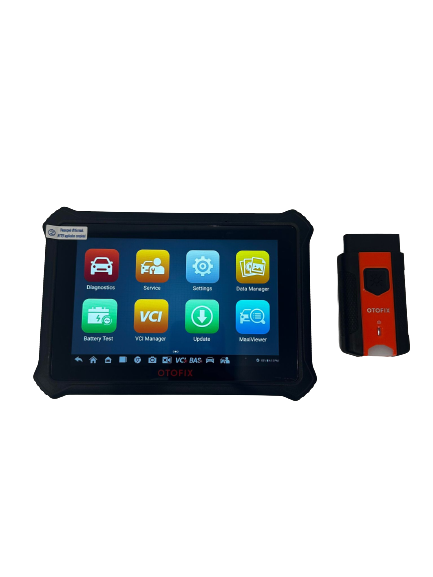

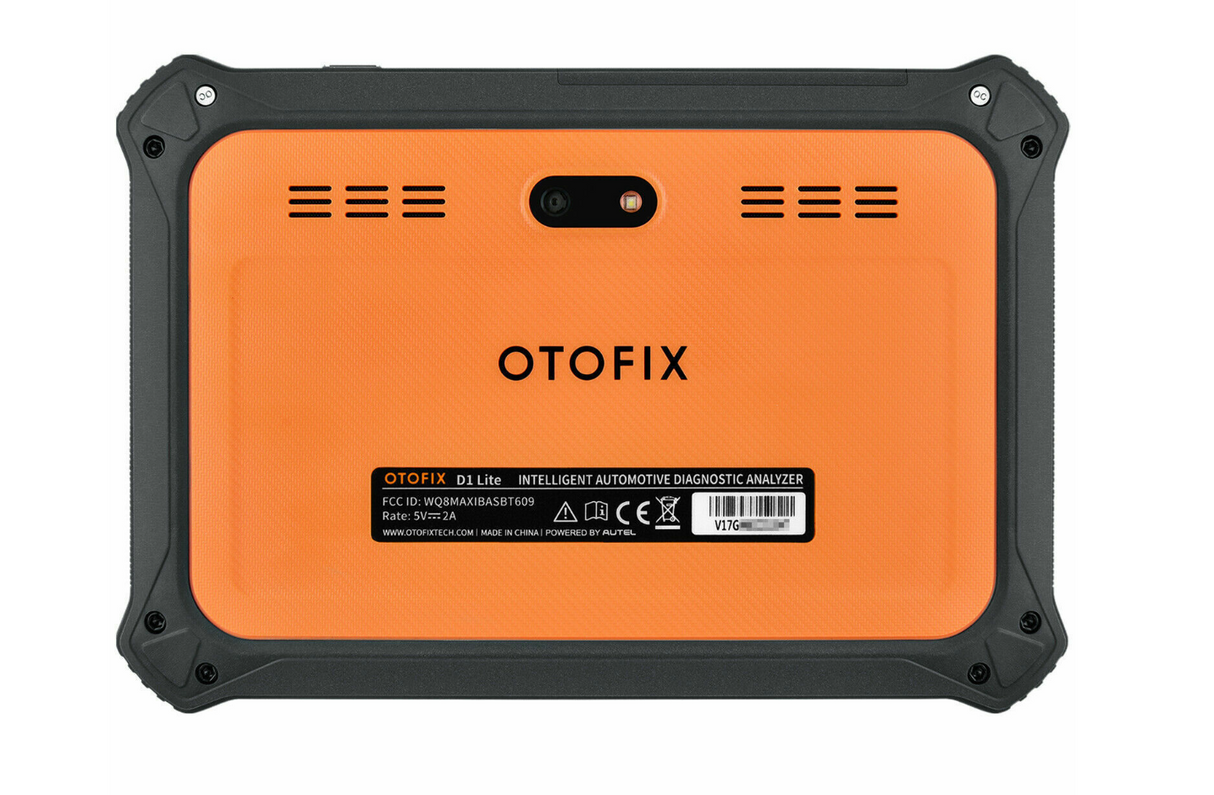

Otofix D1 Lite OBD1 OBD2 Bi-Directional Full Systems Scan Tool

Introducing the OTOFIX D1 Lite Bluetooth Scan Tool - Unleash the Power of Professional Diagnostics

With the OTOFIX D1 Lite, you'll have the ultimate diagnostic tool at your fingertips. Equipped with a 7-inch touch screen, this professional-grade device focuses on providing comprehensive solutions for reading and clearing Diagnostic Trouble Codes (DTCs) across complete vehicle systems. From oil resets to DPF regeneration, EPB resets to SAS resets, and even injector coding, the D1 Lite has got you covered.


-Complete System Diagnostics: Read and clear codes for all available systems with ease. The device displays live data in text, graph, and analog formats, making it convenient for quick data review.

-Auto VIN Technology: The D1 Lite's Auto VIN technology instantly identifies the vehicle's make, model, and year information, saving you valuable time during the diagnostic process.

-OTOFIX Cloud Integration: When paired with the OTOFIX cloud-based app on your phone or tablet, the D1 Lite becomes even more powerful. Gain access to remote expert support, share diagnostic reports seamlessly, and stay updated with the latest fixes for a wide range of popular vehicle makes and models.

-Smart Battery Diagnostics: The D1 Lite supports battery diagnostics when paired with the BT1 Lite Smart Battery Tester (purchased separately). Keep track of your vehicle's battery health and ensure optimal performance.

-38 Service Functions: Beyond diagnostics, the D1 Lite offers a range of service functions such as oil service reset, service mileage and interval reset, ABS bleeding, forced DPF regeneration, injector coding, battery registration and reset, steering angle sensor (SAS) reset, and more.

-User-Friendly Display: The device presents live data in text, graph, and analog formats for easy data review, allowing you to analyze information efficiently.

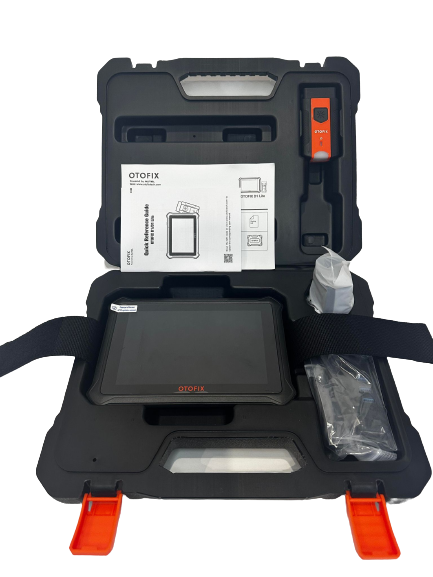

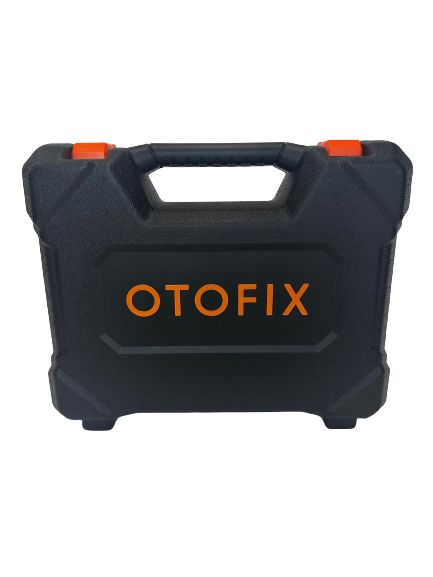

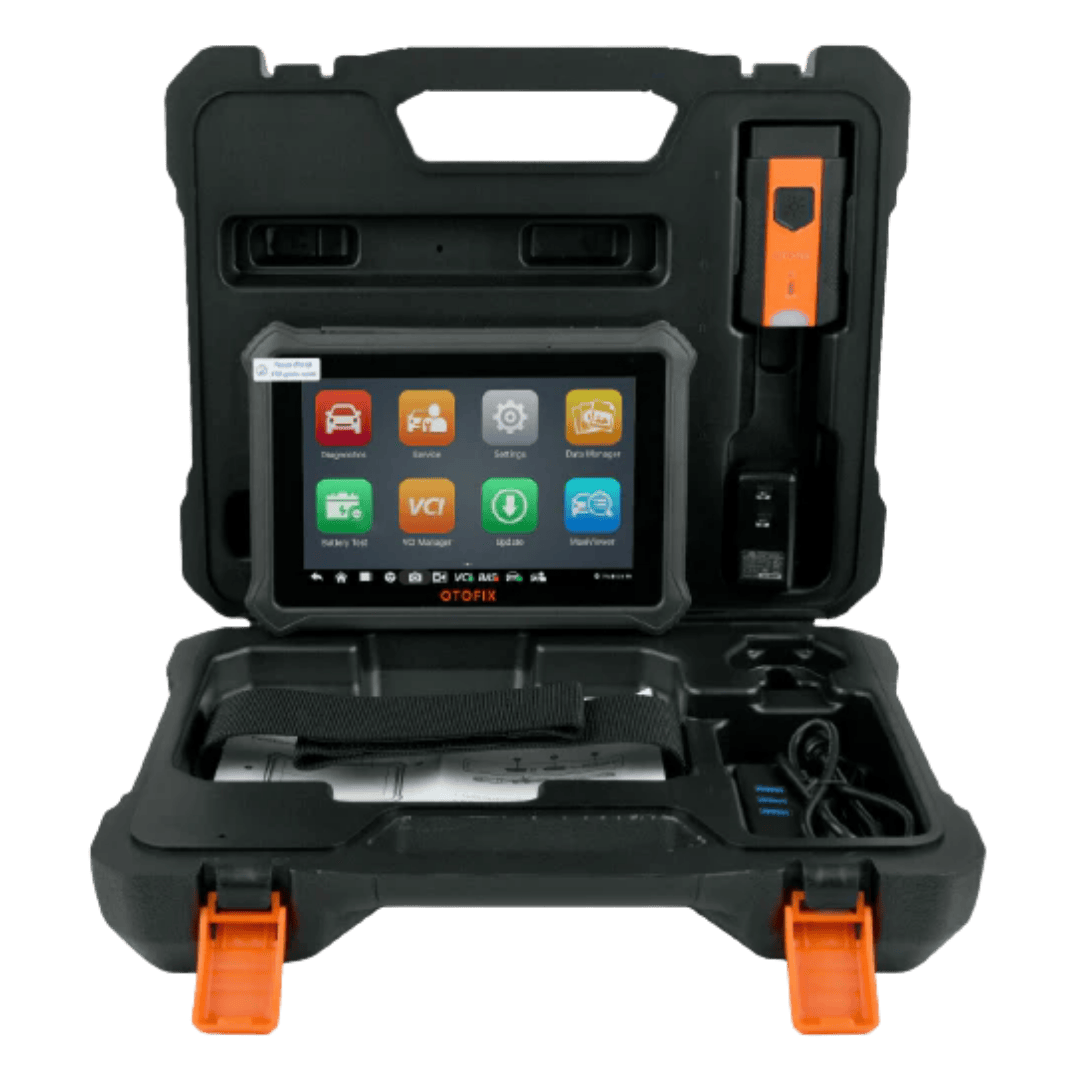

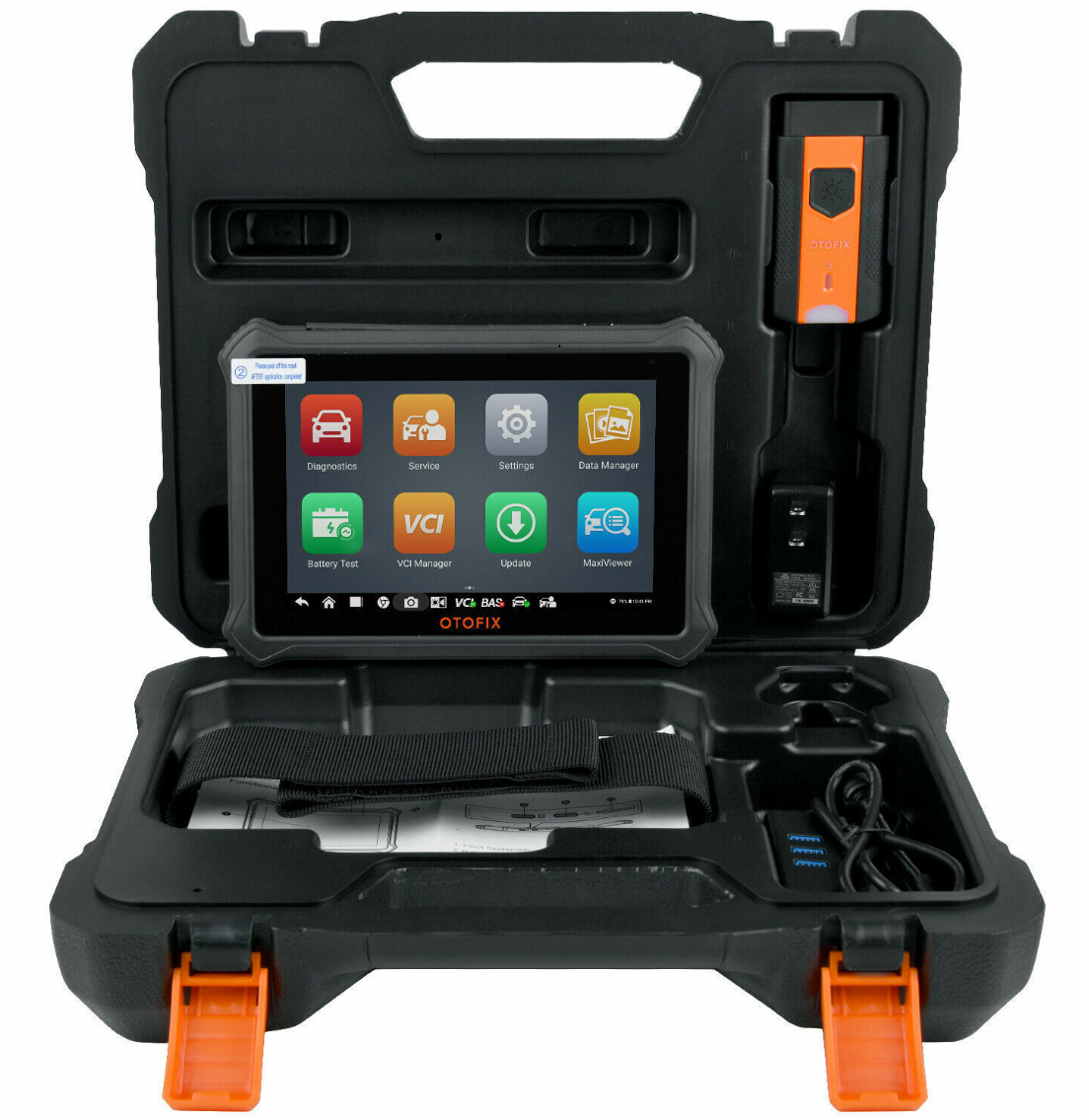

-Portable and Convenient: The OTOFIX D1 Lite comes with a comprehensive package that includes the main unit, power adapter, main cable, Type C USB cable, USB to Ethernet adapter, and a carrying case. Take it with you wherever you go and have a professional garage in your hand.

-One Year Limited Warranty: We stand behind the quality of our products. The OTOFIX D1 Lite is backed by a one-year limited warranty for your peace of mind.


Operating System: Android™ 9
Processor: 4x ARM Cortex-A35 (1.5Ghz)
Memory: 64GB
Display: 7-inch LCD capacitive touchscreen
Connectivity: USB OTG Type-C/ USB Host Type-C
Battery: 5800 mAh
Operating Temp: 0 to 45°C
Storage Temp: -10 to 60°C
Operating Humidity: 5%-95%non-condensing
Dimensions: 270.8mm x 176.0mm x 36.0m
Updates: Two years free
Weight: 885g
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (Highspeed, Middlespeed, Low-speed, and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol Honda Diag-H Protocol, TP2.0, TP1.6
