OBDSTAR RH850 Adapter

Name: OBDSTAR RH850 Adapter
Brand: Premium Diagnostic Equipment
SKU: OBS-ACC-RH850
Price: 195.00 AUD
Availability: InStock

$195.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

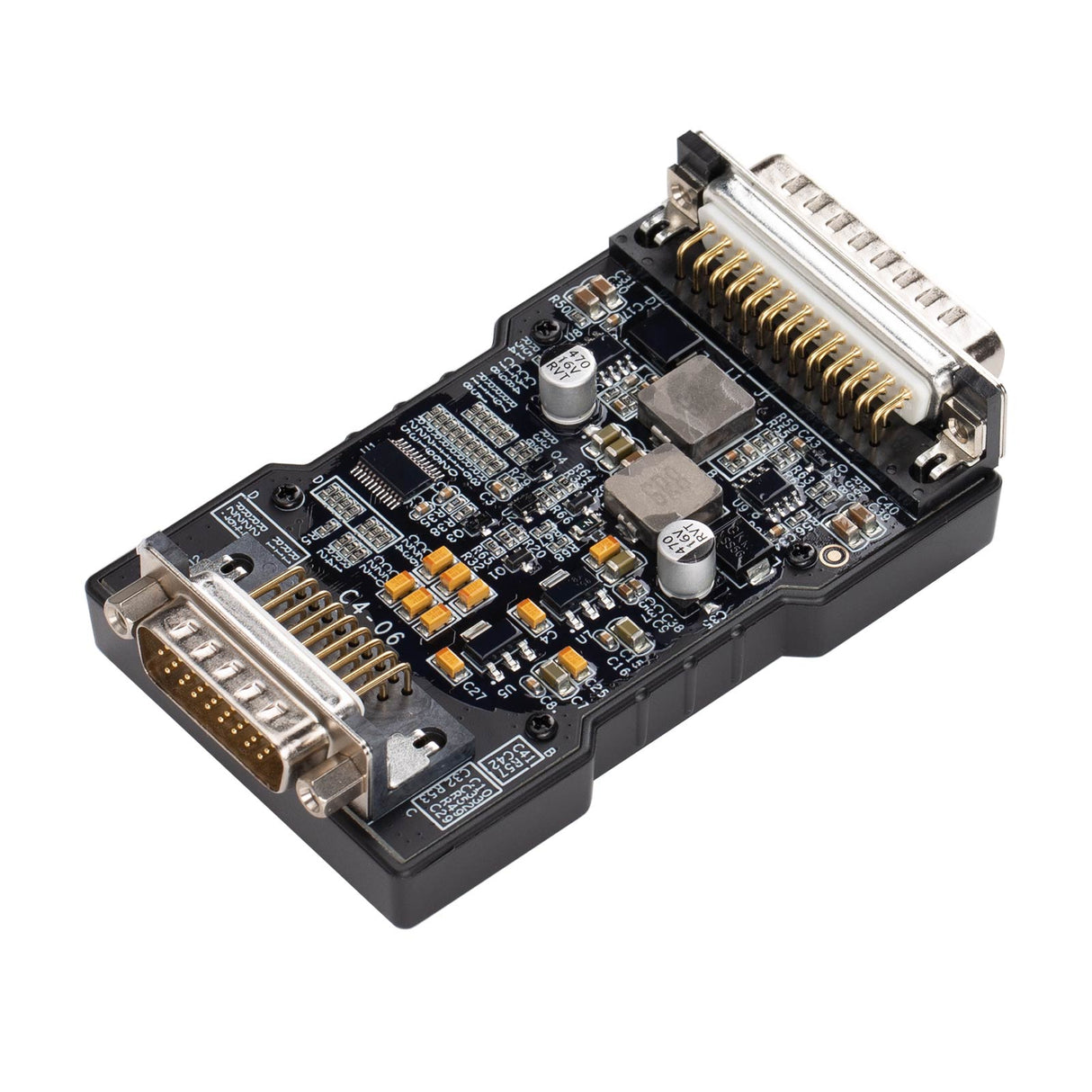

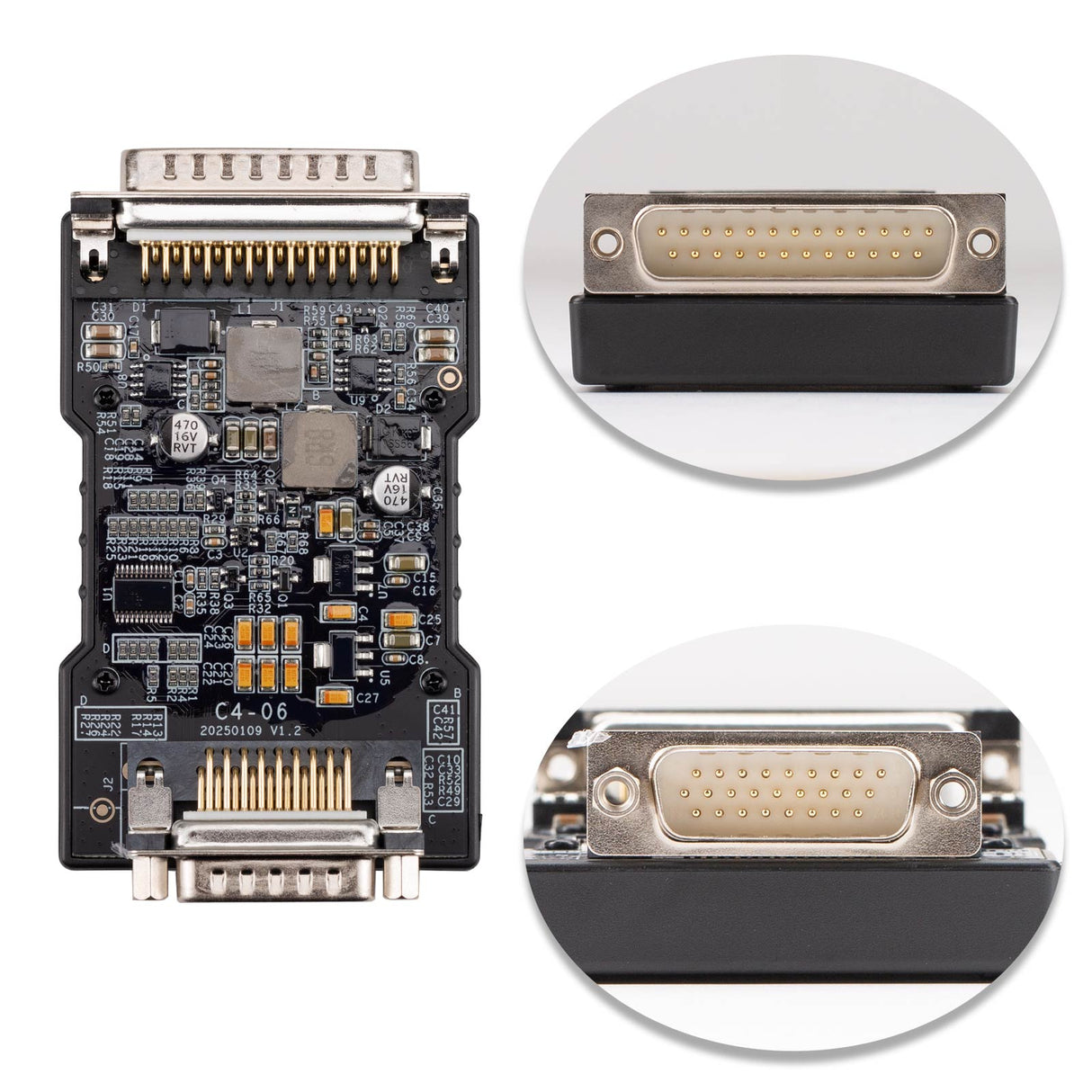

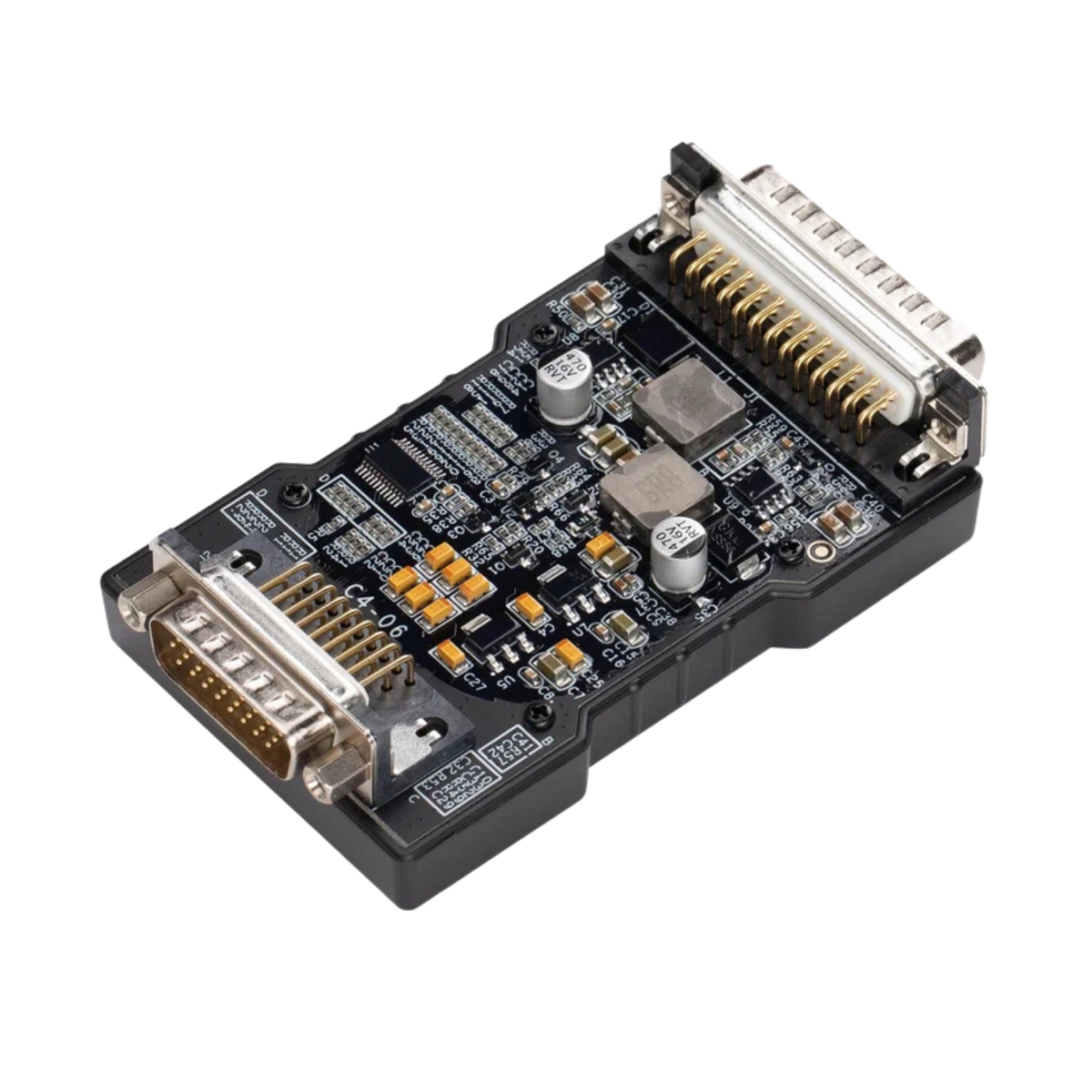

OBDSTAR RH850/V850 Adapter

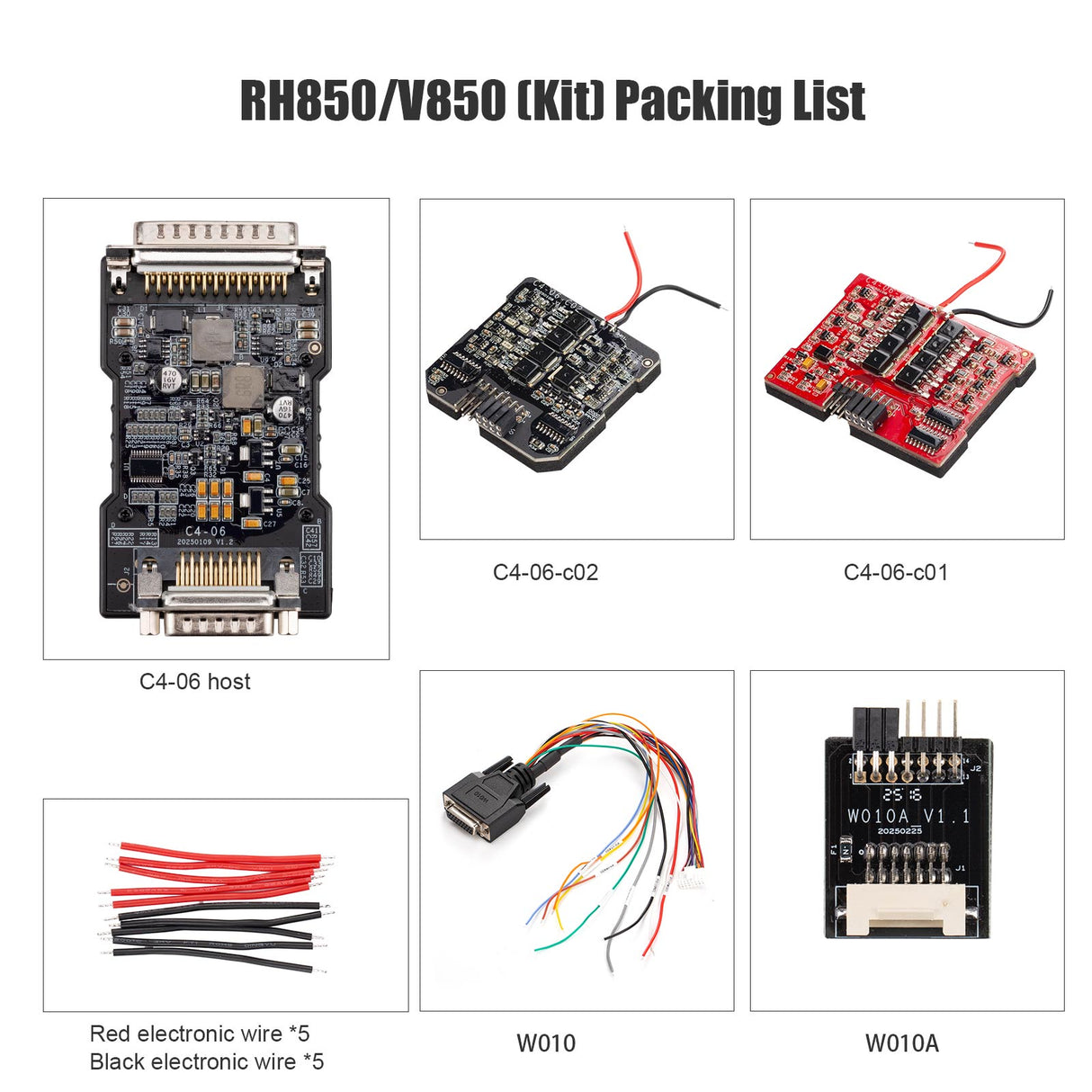

The RH850/V850 Adapter is a kit of connectors and decryption jumpers that works alongside the OBDSTAR MP001 programmer on the DC706 to unlock MQB all-keys-lost, airbag reset, dash, BCM and ELV work that the MP001 can't do on its own.

If you're already running a DC706 with the MP001 kit and doing key programming or airbag reset work on VW Group, Ford, Nissan/Renault or FCA vehicles, this adapter is what gets you into those modules.

Key Features

Requires the OBDSTAR MP001 programmer to operate
VW Group MQB48-5A dashboard read/decrypt across multiple D70F35xx and D70F36xx modules
ELV (steering lock) data reading and decryption on supported MQB platforms
Ford/Lincoln 2021+ BCM key programming, including all-keys-lost, on F-150, Bronco, Nautilus, Navigator, Mustang Mach-E, Focus and more
Nissan/Renault/Dacia HFM and BCM key programming on X-Trail, Qashqai, Sylphy, Arkana, Clio V, Megane, Sandero and more
FCA BCM support for Fiat, Alfa Romeo, Jeep and Dodge (rolling out as coverage develops)
Airbag reset and crash data erase across a wide chipset range covering Subaru, Toyota, Lexus, Volvo and other Asian and European brands
All data read comes back unencrypted, so it's usable on third-party equipment too

Description

The MP001 programmer handles the read/write/clone side of things, but a lot of the late model VW MQB, Ford and Nissan modules use encrypted data that needs a dedicated decryption path. That's what this adapter is for.

On MQB platforms it covers dashboard variants like D70F3529, D70F3537, D70F3525, D70F3526, D70F3532 and D70F3535, plus ELV data on the same platform, so you're not stuck pulling the steering lock apart to get a key programmed after an all-keys-lost job.

Heads up on limitations: MED17.1.27, MED17.1.62, MED17.16, MG1CS001, MG1CS111, MG1CS011 and SIMOS16 aren't supported, and MQB49-5C (ID5C) is still in development at time of writing. FCA coverage is also still being rolled out. Check your specific ECU/BCM part number with us before you buy if you're chasing a specific job.
