OBDSTAR MP001 Kit - Add on for DC706
Description
Description

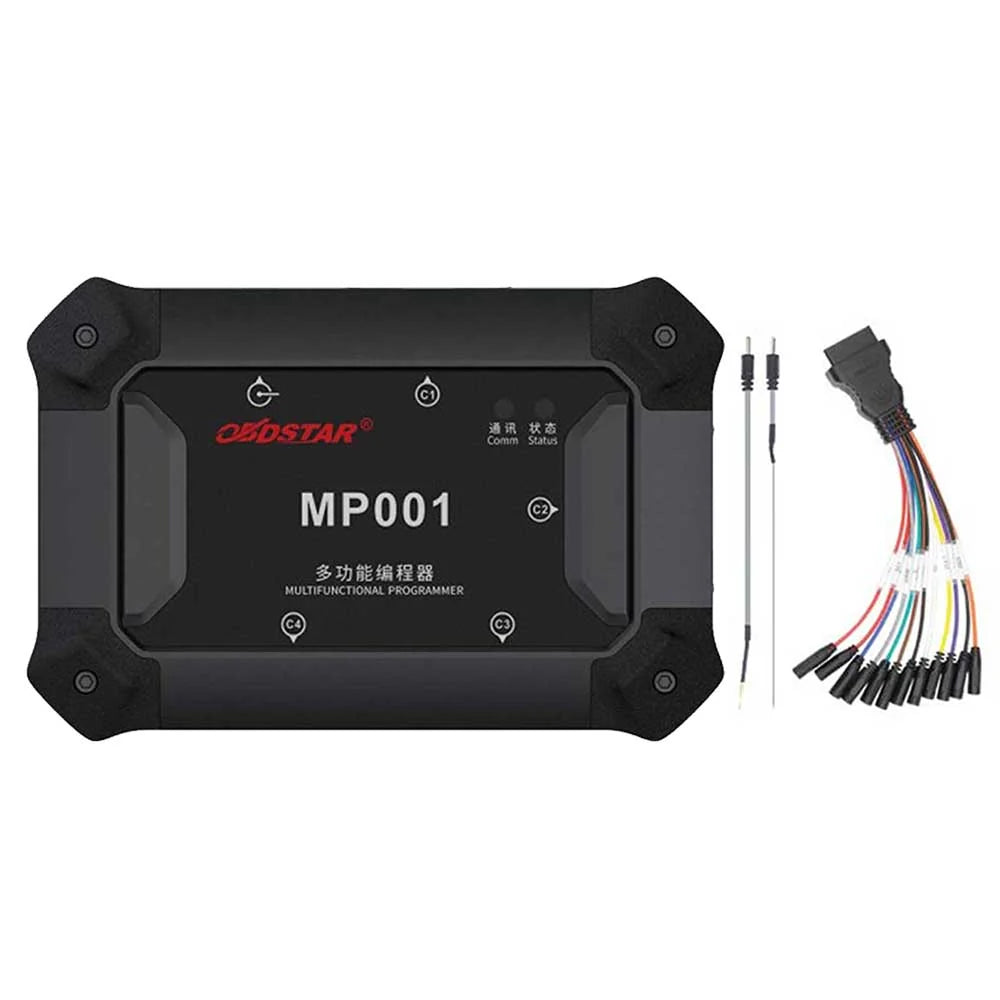

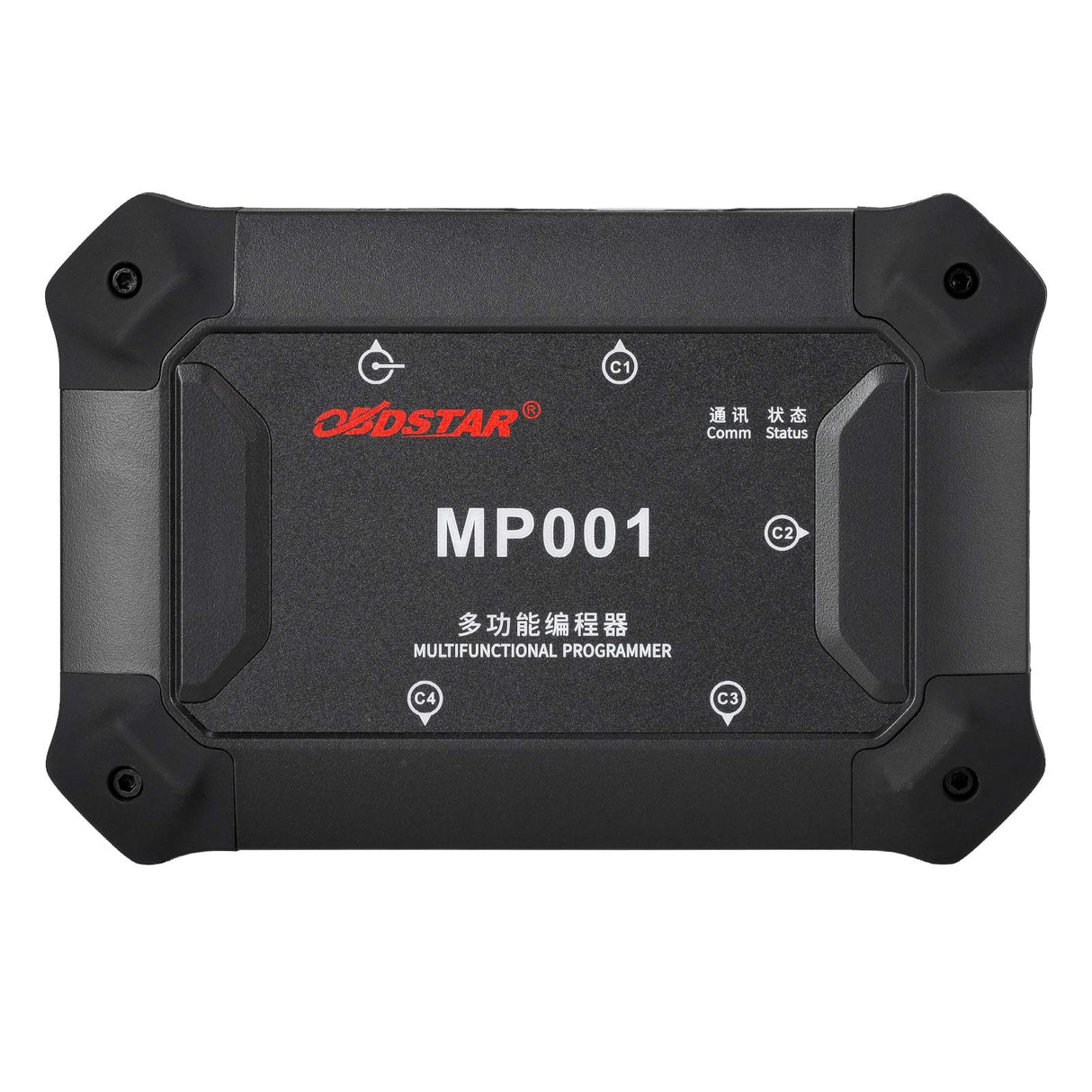

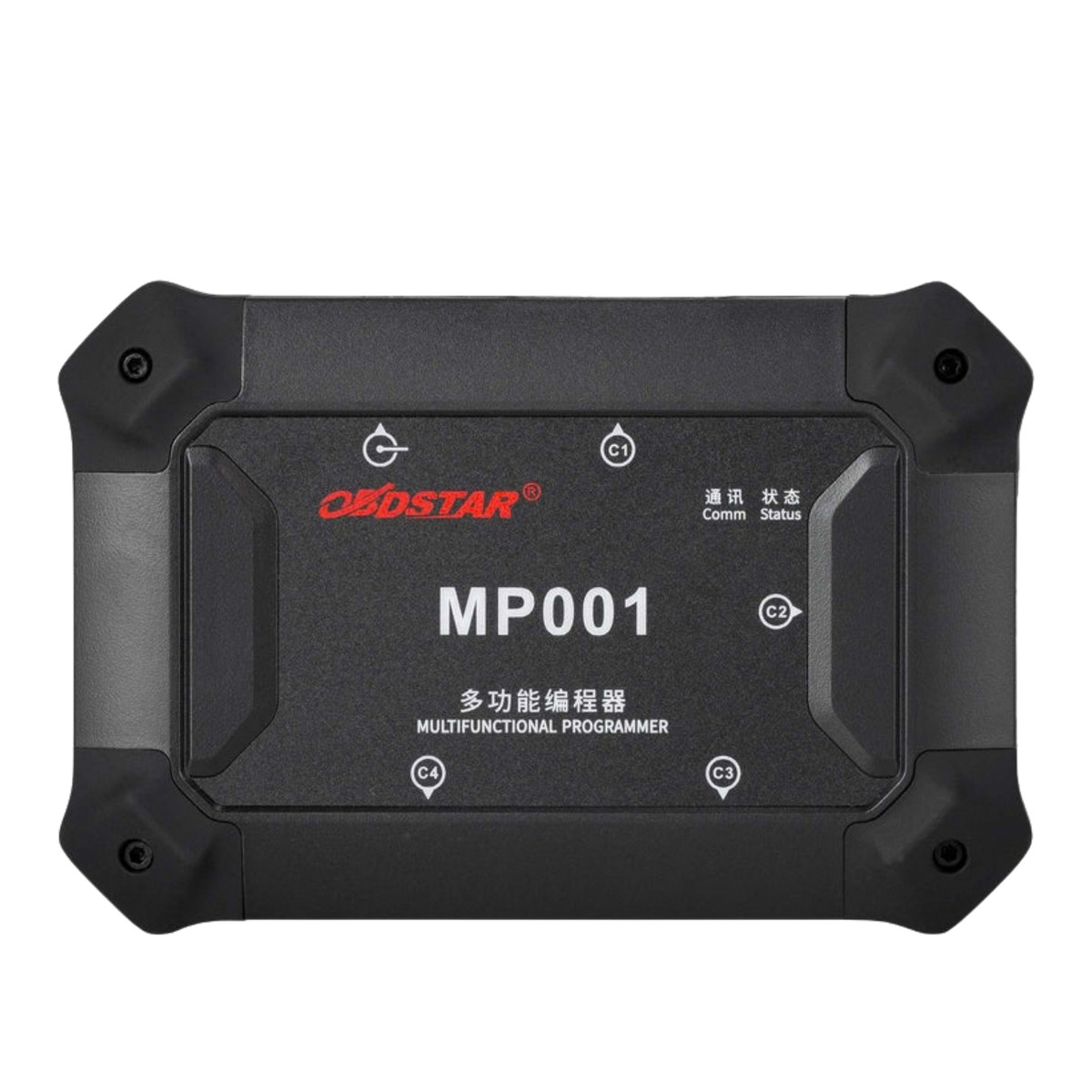

OBDSTAR MP001 Kit
The MP001 Kit is the current generation programmer and adapter set for the OBDSTAR DC706, replacing the older P002 and P003/P003+ adapters with one unit that handles EEPROM and MCU read, write and clone work across cars, commercial vehicles, EVs, marine and motorcycles.
If you're running a DC706 and doing regular ECU work, this kit gives you the extra I/O and updated adapter coverage to keep up with newer ECM and TCM platforms, without buying separate P002 and P003 adapters down the track.
Key Features
- 12 I/O ports on the MP001 programmer (the old P003+ only has 4)
- EEPROM and MCU read, write, clone and data processing
- Key flashing and steering angle repair on supported models
- Body computer data processing and IMMO removal on supported modules
- Pincode reading and battery/instrument module repair
- Replaces both the P002 and P003/P003+ adapters in one unit
- Supports SIMOS 18 BOOT mode and other newer ECM requirements
- Chrysler GPEC2/GPEC2A read and write without needing a 120-ohm CAN resistor
Why Upgrade to the MP001
The old P002 and P003+ adapters only give you 4 I/O ports, and a fair few of the newer ECM platforms need more than that to work properly. The MP001 has 12 I/O ports built in, so it's already set up for SIMOS 18 BOOT mode and future ECM work without needing another adapter down the track.
It also picks up jobs the older adapters wont cover, including Chrysler GPEC2/GPEC2A read and write without wiring in a 120-ohm CAN resistor, and mileage correction on the Honda C125 BIZ 2019 (93C66 chip) when paired with the MS80, MS50 or MK70 leads.
Compatible With
Built for the OBDSTAR DC706 ECU and TCU programming tool. Also used with the OBDSTAR P50 for R7F701A033 data work.
This is an accessory kit, not a standalone tool. You need a compatible OBDSTAR device already running the required software.
If you need to check coverage send us the ECU or TCU details you're working on and we'll confirm compatibility before you buy.
Technical Specifications
CPU: STM32F407VET6
Interfaces: DC power connector, OBD female, OBD male, DB9, DB25
Input Voltage: DC 12V/24V
Power Output: 500mA
Dimensions: 165 x 110 x 35mm
Weight: Approx. 260g
Operating Temperature: -10°C to 55°C

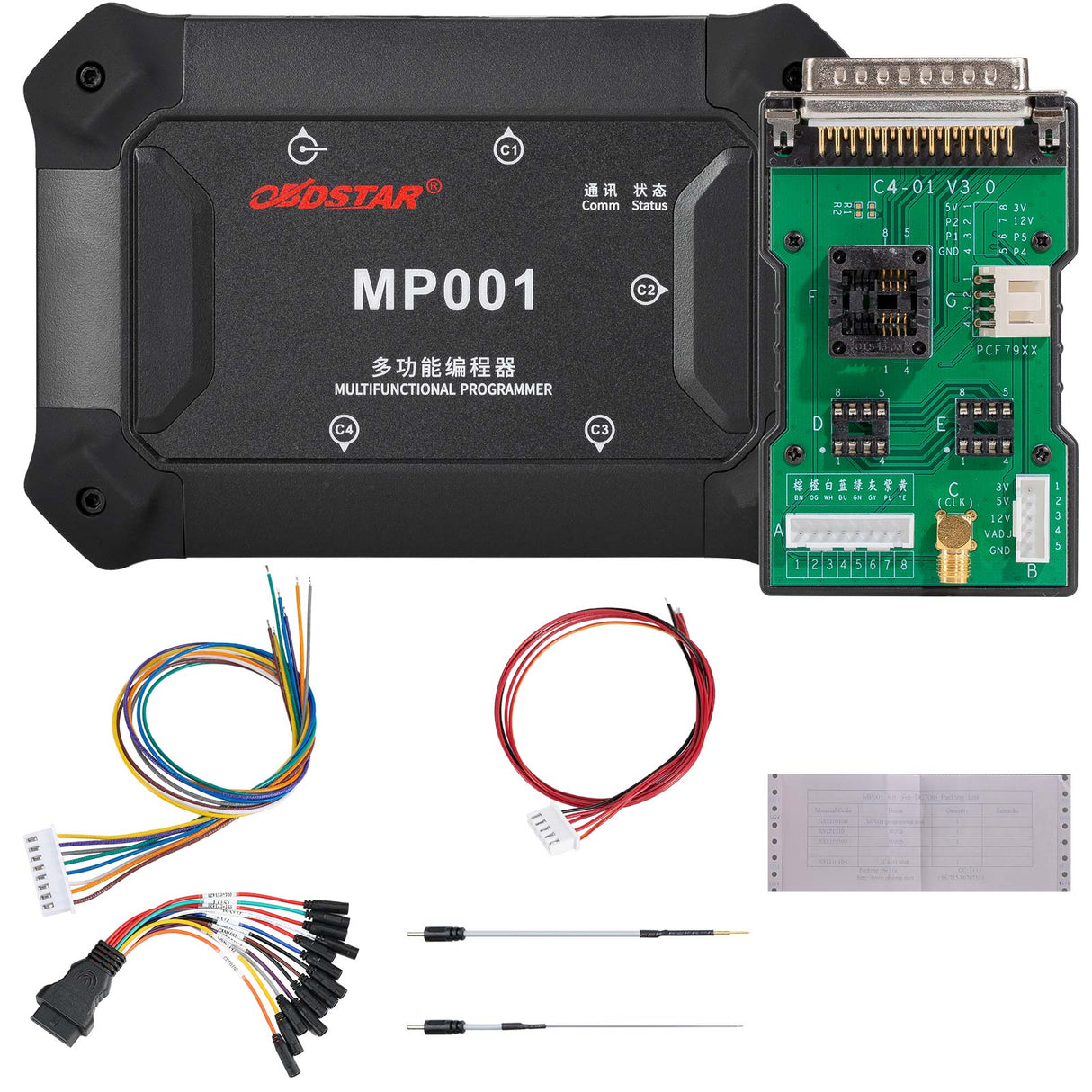

Package Includes
1pc x MP001 Programmer
1pc x C4-01 Host
1pc x W004 Read/Write Soldering Wire
1pc x W005 Read/Write Soldering Wire
1pc x W006 Clock Frequency Wire
1pc x ECU Bench Jumper
