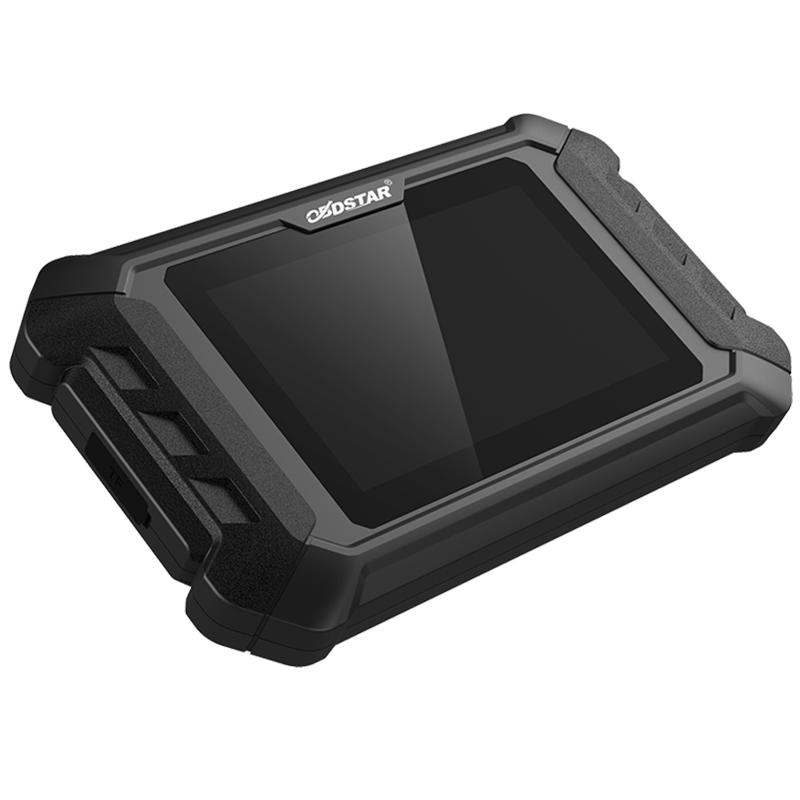

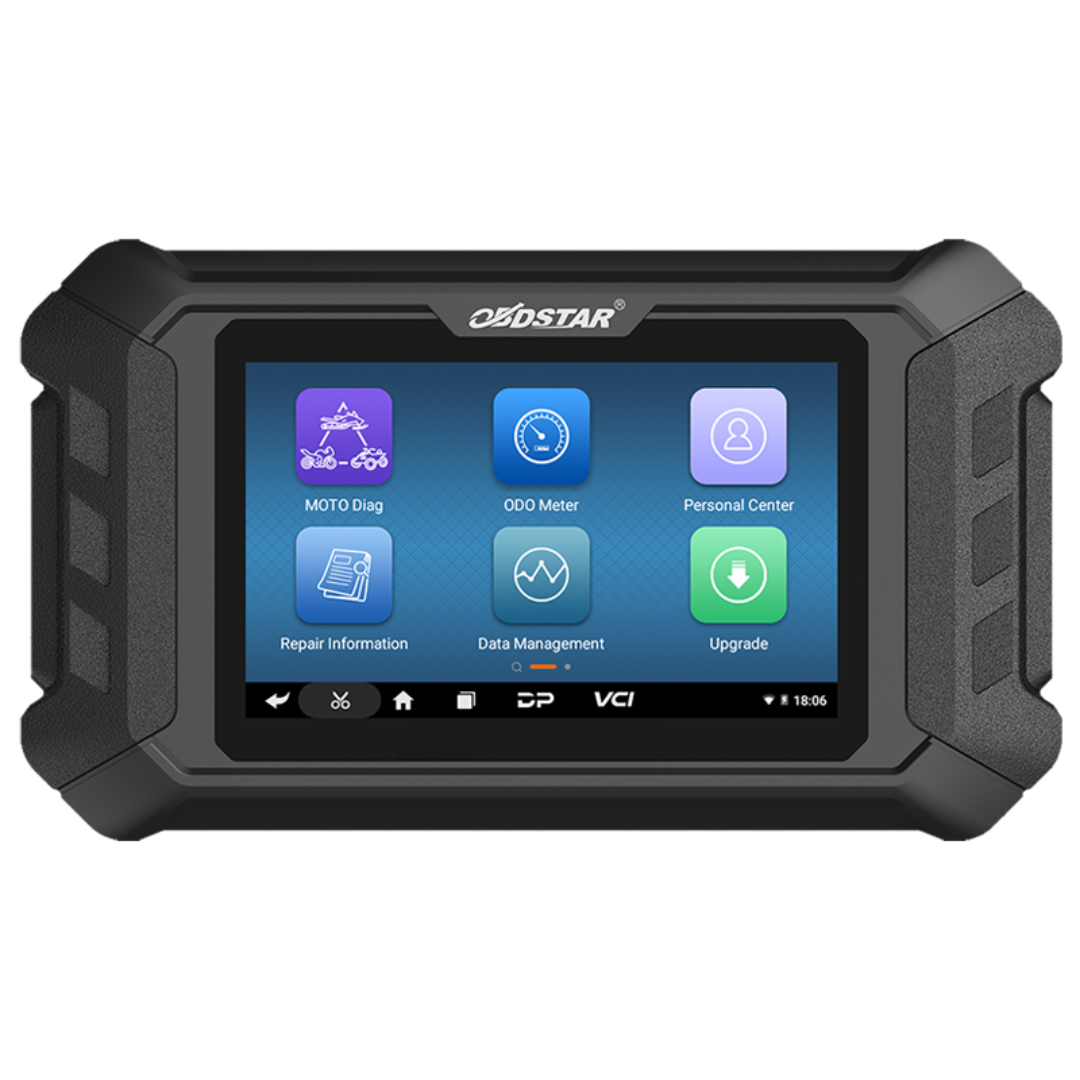

OBDSTAR iScan KTM HUSQVARNA Motorcycle Diagnostic Scan Tool
Professional-Grade Diagnostics for KTM & HUSQVARNA Bikes
Take your motorcycle diagnostics to the next level with the OBDSTAR iScan KTM HUSQVARNA — a dedicated scan tool engineered exclusively for KTM and HUSQVARNA motorcycles. Designed for mechanics, workshops, and performance tuners, this intelligent Android-based device combines powerful features with a rugged, compact design to deliver accurate, fast, and reliable diagnostics every time.
Core Diagnostic Functions

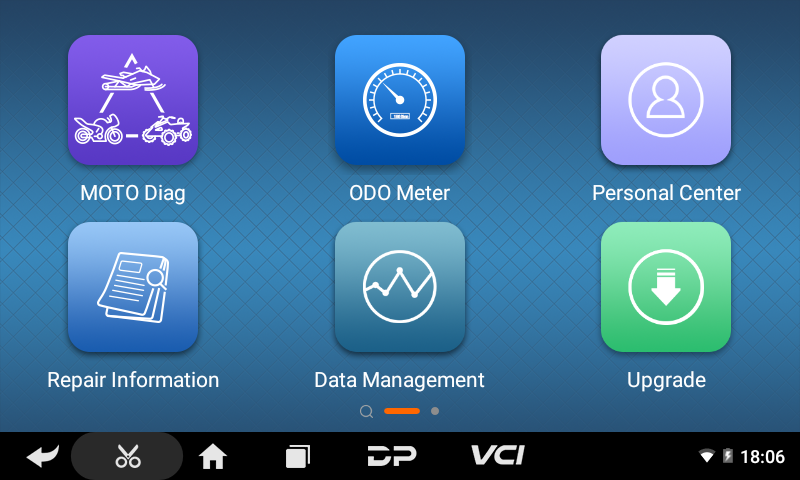

Android 5.1.1 Operating System
Enjoy a smooth, responsive experience with an intuitive interface that simplifies complex diagnostics.
Complete System Diagnostics
Supports reading & clearing fault codes, live data streams, active tests, ECU configuration, coding, and more — all in one compact tool.
Smart Menu Navigation
User-friendly layout allows fast access to functions, even for beginners or fast-paced workshops.
Live Data Recording & Playback
Easily identify sensor and component issues with real-time data logging and replay functionality.
Wi-Fi Connectivity
Stay up to date with one-click online software updates via built-in Wi-Fi.
Remote Technical Assistance
Receive fast help from OBDSTAR’s support team with integrated remote access features.
Advanced Workshop Features

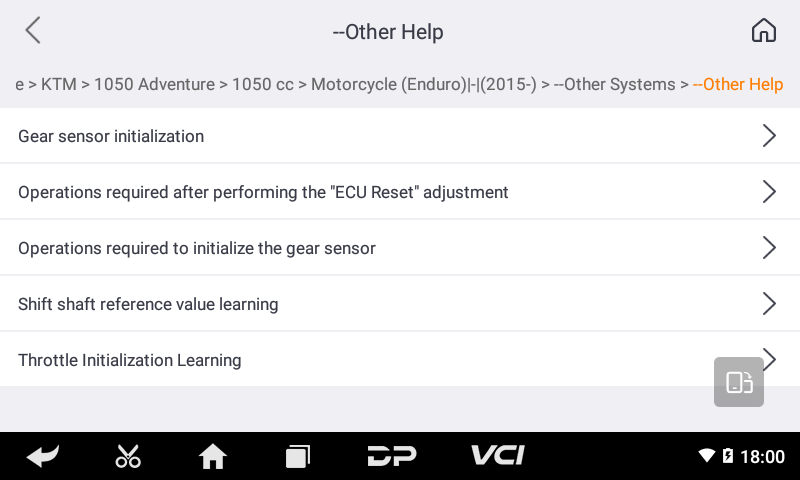

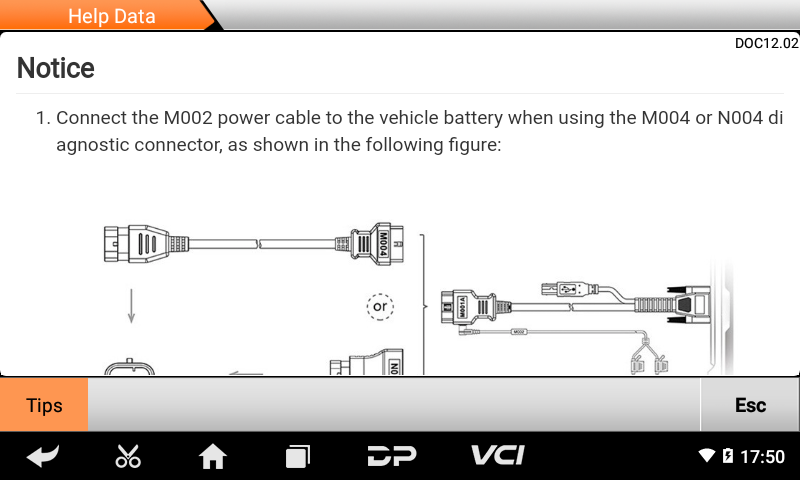

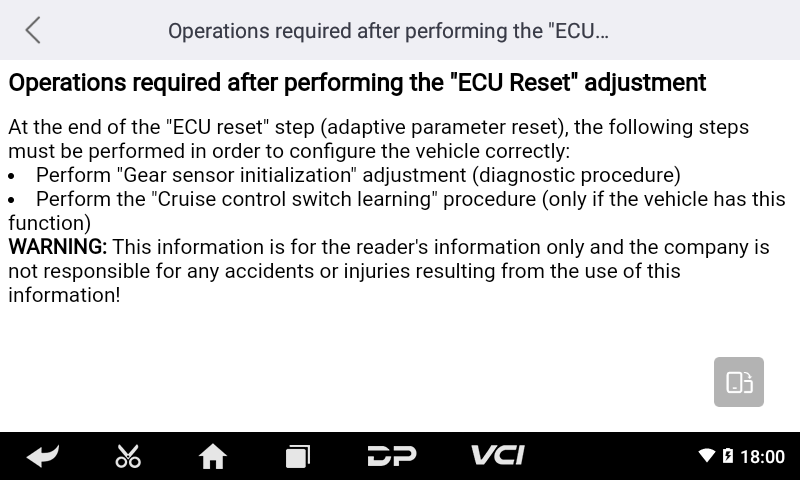

First-Fault Guidance & Repair Info

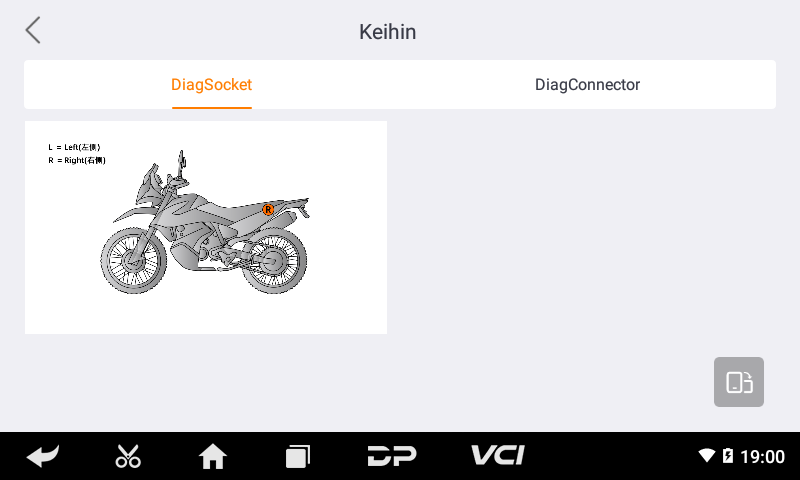

Get technical bulletins, connector locations, and helpful repair data to guide accurate diagnostics.
Multi-View Data Display
Visualize data your way—switch between text, waveform graphs, and instrument-style views.

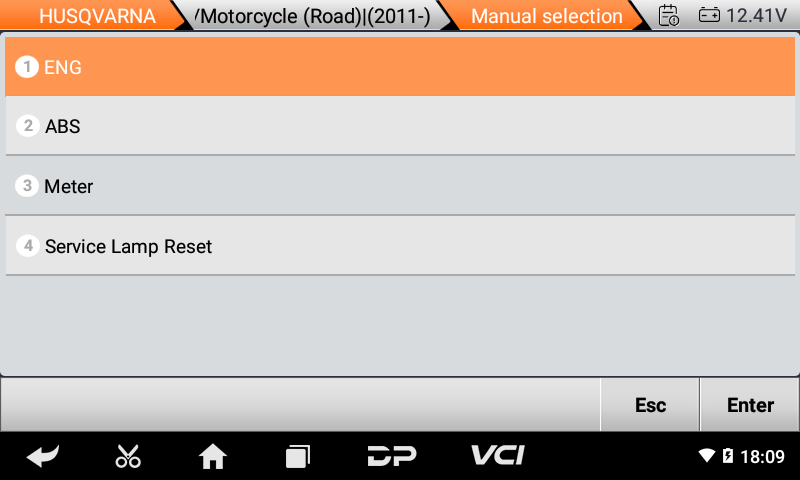

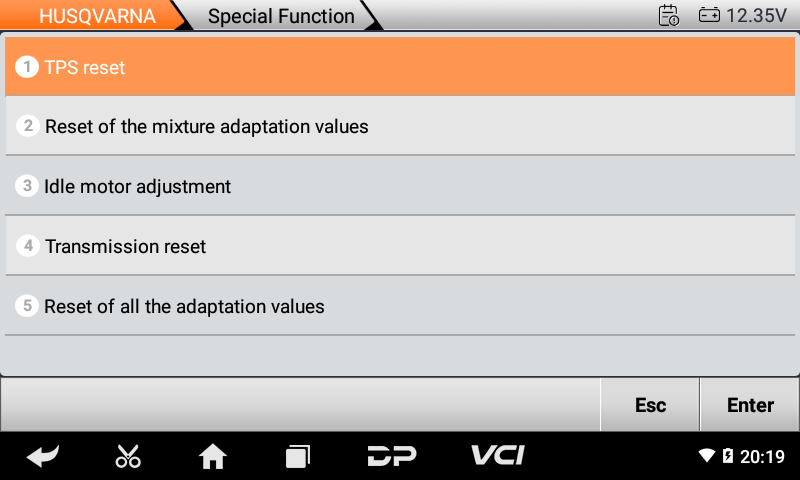

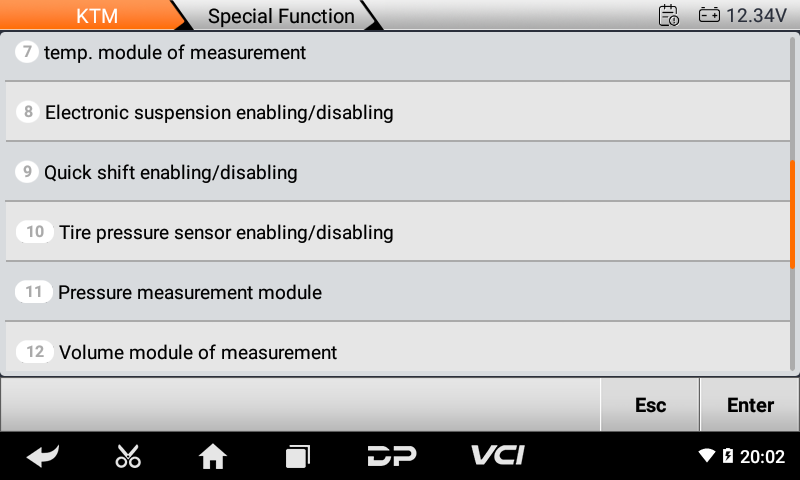

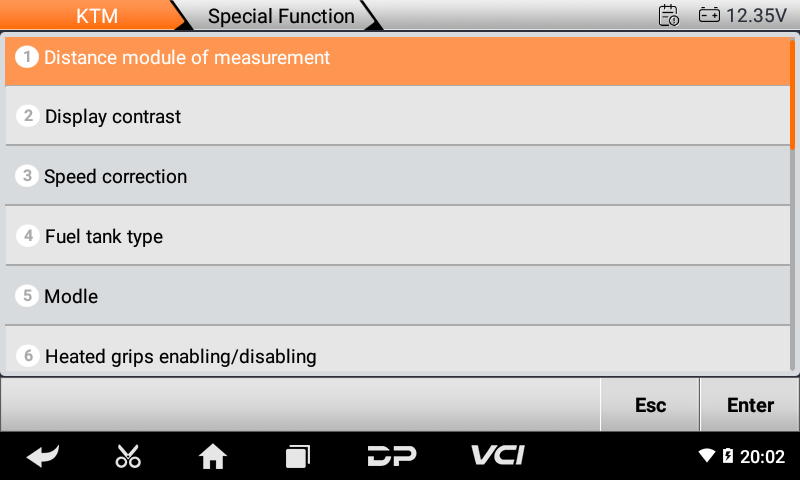

Powerful Control Module Functions
-
Automatic system scanning
-

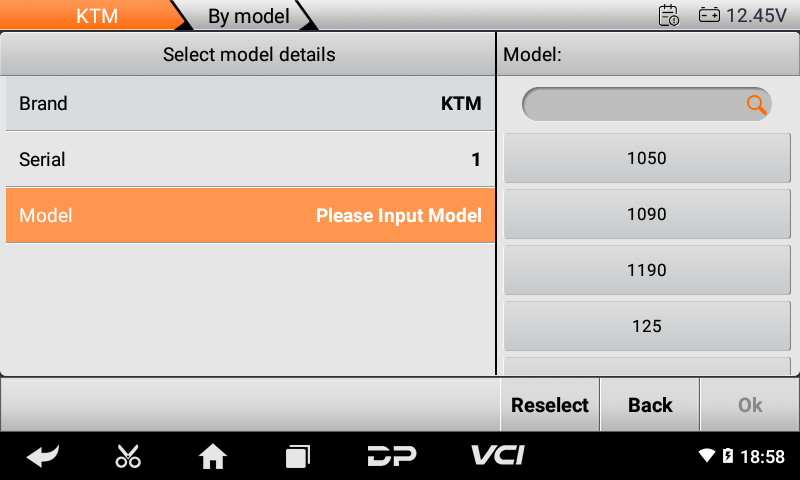

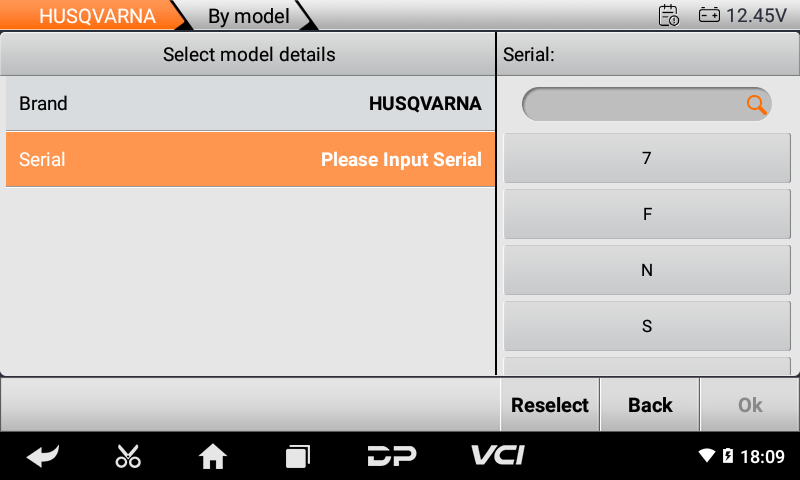

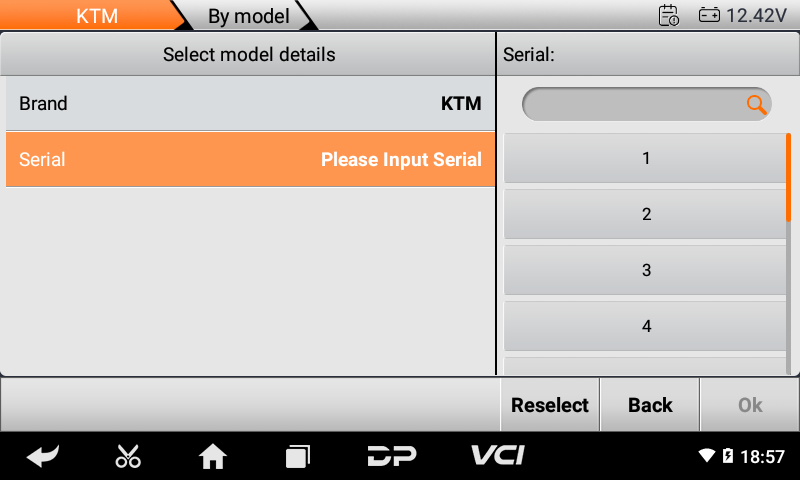

Auto VIN recognition
-
ECU programming & settings
-
Instrument cluster coding
-
TPMS calibration
-
ABS control unit configuration
-
Maintenance light reset
-
CO adjustment, idle speed tuning, A/F ratio reset
-
EOL mode and memory resets

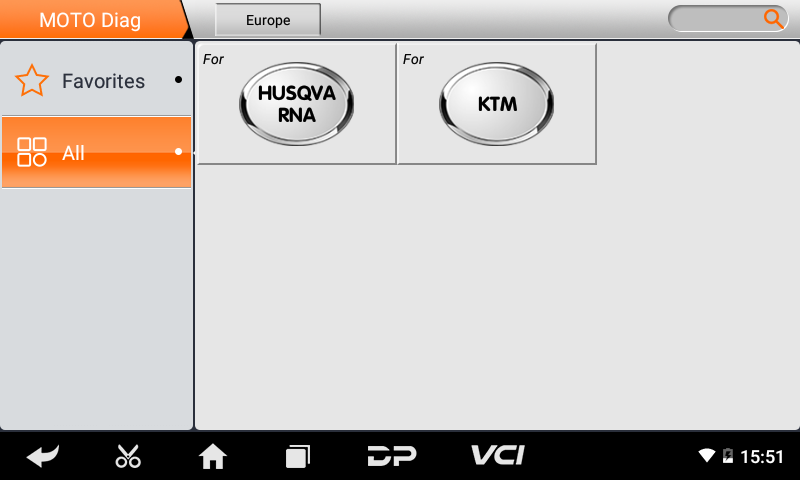

Vehicle Compatibility
Tailored specifically for:
✔ KTM Motorcycles
✔ HUSQVARNA Motorcycles
Also supports diagnostic functions for snowmobiles, ATVs, and UTVs within these brands.

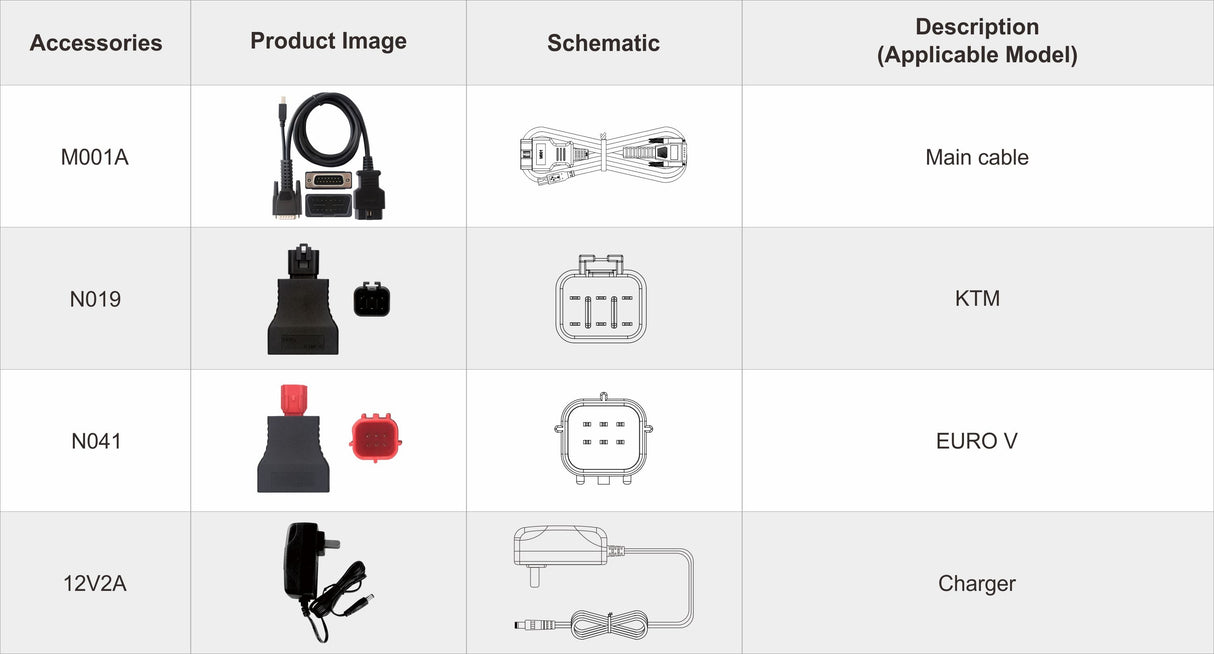

Package Includes:
-
1× M001A Main Cable
-

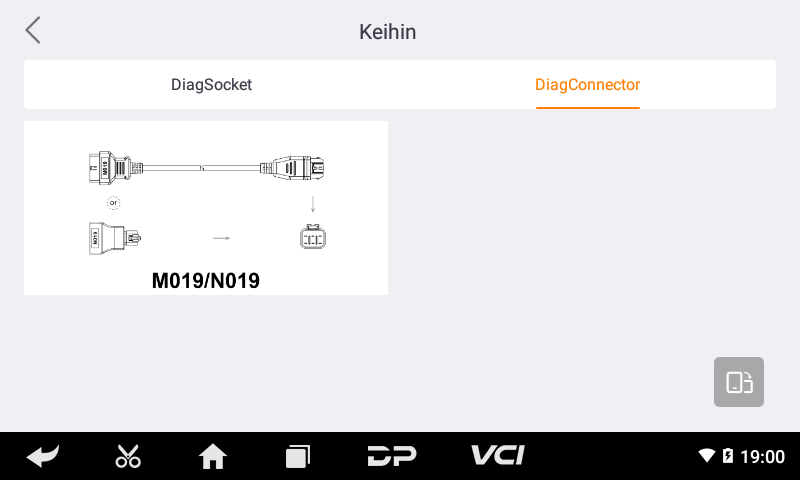

1× N019 KTM Adapter
-
1× N041 EURO V Adapter
-
1× 12V 2A Charger
Technical Specifications
| Feature | Description |
|---|---|
| Operating System | Android 5.1.1 |
| CPU | RK3128 Quad-Core ARM Cortex-A7 |
| Display | 5.0” Capacitive Touchscreen (800×480) |
| Battery | 2600mAh Rechargeable Lithium |
| Storage | Supports 32GB MicroSD (TF Card) |
| Wi-Fi | Supported |
| Weight | Approx. 700g |
| Dimensions | 198mm × 115mm × 31mm |
| Working Temp | -20°C to 55°C (14°F to 131°F) |
| Storage Temp | -20°C to 70°C (-4°F to 158°F) |
Why Choose This Diagnostic Tool?
-
Brand-Specific Coverage: Exclusive support for KTM and HUSQVARNA means more precise diagnostics and faster repairs.
-
Designed for Professionals: Built to handle the demands of a busy workshop or performance garage.
-
Backed by Support: Get assistance from OBDSTAR’s technical team when you need it most.
Iscan Series Scan Tool User Manual Download
12 Months free updates. $80 USD per year to update
