OBDSTAR iScan Kawasaki Motorcycle Diagnostic Scan Tool
Description
Description

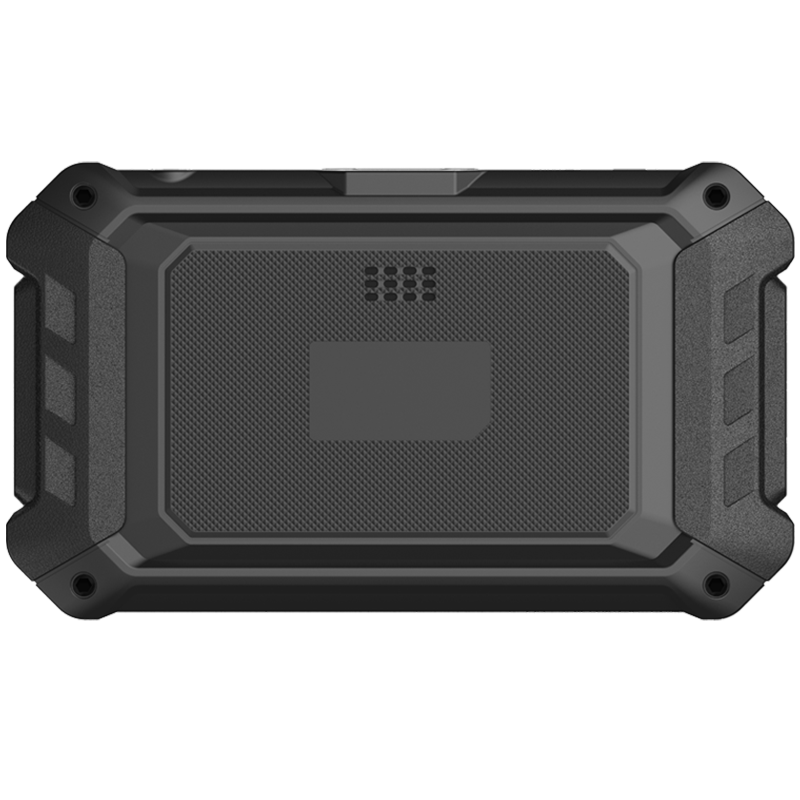

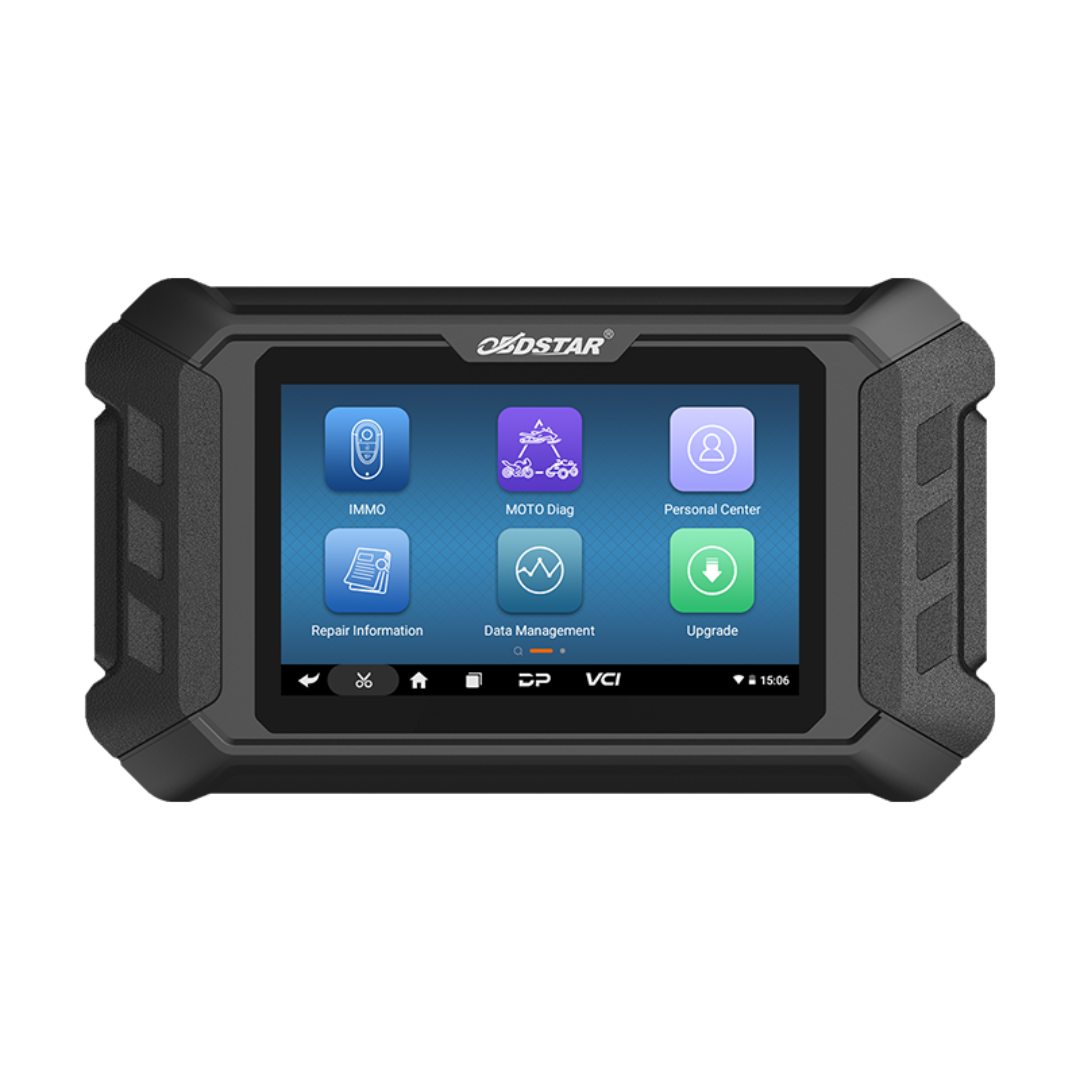

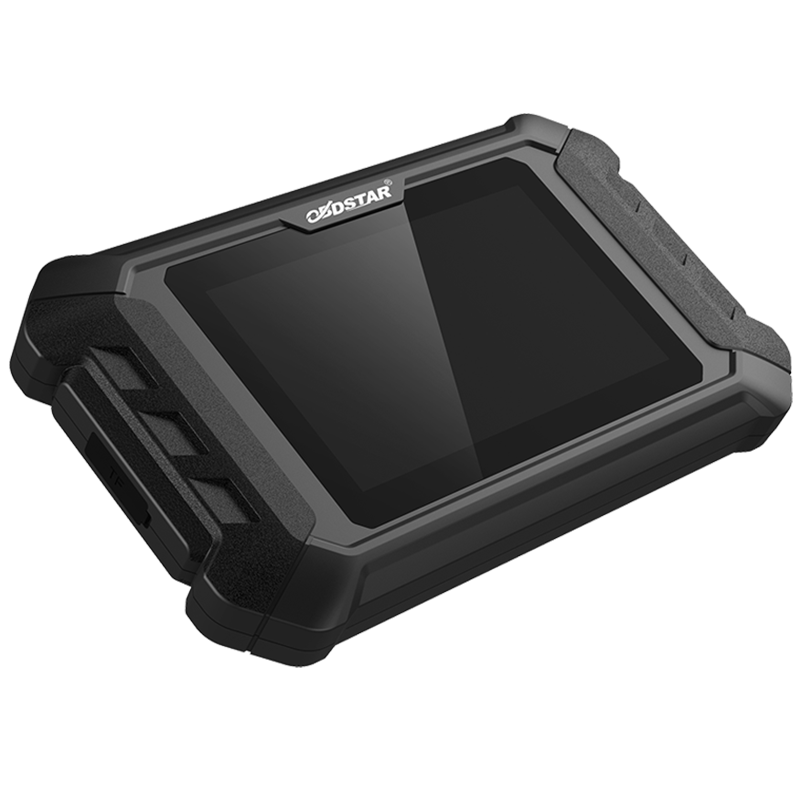

OBDSTAR iScan Kawasaki Motorcycle Diagnostic Scan Tool
Professional OEM-Level Diagnostics for Kawasaki Motorcycles & Powersports Vehicles
The OBDSTAR iScan Kawasaki is a dedicated diagnostic tablet engineered exclusively for Kawasaki motorcycles, ATVs, UTVs, and snowmobiles. Designed for workshops and professional service technicians, this Android-based device delivers dealer-level diagnostic capabilities in a portable, rugged, and easy-to-use package—allowing you to work faster and more accurately.
Core Diagnostic Functions
Android 5.1.1 Operating System
Stable, responsive, and user-friendly interface for efficient operation in busy workshop environments.

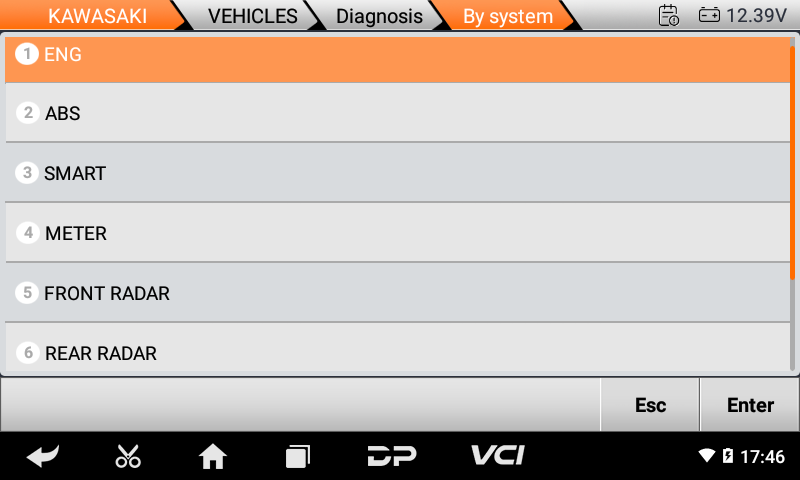

Full-System Diagnostic Coverage

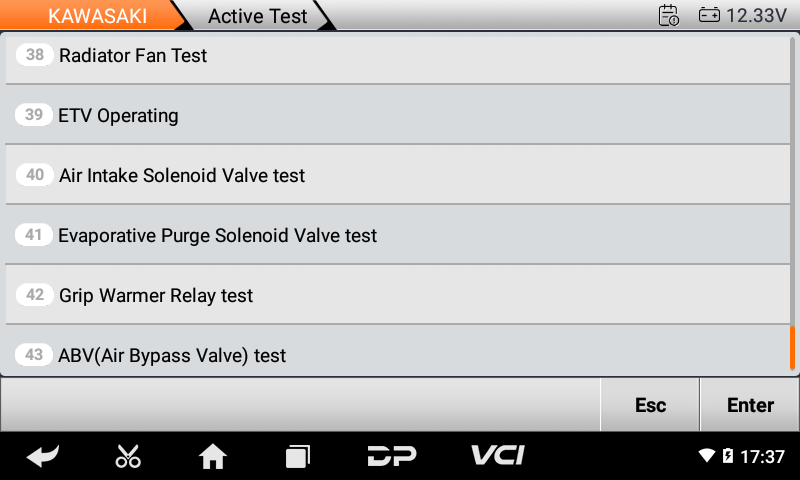

Supports essential tasks including fault code reading and clearing, live data streaming, active testing, ECU settings, and control module coding.
Fast & Intuitive Navigation
A clear and logical menu system makes it easy to locate and run the functions you need.
Real-Time Data Recording & Playback
Record and review sensor data to pinpoint hard-to-trace or intermittent issues.
Wi-Fi Connectivity
Perform one-click software updates online for continuous access to the latest features.
Remote Technical Support
Integrated remote assistance allows OBDSTAR’s support team to help you directly from the device.
Advanced Workshop Features
Smart Fault-Finding Tools

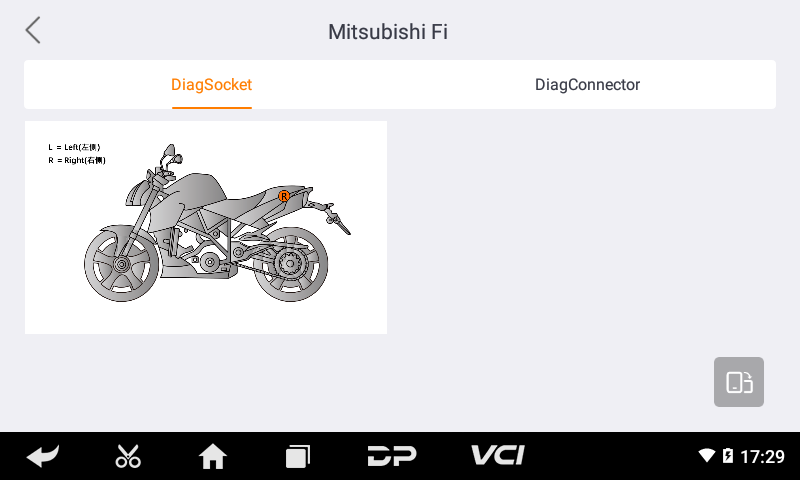

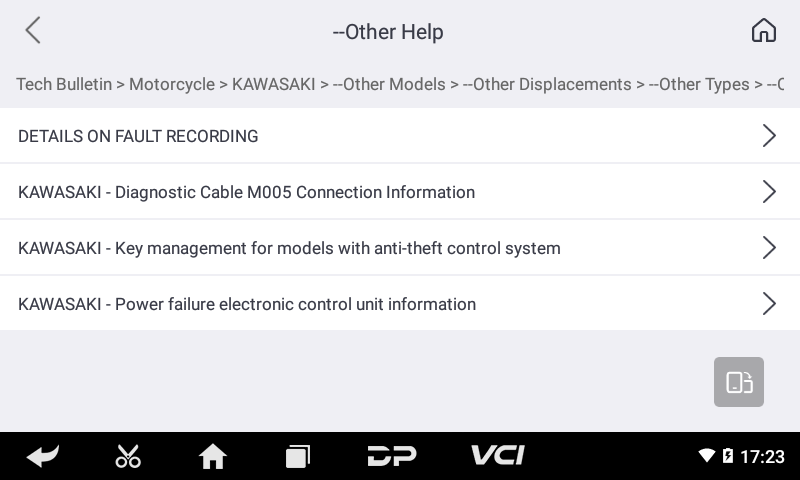

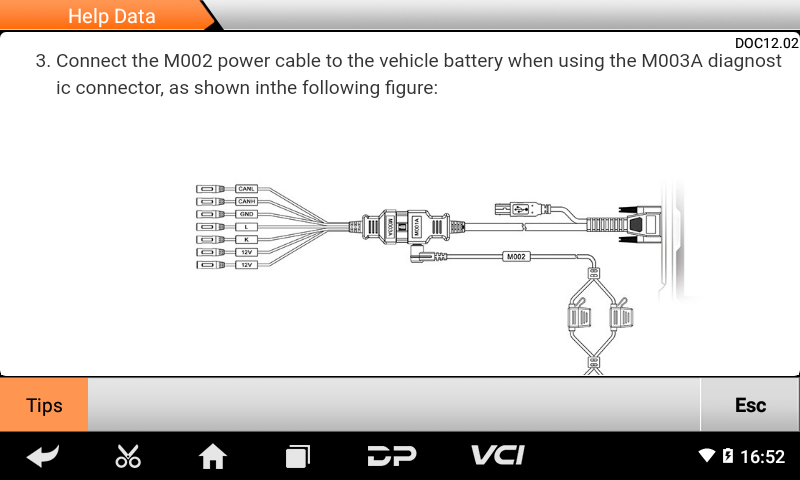

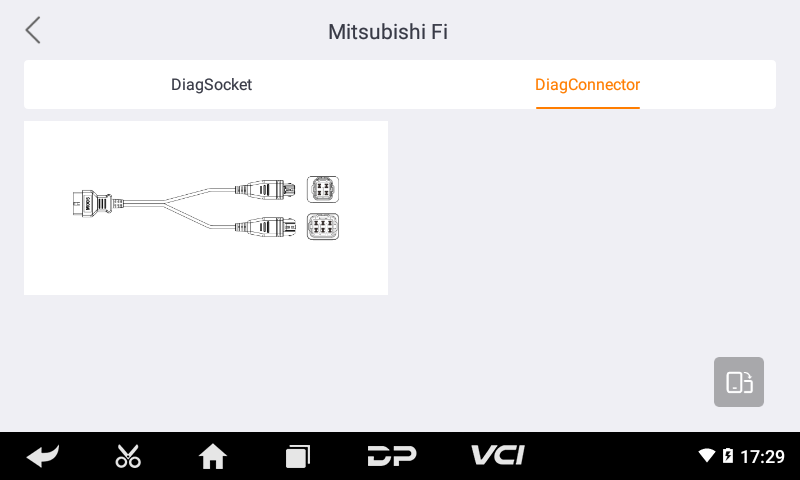

Includes first-fault guidance, wiring diagrams, diagnostic socket maps, and technical bulletins to speed up troubleshooting.
Multiple Data Display Modes
View data as plain text, waveform graphs, or simulated instrument clusters—whichever works best for your workflow.

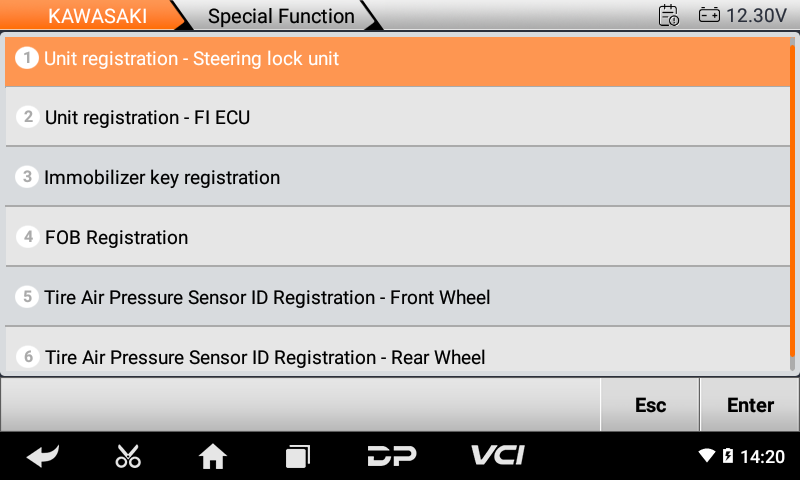

Dealer-Level Functional Access
-
Automatic VIN recognition & system-wide scanning
-
ECU programming & configuration
-
Instrument cluster coding
-
TPMS calibration
-

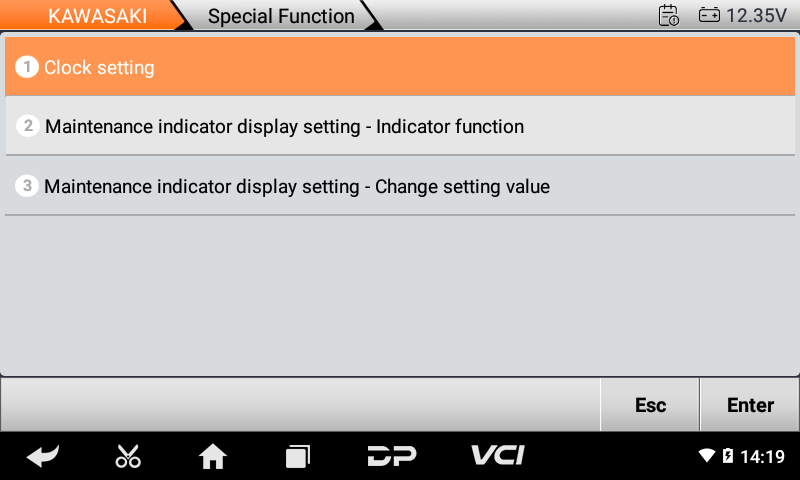

Maintenance light reset
-
CO & idle speed adjustments
-
Air/Fuel (A/F) ratio reset
-

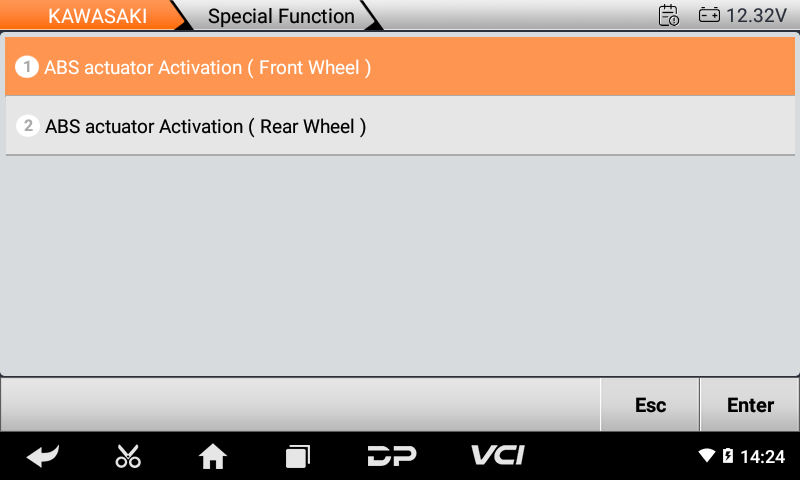

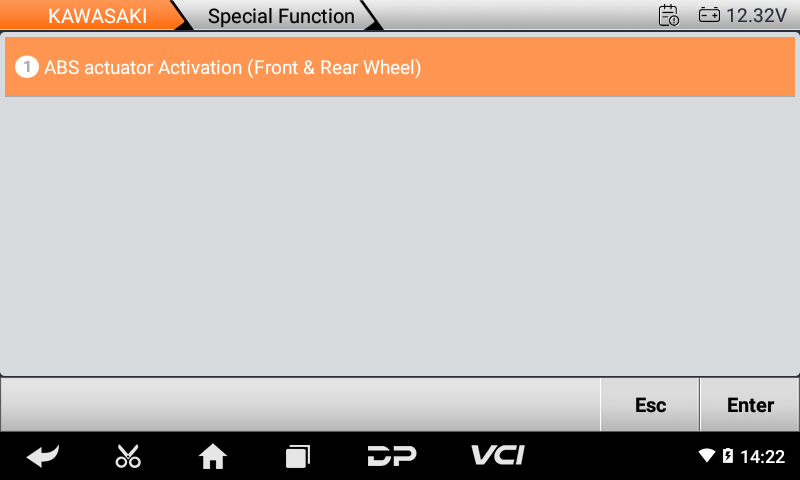

ABS control unit configuration
-
End-of-Line (EOL) programming
-
ECU and memory resets
Supported Vehicle Types
-
Motorcycles – Kawasaki
-
ATVs / UTVs / Snowmobiles – Kawasaki platforms

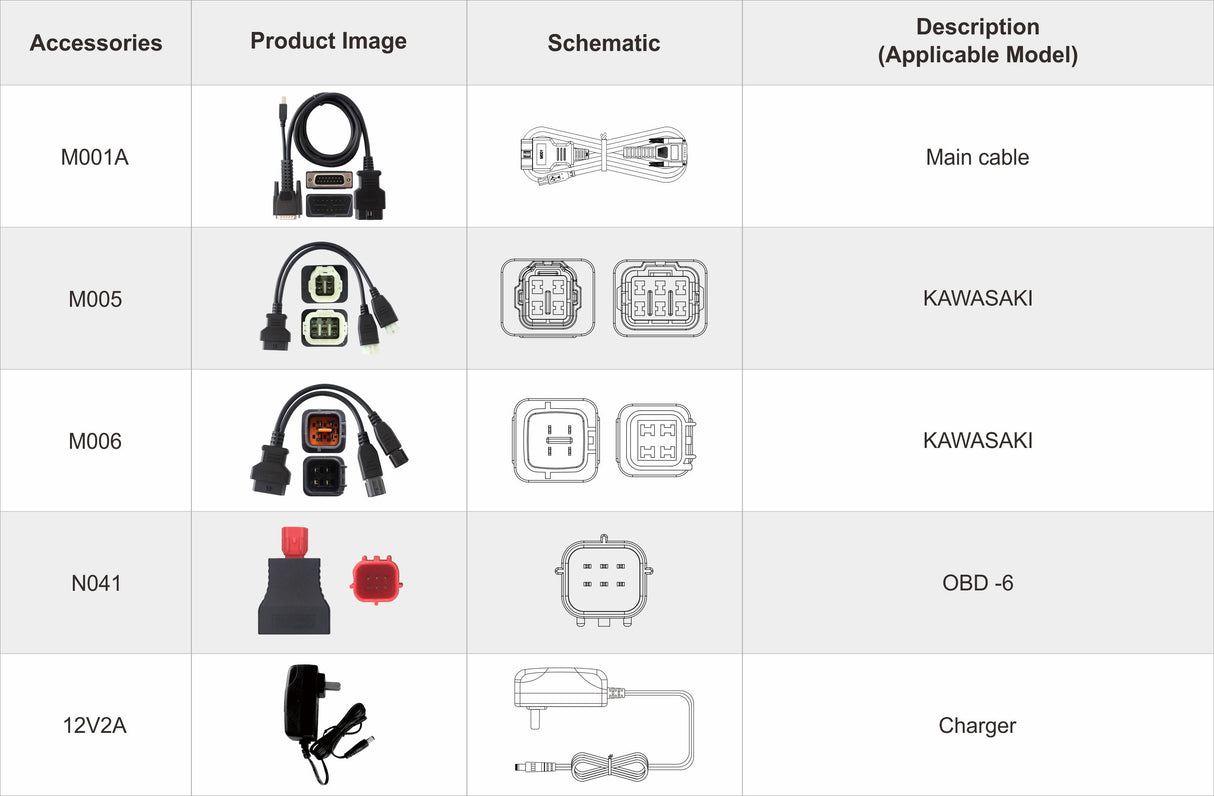

Package Includes
-
1× M001A Main Cable
-
1× M005 Kawasaki Cable
-
1× M006 Kawasaki Cable
-

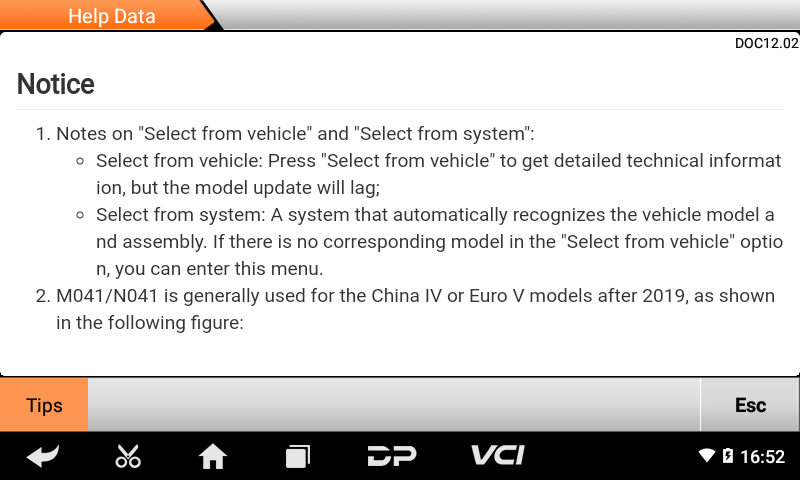

1× N041 OBD-6 Adapter
-
1× 12V 2A Charger
Technical Specifications
| Feature | Description |
|---|---|
| Operating System | Android 5.1.1 |
| CPU | RK3128 Quad-Core ARM Cortex-A7 |
| Display | 5.0” Capacitive Touchscreen (800×480) |
| Battery | 2600mAh Rechargeable Lithium |
| Storage | Supports 32GB MicroSD (TF Card) |
| Wi-Fi | Supported |
| Weight | Approx. 700g |
| Dimensions | 198mm × 115mm × 31mm |
| Working Temp | -20°C to 55°C (14°F to 131°F) |
| Storage Temp | -20°C to 70°C (-4°F to 158°F) |
Why Choose iScan Kawasaki?
-
Exclusive Kawasaki Coverage: Designed for deep system access on Kawasaki motorcycles and powersports vehicles.
-
Workshop Efficiency: Fast, accurate diagnostics with guided troubleshooting support.
-
Durable & Portable: Compact design made for professional workshop conditions.
Iscan Series Scan Tool User Manual Download
12 Months free updates. $80 USD per year to update
