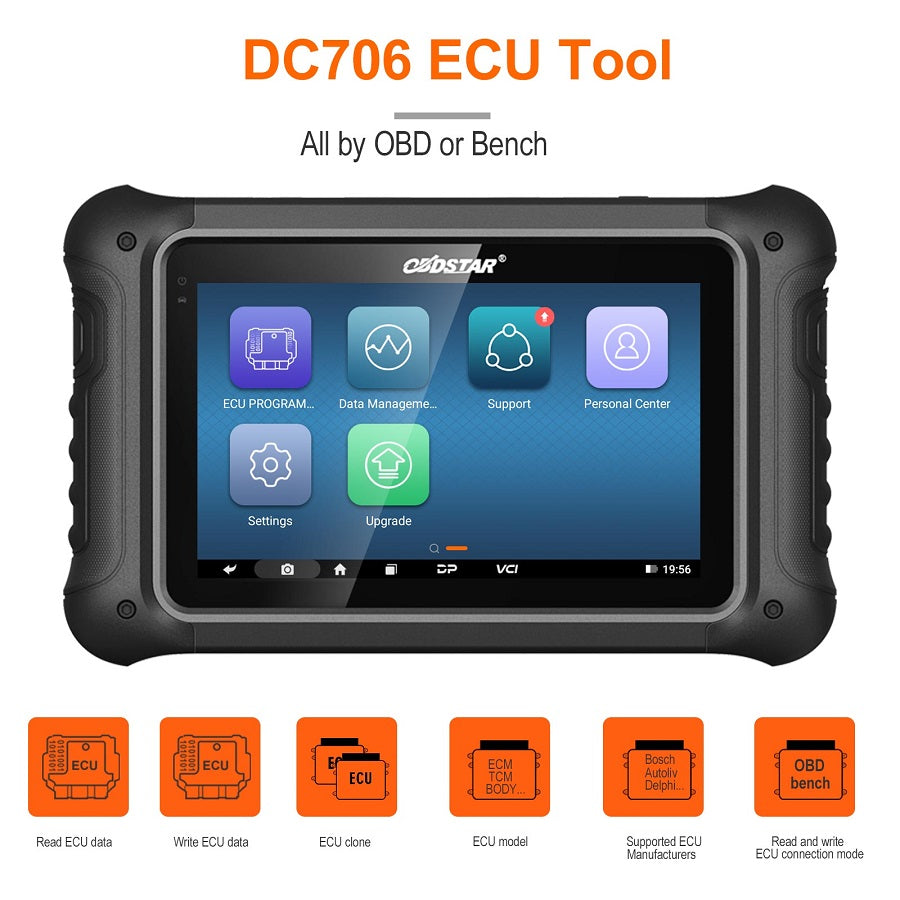

OBDSTAR DC706 ECU & TCU Cloning / Programming Tool

OBDSTAR DC706

The OBDSTAR DC706 is a professional ECU programming and cloning tool built specifically for ECM, TCM and Body/Other module programming, the DC706 supports multiple connection methods including OBD, BENCH, BOOT, BDM and JTAG, giving technicians a powerful solution for reading, writing, backing up and cloning vehicle control modules.

Whether you're replacing a faulty ECU, cloning a transmission control module or transferring data to a replacement module, the DC706 provides extensive coverage across passenger vehicles, motorcycles and a growing range of electronic control modules.

Key Features

• ECU & TCU Cloning
• Supports OBD, BENCH, BOOT, BDM & JTAG programming methods
• Read & Write EEPROM
• Read & Write DFlash / PFlash
• Read & Write MAP data
• ECU information reading
• ECU reset / Virgin functions on supported modules
• ECU recovery functions
• IMMO PIN code reading on supported applications (no immo activation)
• Mileage data functions on supported modules
• Automatic ECU identification
• Intelligent ECU search

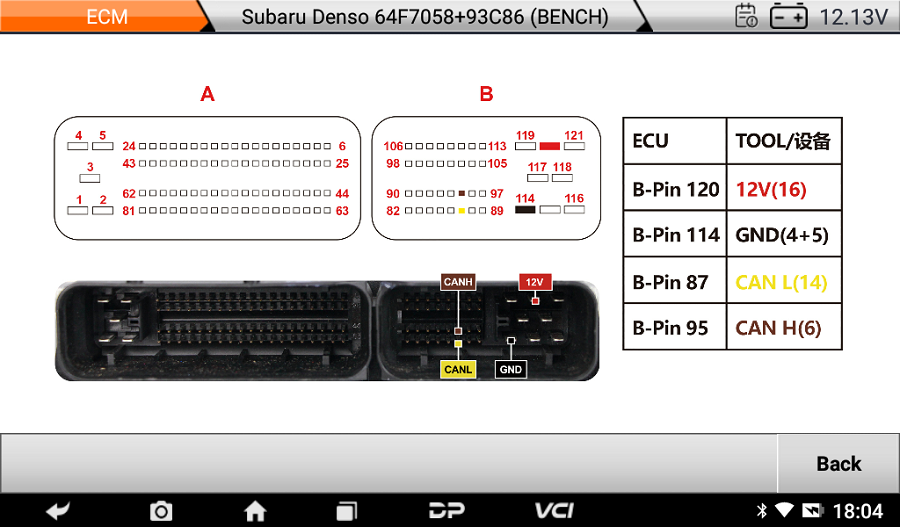

• Extensive built-in connection diagrams and help information
• Wi-Fi connectivity
• Regular software and vehicle coverage updates

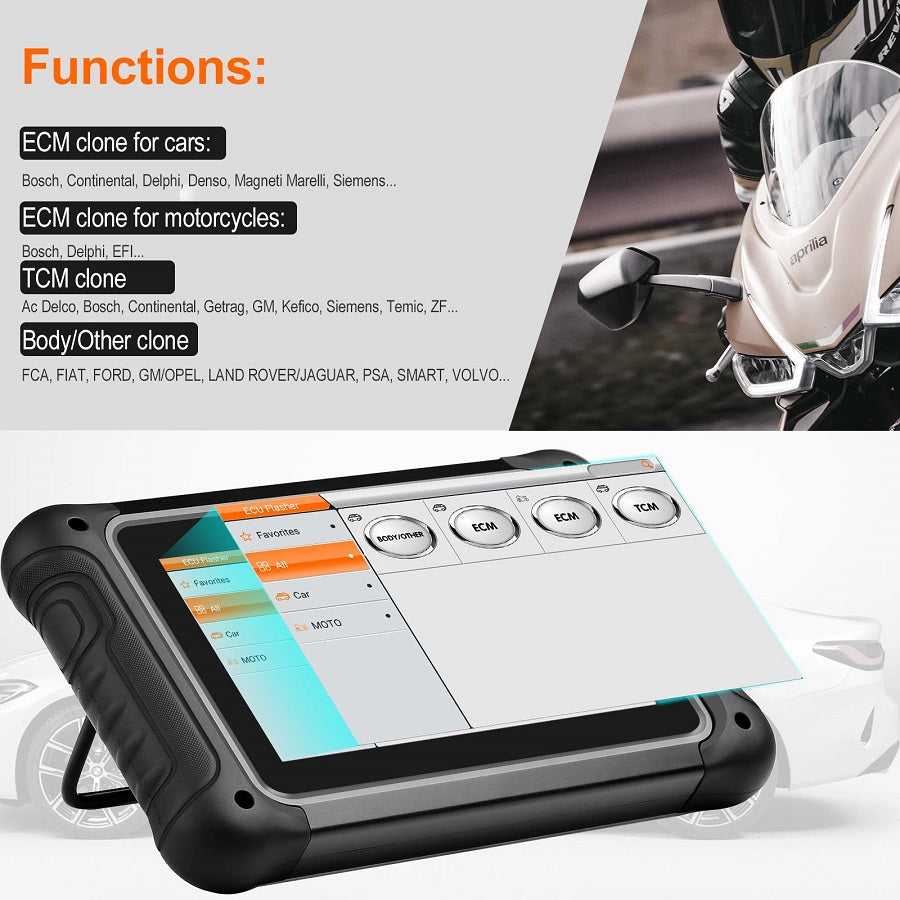

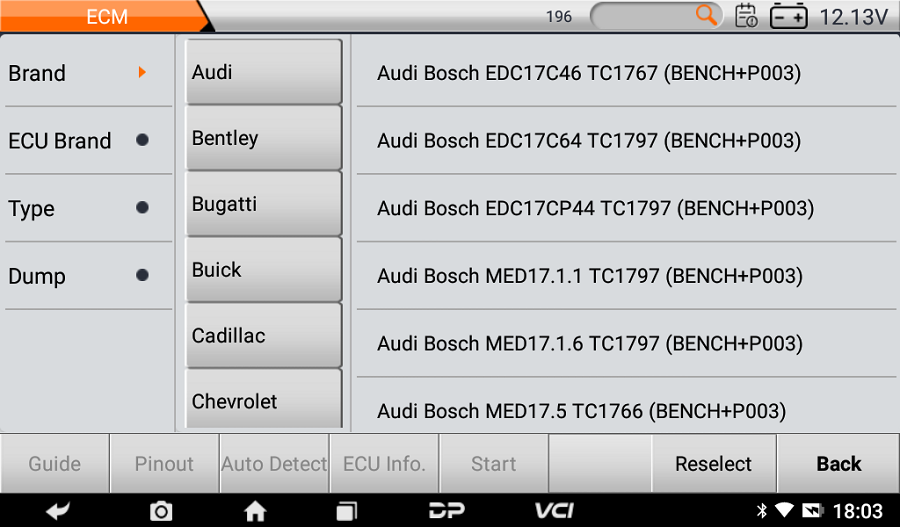

Extensive ECM Cloning Coverage

The DC706 supports ECM cloning across a wide range of ECU manufacturers, including:

Bosch | Continental | Delphi | Denso | Magneti Marelli | Marelli | Siemens | AC Delco | Kefico | EFI | GM | Lear | JC and more

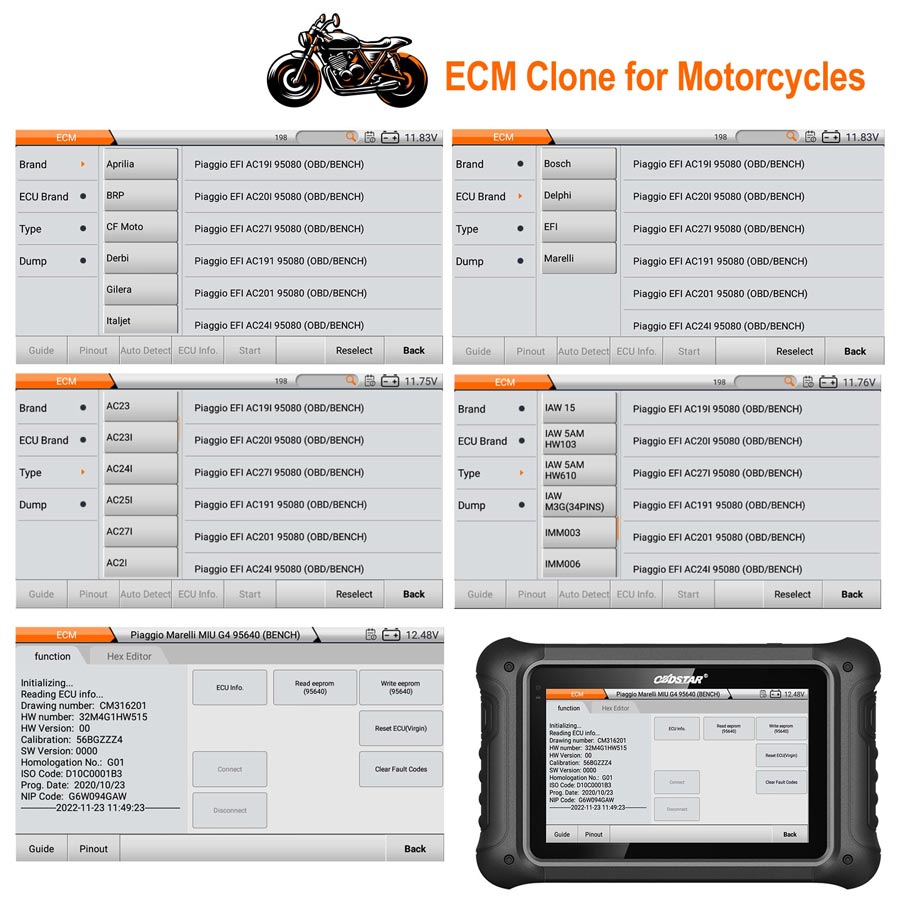

Coverage includes both passenger vehicle and motorcycle engine control modules.

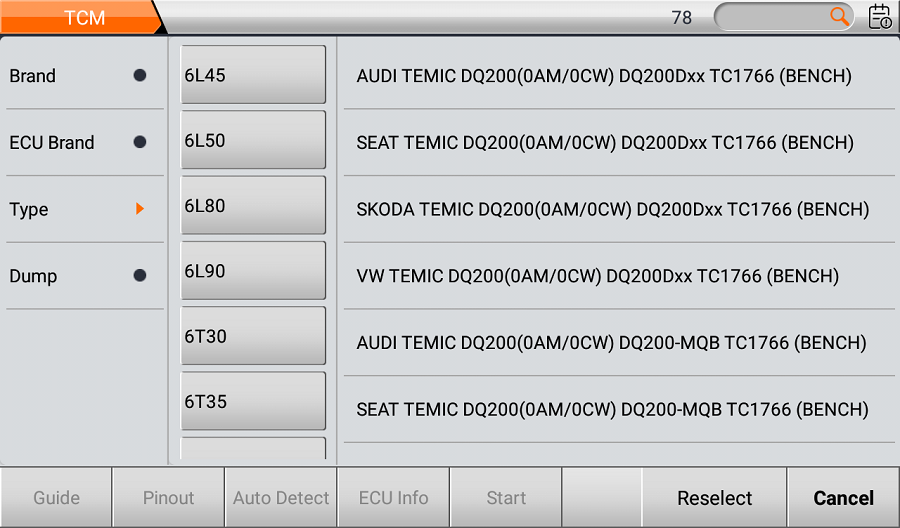

TCM / Transmission Cloning

The DC706 is also a powerful solution for transmission control module cloning.

Supported TCM manufacturers and systems include:

AC Delco | Bosch | Continental | Getrag | GM | Kefico | Siemens | Temic | ZF and more

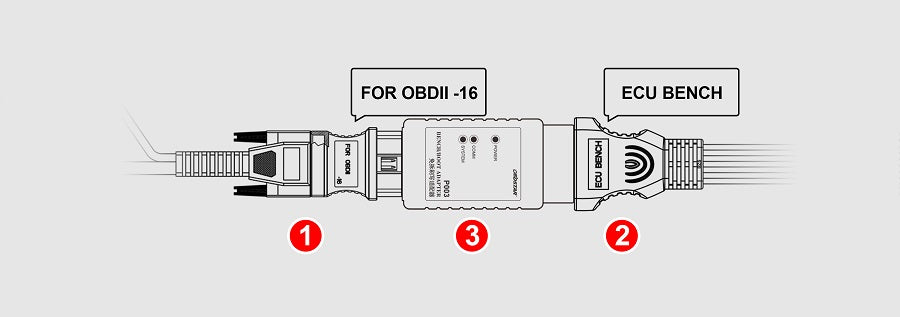

With compatible OBDSTAR transmission connectors, supported TCMs can be connected directly for BENCH operations, reducing the need for manual jumper-wire connections.

This makes the DC706 particularly useful for workshops regularly replacing or repairing mechatronics, transmission control units and used replacement modules.

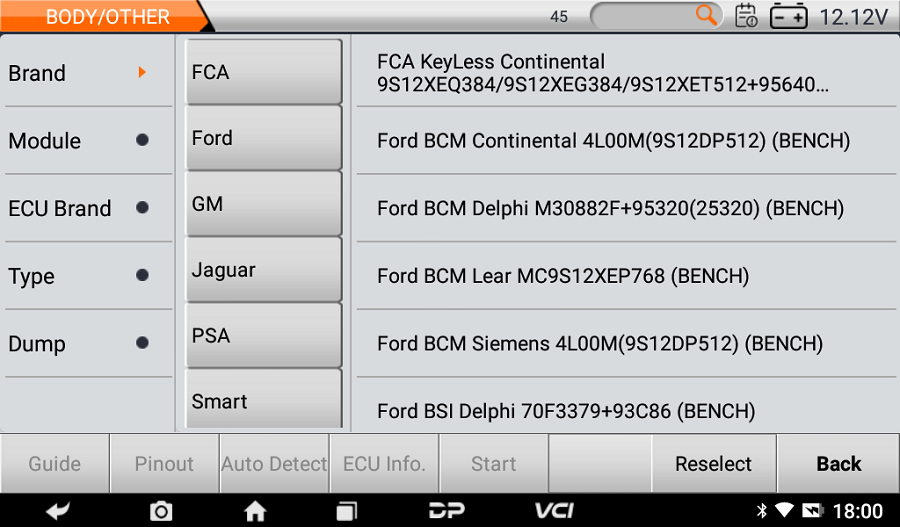

Body & Other Module Cloning

Beyond engine and transmission modules, the DC706 provides cloning support for selected body and electronic modules across manufacturers including:

• FCA
• Fiat
• Ford
• GM / Opel
• Land Rover / Jaguar
• PSA
• Smart
• Volvo
• And more

Multiple Programming Methods

One of the biggest advantages of the OBDSTAR DC706 is its flexibility.

OBD

Perform supported programming operations directly through the vehicle's diagnostic connector.

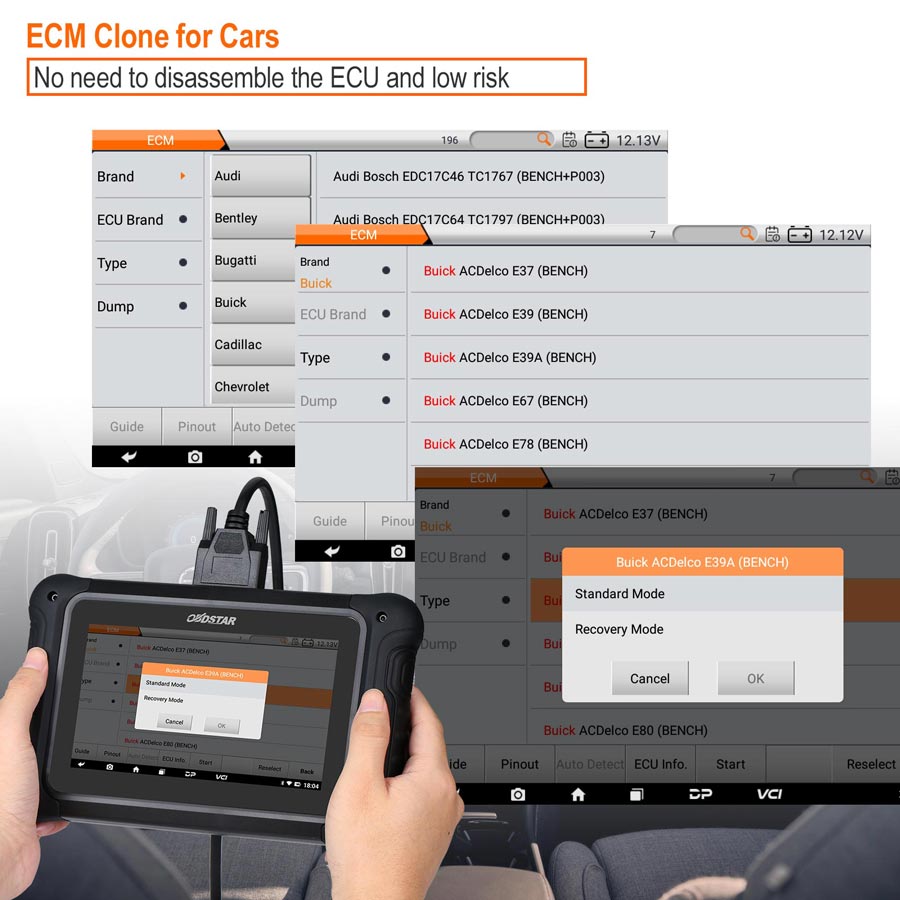

BENCH

Connect directly to the ECU or TCU outside the vehicle without opening the control module on supported applications.

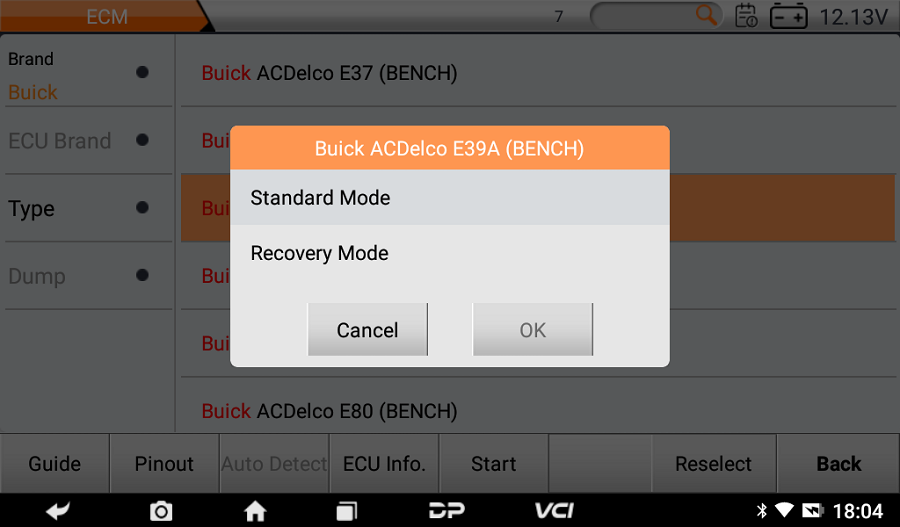

BOOT

Access supported ECUs at processor level for more advanced read/write operations.

BDM & JTAG

Additional programming methods are available for supported control modules, giving professional technicians significantly broader ECU coverage.

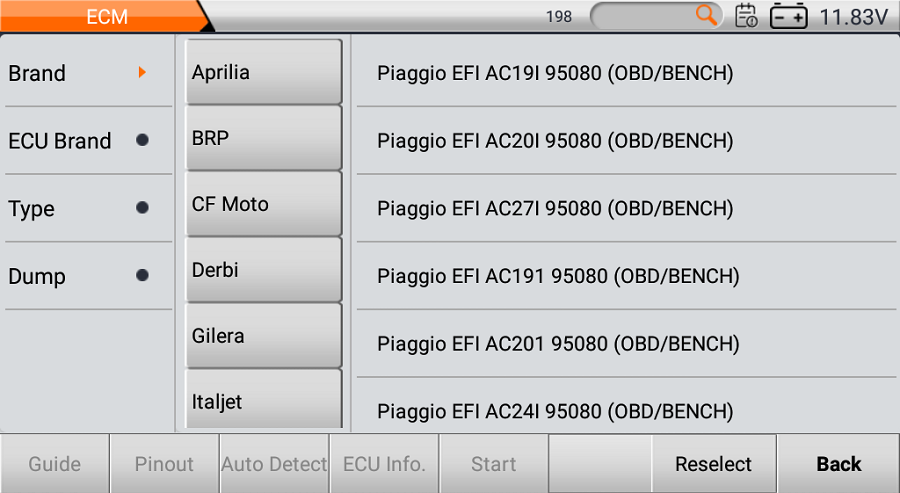

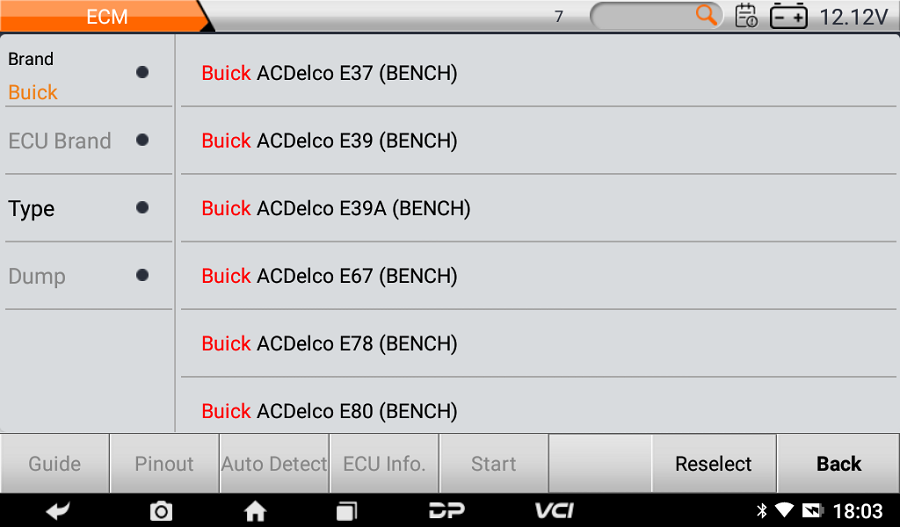

Intelligent ECU Identification

Finding the correct ECU is made easier with intelligent searching.

The DC706 can search using:

• Vehicle brand
• Vehicle model
• ECU part number
• ECU manufacturer
• MCU/controller type

Automatic identification is also available on supported control modules.

Designed for ECU Replacement & Repair

When replacing a failed ECU or TCU with a compatible donor unit, cloning can allow the original module's required data to be transferred to the replacement module where supported.

This can significantly simplify certain module replacement jobs and makes the DC706 an excellent addition for:

• Automotive workshops
• Auto electricians
• ECU repair businesses
• Transmission specialists
• Performance workshops
• Diagnostic specialists
• Mobile automotive technicians

Technical Specifications

Operating System: Android 5.1.1
Processor: RK3128 Quad-Core ARM Cortex-A7
Display: 7-inch capacitive touchscreen
Resolution: 1024 × 600
Storage: 16GB
Expandable Storage: Supports 32GB Micro SD / TF card
Battery: 3700mAh rechargeable lithium polymer
Wi-Fi: Supported
Operating Temperature: -10°C to 55°C
Storage Temperature: -20°C to 70°C
Dimensions: 243 × 148 × 36mm
Weight: Approx. 766g

Software Updates

The DC706 includes 1 year of free software updates from registration.

After the first year, OBDSTAR currently requires an annual subscription to continue receiving new software updates and coverage.

The tool can continue to be used with the coverage already installed if the update subscription is not renewed.

Important – DC706 Functionality

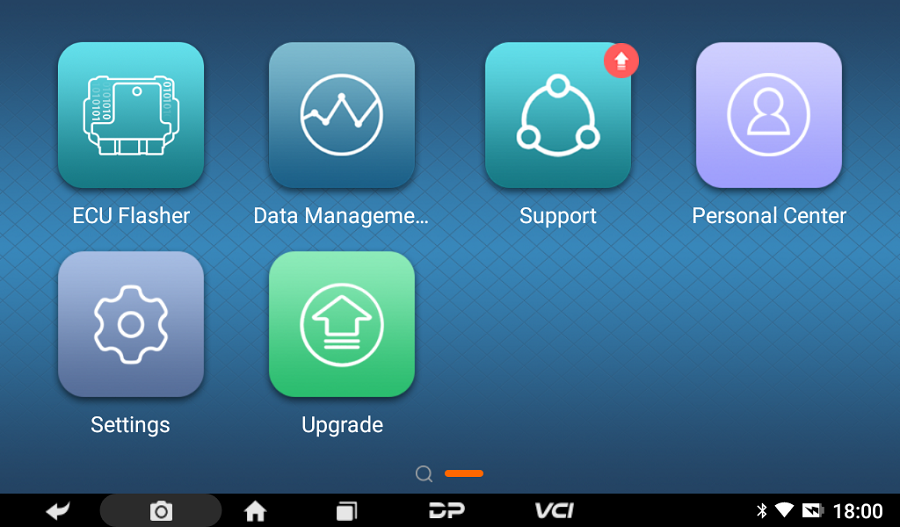

The DC706 is a dedicated ECU Flasher.

OBDSTAR DC706 does not allow additional software to be activated including diagnostics, IMMO, Cluster Calibration or Airbag Reset software packages.

If you require those functions, please contact us and we can recommend the appropriate tool for your workshop.

Why Choose the OBDSTAR DC706?

The DC706 combines extensive ECU coverage with multiple programming methods in one standalone platform.

Instead of relying solely on OBD programming, technicians can access supported modules through OBD, BENCH, BOOT, BDM and JTAG, making the DC706 suitable for considerably more advanced ECU and TCU work.

With intelligent ECU identification, built-in connection information and extensive ECM/TCM coverage, it's an excellent tool for workshops looking to expand into professional ECU programming, module replacement and cloning.

Need to Check Vehicle or ECU Compatibility?

ECU programming coverage is highly specific to the exact ECU/TCU fitted to the vehicle.

Contact the Premium Diagnostic Equipment team with the vehicle details, ECU manufacturer and ECU/TCU part number and we'll help confirm compatibility before purchase.

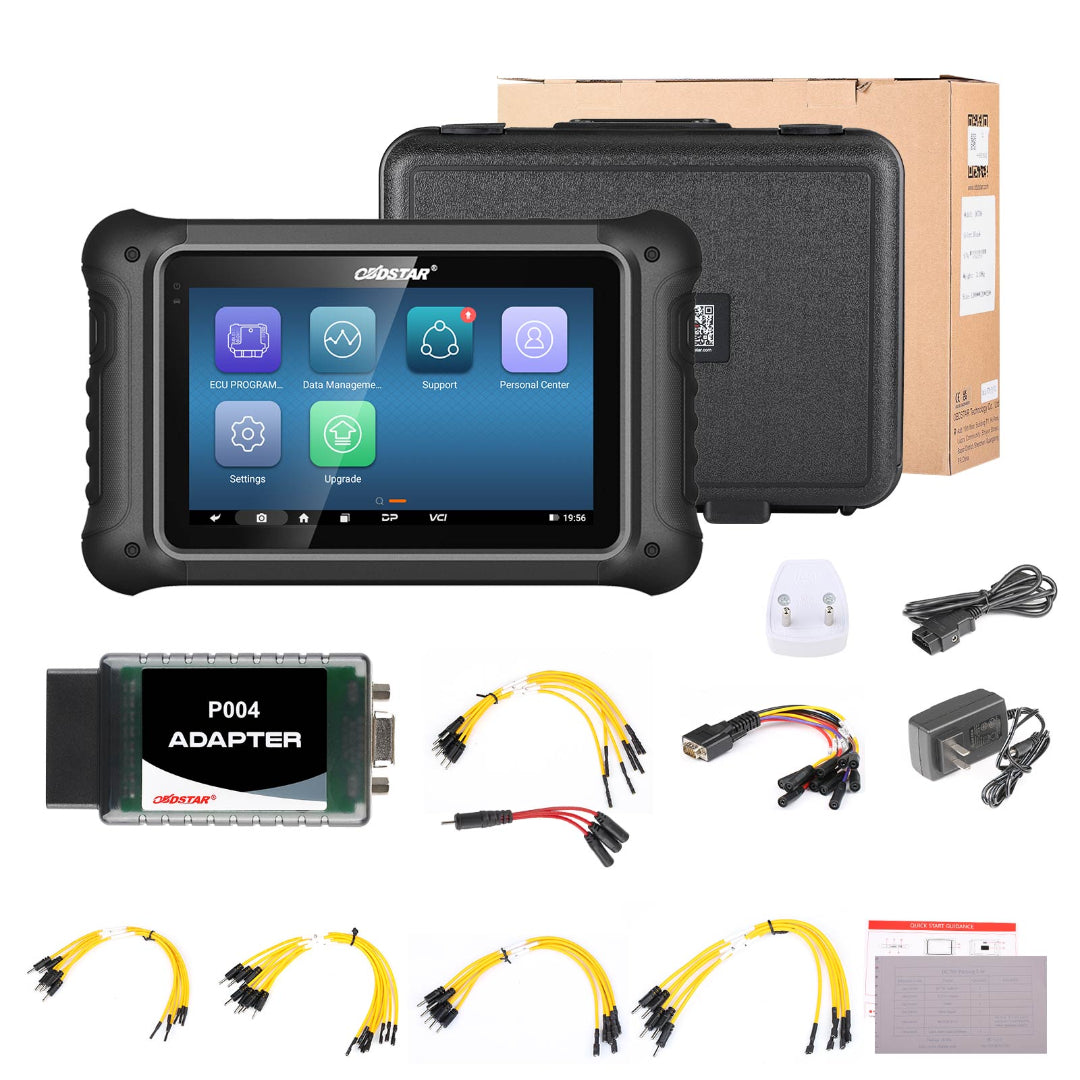

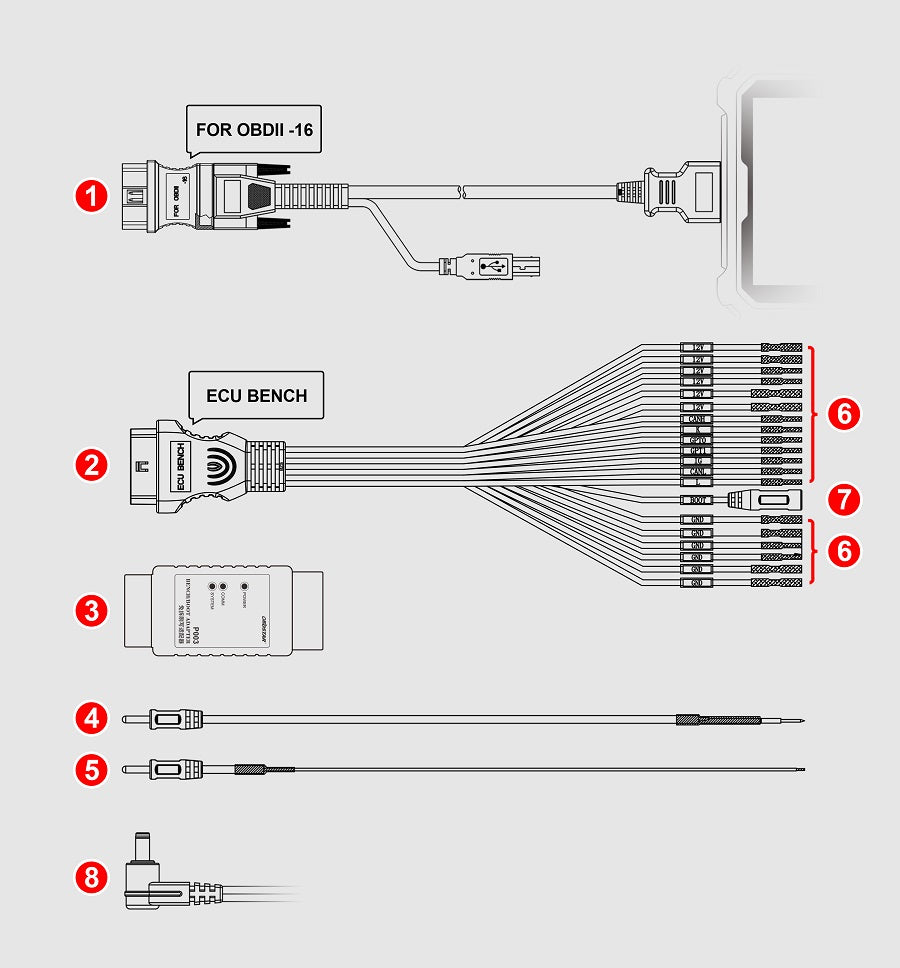

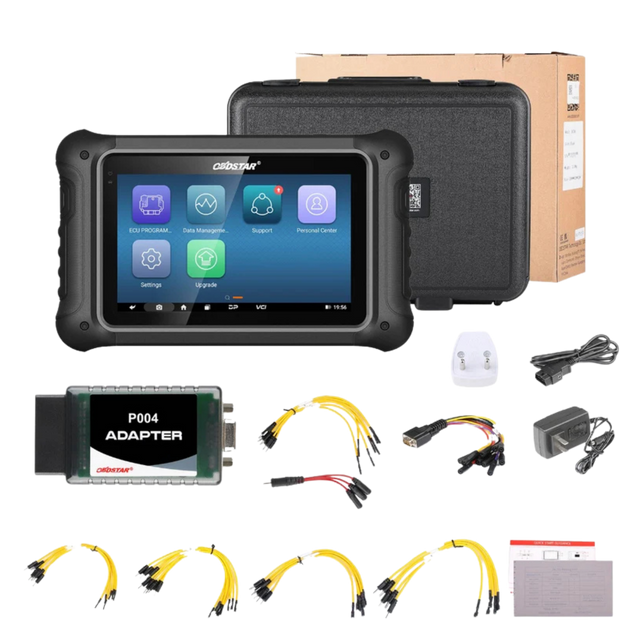

Package Includes

1pc x DC706 tablet PC
1pc x 12V2A charger
1pc x M001
1pc x P004 adapter
1pc x BENCH-B V2 Cable
1pc x jumper wire
1pc x 3-in-1 jumper
1pc x Quick start guide/certificate
1pc x  P003+ Adapter
1 set x  ECU BENCH cable
