OBDLink EX FORScan OBD to USB Scan Tool

Name: OBDLink EX FORScan OBD to USB Scan Tool
Brand: Premium Diagnostic Equipment
SKU: OBD-DS-OBDLINKUSB
Price: 180.00 AUD
Availability: InStock

$180.00

Pickup available at Gold Coast

Usually ready in 24 hours

Delivery and Shipping

Shipping Information

Orders placed before 12pm AEST Mon-Fri will be dispatched same day

Standard Shipping in Australia 2-9 business days - FREE

Express Shipping in Australia 1-3 business days - Shipped via Australia Post Express. In most cases you will get your order the next day if it was placed before 12pm but we can not guarantee this overnight service.

TNT Overnight Express - 1 business day if order is placed before 12pm.

To check freight costs enter your details and address at check out

Local Pick Up - Same day from Gold Coast warehouse providing we have stock on hand, please call us to confirm 07 3180 6771

Couriers we use - Most orders are shipped via Australia post. We may use TNT/FEDEX or Aramex depending on your location or preference.

Description

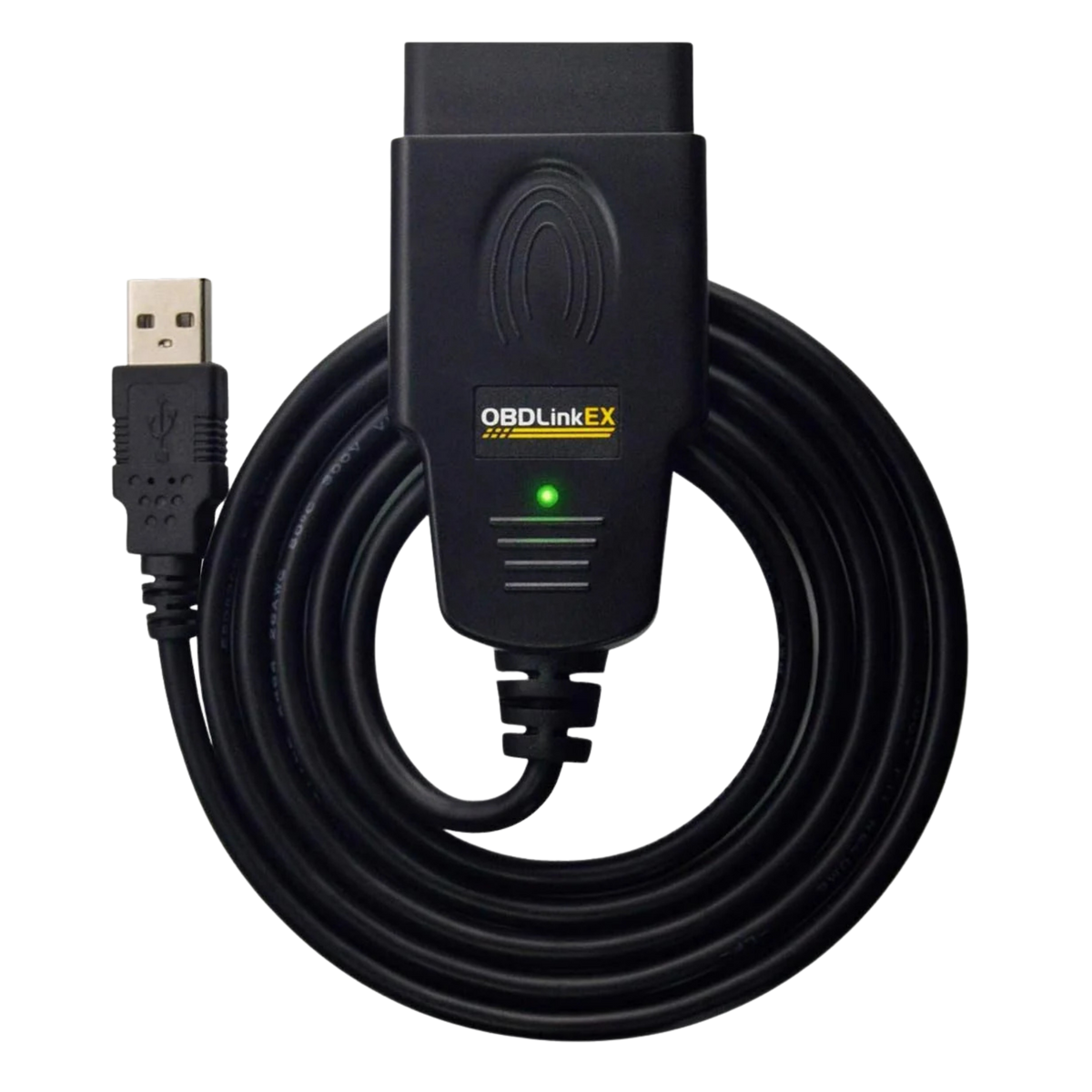

OBDLink EX

The OBDLink EX is a USB adapter built specifically for FORScan. If you're working on Fords or Mazdas and need proper module access, this is the adapter the FORScan team itself recommends over Bluetooth or Wi-Fi options. It plugs straight into a laptop and gives you a stable wired connection for module programming, PMI (Programmable Module Installation) and full network diagnostics.

Key Features & Highlights

Built for FORScan, not a generic ELM327: Electronic switching between HS-CAN, MS-CAN and the legacy J1850 network happens automatically. No toggle switch, no guessing which position matches which module.
Stable enough for module programming: A wired USB connection holds steady during PMI, BCM replacement, key programming and other flash procedures where a Bluetooth dropout costs you the job.
Full module access: Reads and clears codes across engine, transmission, ABS, SRS, BCM, PCM and other Ford and Mazda specific modules that a generic OBD2 scanner can't reach.
Fast: Up to 20 times quicker than the old toggle-switch USB adapters. No lag scrolling through PIDs or waiting on module scans.
BatterySaver mode: Draws under 1 mA in sleep mode, so it's safe to leave plugged in permanently without flattening the battery.
12V and 24V compatible: Covers light commercial Ford and Mazda utes as well as passenger vehicles.

Technical Specifications

Specification	Details
Model	OBDLink EX
Interface	USB 2.0 (wired)
Operating Voltage	8-30V DC (12V and 24V systems)
Operating Current	6.5 mA active, under 1 mA in sleep mode
Supported Protocols	ISO 15765-4 (CAN), ISO 14230-4 (KWP2000), ISO 9141-2, SAE J1850 VPW/PWM, Ford MS-CAN
Dimensions	88.9mm x 45.2mm x 25mm (3.5 x 1.78 x 1.0in)
Weight	96.4g (3.4oz)
Operating Temp	-20C to 55C

Software & Vehicle Compatibility

Software required: FORScan (free download, Windows PC). This adapter is the hardware interface only. You'll need to install FORScan yourself, and an extended licence through FORScan (paid, separate to this adapter) unlocks module programming and advanced functions.

Vehicles: Ford, Lincoln, Mercury and Mazda, 1996 onward, including Ranger, Falcon, Territory, Everest, Transit, Focus, Mondeo, BT-50 and CX-5.
Also works with: OBDwiz and most standard OBD2 software for general diagnostics on any 1996+ OBD2 compliant vehicle.
Not compatible with: iOS (no app support), hybrid or electric vehicles. Android needs a separate USB OTG cable, not included.

What's in the Box

1x OBDLink EX USB Adapter
1x Quick Start Guide

FORScan software is a free separate download from forscan.org. The extended licence, purchased through FORScan, unlocks module programming and advanced functions.
