Motorcycle TPMS Tyre Pressure Monitoring System For Bikes

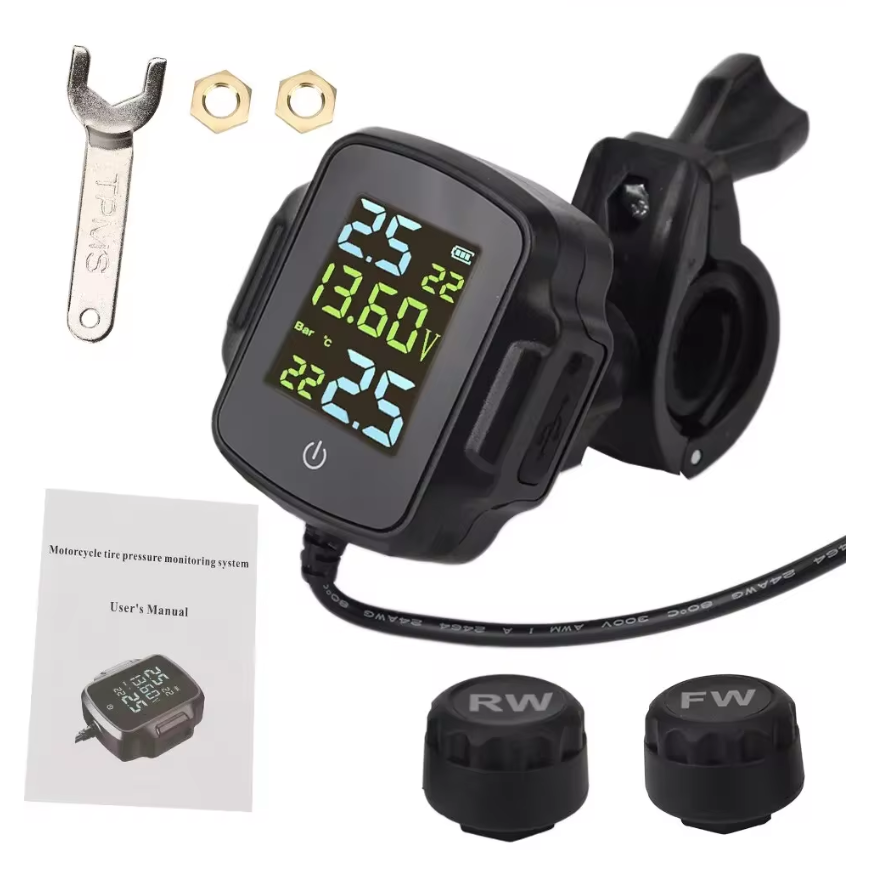

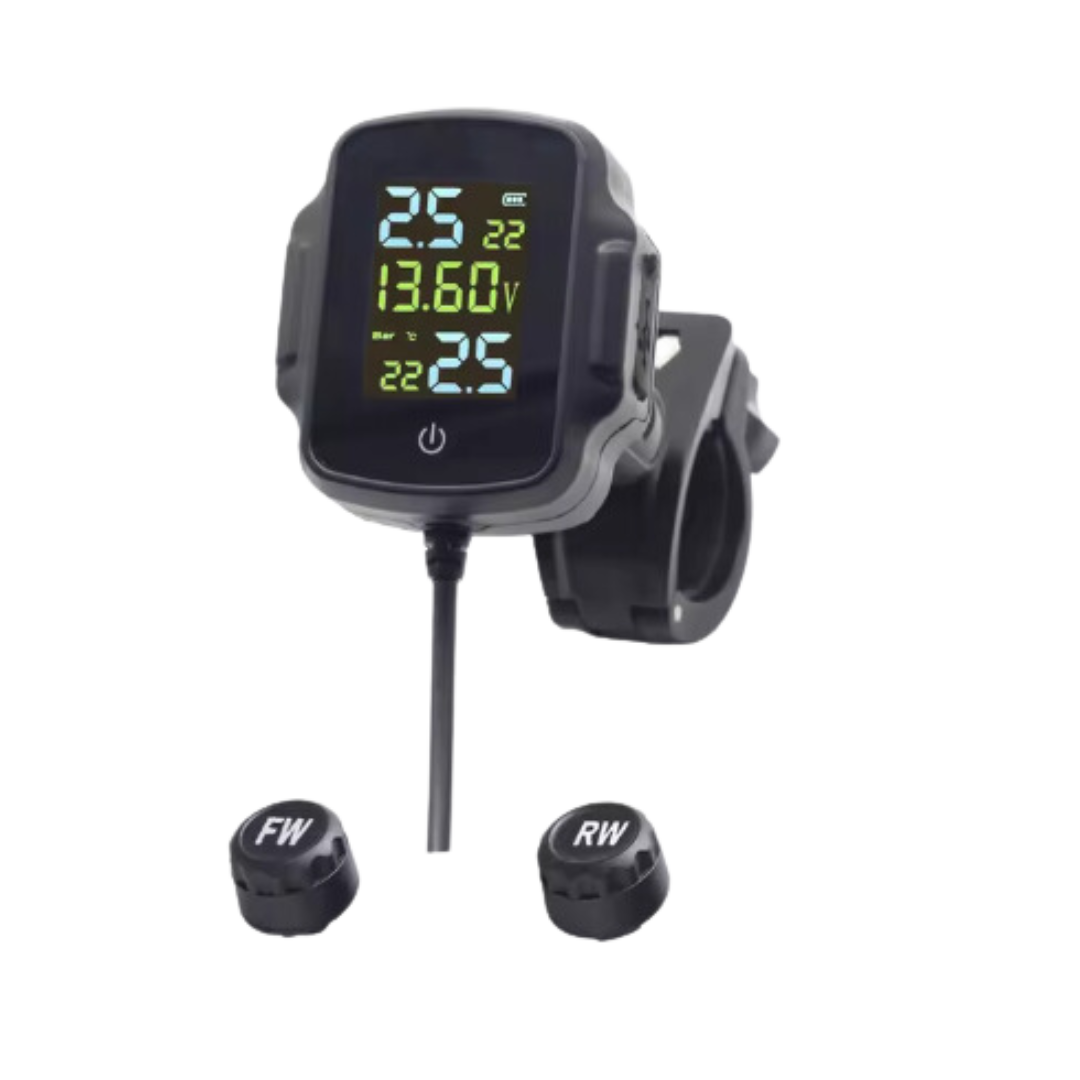

Motorcycle TPMS: Tyre Pressure and Temperature Monitoring System with QC 3.0 USB Phone Charging Port

Description:

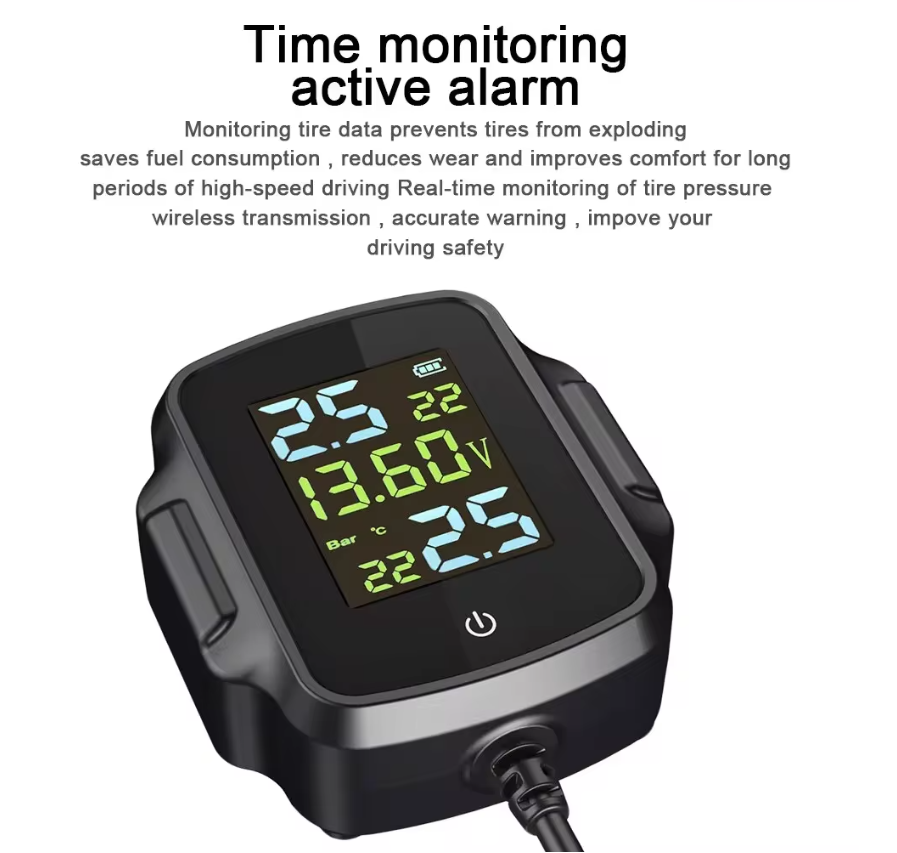

Ensure your safety while riding with this advanced Motorcycle Tyre Pressure Monitoring System (TPMS). Designed to provide real-time alerts, this system monitors tyre pressure and temperature continuously. If abnormal conditions are detected, the system emits a warning sound and a bright flashing icon, enabling you to address issues promptly and prevent potential accidents.

Features:

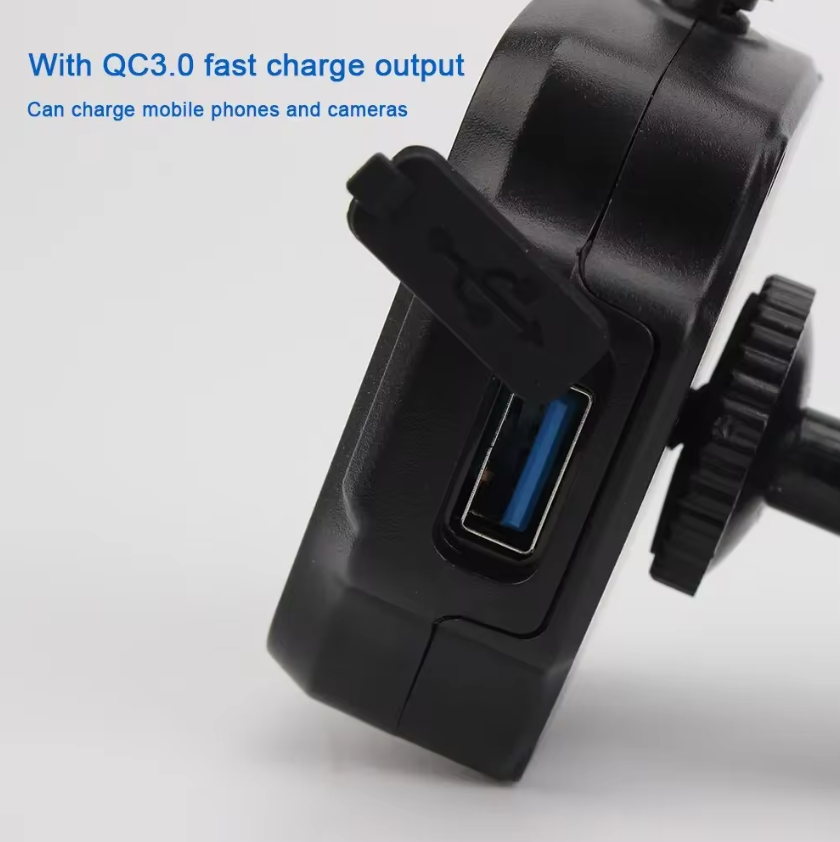

• Fast Charging: Equipped with a QC 3.0 fast-charging USB output, it can charge mobile phones, tablets, and power banks.
• Monitor front and rear tyre pressures in PSI or Bar
• Monitor tyre temperatures
• Voltage Detection: Supports battery voltage detection, display, and low-voltage alarm functions.

Bracket Installation Instructions:

1. Unscrew the 2 screws and attach the bracket to your motorcycle, electric bike, or bicycle. Tighten securely.
2. Position the mounting head of the bracket as needed and ensure it is firmly fixed.
3. Install the tyre pressure receiver on the bracket, tighten, and lock it. Adjust the angle using the tuning knob on the ball head.

Power Installation Instructions:

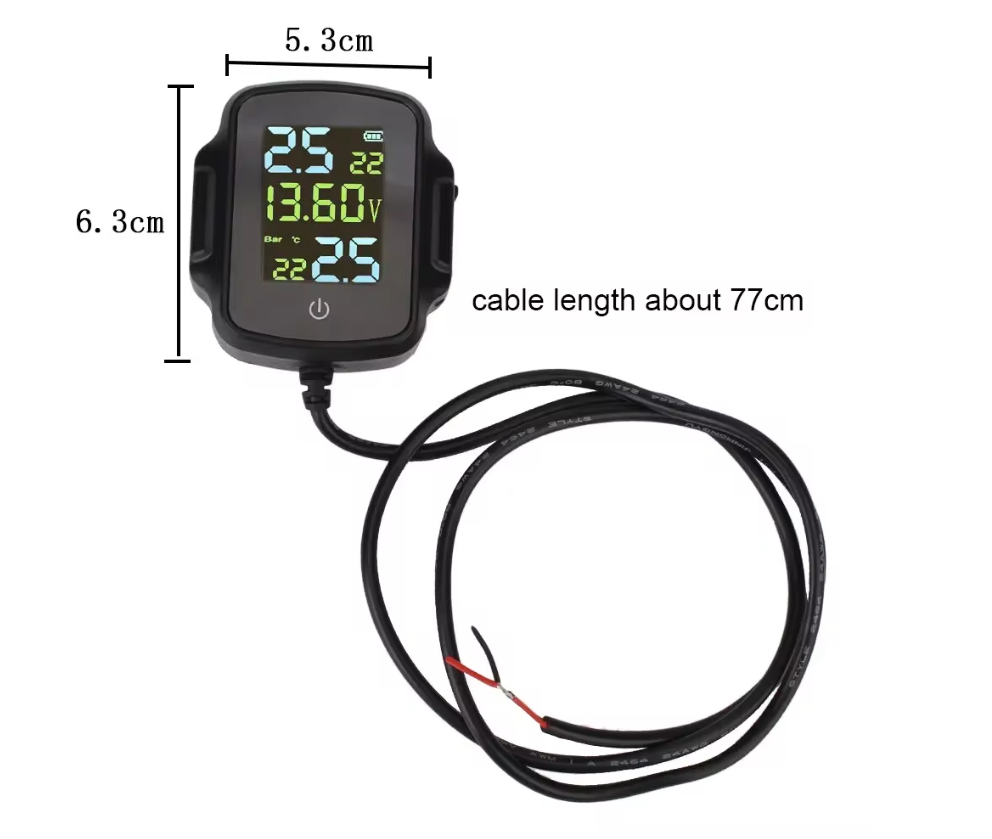

1. Connect the power cord behind the ignition switch to enable automatic power-off when the bike is turned off. Connect the red wire to the 12V positive terminal and the black wire to the ground.
2. Secure the fixed bracket on the handlebar, lock it, and adjust the angle of the host device.

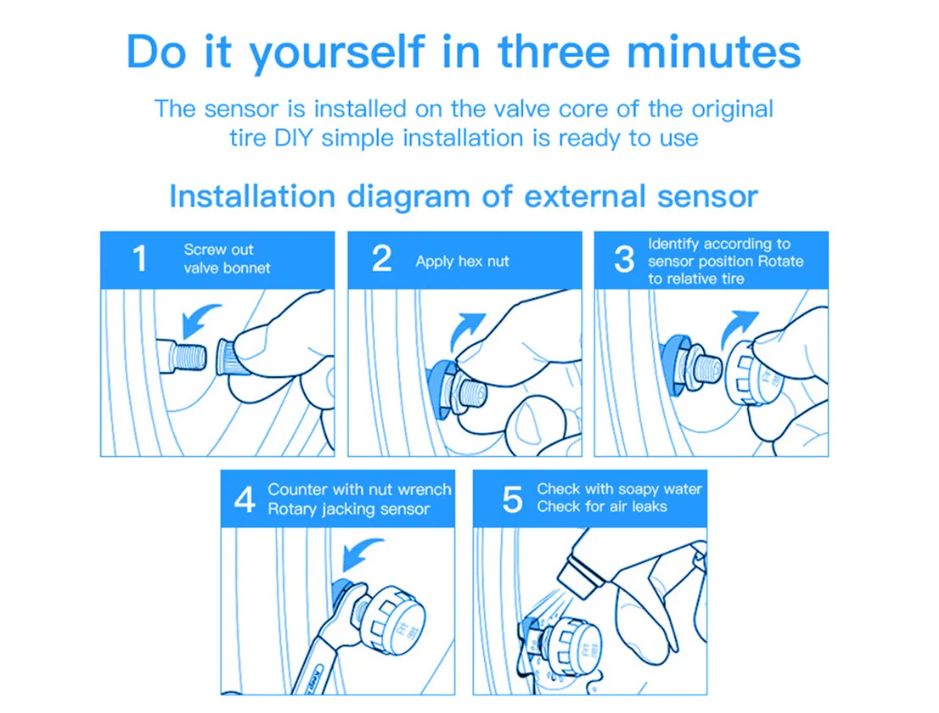

3. Install the sensor when the device screen is powered on. Place the tamper ring on the valve nozzle, attach the sensor, and tighten. If the pressure does not display correctly on the host, reinstall the sensor.

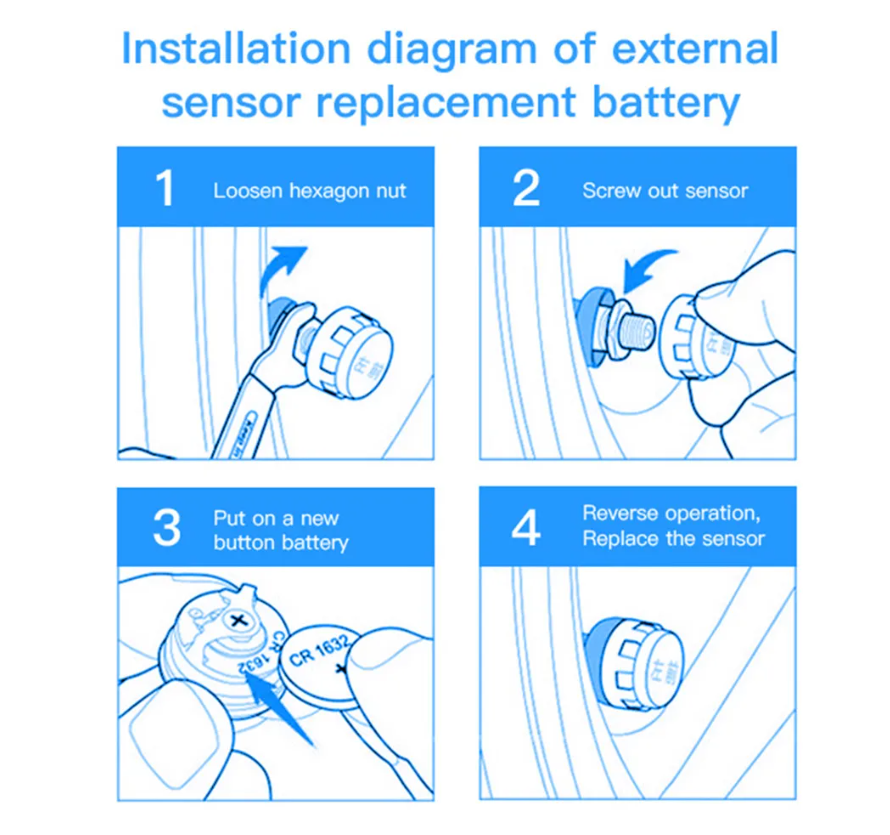

Sensor Battery Replacement Instructions:

1. Prepare a nut wrench, turn the nut clockwise to separate it from the sensor, then remove the sensor counterclockwise.
2. Unscrew the upper cover of the sensor counterclockwise.
3. Remove the old battery, dispose of it properly, and install a new CR1632 button battery (positive "+" facing up).
4. Screw on the upper cover of the sensor and tighten it clockwise with a wrench.

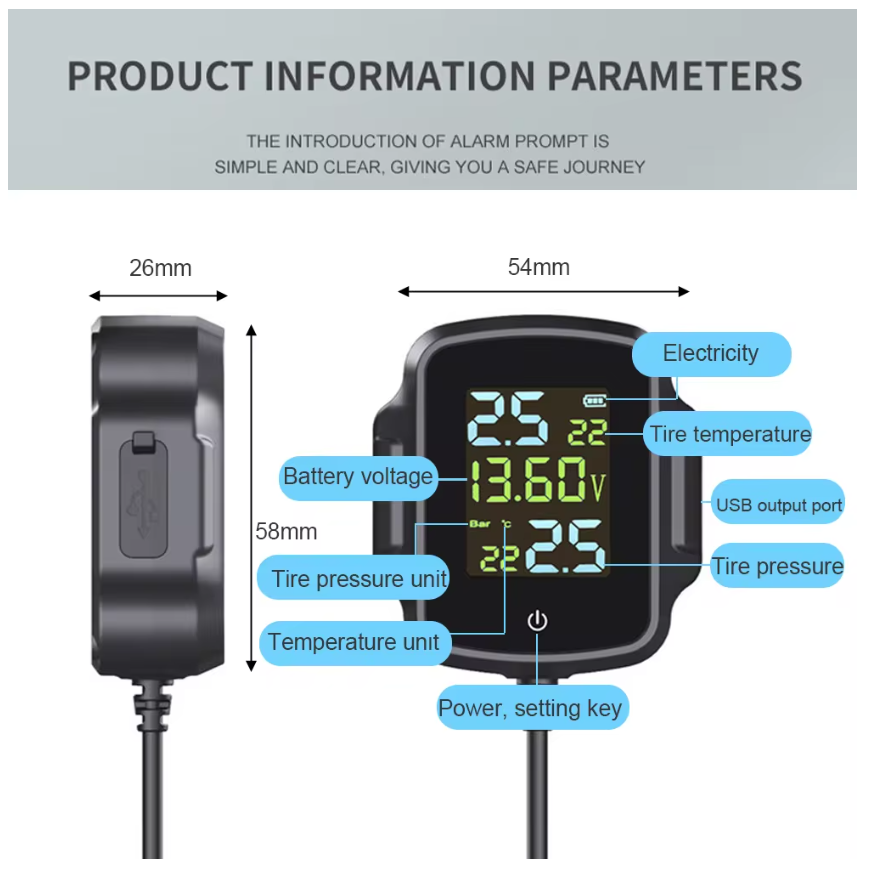

Specifications:

• Model: AN-08A
• Tyre Pressure Setting Range: 0.1~6.0 Bar
• Temperature Setting Range: 60℃~100℃
• Working Temperature: -20℃~+80℃
• Storage Temperature: -30℃~+85℃
• Power Voltage: DC 12V
• Output Voltage: DC 12V, 9V, 5V
• Frequency: 433.92MHz±20.00MHz

Receiver:

• Working Temperature: -20℃~80℃
• Storage Temperature: -30℃~85℃
• Power-on Voltage: DC 5V
• Frequency: 433.92MHz±20.00MHz

Sensor:

• Working Temperature: -20℃~80℃
• Storage Temperature: -30℃~85℃
• Pressure Range: 0~6.6 Bar
• Pressure Accuracy: +/-0.1 Bar
• Temperature Accuracy: +/-3℃
• Transmitting Power: <10dB
• Frequency: 433.92MHz±20.00MHz
