$859.00

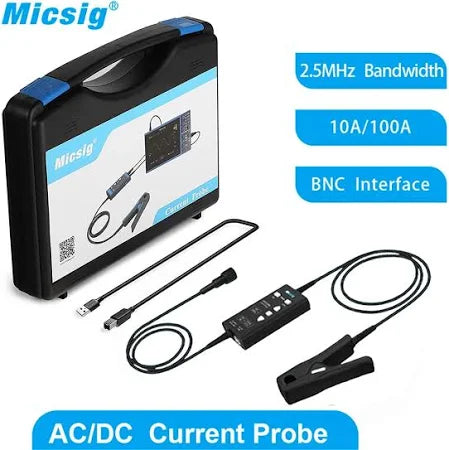

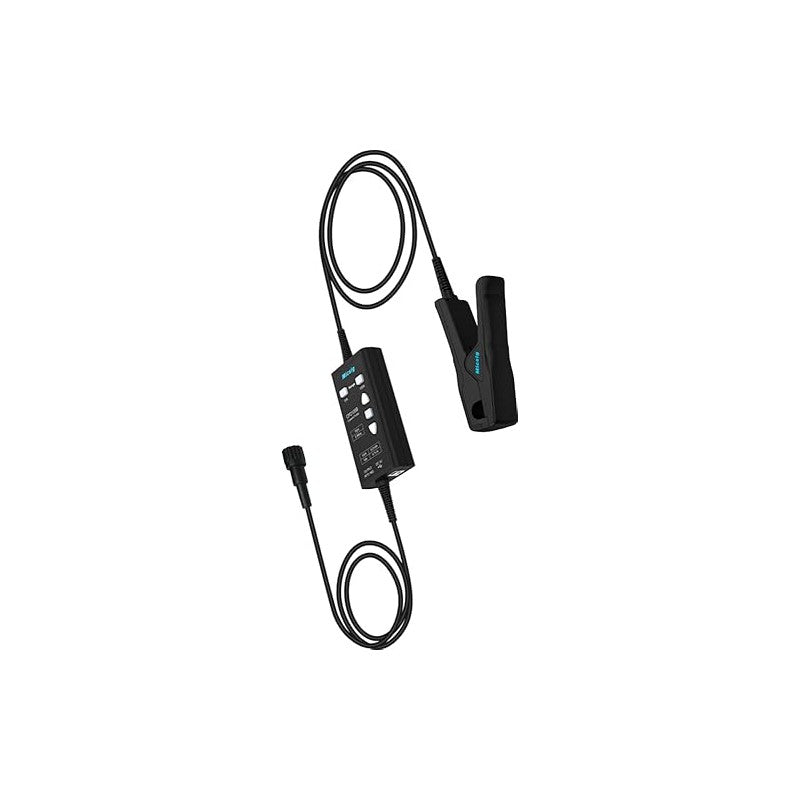

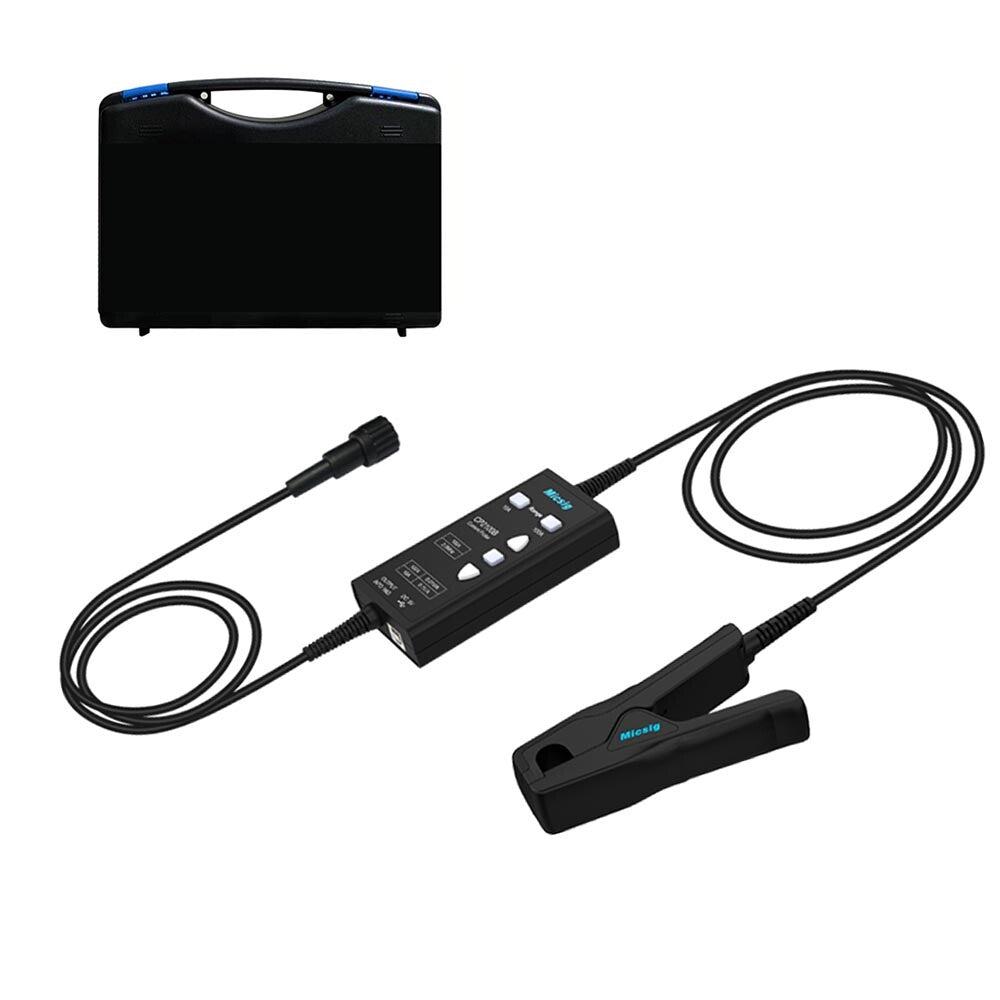

The Micsig CP2100B is a high-performance, compact AC/DC current probe tailored for demanding measurement tasks—ideal for motor drives, inverters, power supplies, avionics, frequency converters, and other industrial applications. It features a sleek split design, attaches via a standard BNC interface, and is conveniently powered by USB - no separate power supply needed
Wide Bandwidth: Measures DC up to 2.5 MHz, enabling capture of high‑frequency current transients with precision
Peak & RMS Capacity: Supports measurements up to 100 Aₚₐₐ (≈70.7 A RMS), with overload detection via audible buzzer and flashing LED
Dual Ranges: Switch between two current measurement ranges—10 A and 100 A—for versatile usage across light and heavy current scenarios
Fast Response: Achieves rise time ≤ 140 ns and signal delay under 200 ns, ensuring accurate tracking of rapid current changes
High Accuracy:
±3% ± 50 mA at low currents (10 A range)
±4% ± 50 mA at moderate currents (100 A, up to 40 Aₚₐₐ)
Up to ±15% at very high currents (40–100 Aₚₐₐ)
Safety Ratings: Rated for CAT III 300 V working voltage (floating CAT II 600 V), supporting safe operation in industrial environments

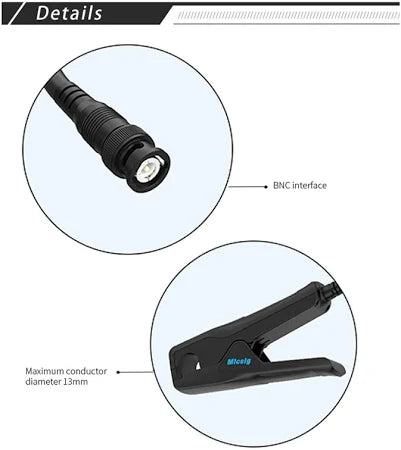

Compact & Compatible: Accepts conductors up to 13 mm in diameter. Fits oscilloscopes via BNC and is adaptable to multimeters with an appropriate connector

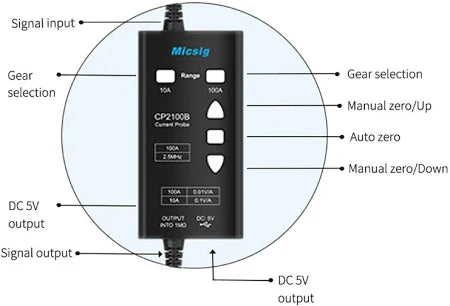

Zero Calibration: Offers both automatic and manual zero adjustments, as well as degaussing support for accurate baseline performance.
| Spec | Value |
|---|---|
| Bandwidth | DC to 2.5 MHz |
| Rise Time | ≤ 140 ns |
| Measurement Ranges | 10 A / 100 A |
| Output Sensitivity | 0.1 V/A (10 A), 0.01 V/A (100 A) |
| Typical Accuracy | ±3% (10 A range), ±4% (up to 40 A), up to ±15% (40–100 A) |
| Max Measurable Current | 100 Aₚₐₐ / 70.7 A RMS |
| Safety Rating | CAT III 300 V / CAT II 600 V |
| Conductor Capacity | ≤ 13 mm diameter |
| Power Source | USB DC 5 V |
| Interface | BNC; adaptable to multimeters |
| Zero Adjustment | Auto/manual plus degauss |
| Overload Alert | Buzzer + flashing LED |
High-Frequency Performance — Ideal for capturing fast electrical phenomena like switching events and inverter pulses.
Versatile Current Ranges — Easily adapt between low and high current tasks.
Accurate & Responsive — Reliable readings even in demanding high-current scenarios.
User-Friendly & Portable — Compact, USB-powered, and simple to integrate into measurement setups.
Safety Compliant — Suitable for professional, industrial use with proper overvoltage protection.
