Hantek HT308 Ignition System Test Independent Measuring Ring Plug ...
Description
Description

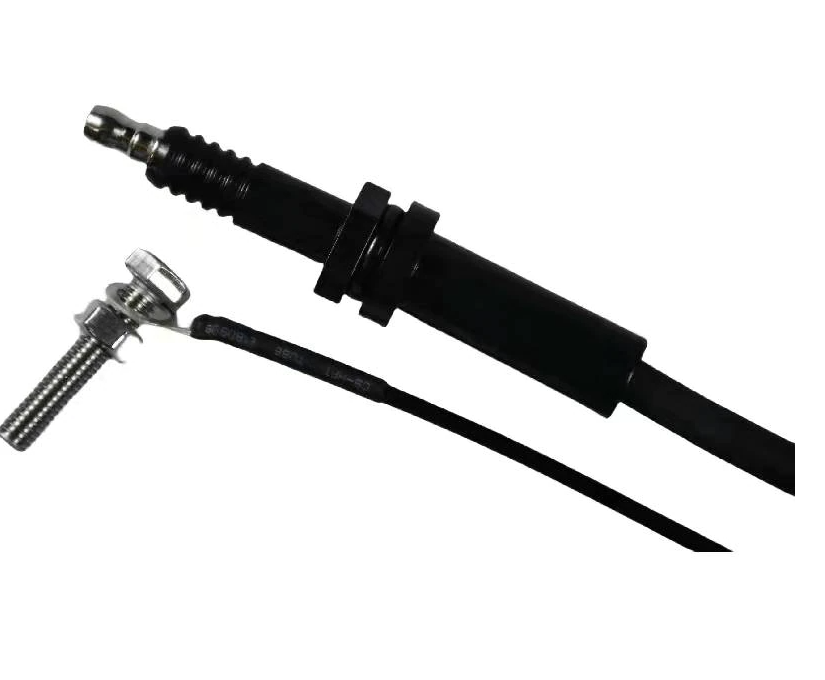

The Hantek HT308 Coil-on-Plug Extension Cord is a professional-grade accessory designed for secondary ignition testing and waveform analysis. Ideal for use with Hantek 1008C, 6074BE, and other compatible oscilloscopes, it enables accurate ignition diagnostics on modern coil-on-plug (COP) ignition systems.
This extension lead allows for quick and safe access to secondary ignition waveforms without the need for direct spark plug wire connections, making it an essential tool for technicians working with advanced ignition systems.
Key Features
-
Designed for use with Hantek 1008C, 6074BE, and compatible oscilloscopes
-
Allows accurate measurement of secondary ignition signals on COP systems
-
Ideal for diagnosing misfires, weak sparks, and coil performance issues
-
Provides earth grounding for signal stability and measurement accuracy
-
Eliminates the need to pierce ignition wires or modify the system
-
High-quality construction for professional workshop use
Function
The HT308 Coil-on-Plug Extension Cord allows technicians to safely capture ignition waveforms on vehicles with coil-on-plug ignition systems. When direct access to the spark plug wire is not available, the HT308 provides a simple way to measure ignition secondary voltage using an oscilloscope.
Simply insert the extension lead between the coil and the spark plug, attach the ground (earth) cable, and connect the oscilloscope probe to the lead.
Specifications
| Specification | Details |
|---|---|
| Model | Hantek HT308 |
| Function | Coil-on-Plug ignition system extension cord |
| Compatible With | Hantek 1008C, Hantek 6074BE, and other oscilloscopes |
| Colour | Black |
| Earth Cord Length | 550mm (21.7 in) |
| Coil-on-Plug Extension Cord Length | 620mm (24.4 in) |
| Item Weight | 104.7g (3.7 oz) |
| Package Size | 24 × 17 × 2.5 cm (9.4 × 6.7 × 1.0 in) |
| Package Weight | 109.4g (3.9 oz) |

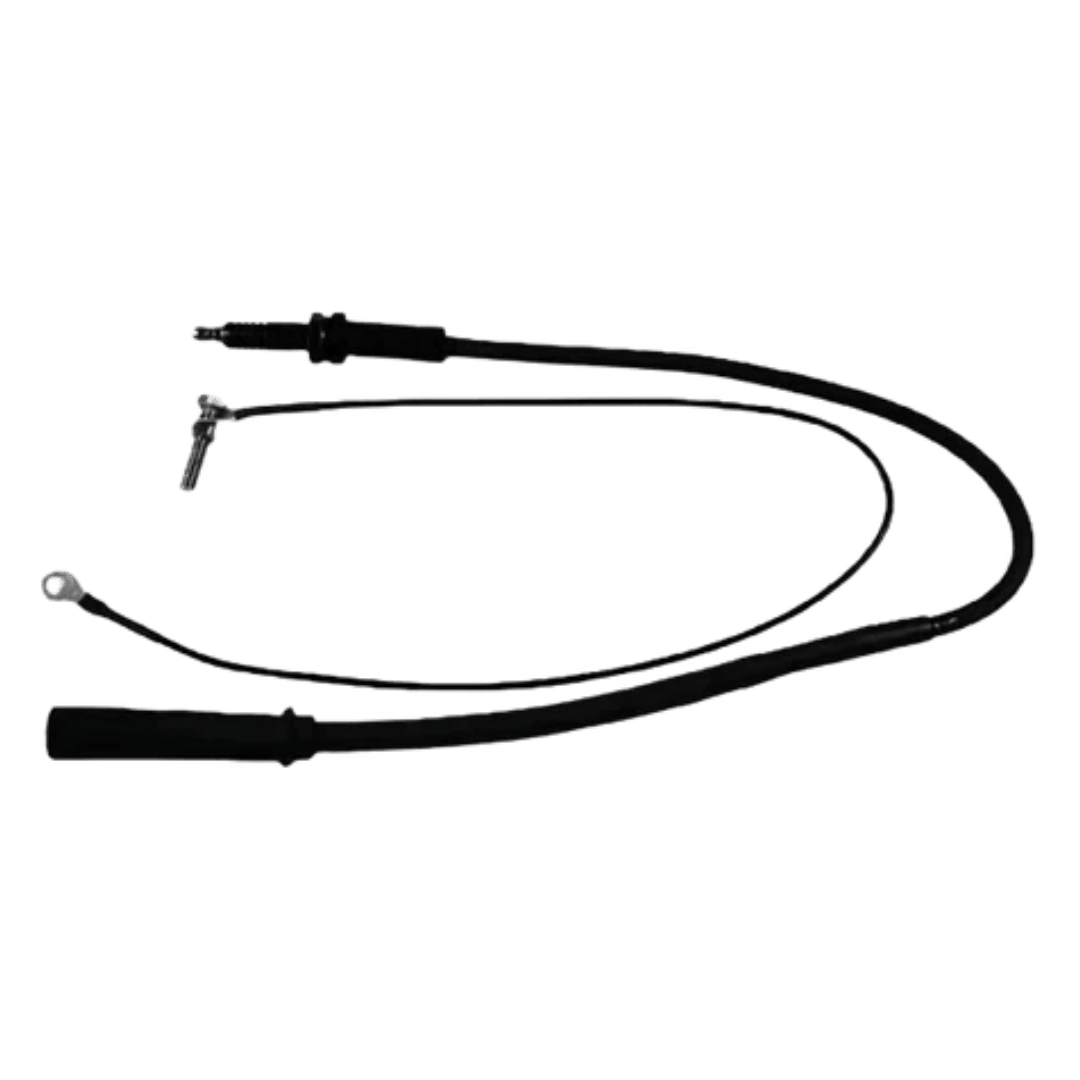

Package Includes
-
1 × Coil-on-Plug Extension Cord
-
1 × Earth Cord
Ideal For
-
Automotive diagnostic professionals
-
Oscilloscope-based ignition testing
-
Secondary ignition waveform analysis
-
Coil-on-plug and DIS system diagnostics
