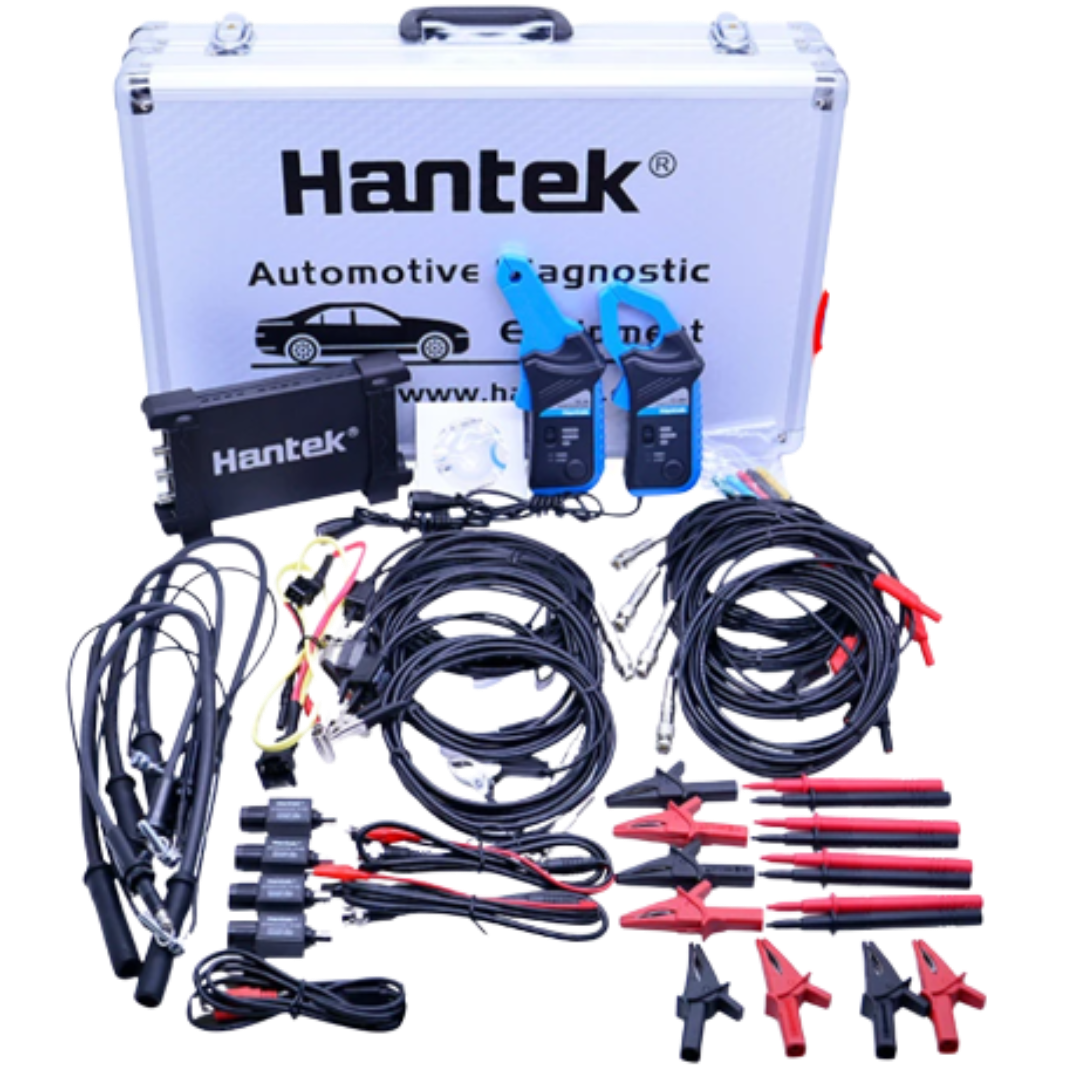

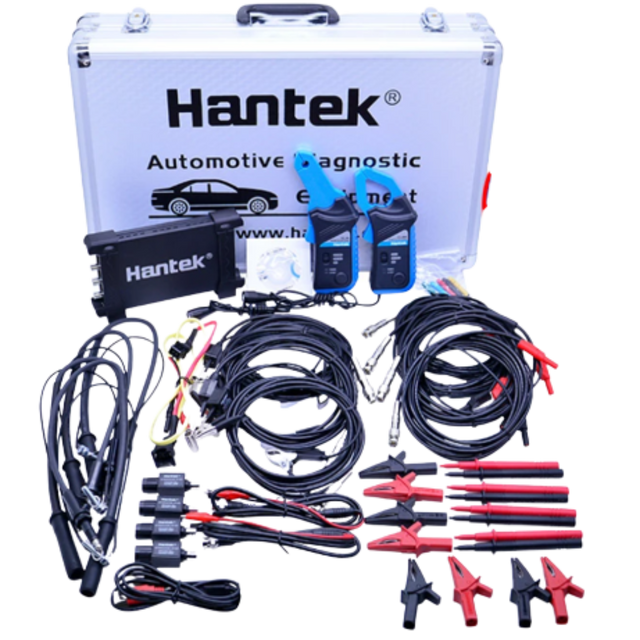

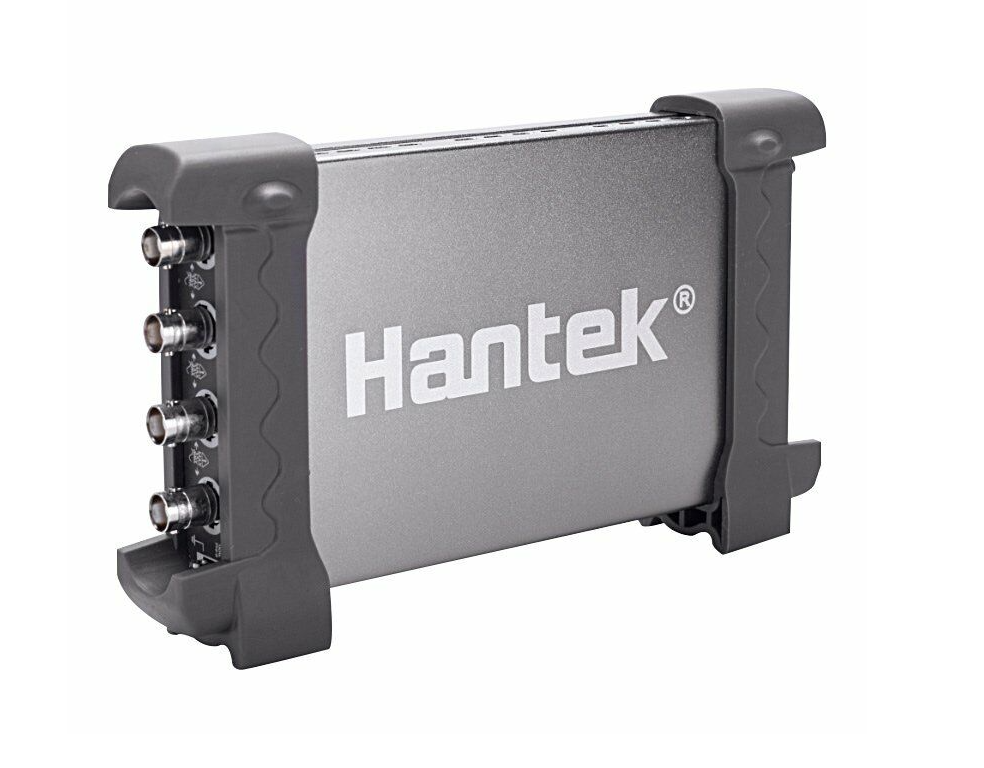

Hantek 6254BE Digital Oscilloscope Full Kit 250MHz

The Hantek 6254BE Digital Oscilloscope is a professional-grade, PC-based automotive diagnostic tool designed for advanced testing, waveform analysis, and real-time data measurement. Equipped with four isolated channels, a 250MHz bandwidth, and a 1GSa/s real-time sampling rate, it delivers high accuracy for detailed automotive and electronic diagnostics.

This comprehensive kit includes everything needed for professional use — from ignition testing to CAN bus analysis and fuel system diagnostics — making it an ideal choice for automotive technicians, engineers, and electronic repair professionals.

Key Features

• Equipped for over 80 types of automotive measurements

• Supports intake manifold vacuum, ignition, lambda sensor, throttle position, and more

• Includes primary and secondary ignition waveform analysis

• Suitable for diagnosing sensors, CAN/LIN bus systems, fuel systems, starter and charging circuits

• Supports Petrol and Diesel vehicle testing

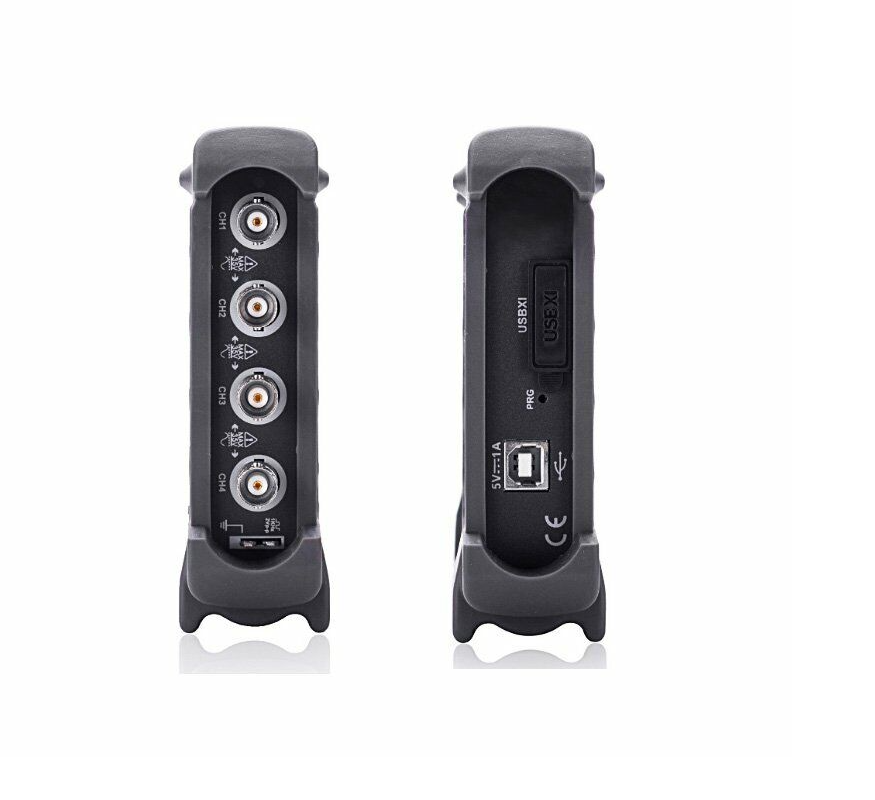

• Plug-and-play via USB 2.0 interface

• Compatible with Windows 7, 8, and 10

• Offers 20+ automatic measurement functions with PASS/FAIL check

• Resourceful trigger function, dynamic cursor tracking, waveform recording, and replay

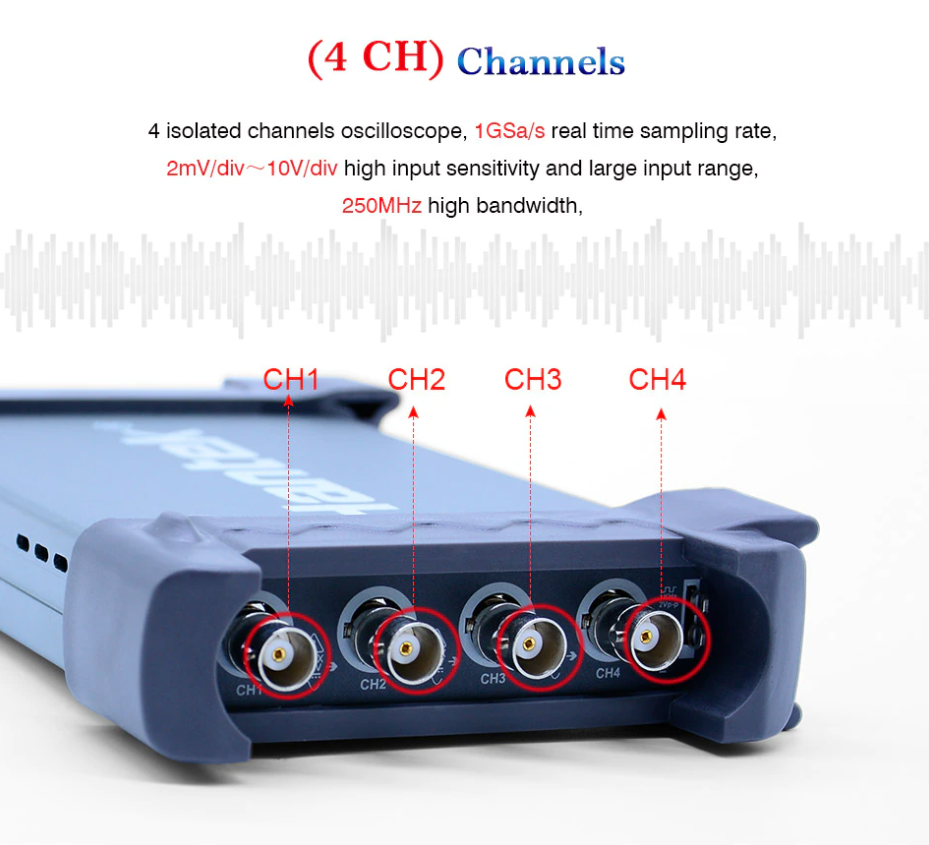

• 4 isolated channels, 250MHz bandwidth, and 1GSa/s real-time sampling rate

• High input sensitivity (2mV–10V/DIV) and wide input range

• Compact anodized aluminium housing – heat and abrasion-resistant

• Supports multiple languages

Advanced Capabilities

• FFT Spectrum Analyzer for signal frequency analysis

• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, and X-Y display

• Data export to Excel, BMP, or JPG

• Expandable channel capacity – connect multiple oscilloscopes to one computer

• Provides secondary development library (DLL) and LabVIEW/VB/VC/QT development examples

Compatible Systems

Suitable for use with laptops, tablets, PCs, and PC-based scan tools. Ideal for professional automotive, electronic, and engineering environments.

Specifications

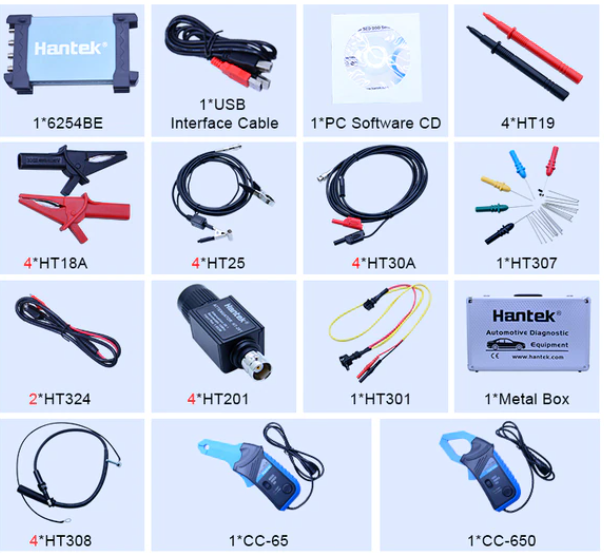

Packing List

• 1 × Hantek 6254BE Oscilloscope

• 1 × USB Interface Cable

• 1 × PC Software CD

• 1 × Carry Case

• 4 × HT18A

• 4 × HT19

• 4 × HT201

• 4 × HT25

• 4 × HT30A

• 4 × HT301

• 1 × HT307

• 4 × HT308

• 2 × HT324

• 1 × CC-65 Current Clamp

• 1 × CC-650 Current Clamp
