$669.00
Shock Pro is a portable, high-accuracy suspension tester designed to measure rebound performance and identify worn or degraded suspension systems. Developed for use with the Workshop Pro tablet, Shock Pro provides real-time data, intuitive app integration, and reliable test results based on damping ratio calculations.

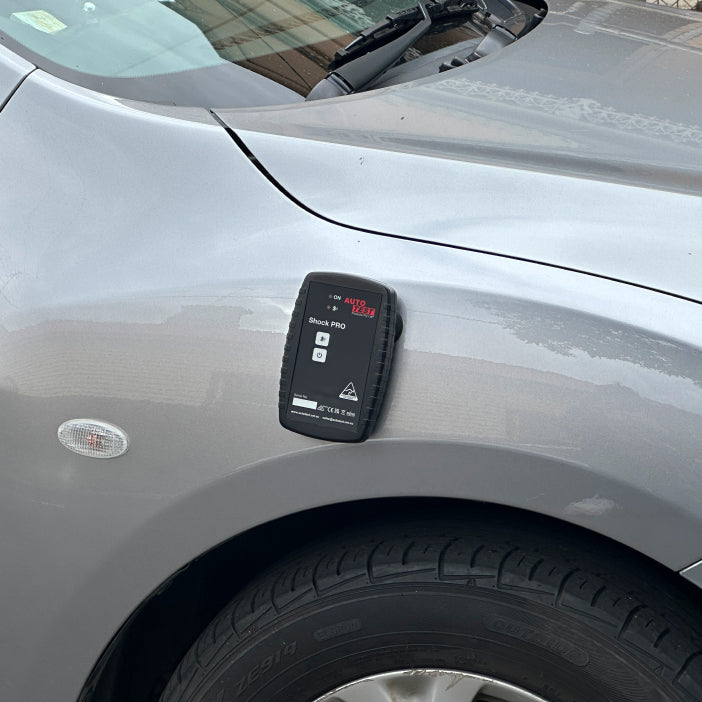

Shock Pro works by measuring the rebound force of a vehicle’s suspension during a controlled stop. The device is mounted directly onto the suspension system, and as the vehicle moves forward and comes to a stop, Shock Pro captures data using a high-accuracy load cell sensor (±2%).
This data is used to calculate the damping ratio, which indicates how well the suspension system is absorbing energy and controlling bounce. A low damping ratio can signal worn or degraded suspension components, which may affect handling, stability, and braking performance.

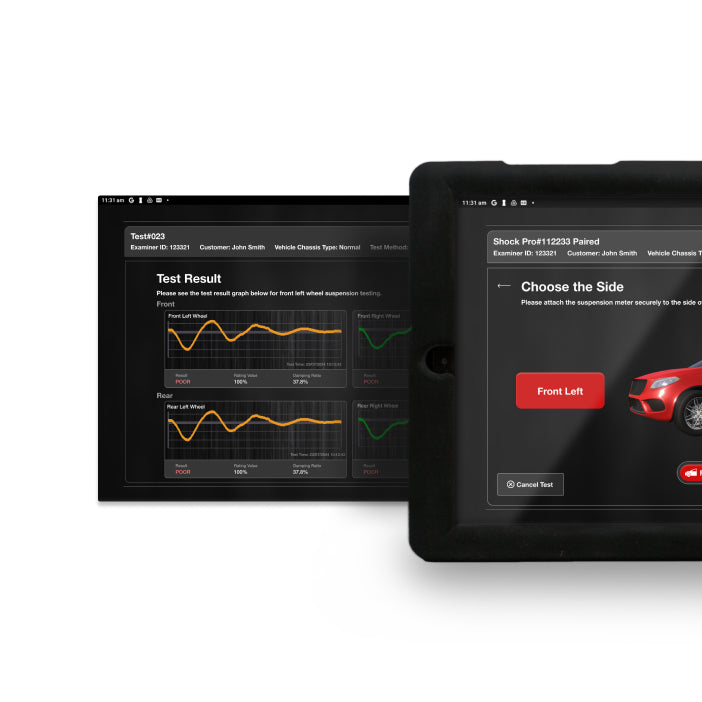

The results are sent wirelessly to the Workshop Pro tablet, where they are displayed in the Shock Pro App as a clear, visual graph. This allows technicians to quickly assess suspension condition and explain findings to customers with confidence.
With minimal setup, reliable readings, and objective results, Shock Pro gives workshops a faster and smarter way to detect suspension issues and support repair decisions.
Key Features
Measures suspension rebound using high-accuracy load cell sensor (±2%)
Calculates damping ratio to assess suspension performance
Visual test results displayed via Shock Pro App
Wireless connection to Workshop Pro tablet
Supports over 350 tests per battery cycle
Suitable for use in workshops and mobile inspections
Compact, lightweight design (500g)

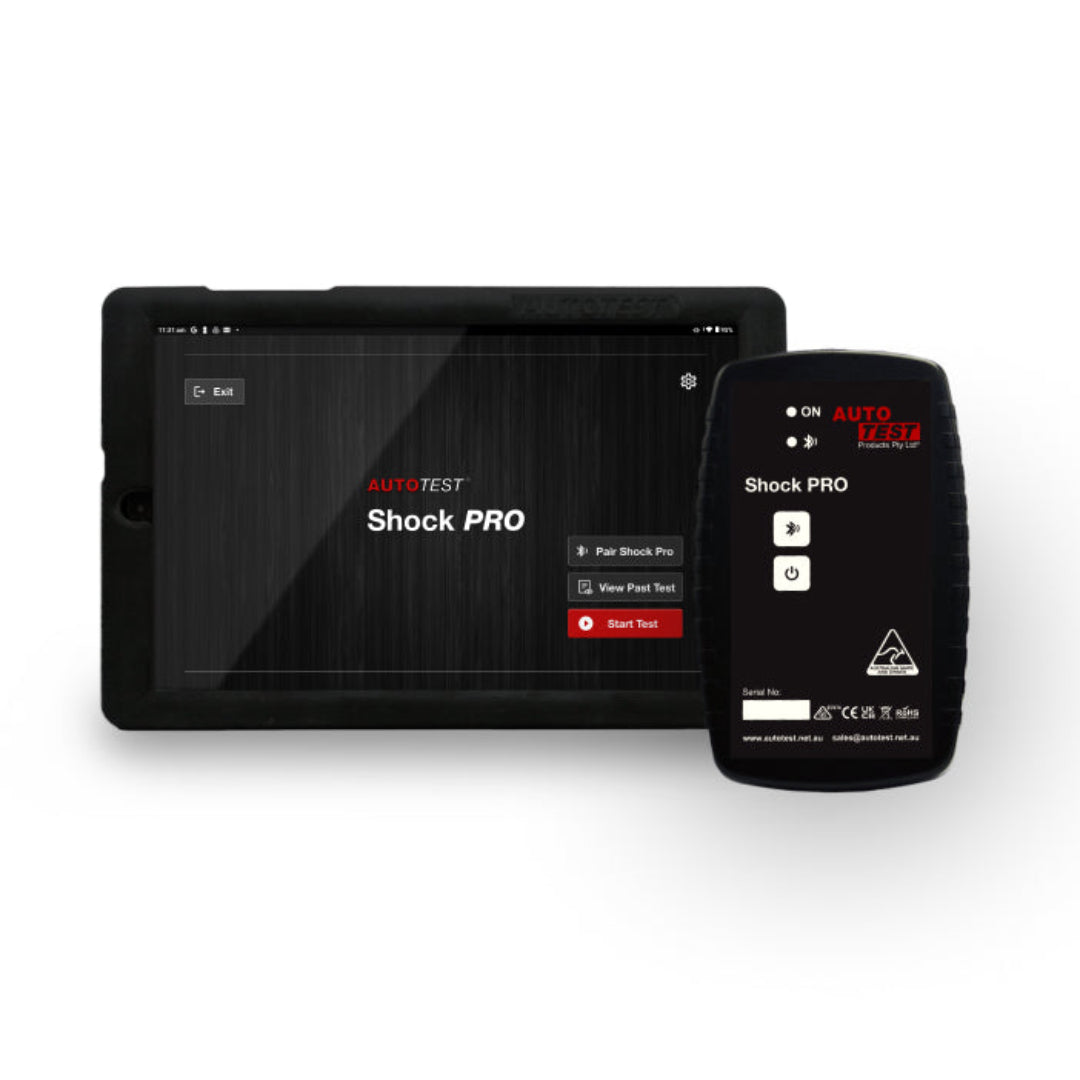

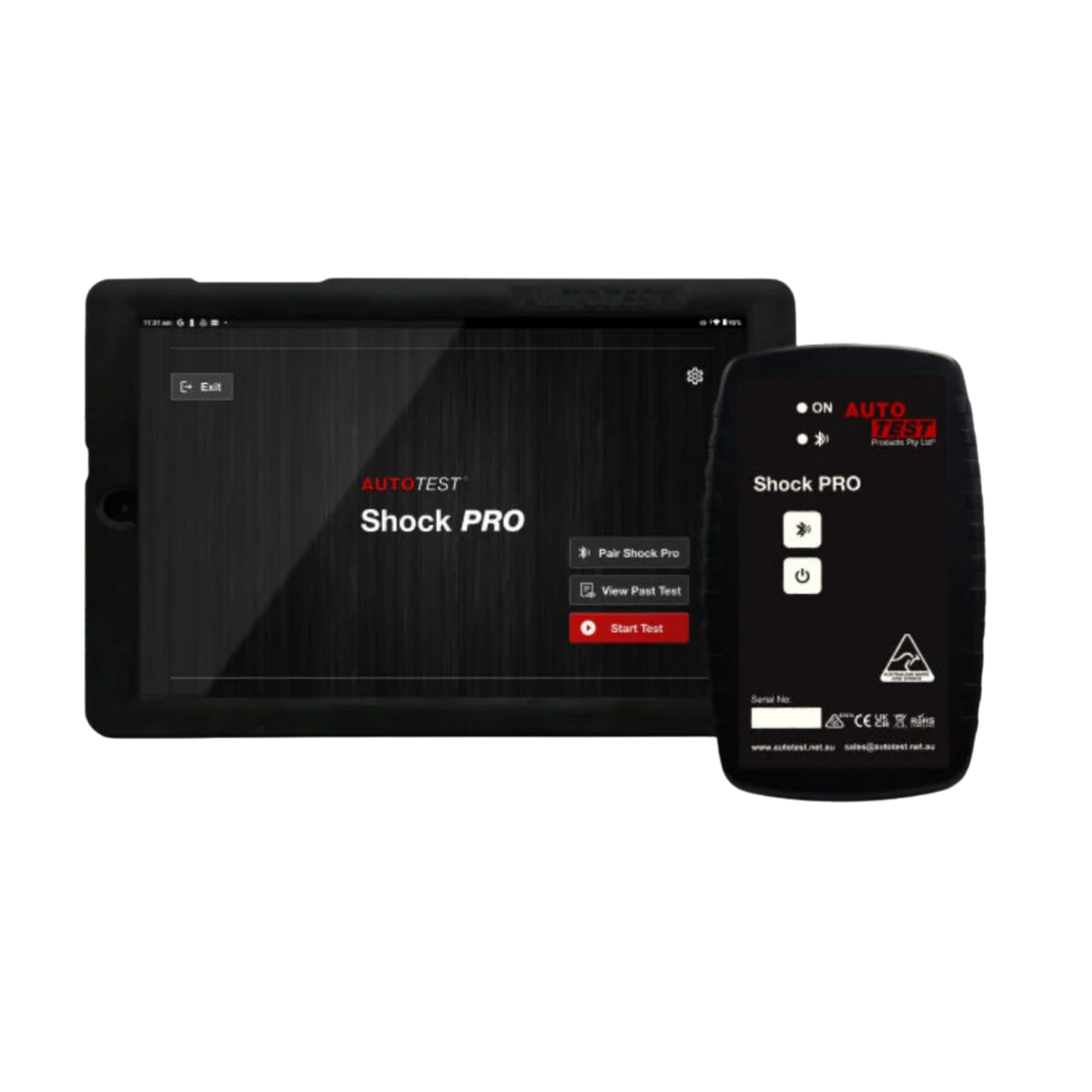

Shock Pro Device
• Compact & Lightweight (500grms), dimension (90 x 145 x 32mm)
• Automatic shut-off to preserve battery life
• Built in rechargeable battery
• Built in integrity check and real time clock
• Internet support hotline
• Bluetooth Interface
• PC download and Graph.
• Use alone with Tablet
• Simple two-button operation via a tactile membrane pad

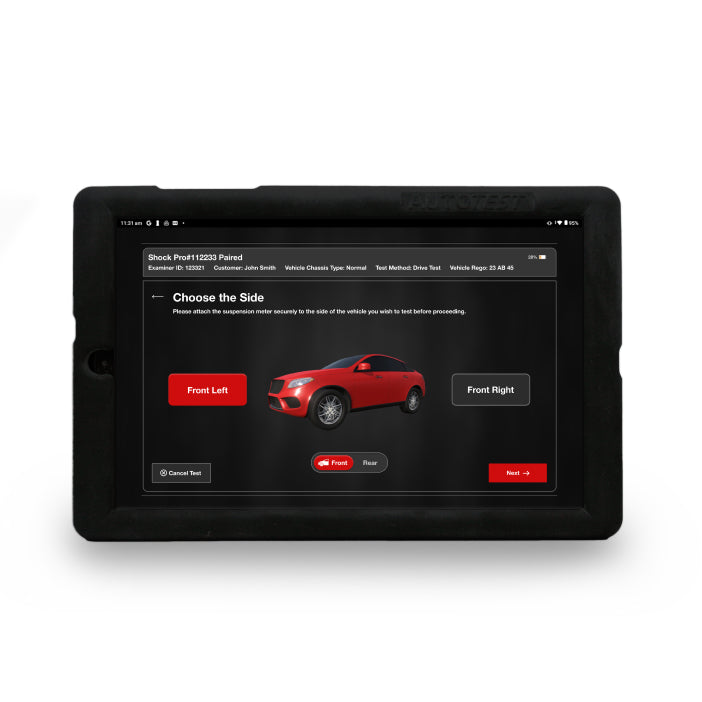

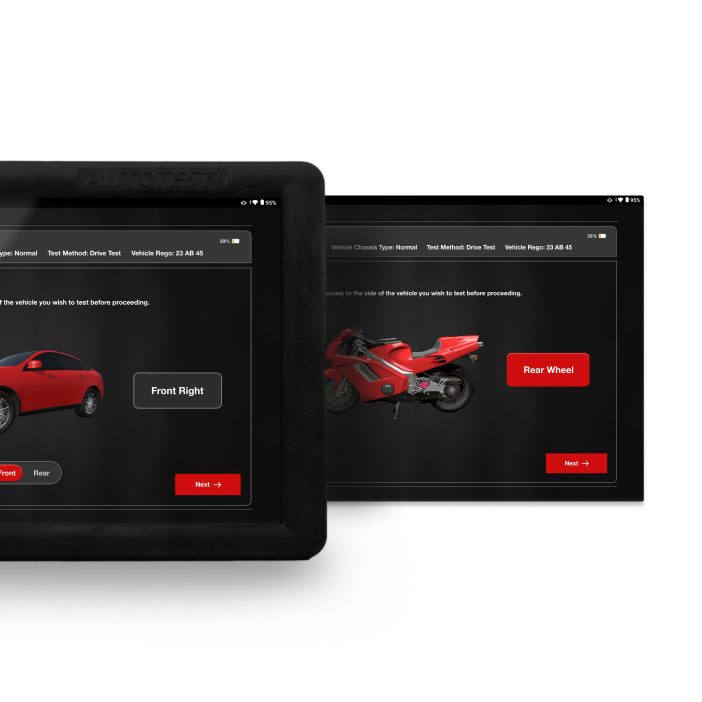

Shock Pro App
• Designed for use with Workshop Pro 10 tablet
Link to the Workshop Pro 10 Tablet
AutoStop Shock Pro User Manual Download
