MAKE SURE IT STOPS WITH AUTOSTOP!

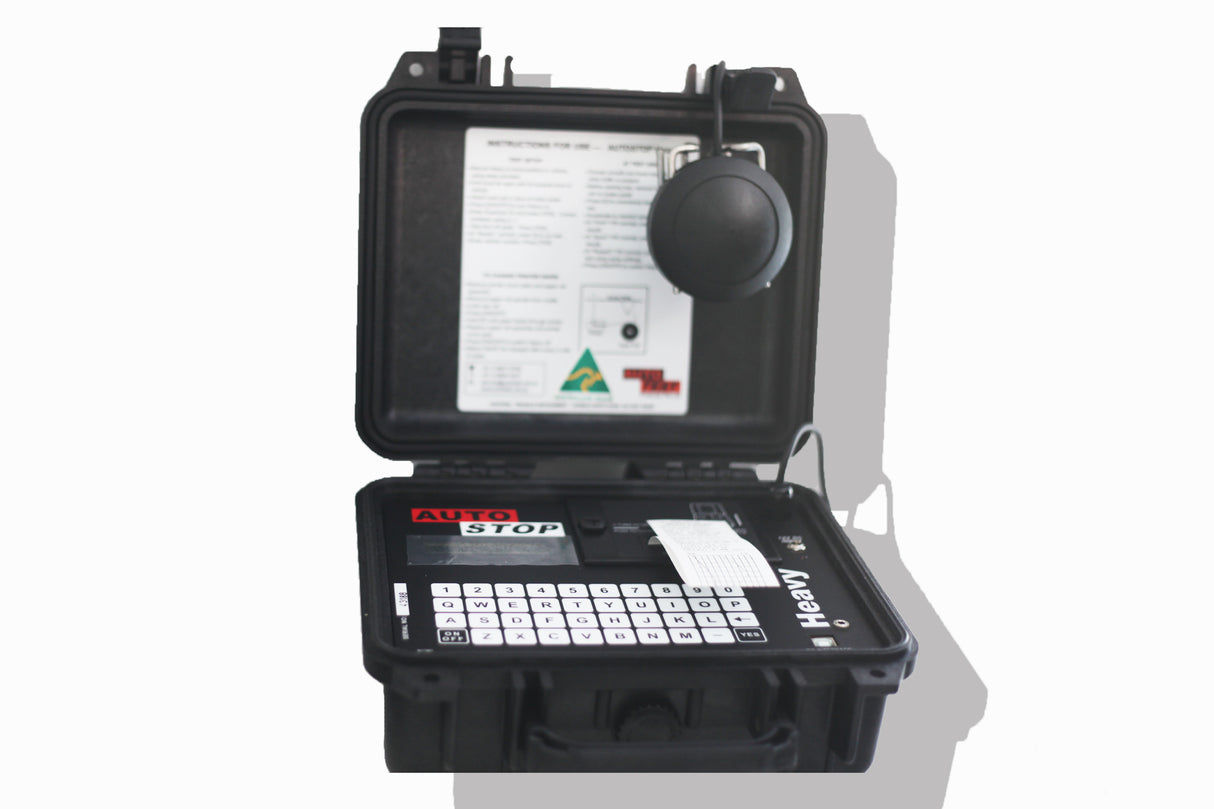

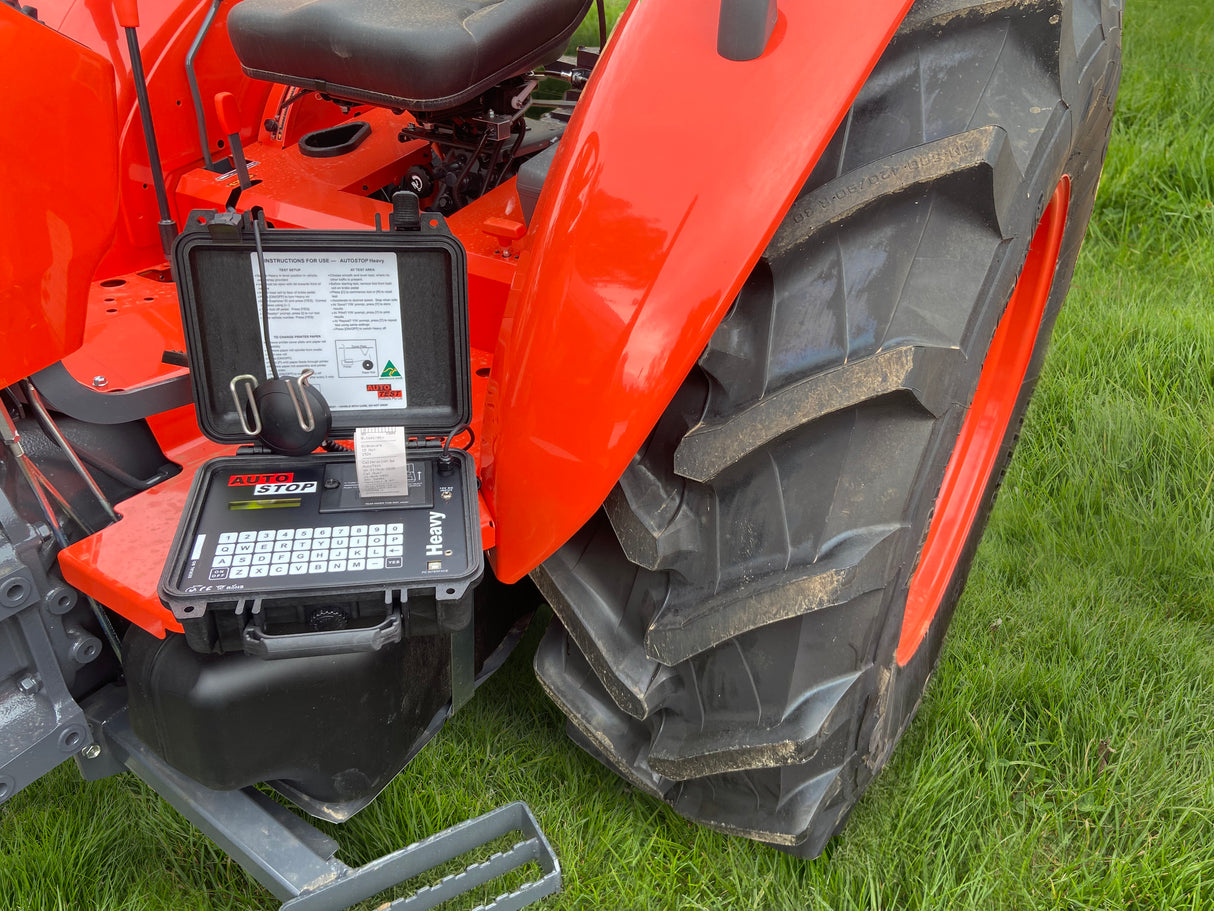

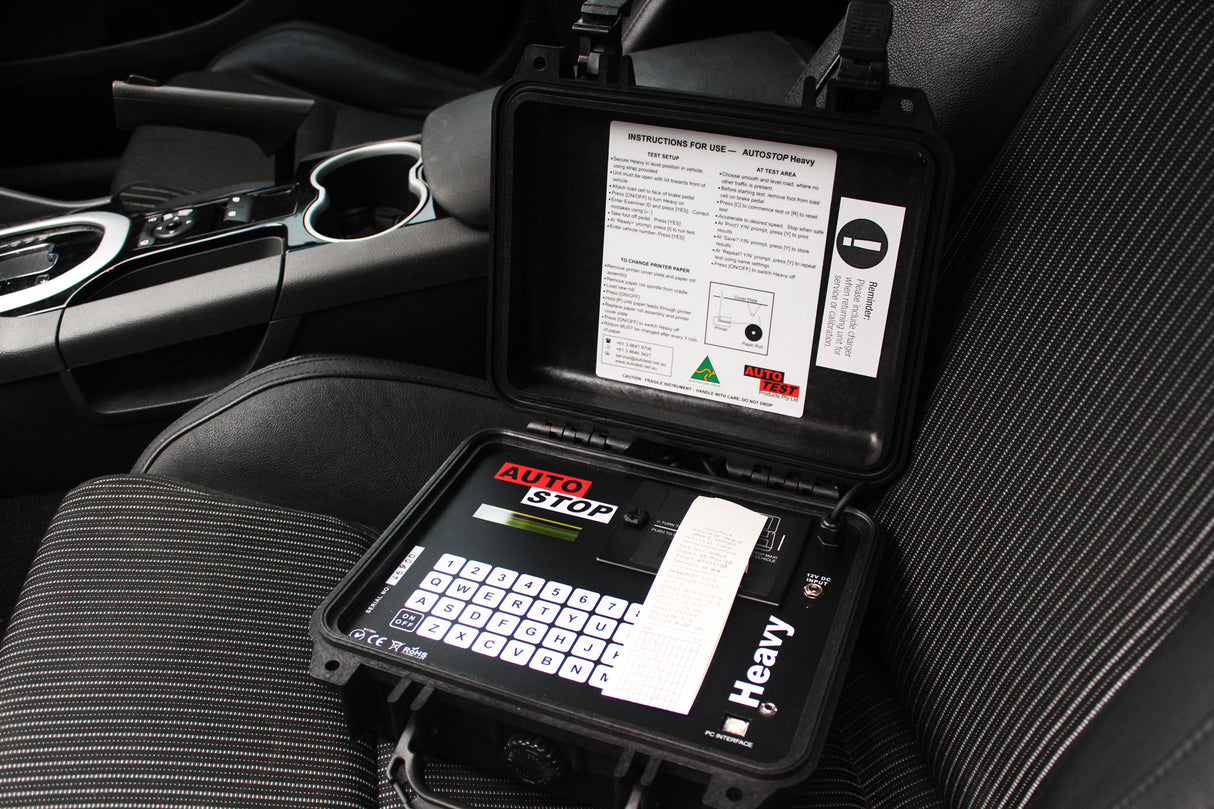

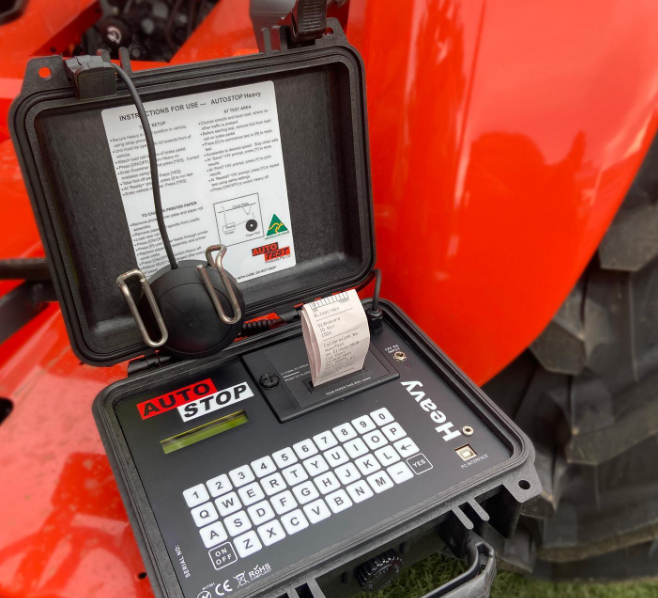

The AutoStop® Heavy Brake Meter is a decelerometer designed to test service and emergency brakes of heavy and slow-moving vehicles, off-road vehicles and even forklifts used in the transport and mining industries.

Equipped with a built in GPS/Glonass receiver that will provide the latitude and longitude of the position where the test was
carried out.

MEETS ALL OF THE REQUIREMENTS FOR THE ISO 3450 TESTING.

• Compliant with roadworthy regulations around Australia
• Compliant with AS2958 Australian Standard
• Compliant with SANS 1589 brake testing
• Compliant with SANS 10047 brake testing
• Compliant with ECE R13 – Rule 13
• Compliant with Federal Regulation FMVSS 135 and FMVSS 571 – USA
• Compliant with Transport Canada – CMVSS 135
• Calibration that is internationally traceable through NATA (accreditation #20559)
• Prints an accurate test report that complies with International Standards
• Calculates and displays average and maximum deceleration, distance to stop, test speed and pedal force required to stop the vehicle
• 12-month calibration interval
• Data logging and download to PC through USB interface – USB cable included
• Built-in GPS/Glonass receiver providing the latitude and longitude of test position
• Uses AutoTest Standard Paper Roll Pack

BRAKE REGULATION SUMMARY:

The UNECE (United Nations Economic Commission for Europe) has published a table of Brake Regulation Requirements for every country.

What is the Purpose of the Brake Test?

The purpose of the brake test is to see if a vehicle’s braking performance is consistent with your experience of other vehicles of a similar make and model. Most vehicles will achieve 0.6g (light vehicles) with the rear brakes inoperative, so you should look for a lower than average reading for that make or type of vehicle. Lower than expected readings indicate that something is wrong. It is important that the brake tester is seen as a diagnostic tool and not just a pass/fail gauge.

When the brake test is completed, you can print a copy of the test result showing the peak deceleration and attach it to your test report.

The AutoStop Heavy® Brake Meter (tester) does not show a “PASS” or “FAIL” as the regulations for a pass or fail are different in every state and territory. Check the regulations in your area to see how it affects your testing requirements.

EXTEND THE CAPABILITIES OF YOUR AUTOSTOP HEAVY BRAKE METER

NetBrake® software is an optional add-on specifically designed to extend the capabilities of your AutoStop Heavy Brake Meter to powerful fleet management and reporting tool. This vehicle database and brake test reporting software assist the mining and heavy vehicle industries in Australia to manage brake test records, and brake test Standards and calculations for their fleets.

By upgrading your Brake Meter software, you can set the standard in your area, and it will show a “PASS” or “FAIL”. See the full capabilities of NetBrake® software and additional inclusions.

Additional Information:
