Professional Air Pressure & Vacuum Measurement

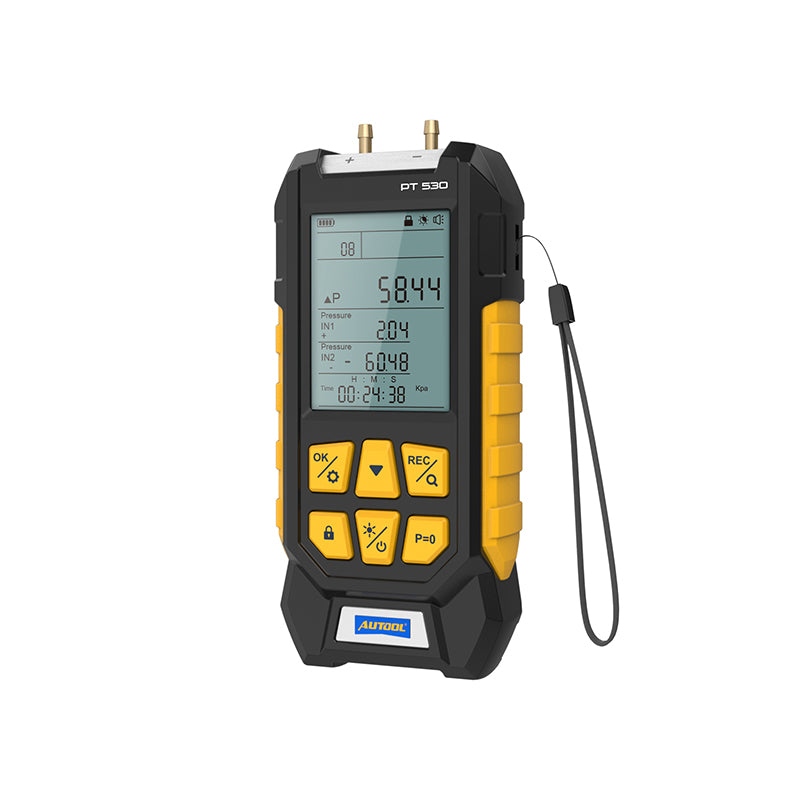

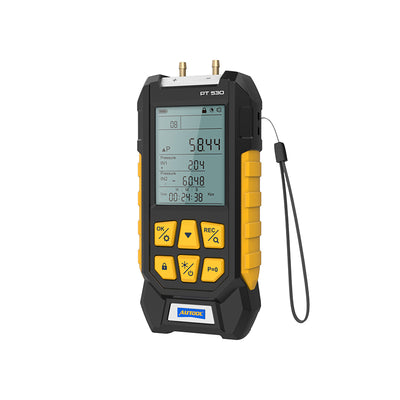

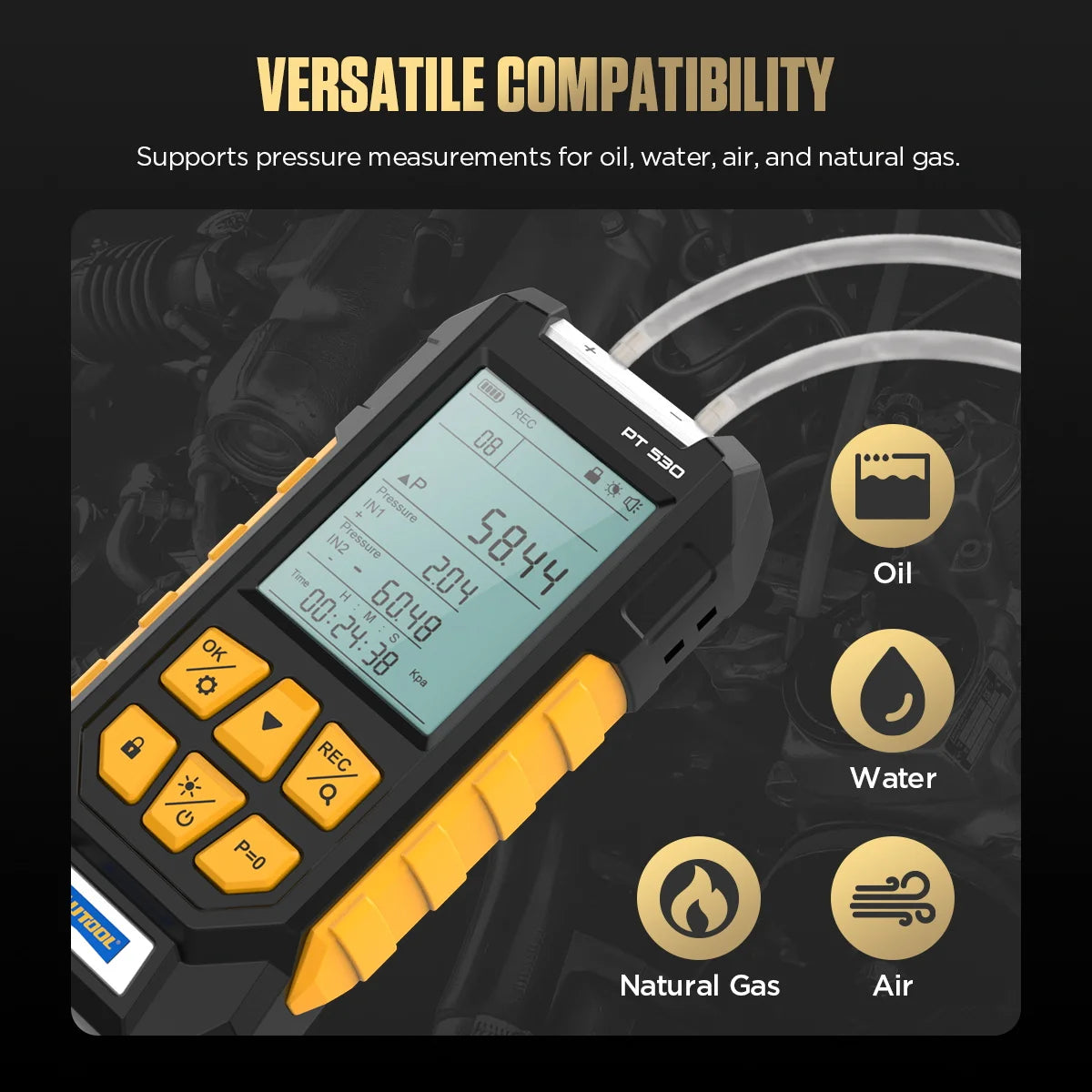

The AUTOOL PT530 is a high-accuracy digital differential manometer designed for measuring both positive pressure and vacuum levels in a wide range of automotive and industrial applications. Suitable for testing oil, water, air, and natural gas pipelines, it’s an essential tool for mechanics, engineers, and HVAC technicians.

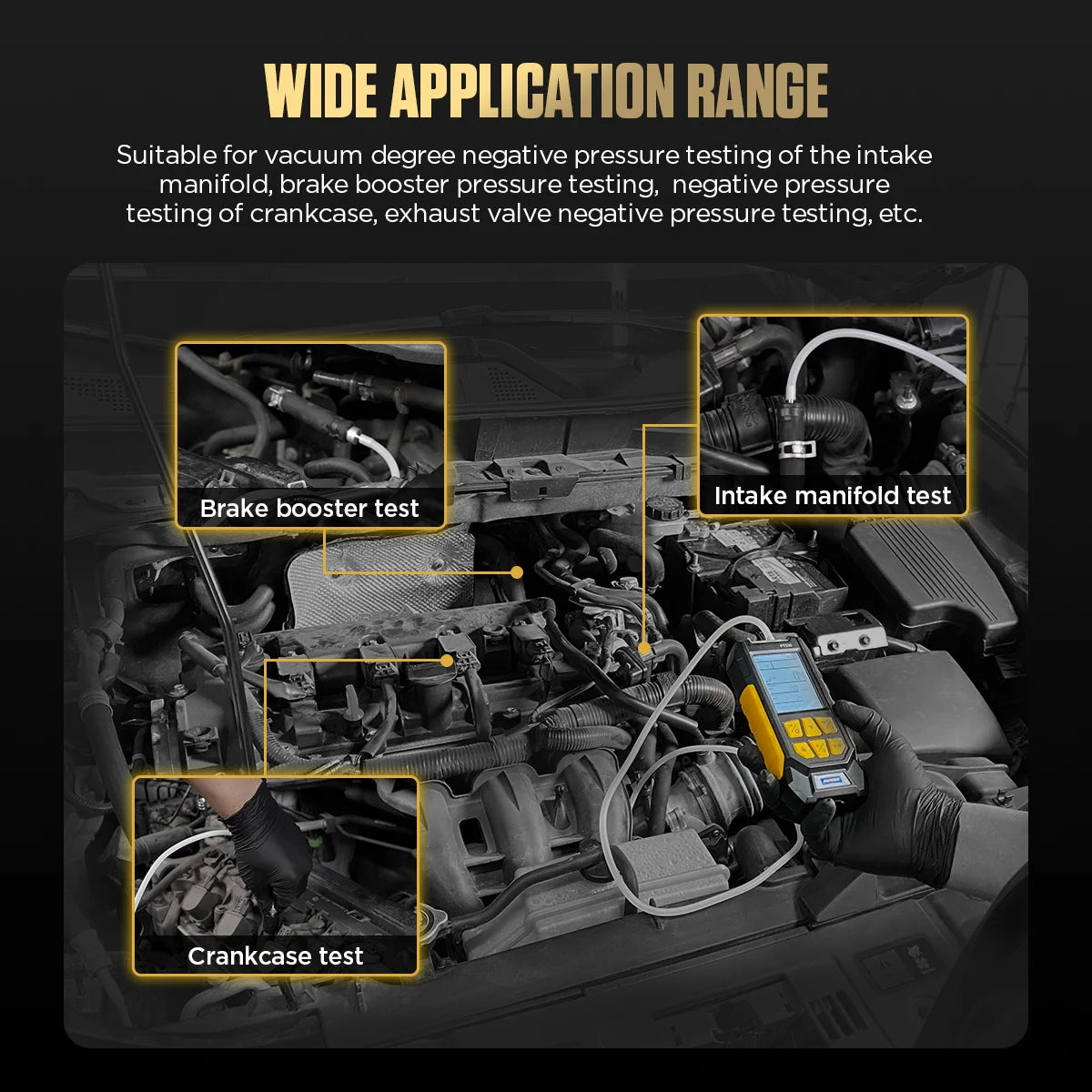

Perfect for:
Vacuum testing of intake manifolds
Brake booster pressure diagnostics
Crankcase negative pressure testing
Exhaust valve vacuum measurements

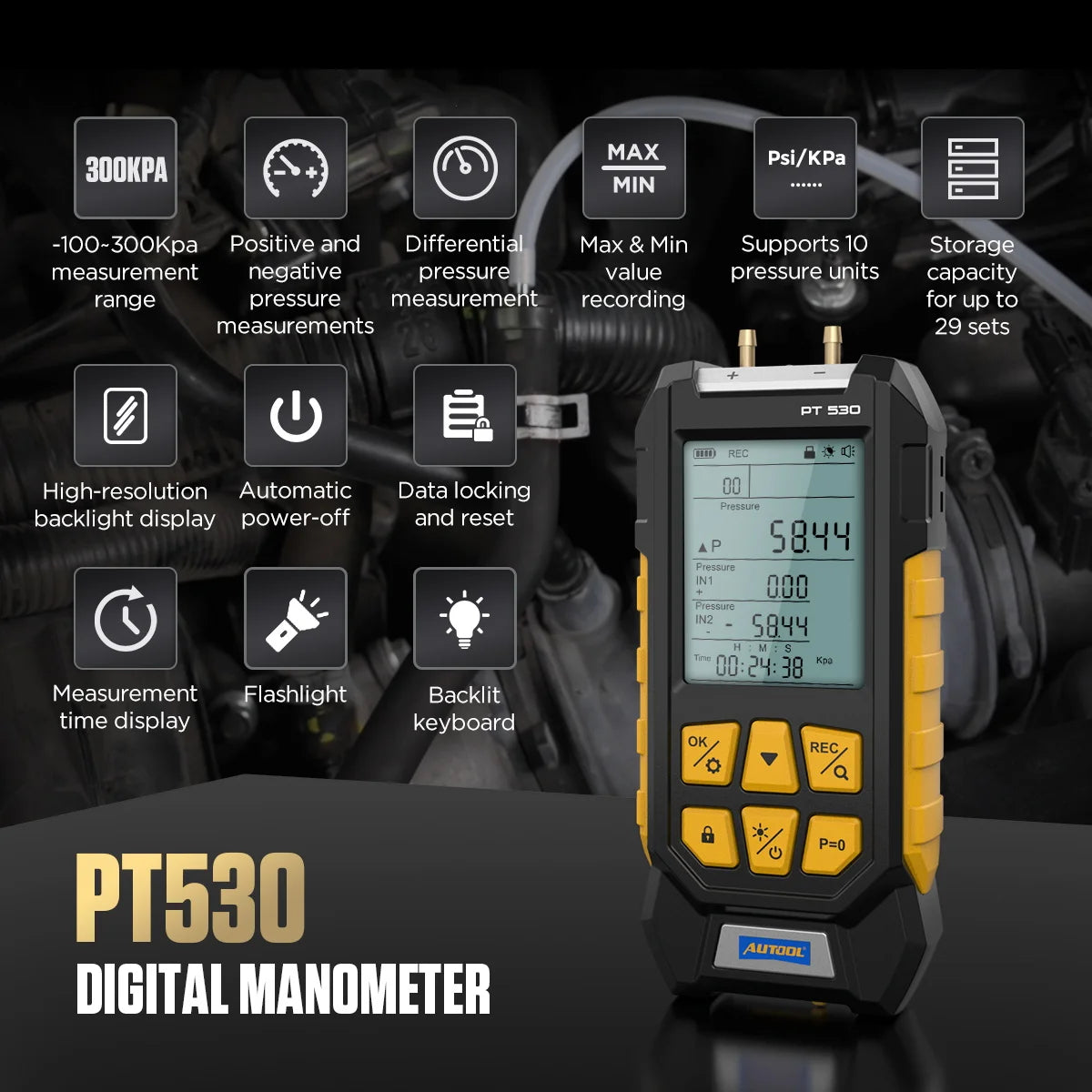

Key Features & Benefits:

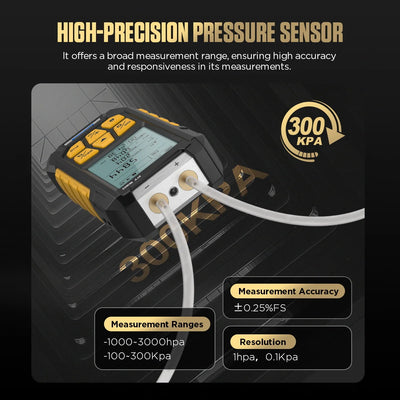

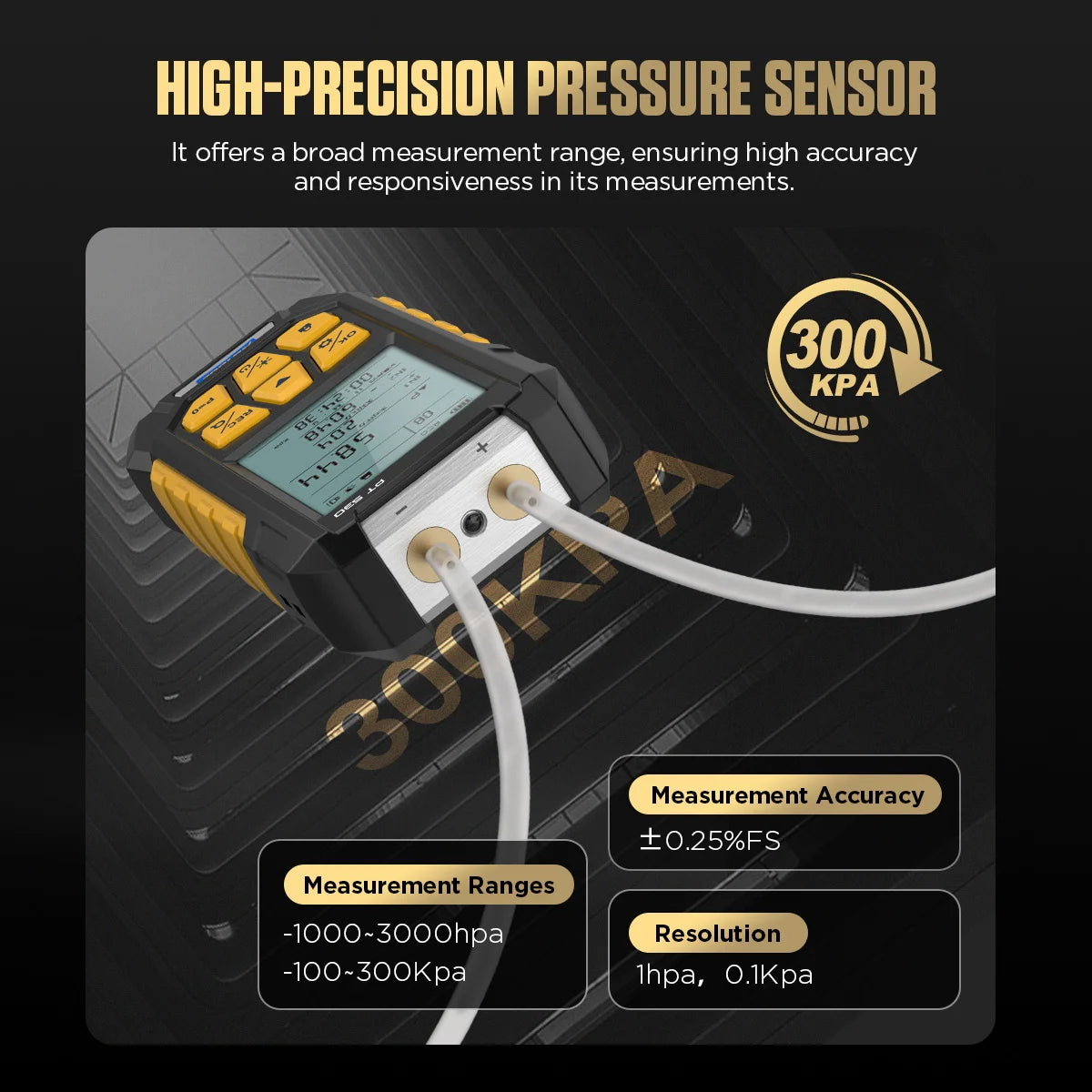

Wide Measurement Range – Measures from –100 to 300 kPa (–1000 to 3000 hPa)
High Accuracy – ±0.25% FS with resolutions of 0.1 kPa or 1 hPa for precise diagnostics.

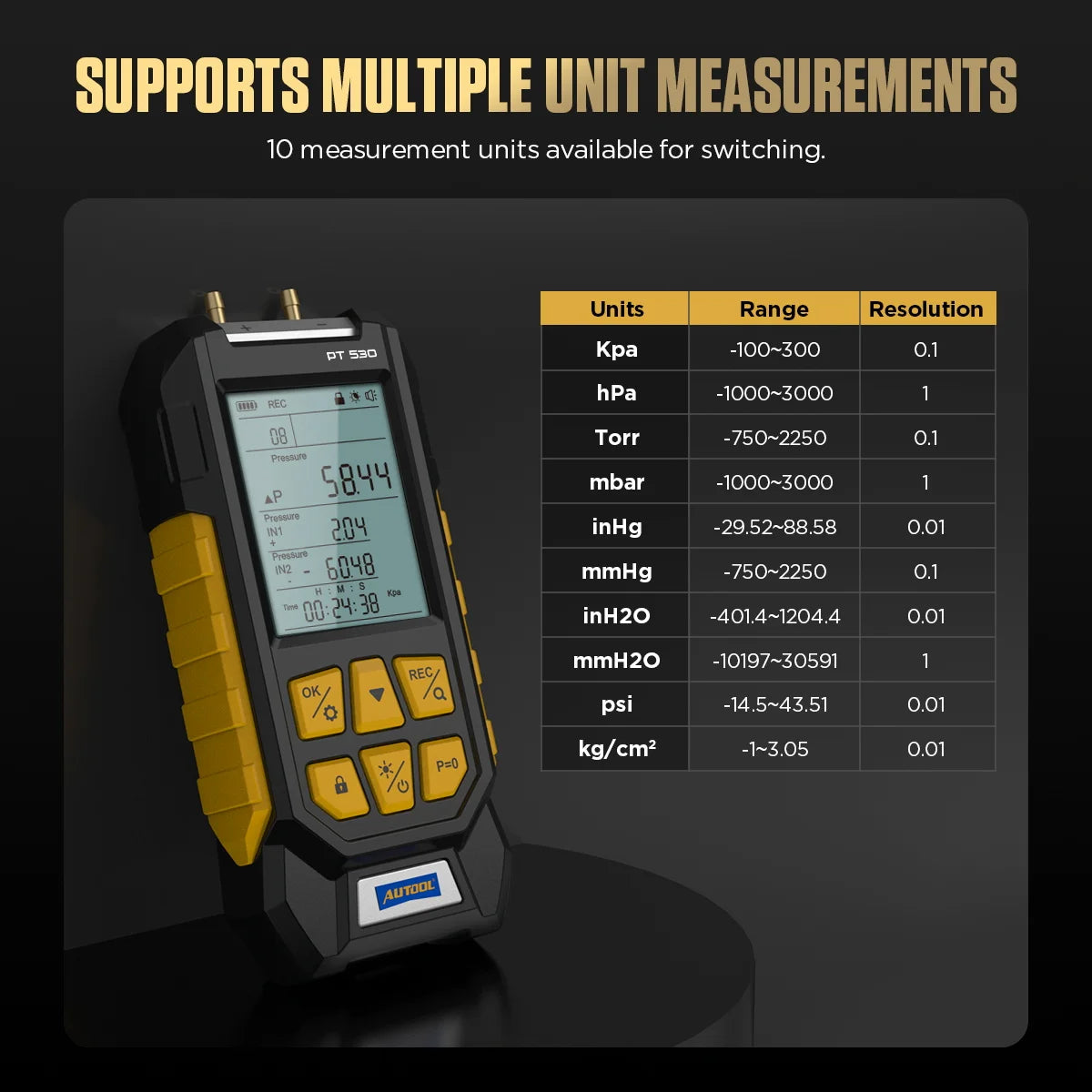

Multi-Unit Capability – Supports 10 pressure units: hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, PSI, kPa, and kg/cm².

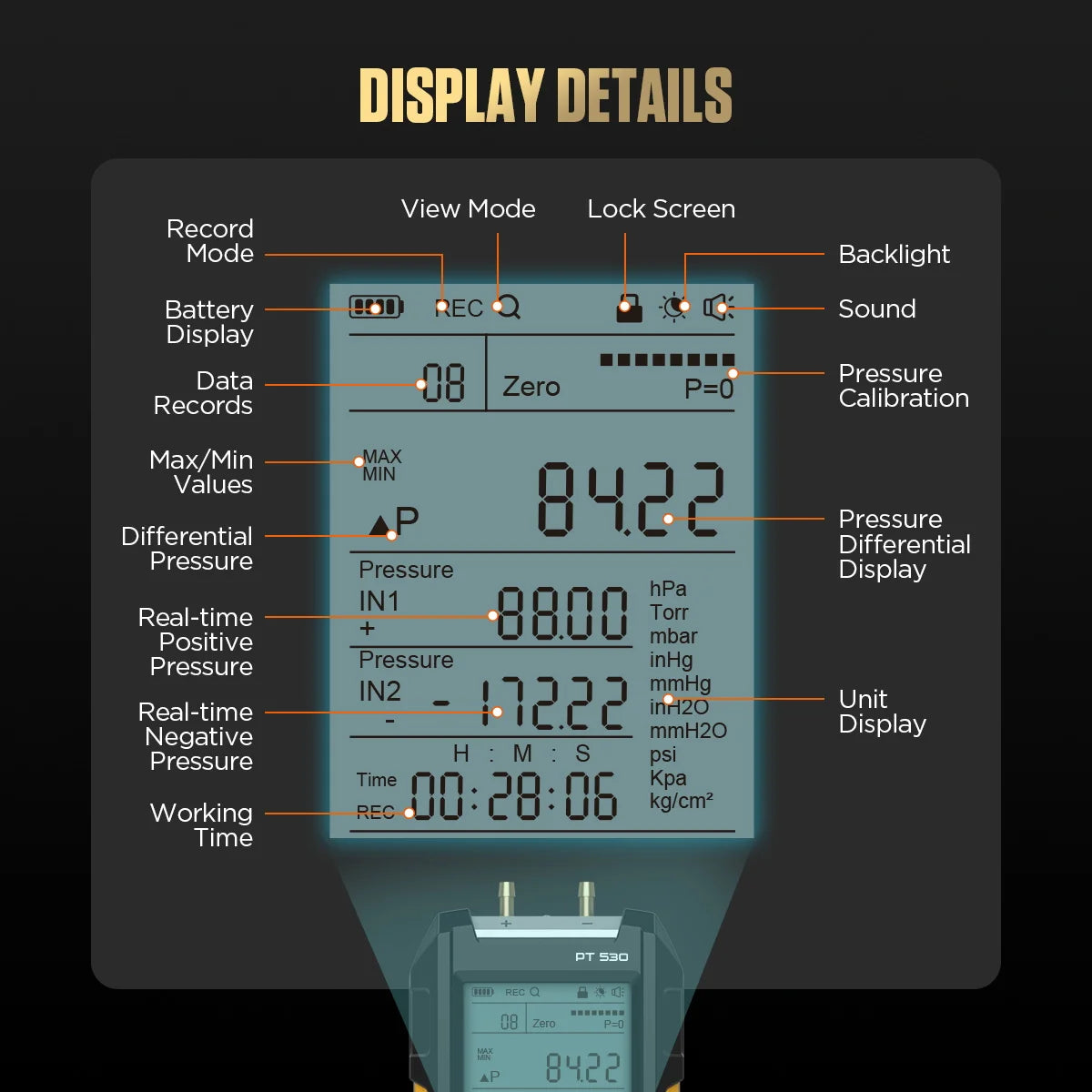

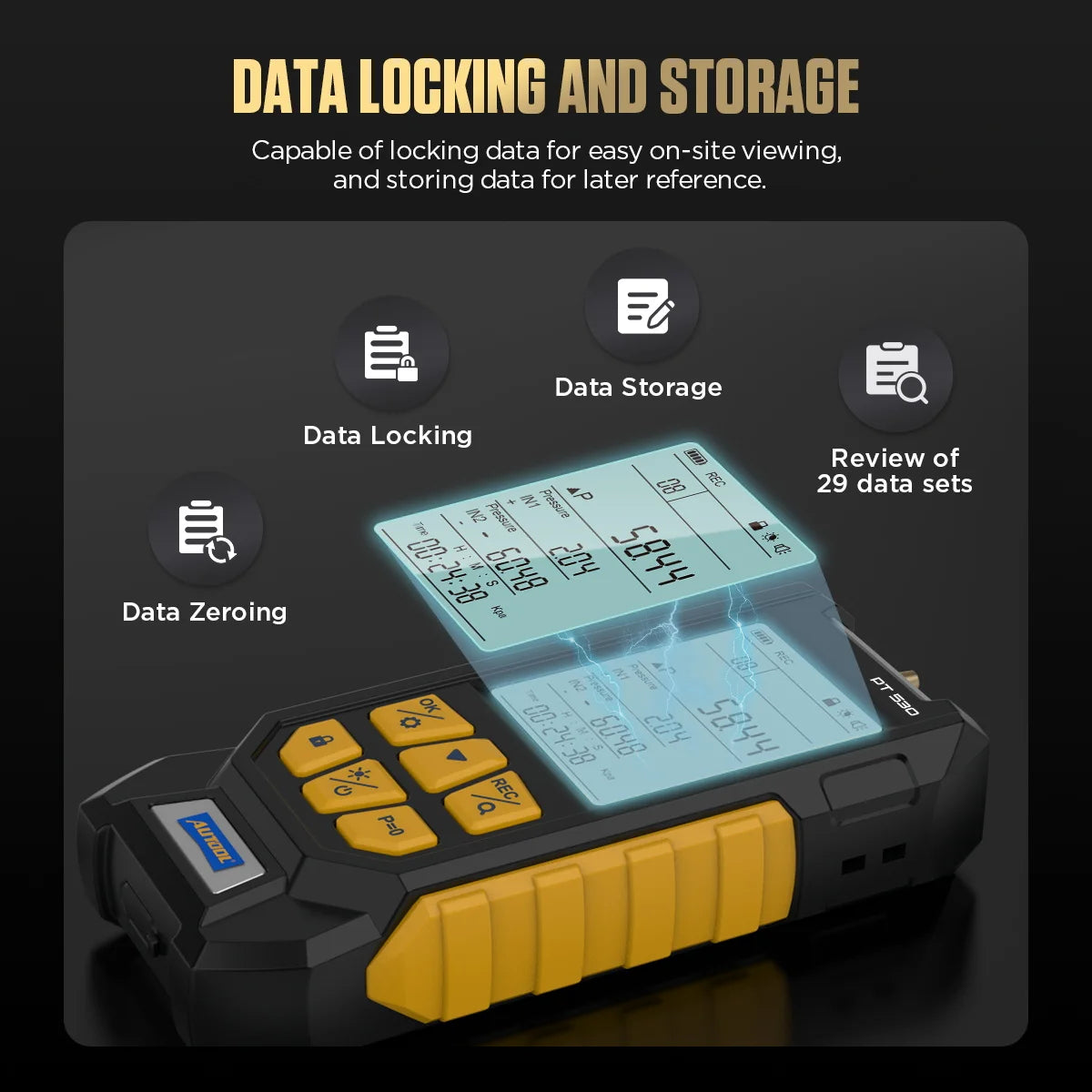

Data Locking, Storage & Reset – Store up to 29 data sets, record Max/Min values, and quickly reset for new tests.
Automatic Power-Off – Saves battery life by shutting down after 10 minutes of inactivity.

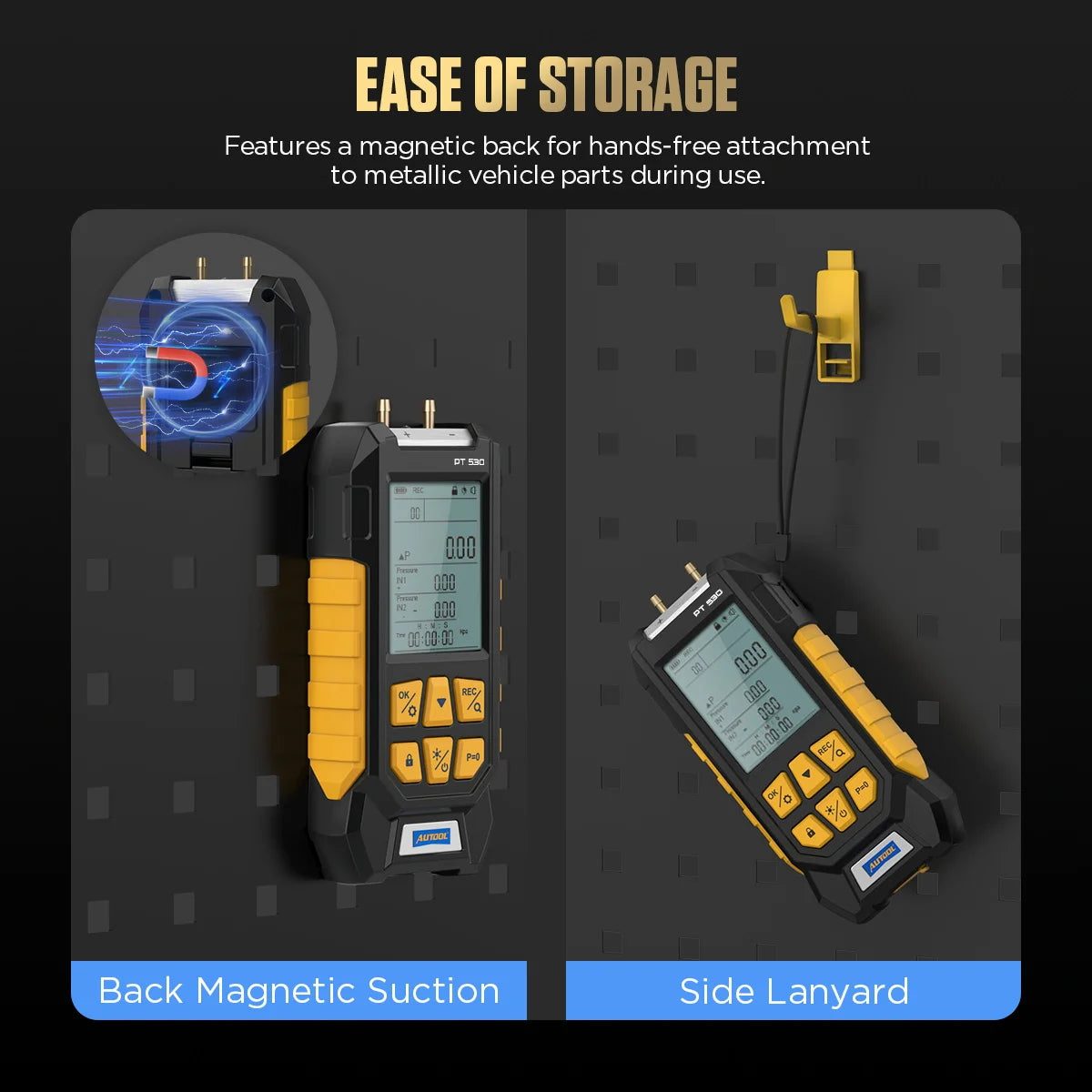

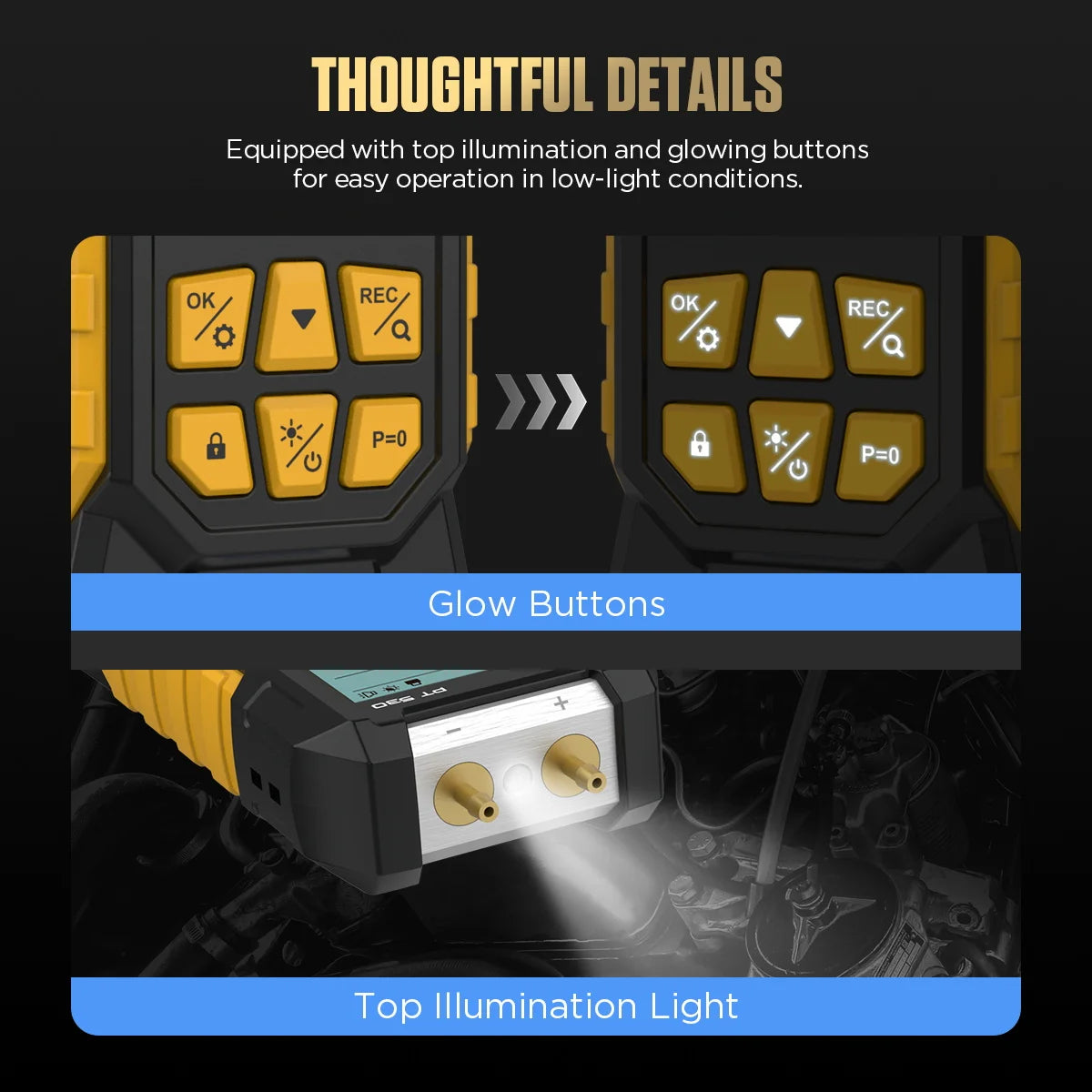

User-Friendly Design – Features top illumination, glow-in-the-dark buttons, and a magnetic back for hands-free attachment to metal surfaces.

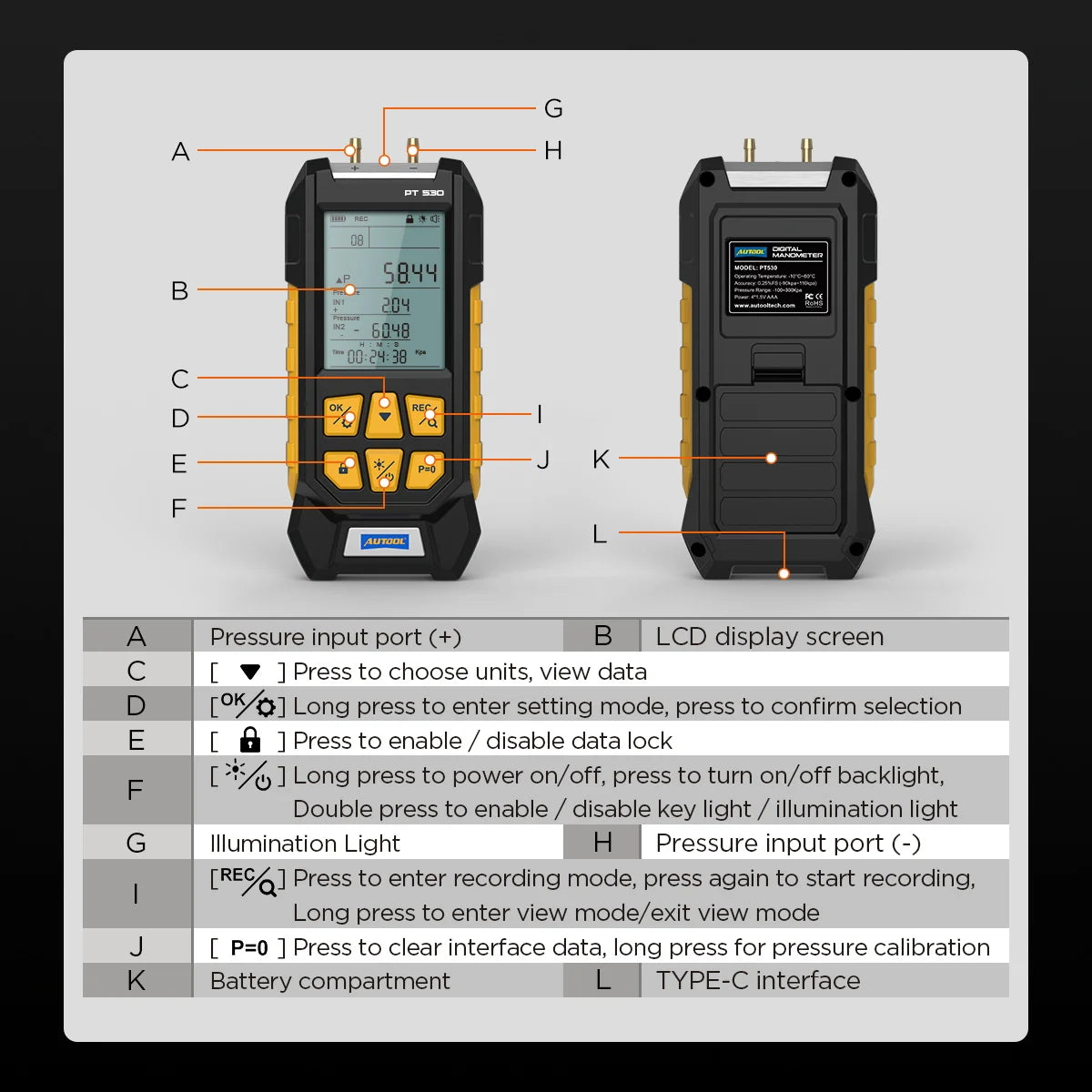

Dual Port Design – Supports accurate differential pressure measurements.
Product Specifications:
Power Supply: 4 × 1.5V AAA batteries
Measurement Range: –100 to 300 kPa / –1000 to 3000 hPa
Accuracy: ±0.25% FS
Resolution: 0.1 kPa / 1 hPa
Operating Temp: –10°C to 60°C
Storage Temp: –20°C to 65°C
Units: hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, PSI, kPa, kg/cm²
Whether you’re diagnosing automotive vacuum systems, testing brake boosters, or checking industrial pipelines, the AUTOOL PT530 delivers the accuracy, versatility, and ease-of-use you need for professional results.
