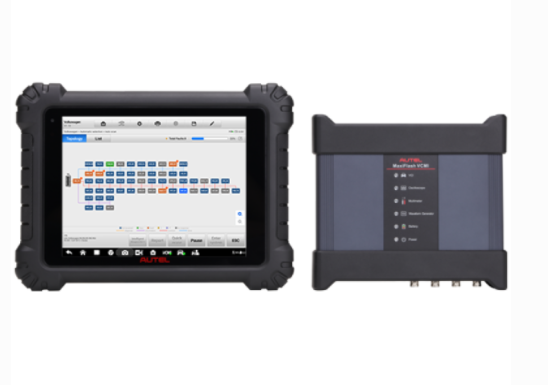

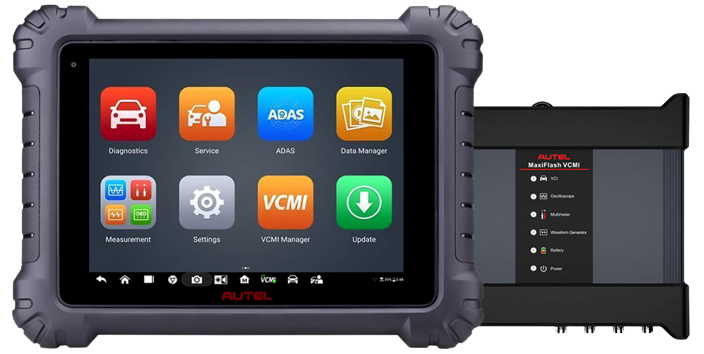

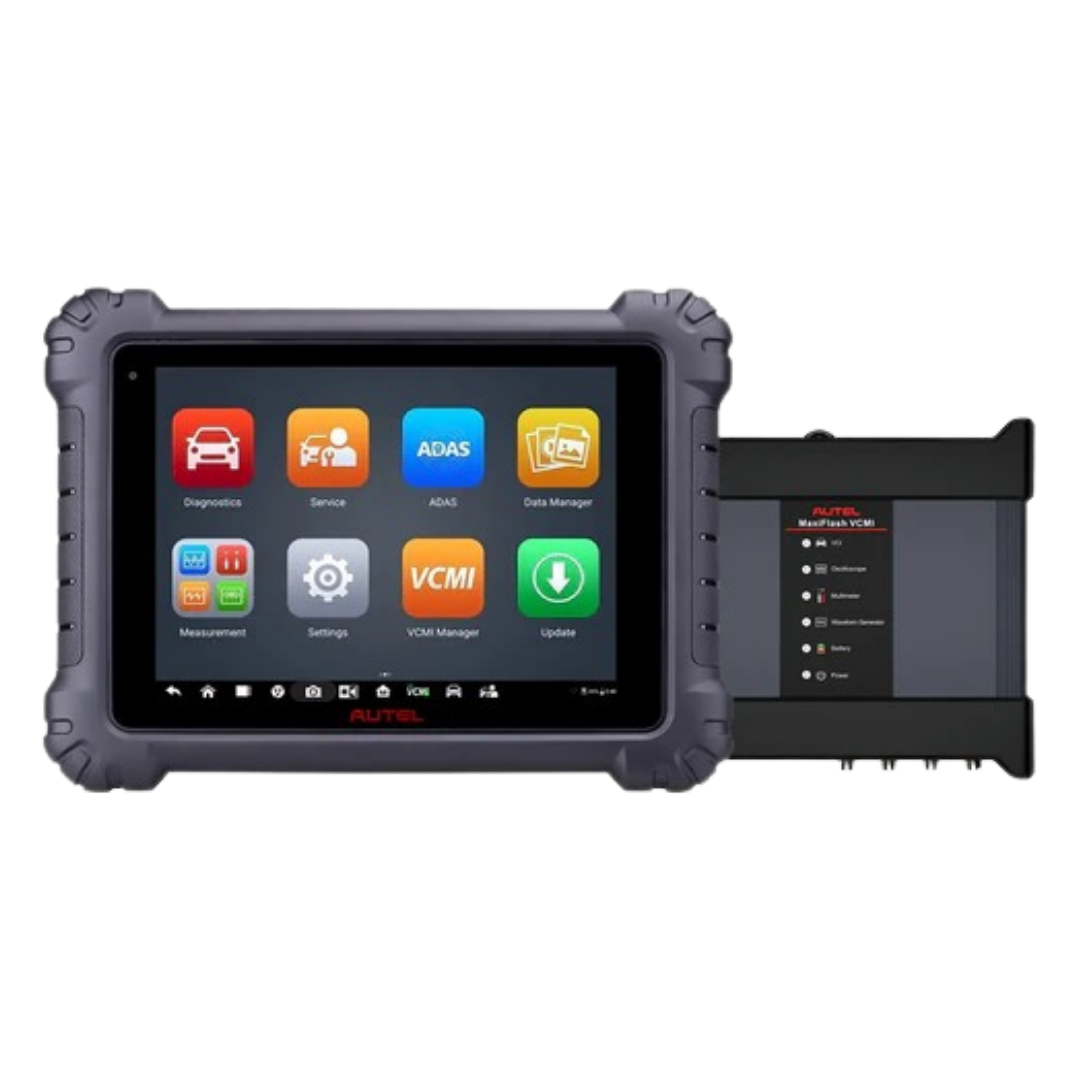

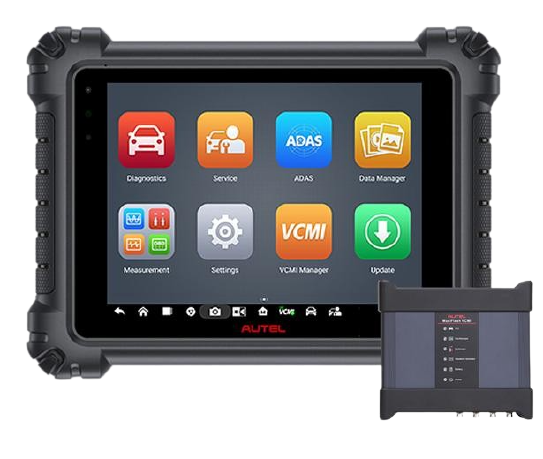

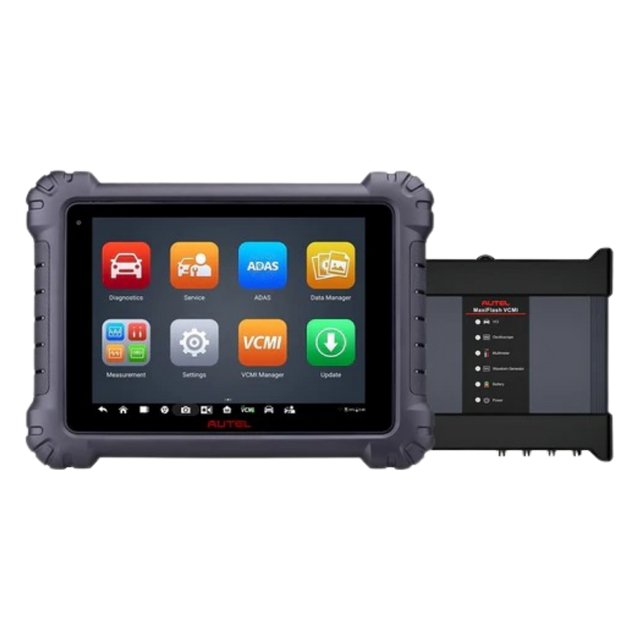

Autel MaxiSys MS919 – Advanced Diagnostic Tablet with VCMI 5-in-1 Device

The Autel MaxiSys MS919 is a powerful and intelligent diagnostic tablet designed for professional automotive workshops and master technicians. It delivers OE-level diagnostics, advanced ECU coding, and guided repair assistance, combining the latest hardware with Autel’s most advanced software to streamline the entire diagnostic and repair process.

Equipped with a 9.7-inch high-resolution touchscreen, octa-core processor, and 128GB of storage, the MS919 offers exceptional speed and smooth performance, even when running multiple apps. It comes with the MaxiFlash VCMI, a 5-in-1 multifunction device that works as a:

• Vehicle Communication Interface (VCI)

• 4-Channel Oscilloscope

• Multimeter

• Waveform Generator

• CAN BUS Tester

With this versatile toolset, the MS919 gives technicians everything they need to test, diagnose, and repair vehicles with maximum accuracy and efficiency.

Includes two years of free software updates
Comes with Australian software, including coverage for Holden and Ford.

Why Choose the MS919

• High-speed performance with 4GB RAM, 128GB storage, and a fast octa-core processor

• True 5-in-1 VCMI with oscilloscope, multimeter, waveform generator, CAN BUS tester, and VCI

• 36+ special functions for comprehensive vehicle servicing and maintenance

• Bi-directional controls to activate and test vehicle components

• Advanced ECU coding and programming for supported brands such as BMW and Mercedes-Benz

• Dynamic topology mapping for a clear, colour-coded view of vehicle systems

• Step-by-step repair guidance with diagrams, tips, and guided testing

Key Features

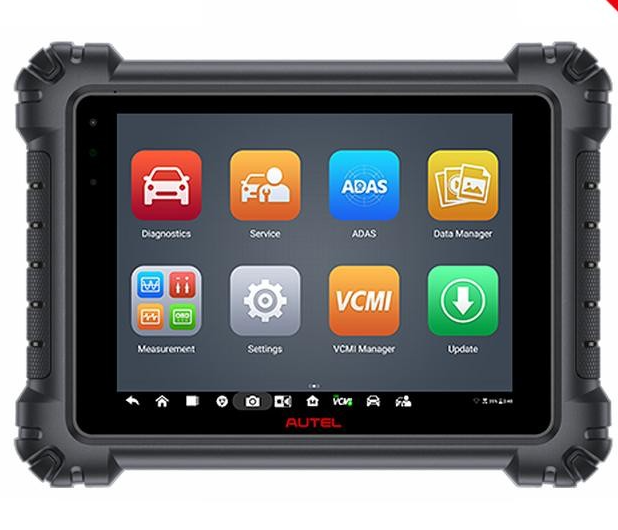

• 9.7-inch touchscreen display with 1536 × 2048 resolution

• MaxiFlash VCMI with dual Wi-Fi for fast and stable connections

• Guided oscilloscope tests and waveform library for precise diagnostics

• ScanVIN and license plate recognition for quick vehicle identification

• Secure FCA gateway access with AutoAuth subscription

• PreSCAN and PostSCAN reporting for professional documentation

• Cloud-based data management for vehicle records and diagnostic reports

• Interactive data logging with direct support from Autel technicians

Compatible with the following add-ons

Autel MaxiBAS BT506 Bluetooth Battery Tester

Autel MV105S Digital Inspection Camera

Autel EV Diagnostic Upgrade Kit

MSOAK - Oscilloscope Accessory Kit

Advanced Diagnostic Functions

The MS919 provides OE-level coverage for over 80 U.S., European, Asian, and Australian vehicle makes, including luxury and performance brands.

Core Capabilities

• Read and clear diagnostic trouble codes (DTCs)

• Live data streaming and graphing

• Bi-directional testing for real-time component activation

• ECU coding and programming

• Complete system scanning and analysis

36+ Special Functions

• Oil reset

• Electronic parking brake (EPB) service

• Diesel particulate filter (DPF) regeneration

• Steering angle sensor (SAS) calibration

• Battery management system (BMS) reset

• Tyre pressure monitoring system (TPMS) reset

• ABS brake bleeding

• Key programming and IMMO functions

• Injector coding

• Transmission and powertrain adaptation

• Hybrid battery reset

• Oxygen sensor calibration

• EGR (Exhaust Gas Recirculation) adaptation

• Airbag (SRS) reset

• Parking aid calibration

• Idle speed adjustment

• Fuel and ignition system testing

• And more

Functions vary depending on vehicle make, model, and year.

To check what functions are available for each vehicle click here

Specifications

• Operating System: Android 7.0

• Processor: Samsung Exynos8895V Octa-core (2.3GHz Quad + 1.7GHz Quad)

• Memory: 4GB RAM + 128GB storage

• Display: 9.7-inch TFT-LCD, 1536 × 2048 resolution

• Battery: 15,000mAh lithium-polymer, up to 8 hours continuous use

• Rear Camera: 16MP autofocus with flashlight

• Front Camera: 5MP

• Connectivity: Dual-band Wi-Fi, Bluetooth v2.1 + EDR, GPS, USB 2.0, HDMI, SD card (up to 256GB)

• Supported Protocols: DoIP, CAN FD, D-PDU, J2534, ISO-15765, and more

• Dimensions: 304.4 × 227.8 × 42.5 mm

• Weight: 1.66kg (3.66 lbs)

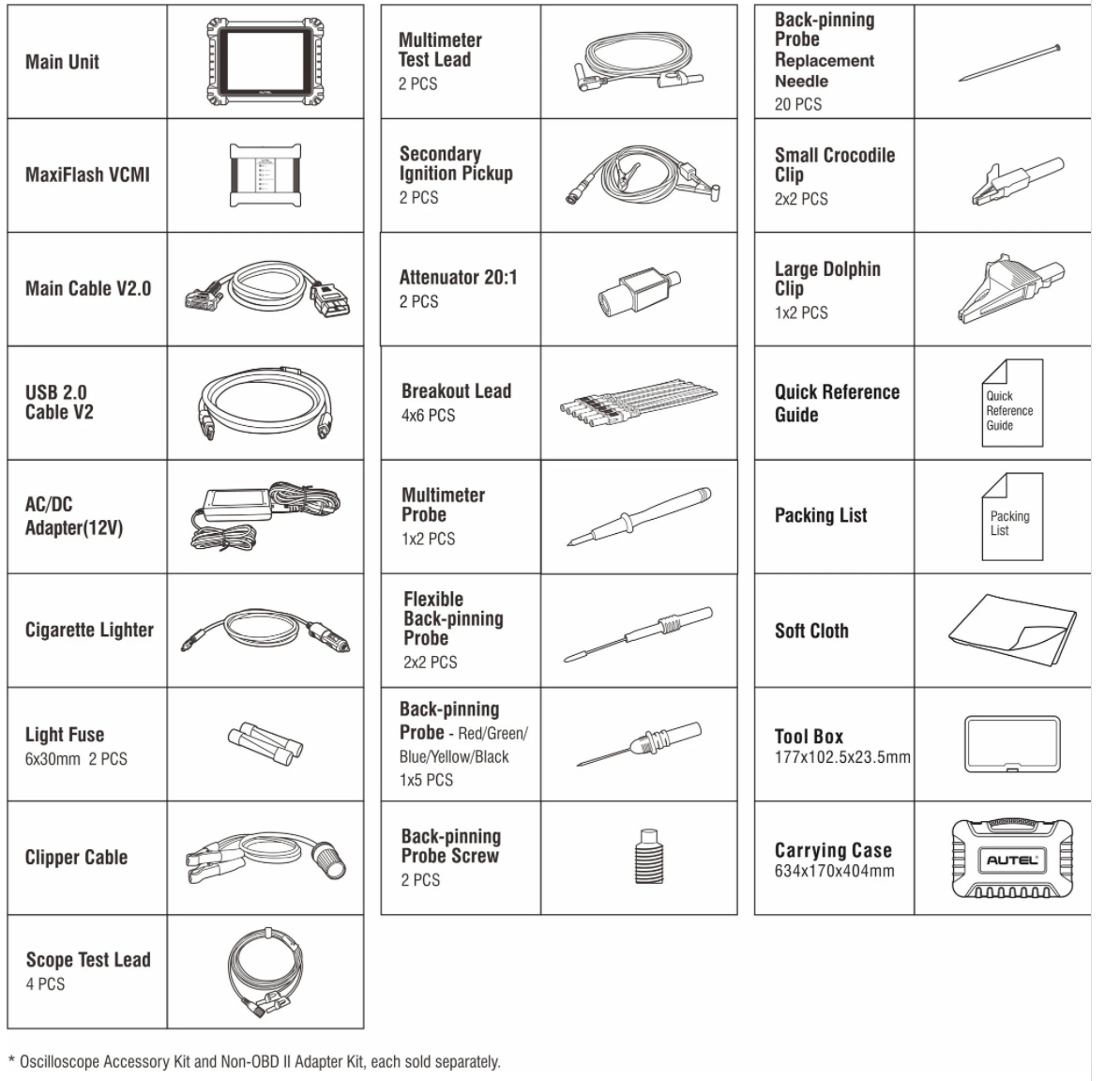

Package Contents

• MS919 main tablet

• MaxiFlash VCMI 5-in-1 device

• Main cable V2.0

• USB 2.0 cable V2

• AC/DC power adapter (12V)

• Cigarette lighter adapter

• Two light fuses

• Clipper cable

• Quick reference guide

• Soft cloth

• Packing list

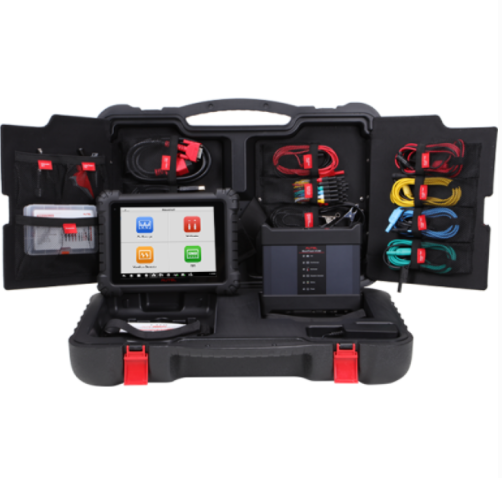

• Rugged carrying case
