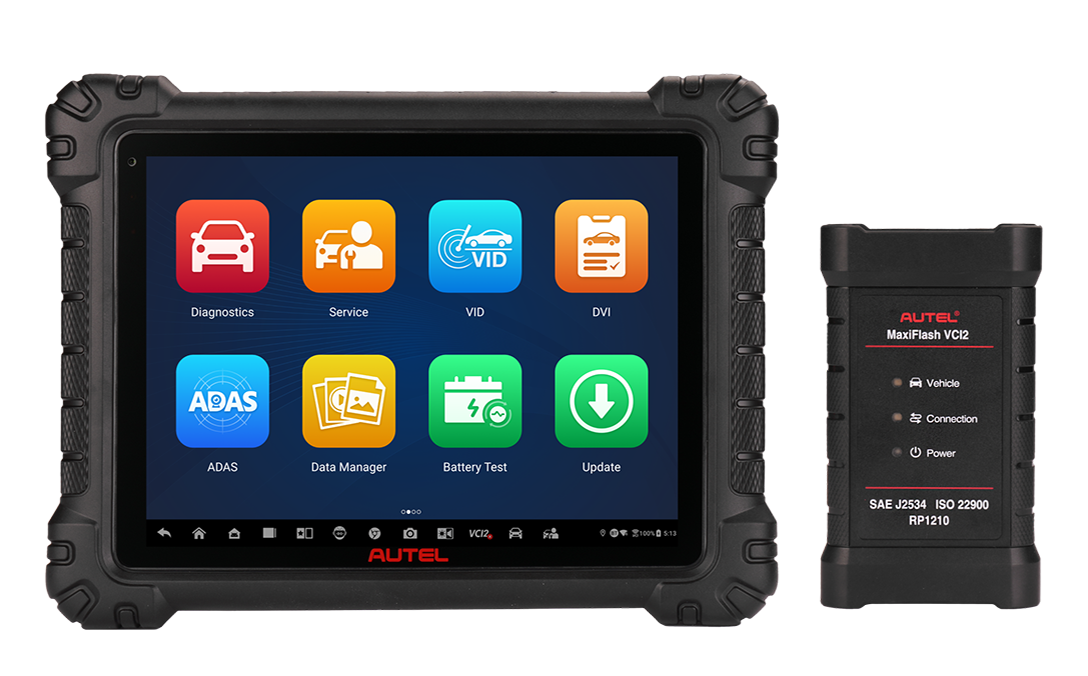

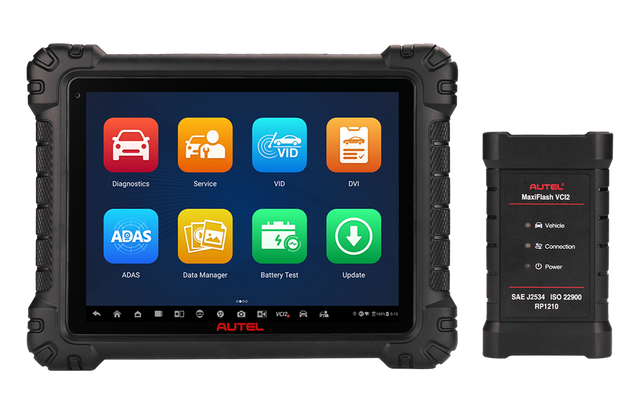

Autel MaxiSys MS909S2 Professional Diagnostic & ECU Programming Scan Tool

The Autel MaxiSys MS909S2 is a high-end professional automotive diagnostic scan tool built for workshops, diagnostic technicians and automotive specialists who need advanced diagnostics, ECU programming, coding and vehicle system analysis in one powerful platform.

Designed as part of Autel’s premium MaxiSys range, the MS909S2 combines a fast diagnostic tablet with the MaxiFlash VCI/J2534 interface, providing extensive vehicle coverage and the capability to perform advanced programming, coding, topology mapping, active tests and guided diagnostic functions on supported vehicles.

Advanced ECU Programming & Coding

The MS909S2 provides ECU programming capabilities for supported vehicle manufacturers, allowing workshops to carry out functions such as ECU replacement, software programming and module configuration where supported.

It also offers extensive ECU coding and adaptation functions, including component matching, customisation, retrofits and vehicle-specific coding procedures.

Programming and coding capabilities vary by vehicle manufacturer, model, year and control module.

Intelligent Vehicle Diagnostics

Go beyond simply reading and clearing fault codes. The MS909S2 provides comprehensive system diagnostics with advanced functions including:

• Full-system vehicle scanning

• Read and clear diagnostic trouble codes

• Live data viewing and graphing

• Bi-directional controls / active tests

• ECU coding and adaptations

• ECU programming on supported vehicles

• Auto VIN and vehicle identification

• Topology module mapping on supported vehicles

• Service and maintenance functions

• Special functions and relearns

• Vehicle health reports

• Pre-scan and post-scan reporting

Bi-Directional Active Testing

The MS909S2 allows technicians to command supported vehicle components directly from the scan tool to assist with fault finding.

Depending on the vehicle, this can include activating or testing components such as:

• Fuel pumps

• Cooling fans

• Injectors

• Solenoids and valves

• Door locks and windows

• Lighting systems

• Electronic parking brakes

• HVAC components

• Relays and actuators

This makes it much easier to determine whether a fault is caused by the component itself, its wiring, control module or another part of the system.

Extensive Service & Special Functions

Topology Mapping

On supported vehicles, the MS909S2 can display the vehicle's electronic control modules in an easy-to-understand network topology map.

Technicians can quickly identify which modules are communicating correctly, locate modules containing faults and see how the vehicle's control systems are connected.

Data-Driven Diagnostics with Enhanced PID Analysis.

Enhanced graphing capability to visualize multiple parameters to identify the relationship between PIDs and pinpoint system anomalies.

Record and compare value changes across multiple systems.

Multi-PID selection for analyzing related parameters simultaneously1. Ideal for engine fault and performance and emissions troubleshooting.

A diagram of the vehicle system process with relevant live data displayed at critical process points.

Enhanced split-screen diagnostics, diagnostics+X (multiple applications).

Hands-free virtual assistant MAX enables hands-free navigation of the MS909S2 interface and provides verbal command functionality for various tasks and functions. Effortlessly initiate a system scan, access maintenance tasks, or execute active tests.

Network topology 3.0, dynamic network analysis, at a glance color-coded module status.

Enhanced oscilloscope functionality, active scope directly from live data analysis.

Advanced digital vehicle inpection through multi-point DVI.

MaxiFlash VCI / J2534 Interface

The included MaxiFlash communication interface provides advanced communication between the vehicle and MS909S2 tablet and supports J2534 Pass-Thru programming applications.

This gives professional workshops significantly greater capability when working with replacement control modules and manufacturer programming procedures.

Built for Professional Workshops

The Autel MS909S2 is designed for technicians who need more than a basic diagnostic scanner. Its combination of advanced diagnostics, programming capability, bi-directional testing and intelligent vehicle analysis.

When you purchase your Autel diagnostic equipment from Premium Diagnostic Equipment, you're not just buying a scan tool, you're getting Australian-based technical support from a team that actually understands automotive diagnostics.

We can assist with setup, software, vehicle connection and diagnostic functions, including remote technical support via TeamViewer when required.

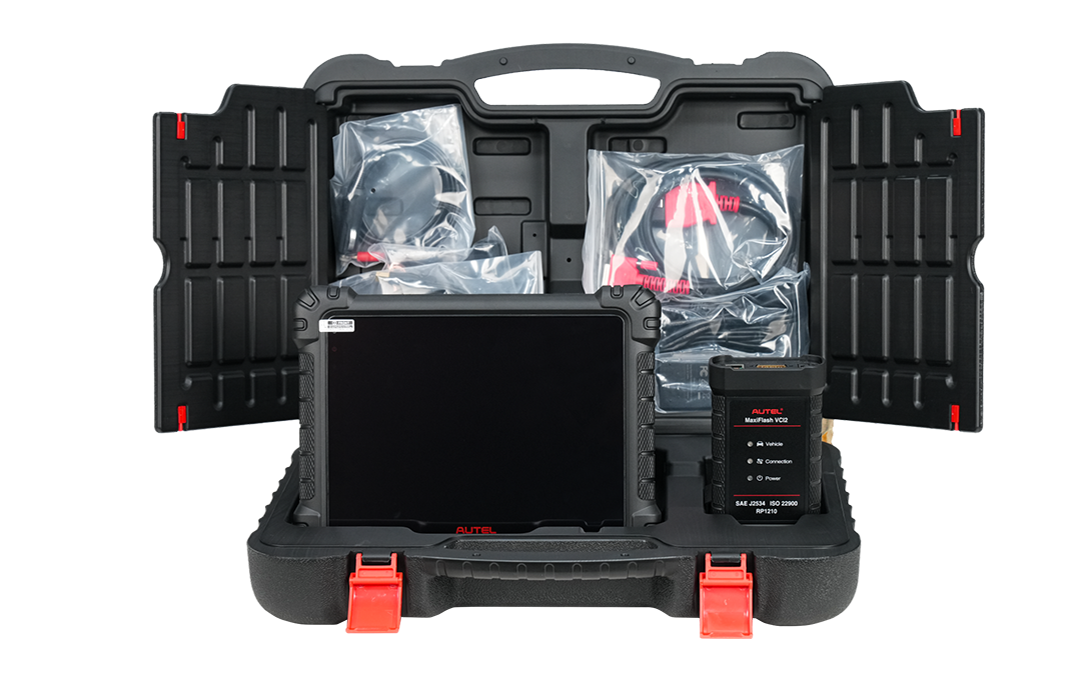

What's in the box

• MaxiSYS MS909 S2 tablet
• MaxiFLASH VCI2 wireless VCI
• Charging adapters and cables
• Carry case

Backed by Premium Diagnostic Equipment

Every tool we sell comes with local Australian support from our own team. Whether you need help setting up or getting through a tricky job, we're a phone call or remote session away.
