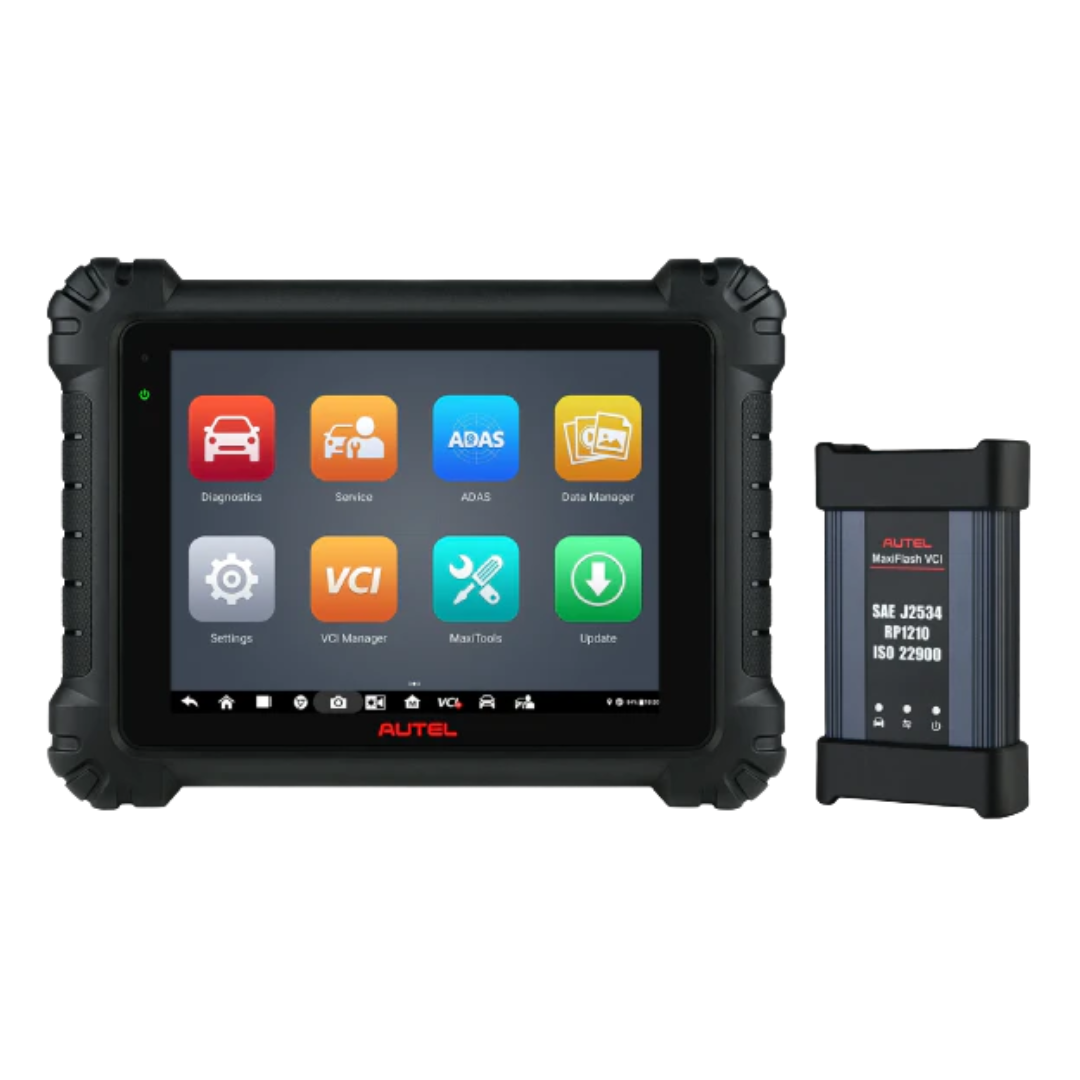

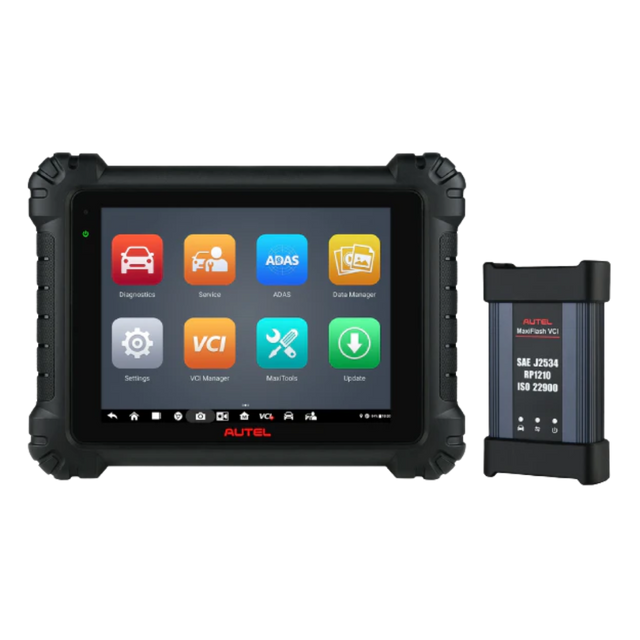

Autel MaxiSYS MS909 – Advanced Diagnostic Tablet with Dual Wi-Fi VCI

The Autel MaxiSYS MS909 is a professional-grade diagnostic tablet built to deliver OE-level functionality, advanced vehicle communication, and intelligent repair guidance. Featuring a 10-inch touchscreen, octa-core processor, and 128GB of built-in memory, the MS909 offers fast, reliable performance for busy workshops and technicians.

Equipped with the new MaxiFlash VCI, this device supports dual Wi-Fi communication for faster, more stable connections to both vehicles and networks. With powerful features like topology mapping, repair assistance, and guided diagnostics, the MS909 helps technicians identify, diagnose, and repair issues efficiently and accurately.

Includes two years of free software updates
All our Autel scan tools come loaded with Australian software, including coverage for Holden and Ford.

Key Highlights

• 10-inch touchscreen display (1536 x 2048 resolution)

• Powerful Octa-core processor – 2.3GHz Quad + 1.7GHz Quad

• 128GB built-in memory for storing vehicle records and reports

• MaxiFlash VCI with dual Wi-Fi for faster, more stable communication

• 8 hours of continuous use with a 15,000mAh rechargeable battery

• High-quality 16MP rear and 5MP front cameras

• Two years of free software updates included

Advanced Diagnostic Features

• OE-Level Coverage – Supports 80+ vehicle makes, including US, Asian, European, Australian and supercars.

• Full System Diagnostics – Access and diagnose all available vehicle systems.

• ECU Coding & Programming – Advanced programming and module configuration.

• Automatic Software Updates – Receive real-time notifications and updates via Wi-Fi.

• The Autel MaxiSYS MS909 supports 36 special functions.

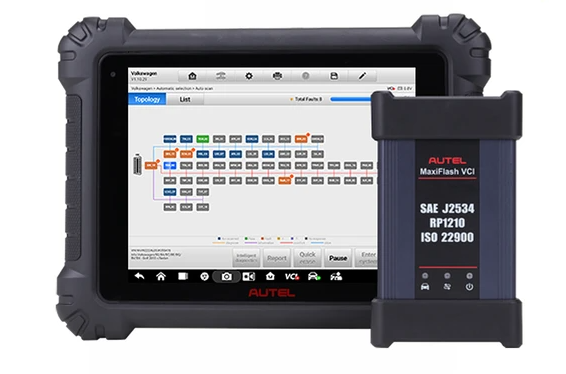

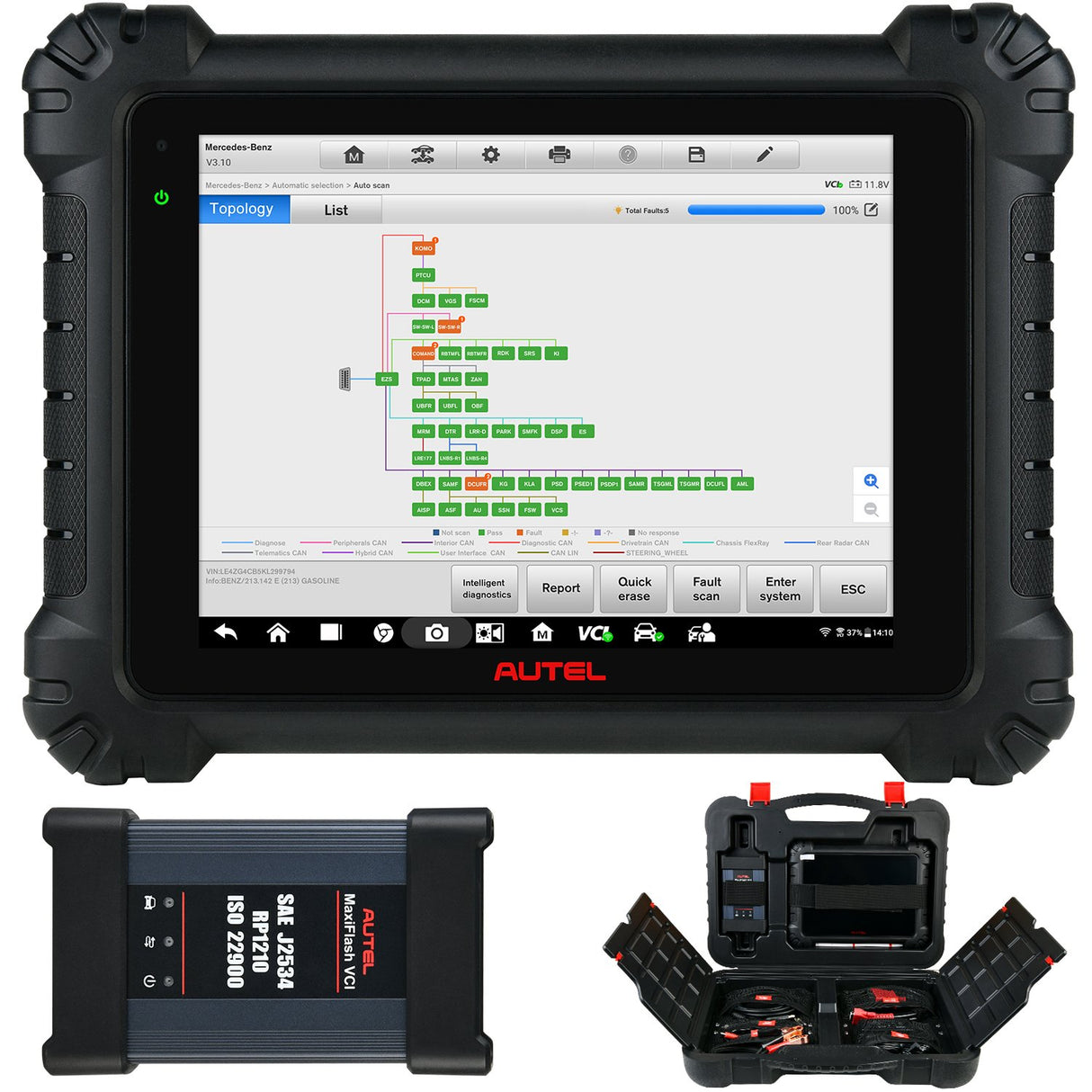

• Topology Mapping – Visual, color-coded view of vehicle systems (on supported vehicles).

• Broader Protocol Support - In addition to D‑PDU, DoIP, and CAN FD, the MS909 now supports RP1210, J2534, and ISO 22900, making it compatible with virtually all modern vehicles.

• Repair Assist – Step-by-step guided diagnostics and fault code solutions.

• Code-Related TSBs – Access technical service bulletins to aid repair accuracy.

• ScanVIN & License Plate Recognition – Identify vehicles quickly and accurately.

• Secure Gateway Access – Support for FCA vehicles using AutoAuth (subscription or cable required).

• Cloud Data Management – Securely save customer and vehicle information.

• Interactive Data Logging – Directly connect with the team at PDE or Autel support for troubleshooting.

• ADAS Compatible- Upgradeable for advanced calibration work

Compatible with the following add-ons

Autel BT506 Battery Tester

MV105S Inspection Camera

Specifications

• Display: 10-inch touchscreen, 1536 x 2048 resolution

• Operating System: Android 7.0

• Processor: Octa-core (2.3GHz Quad + 1.7GHz Quad)

• Memory: 128GB internal storage

• Battery: 15,000mAh for up to 8 hours continuous use

• Rear Camera: 16MP autofocus

• Front Camera: 5MP

• Connectivity: Dual Wi-Fi, Bluetooth, USB

• VCI Protocols Supported: D-PDU, DoIP, CAN FD, Mega CAN

• Dimensions (Case): 504 x 133 x 360 mm

• Weight (Main Unit): 2.18kg (4.81 lbs)

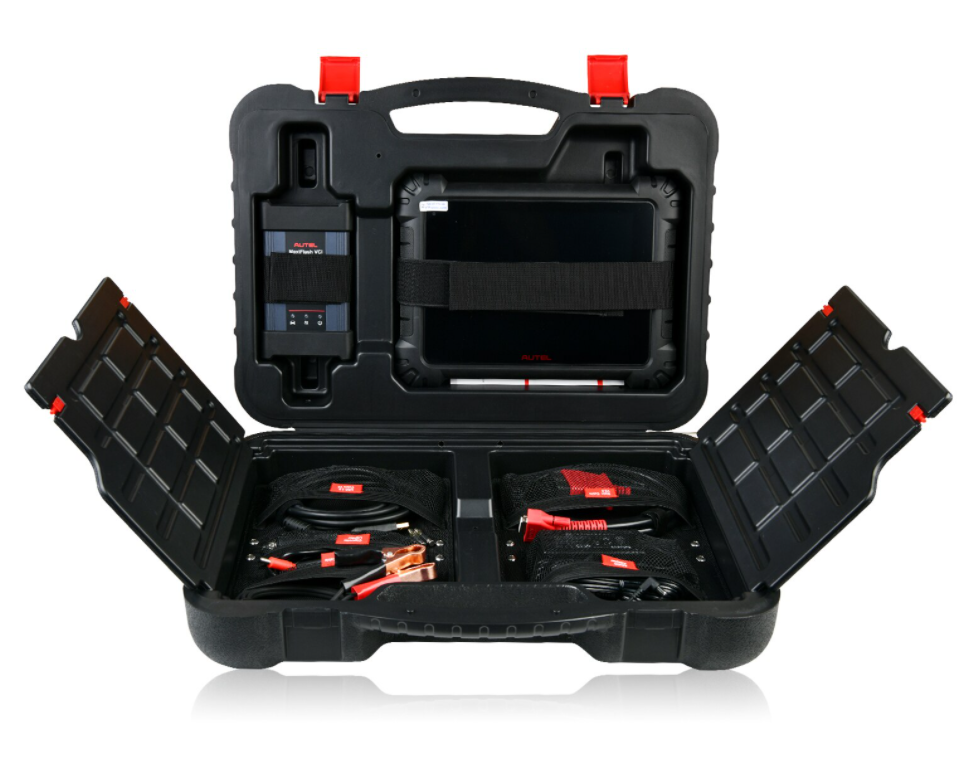

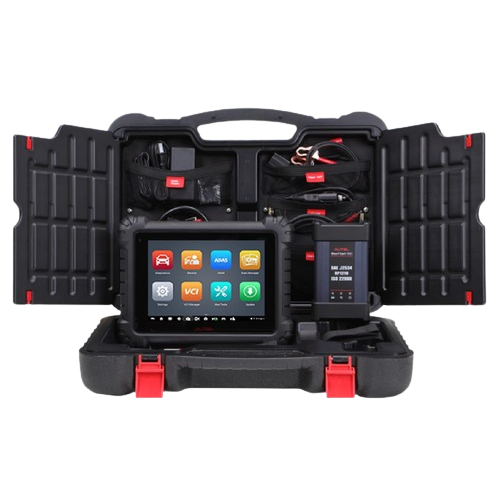

Package Contents

• MS909 main unit

• MaxiFlash VCI

• Main cable V2.0

• USB 2.0 cable V2

• AC/DC power adapter (12V)

• Cigarette lighter adapter

• Light fuses (x2, 6x30mm)

• Clipper cable

• Quick reference guide

• Soft cloth

• Packing list

• Rugged carrying case

 To check what functions are available for each vehicle click here
