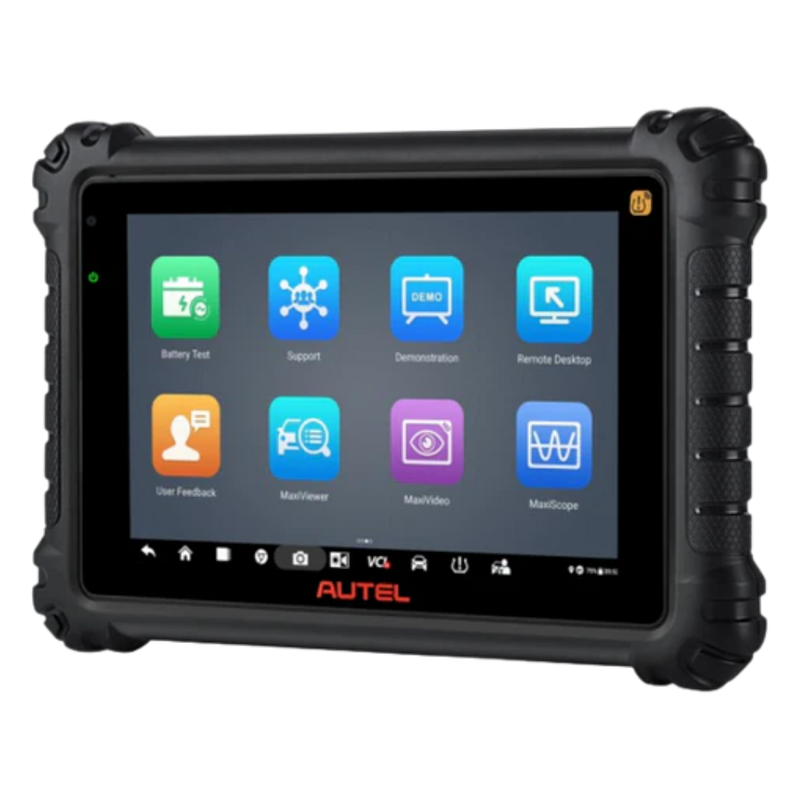

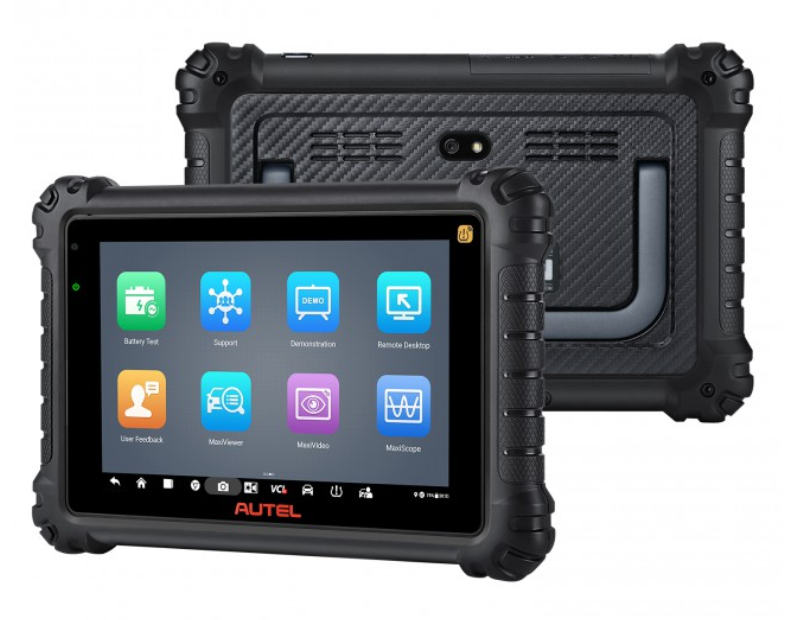

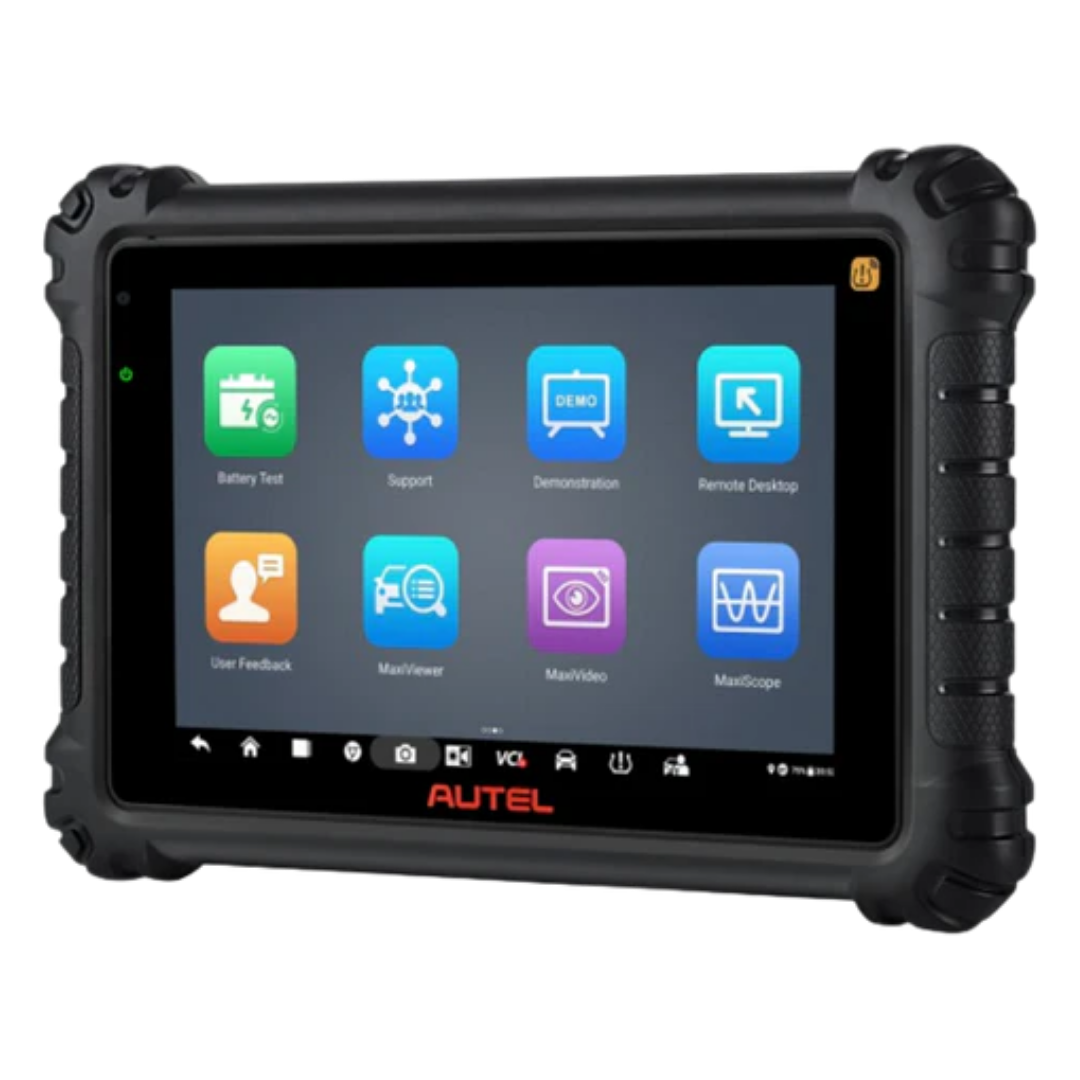

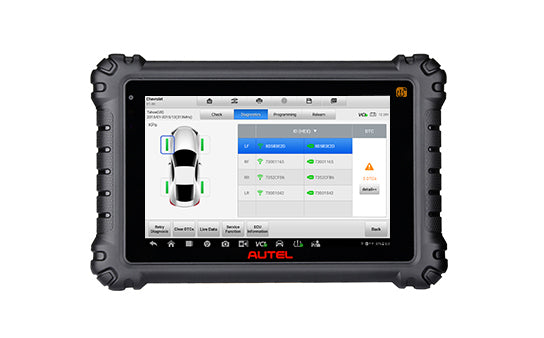

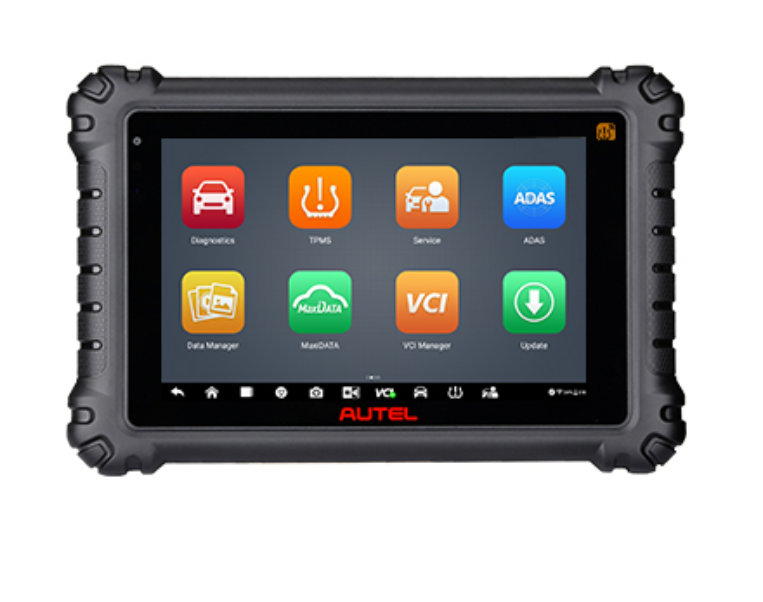

Autel MaxiCOM MK906 Pro-TS Diagnostic Scan Tool with TPMS

$2,999.00

The Autel MaxiCOM MK906 Pro-TS is a powerful, professional-grade bi-directional diagnostic scan tool that combines advanced ECU coding, comprehensive TPMS functions, and full-system diagnostics. Designed for workshops, technicians, and automotive specialists, it offers OE-level accuracy, intuitive operation, and wide vehicle coverage across Australian, U.S., European, and Asian models.



Advanced ECU Coding and Adaptations

The MK906 Pro-TS supports ECU/module replacement and coding functions for initializing, matching, relearning, or configuring new modules. Perform advanced functions such as unlocking hidden features, adapting control units, and coding for BMW F/E chassis, Porsche, Ford, and more.

Bi-Directional Control and Active Tests

With full bi-directional capability, the MK906 Pro-TS can send commands to vehicle systems to test functionality and diagnose faults. Operate actuators such as windows, mirrors, injectors, fans, lights, and locks to verify system performance without using manual controls.

Comprehensive TPMS Service Tool

Equipped with an integrated TPMS antenna module, the MK906 Pro-TS can activate and relearn 99% of sensors on the market. It reads and clears TPMS codes, performs sensor checks, scans tyre health status, and programs Autel MX-Sensors. View sensor ID, pressure, temperature, battery condition, position, and frequency — all from one interface.

OE-Level All Systems Diagnosis

Access and diagnose all major vehicle systems including engine, transmission, ABS, airbags, immobilizer, suspension, steering, body control, lighting, infotainment, climate control, and more. The MK906 Pro-TS performs full-code reading, clearing, live data streaming, freeze frame viewing, and component testing.



Software Highlights

  • Advanced ECU coding and adaptation for module replacement and configuration

  • Guided functions for VAG vehicles

  • 33+ special maintenance services including oil reset, EPB, DPF, SAS, injector coding, throttle relearn, and TPMS reset

  • Auto VIN and Auto Scan for quick vehicle identification

  • Cloud-based report storage and management

  • Supports ADAS calibration with optional frame system and software

  • Compatible with the Autel BT506 battery tester (sold separately)

  • 1 year of free software updates



To check what functions are available for each vehicle click here.



Hardware Specifications

Specification Details
Display 8” Touchscreen (1920×1200 Resolution)
Processor Octa-Core CPU
Storage 128GB Internal Memory
Battery 11,600mAh Rechargeable
Cameras Front: 16MP / Rear: 16MP
Connectivity MaxiVCI V200 Bluetooth Interface
Protocols Supports latest CAN FD, DoIP, and other communication protocols



Vehicle Coverage

Compatible with 99% of vehicles from Australia, the U.S., Europe, and Asia. Provides OE-level access for over 10,000 vehicle models, including support for Holden and Ford Australian software.

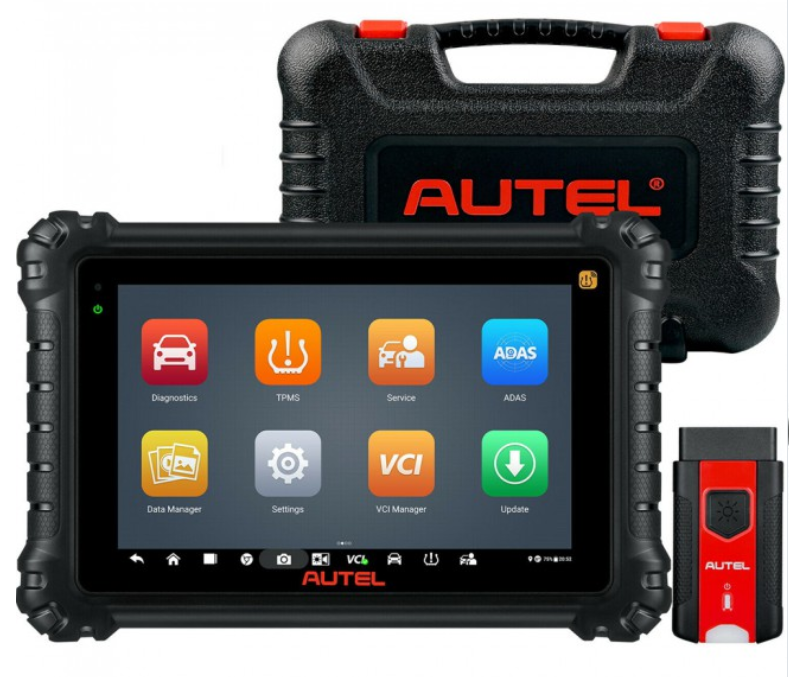

What’s Included

  • 1 × Autel MaxiCOM MK906 Pro-TS Tablet (128GB)

  • 1 × MaxiVCI V200 Bluetooth Interface

  • 1 × AC/DC Power Adapter (12V)

  • 1 × Type-C USB Cable

  • 1 × Cigarette Lighter Cable + Fuses

  • 1 × USB to Ethernet Adapter

  • 1 × Quick Reference Guide

  • 1 × Soft Cleaning Cloth

  • 1 × Carrying Case

  • 1 × Packing List



Warranty and Updates

Includes 1 year of free software updates and Autel warranty coverage, ensuring up-to-date vehicle compatibility and long-term reliability.
